Contents

User Manual

Quick Start
902173_01
2

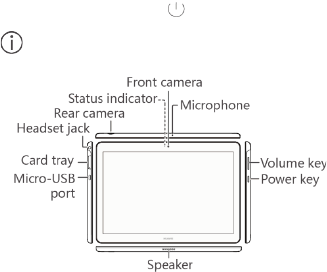

1 Your device at a glance
Before you start, let's take a look at your new device.
To power on your device, press and hold the power
button until your device vibrates and the screen turns
on.
To power off your device, press and hold the power
button, and then touch .
To force your device to restart, press and hold the
power button until your device vibrates.
2 Getting started
Follow the instructions in the following figures to set up
your device.
3
Do not insert or remove the card tray when your
device is powered on.
Ensure that the card is correctly aligned and that
the card tray is level when you insert it into your
device.
Be careful not to scratch your device or hurt
yourself when using the eject pin. Store the eject
pin out of the reach of children to prevent
accidental swallowing or injury.
4
Do not use cut or modified SIM or microSD cards
with your device as these may not be recognized
and could damage the card tray.
3 For more information
If you encounter any problems while using your device,
you can obtain help from the following resources:
Log on to the official Huawei website. You can:
Visit http://consumer.huawei.com/en/ to download
user guides, view frequently asked questions, and
use emulators to test out Huawei products.
Visit http://consumer.huawei.com/en/support/hotline
for the most up-to-date contact information for your
country or region.
Go to
Settings
and touch
About tablet
>
Legal
information
to view legal information for your product.
Go to
Settings
and touch
About tablet
>
Legal
information
>
Safety information
to view safety
information for your product.
Go to
Settings
and touch
About tablet
>
Authentication info
to view regulatory information for
your product.
Go to
Settings
and touch
About tablet
>
Certification logos
to view more information on
certification logos for your product.
All pictures and illustrations in this guide, including
but not limited to the product color, size, and
5
display content, are for your reference only. The
actual product may vary. Nothing in this guide
constitutes a warranty of any kind, express or
implied.
4 Safety Information
Please read all of the safety information carefully before
using your device to ensure its safe and proper operation
and to learn how to dispose of your device properly.
Operation and safety
To prevent possible hearing damage, do
not listen at high volume levels for long periods.
Using an unapproved or incompatible power adapter,
charger, or battery may damage your device,
shorten its lifespan, or cause a fire, explosion, or
other hazards.
Ideal operating temperatures are 0 °C to 35 °C. Ideal
storage temperatures are -40 °C to +70 °C.
Pacemaker manufacturers recommend that a
minimum distance of 15 cm be maintained between
a device and a pacemaker to prevent potential
interference with the pacemaker. If using a
pacemaker, hold the device on the side opposite the
pacemaker and do not carry the device in your front
pocket.
6
Keep the device and the battery away from
excessive heat and direct sunlight. Do not place
them on or in heating devices, such as microwave
ovens, stoves, or radiators.
Observe local laws and regulations while using the
device. To reduce the risk of accidents, do not use
your wireless device while driving.
While flying in an aircraft or immediately before
boarding, only use your device according to
instructions provided. Use of a wireless device in an
aircraft may disrupt wireless networks, present a
hazard to aircraft operation, or be illegal.
To prevent damage to your device's parts or internal
circuits, do not use it in dusty, smoky, damp, or dirty
environments or near magnetic fields.
When charging the device, make sure the power
adapter is plugged into a socket near the devices
and is easily accessible.
Unplug the charger from electrical outlets and the
device when not in use.
Do not use, store or transport the device where
flammables or explosives are stored (in a gas station,
oil depot, or chemical plant, for example). Using your
device in these environments increases the risk of
explosion or fire.
Dispose of this device, the battery, and accessories
according to local regulations. They should not be
disposed of in normal household waste. Improper
7
battery use may lead to fire, explosion, or other
hazards.
Disposal and recycling information
The crossed-out wheeled-bin symbol on your
product, battery, literature or packaging
reminds you that all electronic products and
batteries must be taken to separate waste
collection points at the end of their working
lives; they must not be disposed of in the normal waste
stream with household garbage. It is the responsibility of
the user to dispose of the equipment using a designated
collection point or service for separate recycling of waste
electrical and electronic equipment (WEEE) and batteries
according to local laws.
Proper collection and recycling of your equipment helps
ensure electrical and electronic equipment (EEE) waste is
recycled in a manner that conserves valuable materials
and protects human health and the environment, improper
handling, accidental breakage, damage, and/or improper
recycling at the end of its life may be harmful for health
and environment. For more information about where and
how to drop off your EEE waste, please contact your local
authorities, retailer or household waste disposal service or
visit the website http://consumer.huawei.com/en/.
Reduction of hazardous substances
This device and any electrical accessories are compliant
with local applicable rules on the restriction of the use of
certain hazardous substances in electrical and electronic
equipment, such as EU REACH, RoHS and Batteries
8
(where included) regulations, etc. For declarations of
conformity about REACH and RoHS, please visit our web
site http://consumer.huawei.com/certification.
EU regulatory conformance
Body worn operation
The device complies with RF specifications when used at
a distance of 0.5 cm from your body. Ensure that the
device accessories, such as a device case and device
holster, are not composed of metal components. Keep the
device away from your body to meet the distance
requirement.
The highest SAR value reported for this device type when
tested in portable exposure conditions is 0.99 W/kg.
Statement
Hereby, Huawei Technologies Co., Ltd. declares that this
device is in compliance with the essential requirements
and other relevant provisions of Directive 2014/53/EU.
The most recent and valid version of the DoC (Declaration
of Confirmation) can be viewed at
http://consumer.huawei.com/certification.
This device may be operated in all member states of the
EU.
Observe national and local regulations where the device
is used.
This device may be restricted for use, depending on the
local network.
Restrictions in the 2.4 GHz band:
9
Norway
: This subsection does not apply for the
geographical area within a radius of 20 km from the centre
of Ny-Ålesund.
Restrictions in the 5 GHz band:
According to Article 10 (10) of Directive 2014/53/EU, the
packaging shows that this radio equipment will be subject
to some restrictions when placed on the market in
Belgium (BE), Bulgaria (BG), the Czech Republic (CZ),
Denmark (DK), Germany (DE), Estonia (EE), Ireland (IE),
Greece (EL), Spain (ES), France (FR), Croatia (HR), Italy
(IT), Cyprus (CY), Latvia (LV), Lithuania (LT), Luxembourg
(LU), Hungary (HU), Malta (MT), Netherlands (NL),
Austria (AT), Poland (PL), Portugal (PT), Romania (RO),
Slovenia (SI), Slovakia (SK), Finland (FI), Sweden (SE),
the United Kingdom (UK), Turkey (TR), Norway (NO),
Switzerland (CH), Iceland (IS), and Liechtenstein (LI).
The WLAN function for this device is restricted to indoor
use only when operating in the 5150 to 5350 MHz
frequency range.
Frequency Bands and Power
(a) Frequency bands in which the radio equipment
operates: Some bands may not be available in all
countries or all areas. Please contact the local carrier for
more details.
(b) Maximum radio-frequency power transmitted in the
frequency bands in which the radio equipment operates:
The maximum power for all bands is less than the highest
limit value specified in the related Harmonized Standard.
10
The frequency bands and transmitting power (radiated
and/or conducted) nominal limits applicable to this radio
equipment are as follows:
GSM900:37dBm;GSM1800:34dBm;WCDMA
900/2100:25.7dBm,LTE B1/3/7/8/20/38/40:25.7dBm;Wi-Fi
2.4G: 20 dBm,Bluetooth: 20 dBm,Wi-Fi 5G: 5150-5350:
23 dBm, 5470-5725 30dBm.
Accessories and Software Information
Some accessories are optional in certain countries or
regions. Optional accessories can be purchased from a
licensed vendor as required. The following accessories
are recommended:
Adapters: HW-050100X01 (X represents the different plug
types used, which can be either C, U, J, E, B, A, I, R, Z or
K, depending on your region)
Batteries: HB3080G1EBC/HB3080G1EBW
Earphones: 1293#+3283#3.5MM-150,HA1-3
MEMD1532B528000
The product software version is AGS-L09C100B007.
Software updates will be released by the manufacturer to
fix bugs or enhance functions after the product has been
released. All software versions released by the
manufacturer have been verified and are still compliant
with the related rules.
All RF parameters (for example, frequency range and
output power) are not accessible to the user, and cannot
be changed by the user.
11
For the most recent information about accessories and
software, please see the DoC (Declaration of
Confirmation) at http://consumer.huawei.com/certification.
FCC Regulatory Compliance
Certification information (SAR)
This device is also designed to meet the requirements for
exposure to radio waves established by the Federal
Communications Commission (USA).
The SAR limit adopted by the USA is 1.6 W/kg averaged
over one gram of tissue. The highest SAR value reported
to the FCC for this device type complies with this limit.
The highest SAR value reported to the FCC for this device
type when using in portable exposure conditions is 1.37
W/kg.
FCC statement
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and
12
on, the user is encouraged to try to correct the
interference by one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and
receiver.
--Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
--Consult the dealer or an experienced radio/TV
technician for help.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and (2)
this device must accept any interference received,
including interference that may cause undesired
operation.
Caution:
Any changes or modifications to this device not
expressly approved by Huawei Technologies Co., Ltd. for
compliance could void the user's authority to operate the
equipment.
5 Legal Notice
Trademarks and Permissions
, , and are trademarks or
registered trademarks of Huawei Technologies Co., Ltd.
Android™ is a trademark of Google Inc.
13
LTE is a trademark of ETSI.
The Bluetooth
®
word mark and logos are registered
trademarks owned by Bluetooth SIG, Inc. and any use of
such marks by Huawei Technologies Co., Ltd. is under
license.
Wi-Fi
®
, the Wi-Fi CERTIFIED logo, and the Wi-Fi logo are
trademarks of Wi-Fi Alliance.
ENERGY STAR
®
MARK
For information related to ENERGY STAR
®
, please visit
the website www.energystar.gov.
Privacy Policy
To better understand how we protect your personal
information, please see the privacy policy at
http://consumer.huawei.com/privacy-policy.
Copyright © Huawei Technologies Co., Ltd. 2017.
All rights reserved.
THIS DOCUMENT IS FOR INFORMATION PURPOSE
ONLY, AND DOES NOT CONSTITUTE ANY KIND OF
WARRANTIES.
Note: Remember the Google account your device last
logged in to.
During an untrusted factory settings restoration or
microSD cardbased update, Google's anti-theft
mechanism requires you to enter the Google account your
device last logged in to on the startup navigation screen
for identity authentication. Your device can properly power
on only after the identity authentication passes.
14

Navigation menu
