AP6510DN-AGN-US Outdoor Wireless LAN Access Point
Quick Start Guide
HUAWEI TECHNOLOGIES CO., LTD.
Huawei Technologies Co., Ltd.
Address: Huawei Technologies Co., Ltd.
Bantian,Longgang
Shenzhen 518129
People’s Republic of China
Website: http://enterprise.huawei.com
Copyright © Huawei Technologies Co., Ltd. 2012. All rights reserved.
No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of
Huawei Technologies Co., Ltd.
Trademarks and Permissions
and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.
All other trademarks and trade names mentioned in this document are the property of their respective holders.
Notice
The purchased products, services and features are stipulated by the contract made between Huawei and the customer. All or
part of the products, services and features described in this document may not be within the purchase scope or the usage
scope. Unless otherwise specified in the contract, all statements, information, and recommendations in this document are
provided "AS IS" without warranties, guarantees or representations of any kind, either express or implied.
The information in this document is subject to change without notice. Every effort has been made in the preparation
of this document to ensure accuracy of the contents, but all statements, information, and recommendations in this document
do not constitute the warranty of any kind, express or implied.
1
Symbol Conventions
The symbols that may be found in this document are defined as follows.
Symbol Description
NOTE
CAUTION Indicates a potentially hazardous situation, which if not avoided, could
result in equipment damage, data loss, performance degradation, or
unexpected results.
Provides additional information to emphasize or supplement important
points of the main text.
2
Change History
Changes between document issues are cumulative. Therefore，the latest document issue contains all the changes in
previous issues.
Change in Issue 01 (2012-09-30)
Initial commercial release.
AP6510DN-AGN-US
Quick Start Guide
技术支持
Before performing Installation, confirm that the installation accessories and tools are available.
Installation tools: Technical Support
Huawei Technologies Co., Ltd.
Address: Huawei Industrial Base
Bantian,Longgang
Shenzhen 518129
People’s Republic of China
Website: http://enterprise.huawei.com
Installation
suite
Expansion
bolt
M4X12 hexagon
socket head cap
screw
Hoop
Installation accessories:

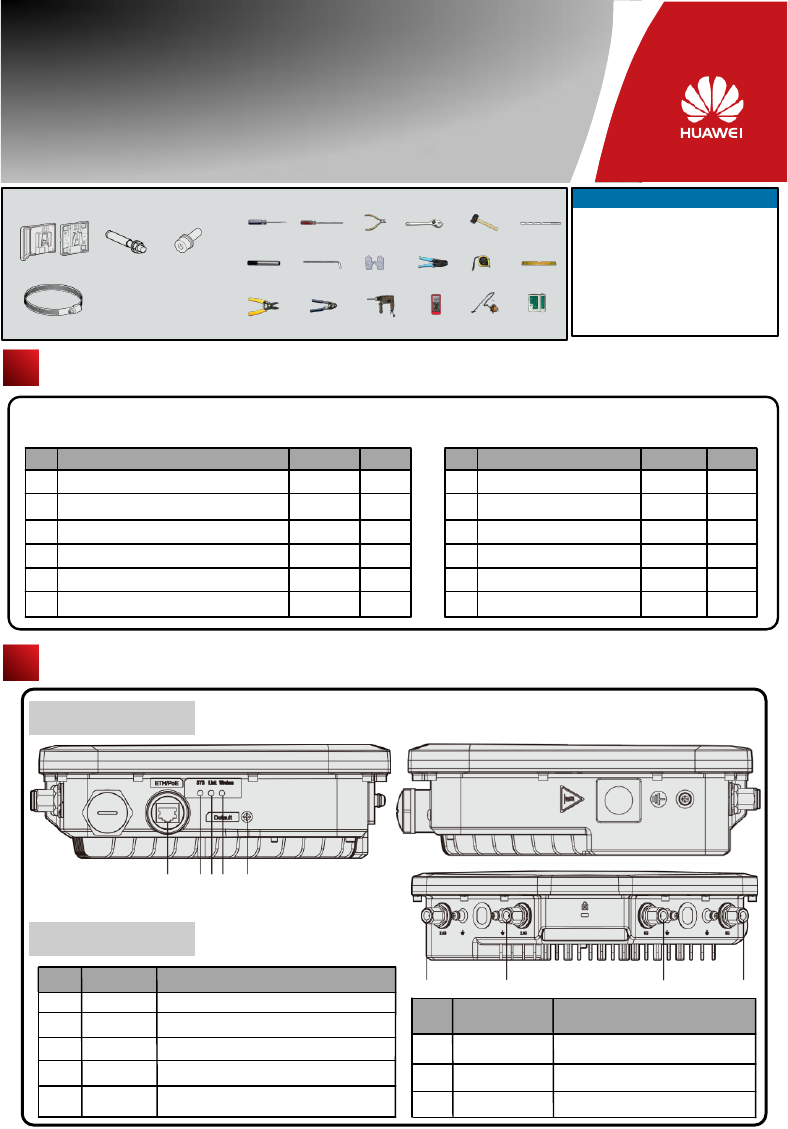

Device Overview
Packing List
Unpack the equipment. Ensure that all items listed in the package list are included in the shipment. If any item is missing,
contact the supplier.
Ports and indicators
5G antenna port
6
72.4G antenna port
Connected to the feeder.
Connected to the feeder.
Item Description
SN
Product functions
3
1
2
3
4
1
1
4
Item Quantity Unit
AP device PCS
PCS
PCS
Installation suite
1PCS
Network port connector
52
Expansion bolt PCS
62
M4X12 hexagon socket head cap screw
PCS
10 1
Item Quantity Unit
PCS
Warranty card
Certificate of Conformance
Hoop
71PCS
Quick Start Guide (including the
printed packing list)
81PCS
9
Toxic or Hazardous Substance &
Elements Declaration
1PCS
1234 5
Item Description
SN
SYS
Wireless
Default
1
SYS status indicator.
2
3
4
5
Link
ETH/POE
port
Link status indicator.
Wireless status indicator.
Used for Ethernet connections.
Press and hold down the Reset button for 3 seconds
to restore the factory settings and restart the AP.
6 677
Phillips
screwdriver Hammer
Maker
Flat-head
screwdriver Diagonal
pliers Adjustable
wrench
ESD
gloves COAX
crimping toolMeasuring
tape
Wire
stripper RJ45
Crimping tool Multimeter
Level
Vacuum
cleaner Network
cable tester
Hammer
drill
Hex key
6mm drill
bit
No. No.
Installing an AP
● Select an appropriate installation position and leave space above and around the device for cooling air circulation.
● Outdoors Aps are used for hotspot coverage and often installed against walls or poles. The pole diameter is 48 mm to 114 mm.
AP6510DN-AGN-US dimensions (unit: mm) without a backplane
support. Recommended AP6510DN-AGN-US installation space
(unit: mm).
● Installing the AP6510DN-AGN-US against a Wall:
330 83
306
Hexagon
socket head
cap screw
Field strength
场强示意
1. Fix the wall-mounting bracket to the wall, adjust the
installation position, and use the marker, level, and
measuring tape to mark the drilling positions where
expansion bolts are installed.
2. Use #8 drill bit to drill 35 mm to 40 mm deep holes in the
drilling positions and install expansion bolts. Screw the nut
into the expansion tube, hammer the expansion bolt into a
hole until the flat washer is flattened against the wall, and
remove the nuts, spring washer, and flat washer in order.
Flat washer
Spring washer
Nuts
3. Use four M4*12 hexagon socket head cap screws to fasten the wall-mounting bracket to the AP.
4. Pinch the wall-mounting bracket on the expansion
bolts, and fasten the flat washer, spring washer, and
nuts in order.
5. Slide the AP into the wall-mounting bracket to complete
installation.
4
64mm
37mm
Installing an AP
上电调试
3
● Installing the AP6510DN-AGN-US against a vertical pole:
Field strength
场强示意
NOTE
Lock hole
Security
lock
1. Determine the AP installation position, slide the hoop
through the hole of the wall-mounting bracket and attach
it to the pole, And use the screwdriver to secure screws
on the hoop.
2. Slide the AP that has the connector fastened into the wall-
mounting bracket.
● The procedure for installing the AP6510DN-AGN-US against a horizontal pole is similar to the procedure for installing the
AP6510DN-AGN-US against a vertical pole.
● Installing the Security Lock
To prevent unauthorized personnel from moving the AP, lock the AP. The preceding figure shows the security lock. The
carrier should purchase the security lock and determine the position for installing the security lock.
5
Installing Cables

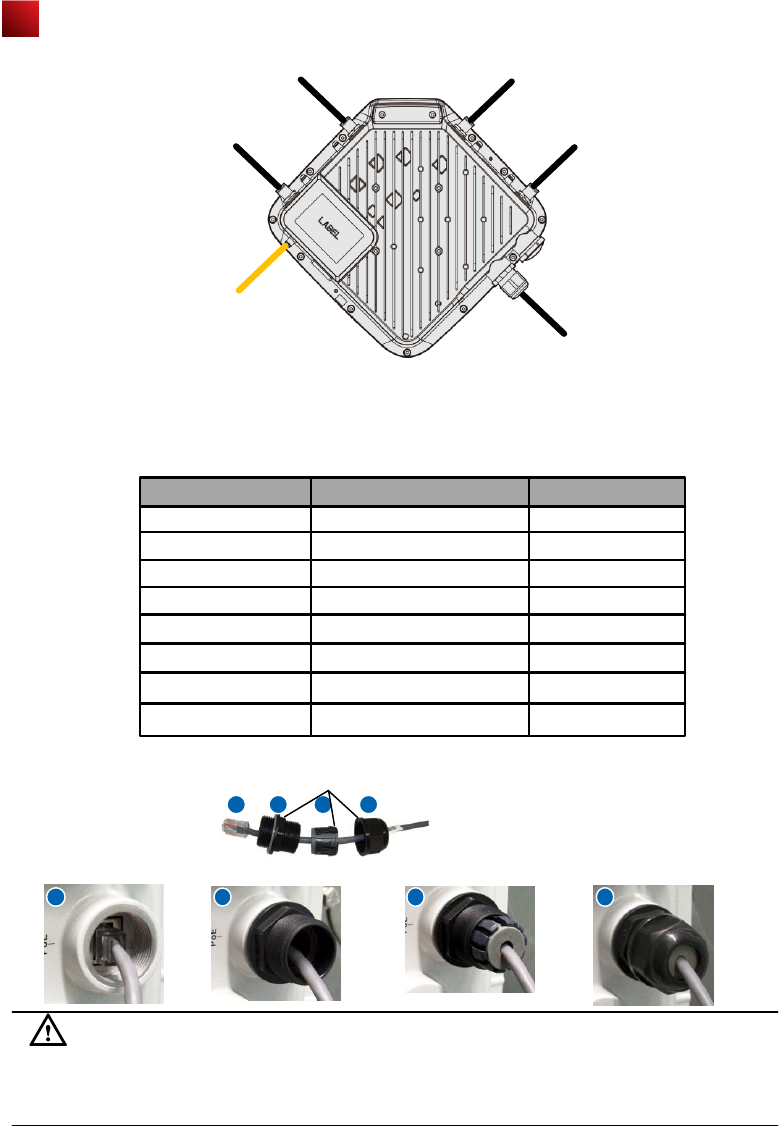

● AP6510DN-AGN-US external cable arrangement drawing
3. Put the network cable through the hole on the waterproof PG connector.
a b c d
4. Connect the RJ45 connector to the AP and secure the waterproof PG connector, as shown in figures b, c, and d.
a b c d
Waterproof PG connector
● Connecting network cables
1. Use a shield straight-through cable. Cut the cable of proper length based on the distance between the AP and the PSE
device, peel the insulation on both ends of the network cable, and crimp the wires to RJ45 connectors.
2. Make a network cable onsite according to the following pin assignment. Otherwise, the communication quality is
affected even if devices can be connected.
X1 Pin
1
2
3
4
5
6
7
8
X2 Pin
1
2
3
4
5
6
7
8
Wire Color
White and orange
Orange
White and green
Blue
White and blue
Green
White and brown
Brown
Feed line
Ground cable
Network cable
Feed line
Feed lineFeed line
6
● The network cables used are category-5 twisted pairs.
● Ensure that the RJ45 connector is correctly Connected to the AP. Otherwise, the network cable may be damaged.
Before removing the network cable, remove the waterproof PG connector, and then remove the RJ45 connector from
the AP.
CAUTION
Installing Cables

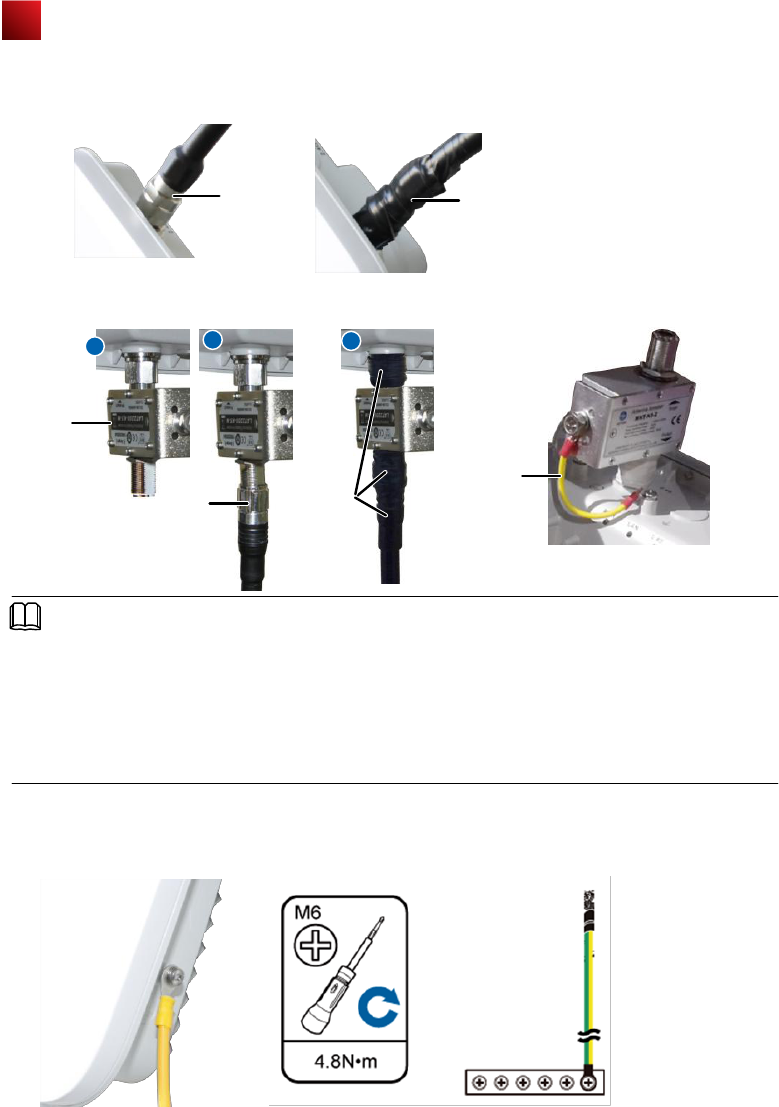

● Connecting the feed line
1. The outdoor AP's antenna ports already have 5 KA surge protection capability. Generally, no surge protection devices
need to be installed; therefore, the antenna cables are directly connected to the AP's antenna ports.
2. If higher surge protection capability is required, the customer can purchase a surge protection device. When installing the
surge protection device, ensure that it is connected to a ground cable.
a
Waterproof adhesive tape
Ground cable
Surge
protection
device
c
b
Waterproof
adhesive
tape
Feed line
Feed line
Connecting the ground
bar
● Connecting the ground cable
● Cut the cable of proper length, the M4 connector is connected to the AP and the M6 connector is connected to the
ground bar.
7
● When no antenna is installed on the 5G antenna interface, cover the interface with a dustproof cap and wrap the
dustproof cap with insulating tape and waterproof tape.
● Wrap the feed line using one-layer PVC black insulation tape, three-layer waterproof adhesive tape, and then three-layer
PVC black insulation tape.
● Stretch the waterproof adhesive tape evenly and ensure that the upper layer of the tap overlaps 1/2 of the lower layer.
Each layer should be attached tightly.
● Wrap the three-layer waterproof adhesive tape from bottom to up, from up to bottom, and from bottom to up in order.
NOTE
Installing Cables
Requirements for laying out ground cables:
1. All ground cables must be connected to a ground bar.
2. The ground cable cannot be led in aerially, but buried in the earth or arranged indoor.
3. Both ends of the external conductor of the coaxial cable and those of the insulation of the shielded cable should
have good electric contact with the metal shell of the equipment they connect to.
4. Ground cables must be separated from signal cables to reduce interference between them.
5. Do not add any switch or fuse on the ground cable.
6. Do not use another device for an electrical connection with the ground cable.
7. All metal components in the shell must be securely connected to the ground cable.
8
Keep the screw properly and install it again after pressing the Reset button.
CAUTION
● Pressing the Reset Button
The Reset button on an outdoor AP is protected by a waterproof screw. Before pressing the Reset button, remove the
waterproof screw.
CAUTION
Power-on
2连接线缆
Technical Specifications
NOTE
255mm×255mm×83mm
2.2Kg
Item Description
Operating temperature – 40°C to +60°C
Storage temperature
0% to 100%
Relative humidity
Altitude
70 kPa to 106 kPa
Weight
Dimensions (W x D x H)
– 40°C to +70°C
Pressure
PoE power supply -48V
– 60 m to 4000 m When the altitude is
between 1800 m and 4000 m, the
operating temperature decreases by
1°C each time the altitude increases by
220 m.
9

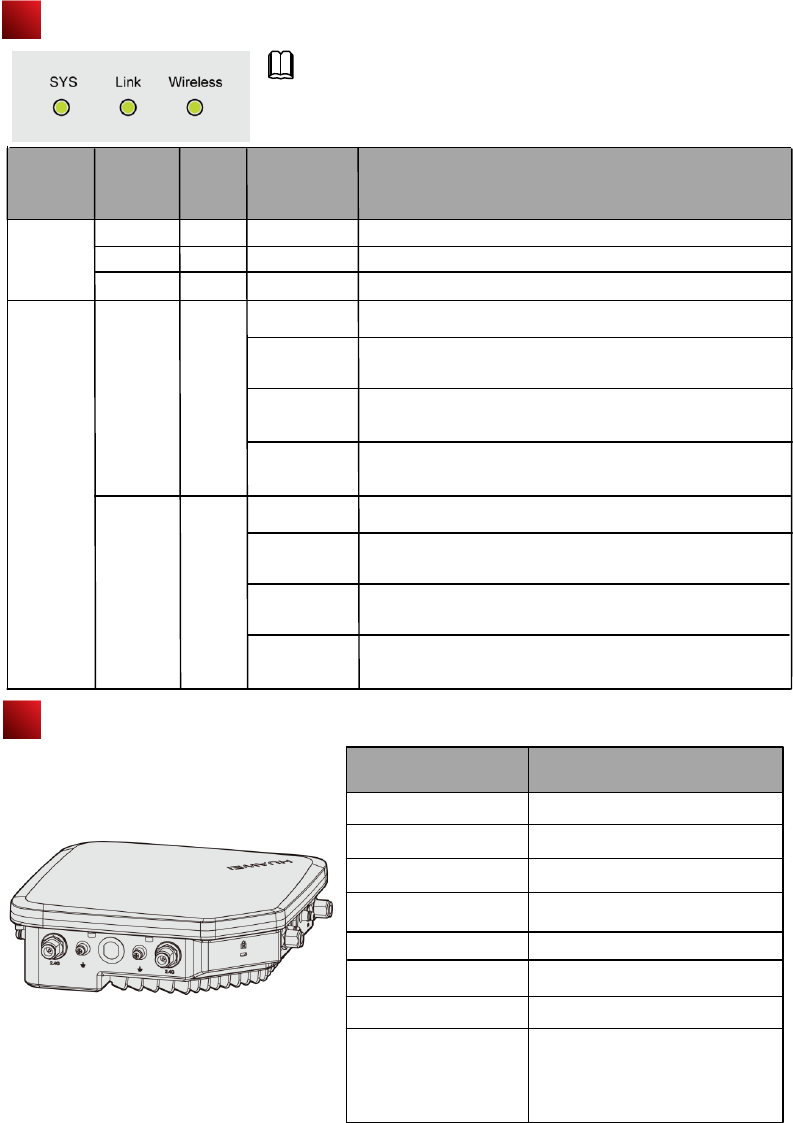

SYS Wireless
Link Description
Information
Type
Steady green
Steady red
Blinking green
Blinking once
every 2s
Steady or
Blinking
green
Off
Blinking green
Off
The system is working properly.
The system fails to load the DRAM or system software.
The device is being started.
Blinking once
every 2s
The system is working properly. However, the Ethernet is not connected. Radios
are disabled and no user is connected to the AP.
The system is working properly, but the Ethernet is not connected. The AP has
wireless users connected to the 2.4 GHz band and is transmiting data. The
indicator blinks more quickly when more packets are being transmitted.
Off The system is working properly, the Ethernet is connected, and radios are
disabled. The indicator blinks more quickly when more data is being transmitted.
Blinking yellow The system is working properly, but the Ethernet is not connected. The AP has
wireless users connected to the 5 GHz band and is transmiting data. The
indicator blinks more quickly when more packets are being transmitted.
The system is working properly, but the Ethernet is not connected. The AP has
wireless users connected to the 2.4 GHz and 5 GHz bands and is transmiting
data.
Blinking green The system is working properly, and the Ethernet is connected. The AP has
wireless users connected to the 2.4 GHz band and is transmiting data. The
indicator blinks more quickly when more packets are being transmitted.
Blinking yellow The system is working properly, and the Ethernet is connected. The AP has
wireless users connected to the 5 GHz band and is transmiting data. The
indicator blinks more quickly when more packets are being transmitted.
The AP has wireless users connected to the 2.4 GHz and 5 GHz bands and
is transmiting data. The indicator blinks more quickly when more packets are
being transmitted.
Blinking green and
yellow alternately
Blinking green and
yellow alternately
The AP6510DN-AGN-US supports the PoE function that complies with 802.3at.
Power on the AP6510DN-AGN-US and check the indicator status to determine the
system running status.
Running and
connection
Startup status
NA NA
NA NA
NA NA
Logging In to the Router
10
After an AP is powered on, you can log in to the AP using the following methods.
1. Logging In to the AP Using Telnet
This section describes how to log in to the AP using Telnet. After logging in to the AP, you can configure the AP using
commands.
1. Logging In to the AP Using Telnet
This section describes how to log in to the AP using Telnet. After logging in to the AP, you can configure the AP using
Commands.
Procedure
Step 1 Connect a PC to the uplink port of the AP with a network cable. Figure 1-1 shows the location of the AP's uplink
port.
Figure 1-1 Location of the AP's uplink port
Step 2 Configure a static IP address for the PC. The IP address must be on the network segment 192.168.0.1/24
(The IP address should not be same as the AP's default IP address 192.168.0.1.) and the subnet mask is
255.255.255.0.
After the configuration is complete, run the ping 192.168.0.1 command on the PC to check whether the PC
can be pinged. If the ping operation succeeds, the connection is set up successfully. If the ping operation fails,
The connection fails to be set up. Check whether the network cable works properly.
Step 3 Access the command line window on the PC. For example, if the PC runs Windows XP, choose Start > Run
And enter cmd in the displayed dialog box.
Step 4 Run the telnet 192.168.0.1 command to log in to the AP.
Step 5 Enter the default user name and password admin. If the user view is displayed, you have logged in
Successfully.
When you log in for the first time, the following page is displayed:
Username: admin
Password:
Enterprise AP:
----End
No. Port
1ETH/PoE
1
NOTE
Run the exit command to exit from the Telnet window. When the system fails to exit from the Telnet window:
● If you logged in to the AP from an AC or a switch, press Ctrl+T to return to the AC or switch view. This operation does
not affect the AP operation.
● If you logged in to the AP from a PC, directly close the Telnet window. This operation does not affect the AP operation.
O: Indicates that the concentration of the hazardous substance contained in all the homogeneous materials of this part is
below the limit requirement of the SJ/T 11363-2006 standard.
X: Indicates that the Concentration of the hazardous substance contained in all the homogeneous materials of this part is
above the limit requirement.
Hazardous Substances
Pb Hg Cd Cr6+ PBB PBDE
Part
Mechanical part
Board/circuit module
Signal cable
Cable connector
Power adapter
Auxiliary equipment
O O O O O
O O O O O
O O O O O
O O O O O
O O O O O
O O O O O
Declaration on Hazardous Substances in Electronic
Information Products
QUALIFICATION CARD
11
O
O
O
O
O
O
Warranty Card
Thank you for choosing HUAWEI Technologies Co., Ltd-a leading telecom solution provider. To get better services, please
read this warranty card carefully, fill in the required information and preserve this card in good condition.
Preserve well. No reissue
Dealer´s Seal: Limited Warranty
Subject to the exclusions contained below, Huawei Technologies CO., Ltd. (hereinafter referred to as Huawei) warrants its
access terminals (“Products”) to be free from defects in materials and workmanship under normal consumer usage for one
year from the date of purchase of the product ("Warranty period"). During the warranty period，a Huawei authorized
service partner shall remedy defects in materials and workmanship free of charge.
Special Notice:
1. The warranty card shall be applicable only after being stamped by the dealer.
2. The warranty card must be preserved in good condition and free of any scratch or alteration.
3. To claim such service for defects that are not included in The following exclusion terms, the warranty card and the
invoice that records the product serial number shall be presented to a Huawei authorized service partner.
Exclusions:
In any of the following cases, the warranty card becomes unenforceable or inapplicable without prior notice:
1. The defects are caused by improper handling in transportation and assembly.
2. The defects are caused by the fact that the product is dismantled or altered by anyone that is not from a Huawei
authorized service partner.
3. The defects are caused by the fact that the product is used in a harsh environment that is not suitable for the operation
of the product.
4. The defects are caused by any force majeure including but not limited to fire, earthquake, lightning and tsunami.
5. The defects are caused by the fact that the product is used or handled improperly, roughly or not as instructed in the
applicable User Guide.
6. The normal wear and tear, including but not limited to the normal wear and tear of the shell and the power module, shall
not be covered by the limited warranty.
7. The warranty card is altered or illegible, or the product serial number recorded on the warranty card is inconsistent with
the actual one imprinted or labeled on the product.
In any case that is not covered by this limited warranty or should the warranty expire，Huawei shall charge for the
service(s) claimed for the products if the product is still remediable.
Huawei preserves the right for interpretation of this limited warranty.
Your Name
Address/Postal Code
Telephone
Product Type
Product Serial Number
Purchase Date
Invoice Number
Dealer Name
Dealer´s Address/Telephone
Huawei Industrial Base, Bantian, Longgang,
Shenzhen 518129, People's Republic of China
http://enterprise.huawei.com
Huawei Technologies Co., Ltd.
12
HUAWEI TECHNOLOGIES CO., LTD.
Huawei Industrial Base
Bantian, Longgang
Shenzhen 518129
People's Republic of China
http://enterprise.huawei.com
