Huawei Technologies AP7110DNAGN Wireless LAN Access Point User Manual Product Description
Huawei Technologies Co.,Ltd Wireless LAN Access Point Product Description
Contents
20. User Manual 3 Rev 1
AP7110DN-AGN Wireless LAN Access Point
V200R002C00
Product Description
Issue 03
Date 2013-01-30
HUAWEI TECHNOLOGIES CO., LTD.
Copyright © Huawei Technologies Co., Ltd. 2013. All rights reserved.
No part of this document may be reproduced or transmitted in any form or by any means without prior written
consent of Huawei Technologies Co., Ltd.
Trademarks and Permissions
and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.
All other trademarks and trade names mentioned in this document are the property of their respective holders.
Notice
The purchased products, services and features are stipulated by the contract made between Huawei and the
customer. All or part of the products, services and features described in this document may not be within the
purchase scope or the usage scope. Unless otherwise specified in the contract, all statements, information,
and recommendations in this document are provided "AS IS" without warranties, guarantees or representations
of any kind, either express or implied.
The information in this document is subject to change without notice. Every effort has been made in the
preparation of this document to ensure accuracy of the contents, but all statements, information, and
recommendations in this document do not constitute a warranty of any kind, express or implied.
Huawei Technologies Co., Ltd.
Address: Huawei Industrial Base
Bantian, Longgang
Shenzhen 518129
People's Republic of China
Website: http://enterprise.huawei.com
Issue 03 (2013-01-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
i
About This Document
Symbol Conventions
The symbols that may be found in this document are defined as follows.
Symbol Description
DANGER
Indicates a hazard with a high level or medium level of risk
which, if not avoided, could result in death or serious injury.
WARNING
Indicates a hazard with a low level of risk which, if not
avoided, could result in minor or moderate injury.
CAUTION
Indicates a potentially hazardous situation that, if not
avoided, could result in equipment damage, data loss,
performance deterioration, or unanticipated results.
TIP
Provides a tip that may help you solve a problem or save time.
NOTE
Provides additional information to emphasize or supplement
important points in the main text.
Change History
Updates between document issues are cumulative. Therefore, the latest document issue contains
all updates made in previous issues.
Changes in Issue 04 (2013-02-28)
The fourth commercial release has the following updates:
lChanges in the product are added to the document.
lSome content in the document is optimized.
Changes in Issue 03 (2013-01-30)
The third commercial release has the following updates:
lProduct delivery descriptions are added to the document.
AP7110DN-AGN Wireless LAN Access Point
Product Description About This Document
Issue 03 (2013-01-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
ii
lSome content in the document is optimized.
Changes in Issue 02 (2012-12-31)
The second commercial release has the following updates:
lChanges in the product are added to the document.
lSome content in the document is optimized.
Changes in Issue 01 (2012-10-31)
Initial commercial release.
AP7110DN-AGN Wireless LAN Access Point
Product Description About This Document
Issue 03 (2013-01-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
iii
Contents
About This Document.....................................................................................................................ii
1 Product Orientation and Characteristics...................................................................................1
2 Product Structure...........................................................................................................................5
3 Functions and Features.................................................................................................................8
4 Technical Specifications.............................................................................................................11
AP7110DN-AGN Wireless LAN Access Point
Product Description Contents
Issue 03 (2013-01-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
iv
1 Product Orientation and Characteristics
Product Orientation
The AP7110DN-AGN is a premium series dual-band access point (AP) that supports 3×3
MIMO, supports 2.4 GHz and 5 GHz frequency bands. It complies with IEEE 802.11a/b/g/n,
connects a large number of users, and works as a Fit AP. The AP7110DN-AGN has the following
advantages:
lHigh reliability
lHigh security
lSimple network deployment
lAutomatic AC discovery and configuration
lReal-time management and maintenance
The AP7110DN-AGN integrates the latest and widely-used WLAN technology to provide high-
performance wireless services for medium to large enterprises and high-density scenarios. The
AP7110DN-AGN can be flexibly deployed in these places and work in both Fit AP and bridge
mode.
The AP7110DN-AGN is for use in Fit AP and bridge networking scenarios.
AP7110DN-AGN Wireless LAN Access Point
Product Description 1 Product Orientation and Characteristics
Issue 03 (2013-01-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
1

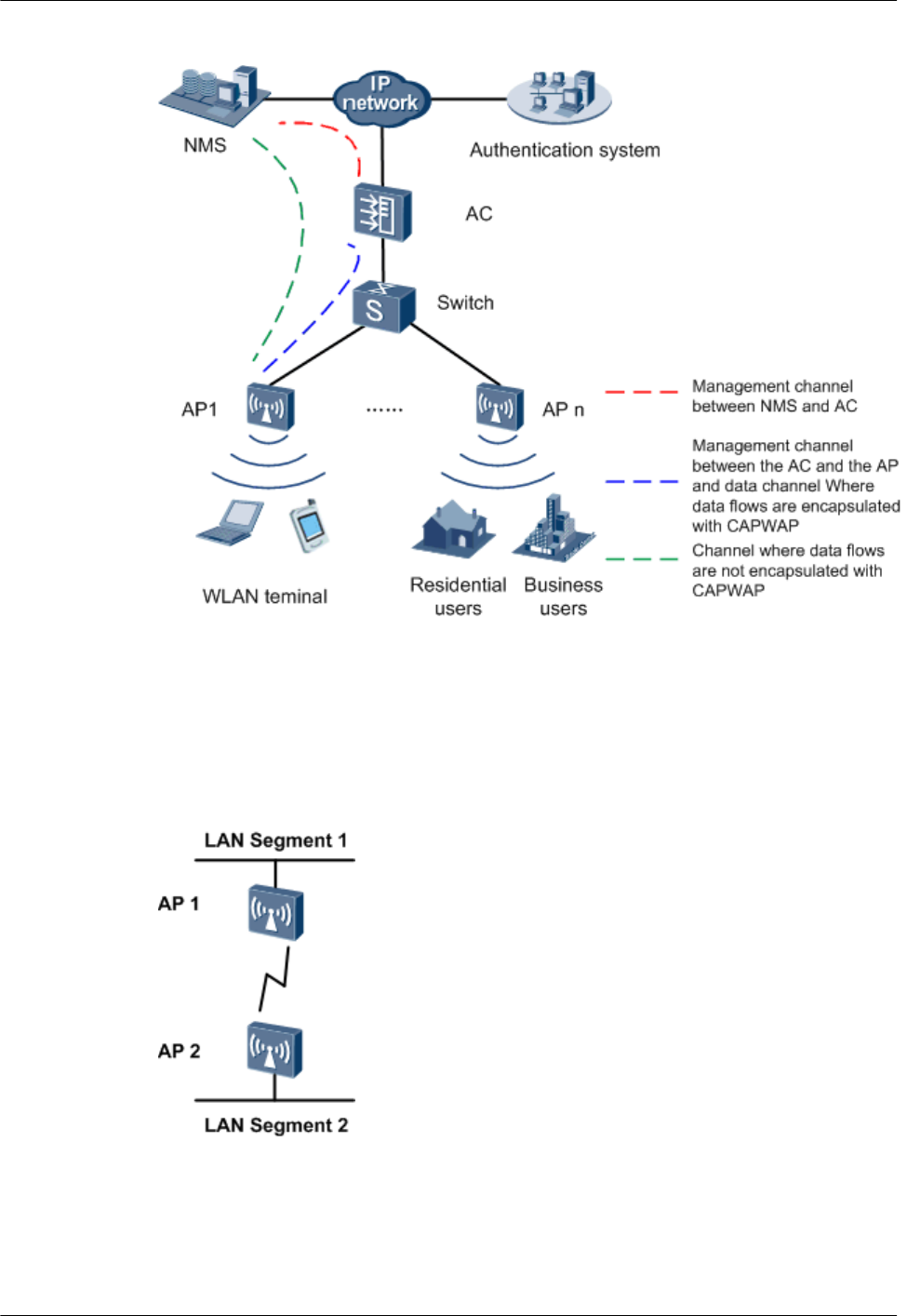

Figure 1-1 Fit AP networking
In this networking, the AP7110DN-AGN functions as a Fit AP that provides only data
forwarding functions. The AC is responsible for user access, authentication, AP management,
and configurations of security protocols, routing, and QoS.
Figure 1-2 WDS networking (point-to-point)
AP7110DN-AGN Wireless LAN Access Point
Product Description 1 Product Orientation and Characteristics
Issue 03 (2013-01-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
2
Figure 1-3 WDS networking (point-to-multipoint)
In this networking, the AP7110DN-AGN connects two or more independent wired or wireless
LANs through wireless links to realize communication between the LANs. In a Wireless
Distribution System (WDS), the AP7110DN-AGN supports point-to-point, point-to-multipoint
networking modes. The AP implements wireless bridging and access functions using 5 GHz and
2.4 GHz frequency bands.
Product Characteristics
The AP7110DN-AGN has the following characteristics on the WLAN.
Product
Characteristics
Description
Highly reliable
wireless access
lComplies with IEEE 802.11 a/b/g/n.
lSupports 3×3 MIMO and provides a maximum rate of 450 Mbit/s
for each radio.
lUses Wi-Fi Multimedia (WMM) to implement priority scheduling
based on the service type (voice, video, or data), and supports
priority mapping on the air interface and wired interface.
lSupports wired link integrity check.
lSupports load balancing.
lSupports roaming without service interruptions.
lSupports AC Dual-Link Backup.
lSupports the beamforming technique.
lUses the latest 802.11n chip to provide higher performance and
wider coverage.
Comprehensive
user access
control capability
lSupports access control lists (ACLs) and user access controls based
on user group policies.
lProvides per-user bandwidth management.
lSupports user isolation policies.
lSupports AC authentication.
AP7110DN-AGN Wireless LAN Access Point
Product Description 1 Product Orientation and Characteristics
Issue 03 (2013-01-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
3
Product
Characteristics
Description
High security The AP7110DN-AGN supports multiple authentication and encryption
modes and provides various measures to enhance system security:
lWired Equivalent Privacy (WEP)
lWi-Fi Protected Access (WPA)/WPA2
lWLAN Authentication and Privacy Infrastructure (WAPI)
lDetection of rogue APs
Flexible
networking and
environment
adaptability
lFor use in Fit AP and WDS networking scenarios.
lAutomatically selects the transmission rate, channel, and transmit
power to adapt to multiple radio environments and limit interference
in real time.
lAdjusts bandwidth allocation based on the number of users and radio
environment.
lSupports the MIMO antenna system and connects to external dual-
band antennas (2.4 GHz and 5 GHz). You can adjust the antennas
based on the radio environment.
Simple device
management and
maintenance
lAutomatically discovers ACs and loads the AC (plug-and-play)
configuration.
lSupports batch upgrade.
lMonitored by the NMS in real time. You can remotely configure
APs and locate faults on APs using the NMS.
lSupports the Link Layer Discovery Protocol (LLDP) to implement
automatic link discovery and obtain the network topology.
AP7110DN-AGN Wireless LAN Access Point
Product Description 1 Product Orientation and Characteristics
Issue 03 (2013-01-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
4
2 Product Structure
Appearance
Figure 2-1 shows the appearance of the AP7110DN-AGN.
NOTE
The actual device appearance may differ from the figure, but the appearance does not affect device.

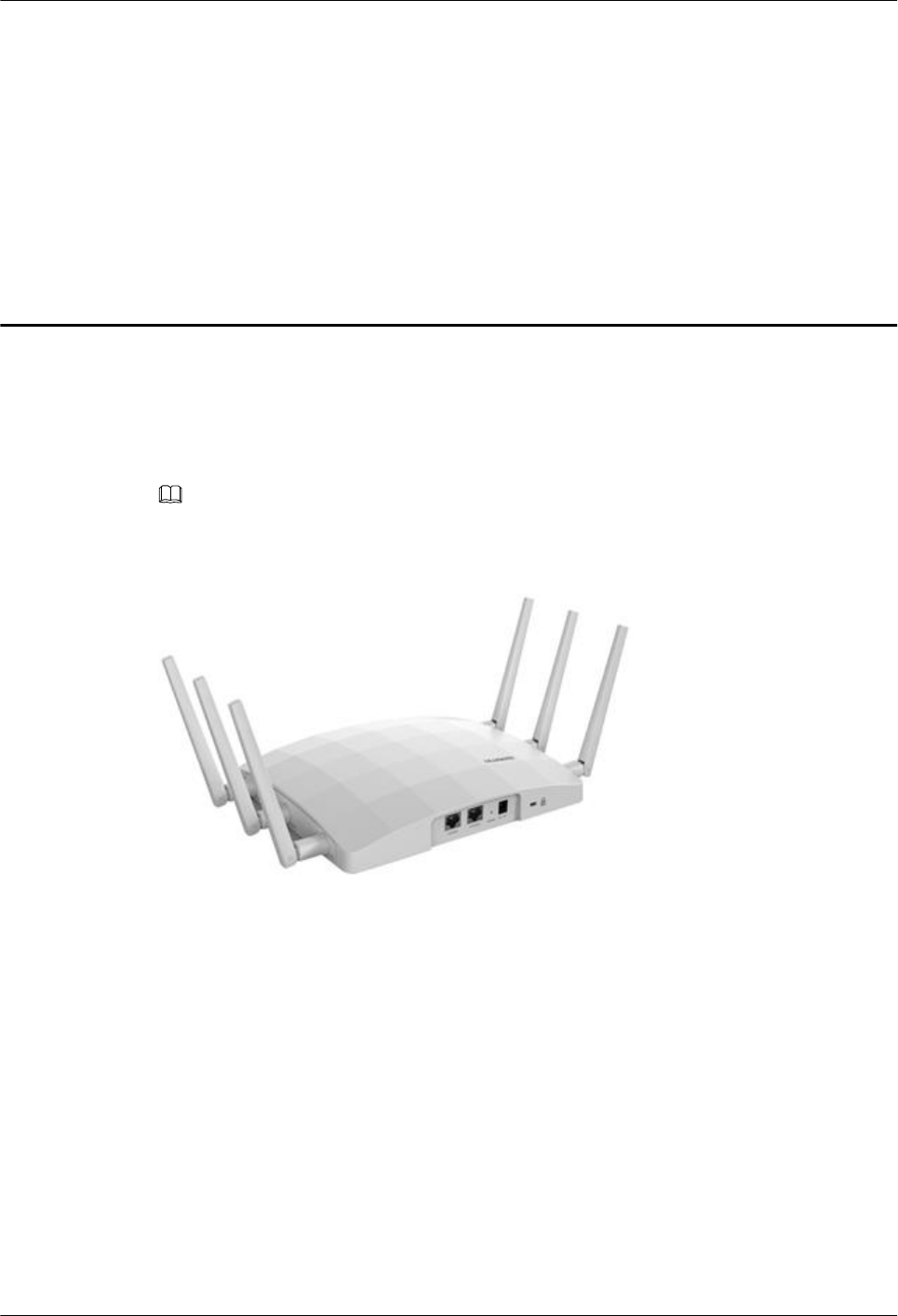

Figure 2-1 Appearance of the AP7110DN-AGN
Ports
Figure 2-2 shows ports on the AP7110DN-AGN.
AP7110DN-AGN Wireless LAN Access Point
Product Description 2 Product Structure
Issue 03 (2013-01-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
5
Figure 2-2 Ports of the AP7110DN-AGN
1. Ground port: connects to a ground cable to ground an AP.
2. Console port.
3. ETH/PoE: 10/100/1000M port, which connects to the Ethernet. The port can connect to a
PoE switch or a PoE power source to provide power for APs.
4. Default: restores factory settings.
5. Power input port: 12 V DC.
6. Lock port: protects the AP7110DN-AGN against theft.
NOTE
Different power adapters are delivered with AP7110DN-AGN according to standards in the countries or
regions where the AP7110DN-AGNs are delivered. These countries and regions are identified by the
barcode on an AP's nameplate, including: EU (Europe), UK (United Kingdom), CN (China), AU
(Australia), US (United States), and USA (the AP is sold only in the U.S).
LED Indicators
Information
Type
SYS
LED
Link
LED
WiFi
LED
Description
Startup status Steady
green
– – The device is being started.
Blinki
ng
green
– – The system is working properly.
Steady
red
– – The system fails to load the DRAM or
system software.
Blinki
ng (0.5
Hz)
Off Off The system is working properly. However,
the Ethernet is not connected. Radios are
disabled and no user is connected to the AP.
AP7110DN-AGN Wireless LAN Access Point
Product Description 2 Product Structure
Issue 03 (2013-01-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
6
Information
Type
SYS
LED
Link
LED
WiFi
LED
Description
Blinkin
g green
The system is working properly, but the
Ethernet is not connected. The AP has
wireless users connected to the 2.4 GHz
band and is transmitting data. The indicator
blinks more quickly when more packets are
being transmitted.
Blinkin
g
yellow
The system is working properly, but the
Ethernet is not connected. The AP has
wireless users connected to the 5 GHz band
and is transmitting data. The indicator
blinks more quickly when more packets are
being transmitted.
Blinkin
g green
and
yellow
alternat
ely
The system is working properly, but the
Ethernet is not connected. The AP has
wireless users connected to the 2.4 GHz
and 5 GHz bands and is transmitting data.
Blinki
ng (0.5
Hz)
Steady
or
blinkin
g green
Off The system is working properly, the
Ethernet is connected, and radios are
disabled. The indicator blinks more
quickly when more data is being
transmitted.
Blinkin
g green
The system is working properly, and the
Ethernet is connected. The AP has wireless
users connected to the 2.4 GHz band and is
transmitting data. The indicator blinks
more quickly when more packets are being
transmitted.
Blinkin
g
yellow
The system is working properly, and the
Ethernet is connected. The AP has wireless
users connected to the 5 GHz band and is
transmitting data. The indicator blinks
more quickly when more packets are being
transmitted.
Blinkin
g green
and
yellow
alternat
ely
The AP has wireless users connected to the
2.4 GHz and 5 GHz bands and is
transmitting data. The indicator blinks
more quickly when more packets are being
transmitted.
AP7110DN-AGN Wireless LAN Access Point
Product Description 2 Product Structure
Issue 03 (2013-01-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
7
3 Functions and Features
Functions and Features Supported by the AP7110DN-AGN
Table 3-1 Features
Features Description
WLAN
features
lCompliance with IEEE 802.11a/b/g/n, providing a maximum rate of 450
Mbit/s for each radio
lMaximum ratio combining (MRC)
lMaximum-likelihood detection (MLD)
lAggregate data units, including A-MPDU (Tx/Rx) and A-MSDU (Rx
only)
l802.11 dynamic frequency selection (DFS)
lShort GI in 20 MHz and 40 MHz modes
lPriority mapping and packet scheduling based on a Wi-Fi Multimedia
(WMM) profile to implement priority-based data processing and
forwarding
lAutomatic and manual rate adjustment (the rate is adjusted automatically
by default)
lWLAN channel management and channel rate adjustment
NOTE
For details about WLAN channel management, see the Country codes & Channels
compliance status.
lAutomatic channel scanning and interference avoidance
lService set identifier (SSID) hiding
lSignal sustain technology (SST)
lUnscheduled automatic power save delivery (U-APSD)
lControl and Provisioning of Wireless Access Points (CAPWAP)
lAutomatic AC discovery
lWDS
AP7110DN-AGN Wireless LAN Access Point
Product Description 3 Functions and Features
Issue 03 (2013-01-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
8
Features Description
Network
features
lCompliance with IEEE 802.3u
lPorts: Auto-negotiation of the rate and duplex mode and automatic
switching between the Media Dependent Interface (MDI) and Media
Dependent Interface Crossover (MDI-X) mode
lVLAN assignment based on SSIDs
lVLAN aggregation on uplink Ethernet ports
l4094 VLAN IDs (1-4094) and 16 virtual APs (VAPs)
lUplink ports in tagged and untagged mode
lDHCP client
lPPPoE dialup
lCentralized data forwarding and local data forwarding
lSTA isolation in the same VLAN
lACL
lLLDP
lUninterrupted service forwarding upon CAPWAP channel
disconnection in direct forwarding mode
lUniform authentication on an AC
lDual-AC backup
QoS features lPriority mapping and packet scheduling based on WMM profiles to
implement priority-based data processing and forwarding
lWMM parameter management for each radio
lWMM power saving
lPriority mapping for upstream packets and flow-based mapping for
downstream packets
lQueue mapping and scheduling
lUser-based bandwidth limiting
lAdaptive bandwidth allocation (the system dynamically adjusts
bandwidth based on the number of users and radio environment)
Security
features
lOpen system authentication
lWEP authentication/encryption
lWPA/WPA2-PSK authentication and encryption
lWPA/WPA2-802.1X authentication and encryption
lWAPI authentication and encryption
AP7110DN-AGN Wireless LAN Access Point
Product Description 3 Functions and Features
Issue 03 (2013-01-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
9
Features Description
Maintenance
features
lAP management and maintenance by the AC
lPlug-and-play: automatic AC discovery and automatic configuration
loading
lBatch upgrade
lDebugging using Telnet and the serial interface
lReal-time configuration monitoring and fast fault location by using the
NMS
lSystem status alarm
AP7110DN-AGN Wireless LAN Access Point
Product Description 3 Functions and Features
Issue 03 (2013-01-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
10
4 Technical Specifications
Specifications
Table 4-1 Specifications of the AP7110DN-AGN
Item Description
Technical specifications Dimensions (H x W x D) 45 mm x 200 mm x 200 mm
Weight 1.0 kg
System memory l256 MB DDR3
l32 MB flash memory
Power specifications Power input lDC 12V±10%
lPOE Power: -48V DC
lPoE function in compliance
with IEEE 802.3at
Maximum power
consumption
15.7W
NOTE
The maximum power consumption
depends on local laws.
Environment parameters Operating temperature -10℃ to +55℃
Storage temperature -40℃ to +70℃
Humidity 5% to 95% (non-condensing)
Waterproof grade IP41
Altitude –60 m to 4000 m
AP7110DN-AGN Wireless LAN Access Point
Product Description 4 Technical Specifications
Issue 03 (2013-01-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
11
Radio Parameters
Table 4-2 Radio parameters of the AP7110DN-AGN
Item Description
Antenna
type
Removable RP-SMA antenna
Maximum
antenna gain
2.4GHz: 3dBi
5GHz: 5.74dBi
Maximum
number of
concurrent
users
128
Maximum
transmit
power
20dBm
lYou can adjust the transmit power from the maximum to 15 dBm, with a
step of 1 dBm.
NOTE
Actual transmit power depends on local laws and regulations.
Maximum
number of
non-
overlapping
channels
2.4 GHz
802.11b/g
l20MHz: 3
802.11n
l20MHz: 3
l40MHz: 1
5 GHz
802.11a
l20MHz: 24
802.11n
l20MHz: 24
l40MHz: 11
CAUTION
If the AP7110DN-AGN is delivered to the USA, pay attention to the following on
channel and frequency band usage.
1. The country code of the AP is fixed.
2. The frequency band ranging from 5.15 GHz to 5.25 GHz can only be used indoors.
3. High power radars working at frequencies in the range of 5.25 GHz to 5.35 GHz,
5.47 GHz to 5.6 GHz, and 5.65 GHz to 5.725 GHz can interfere with or even damage
APs working at the same frequency.
4. APs cannot work at channels in frequencies ranging from 5.6 GHz to 5.65 GHz or
their overlapping channels.
Channel
Rate
802.11b: 1, 2, 5.5, and 11 Mbit/s
802.11g: 6, 9, 12, 18, 24, 36, 48, and 54 Mbit/s
802.11n data rate (2.4 GHz and 5 GHz)
GI2=800ns GI=400ns
20 MHz (Mbit/s) 40 MHz (Mbit/s) 20 MHz (Mbit/s) 40 MHz (Mbit/s)
6.5 @ MCS1013.5 @ MCS0 7.2 @ MCS0 15 @ MCS0
13 @ MCS1 27 @ MCS1 14.4 @ MCS1 30 @ MCS1
AP7110DN-AGN Wireless LAN Access Point
Product Description 4 Technical Specifications
Issue 03 (2013-01-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
12
Item Description
19.5 @ MCS2 40.5 @ MCS2 21.7 @ MCS2 45 @ MCS2
26 @ MCS3 54 @ MCS3 28.9 @ MCS3 60 @ MCS3
39 @ MCS4 81 @ MCS4 43.3 @ MCS4 90 @ MCS4
52 @ MCS5 108 @ MCS5 57.8 @ MCS5 120 @ MCS5
58.5 @ MCS6 121.5 @ MCS6 65 @ MCS6 135 @ MCS6
65 @ MCS7 135 @ MCS7 72.2 @ MCS7 150 @ MCS7
13 @ MCS8 27 @ MCS8 14.4 @ MCS8 30 @ MCS8
26 @ MCS9 54 @ MCS9 28.9 @ MCS9 60 @ MCS9
39 @ MCS10 81 @ MCS10 43.3 @ MCS10 90 @ MCS10
52 @ MCS11 108 @ MCS11 57.8 @ MCS11 120 @ MCS11
78 @ MCS12 162 @ MCS12 86.7 @ MCS12 180 @ MCS12
104 @ MCS13 216 @ MCS13 115.6 @ MCS13 240 @ MCS13
117 @ MCS14 243 @ MCS14 130 @ MCS14 270 @ MCS14
130 @ MCS15 270 @ MCS15 144.4 @ MCS15 300 @ MCS15
19.5 @ MCS16 40.5 @ MCS16 21.7 @ MCS16 45 @ MCS16
39 @ MCS17 81 @ MCS17 43.3 @ MCS17 90 @ MCS17
58.5 @ MCS18 121.5 @ MCS18 65 @ MCS18 135 @ MCS18
78 @ MCS19 162 @ MCS19 86.7 @ MCS19 180 @ MCS19
117 @ MCS20 243 @ MCS20 130 @ MCS20 270 @ MCS20
156 @ MCS21 324 @ MCS21 173.3 @ MCS21 360 @ MCS21
175.5 @ MCS22 364.5 @ MCS22 195 @ MCS22 405 @ MCS22
195 @ MCS23 405 @ MCS23 216.7 @ MCS23 450 @ MCS23
NOTE
Modulation coding scheme (MCS) index: determines the spatial flow quantity,
modulation, coding rate, and data rate.
Guard interval (GI): indicates the period in nanoseconds the radio listens between
packets.
AP7110DN-AGN Wireless LAN Access Point
Product Description 4 Technical Specifications
Issue 03 (2013-01-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
13
Item Description
Receiver
Sensitivity
2.4 GHz
802.11b (CCK)
l-97 dBm @ 1
Mb/s
l-92 dBm @ 2
Mb/s
l-92 dBm @
5.5 Mb/s
l-89 dBm @
11 Mb/s
2.4 GHz
802.11g (non-
HT20)
l-91 dBm @ 6
Mb/s
l-90 dBm @ 9
Mb/s
l-90 dBm @
12 Mb/s
l-88 dBm @
18 Mb/s
l-84 dBm @
24 Mb/s
l-81 dBm @
36 Mb/s
l-77 dBm @
48 Mb/s
l-74 dBm @
54 Mb/s
2.4 GHz
802.11n (HT20)
l-90 dBm @
MCS0/8/16
l-90 dBm @
MCS1/9/17
l-88 dBm @
MCS2/10/18
l-82 dBm @
MCS3/11/19
l-79 dBm @
MCS4/12/20
l-75 dBm @
MCS5/13/21
l-73 dBm @
MCS6/14/22
l-72 dBm @
MCS7/15/23
5 GHz
802.11a (non-
HT20)
l-91 dBm @ 6
Mb/s
l-90 dBm @ 9
Mb/s
l-89 dBm @
12 Mb/s
l-86 dBm @
18 Mb/s
l-83 dBm @
24 Mb/s
l-80 dBm @
36 Mb/s
l-75 dBm @
48 Mb/s
l-74 dBm @
54 Mb/s
2.4 GHz
802.11n(HT40)
l-86 dBm @
MCS0/8/16
l-86 dBm @
MCS1/9/17
l-84 dBm @
MCS2/10/18
l-80 dBm @
MCS3/11/19
l-77 dBm @
MCS4/12/20
l-72 dBm @
MCS5/13/21
l-70 dBm @
MCS6/14/22
l-68 dBm @
MCS7/15/23
5 GHz
802.11n (HT20)
l-90 dBm @
MCS0/8/16
l-88 dBm @
MCS1/9/17
l-86 dBm @
MCS2/10/18
l-81 dBm @
MCS3/11/19
l-78 dBm @
MCS4/12/20
l-74 dBm @
MCS5/13/21
l-72 dBm @
MCS6/14/22
l-71 dBm @
MCS7/15/23
5 GHz
802.11n (HT40)
l-87 dBm @ MCS0/8/16
l-85 dBm @ MCS1/9/17
l-83 dBm @ MCS2/10/18
l-79 dBm @ MCS3/11/19
l-75 dBm @ MCS4/12/20
l-71 dBm @ MCS5/13/21
l-68 dBm @ MCS6/14/22
l-67 dBm @ MCS7/15/23
Standards Compliance
lSafety standards
–UL 60950-1
AP7110DN-AGN Wireless LAN Access Point
Product Description 4 Technical Specifications
Issue 03 (2013-01-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
14
–CAN/CSA 22.2 No.60950-1
–IEC 60950-1
–EN 60950-1
–GB 4943
lRadio standards
–ESTI EN 300 328
–ESTI EN 301 893
–FCC Part 15C: 15.247
–FCC Part 15C: 15.407
–RSS-210
lEMC standards
–EN 301.489–1
–EN 301.489–17
–FCC Part 15
–ICES-003
–YD/T 1312.2-2004
–ITU k.21
–GB 9254
–GB 17625.1
lIEEE standards
–IEEE 802.11a/b/g
–IEEE 802.11n
–IEEE 802.11h
–IEEE 802.11d
–IEEE 802.11e
lSecurity standards
–802.11i, Wi-Fi Protected Access 2 (WPA2), WPA
–802.1x
–Advanced Encryption Standards (AES), Temporal Key Integrity Protocol (TKIP)
–EAP Type(s)
lEnvironment standards
–ETSI 300 019-2-2
–ETSI 300 019-2-3
lEMF
–CENELEC EN 62311
–CENELEC EN 50385
–OET65
–RSS-102
lRoSH
–Directive 2002/95/EC
AP7110DN-AGN Wireless LAN Access Point
Product Description 4 Technical Specifications
Issue 03 (2013-01-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
15
lReach
–Directive 1907/2006/EC
lWEEE
–Directive 2002/96/EC
AP7110DN-AGN Wireless LAN Access Point
Product Description 4 Technical Specifications
Issue 03 (2013-01-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
16
