Users Manual

APAA00001

User Manual

Issue Draft A

Date 2015-06-12

HUAWEI TECHNOLOGIES CO., LTD.

Draft A (2015-06-12)

Huawei Proprietary and Confidential

No part of this document may be reproduced or transmitted in any form or by any means without prior

written consent of Huawei Technologies Co., Ltd.

Trademarks and Permissions

and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.

All other trademarks and trade names mentioned in this document are the property of their respective

holders.

Notice

The purchased products, services and features are stipulated by the contract made between Huawei and

the customer. All or part of the products, services and features described in this document may not be

within the purchase scope or the usage scope. Unless otherwise specified in the contract, all statements,

information, and recommendations in this document are provided "AS IS" without warranties, guarantees or

representations of any kind, either express or implied.

The information in this document is subject to change without notice. Every effort has been made in the

preparation of this document to ensure accuracy of the contents, but all statements, information, and

recommendations in this document do not constitute a warranty of any kind, express or implied.

Huawei Technologies Co., Ltd.

Address:

Huawei Industrial Base

Bantian, Longgang

Shenzhen 518129

People's Republic of China

Website:

http://www.huawei.com

Email:

support@huawei.com

APAA00001

User Manual

About This Document

Draft A (2015-06-12)

Huawei Proprietary and Confidential

About This Document

Overview

This document describes APAA00001, typical usage, software installation and operation, and

method for using, operating, and maintaining APAA00001.

Intended Audience

This document is intended for:

 Technical support engineers

 Maintenance engineers

Documentation Obtaining

The electronic version of this document can be obtained from http://support.huawei.com.

Change History

Changes between document issues are cumulative. The latest document issue contains all the

changes in earlier issues.

Document Issue

Draft A (2015-06-12)

This is draft A.

APAA00001

User Manual

Contents

Draft A (2015-06-12)

Huawei Proprietary and Confidential

iii

Contents

About This Document .................................................................................................................... ii

1 Introduction to PAA ..................................................................................................................... 1

1.1 Overview ...................................................................................................................................................................... 1

1.2 Product Specifications .................................................................................................................................................. 1

1.3 Appearance Description ................................................................................................................................................ 2

1.3.1 Appearance ................................................................................................................................................................ 2

1.3.2 Accessory List ............................................................................................................................................................ 5

2 App Installation Guidelines ....................................................................................................... 8

2.1 App Download by Scanning the QR Code.................................................................................................................... 8

2.2 App Download from the Website .................................................................................................................................. 9

3 Networking Guideline ............................................................................................................... 10

3.1 Before Network Deployment ...................................................................................................................................... 10

3.2 Typical Scenarios ........................................................................................................................................................ 10

3.2.1 ALD Control over the AISG Port............................................................................................................................. 10

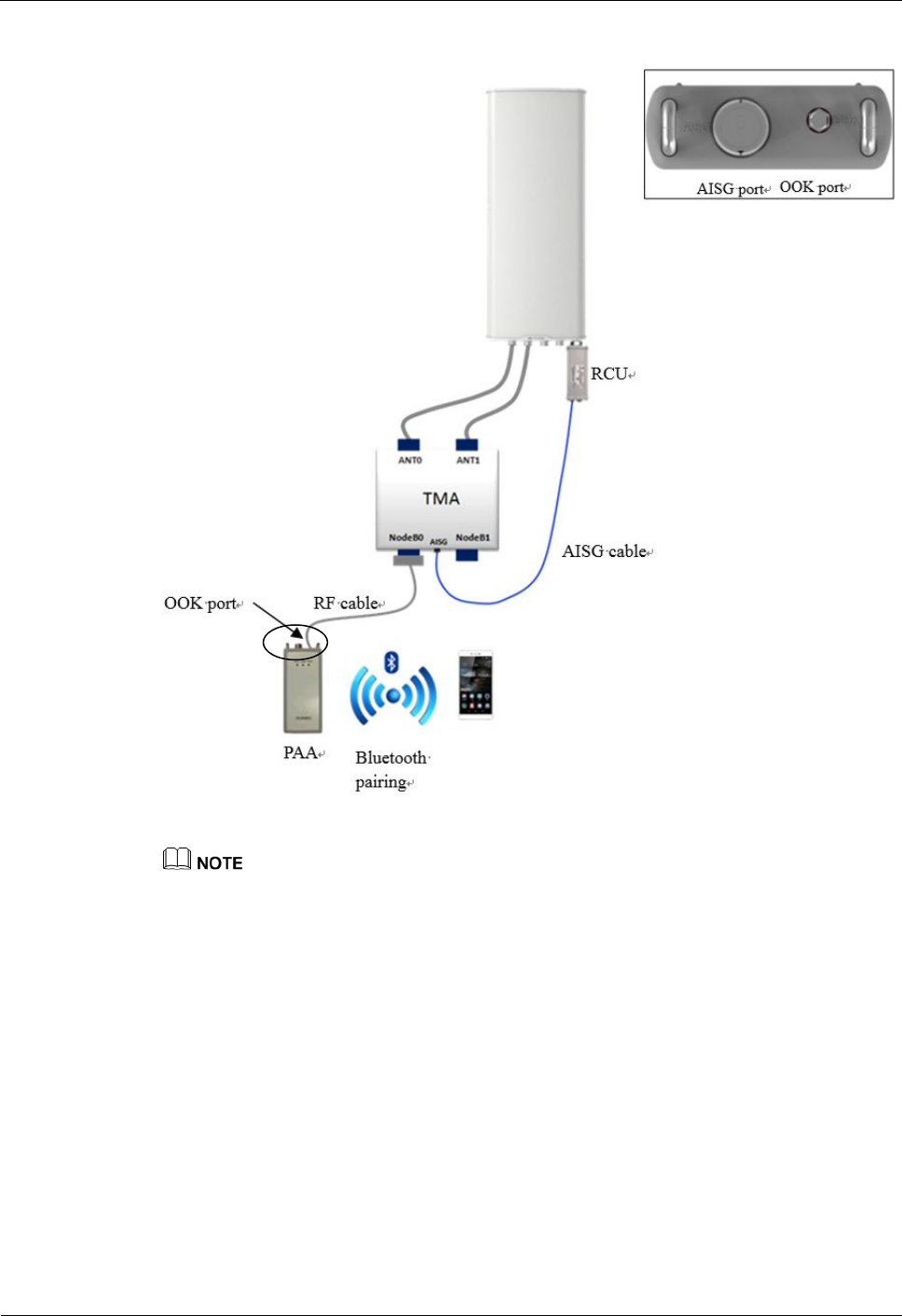

3.2.2 ALD Control over the OOK Port ............................................................................................................................. 11

3.3 Procedure .................................................................................................................................................................... 12

4 System Maintenance................................................................................................................... 15

4.1 Routine Maintenance .................................................................................................................................................. 15

4.1.1 Battery ..................................................................................................................................................................... 15

4.1.2 PAA Shell ................................................................................................................................................................. 16

4.1.3 Silicone Shell ........................................................................................................................................................... 16

4.2 Alarm Handling .......................................................................................................................................................... 16

4.2.1 Hardware Fault Alarm Handling .............................................................................................................................. 16

4.2.2 AISG/OOK Overcurrent Alarm Handling................................................................................................................ 17

4.2.3 Battery Not in Position Alarm Handling .................................................................................................................. 19

4.3 Troubleshooting .......................................................................................................................................................... 19

4.3.1 Battery Fault ............................................................................................................................................................ 19

4.3.2 PAA Power-On/Off Failure ...................................................................................................................................... 19

5 FCC Statements ........................................................................................................................... 21

5.1 Warning Statement FCC § 15.21 ................................................................................................................................ 21

5.2 Statement FCC § 15.19 ............................................................................................................................................... 21

APAA00001

User Manual

Contents

Draft A (2015-06-12)

Huawei Proprietary and Confidential

5.3 FCC Radiation Exposure Statement: .......................................................................................................................... 21

5.4 IC RSS warning .......................................................................................................................................................... 21

A Appendix ..................................................................................................................................... 23

A.1 Acronyms and Abbreviations ..................................................................................................................................... 23

A.2 Alarm Codes .............................................................................................................................................................. 25

APAA00001

User Manual

1 Introduction to PAA

Draft A (2015-06-12)

Huawei Proprietary and Confidential

1 Introduction to PAA

1.1 Overview

The portable AISG adapter (PAA) is an adapter that enables users to control antenna line

devices (ALDs) using the PAA app. With a rechargeable battery inside, the PAA has a small

size and can be carried easily, facilitating onsite ALD installation, commissioning, and

maintenance.

APAA00001, the current PAA model, can provide working current to ALDs and implement

conversions between bluetooth signals and RS485/OOK signals so that ALDs can be

controlled by using an app.

APAA00001 can be used to control all types of Huawei ALDs. If the PAA is to be used with

the ALDs supplied by peer vendors, you are advised to perform joint commissioning to

confirm their compatibility with each other.

1.2 Product Specifications

Table 1-1 provides the product specifications of APAA00001.

Table 1-1 Product specifications of APAA00001

Electrical Specifications

Operating

Power Supply

Input: 12 V DC 2.0 A (AC/DC adapter)

Output: 12 V DC 1.0 A (AC/DC adapter) or 15 V DC 1.0 A

(rechargeable battery)

Rechargeable

Battery

Lithium battery: 14.8 V (≥ 2000 mAh)

Maximum number of battery charging/discharging times: > 300

AISG

Connector

Female AISG

connector equipped

with eight pins

compliant with the

IEC 60130-9 and

AISG standards

Pin 1 and pin 6

DC (+12 V) (AC/DC

adapter)

DC (+15 V) (rechargeable

battery)

Pin 3

RS485 B

APAA00001

User Manual

1 Introduction to PAA

Draft A (2015-06-12)

Huawei Proprietary and Confidential

Electrical Specifications

Pin 5

RS485 A

Pin 7

DC return

Environmental Specifications

Operating

Temperature

–20°C to +55°C

Storage

temperature

0°C to +45°C

Recharge

temperature

0°C to 40°C

Humidity

5% to 95%

Service Life

Three years

Mechanical Specifications

Weight

0.52 kg (including the weight of a rechargeable battery)

Dimensions (H

x W x D)

204 mm x 88 mm x 30 mm

Material

PC+ABS (30%)

1.3 Appearance Description

1.3.1 Appearance

Figure 1-1 shows the appearance and dimensions of APAA00001.

APAA00001

User Manual

1 Introduction to PAA

Draft A (2015-06-12)

Huawei Proprietary and Confidential

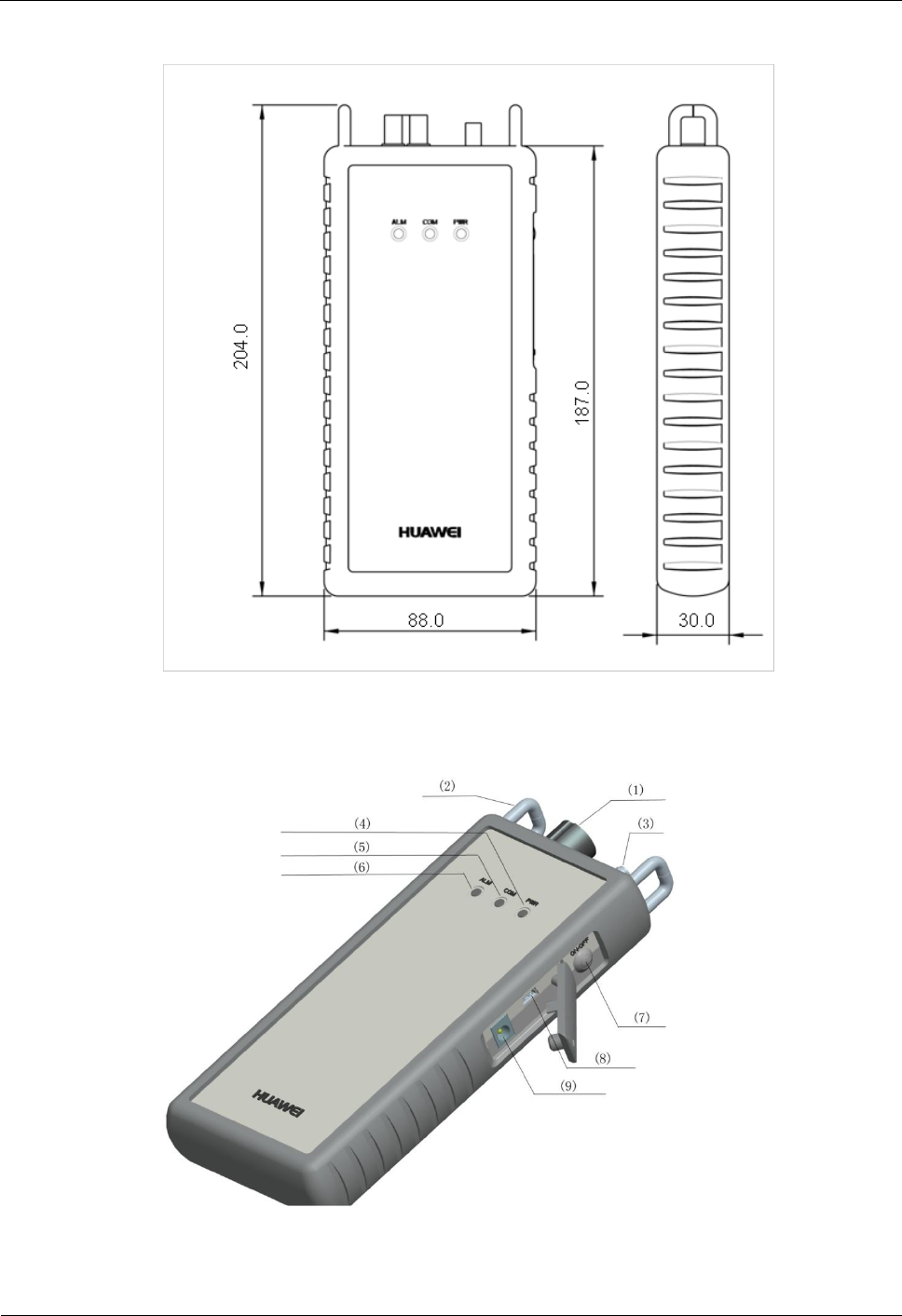

Figure 1-1 Appearance and dimensions of APAA00001

Figure 1-2 APAA00001 appearance

(1) AISG connection port

(2) Strap hole

(3) OOK connection port

APAA00001

User Manual

1 Introduction to PAA

Draft A (2015-06-12)

Huawei Proprietary and Confidential

(4) Power supply indicator

(5) Communication indicator

(6) Alarm indicator

(7) Power button

(8) Mini USB port

(9) 12 V DC adapter port

Table 1-2 Ports on APAA00001

No.

Port

Description

AISG connection

port

Connects the PAA to an ALD using an AISG cable.

Strap hole

Used to fasten straps so that the PAA can be carried easily.

OOK connection

port

Connects the PAA to an ALD using an RF cable.

4, 5,

and 6

Indicators

Indicate the power supply, communication, and alarm

status of the PAA. For details, see Table 1-3

Power button

Used to power on or off the PAA. The PAA can be

powered on or off by holding down this button.

Mini USB port

Reserved for further development and is not used

temporarily.

12 V DC adapter

port

Connects to the AC/DC adapter. When an AC/DC adapter

is connected, the PAA automatically uses the input power

supply as the operating power supply to charge the

integrated battery.

Table 1-3 Indicators

No.

Indicator and

Silkscreen

Description

Power indicator (PWR)

Indicates the power supply state. The indicator has

four working status:

 Steady green: The PAA has sufficient battery

power.

 Steady yellow: The PAA has moderate battery

power.

 Steady red: The PAA has low battery power.

 Blinking at the frequency of 1 Hz: The battery

inside the PAA is being recharged.

Communication

indicator (COM)

The indicator blinks when the mobile app has been

successfully connected to the PAA and

communication is proper.

Alarm indicator (ALM)

The indicator is steady red when the PAA generates an

alarm.

APAA00001

User Manual

1 Introduction to PAA

Draft A (2015-06-12)

Huawei Proprietary and Confidential

1.3.2 Accessory List

Table 1-4 lists the accessories of APAA00001.

Table 1-4 Accessories of APAA00001

No.

Accessory

Quantity

12 V DC adapter

1 PCS

AC power cable

1 PCS

AISG 1-to-2 cable

1 PCS

N(M)-DIN(M) adapter

1 PCS

N(M)-DIN(F) adapter

1 PCS

RF cable

1 PCS

Strap

1 PCS

User manual

1 PCS

12 V DC Adapter

The adapter parameters are as follows:

 Input: 100 V AC to 240 V AC, 0.8 A, 50 Hz to 60 Hz

 Output: 12 V DC, 2.0 A AC/DC

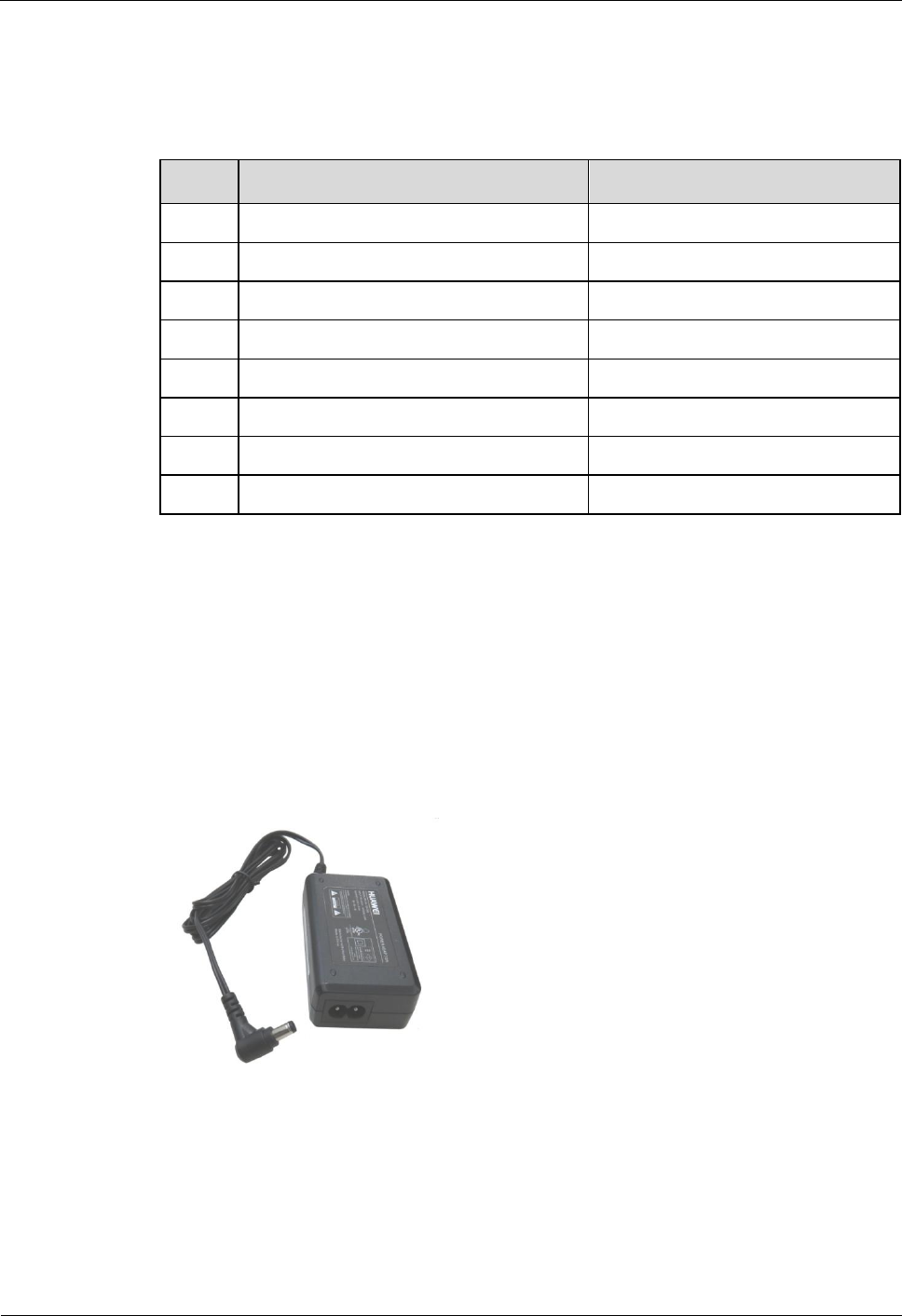

Figure 1-3 shows the 12 V DC adapter.

Figure 1-3 12 V DC adapter

AISG 1-to-2 Cable

The cable specifications are as follows:

 Connectors: Each AISG 1-to-2 cable has three 8-core connectors that comply with the

IEC 60130-9 standard: one female connector and two male connectors.

APAA00001

User Manual

1 Introduction to PAA

Draft A (2015-06-12)

Huawei Proprietary and Confidential

 Cable: complies with the UL2464 standard.

Figure 1-4 AISG 1-to-2 cable

N(M)-DIN(M) Adapter

Figure 1-5 N(M)-DIN(M) adapter

N(M)-DIN(F) Adapter

Figure 1-6 N(M)-DIN(F) adapter

RF Cable

Figure 1-7 RF cable

APAA00001

User Manual

1 Introduction to PAA

Draft A (2015-06-12)

Huawei Proprietary and Confidential

AC Power Cable

China standard Power is as shown in figure 1-8, According to the different delivery area, the

cable will be different.

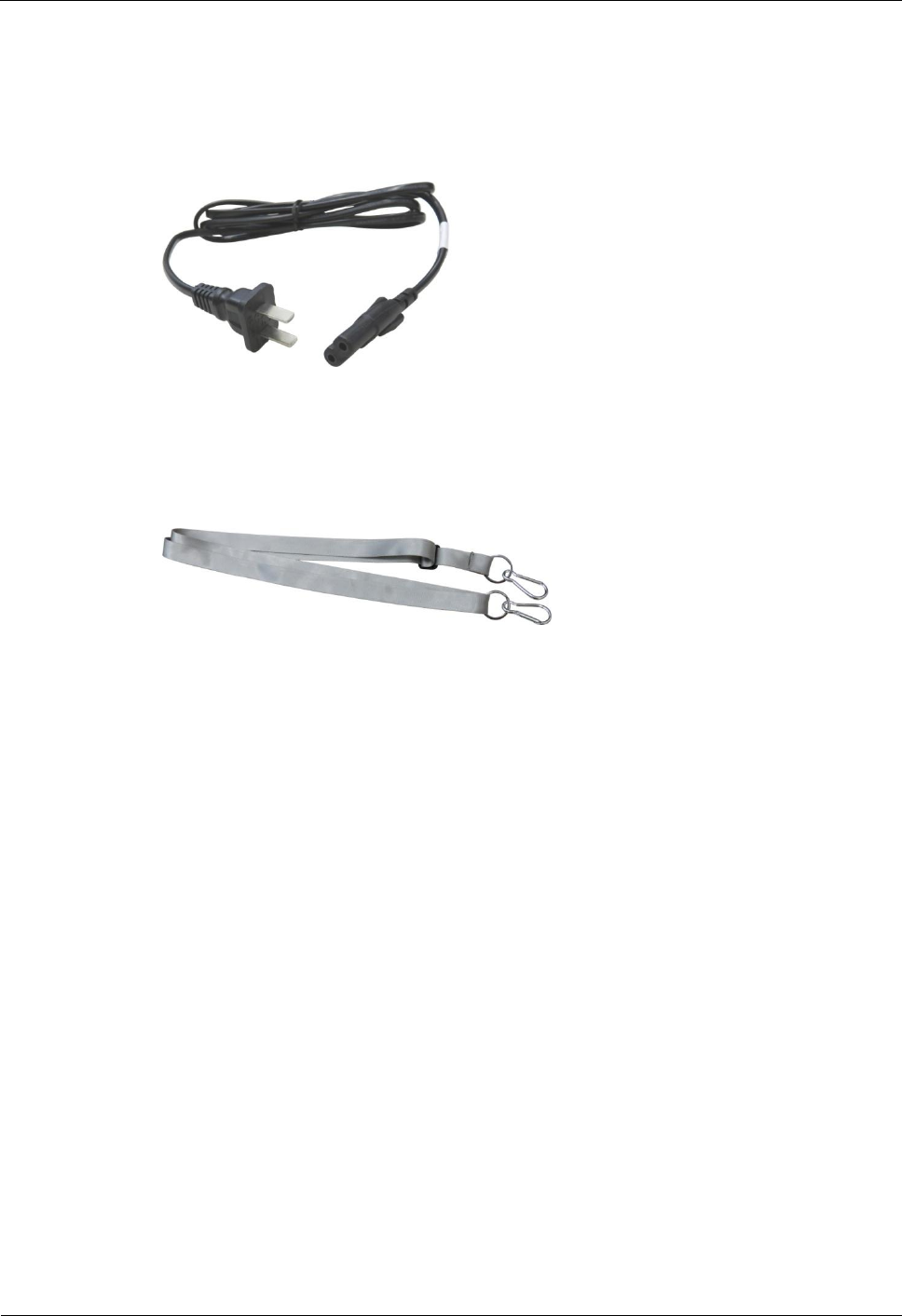

Figure 1-8 AC power cable

Strap

Figure 1-9 Strap

APAA00001

User Manual

2 App Installation Guidelines

Draft A (2015-06-12)

Huawei Proprietary and Confidential

2 App Installation Guidelines

Before you use the PAA to control an ALD, the PAA mobile app must be installed on your

smartphone. The app can be downloaded by scanning the QR code or from the website.

Currently, PAA is available only on Android smartphones.

PAA has the following requirements for smartphones:

 Android 4.0 or later

 1.5 GHz CPU or higher

 1 GB flash memory or higher

2.1 App Download by Scanning the QR Code

Procedure

Step 1 Scan the QR code on the back of the PAA using the QR code scanning function of your

smartphone, and then download the PAA app after the scanning is successful.( Some browsers

may have use restrictions can not download, can replace try different browsers).

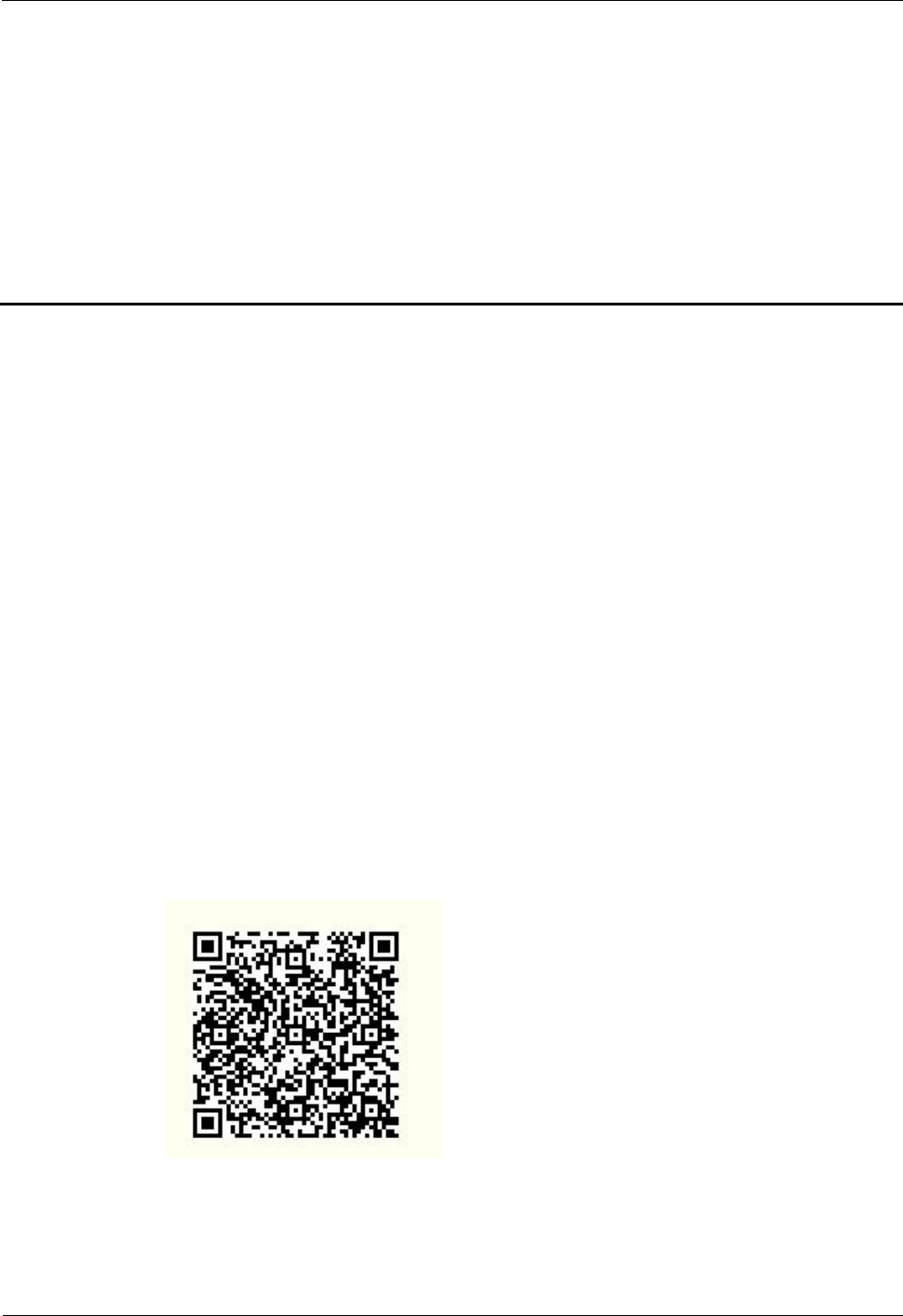

Figure 2-1 QR code of the PAA app

APAA00001

User Manual

2 App Installation Guidelines

Draft A (2015-06-12)

Huawei Proprietary and Confidential

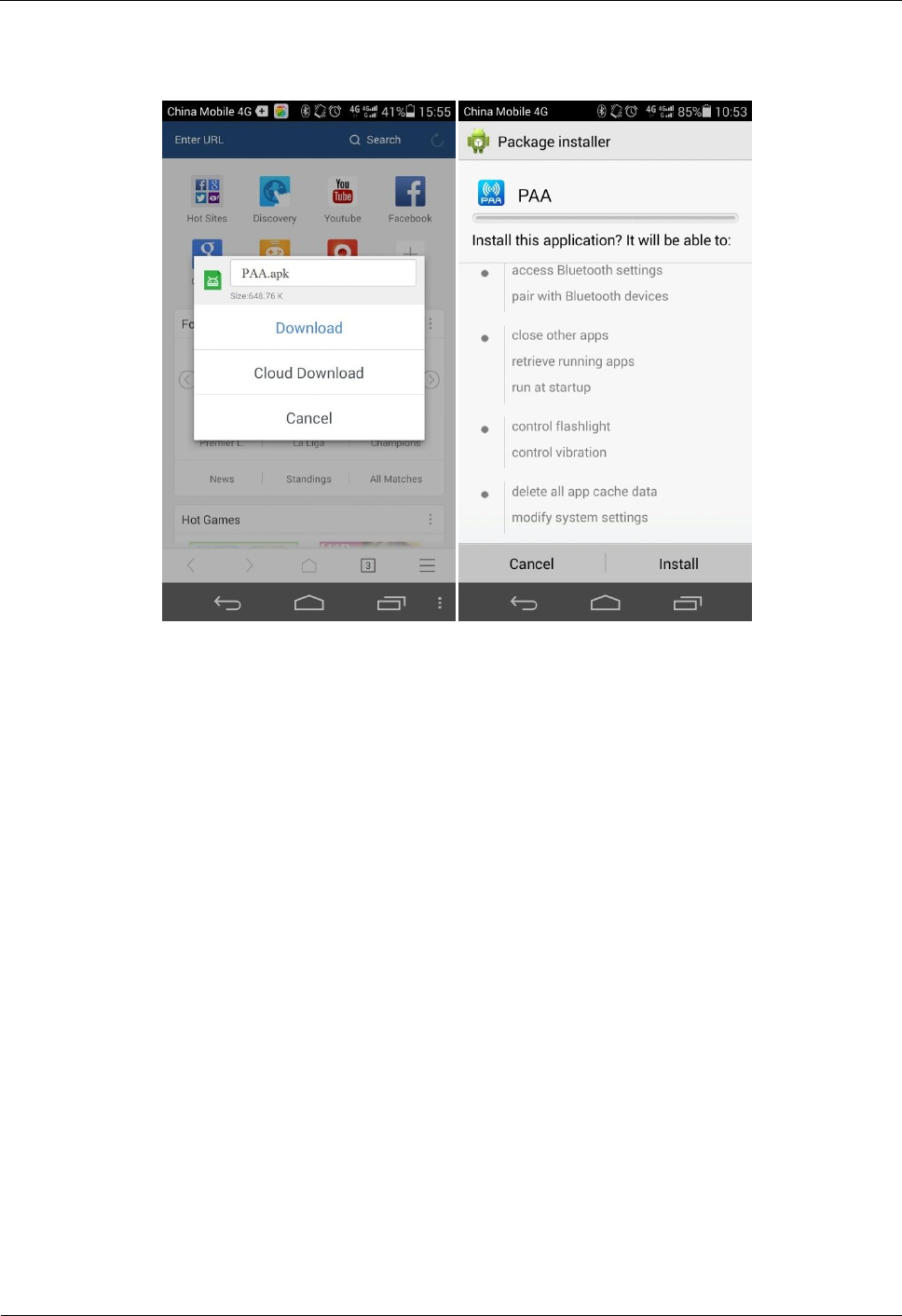

Figure 2-2 PAA app installation

Step 2 Click Open. On the displayed Please Connect to Bluetooth dialog box, click OK to enter the

GUI for selecting bluetooth devices, and click the bluetooth device name of the PAA to

connect the PAA. The bluetooth device name of the PAA consists of PAA and the last eight

characters of the bar code labeled on the back of the PAA, and the bluetooth password is 1234.

Communication between the smartphone and the PAA through bluetooth can be checked

based on the connection state between them.

 After the connection is successful, the app notifies the user that the PAA has been

connected, and the main PAA GUI is displayed. In this situation, the communication

indicator on the PAA blinks.

 If the connection fails, a notification indicating the failure is displayed at the lower part

of the bluetooth GUI, and the bluetooth selection GUI of the app is still displayed.

2.2 App Download from the Website

Visit the following URL using the web browser of your smartphone and download the PAA

app:

http://w3m-beta.huawei.com/m/Service/ClientDownloadServlet?osType=3&appId=258&flag

The installation method is the same as that used when the QR code is scanned.

APAA00001

User Manual

3 Networking Guideline

Draft A (2015-06-12)

Huawei Proprietary and Confidential

3 Networking Guideline

3.1 Before Network Deployment

Before using the PAA, ensure that the following preparations have been made:

 The AISG cable or RF cable has been connected to the ALD.

 The PAA app has been installed properly.

 The battery inside the PAA is fully charged. If no, recharge the PAA or connect the PAA

to the power adapter.

The mode in which the PAA controls an ALD depends on the ALD capability.

 If the ALD supports only the RS485 control mode, the PAA controls the ALD over the

AISG port. For details, see section 3.2.1 "ALD Control over the AISG Port."

 If the ALD supports only the OOK control mode, the PAA controls the ALD over the

OOK port. For details, see section 3.2.2 "ALD Control over the OOK Port."

 If the ALD supports both OOK and RS485 control modes, the PAA selects the control

mode based on actual situations.

3.2 Typical Scenarios

3.2.1 ALD Control over the AISG Port

The AISG output port on the PAA is connected to the AISG input port on the ALD using an

AISG cable, as shown in Figure 3-1.

APAA00001

User Manual

3 Networking Guideline

Draft A (2015-06-12)

Huawei Proprietary and Confidential

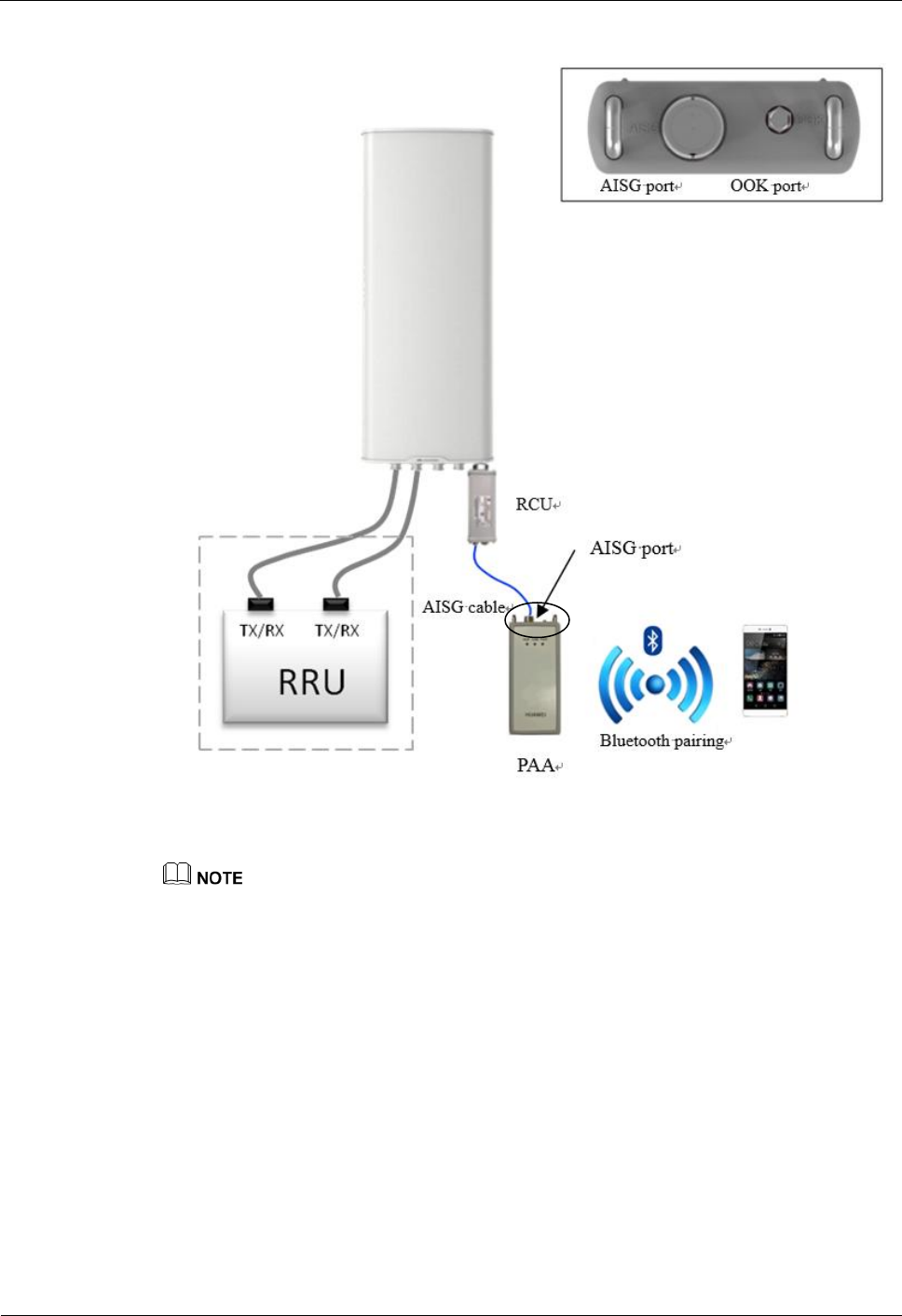

Figure 3-1 ALD control over the AISG port (when an external RCU is used)

 The total length of the AISG cable cannot exceed 50 m.

 Connectors and cables can be used for transfer during cable connection.

 The external power supply switch of the PAA must be turned on when the ALD is connected. Figure

3-4 shows the external power supply switch of the PAA.

3.2.2 ALD Control over the OOK Port

The OOK port on the PAA is connected to the RF port on the ALD, as shown in Figure 3-2.

APAA00001

User Manual

3 Networking Guideline

Draft A (2015-06-12)

Huawei Proprietary and Confidential

Figure 3-2 ALD control over the OOK port

 The total length of the RF cable cannot exceed 50 m.

 Connectors and cables can be used for transfer during cable connection.

 The external power supply switch of the PAA must be turned on when the ALD is connected. Figure

3-4 shows the external power supply switch of the PAA.

3.3 Procedure

Step 1 Select the networking drawing for cable connection based on the ALD capability.

Step 2 Power on the PAA. When the power indicator is steady on, the PAA is powered on properly.

If the PAA cannot be powered on, recharge the PAA by using the AC/DC adapter of the PAA.

When the PAA is being recharged, the power indicator blinks.

Step 3 Open the PAA app on the smartphone and then perform bluetooth pairing based on the

displayed messages. The bluetooth device name of the PAA consists of PAA and the last

eight characters of the bar code labeled on the back of the PAA. The bluetooth password is

APAA00001

User Manual

3 Networking Guideline

Draft A (2015-06-12)

Huawei Proprietary and Confidential

1234. After bluetooth pairing is successful, the communication indicator on the PAA blinks,

and the PAA app indicates that the PAA has been connected successfully, as shown in Figure

3-3.

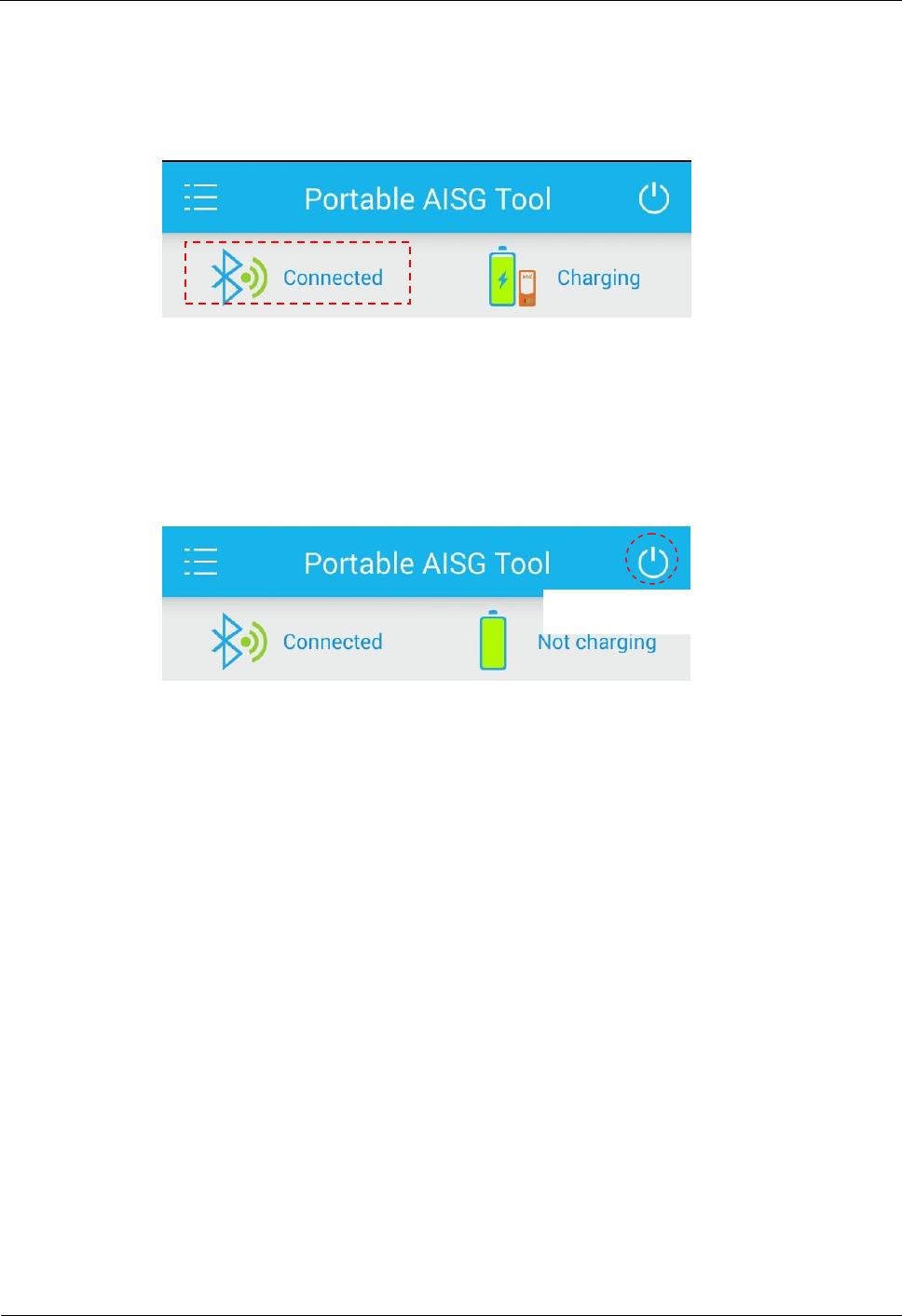

Figure 3-3 PAA successfully connected

Step 4 Tap the power switch on the app to turn on the external power supply switch of the PAA, as

shown in Figure 3-4. If the power switch on the app turns white, the external power supply

switch of the PAA has been turned on. If the power switch on the app turns gray, the external

power supply switch of the PAA has been turned off.

Figure 3-4 Turning on the external power supply switch of the PAA

In actual application, the PAA app GUI may slightly vary with app versions. For details, see

the online help of the app.

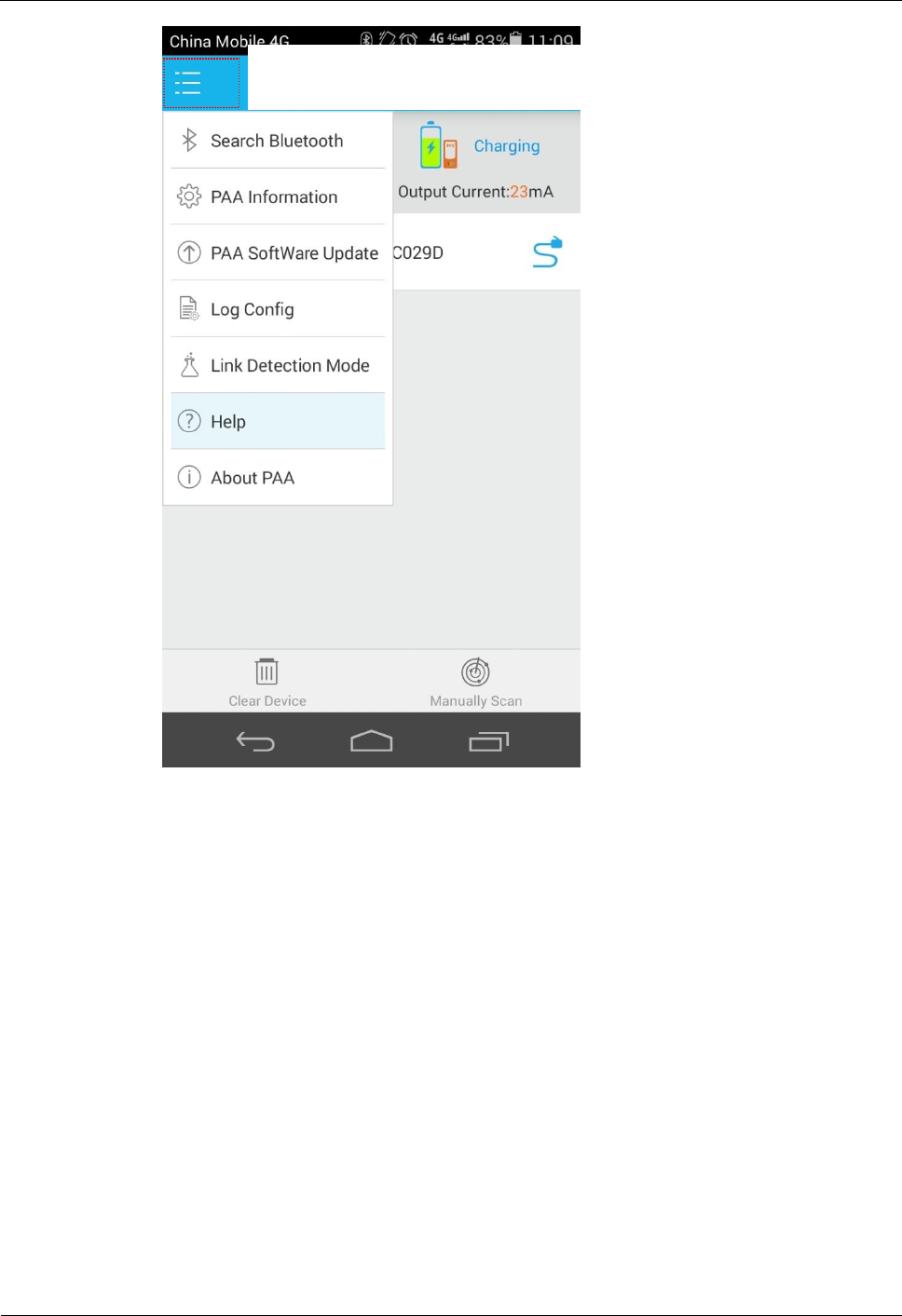

Figure 3-5 Opening the online help of the PAA app

Power button to turn on

the external power

supply

APAA00001

User Manual

3 Networking Guideline

Draft A (2015-06-12)

Huawei Proprietary and Confidential

Obtain the online help from the menu

APAA00001

User Manual

4 System Maintenance

Draft A (2015-06-12)

Huawei Proprietary and Confidential

4 System Maintenance

4.1 Routine Maintenance

During the use and maintenance of the PAA, its battery and shell must be protected.

4.1.1 Battery

The rechargeable battery inside the PAA is a lithium battery. Inappropriate use of the battery

may compromise its life cycle or even lead to safety risks.

 The battery cannot be overly recharged or discharged. Otherwise, its life cycle is

compromised.

 The PAA must be recharged and discharged at least once every one or two months if it is

not used for a long time.

 The dedicated AC/DC adapter of the PAA must be saved properly. Do not use other

models of AC/DC adapters to recharge the PAA.

 If the PAA is used without any external power supply, ensure that the PAA is fully

recharged.

 The PAA must not be used or placed near high-temperature sources, such as fire or

heaters. Otherwise, the battery may be overheated, disconnected, or even fail, thereby

compromising the battery life.

 The PAA cannot be used in places with strong electrostatic and magnetic fields.

Otherwise, the battery safety protection unit may be damaged, causing safety issues.

 If the battery becomes smelly, overheated, discolored, or deformed, or any other

exception occurs during its use, storage, and recharging, remove the battery from the

PAA immediately and stop using the battery.

Unused batteries must be properly disposed. The electrical polarity can be wrapped up using insulation

material to prevent fire.

 The battery may fail if either of the following conditions are met:

− The battery is fully recharged within 1 hour after the recharging starts.

− An alarm indicating low battery power is displayed within 0.5 hour after the battery is

used.

In this case, contact Huawei technical support to replace the battery.

 The rechargeable battery inside the PAA is provided by the battery supplier specified by

Huawei. If the battery needs to be replaced, contact Huawei technical support.

APAA00001

User Manual

4 System Maintenance

Draft A (2015-06-12)

Huawei Proprietary and Confidential

4.1.2 PAA Shell

The PAA shell is made of PC+ABS materials, and is vulnerable to scratches or breakage.

 The battery must be kept away from violent collision when it is transported, carried, and

stored.

 The PAA must not be used outdoors during a thunderstorm.

 If the PAA is to be used at a high position, it is recommended that the PAA be fastened

using a strap or protected with a bag to minimize the possibility that the PAA falls to the

ground.

 After the PAA is used, the USB and AISG connection ports need to be protected using

dedicated protective caps so that foreign matters cannot enter the PAA.

4.1.3 Silicone Shell

The protective shell of the PAA is made of silicone materials and is vulnerable to scratches or

breakage.

 The silicone shell cannot be in contact with keen-edge objects.

 The silicone shell must not be frequently removed or violently stretched. Otherwise, the

shell may be deformed.

 It is recommended that the silicone shell be cleaned using wet cloth or a toothbrush with

toothpaste or alcohol and then washed using clean water. Do not soak the silicone shell

into water for a long time, violently brush the shell, or dry the shell at high temperature

using a hair dryer.

 The silicone shell may easily be covered with dust, grease stain, or other foreign matters

due to electrostatic attraction. Therefore, it is recommended that the PAA be placed in a

paper case at a cool and dry environment if it is not used for a long time.

4.2 Alarm Handling

When the PAA app is used to control the PAA, PAA alarms can be queried using the app. For

details about alarm codes, see section A.2"Alarm Codes."

4.2.1 Hardware Fault Alarm Handling

Background

A hardware fault alarm is reported when the flash memory or I2C bus inside the PAA is faulty.

Table 4-1 describes the hardware fault alarm.

APAA00001

User Manual

4 System Maintenance

Draft A (2015-06-12)

Huawei Proprietary and Confidential

Table 4-1 Hardware fault alarm

Symptom

Impact on the

System

Severity

Cause

This alarm is reported

when the flash memory or

I2C bus inside the PAA is

faulty. In this situation, the

alarm indicator is steady

on. This alarm can be

queried using the PAA app.

The data storage

or read functions,

such as battery

status query and

board

temperature

query, may be

faulty.

Major

 The read/write

function of the flash

memory is faulty.

 The flash memory

fails.

 The I2C bus is faulty.

 The I2C bus fails.

Handling Method

Restart the PAA.

 If the PAA communicates properly with the smartphone and the alarm is cleared after the

restart, no further actions are required.

 If the alarm persists, the PAA has been damaged. In this case, replace the PAA with a

new one or contact Huawei technical support.

----End

4.2.2 AISG/OOK Overcurrent Alarm Handling

Background

If the ALD connected to the AISG or OOK port on the PAA has overly strong current or is

short-circuited, the PAA forcibly shuts down the external power supply and an AISG/OOK

overcurrent alarm is reported.

Table 4-2 describes the AISG/OOK overcurrent alarm.

APAA00001

User Manual

4 System Maintenance

Draft A (2015-06-12)

Huawei Proprietary and Confidential

Table 4-2 AISG/OOK overcurrent alarm

Symptom

Impact on the

System

Severity

Cause

If the ALD connected to the

AISG or OOK port on the

PAA has overly strong

current or is short-circuited,

the AISG/OOK overcurrent

alarm is reported. In this

situation, the PAA forcibly

shuts down the external

power supply and the alarm

indicator is steady on. This

alarm can be queried using

the PAA app.

The ALD cannot

be connected or

controlled for

software

uploading,

device

information

query, or other

purposes.

Major

 The instantaneous

current is overly

strong during hot

swapping.

 The number of ALDs

connected to the PAA

is too large, or the

operating current of

the ALD is

excessively strong.

 The ALD is short

circuited.

 The ALD experiences

a hardware fault.

 The PAA is faulty.

Procedure

Step 1 Tap the external power supply switch on the PAA app to turn on the external power supply

from the PAA again.

 No further actions are required if the external power supply is successfully turned on, the

PAA communicates successfully with the ALD, and the alarm is cleared.

 After the power supply switch is turned on, the PAA forcibly shuts down the external

power supply. If the alarm still persists, go to Step 2

Step 2 Check whether the communication link or each PAA is short-circuited.

 If a short circuit occurs, rectify the fault and then turn on the external power supply from

the PAA again. If the alarm is cleared, no further actions are required. If the alarm

persists, go to Step 3.

 If no short circuit occurs, go to Step 3

Step 3 Check whether the total working current of all the ALDs connected to the PAA exceeds 1 A.

 If the total current is not greater than 1 A, go to Step 4.

 If the total current is greater than 1 A, decrease the number of ALDs so that the total

current is equal to or less than 1 A, and then turn on the external power supply from the

PAA. If the alarm is cleared, no further actions are required. If the alarm persists, go to

Step 4.

Step 4 Replace the faulty ALD and then turn on the external power supply from the PAA again.

 If the alarm is cleared, no further actions are required.

 If the alarm persists, replace the PAA. If the alarm is cleared after the replacement, no

further actions are required. If the alarm persists, contact Huawei technical support.

----End

APAA00001

User Manual

4 System Maintenance

Draft A (2015-06-12)

Huawei Proprietary and Confidential

4.2.3 Battery Not in Position Alarm Handling

Background

The PAA reports a battery not in position alarm upon detecting that the battery circuit is in

poor contact.

Table 4-3 describes the battery not in position alarm.

Table 4-3 Battery not in position alarm

Symptom

Impact on the System

Severity

Cause

The PAA reports a

battery not in position

alarm upon detecting

that the battery circuit is

in poor contact. In this

situation, the alarm

indicator is steady on.

This alarm can be

queried using the PAA

app.

If the external power

supply of the PAA is

insufficient or becomes

unavailable, the ALD

connected to the PAA

cannot be calibrated or the

downtilt cannot be set. At

the same time, the battery

power and temperature

cannot be measured and the

possibility of battery

self-locking increases.

Minor

The battery

connector inside

the PAA is loosely

connected or in

poor contact.

Procedure

Contact Huawei technical support so that the PAA can be disassembled or returned to Huawei

for maintenance.

4.3 Troubleshooting

4.3.1 Battery Fault

 The battery may fail if any of the following conditions exists:

The battery is fully recharged within 1 hour.

− Low battery power is notified within 0.5 hour after the battery is used.

− The battery status displayed in the app does not change during battery recharging.

In this case, contact Huawei technical support to replace the PAA.

 If the alarm indicator is steady on, use the PAA app to query whether a battery not in

position alarm is reported. If yes, contact Huawei technical support or replace the PAA.

4.3.2 PAA Power-On/Off Failure

 Hold down the PAA power button for 10s to forcibly power off the PAA. Then, try

another power-on operation. If the PAA still cannot be powered on, remove and then

reinsert the power adapter. If the fault persists, contact Huawei technical support or

replace the PAA.

APAA00001

User Manual

4 System Maintenance

Draft A (2015-06-12)

Huawei Proprietary and Confidential

 If the power button does not work for multiple times when the PAA is used, the button or

the button spring may be faulty. In this case, contact Huawei technical support to replace

the PAA.

APAA00001

User Manual 5 FCC Statements

Draft A (2015-06-12) Huawei

Proprietary and Confidential

5 FCC Statements

5.1 Warning Statement FCC § 15.21

Any Changes or modifications not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

5.2 Statement FCC § 15.19

This device complies with part 15 of the FCC Rules. Operation is subject to the following

two conditions: (1) This device may not cause harmful interference, and (2) this device must

accept any interference received, including interference that may cause undesired operation.

5.3 FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled

environment. This transmitter must not be co-located or operating in conjunction with any

other antenna or transmitter.

Note: This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This equipment

generates uses and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If

this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

 Reorient or relocate the receiving antenna.

 Increase the separation between the equipment and receiver.

 Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

 Consult the dealer or an experienced radio/TV technician for help.

5.4 IC RSS warning

This device complies with Industry Canada licence-exempt RSS standard (s). Operation is

subject to the following two conditions: (1) this device may not cause interference, and (2)

this device must accept any interference,including interference that may cause undesired

operation of the device.

APAA00001

User Manual 5 FCC Statements

Draft A (2015-06-12) Huawei

Proprietary and Confidential

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils

radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1)

l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout

brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le

fonctionnement.

IC Radiation Exposure Statement:

This equipment complies with IC RF radiation exposure limits set forth for an uncontrolled

environment. This transmitter must not be co-located or operating in conjunction

with any other antenna or transmitter.

APAA00001

User Manual AAppendix

Draft A (2015-06-12) Huawei

Proprietary and Confidential

A Appendix

A.1 Acronyms and Abbreviations

ABS acrylonitrile-butadiene-styrene

AC alternating current

AISG Antenna Interface Standards Group

ALD antenna line device

CPU central processing unit

DC direct current

GB gigabit

GHz gigahertz

GUI graphical user interface

APAA00001

User Manual AAppendix

Draft A (2015-06-12) Huawei

Proprietary and Confidential

I2C inter-integrated circuit

IEC International Electrotechnical Commission

OOK on-off-keying

PAA portable AISG adapter

PC personal computer

QR quick response code

RCU remote control unit

RF radio frequency

URL uniform resource locator

USB Universal Serial Bus

APAA00001

User Manual AAppendix

Draft A (2015-06-12) Huawei

Proprietary and Confidential

A.2 Alarm Codes

The following alarm codes may be displayed on the PAA.

Alarm Code Type Displayed

Information

Remarks

0x11 Alarm code Hardware Error A hardware alarm is reported.

0x30 Alarm code AISG/OOK Over

Current An AISG/OOK overcurrent

alarm is reported.

0x32 Alarm code Battery Not In Position A battery not in position alarm

is reported.

Huawei Technologies APAA00001 PAA User Manual Release Notes

Huawei Technologies Co.,Ltd PAA Release Notes

Users Manual

Navigation menu

Namespaces

Views

Navigation
