Huawei Technologies ARDCM-1PHS ARDCM-1PHS User Manual rev1

Huawei Technologies Co.,Ltd ARDCM-1PHS rev1

User Manual rev1

ARDCM-1PHS Single-Phase PLC Module
User Manual
Issue
01
Date
2016-10-16
HUAWEI TECHNOLOGIES CO., LTD.
Issue 01 (2016-10-16)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
i
Copyright © Huawei Technologies Co., Ltd. 2016. All rights reserved.
No part of this document may be reproduced or transmitted in any form or by any means without prior
written consent of Huawei Technologies Co., Ltd.
Trademarks and Permissions
and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.
All other trademarks and trade names mentioned in this document are the property of their respective
holders.
Notice
The purchased products, services and features are stipulated by the contract made between Huawei and
the customer. All or part of the products, services and features described in this document may not be
within the purchase scope or the usage scope. Unless otherwise specified in the contract, all statements,
information, and recommendations in this document are provided "AS IS" without warranties, guarantees or
representations of any kind, either express or implied.
The information in this document is subject to change without notice. Every effort has been made in the
preparation of this document to ensure accuracy of the contents, but all statements, information, and
recommendations in this document do not constitute a warranty of any kind, express or implied.
Huawei Technologies Co., Ltd.
Address:
Huawei Industrial Base
Bantian, Longgang
Shenzhen 518129
People's Republic of China
Website:
http://e.huawei.com
ARDCM-1PHS Single-Phase PLC Module
User Manual
About This Document
Issue 01 (2016-10-16)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
ii
About This Document
Purpose
This document describes the technical specifications, functions, and installation methods of
the ARDCM-1PHS single-phase PLC module.
Intended Audience
This document is intended for:
Technical support engineers
Maintenance engineers
Symbol Conventions
The symbols that may be found in this document are defined as follows.
Symbol
Description
Indicates an imminently hazardous situation which, if not
avoided, will result in death or serious injury.
Indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.
Indicates a potentially hazardous situation which, if not
avoided, may result in minor or moderate injury.
Indicates a potentially hazardous situation which, if not
avoided, could result in equipment damage, data loss,
performance deterioration, or unanticipated results.
NOTICE is used to address practices not related to personal
injury.
Calls attention to important information, best practices and
tips.
NOTE is used to address information not related to personal
injury, equipment damage, and environment deterioration.
ARDCM-1PHS Single-Phase PLC Module
User Manual
About This Document
Issue 01 (2016-10-16)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
iii
Change History
Changes between document issues are cumulative. The latest document issue contains all the
changes made in earlier issues.
Issue 01 (2016-10-10)
This is the first official release.
ARDCM-1PHS Single-Phase PLC Module
User Manual
Contents
Issue 01 (2016-10-16)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
iv
Contents
About This Document .................................................................................................................... ii
1 Product Overview ......................................................................................................................... 5
1.1 Application Scenarios ................................................................................................................................................... 5
1.2 Functions ...................................................................................................................................................................... 5
1.3 Appearance ................................................................................................................................................................... 6
1.4 Technical Specifications ............................................................................................................................................... 6
2 Installation Guide ......................................................................................................................... 7
2.1 Packing List .................................................................................................................................................................. 7
2.2 Installation Instructions................................................................................................................................................. 7
2.2.1 Installation Procedure ................................................................................................................................................ 7
2.3 Module Replacement .................................................................................................................................................... 8
ARDCM-1PHS Single-Phase PLC Module
User Manual
1 Product Overview
Issue 01 (2016-10-16)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
5
1 Product Overview
1.1 Application Scenarios
The ARDCM-1PHS is the ARDCM’s terminal communication module that is used on a meter
to collect data and send collected data to the AR-DCM. This module uses power line
communication (PLC) technology to upload and download data, implementing remote
wireless control.
It is used for intelligent meter reading and applicable to various scenarios that use smart meter
systems, such as smart household and smart building.
1.2 Functions
The ARDCM-1PHS module provides the following functions:
Uses PLC technology to upload information.
Enables remote meter reading, which is convenient and time-saving.
ARDCM-1PHS Single-Phase PLC Module
User Manual
1 Product Overview
Issue 01 (2016-10-16)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
6
1.3 Appearance
Figure 1-1 ARDCM-1PHS appearance
1.4 Technical Specifications
Table 1-1 ARDCM-1PHS technical specifications
Item
Description
Communication method
PLC
Working frequency
1-30 MHz
External interfaces
High-voltage interface (single-phase meter connector
2)
Low-voltage interface (single-phase meter connector
1)
Operating temperature
Long-term operating temperature: -40°C to +70°C
(-40°F to +158°F)
Altitude
0-4000 m (0-13123 ft.)
Storage temperature
-40°C to +85°C (-40°F to +185°F )
Power consumption
< 12 W
Dimensions (W x D x H)
64.4 mm x 44.4 mm x 12 mm (2.54 in. x 1.75 in. x
0.47 in.)
Weight
49.6 g (0.11 lb)
ARDCM-1PHS Single-Phase PLC Module
User Manual
2 Installation Guide
Issue 01 (2016-10-16)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
7
2 Installation Guide
2.1 Packing List
Open the package and check the product in the package. In the case of any problem, contact
the supplier.
Table 2-1 ARDCM-1PHS packing list
Item
Accessory
PLC module
None
Integrated assembly (PLC
module + shell)
None
2.2 Installation Instructions
The ARDCM-1PHS single-phase PLC module must be used on a single-phase PLC meter.
Before installing the module, check whether the meter is the matching type.
Installation and commissioning of the module must be performed by trained personnel. Before
the installation, turn off the power.
2.2.1 Installation Procedure
Step 1 Use your fingers to hold the recesses on the PLC module (A and B in the following figure),
with the indicators on the top. Then mount the PLC module to the meter vertically.
DANGER
ARDCM-1PHS Single-Phase PLC Module
User Manual
2 Installation Guide
Issue 01 (2016-10-16)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
8

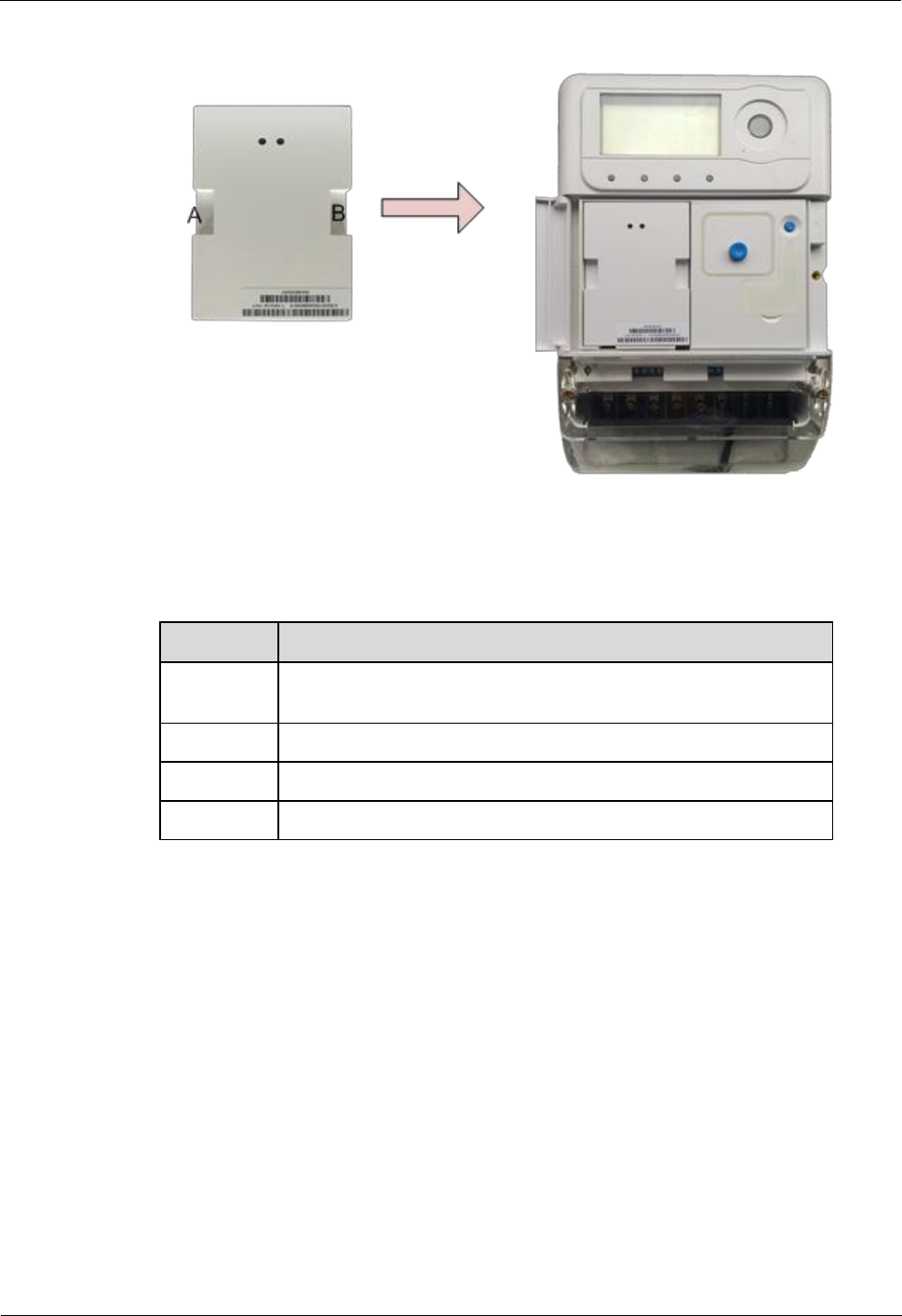

Figure 2-1 Installing the PLC module
Step 2 Check against the following checklist.
Item
Status
1
The power cables and ground cable are properly connected, meeting
power supply requirements.
2
Labels of all cables are correct, clear, and tidy.
3
The PLC module is securely mounted on the meter.
4
There are no other objects on the meter.
----End
2.3 Module Replacement
An ARDCM-1PHS single-phase PLC module can only be replaced with a PLC module of the
same model. Before the replacement, check the model of the replacement module. The
replacement procedure is similar to the installation procedure.
ARDCM-1PHS Single-Phase PLC Module
User Manual
2 Installation Guide
Issue 01 (2016-10-16)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
9
Installation and commissioning of the module must be performed by trained personnel. Before
the replacement, turn off the power.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
DANGER
