Huawei Technologies B310S-518 LTE CPE User Manual Quick Start
Huawei Technologies Co.,Ltd LTE CPE Quick Start
UserManual.pdf
![](/img.php?id=2502839&img=bg1.png)
B310 LTE CPE
Quick Start
31506955_01
![](/img.php?id=2502839&img=bg3.png)
1
1 Getting to know your B310
Power indicator
On: the B310 is powered on.
Off: the B310 is powered off.
Network mode
indicator
Steady cyan: connected to an LTE network.
Steady blue: connected to a 3G network.
Steady yellow: connected to a 2G network.
Steady green: connected to an Ethernet network.
Steady red:
– The SIM card is not recognized, the PIN has not
been entered, or the PIN verification failed.
– Failed to connect to a mobile network or an
Ethernet network.
Wi-Fi/WPS
indicator
Steady on: Wi-Fi turned on.
Blinking: a WPS connection is being set up.
Off: Wi-Fi turned off.
![](/img.php?id=2502839&img=bg4.png)
2
LAN/WAN
indicator
Steady on: LAN/WAN port is connected to a LAN
device or an Ethernet port.
Blinking: data is being transmitted through the
LAN/WAN port.
Off: LAN/WAN port is not connected to a LAN
device or an Ethernet port.
Signal strength
indicator
On: signal reception available (more bars mean
better reception).
Off: no reception.
SIM card slot
Install a standard SIM card to access the Internet via
an LTE/3G/2G data connection.
Telephone port
Connect to a telephone.
WPS button
Press and hold for 2 or more seconds until is
blinking to active WPS connection when Wi-Fi is
turned on.
Power button
Press and hold for about 3 seconds to power the B310
on or off.
Reset button
Restoring the default settings of the B310 will erase all
previous settings.
When the B310 is powered on, use a sharply pointed
object to press and hold for about 3 seconds until
indicator is blinking to restore the B310 to its
factory settings. After the factory defaults are
restored, the B310 will restart automatically.
Power port
Connect to compatible power adapter.
LAN/WAN port
Working as a LAN port when connected to a
computer, switch, or other LAN device.
Working as a WAN port when connected to an
Ethernet port on the wall.
![](/img.php?id=2502839&img=bg5.png)
3
2 Installation
Scenario 1: Accessing the Internet using an LTE, 3G, or
2G network

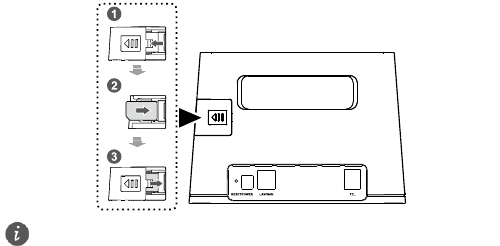

Step 1: Installing the SIM card
1. Slide off the card slot cover.
2. Insert the SIM card into the card slot. Ensure that the beveled edge of the SIM card
aligns with that of the card slot.
3. Close the card slot cover.
Do not remove the SIM card when it is in use. Doing so will affect the performance of
your B310 and data stored on the SIM card may be lost.
![](/img.php?id=2502839&img=bg6.png)
4
Step 2: Connecting cables
Once connected to a power outlet, the B310 automatically powers on.
Power adapter
Computer
Telephone
Laptop, tablet, or smart phone
To prevent interference caused by radio signals, place the B310 at least 1 meter (3.28
feet) away from telephone and other electrical devices.
The B310's power adapter model is HW-120100XYW. X and Y represent letters or
numbers that vary by region. For details about the specific adapter model, contact
an authorized dealer.
Do not connect the B310 to the telephone wall outlet (or any Public Switched Telephone
Network), because doing so could damage the B310 due to excessive heat.
![](/img.php?id=2502839&img=bg7.png)
5
Scenario 2: Accessing the Internet using Ethernet
Connect the B310 to a wall-mounted Ethernet port or an ADSL modem for Internet
access.
Once connected to a power outlet, the B310 automat ically powers on.
Power adapter
Ethernet port on the wall
Telephone
Laptop, tablet, or smart phone
To prevent interference caused by radio signals, place the B310 at least 1 meter (3.28
feet) away from telephone and other electrical devices.
The B310's power adapter model is HW-120100XYW. X and Y represent letters or
numbers that vary by region. For details about the specific adapter model, contact
an authorized dealer.
Do not connect the B310 to the telephone wall outlet (or any Public Switched Telephone
Network), because doing so could damage the B310 due to excessive heat.
![](/img.php?id=2502839&img=bg8.png)
6
3 Setting up a Wi-Fi connection
Step 1: Enabling Wi-Fi on the B310
When the indicator is steady on, the Wi-Fi funct ion of the B310 is turned on.

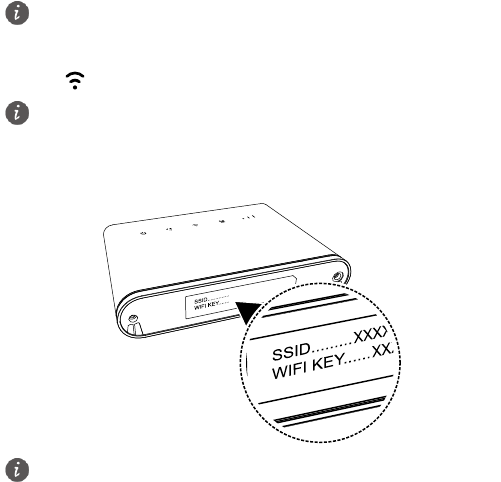

Step 2: Recording the SSID and Wi-Fi key
The default SSID and Wi-Fi key are printed on the B310's bottom label.
Step 3: Setting up a Wi-Fi connection on your client
Method 1: Setting up a Wi-Fi connection manually
1. From your Wi-Fi enabled client, scan for wireless networks in your area.
2. Connect to the network name that matches the SSID found on the device label.
3. When prompted for password, enter the Wi-Fi Key found on the device label. (The
Wi-Fi key is case sensitive.) Your client will notify you when it is connected.
Make sure your client (computer, tablet, or smart phone) also supports Wi-Fi.
For details about how to manually enable or disable the Wi-Fi function, refer to the
WLAN settings section of the help information on the web management page.
To prevent unauthorized parties from accessing your Wi-Fi network, it is recommended
that you change the SSID and Wi-Fi key from time to time. For details, see the help
information on the web management page.
![](/img.php?id=2502839&img=bg9.png)
7
AirPort: On
Turn AirPort Off
No network selected
XXXXXXXX
Join Other Network...
Create Network...
Open Network Preferences...
i
Settings
WLAN
XXXXXXXX
Other...
Ask to Join Nerworks
CHOOSE A NETWORK...
WLAN
XXXXXXXX
WLAN
XXXXXXXX
Secured with WPA2
Networks
WiFi
Connect
XXXXXXXX
Connect automatically
Windows 7
iPhoneMac
Windows 8
Android
Method 2: Setting up a Wi-Fi connection through WPS
If the client supports WPS, you can set up a WPS connection as follows:
1. Ensure that Wi-Fi is enabled on the client.
2. Press and hold the WPS button for 2 or more seconds. The indicator then
starts blinking.
3. Activate the WPS connection on the client in 2 minutes.
For instructions about how to enable a WPS connection on your device, see the device’s
user guide.
![](/img.php?id=2502839&img=bga.png)
8
4 Configuring your B310
1. After a client is connected to the B310 through Wi-Fi or LAN port, launch a browser
on the client and visit http://192.168.8.1.
2. Enter the user name (admin by default) and password (admin by default) to log in to
the web management page.
3. Follow the quick setup wizard to check or set network connection parameters step
by step. For details, see the help information on the web management page.
Once you are done, try opening a web page on the client to verify whether you have
Internet access.
To protect your account, change the password after your first login. For details, see
the help information on the web management page.
If you modify the SSID and Wi-Fi key, you must set up the Wi-Fi connection on the
client again.
![](/img.php?id=2502839&img=bgb.png)
9
5 For more help
If you are experiencing any issues with the B310:
Restart the B310.
See the help information on the web management page.
Restore the B310 to its factory settings.
Contact your service provider.
Please visit http://consumer.huawei.com/en/support/hotline for recently updated
hotline and email address in your country or region.
Figures in this guide are for your reference only. Specific models may vary slightly,
contact your service provider for more detailed information.
10
6 Safety information
This section contains important information about the operation of your device. It also
contains informat ion about how to use the device safely. Read this information
carefully before using your device.
Electronic device
Do not use your device if using the device is prohibited. Do not use the device if doing
so causes danger or interference with other electronic devices.
Interference with medical equipment
Follow rules and regulations set forth by hospitals and health care facilities. Do not
use your device where prohibited.
Some wireless devices may affect the performance of hearing aids or pacemakers.
Consult your service provider for more information.
Pacemaker manufacturers recommend that a minimum distance of 15 cm be
maintained between a device and a pacemaker to prevent potent ial interference
with the pacemaker. If using a pacemaker, hold the device on the side opposite the
pacemaker and do not carry the device in your front pocket.
Areas with flammables and explosives
Do not use the device where flammables or explosives are stored (in a gas station, oil
depot, or chemical plant, for example). Using your device in these environments
increases the risk of explosion or fire. In addition, follow the instruct ions indicated in
text or symbols.
Do not store or transport the device in containers with flammable liquids, gases, or
explosives.
Operating environment
Avoid dusty, damp, or dirty environments. Avoid magnetic fields. Using the device in
these environments may result in circuit malfunctions.
Before connecting and disconnecting cables, stop using the device and disconnect it
from the power supply. Ensure that your hands are dry during operat ion.
Place the device on a stable surface.
Keep the device away from electronic appliances that generate strong magnetic or
electric fields, such as a microwave oven or refrigerator.
During thunderstorms, power off your device and remove all cables connected to it
to protect against lightning strikes.
Do not use your device during thunderstorms to protect your device against any
11
danger caused by lightning.
Ideal operating temperatures are 0°C to 40°C. Ideal storage temperatures are -
20°C to +70°C. Extreme heat or cold may damage your device or accessories.
Keep the device and accessories in a well-ventilated and cool area away from direct
sunlight. Do not enclose or cover your device with towels or other objects. Do not
place the device in a container with poor heat dissipation, such as a box or bag.
To protect your device or accessories from fire or electrical shock hazards, avoid rain
and moisture.
Keep the device away from sources of heat and fire, such as a heater, microwave
oven, stove, water heater, radiator, or candle.
Do not place any object, such as a candle or a water container, on the device. If any
foreign object or liquid enters the device, immediately stop using it, power it off, and
remove all cables connected to it. Then, contact an authorized service center.
Do not block device openings. Reserve a minimum of 10 cm around the device to
dissipate heat.
Stop using your device or applicat ions for a while if the device is overheated. If skin is
exposed to an overheated device for an extended period, low temperature burn
symptoms, such as red spots and darker pigmentation, may occur.
Do not touch the device's antenna. Otherwise, communication quality may be
reduced.
Do not allow children or pets to bite or suck the device or accessories. Doing so may
result in damage or explosion.
Observe local laws and regulations, and respect the privacy and legal rights of others.
The device should be installed and operated with a minimum distance of 20 cm
between the radiator and your body.
Keep the device in a place with good reception. The distance between the device
and other metal materials (such as metal brackets or metal doors and windows)
should be greater than 25 cm and the distance between the device should be greater
than 30 cm.
Child's safety
Comply with all precautions with regard to child's safety. Letting children play with
the device or its accessories may be dangerous. The device includes detachable parts
that may present a choking hazard. Keep away from children.
The device and its accessories are not intended for use by children. Children should
only use the device with adult supervision.
Accessories
Using an unapproved or incompatible power adapter, charger or battery may cause
fire, explosion or other hazards.
12
Choose only accessories approved for use with this model by the device
manufacturer. The use of any other types of accessories may void the warranty, may
violate local regulat ions and laws, and may be dangerous. Please contact your
retailer for informat ion about the availability of approved accessories in your area.
Power adapter safety
The power plug is intended to serve as a disconnect device.
For pluggable devices, the socket-outlet shall be installed near the devices and shall
be easily accessible.
Unplug the power adapter from electrical outlets and the device when not in use.
Do not drop or cause an impact to the power adapter. If it is damaged, take it to an
authorized service center for inspection.
If the power cable is damaged (for example, the cord is exposed or broken), or the
plug loosens, stop using it at once. Continued use may lead to electric shocks, short
circuits, or fire.
Do not touch the power cord with wet hands or pull the power cord to disconnect
the power adapter.
Do not touch the device or the power adapter with wet hands. Doing so may lead to
short circuits, malfunctions, or electric shocks.
If your power adapter has been exposed to water, other liquids, or excessive
moisture, take it to an authorized service center for inspection.
Ensure that the power adapter meets the requirements of Clause 2.5 in IEC60950-
1/EN60950-1/UL60950-1 and has been tested and approved according to national or
local standards.
Cleaning and maintenance
During storage, transportat ion, and operation of the device, keep it dry and protect
it from collision.
Keep the device and accessories dry. Do not attempt to dry it with an external heat
source, such as a microwave oven or hair dryer.
Do not expose your device or accessories to extreme heat or cold. These
environments may interfere with proper function and may lead to fire or explosion.
Avoid collision, which may lead to device malfunctions, overheating, fire, or
explosion.
If the device is not going to be used for an extended period of time, power it off, and
remove all cables connected to it.
If anything unusual occurs (for example, if the device emits smoke or any unusual
sound or smell), immediately stop using it, power it off, remove all cables connected
to it, and contact an authorized service center.
Do not trample, pull, or excessively bend any cable. Doing so may damage the cable,
13
causing the device to malfunction.
Before you clean or maintain the device, stop using it, stop all applications, and
disconnect all cables connected to it.
Do not use any chemical detergent, powder, or other chemical agents (such as
alcohol and benzene) to clean the device or accessories. These substances may cause
damage to parts or present a f ire hazard. Use a clean, soft, and dry cloth to clean the
device and accessories.
Do not place magnetic stripe cards, such as credit cards and phone cards, near the
device for extended periods of time. Otherwise the magnet ic stripe cards may be
damaged.
Do not dismantle or remanufacture the device and its accessories. This voids the
warranty and releases the manufacturer from liability for damage. In case of damage,
contact an authorized service center for assistance or repair.
Emergency calls
The availability of emergency calls is subject to your cellular network quality, service
provider policy, and local laws and regulations. Never rely solely on your device for
critical communications like medical emergencies.
Environmental protection
The device and its accessories (if included), such as the power adapter, headset, and
battery should not be disposed of with household garbage.
Disposal of the device and its accessories is subject to local regulations. Support
proper collection and recycling.
FCC Regulatory Compliance
FCC statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
14
--Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operat ion is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
Caution: Any changes or modifications to this device not expressly approved by
Huawei Technologies Co., Ltd. for compliance could void the user's authority to operate
the equipment.
![](/img.php?id=2502839&img=bg11.png)
15
7 Legal Notice
Copyright © Huawei Technologies Co., Ltd. 2015. All rights reserved.
No part of this manual may be reproduced or transmitted in any form or by any means
without prior written consent of Huawei Technologies Co., Ltd. and its affiliates
("Huawei").
The product described in this manual may include copyrighted software of Huawei and
possible licensors. Customers shall not in any manner reproduce, distribute, modify,
decompile, disassemble, decrypt, extract, reverse engineer, lease, assign, or sublicense
the said software, unless such restrictions are prohibited by applicable laws or such
actions are approved by respective copyright holders.
Trademarks and Permissions
, , and are trademarks or registered trademarks of Huawei
Technologies Co., Ltd.
LTE is a trade mark of ETSI.
Other trademarks, product, service and company names mentioned may be the
property of their respective owners.
Notice
Some features of the product and its accessories described herein rely on the software
installed, capacities and sett ings of local network, and therefore may not be activated
or may be limited by local network operators or network service providers.
Thus, the descriptions herein may not exactly match the product or its accessories
which you purchase.
Huawei reserves the right to change or modify any informat ion or specifications
contained in this manual without prior notice and without any liability.
DISCLAIMER
ALL CONTENTS OF THIS MANUAL ARE PROVIDED "AS IS". EXCEPT AS REQUIRED BY
APPLICABLE LAWS, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED,
INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN
RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS MANUAL.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL
HUAWEI BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR
CONSEQUENTIAL DAMAGES, OR LOSS OF PROFITS, BUSINESS, REVENUE, DATA,
16
GOODWILL SAVINGS OR ANTICIPATED SAVINGS REGARDLESS OF WHETHER SUCH
LOSSES ARE FORSEEABLE OR NOT.
THE MAXIMUM LIABILITY (THIS LIMITATION SHALL NOT APPLY TO LIABILITY FOR
PERSONAL INJURY TO THE EXTENT APPLICABLE LAW PROHIBITS SUCH A
LIMITATION) OF HUAWEI ARISING FROM THE USE OF THE PRODUCT DESCRIBED IN
THIS MANUAL SHALL BE LIMITED TO THE AMOUNT PAID BY CUSTOMERS FOR THE
PURCHASE OF THIS PRODUCT.
Import and Export Regulations
Customers shall comply with all applicable export or import laws and regulations and
be responsible to obtain all necessary governmental permits and licenses in order to
export, re-export or import the product ment ioned in this manual including the
software and technical data therein.
Privacy Policy
To better understand how we protect your personal information, please see the privacy
policy at http://consumer.huawei.com/privacy-policy.
