Huawei Technologies B315S-519B LTE CPE User Manual Quick Start
Huawei Technologies Co.,Ltd LTE CPE Quick Start
UserManual
![](/img.php?id=3373087&img=bg1.png)
B315 LTE CPE
Quick Start
31507485_01
![](/img.php?id=3373087&img=bg4.png)
1
1 Product overview
Power indicator
Network status indicator
Wi-Fi®/WPS indicator
LAN/WAN indicator
Signal strength indicator
SIM card slot
External antenna sockets
WPS button
Power button
Reset button
Power input
Network ports
USB port
Landline phone port
![](/img.php?id=3373087&img=bg5.png)
2
2 Setup
Insert a SIM card into the SIM card slot as shown in the preceding diagram
and then connect the power adapter to the B315 router. The router will turn
on automatically and search for available mobile networks.
The following indicators will turn on when the router has successfully
connected to a network.
Cyan/blue/yellow:
Connected to a mobile
network.
White: More signal bars
indicate a stronger signal.
Do not insert or remove a SIM card when the router is running, as this may
affect performance or damage the SIM card.
![](/img.php?id=3373087&img=bg6.png)
3

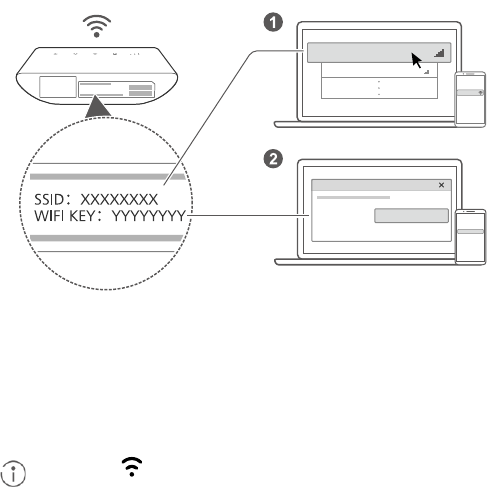

3 Connecting to your router's Wi-Fi
network
SSID:....................
WIFI KEY:............
abcdefg
XXXXXXXX
WIFI KEY: YYYYYYYY
XXXXXXXX
WIFI KEY:
YYYYYYYY
Once the router has connected to a mobile data network, you can connect
your computer or mobile phone to the router's Wi-Fi network to access the
Internet. Please refer to the label on the bottom of the router for the default
wireless network name (SSID) and password (WIFI KEY).
When the indicator is steady on, Wi-Fi is enabled. To enable or
disable Wi-Fi, refer to the help section on the router's web-based
management page.
Ensure that you promptly change the Wi-Fi network name and password
on the web-based management page to prevent unauthorized access to
your Wi-Fi network. Once you have changed the password, you will need
to reconnect to the router's Wi-Fi network.
![](/img.php?id=3373087&img=bg7.png)
4

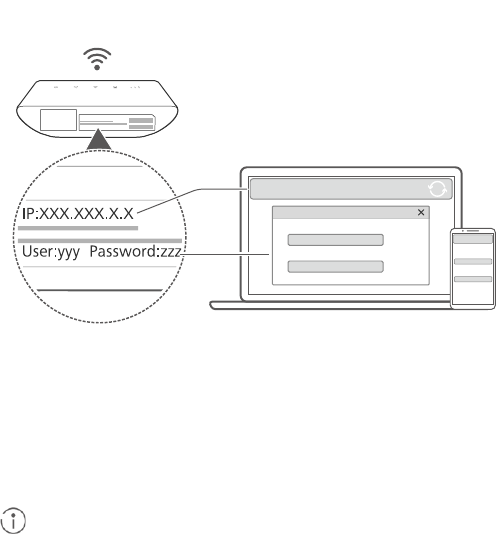

4 Configuring your router
IP:XXX.XXX.X.X
User:yyy Password:zzz
User:
yyy
Password:
zzz
XXX.XXX.X.X
XXX.XXX.X.X
User:
yyy
Password:
zzz
You can configure the router using the web-based management page.
Please refer to the label on the bottom of the router for the default IP
address, user name, and password.
More information can be found in the help section of the web-based
management page.
Ensure that you promptly change the default login password for the web-
based management page to prevent unauthorized users from changing the
router's settings.
![](/img.php?id=3373087&img=bg8.png)
5
5 Optional configurations

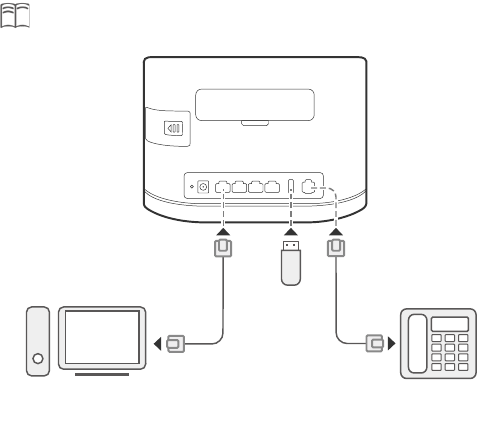

1. Connecting multiple devices
You can connect a computer, landline phone, or USB storage device to the
router to access the Internet, make telephone calls, share files, and more.
The features described in this section are for reference purposes only. Your
router may not support all of these features.
![](/img.php?id=3373087&img=bg9.png)
6
1
2

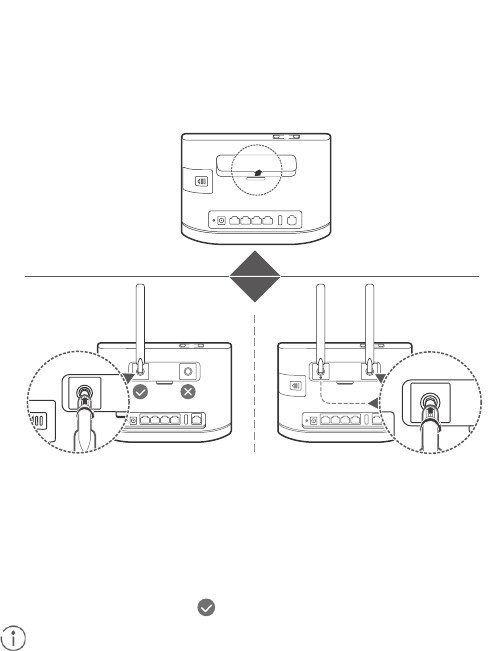

2. Installing external antennas
You can install external antennas to improve signal reception. Please contact
your network service provider to purchase the antennas. If you only require
one antenna, plug it into the socket.
![](/img.php?id=3373087&img=bga.png)
7
3. Accessing the Internet through an Ethernet port
Turn off the router and unplug the power adapter before installing any
external antennas.
External antennas are only suitable for indoor use. Do not use external
antennas during thunderstorms.
Only use external antennas provided by your network service provider.
The peak gain of the external antennas is 3 dBi.
![](/img.php?id=3373087&img=bgb.png)
8

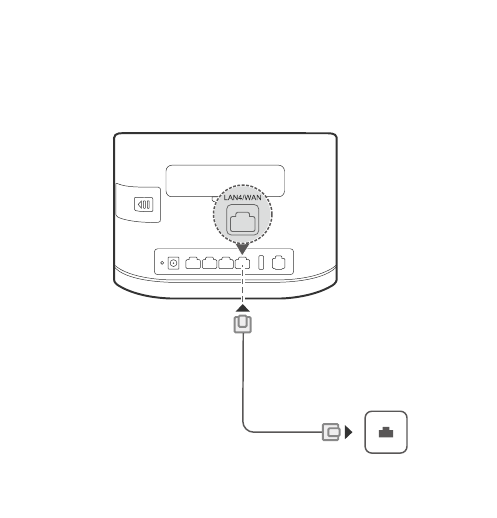

You can connect the router to a wall-mounted Ethernet port using an
Ethernet cable to connect to the Internet when you have used up your data
allowance.
Configure the relevant settings on the web-based management page before
connecting to the Internet through an Ethernet port. More information can
be found in the help section of the web-based management page.
4. Downloading Huawei HiLink
Scan the above QR code to download the Huawei HiLink app and configure
the router from your phone.
![](/img.php?id=3373087&img=bgc.png)
9
6 Additional information
If you are experiencing any issues with the router:
Restart the router.
Refer to the help section on the web-based management page.
Restore the router to its factory settings.
Contact your network service provider.
Please visit http://consumer.huawei.com/en/support/hotline for recently
updated hotline and email address in your country or region.
7 FAQs
How do I restore factory settings?
When the router is turned on, press the reset button for approximately 3
seconds using a pointed object until the indicator starts to blink.
Restoring factory settings will clear all customized settings. Proceed with
caution.
How can I connect to the router using Wi-Fi Protected Setup (WPS)?
To connect a WPS-enabled device to your router using the WPS button:
1. Press and hold the WPS button on the router for at least 2 seconds until
the indicator starts to blink.
2. Enable WPS on your device within 2 minutes to connect to the router's
Wi-Fi network.
The illustrations in this guide are for reference purposes only and may not
reflect the exact appearance of your product. Please contact your network
service provider for more detailed information.
![](/img.php?id=3373087&img=bgd.png)
10
8 Troubleshooting
Why is the indicator red after I have finished configuring the router?
1. Make sure you have a working SIM card and ensure that it is inserted
properly.
2. Move the router to an open space free from obstructions and make sure
you have an available mobile network in your area.
3. If the problem persists, please contact your network service provider.
Why is the indicator status steady on cyan, blue, or yellow, but the
indicator is off?
Your mobile network has poor reception. Move the router to a place with
better reception.
Why can't I access the router's web-based management page?
1. Ensure that your computer is connected to the router through an Ethernet
cable or Wi-Fi.
2. Ensure that your computer is set to obtain an IP address and DNS server
address automatically.
3. Restart your browser, or try using another browser.
4. If the problem persists, restore the router to its factory settings.
11
9 Safety information
This section contains important information about the operation of your
device. It also contains information about how to use the device safely. Read
this information carefully before using your device.
Electronic device
Do not use your device if using the device is prohibited. Do not use the
device if doing so causes danger or interference with other electronic devices.
Interference with medical equipment
Follow rules and regulations set forth by hospitals and health care
facilities. Do not use your device where prohibited.
Some wireless devices may affect the performance of hearing aids or
pacemakers. Consult your service provider for more information.
Pacemaker manufacturers recommend that a minimum distance of 15 cm
be maintained between a device and a pacemaker to prevent potential
interference with the pacemaker. If using a pacemaker, hold the device on
the side opposite the pacemaker and do not carry the device in your front
pocket.
Areas with flammables and explosives
Do not use the device where flammables or explosives are stored (in a gas
station, oil depot, or chemical plant, for example). Using your device in
these environments increases the risk of explosion or fire. In addition,
follow the instructions indicated in text or symbols.
Do not store or transport the device in containers with flammable liquids,
gases, or explosives.
Operating environment
Avoid dusty, damp, or dirty environments. Avoid magnetic fields. Using
the device in these environments may result in circuit malfunctions.
Before connecting and disconnecting cables, stop using the device and
disconnect it from the power supply. Ensure that your hands are dry
during operation.
Place the device on a stable surface.
12
Keep the device away from electronic appliances that generate strong
magnetic or electric fields, such as a microwave oven or refrigerator.
During thunderstorms, power off your device and remove all cables
connected to it to protect against lightning strikes.
Do not use your device during thunderstorms to protect your device
against any danger caused by lightning.
Ideal operating temperatures are 0 °C to 40 °C. Ideal storage
temperatures are -20 °C to +70 °C. Extreme heat or cold may damage
your device or accessories.
Keep the device and accessories in a well-ventilated and cool area away
from direct sunlight. Do not enclose or cover your device with towels or
other objects. Do not place the device in a container with poor heat
dissipation, such as a box or bag.
To protect your device or accessories from fire or electrical shock hazards,
avoid rain and moisture.
Keep the device away from sources of heat and fire, such as a heater,
microwave oven, stove, water heater, radiator, or candle.
Do not place any object, such as a candle or a water container, on the
device. If any foreign object or liquid enters the device, immediately stop
using it, power it off, and remove all cables connected to it. Then, contact
an authorized service center.
Do not block device openings. Reserve a minimum of 10 cm around the
device to dissipate heat.
Stop using your device or applications for a while if the device is
overheated. If skin is exposed to an overheated device for an extended
period, low temperature burn symptoms, such as red spots and darker
pigmentation, may occur.
Do not touch the device's antenna. Otherwise, communication quality
may be reduced.
Do not allow children or pets to bite or suck the device or accessories.
Doing so may result in damage or explosion.
Observe local laws and regulations, and respect the privacy and legal
rights of others.
The device should be installed and operated with a minimum distance of
20 cm between the radiator and your body.
13
Keep the device in a place with good reception. The distance between the
device and other metal materials (such as metal brackets or metal doors
and windows) should be greater than 25 cm and the distance between the
device should be greater than 30 cm.
Child's safety
Comply with all precautions with regard to child's safety. Letting children
play with the device or its accessories may be dangerous. The device
includes detachable parts that may present a choking hazard. Keep away
from children.
The device and its accessories are not intended for use by children.
Children should only use the device with adult supervision.
Accessories
Using an unapproved or incompatible power adapter, charger or battery
may cause fire, explosion or other hazards.
Choose only accessories approved for use with this model by the device
manufacturer. The use of any other types of accessories may void the
warranty, may violate local regulations and laws, and may be dangerous.
Please contact your retailer for information about the availability of
approved accessories in your area.
Power adapter safety
The power plug is intended to serve as a disconnect device.
For pluggable devices, the socket-outlet shall be installed near the devices
and shall be easily accessible.
Unplug the power adapter from electrical outlets and the device when not
in use.
Do not drop or cause an impact to the power adapter. If it is damaged,
take it to an authorized service center for inspection.
If the power cable is damaged (for example, the cord is exposed or
broken), or the plug loosens, stop using it at once. Continued use may
lead to electric shocks, short circuits, or fire.
Do not touch the power cord with wet hands or pull the power cord to
disconnect the power adapter.
Do not touch the device or the power adapter with wet hands. Doing so
may lead to short circuits, malfunctions, or electric shocks.
14
If your power adapter has been exposed to water, other liquids, or
excessive moisture, take it to an authorized service center for inspection.
Ensure that the power adapter meets the requirements of Clause 2.5 in
IEC60950-1/EN60950-1/UL60950-1 and has been tested and approved
according to nat ional or local standards.
Cleaning and maintenance
During storage, transportation, and operation of the device, keep it dry
and protect it from collision.
Keep the device and accessories dry. Do not attempt to dry it with an
external heat source, such as a microwave oven or hair dryer.
Do not expose your device or accessories to extreme heat or cold. These
environments may interfere with proper function and may lead to fire or
explosion.
Avoid collision, which may lead to device malfunctions, overheating, fire,
or explosion.
If the device is not going to be used for an extended period of time, power
it off, and remove all cables connected to it.
If anything unusual occurs (for example, if the device emits smoke or any
unusual sound or smell), immediately stop using it, power it off, remove
all cables connected to it, and contact an authorized service center.
Do not trample, pull, or excessively bend any cable. Doing so may
damage the cable, causing the device to malfunction.
Before you clean or maintain the device, stop using it, stop all
applications, and disconnect all cables connected to it.
Do not use any chemical detergent, powder, or other chemical agents
(such as alcohol and benzene) to clean the device or accessories. These
substances may cause damage to parts or present a fire hazard. Use a
clean, soft, and dry cloth to clean the device and accessories.
Do not place magnetic stripe cards, such as credit cards and phone cards,
near the device for extended periods of time. Otherwise the magnetic
stripe cards may be damaged.
Do not dismantle or remanufacture the device and its accessories. This
voids the warranty and releases the manufacturer from liability for
damage. In case of damage, contact an authorized service center for
assistance or repair.
![](/img.php?id=3373087&img=bg12.png)
15
Emergency calls
The availability of emergency calls is subject to your cellular network quality,
service provider policy, and local laws and regulations. Never rely solely on
your device for critical communications like medical emergencies.
Disposal and recycling information
This symbol (with or without a solid bar) on the device, batteries (if
included), and/or the packaging, indicates that the device and its electrical
accessories (for example, a headset, adapter, or cable) and batteries should
not be disposed of as household garbage. These items should not be
disposed of as unsorted municipal waste and should be taken to a certified
collection point for recycling or proper disposal.
For more detailed information about device or battery recycling, contact
your local city office, household waste disposal service, or retail store.
Disposal of the device and batteries (if included) is subject to WEEE Directive
Recast (Directive 2012/19/EU) and Battery Directive (Directive 2006/66/EC).
The purpose of separating WEEE and batteries from other waste is to
minimize the potential environmental impacts and human health risk of any
hazardous substances that may be present.
Reduction of hazardous substances
This device is compliant with the REACH Regulation [Regulation (EC) No
1907/2006] and RoHS Directive Recast (Directive 2011/65/EU). Batteries (if
included) are compliant with the Battery Directive (Directive 2006/66/EC).
For up-to-date information about REACH and RoHS compliance, please visit
the web site http://consumer.huawei.com/certification.
FCC Regulatory Compliance
FCC statement
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
16
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two condit ions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Caution: Any changes or modifications to this device not expressly
approved by Huawei Technologies Co., Ltd. for compliance could void the
user's authority to operate the equipment.
![](/img.php?id=3373087&img=bg14.png)
17
10 Legal Notice
Copyright © Huawei Technologies Co., Ltd. 2015. All rights
reserved.
No part of this manual may be reproduced or transmitted in any form or by
any means without prior written consent of Huawei Technologies Co., Ltd.
and its affiliates ("Huawei").
The product described in this manual may include copyrighted software of
Huawei and possible licensors. Customers shall not in any manner reproduce,
distribute, modify, decompile, disassemble, decrypt, extract, reverse
engineer, lease, assign, or sublicense the said software, unless such
restrictions are prohibited by applicable laws or such actions are approved
by respective copyright holders.
Trademarks and Permissions
, , and are trademarks or registered trademarks of
Huawei Technologies Co., Ltd.
LTE is a trademark of ETSI.
Wi-Fi®, the Wi-Fi CERTIFIED logo, and the Wi-Fi logo are trademarks of Wi-
Fi Alliance.
Other trademarks, product, service and company names mentioned may be
the property of their respective owners.
Notice
Some features of the product and its accessories described herein rely on the
software installed, capacities and settings of local network, and therefore
may not be activated or may be limited by local network operators or
network service providers.
Thus, the descriptions herein may not exactly match the product or its
accessories which you purchase.
Huawei reserves the right to change or modify any information or
specifications contained in this manual without prior notice and without any
liability.
18
DISCLAIMER
ALL CONTENTS OF THIS MANUAL ARE PROVIDED "AS IS". EXCEPT AS
REQUIRED BY APPLICABLE LAWS, NO WARRANTIES OF ANY KIND,
EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY,
RELIABILITY OR CONTENTS OF THIS MANUAL.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO
EVENT SHALL HUAWEI BE LIABLE FOR ANY SPECIAL, INCIDENTAL,
INDIRECT, OR CONSEQUENTIAL DAMAGES, OR LOSS OF PROFITS,
BUSINESS, REVENUE, DATA, GOODWILL SAVINGS OR ANTICIPATED
SAVINGS REGARDLESS OF WHETHER SUCH LOSSES ARE FORSEEABLE
OR NOT.
THE MAXIMUM LIABILITY (THIS LIMITATION SHALL NOT APPLY TO
LIABILITY FOR PERSONAL INJURY TO THE EXTENT APPLICABLE LAW
PROHIBITS SUCH A LIMITATION) OF HUAWEI ARISING FROM THE USE OF
THE PRODUCT DESCRIBED IN THIS MANUAL SHALL BE LIMITED TO THE
AMOUNT PAID BY CUSTOMERS FOR THE PURCHASE OF THIS PRODUCT.
Import and Export Regulations
Customers shall comply with all applicable export or import laws and
regulations and be responsible to obtain all necessary governmental permits
and licenses in order to export, re-export or import the product mentioned
in this manual including the software and technical data therein.
Privacy Policy
To better understand how we protect your personal information, please see
the privacy policy at http://consumer.huawei.com/privacy-policy.
