Huawei Technologies B68L-54 Wireless gateway User Manual
Huawei Technologies Co.,Ltd Wireless gateway
User Manual
B68L Wireless Gateway
Quick Start
2
1 Getting to know your B68L
Power button
Press and hold for about 3 seconds to power the
B68L on or off.
WPS button
Press and hold for 3 or more seconds to active WPS
connection when Wi-Fi is turned on.
LAN port Connect to computer, switch, or other LAN device.
Power port Connect to compatible power adapter.
Telephone port Connect to telephone.
3
Network mode
indicator
Fast red blinking: no SIM/USIM card is found, the
PIN is not verified, or the SIM/USIM card is not
working properly.
Steady yellow: registered with a 3G/2G network.
Steady green: connected to the Internet.
Off: no signal.
Wi-Fi/WPS
indicator
Steady on: Wi-Fi turned on or data transfer in
progress.
Blinking: a WPS connection is being set up.
Off: Wi-Fi turned off.
Power indicator
On: the B68L is powered on.
Off: the B68L is powered off.
/
LAN indicator
Steady on: LAN port is connected to a client.
Off: no client is connected to LAN port.
SIM/USIM card
slot
Install a SIM/USIM card to access to the Internet via
a 3G/2G data connection.
Reset button
Restoring the default settings of the B68L will erase
all previous settings.
When the B68L is powered on, use a sharply pointed
object to press and hold for about 3 seconds until all
indicators are blinking to restore the B68L to its
factory settings. After the factory defaults are
restored, the B68L will restart automatically.
4
2 Installation
Installing the SIM/USIM card
1. Slide off the card slot cover.
2. Insert the SIM/USIM card into the card slot. Ensure that the beveled edge of the
SIM/USIM card aligns with that of the card slot.
3. Close the card slot cover.
(Optional) Installing the table stand
You can place the B68L on a flat surface such as a table or a desk, or hang it on a wall.
You can also use the table stand of the B68L to place it upright.
Insert the latches into the table stand slots on the bottom of the B68L.
Reset
Before removing the SIM/USIM card, ensure that the B68L is powered off and
disconnected from the power outlet.
The table stand is an optional accessory, and may not included in the packaging box.
If required, please contact your local dealer purchase it.
5
Connecting cables
Once connected to a power outlet, the B68L automatically powers on.
Power adapter Telephone
Computer Laptop, tablet, or smart phone
To prevent interference caused by radio signals, place the B68L at least 1 meter (3.28
feet) away from telephone and other electrical devices.
Do not connect the B68L to the telephone wall outlet (or any Public Switched
Telephone Network), because doing so could damage the B68L due to excessive heat.
6
3 Setting up a Wi-Fi connection
Turning on Wi-Fi on the B68L
When the indicator is steady on, the Wi-Fi of the B68L is turned on.
To manually turn Wi-Fi on, log in to the web management page (default address:
http://192.168.1.1, default password: admin), and choose Home Network >
WLAN Settings. On the displayed page, select Enable WLAN 2.4 GHz and click
Save.
Recording the SSID and Wi-Fi key

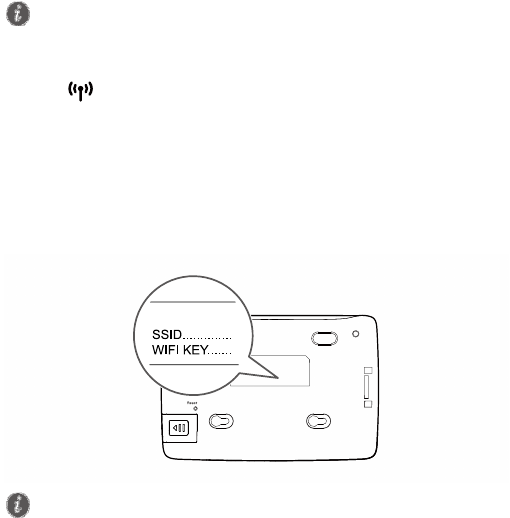

The default SSID and Wi-Fi key are printed on the B68L's rear label.
Make sure your client (computer, tablet, or smart phone) also supports Wi-Fi.
To prevent unauthorized parties from accessing your wireless network, it is
recommended that you change the SSID and Wi-Fi key from time to time. Log in to
the web management page (default address: http://192.168.1.1, default password:
admin), choose Home and click Set Up WLAN to set WLAN 2.4 GHz SSID and
Password.
7
Setting up a Wi-Fi connection from a client
On Windows 7
1. Click on the status bar on the PC desktop.
2. A dialog box is displayed, and the computer scans for available wireless networks
within range. From the search results, select the wireless network with the same
SSID as the B68L, and click Connect.
3. In the Connect to a Network dialog box, enter the B68L's Wi-Fi key, and click
OK. Note that the Wi-Fi key is case sensitive.
4. When Connected is displayed next to the B68L's SSID, the PC is connected to the
wireless network.
8
On Mac OS

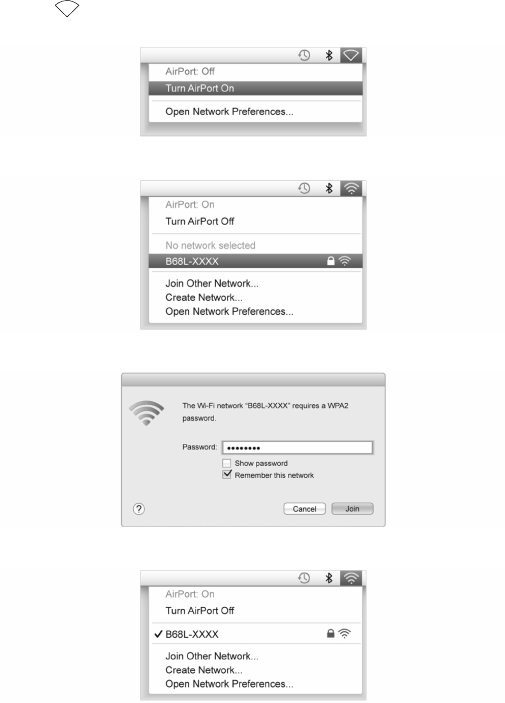

1. Click on the status bar on the Mac desktop. Choose Turn AirPort On from
the displayed menu.
2. The Mac then scans for available wireless networks within range. From the search
results, select the wireless network with the same SSID as the B68L.
3. In the displayed dialog box, enter the B68L's Wi-Fi key, and click Join. Note that
the Wi-Fi key is case sensitive.
4. When a check mark appears next to the B68L's SSID, the Mac is connected to the
wireless network.
9
On Android 4.0
1. From the home screen, touch > Settings. In the WIRELESS & NETWORKS
section, turn Wi-Fi on.
2. Touch WLAN to display the settings screen. Your device then scans for available
wireless networks within range. From the search results, touch the wireless
network with the same SSID as the B68L.
3. In the displayed dialog box, enter the Wi-Fi key, and touch Connect. Note that the
Wi-Fi key is case sensitive.
4. When Connected is displayed under the B68L's SSID, the device is connected to
the wireless network.
10
Setting up a Wi-Fi connection through WPS
If the client supports WPS, you can set up a WPS connection as follows:
1. Ensure that Wi-Fi is enabled on the client.
2. Press and hold the button for 3 or more seconds. The indicator then
starts blinking.
3. Activate the WPS connection on the client in 2 minutes.
4 Configuring your B68L
1. After a client is connected to the B68L through Wi-Fi or LAN port, launch a
browser on the client and visit http://192.168.1.1.
2. Enter the password (admin by default) to log in to the web management page.
3. Follow the Start Wizard to quickly configure basic parameters, such as SSID and
Wi-Fi key.
After finish the configuration, you can then access the Internet.
If you cannot active WPS connection by WPS button, log in to the web management
page (default address: http://192.168.1.1, default password: admin), and choose
Home Network > WLAN Access. On the displayed page, select Enable WPS, click
WPS by push button (PBC) and then click Start WPS.
For instructions about how to enable a WPS connection on the client, see the client's
user guide.
For security reasons, only one user can log in to the web management page at a
time.
To protect your account, change the default password after your first login. Click
Modify Login Password on the displayed Notice dialog or choose Maintain >
Account Management, and click Edit to change the password.
If you modify the SSID and Wi-Fi key, you must set up the Wi-Fi connection on the
client again.
11
5 For More Help
If you are experiencing any issues with the B68L:
See What's this？ information on the web management page.
Restart the B68L.
Restore the B68L to its factory settings.
Contact your service provider.
Please visit http://consumer.huawei.com/en/support/hotline for recently updated
hotline and email address in your country or region.
Figures in this guide are for your reference only. Specific models may vary slightly,
contact your service provider for more detailed information.
12
6 Safety information
This section contains important information about the operation of your device. It
also contains information about how to use the device safely. Read this information
carefully before using your device.
Electronic device
Do not use your device if using the device is prohibited. Do not use the device if doing
so causes danger or interference with other electronic devices.
Interference with medical equipment
Follow rules and regulations set forth by hospitals and health care facilities. Do not
use your device where prohibited.
Some wireless devices may affect the performance of hearing aids or pacemakers.
Consult your service provider for more information.
Pacemaker manufacturers recommend that a minimum distance of 15 cm be
maintained between a device and a pacemaker to prevent potential interference
with the pacemaker. If using a pacemaker, hold the device on the side opposite the
pacemaker and do not carry the device in your front pocket.
Areas with flammables and explosives
Do not use the device where flammables or explosives are stored (in a gas station,
oil depot, or chemical plant, for example). Using your device in these environments
increases the risk of explosion or fire. In addition, follow the instructions indicated
in text or symbols.
Do not store or transport the device in containers with flammable liquids, gases, or
explosives.
Operating environment
Avoid dusty, damp, or dirty environments. Avoid magnetic fields. Using the device
in these environments may result in circuit malfunctions.
Before connecting and disconnecting cables, stop using the device and disconnect
it from the power supply. Ensure that your hands are dry during operation.
Place the device on a stable surface.
Keep the device away from electronic appliances that generate strong magnetic or
electric fields, such as a microwave oven or refrigerator.
During thunderstorms, power off your device and remove all cables connected to it
to protect against lightning strikes.
Do not use your device during thunderstorms to protect your device against any
danger caused by lightning.
13
Ideal operating temperatures are 0°C to 45°C. Ideal storage temperatures are
-30°C to +60°C. Extreme heat or cold may damage your device or accessories.
Keep the device and accessories in a well-ventilated and cool area away from
direct sunlight. Do not enclose or cover your device with towels or other objects.
Do not place the device in a container with poor heat dissipation, such as a box or
bag.
To protect your device or accessories from fire or electrical shock hazards, avoid
rain and moisture.
Keep the device away from sources of heat and fire, such as a heater, microwave
oven, stove, water heater, radiator, or candle.
Do not place any object, such as a candle or a water container, on the device. If
any foreign object or liquid enters the device, immediately stop using it, power it
off, and remove all cables connected to it. Then, contact an authorized service
center.
Do not block device openings. Reserve a minimum of 10 cm around the device to
dissipate heat.
Stop using your device or applications for a while if the device is overheated. If skin
is exposed to an overheated device for an extended period, low temperature burn
symptoms, such as red spots and darker pigmentation, may occur.
Do not touch the device's antenna. Otherwise, communication quality may be
reduced.
Do not allow children or pets to bite or suck the device or accessories. Doing so
may result in damage or explosion.
Observe local laws and regulations, and respect the privacy and legal rights of
others.
The device should be installed and operated with a minimum distance of 20 cm
between the radiator and your body.
Keep the device in a place with good reception. The distance between the device
and other metal materials (such as metal brackets or metal doors and windows)
should be greater than 25 cm and the distance between the device should be
greater than 30 cm.
Child's safety
Comply with all precautions with regard to child's safety. Letting children play with
the device or its accessories may be dangerous. The device includes detachable
parts that may present a choking hazard. Keep away from children.
The device and its accessories are not intended for use by children. Children should
only use the device with adult supervision.
Accessories
Using an unapproved or incompatible power adapter, charger or battery may cause
14
fire, explosion or other hazards.
Choose only accessories approved for use with this model by the device
manufacturer. The use of any other types of accessories may void the warranty,
may violate local regulations and laws, and may be dangerous. Please contact your
retailer for information about the availability of approved accessories in your area.
Power adapter safety
The power plug is intended to serve as a disconnect device.
For pluggable devices, the socket-outlet shall be installed near the devices and shall
be easily accessible.
Unplug the power adapter from electrical outlets and the device when not in use.
Do not drop or cause an impact to the power adapter. If it is damaged, take it to
an authorized service center for inspection.
If the power cable is damaged (for example, the cord is exposed or broken), or the
plug loosens, stop using it at once. Continued use may lead to electric shocks,
short circuits, or fire.
Do not touch the power cord with wet hands or pull the power cord to disconnect
the power adapter.
Do not touch the device or the power adapter with wet hands. Doing so may lead
to short circuits, malfunctions, or electric shocks.
If your power adapter has been exposed to water, other liquids, or excessive
moisture, take it to an authorized service center for inspection.
Ensure that the power adapter meets the requirements of Clause 2.5 in IEC60950-
1/EN60950-1/UL60950-1 and has been tested and approved according to national
or local standards.
Cleaning and maintenance
During storage, transportation, and operation of the device, keep it dry and
protect it from collision.
Keep the device and accessories dry. Do not attempt to dry it with an external heat
source, such as a microwave oven or hair dryer.
Do not expose your device or accessories to extreme heat or cold. These
environments may interfere with proper function and may lead to fire or explosion.
Avoid collision, which may lead to device malfunctions, overheating, fire, or
explosion.
If the device is not going to be used for an extended period of time, power it off,
and remove all cables connected to it.
If anything unusual occurs (for example, if the device emits smoke or any unusual
sound or smell), immediately stop using it, power it off, remove all cables
connected to it, and contact an authorized service center.
Do not trample, pull, or excessively bend any cable. Doing so may damage the
15
cable, causing the device to malfunction.
Before you clean or maintain the device, stop using it, stop all applications, and
disconnect all cables connected to it.
Do not use any chemical detergent, powder, or other chemical agents (such as
alcohol and benzene) to clean the device or accessories. These substances may
cause damage to parts or present a fire hazard. Use a clean, soft, and dry cloth to
clean the device and accessories.
Do not place magnetic stripe cards, such as credit cards and phone cards, near the
device for extended periods of time. Otherwise the magnetic stripe cards may be
damaged.
Do not dismantle or remanufacture the device and its accessories. This voids the
warranty and releases the manufacturer from liability for damage. In case of
damage, contact an authorized service center for assistance or repair.
Emergency calls
The availability of emergency calls is subject to your cellular network quality, service
provider policy, and local laws and regulations. Never rely solely on your device for
critical communications like medical emergencies.
Environmental protection
The device and its accessories (if included), such as the power adapter, headset,
and battery should not be disposed of with household garbage.
Disposal of the device and its accessories is subject to local regulations. Support
proper collection and recycling.
FCC Regulatory Compliance
FCC statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
16
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
Caution: Any changes or modifications to this device not expressly approved by
Huawei Technologies Co., Ltd. for compliance could void the user's authority to
operate the equipment.
17
7 Legal Notice
Copyright © Huawei Technologies Co., Ltd. 2014. All rights reserved.
No part of this manual may be reproduced or transmitted in any form or by any
means without prior written consent of Huawei Technologies Co., Ltd. and its
affiliates ("Huawei").
The product described in this manual may include copyrighted software of Huawei
and possible licensors. Customers shall not in any manner reproduce, distribute,
modify, decompile, disassemble, decrypt, extract, reverse engineer, lease, assign, or
sublicense the said software, unless such restrictions are prohibited by applicable laws
or such actions are approved by respective copyright holders.
Trademarks and Permissions
, , and are trademarks or registered trademarks of Huawei
Technologies Co., Ltd.
Other trademarks, product, service and company names mentioned may be the
property of their respective owners.
Notice
Some features of the product and its accessories described herein rely on the software
installed, capacities and settings of local network, and therefore may not be activated
or may be limited by local network operators or network service providers.
Thus, the descriptions herein may not exactly match the product or its accessories
which you purchase.
Huawei reserves the right to change or modify any information or specifications
contained in this manual without prior notice and without any liability.
DISCLAIMER
ALL CONTENTS OF THIS MANUAL ARE PROVIDED "AS IS". EXCEPT AS REQUIRED BY
APPLICABLE LAWS, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED,
INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE
ACCURACY, RELIABILITY OR CONTENTS OF THIS MANUAL.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL
HUAWEI BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL
DAMAGES, OR LOSS OF PROFITS, BUSINESS, REVENUE, DATA, GOODWILL SAVINGS
OR ANTICIPATED SAVINGS REGARDLESS OF WHETHER SUCH LOSSES ARE
FORSEEABLE OR NOT.
18
THE MAXIMUM LIABILITY (THIS LIMITATION SHALL NOT APPLY TO LIABILITY FOR
PERSONAL INJURY TO THE EXTENT APPLICABLE LAW PROHIBITS SUCH A LIMITATION)
OF HUAWEI ARISING FROM THE USE OF THE PRODUCT DESCRIBED IN THIS MANUAL
SHALL BE LIMITED TO THE AMOUNT PAID BY CUSTOMERS FOR THE PURCHASE OF
THIS PRODUCT.
Import and Export Regulations
Customers shall comply with all applicable export or import laws and regulations and
be responsible to obtain all necessary governmental permits and licenses in order to
export, re-export or import the product mentioned in this manual including the
software and technical data therein.
Privacy Policy
To better understand how we protect your personal information, please see the
privacy policy at http://consumer.huawei.com/privacy-policy.
