Huawei Technologies B882-66 LTE Wireless Gateway User Manual
Huawei Technologies Co.,Ltd LTE Wireless Gateway
User Manual
B882-66 LTE Wireless Gateway
Quick Start
96722859_01
3
1 Getting to know your B882-66
Power indicator
On: the B882-66 is powered on.
Off: the B882-66 is powered off.
Network mode
indicator
Blinking red: no USIM card is found, the PIN is not
verified, or the USIM card is not working properly.
Steady cyan: registered with an LTE network.
Steady blue: registered with a 3G network.
Off: no signal.
Wi-Fi/WPS
indicator
Steady on: Wi-Fi turned on or data transfer in
progress.
Blinking: a WPS connection is being set up.
Off: Wi-Fi turned off.
SMS indicator
Steady on: inbox is full.
Blinking: new messages.
Call status
indicator
Steady on: call in progress.
Blinking: incoming call.
4
Wireless
connection
indicator
Steady on: connected to a LTE/3G network.
Blinking: connecting to a LTE/3G network.
/ /
LAN indicator
Steady on: LAN port is connected to a client.
Blinking: data is being transmitted through LAN
port.
Off: no client is connected to LAN port.
Wired
connection
indicator
Steady on: connected to an Ethernet network.
Blinking: connecting to an Ethernet network.
USIM card slot
Install a USIM card to access to the Internet via a
LTE/3G data connection.
Dial-up button
The B882-66 can access the Internet in Auto, Manual,
or On Demand mode.
In Manual mode, press it to manually connect to or
disconnect from the Internet.
Wi-Fi/WPS
button
Press and hold for about 3 seconds to turn on or off
Wi-Fi.
Press and hold for 6 or more seconds to active
WPS connection when Wi-Fi is turned on.
Reset button
Restoring the default settings of the B882-66 will
erase all previous settings.
When the B882-66 is powered on, use a sharply
pointed object to press and hold for about 3 seconds
until all indicators are blinking to restore the B882-66
to its factory settings. After the factory defaults are
restored, the B882-66 will restart automatically.
WAN port
Connect to an Ethernet port on the wall through a
network cable if you want to access to the Internet via
wired way.
/ /
LAN port
Connect to computer, switch, or other LAN device.
5
Telephone port
Connect to telephone.
Power port
Connect to compatible power adapter.
Power button
Press and hold for about 3 seconds to power the
B882-66 on or off.
6
2 Installation
Installing the USIM card
If you want to use LTE/3G wireless data service and voice service, please install the
USIM card.
1. Pull out the card slot cover and rotate it to reveal the USIM card slot.
2. Partially insert the USIM card into the card slot. Ensure that the beveled edge of the
USIM card aligns with that of the card slot. Gently push the card until it clicks into
place.
3. Close the card slot cover.
Before installing or removing the USIM card, ensure that the B882-66 is powered off
and disconnected from the power outlet.
7
Connecting cables
Once connected to a power outlet, the B882-66 automatically powers on.
Ethernet port
on the wall
Computer
Telephone
Power adapter
Laptop, tablet, or
smart phone
To prevent interference caused by radio signals, place the B882-66 at least 1 meter (3.28
feet) away from telephone and other electrical devices.
Do not connect the B882-66 to the telephone wall outlet (or any Public Switched
Telephone Network), because doing so could damage the B882-66 due to excessive
heat.
8
3 Setting up a Wi-Fi connection
Turning on Wi-Fi on the B882-66
When the indicator is steady on, the Wi-Fi of the B882-66 is turned on.
To manually turn Wi-Fi on, press and hold the button for about 3 seconds.
Recording the SSID and Wi-Fi key
The default SSID and Wi-Fi key are printed on the B882-66's rear label.
Make sure your client (computer, tablet, or smart phone) also supports Wi-Fi.
To prevent unauthorized parties from accessing your wireless network, it is
recommended that you change the SSID and Wi-Fi key from time to time. For details,
see the help information on the web management page.
9
Setting up a Wi-Fi connection from a client

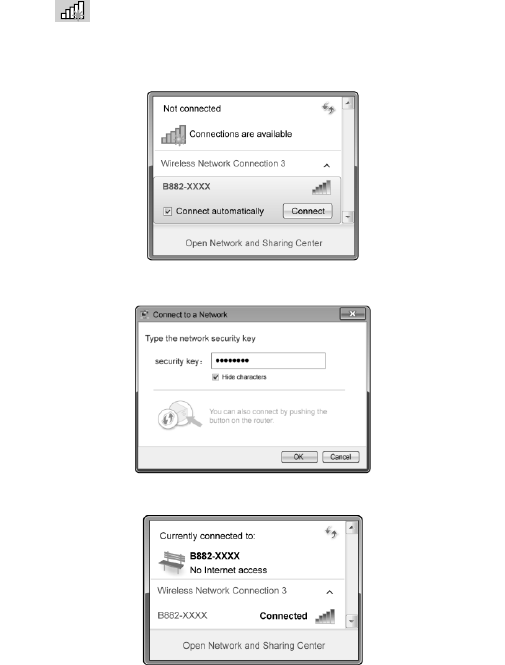

On Windows 7
1. Click on the status bar on the PC desktop.
2. A dialog box is displayed, and the computer scans for available wireless networks
within range. From the search results, select the wireless network with the same
SSID as the B882-66, and click Connect.
3. In the Connect to a Network dialog box, enter the B882-66's Wi-Fi key, and click OK.
Note that the Wi-Fi key is case sensitive.
4. When Connected is displayed next to the B882-66's SSID, the PC is connected to the
wireless network.
10

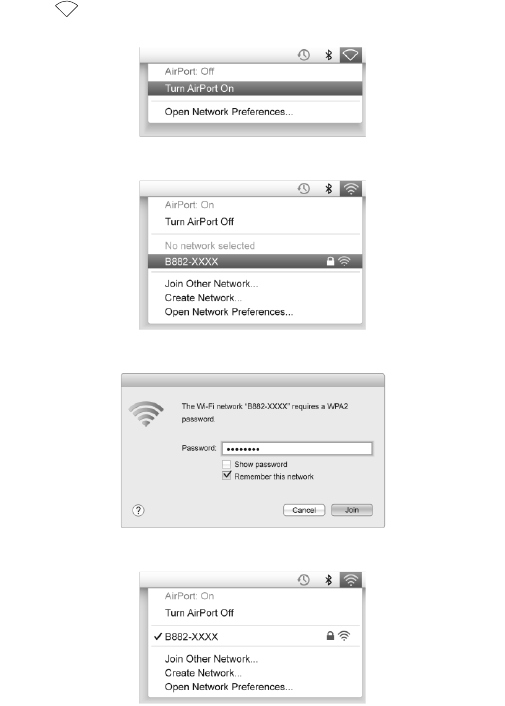

On Mac OS
1. Click on the status bar on the Mac desktop. Choose Turn AirPort On from the
displayed menu.
2. The Mac then scans for available wireless networks within range. From the search
results, select the wireless network with the same SSID as the B882-66.
3. In the displayed dialog box, enter the B882-66's Wi-Fi key, and click Join. Note that
the Wi-Fi key is case sensitive.
4. When a check mark appears next to the B882-66's SSID, the Mac is connected to the
wireless network.
11

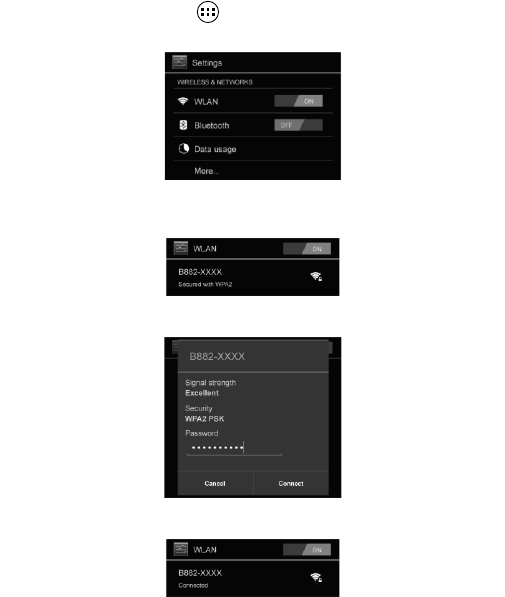

On Android 4.0
1. From the home screen, touch > Settings. In the WIRELESS & NETWORKS
section, turn Wi-Fi on.
2. Touch WLAN to display the settings screen. Your device then scans for available
wireless networks within range. From the search results, touch the wireless network
with the same SSID as the B882-66.
3. In the displayed dialog box, enter the Wi-Fi key, and touch Connect. Note that the
Wi-Fi key is case sensitive.
4. When Connected is displayed under the B882-66's SSID, the device is connected to
the wireless network.
12
Setting up a Wi-Fi connection through WPS
If the client supports WPS, you can set up a WPS connection as follows:
1. Ensure that Wi-Fi is enabled on the client.
2. Press and hold the button for 6 or more seconds. The indicator
then starts blinking.
3. Activate the WPS connection on the client in 2 minutes.
4 Configuring your B882-66
1. After a client is connected to the B882-66 through Wi-Fi or LAN port, launch a
browser on the client and visit http://192.168.1.1.
2. Enter the password (admin by default) to log in to the web management page.
3. Follow the quick setup wizard to quickly configure basic parameters, such as
connection channel, SSID and Wi-Fi key. For details, see the help information on the
web management page.
After finishing the configuration, you can then access the Internet.
For instructions about how to enable a WPS connection on the client, see the client's
user guide.
For security reasons, only one user can log in to the web management page at a time.
To protect your account, change the password after your first login. For details, see
the help information on the web management page.
If you modify the SSID and Wi-Fi key, you must set up the Wi-Fi connection on the
client again.
13
5 For More Help
If you are experiencing any issues with the B882-66:
Restart the B882-66.
See the help information on the web management page.
Restore the B882-66 to its factory settings.
Contact your service provider.
Please visit http://consumer.huawei.com/en/support/hotline for recently updated
hotline and email address in your country or region.
Figures in this guide are for your reference only. Specific models may vary slightly,
contact your service provider for more detailed information.
14
6 Safety information
This section contains important information about the operation of your device. It also
contains informat ion about how to use the device safely. Read this information
carefully before using your device.
Electronic device
Do not use your device if using the device is prohibited. Do not use the device if doing
so causes danger or interference with other electronic devices.
Interference with medical equipment
Follow rules and regulations set forth by hospitals and health care facilit ies. Do not
use your device where prohibited.
Some wireless devices may affect the performance of hearing aids or pacemakers.
Consult your service provider for more information.
Pacemaker manufacturers recommend that a minimum distance of 15 cm be
maintained between a device and a pacemaker to prevent potential interference
with the pacemaker. If using a pacemaker, hold the device on the side opposite the
pacemaker and do not carry the device in your front pocket.
Areas with flammables and explosives
Do not use the device where flammables or explosives are stored (in a gas station, oil
depot, or chemical plant, for example). Using your device in these environments
increases the risk of explosion or fire. In addition, follow the instruct ions indicated in
text or symbols.
Do not store or transport the device in containers with flammable liquids, gases, or
explosives.
Operating environment
Avoid dusty, damp, or dirty environments. Avoid magnet ic fields. Using the device in
these environments may result in circuit malfunctions.
Before connecting and disconnecting cables, stop using the device and disconnect it
from the power supply. Ensure that your hands are dry during operat ion.
Place the device on a stable surface.
Keep the device away from electronic appliances that generate strong magnetic or
electric fields, such as a microwave oven or refrigerator.
During thunderstorms, power off your device and remove all cables connected to it
to protect against lightning strikes.
Do not use your device during thunderstorms to protect your device against any
15
danger caused by lightning.
Ideal operating temperatures are 0°C to 45°C. Ideal storage temperatures are -
30°C to +60°C. Extreme heat or cold may damage your device or accessories.
Keep the device and accessories in a well-ventilated and cool area away from direct
sunlight. Do not enclose or cover your device with towels or other objects. Do not
place the device in a container with poor heat dissipation, such as a box or bag.
Do not expose your device to direct sunlight (such as on a car dashboard) for
prolonged periods.
To protect your device or accessories from fire or electrical shock hazards, avoid rain
and moisture.
Keep the device away from sources of heat and fire, such as a heater, microwave
oven, stove, water heater, radiator, or candle.
Do not place any object, such as a candle or a water container, on the device. If any
foreign object or liquid enters the device, immediately stop using it, power it off, and
remove all cables connected to it. Then, contact an authorized service center.
Do not block device openings. Reserve a minimum of 10 cm around the device to
dissipate heat.
Stop using your device or applications for a while if the device is overheated. If skin is
exposed to an overheated device for an extended period, low temperature burn
symptoms, such as red spots and darker pigmentation, may occur.
Do not touch the device's antenna. Otherwise, communication quality may be
reduced.
Do not allow children or pets to bite or suck the device or accessories. Doing so may
result in damage or explosion.
Observe local laws and regulations, and respect the privacy and legal rights of others.
The device should be installed and operated with a minimum distance of 20 cm
between the radiator and your body.
Keep the device in a place with good reception. The distance between the device
and other metal materials (such as metal brackets or metal doors and windows)
should be greater than 25 cm and the distance between the device should be greater
than 30 cm.
Child's safety
Comply with all precautions with regard to child's safety. Letting children play with
the device or its accessories may be dangerous. The device includes detachable parts
that may present a choking hazard. Keep away from children.
The device and its accessories are not intended for use by children. Children should
only use the device with adult supervision.
16
Accessories
Using an unapproved or incompatible power adapter, charger or battery may cause
fire, explosion or other hazards.
Choose only accessories approved for use with this model by the device
manufacturer. The use of any other types of accessories may void the warranty, may
violate local regulat ions and laws, and may be dangerous. Please contact your
retailer for information about the availability of approved accessories in your area.
Power adapter safety
The power plug is intended to serve as a disconnect device.
For pluggable devices, the socket-outlet shall be installed near the devices and shall
be easily accessible.
Unplug the power adapter from electrical outlets and the device when not in use.
Do not drop or cause an impact to the power adapter. If it is damaged, take it to an
authorized service center for inspection.
If the power cable is damaged (for example, the cord is exposed or broken), or the
plug loosens, stop using it at once. Continued use may lead to electric shocks, short
circuits, or f ire.
Do not touch the power cord with wet hands or pull the power cord to disconnect
the power adapter.
Do not touch the device or the power adapter with wet hands. Doing so may lead to
short circuits, malfunctions, or electric shocks.
If your power adapter has been exposed to water, other liquids, or excessive
moisture, take it to an authorized service center for inspection.
Ensure that the power adapter meets the requirements of Clause 2.5 in IEC60950-
1/EN60950-1/UL60950-1 and has been tested and approved according to national or
local standards.
Cleaning and maintenance
During storage, transportat ion, and operation of the device, keep it dry and protect
it from collision.
Keep the device and accessories dry. Do not attempt to dry it with an external heat
source, such as a microwave oven or hair dryer.
Do not expose your device or accessories to extreme heat or cold. These
environments may interfere with proper function and may lead to fire or explosion.
Avoid collision, which may lead to device malfunctions, overheat ing, fire, or
explosion.
If the device is not going to be used for an extended period of time, power it off, and
remove all cables connected to it.
If anything unusual occurs (for example, if the device emits smoke or any unusual
17
sound or smell), immediately stop using it, power it off, remove all cables connected
to it, and contact an authorized service center.
Do not trample, pull, or excessively bend any cable. Doing so may damage the cable,
causing the device to malfunction.
Before you clean or maintain the device, stop using it, stop all applications, and
disconnect all cables connected to it.
Do not use any chemical detergent, powder, or other chemical agents (such as
alcohol and benzene) to clean the device or accessories. These substances may cause
damage to parts or present a f ire hazard. Use a clean, soft, and dry cloth to clean the
device and accessories.
Do not place magnetic stripe cards, such as credit cards and phone cards, near the
device for extended periods of time. Otherwise the magnetic stripe cards may be
damaged.
Do not dismantle or remanufacture the device and its accessories. This voids the
warranty and releases the manufacturer from liability for damage. In case of damage,
contact an authorized service center for assistance or repair.
Emergency calls
The availability of emergency calls is subject to your cellular network quality, service
provider policy, and local laws and regulations. Never rely solely on your device for
critical communications like medical emergencies.
Environmental protection
The device and its accessories (if included), such as the power adapter, headset, and
battery should not be disposed of with household garbage.
Disposal of the device and its accessories is subject to local regulations. Support
proper collection and recycling.
FCC Regulatory Compliance
FCC statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
--Reorient or relocate the receiving antenna.
18
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
Caution: Any changes or modifications to this device not expressly approved by
Huawei Technologies Co., Ltd. for compliance could void the user's authority to operate
the equipment.
Industry Canada compliance
IC Statement
This device complies with CAN ICES-3 (B)/NMB-3(B).
This device complies with Industry Canada licence-exempt RSS standard(s). Operation
is subject to the following two conditions: (1) this device may not cause interference,
and (2) this device must accept any interference, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1)
l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit
accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en
compromettre le fonct ionnement.
19
7 Legal Notice
Copyright © Huawei Technologies Co., Ltd. 2014. All rights reserved.
No part of this manual may be reproduced or transmitted in any form or by any means
without prior written consent of Huawei Technologies Co., Ltd. and its affiliates
("Huawei").
The product described in this manual may include copyrighted software of Huawei and
possible licensors. Customers shall not in any manner reproduce, distribute, modify,
decompile, disassemble, decrypt, extract, reverse engineer, lease, assign, or sublicense
the said software, unless such restrictions are prohibited by applicable laws or such
actions are approved by respective copyright holders.
Trademarks and Permissions
, , and are trademarks or registered trademarks of Huawei
Technologies Co., Ltd.
LTE is a trade mark of ETSI.
Other trademarks, product, service and company names ment ioned may be the
property of their respective owners.
Notice
Some features of the product and its accessories described herein rely on the software
installed, capacities and settings of local network, and therefore may not be activated
or may be limited by local network operators or network service providers.
Thus, the descriptions herein may not exactly match the product or its accessories
which you purchase.
Huawei reserves the right to change or modify any information or specifications
contained in this manual without prior notice and without any liability.
DISCLAIMER
ALL CONTENTS OF THIS MANUAL ARE PROVIDED "AS IS". EXCEPT AS REQUIRED BY
APPLICABLE LAWS, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED,
INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN
RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS MANUAL.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL
HUAWEI BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR
CONSEQUENTIAL DAMAGES, OR LOSS OF PROFITS, BUSINESS, REVENUE, DATA,
20
GOODWILL SAVINGS OR ANTICIPATED SAVINGS REGARDLESS OF WHETHER SUCH
LOSSES ARE FORSEEABLE OR NOT.
THE MAXIMUM LIABILITY (THIS LIMITATION SHALL NOT APPLY TO LIABILITY FOR
PERSONAL INJURY TO THE EXTENT APPLICABLE LAW PROHIBITS SUCH A
LIMITATION) OF HUAWEI ARISING FROM THE USE OF THE PRODUCT DESCRIBED IN
THIS MANUAL SHALL BE LIMITED TO THE AMOUNT PAID BY CUSTOMERS FOR THE
PURCHASE OF THIS PRODUCT.
Import and Export Regulations
Customers shall comply with all applicable export or import laws and regulations and
be responsible to obtain all necessary governmental permits and licenses in order to
export, re-export or import the product ment ioned in this manual including the
software and technical data therein.
Privacy Policy
To better understand how we protect your personal information, please see the privacy
policy at http://consumer.huawei.com/privacy-policy.
