Huawei Technologies B933 WCDMA / GSM wireless gateway User Manual FMCB930
Huawei Technologies Co.,Ltd WCDMA / GSM wireless gateway FMCB930
User Manual
Wonderful Communication, Mobile Life.
Welcome to HUAWEI B932/933 Series Wireless Gateway
HUAWEI B932/933 Series Wireless Gateway
User Guide
Notice
Copyright © 2008 Huawei Technologies
Co., Ltd.
All Rights Reserved
1No part of this manual may be reproduced or
transmitted in any form or by any means without
prior written consent of Huawei Technologies
Co., Ltd.
2
Trademarks
3 and HUAWEI are trademarks of Huawei
Technologies Co., Ltd. All other trademarks and
trade names mentioned in this manual are the
property of their respective holders.
4
Notice
5The information in this manual is subject to
change without notice. Every effort has been
made in the preparation of this manual to ensure
accuracy of the contents, but all statements,
information, and recommendations in this man-
ual do not constitute the warranty of any kind,
expressed or implied.
Huawei Technologies Co., Ltd.
Address:
6Administration Building, Huawei Technologies
Co., Ltd., Bantian, Longgang District, Shenzhen,
P. R. China
Postal Code: 518129
Website: http://www.huawei.com
Read the safety precautions carefully to ensure the
correct and safe use of your wireless device. For
detailed information, see "Warnings and
Precautions."
Do not switch on your device when the
device use is prohibited or when the
device use may cause interference or
danger.
Do not use your device while driving.
Follow the rules or regulations in
hospitals and health care facilities.
Switch off your device near medical
apparatus.
Switch off your device in an aircraft. The
device may cause interference to
control signals of the aircraft.
Switch off your device near high-
precision electronic devices. The
device may affect the performance of
these devices.
Do not attempt to disassemble your
device or its accessories. Only qualified
personnel are allowed to service or
repair the device.
Do not place your device or its
accessories in containers with strong
electromagnetic field.
Do not place magnetic storage media
near your device. Radiation from the
device may erase the information
stored on them.
Do not put your device in a high-
temperature place or use it in a place
with flammable gas such as a gas
station.
Keep your device and its accessories
away from children. Do not allow
children to use your device without
guidance.
Use approved accessories only to avoid
explosion.
Safety Precautions
Observe the laws or regulations on
device use. Respect others’ privacy
and legal rights when using your
device.
1
Table of Contents 1
Quick Start 1
Appearance ................................................1
Installation ..................................................1
Power On/Off the Device............................3
Viewing the Running Status .....................3
Make a Call ................................................4
Dial-up Access ...........................................4
Restoring the Factory Defaults...................4
Using the Management Page 5
Log in to the Management Page ................5
Management Page Overview .....................5
Access the Internet.....................................6
View Configuration Information ..................7
Quick Setup................................................7
Validating Quick Setup ...............................8
Configuring Your Computer 9
Confige the Network Connection................9
Disabling Proxy Settings ............................9
Advanced Settings 10
Overview ..................................................10
System Management ...............................10
SIM/UIM Settings .....................................11
Mobile Network Settings...........................12
Dial-up Settings ........................................13
DHCP Settings ........................................14
Security Settings (Optional) 16
Firewall Switch ......................................... 16
LAN MAC Filter ........................................ 16
LAN IP Filter............................................. 17
Virtual Server ........................................... 17
DMZ Settings ........................................... 19
UPnP Settings.......................................... 19
Remote Management .............................. 19
Troubleshooting 21
Warnings and Precautions 23
Electronic Device ..................................... 23
Hospital .................................................... 23
Traffic Safety ............................................ 23
Storage Environment ............................... 23
Children Safety ........................................ 24
Operating Environment ............................ 24
Cleaning and Maintenance ...................... 24
Abbreviations 26
Table of Contents
2
1
1Quick Start
Note
The supported functions and displayed
appearance are subject to your product
purchased. Pictures posted for illustration
purpose only. Please refer to the product for
actual appearance. For details of your product
selection, consult your service provider.
Appearance
Installation
Step 1: Insert the SIM Card
!
Warning
Before inserting or removing the SIM card, you
must disconnect the device from the power
adapter.
Insert the card into the slot completely, as show in the
following figure.
To remove the card, press the card gently. Now the
card will pop up automatically.
Step 2: Connect to the Power Adapter
Use a power adapter that is compatible with the
device; otherwise, the device may be damaged.
Antenna
Charger
Ethernet
Phone
On/Off
Signal indicator
Mode indicator
LAN indicator
Power indicator
Pedestal
Installation
2

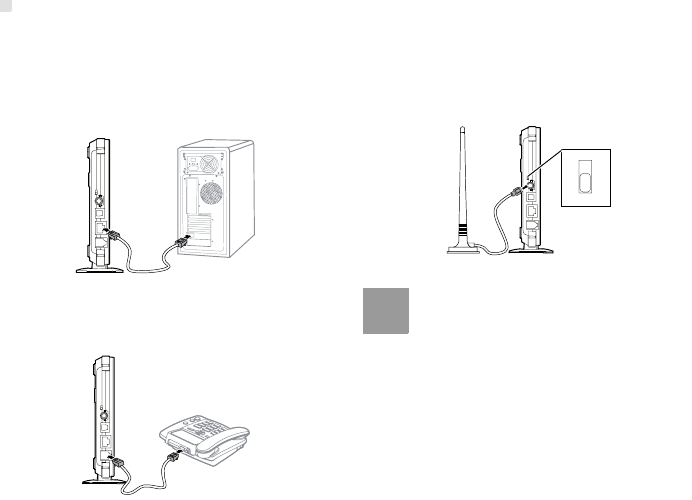

Step 3: Connect to a PC
If the indicator of the Ethernet interface connecting
with a network cable is on, the connection is
successful. The Ethernet cable cannot be longer than
100 meters (328 feet). To achieve better effect, use
the shielded cable.
Step 4: Connect to a Telephone Set
The communication quality of the telephone set can
be interfered by the wireless signal. Place the
telephone set one meter away from the device.
Step 5: Connect the External Antenna (Optional)
Connect the external antenna cable with the antenna
jack on the main unit. Screw the antenna to make
sure that the antenna is tightly connected with the
antenna jack.
Note
You can choose whether to use the external
antenna. In the area covered with strong signal
strength, you can switch to the antenna internal
and uninstall the external antenna. In the area
covered with weak signal strength, you can
install the external antenna and switch to the
antenna external. For details of antenna
selection, consult your local dealer.
Step 6: Place the device
Internal/External
Power On/Off the Device
3
1
Quick Start
!
Warning
To avoid electrical devices from interfering by
the wireless signal, place electrical devices one
meter away from the device.
The device can be placed horizontally on a table,
hanging against the wall, or standing against the
pedestal. Place the device on a higher place or near
the window, so it can receive stronger signals.
Power On/Off the Device
Press and hold the On/ Off button to power on or off
the device.
Viewing the Running Status
Indicator Status
Power Steady on and in yellow, the device is
switched on successfully.
LAN Blinking: data is transmitting.
Signal • Fast blinking in red: the card faults (the
card does not exist or the PIN code is not
verified);
• Steady on and in red: signal strength in
level one (weak);
• Steady on and in yellow: signal strength
in level two or three (middle);
• Steady on and in green: signal strength in
level four or five (strong).
Make a Call
4
Make a Call
When you hear the dial tone after picking up the
handset, you can make a call.
Dial-up Access
By default, the device dials up to access the Internet
as required. You can directly use the network
services such as web browsing, and receiving or
sending emails.
If you need to configure the other device-related
parameters, you need to access the device
management page (http://192.168.1.1). For details,
please read on.
Restoring the Factory Defaults
If you need to reconstruct the network or you forget
the changes of some parameters, you can choose to
restore factory defaults and reconfigure the device.
Reset: Press and hold it to restore the factory
defaults.
Note
After this operation, all configurations are
restored to the defaults.
Mode • Double blinking in green: searching the
network;
• Blinking in green: registering with the 2G
network;
• Steady on and in green: 2G data service
connected;
• Fast blinking in green: Downloading the
upgrade mode;
• Blinking in blue: registering with the 3G
network;
• Steady on and in blue: WCDMA data
service connected;
• Steady on and in cyan: HSPA data
service connected.
Indicator Status
Reset
5
2Using the Management Page
Log in to the Management Page
1Start the Internet browser and enter the address
http://192.168.1.1 in the address bar.
2Select a user type, enter the password, and then
click Login.
•Admin: This user type is authorized to view and
change the configurations. The default password
is admin.
•User: This user type is authorized to view only the
basic status information. The default password is
user.
Note
To avoid the configuration conflict, only one
user is allowed to log in to the management
page at a time.
Management Page Overview
Operation Functions
The following table shows the main operations in the
management page.
Device Status
The following table shows the status information of
the device.
Item Description
Basic Status Displays the parameter configuration
status of the device.
Quick Setup Quickly configures the device.
Connection Displays the network connection status
and connects to the network.
Advanced
Settings
Configures the advanced settings.
Security
(Optional)
Configures the security settings.
Logout Log out of the management page.
Item Description
SIM/UIM
The SIM/UIM
card is valid.
The SIM/UIM
card is not inserted or
is invalid.
WAN
The PPP dial-
up connection is
established.
The PPP dial-up
connection is not
established.
Access the Internet
6
Access the Internet
1Click Connection.
Note
• If you are required to enter the PIN code,
enter the correct one. If you fail to enter
the correct PIN or PUK code, the
network-related functions are
unavailable.
• The SIM/UIM card is supplied by the
service provider. For details, contact
your service provider.
• When the Save PIN Code check box is
selected, the Auto validation of PIN code
is enabled.
• If Auto validation of PIN code is enabled,
the PIN code is recorded and
automatically validated after each
reboot.
2If PPP Connection is Auto or On Demand,
refresh the page to view the current network
connection status.
3If PPP Connection is Manual, click Connect /
Disconnect to connect to or disconnect from the
network.
4Wait for several minutes, if you are prompted
that the connection is successful, you can start
the browser and enter the website address to
access the Internet.
WCDMA
The WCDMA
network is available.
The WCDMA
network is unavailable.
Note
If the device is registered with
other network modes, the
corresponding network connection
status is displayed.
SIG The signal strength from weak to strong is
shown as follows:
Item Description
View Configuration Information
7
2
Using the Management Page
View Configuration Information
On the configuration page, you can view the current
parameter configuration information and the network
connection status.
1Click Basic Status.
2Click Advanced on the right part of the page to view
the advanced status.
3Click Refresh to view the current status on the
advanced status page.
Quick Setup
You can use the quick setup wizard to configure and
maintain the basic parameters of the device. Click
Quick Setup to access the welcome page. Click Next
to configure the PPP profile settings.
Configuring PPP Profile Settings
• Profile Name: Enter a profile name when the text box is
empty.
• Dial-up Number/PPP User Name/PPP Password: Enter
these three parameters provided by the internet service
provider (ISP). The dial-up number is used to initiate
the network call; the PPP user name and PPP
password is used to obtain the service authorization
provided by the ISP.
• APN/IP Address: Select the mode for obtaining the
access point name (APN) and IP address. If the carrier
provides the relevant parameters, select Static and
enter their values. Otherwise, select Dynamic and the
device automatically obtains them.
Configuring PPP Dial-up Settings
PPP Connection: Select the dial-up access mode.
• Auto: The device automatically connects to the Internet
and does not disconnect when no data is transmitted.
• On Demand: The device automatically connects to the
Internet when data transmission exists. When the
duration of no data transmission exceeds the maximum
idle time, the device disconnects the Internet
connection.
• Manual: The device connects to the Internet after you
click Connect on the connection page. For details, see
"Accessing the Internet."
PPP Authentication: This service is provided by your
ISP. For details, consult your ISP.
Validating Quick Setup
8
Validating Quick Setup
The last page of the wizard displays all the settings
you have configured.
• To accept the settings, click Finish.
• To change the settings, click Back.
• To quit the settings, click Cancel.
9
3Configuring Your Computer
This takes the Windows XP operating system (OS)
as an example to describe how to configure your
computer. For other OSs, the configurations may be
different and you need to configure them as required.
The recommended configurations of the PC are as
follows:
• Obtain an IP address automatically.
• Deselect Use a proxy server for your LAN.
Confige the Network Connection
The boot process of the FWT will last about 20
seconds. Then you can view the signal strength.
1Choose My Network Places > Properties > Local
Area Connection.
2Right-click the Local Area Connection icon and
select Properties.
3In the Local Area Connection Properties dialog
box, select Internet Protocol (TCP/IP) in the This
connection uses the following items list box, and
then click Properties.
4In the Internet Protocol (TCP/IP) Properties
dialog box, select Obtain an IP address
automatically and Obtain DNS server address
automatically, and then click OK.
Disabling Proxy Settings
1Start the IE browser, and then choose Tools >
Internet Options.
2Select the Connections tab, and then click LAN
Settings.
3In the LAN Settings dialog box, deselect Use a
proxy server for your LAN.
10
4Advanced Settings
Overview
Click Advanced Settings, you can configure both the
basic attributes and advanced parameters of the
device, and also perform routine maintenance and
management to the device.
The following table shows the functions of the
shortcut icons.
System Management
On the System page, you can change the password,
upgrade the software, restore the factory defaults,
restart the device, and view the version information.
Click to access the System page.
Changing the Password
You can change the login password to prevent
unauthorized users from logging in to the
management page.
1Click .
2Enter the current password, and then enter the
new password and confirm it..
3Click Modify.
Upgrading the device
1Click .
Icon Description
Click to access the System page.
Click to access the SIM/UIM card setting
page.
Click to access the Mobile Network Settings
page.
Click to access the Dial-up Settings page.
Click to access the DHCP Settings
page.
SIM/UIM Settings
11
4
Advanced Settings
2Enter the path or click Browse to select the
software image file to be updated.
3Click Upgrade.
Warning
!
• After the system is upgraded, the system
automatically restarts. The whole process
takes two to three minutes.
• The software programs for upgrading must
come from the official website of Huawei or
the official website of the carrier.
• Upgrading the software does not change the
configuration of the client.
Restoring the Factory Defaults
If you need to reconstruct the network or you forget
the changes of some parameters, you can choose to
restore factory defaults and reconfigure the device.
Click to access the Restore Defaults page, and
then click Restore.
说明
After this operation, all configurations are
restored to the defaults.
Restarting the Device
1Click to access the Reboot page..
2Click Reboot.
Viewing the Version Information
Click to access the Version page.
You can view the hardware version, software version,
and the release time.
SIM/UIM Settings
Click to access the SIM/UIM Setting page.
When the device works in the ROM-SIM mode, the
page is not available.
Mobile Network Settings
12
Enabling or Disabling the PIN Code
1Click .
2Select Enable/Disable in the PIN Code
Operation list box.
3Enter the correct PIN code.
4Click Apply.
Changing the PIN Code
When the PIN code protection is enabled, you can
reset the PIN code.
1Click .
2Select Modify in the PIN Code Operation list box.
3Enter the current PIN code.
4Enter the new PIN code and confirm it.
5Click Apply.
Auto Validating PIN Code
You can enable or disable the auto validate PIN code
function.
1Click .
2Select Enable/Disable in the Auto Validate option
button.
3Enter the current PIN code.
4Click Apply.
Mobile Network Settings
Click to access the Mobile Network Settings
page, you can set the preference of the connection
mode and band when the device searches a network.
Setting the Preferred Mode and Band
1Click .
Dial-up Settings
13
4
Advanced Settings
2Select the preference of connection mode in the
Preferred Mode list box.
说明
• If the carrier provides only the 2G service and
the preferred mode is configured as 3G only,
you cannot access the Internet.
• If the carrier provides only the 3G service and
the preferred mode is configured as 2G only,
you cannot access the Internet.
• If the carrier provides neither the 3G nor 2G
service, you cannot access the Internet
regardless of the preferred mode.
3Select the band to search the network in the
Band list box.
4Click Apply.
Configuring the Mode for Searching
Network
1Click .
2Select the mode for searching the network.
• Auto: The device automatically searches the
network and registers with it.
• Manual: You need to manually search the network
and register with it.
3Click Apply.
4In Manual mode, select the searched network
and click Log on.
Dial-up Settings
Click to access the Dial-Up Settings page, you
can configure the PPP settings and manage the
profile settings.
Configuring the PPP Settings
1Click to access the PPP Settings page
2Enter the correct parameters.
• Profile List: Select a profile from the established
dial-up connection list. If the drop-down list is
empty, you need to create a profile list.
DHCP Settings
14
• PPP Connection: Select the dial-up connection
mode.
• PPP Authentication: The service is provided by
your ISP. For details, consult your ISP.
• PPP Max Idle Time: The duration of the PPP
connection is in idle. In On Demand mode, if no
data is transmitted in this duration, the PPP
connection automatically disconnects.
• PPP MTU: It is the maximum transmission unit
(MTU) of the PPP connection. It is used to set the
maximum number of bytes encapsulated in a
single data frame.
• PPP Max Dial Time: Set the maximum waiting
time when connecting to the Internet.
Managing the Profile List
Click to access the Profile settings page and
you can create, edit, save, and delete a dial-up
connection list.
◆ Creating a Profile
1Enter the profile information in the text box
according to the prompts.
2Click Save.
◆ Changing a Profile
1Select a profile to be changed in the Profile List
drop-down list. Relevant information is displayed
in the corresponding text box.
2Enter the profile information.
3Click Save.
◆ Deleting a Profile
1Select a profile to be deleted in the Profile List
drop-down list.
2Click Delete.
DHCP Settings
Click to access the DHCP Setting page, you
can set the mode for assigning IP addresses in a
LAN. DHCP automatically assigns IP addresses to
DHCP Settings
15
4
Advanced Settings
the network devices. If you are using the DHCP
server, you need to do the configurations on the PC
connecting with the device. For details, see
"Configuring the Network Connection".
• IP Address: The default IP address of the device is
192.168.1.1.
• Subnet Mask: The combination of the subnet mask and
IP address enables the flexible sub netting. By default,
the subnet mask is 255.255.255.0.
• DHCP Server: It is used to assign IP addresses
dynamically. If the DHCP server is Enabled, it can
automatically assign IP addresses for PCs. It is
recommended to select Disabled for the DHCP server.
• Start IP Address/End IP Address: It is used to define
the IP address range that the host can use during the
IP address assignment. For example, in the network
segment 192.168.1.0/24, the default IP address of the
device is 192.168.1.1. The host IP address can range
from 192.168.1.2 to 192.168.1.254. The minimum
range is a single IP address.
• DHCP Lease Time: The DHCP server automatically
assigns an IP address to each device connected to the
network. When the leased time expires, the DHCP
server checks whether the device is connected to the
network. If the device is disconnected from the network,
the server assigns the IP address to another device.
Thus, the IP address is not wasted.
说明
• The Start IP Address must be smaller than or
equal to the End IP Address.
• If the DHCP Server is Enabled, the
configurations of Start IP Address, End IP
address, and DHCP Lease Time are valid;
otherwise, you cannot configure them.
16
5Security Settings (Optional)
Click Security, you can configure the advanced
security settings.
Firewall Switch
Your device has a true firewall that controls the
incoming and outgoing data flow and protects your
computer from illegal intrusion.
1Click .
2Select the Enable the firewall (main switch of the
firewall) check box to enable the firewall.
说明
• Only when the Enable the firewall check box
is selected, the other functions such as the IP
address filter function, the MAC address filter
function, and the WAN port ping function are
available.
• When the Enable LAN MAC address filter
check box is selected, the default filter rules
are available.
3Select other options as required, and then click
Apply.
LAN MAC Filter
Your device supports MAC filtering based on a list of
either denied or allowed computers. A common
method to restrict network access is to specify the
Media Access Control (MAC) address.
To locate the MAC address in the Windows OS,
choose Start > Run, and then enter cmd.
The command window is displayed, enter ipconfig /
all, and then press Enter.
The MAC address is displayed as the Physical
Address.
1Click .
2Select MAC Filter Mode.
3Enter the MAC addresses of the clients and click
Apply.
LAN IP Filter
17
5
Security Settings (Optional)
LAN IP Filter
You can configure the device to block specific IP
address so that they cannot be accessed from
computers in the local network.
Click to access the LAN IP Filter page.
Adding an IP Address
1Select the protocol and status.
2Enter the IP address and corresponding port to
be blocked from accessing the LAN.
3Click Ok.
Changing an IP Address
1Click in the Modification column. The
corresponding IP address filter is displayed.
2Change the contents as required.
3Click Ok.
Deleting an IP Address
Click in the Modification column.
The corresponding IP address filter is deleted.
Validating an IP Filter
1Add a new IP address or select a record in the IP
address filter table.
2Select On for Status.
3Click Ok.
4Click Apply.
Virtual Server
Your device supports the virtual server to enable
external computers to access WWW, FTP, or other
services provided by the LAN.
Virtual Server
18
Click to access the Virtual Server page.
Adding a Virtual Server
1Select the protocol and status.
2Enter values in the following text boxes:
• Name: Enter a name to the service provided by
the LAN.
• WAN Port: Enter the WAN port of the LAN in which
the computer provides services.
• IP Address: Specify a computer in the LAN to
provide services.
• LAN Port: Enter the LAN port of the computer that
provides services.
3Click Ok.
You can also add a virtual server in the following way:
1Select a port from the Common Port list. The
Protocol, Status, Name, WAN Port, and LAN
Port will be set as the default values. If required,
you can change them.
2Enter the IP Address.
3Click Ok.
Changing a Virtual Server
1Click in the Modification column. The
relevant virtual server is displayed.
2Change the contents as required.
3Click Ok.
Deleting a Virtual Server
Click in the Modification column. The
corresponding virtual server is deleted.
Validating a Virtual Server
1Add a virtual server or select a record in the
virtual server table.
2Select On for Enabled.
DMZ Settings
19
5
Security Settings (Optional)
3Click Ok.
4Click Apply.
DMZ Settings
If your PC cannot run network applications through
the device, you can set the computer to access the
Internet unlimitedly by configuring the IP address of
the computer in the demilitarized zone (DMZ).
However, the DMZ computer is not protected by the
firewall. It is vulnerable to attack and may also put
other computers in the home network at risk.
1Click .
2Select Enabled /Disabled for DMZ Status to
enable or disable the DMZ service.
3Enter the local IP address of the computer that is
specified as a DMZ host.
4Click Apply.
说明
Only one computer can be specified as a DMZ
host at a time.
UPnP Settings
The Universal Plug and Play (UPnP) service allows
other network users to control your device’s
network features to realize the intelligent
interconnection.
1Click .
2Select Enabled/Disabled for UPnP Status to
enable or disable the UPnP service
3Click Apply.
Remote Management
The remote web management allows the access and
control of the device either from the home network or
from the Internet.
Remote Management
20
When you are on a trip, you can maintain your device
through the remote web management service. It also
allows your ISP to help you solve the device
problems from a remote location.
1Click .
2Select Enabled or Disabled for Remote Status to
enable or disable the service.
3Enter the IP address that can access and control
your device.
4Click Apply.
21
6Troubleshooting
What to do if a PC in the LAN cannot access the
Internet?
1The power indicator is on, and the device is
normally connected with the power adapter. If
the power indicator is off, you need to check
whether the power adapter is normally
connected.
2If the signal strength indicator is off, you need to
check whether the area is covered by the
network.
3If the area is covered by the network, you need
to check whether the network mode is correct.
For information about network mode, see
"Mobile Network Settings".
4If the indicator of the Ethernet interfaces blinks,
the corresponding Ethernet interface is normally
connected. If the indicator is off, you need to
check and ensure that the related Ethernet
connection is normal.
5You must configure the correct PPP user name
and PPP password when you access the
Internet through the device. Check whether they
are correct, and see "Configuring PPP Profile
Settings" for details.
6If the DHCP service is disabled and the PC
obtains the IP address dynamically, the PC also
cannot access the Internet. You can change the
mode to manually assign an IP address. See
"Configuring the Network Connection".
7Check whether the driver of the network adapter
is correctly installed.
8If the preceding methods cannot solve the
problem, you need to reset the device to factory
defaults.
What to do if I forgot the IP address of the LAN
interface?
If you forgot the IP address of the LAN interface, you
can enter http://e.home and log in to the
22
management page when the PC obtains the IP
address automatically.
When the signal strength is normal, what to do if
the downloading rate is low?
In this case, you need to set the value in the registry
as follows:
1Choose Start > Run.
2Enter regedit in the Open text box and then click
OK.
3Select parameters in the following directory:
\HKEY_LOCAL_MACHINE\SYSTEM\CurrentCo
ntrolSet\Services\Tcpip.
4Choose Edit > New > DWORD Value.
5Rename New Value #1 to TcpWindowSize.
6Right-click TcpWindowSize and then select
Modify.
7Select Decimal and enter 65535 in the Value
data text box, and then click OK.
8For the DWORD value of DefaultRcvWindow, do
the same operations as that of TcpWindowSize.
23
7Warnings and Precautions
Electronic Device
• Turn off your device near high-precision electronic
devices. The wireless device may affect the
performance of these devices.
• Such devices include hearing aids, pacemakers, fire
alarm systems, automatic gates, and other automatic-
control devices can be affected. If you are using an
electronic medical device, consult the device
manufacturer to confirm whether the radio wave affects
the operation of this device.
Hospital
Pay attention to the following points in hospitals or health
care facilities:
• Do not take your wireless device into the operating
room (OR), intensive care unit (ICU), or coronary care
unit (CCU).
• Do not use your wireless device at places for medical
treatment where wireless device use is prohibited.
Traffic Safety
• Please observe local laws and regulations on wireless
device use. Do not use your wireless device while
driving to avoid traffic accident.
• Secure the wireless device on its holder. Do not place
the wireless device on the seat or other places where it
can get loose in a sudden stop or collision.
• Use the wireless device after the vehicle stops at a safe
place.
• Do not place the wireless device over the air bag or in
the air bag outspread area. Otherwise, the wireless
device may hurt you owing to the strong force when the
air bag inflates.
• Observe the rules and regulations of airline companies.
When boarding or approaching a plane, turn off the
wireless device. In areas where wireless device use is
prohibited, turn off the wireless device. Otherwise, the
radio signal of the wireless device may disturb the
plane control signals. Turn off your wireless device
before boarding an aircraft.
Storage Environment
• Do not place magnetic storage media such as magnetic
cards and floppy disks near the wireless device.
Radiation from the wireless device may erase the
information stored on them.
• Do not put your wireless device, and other accessories
in containers with strong magnetic field, such as an
induction cooker and a microwave oven. Otherwise,
circuit failure, fire, or explosion may occur.
• Do not leave your wireless device, and other
accessories in a very hot or cold place. Otherwise,
Children Safety
24
malfunction of the products, fire, or explosion may
occur.
• Do not place sharp metal objects such as pins near the
earpiece. The earpiece may attract these objects and
hurt you when you are using the wireless device.
• Do not subject your wireless device, and other
accessories to serious collision or shock. Otherwise,
wireless device malfunction, overheat, fire, or explosion
may occur.
• Do not put your wireless device in the back pocket of
your trousers or skirt to avoid wireless device damage
while seated.
Children Safety
• Put your wireless device, and other accessories in
places beyond the reach of children. Do not allow
children to use the wireless device, or other
accessories without guidance.
• Do not allow children to touch the small fittings.
Otherwise, suffocation or gullet jam can be caused if
children swallow the small fittings.
Operating Environment
• The wireless device, and other accessories are not
water-resistant. Keep them dry. Protect the wireless
device, or other accessories from water or vapor. Do
not touch the wireless device with a wet hand.
Otherwise, short-circuit and malfunction of the product
or electric shock may occur.
• Do not use the wireless device in dusty, damp and dirty
places or places with magnetic field. Otherwise,
malfunction of the circuit may occur.
• When carrying or using the wireless device, keep the
wireless device at least 20 centimeters away from your
body, to avoid negative impact on your health caused
by radio frequency leakage.
• On a thunder stormy day, do not use your wireless
device outdoors or when it is being charged.
• The wireless device may interfere with nearby TV sets,
radios and PCs.
• In accordance with international standards for radio
frequency and radiation, use wireless device
accessories approved by the manufacturer only.
Cleaning and Maintenance
• Before you clean or maintain the wireless device, turn
off it and disconnect it from the power adapter.
Otherwise, electric shock or short-circuit may occur.
• Do not use any chemical detergent, powder, or other
chemical agent (such as alcohol and benzene) to clean
the wireless device and the other accessories.
Otherwise, part damage or a fire can be caused. You
can clean the wireless device and the other
Cleaning and Maintenance
25
7
Warnings and Precautions
accessories with a piece of soft antistatic cloth that is a
little wet.
• Do not scratch the shell of the wireless device.
Otherwise, the shed coating may cause skin allergy.
Once it happens, stop using the wireless device at once
and go to see a doctor.
• If the wireless device or any of its fittings does not work,
turn to the local authorize service center for help.
26
8Abbreviations
3G The Third Generation
AP Access Point
APN Access Point Name
CDMA Code Division Multiple Access
DHCP Dynamic Host Configuration Protocol
DNS Domain Name Server
EDGE Enhanced Data rates for GSM Evolution
GSM Global System for Mobile
communications
GPRS General Packet Radio Service
HSPA High Speed Packet Access
HSDPA High Speed Downlink Packet Access
HSUPA High Speed Uplink Packet Access
IP Internet Protocol
LAN Local Area Network
LED Light Emitting Diode
NAT Network Address Translation
POTS Plain Old Telephone Service
UMTS Universal Mobile Telecommunications
System
WAN Wide Area Network
WLAN Wireless Local Area Network
WCDMA Wideband CDMA
WI-FI Wireless Fidelity
