Airbridge BTS3606 CDMA Base Station System Description
Chapter 1 Introduction
1-1
Chapter 1 Introduction
The mobile communication system has experienced the first generation (analog
system) and the second generation (digital system). As one of the main development
trends of the second generation, the Code Division Multiple Access 1X (CDMA 1X)
technology, advocated by the 3rd Generation Partnership Project 2 (3GPP2), has
been widely used for commercial purpose.
The CDMA 1X technology complies with IS-95A and IS-95B standards. The capacity
of the CDMA 1X system has increased substantially because it adopts such
technologies as reverse pilot, fast power control and transmit diversity.
This chapter first introduces the network solution of Huawei CDMA 1X mobile
communication system, and then the market position of Huawei indoor BTS3606.
1.1 Network Solution of Huawei CDMA 1X System
The Huawei CDMA 1X mobile communication system comprises the Base Station
Subsystem (BSS) and the Core Network (CN). Users can operate and maintain the
system through an integrated mobile network management system.
Figure 1-1 shows the network of Huawei CDMA 1X system. This manual aims to
introduce the Base Transceiver Station (BTS) of the BSS, thus, the following figure
emphasizes the network structure of BSS.
![](/img.php?id=447574&img=bg2.png)
Technical Manual
Airbridge BTS3606 CDMA Base Station System Description
Chapter 1 Introduction
1-2
Internet
PSTN/ISDN
PLMN
A3/A7
A1/A2
A10/A11
Abis
A1/A2
BSC/PCF
BSC/PCF
MS
A10/A11
Abis
Abis
BSS CN
BTS
Abis
BTS
BTS
BTS
BTS
BTS
ODU
ODU
ODU
ODU
MS
BTS3601C/ODU3601C BTS3606 cBTS3612BTS3612A
Optical fiber
MS
Mobile Network
Management System
Packet Domain
Network Equipment
Circuit Domain
Network Equipment
Internet
PSTN/ISDN
PLMNPLMNPLMN
A3/A7
A1/A2
A10/A11
Abis
A1/A2
BSC/PCF
BSC/PCF
MSMS
A10/A11
Abis
Abis
BSS CN
BTS
Abis
BTSBTS
BTSBTS
BTSBTS
BTSBTS
BTSBTS
ODUODU
ODUODU
ODUODU
ODUODU
MSMS
BTS3601C/ODU3601C BTS3606 cBTS3612BTS3612A
Optical fiber
MSMS
Mobile Network
Management System
Packet Domain
Network Equipment
Circuit Domain
Network Equipment
MS: Mobile Station BTS: Base Transceiver Station
BSC: Base Station Controller ODU: Out Door Unit
PCF: Packet Control Function BSS: Base Station Subsystem
CN: Core Network PLMN: Public Land Mobile Network
PSTN: Public Service Telephone Network ISDN: Integrated Service Digital Network

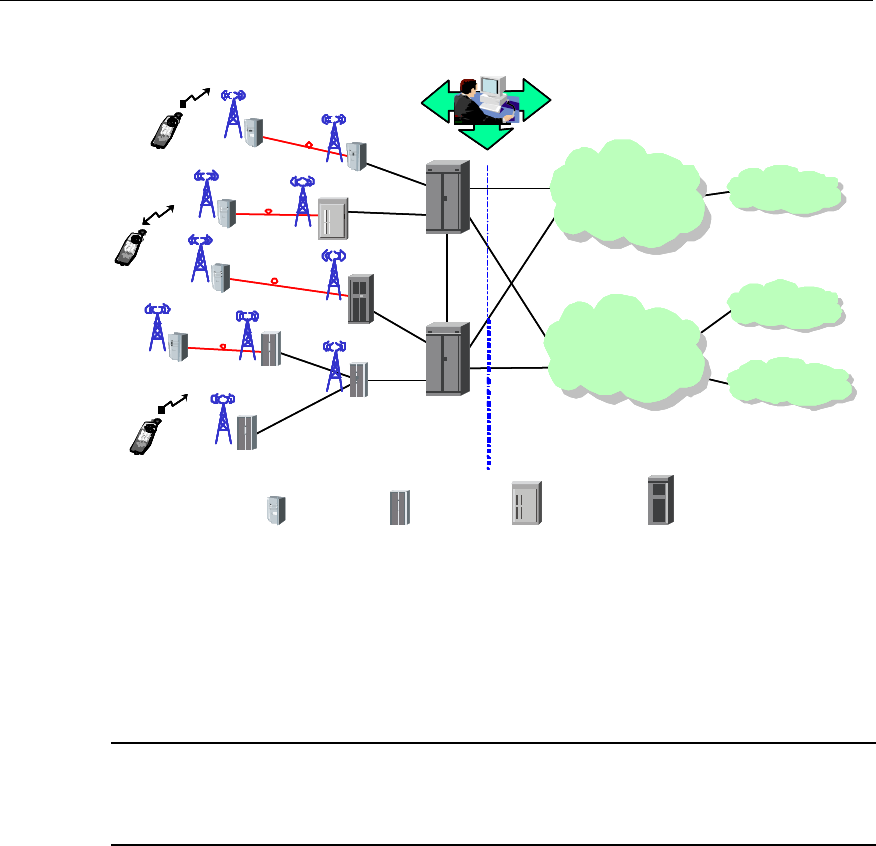

Figure 1-1 Network structure of Huawei CDMA 1X system
&
Note:
The appearance of the BTS3601C cabinet is the same as that of the ODU3601C cabinet.
1.1.1 Brief Introduction to BSS
The BSS consists of the BTS, Base Station Controller (BSC), and Packet Control
Function (PCF). The PCF is usually integrated with the BSC. The ODU3601C, a soft
site, is also a part of the Huawei BSS.
I. BTS
The BTS transmits and receives radio signals to enable the communication between
the radio network system and the Mobile Station (MS). Huawei provides a series of
BTS products, including:
l cBTS3612: Indoor BTS equipment. The maximum capacity of a single cabinet is
4 carriers and 3 sectors or 2 carriers and 6 sectors.
![](/img.php?id=447574&img=bg3.png)
Technical Manual
Airbridge BTS3606 CDMA Base Station System Description
Chapter 1 Introduction
1-3
l BTS3606: Indoor BTS equipment developed based on the cBTS3612. The
maximum capacity of a single cabinet is 2 carriers and 3 sectors.
l BTS3612A: Outdoor BTS equipment developed based on the cBTS3612. The
maximum capacity of a single cabinet is 2 carriers and 3 sectors.
l BTS3601C: Outdoor one-carrier BTS equipment.
l ODU3601C: Outdoor one-carrier Soft equipment. It shares the baseband
processing resource of its upper-level BTS. It also transmits and receives the
radio signal together with the upper-level BTS.
II. BSC/PCF
The BSC performs the following functions:
l BTS control and management
l Call connection and disconnection
l Mobility management
l Power control
l Radio resource management
l Provision of stable and reliable radio connections for the upper-level services
through soft/hard handoff
The PCF manages the Radio-Packet (R-P) connection. As radio resources are limited,
they should be released when subscribers are not sending or receiving information.
But the Peer-Peer Protocol (PPP) connection must be maintained.
The PCF shields the radio mobility from the upper-level services through the handoff
function.
III. MS
The MS is the equipment used by the mobile subscriber. It can originate and receive
calls, and communicate with the BSS.
1.1.2 Brief Introduction to CN
The CN comprises the packet domain network and the circuit domain network.
I. Packet domain network equipment
The packet domain network equipment covers:
l Packet Data Service Node (PDSN)
l Mobile Internet Protocol Home Agent (MIP HA)
l Authorization, Authentication and Accounting (AAA)
They connect and communicate with the Internet.
![](/img.php?id=447574&img=bg4.png)
Technical Manual
Airbridge BTS3606 CDMA Base Station System Description
Chapter 1 Introduction
1-4
II. Circuit domain network equipment
The circuit domain network equipment includes:
l Mobile Switching Center (MSC)
l Home Location Register (HLR)
l Gateway Mobile-services Switching Center (GMSC)
They connect and communicate with the conventional Public Land Mobile Network
(PLMN) and Public Switched Telephone Network/Integrated Services Digital Network
(PSTN/ISDN).
1.2 Position of BTS3606
The following presents the position of the BTS3606.
I. Position in the network
The BTS3606 is located between the BSC and the MS in the CDMA 1X system.
Under the control of the BSC, the BTS3606 is the radio transceiver equipment serving
one cell or multiple logical sectors.
Connecting with the BSC through the Abis interface, the BTS3606 helps the BSC
manage radio resources, radio parameters and interfaces. It also implements, over
the Um interface, the radio transmission between the BTS and the MS, as well as
related control functions.
II. Position in the application
The indoor BTS3606 supports multi-cell configuration.
A single cabinet can supports three sectors, each of which can support at most two
carriers.
The indoor BTS3606 has the following features:
l Moderate capacity
l Small size
l Easy installation
l Flexible coverage
The BTS3606 is suitable for the networking in the area with moderate traffic.
Complying with IS-95A/B and CDMA 1X, the BTS3606 is compatible with other
CDMA BTS products of Huawei.
![](/img.php?id=447574&img=bg5.png)
Technical Manual
Airbridge BTS3606 CDMA Base Station System Description
Chapter 2 Product Features
2-1
Chapter 2 Product Features
The BTS3606 is designed in consideration of customers' requirements for service,
capacity, coverage, transmission, power supply, installation and maintenance. It
adopts integrated design, which shows the customer-oriented service idea of Huawei.
2.1 Technical Features
I. The BTS3606 is designed with advanced architecture for the CDMA 1X
EV-DO.
II. The adoption of the Channel Element (CE) pool improves the availability of
the hardware resources and the error tolerance capability of the system.
III. The digital intermediate frequency technology enhances the signal
processing capability.
IV. Intelligent control for the fan prolongs the service life and reduces noises.
V. It also supports inband adaptive filtering anti-interference.
VI. The BTS3606 can be cascaded with the ODU3601C to expand the
coverage area of radio network flexibly.
VII. It can support bands of 450 MHz, 800 MHz, and 1900 MHz.
2.2 Large-scale Coverage
The BTS3606 can cover a wide area thanks to its excellent performance of
transceiving.
I. Receiving sensitivity
The main/diversity receiving technology is employed to optimize the receiving
performance. Upon RC3, the receiving sensitivity of the BTS3606 is better than -127
dBm.
![](/img.php?id=447574&img=bg6.png)
Technical Manual
Airbridge BTS3606 CDMA Base Station System Description
Chapter 2 Product Features
2-2
II. Transmit power (measured value at the antenna port of the cabinet)
The maximum average transmit power is 25 W.
After the high-power combiner is configured, the maximum average transmit power
can reach 50 W.
III. ODU3601C cascading
When the BTS3606 is cascaded with the ODU3601C through optical fibers, the
coverage area of the signals can be effectively spread.
2.3 Flexible Networking Mode
I. Networking interfaces
The BTS3606 supports the networking by using E1 and T1 links, and the interfaces of
Inverse Multiplexing for ATM (IMA) and User Network Interface (UNI). The
multiplexing rate on the Abis interface is greatly increased.
II. Networking modes
The BTS3606 supports networking modes in chain, star, and tree topologies.
It can share the transmission network with the GSM BTS. In addition, it provides the
GSM BTS with transmission channels on the Abis interface in the ATM over
Fractional E1/T1 mode.
III. Clock source
The BTS3606 supports the following clock sources:
l Global Position System (GPS) clock
l Global Navigation Satellite System (GLONASS) clock
l Other external clock sources
Thus, it can adapt to various networking situations
If the BTS High Precision Clock Module (HPCM) is configured, the BTS3606 can still
keep clock synchronization for 24 hours when the external clock source signal is lost.
![](/img.php?id=447574&img=bg7.png)
Technical Manual
Airbridge BTS3606 CDMA Base Station System Description
Chapter 2 Product Features
2-3
2.4 Convenient Operation and Maintenance
Users can operate and maintain the BTS3606 through the Local Maintenance
Terminal (LMT) and the M2000 integrated maintenance console.
The following lists the maintenance functions:
I. System status monitoring
This function provides the indication for the system running status and resource
status, the configuration of local cell and logical cell, and their status indication.
II. Data configuration
The BTS3606 adopts dynamic data configuration mode. The configured data takes
effect without resetting BTS.
It also supports the batch processing of data configuration, which allows the
configuration of multiple network elements sharing the same attributes at a time.
The data backup function is also available.
III. Alarm processing
This function covers:
l Alarm collection
l Alarm clearing
l Alarm querying
l Alarm shielding
l Alarm filtering
IV. Security management
The security management function includes:
l User login authentication
l Command authority restriction
l Confirmation of crucial operation
l User group management
l Timeout locking
V. Test
The BTS3606 supports offline and online tests. The test items include:
l Board loopback test
l Self-test
![](/img.php?id=447574&img=bg8.png)
Technical Manual
Airbridge BTS3606 CDMA Base Station System Description
Chapter 2 Product Features
2-4
l Trunk loopback test
VI. Site monitoring
Data transmission channels are available for the monitoring equipment in the
equipment room to facilitate attendance-free and centralized monitoring of the
BTS3606.
VII. Upgrade
Users can upgrade the system through remote loading. The upgrade process is
retrievable, that is, the system can fall back to the original one when the upgrade fails.
Auto loading function is provided. When a board needs replacing, if the version of the
new board is later than that of the old one, auto loading function can be used to
upgrade the software for the new board.
VIII. Equipment operation
The BTS3606 supports front operation, and online insertion and removal of baseband
boards. This facilitates the maintenance, upgrade and expansion of the system.
IX. Auto restart function
When the BTS3606 is out of service owing to power failure or transmission faults, it
can restart automatically right after the faults are cleared.
X. Reverse maintenance function
With the reverse maintenance function, users can, from the LMT, log in to the BAM
through the network port on the BCKM to perform operation, maintenance and
management over the whole BSS.
2.5 Easy Upgrade and Expansion
I. Compatibility design
The BTS3606 is compatible with IS-95A/B and CDMA 1X. It can be upgraded to
CDMA 1xEV-DO smoothly. Huawei BTS3606 saves the operators' investment when
the network is upgraded from IS-95 to CDMA 1X, or from CDMA 1X to CDMA
1xEV-DO.
II. Flexible configuration
The BTS3606 supports the configuration of omni cell or three sectors.
![](/img.php?id=447574&img=bg9.png)
Technical Manual
Airbridge BTS3606 CDMA Base Station System Description
Chapter 2 Product Features
2-5
It can be cascaded with ODU3601C.
The BTS3606 can realize flexible coverage through multi-cell configuration.
III. Smooth expansion
The modular structure allows the BTS3606 to be expanded simply by adding
modules.
2.6 Serial Products for Seamless Coverage
Huawei provides a series of BTS products to enable a seamless coverage for urban
and rural areas, suburbs, and highway and hot areas.
Table 2-1 shows the application of various BTS products.
Table 2-1 Application comparison among serial BTS products
Model Max. sector
carrier per
cabinet Capacity Application Type
cBTS3612 12 Large Highly populated area and
city. Indoor
BTS3606 6 Medium Medium and small cities,
towns. Low requirement for
equipment room. Indoor
BTS3612A 6 Medium Heavy traffic and limited
equipment room space Outdoor
BTS3601C 1 Small Indoor, underground,
highway and railroad.
Outdoor (also
applicable to the
indoor condition)
ODU3601C 1 Small Indoor, underground,
highway and railroad.
Outdoor (also
applicable to the
indoor condition)
![](/img.php?id=447574&img=bga.png)
Technical Manual
Airbridge BTS3606 CDMA Base Station System Description

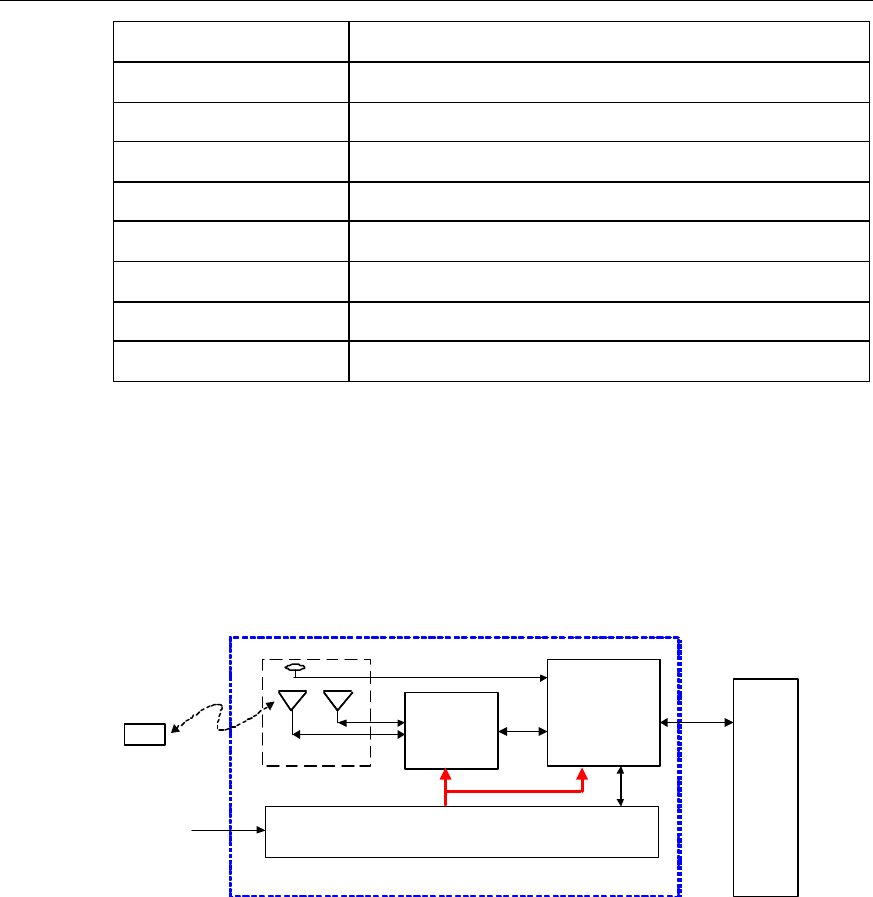

Chapter 3 Product Architecture
3-1
Chapter 3 Product Architecture
3.1 Appearance and Configuration
3.1.1 Cabinet Appearance
I. Appearance
The BTS3606 cabinet is designed in conformity to the IEC297 standard.
The outer dimensions are 1400 mm % 600 mm % 650 mm (Height % Width % Depth).
Figure 3-1 shows the BTS3606 cabinet.

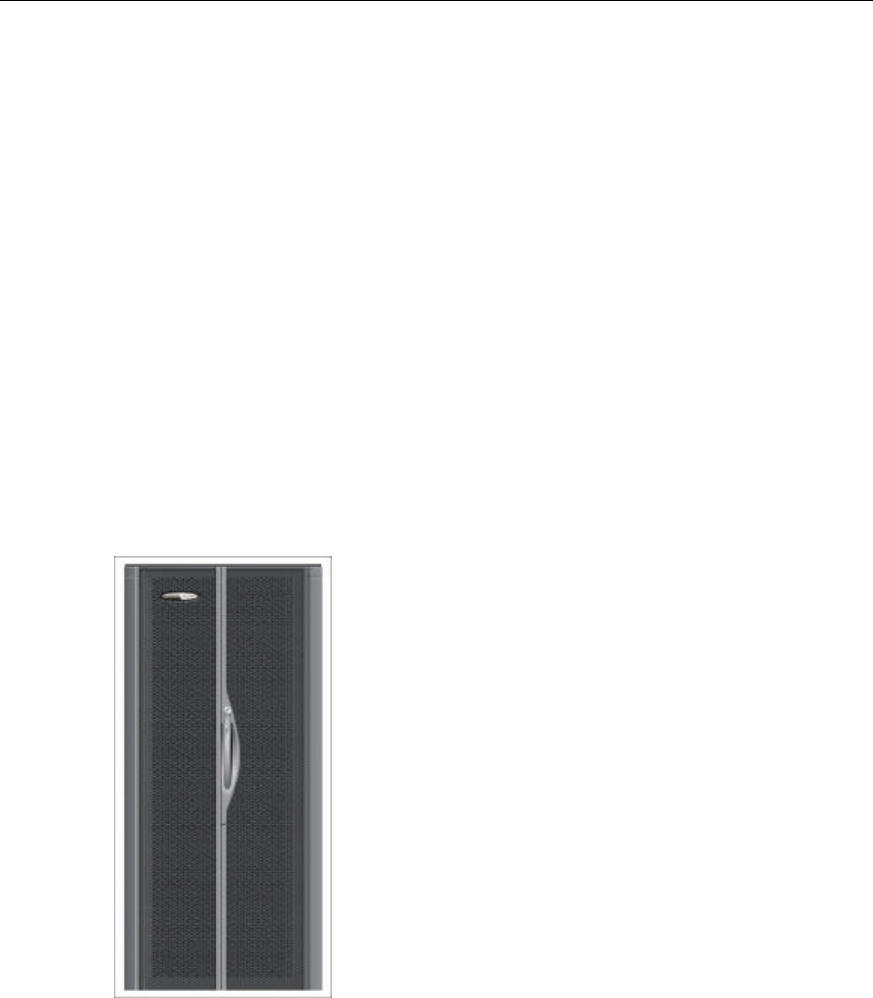

Figure 3-1 BTS3606 cabinet
II. Feature
The BTS3606 cabinet has the following features:
l Light weight owing to its aluminum alloy materials
l Excellent electrical conductivity and shielding effect
l Good ventilation effect owing to its reasonable design of air ducts
l Easy installation and maintenance
l Nice appearance
![](/img.php?id=447574&img=bgb.png)
Technical Manual
Airbridge BTS3606 CDMA Base Station System Description
Chapter 3 Product Architecture
3-2
3.1.2 Cabinet Configuration
The BTS3606 cabinet is configured with CDDU, combined subrack, power supply
subrack, switch box, fan box, cable trough, and tool kit. The combined subrack is
designed for installing CTRM/CHPA and baseband boards.
The maximum capacity of a single BTS3606 cabinet is two carriers and three sectors,
as shown in Figure 3-2.
CDDU Switch box
Fan box
C
C
P
M
C
C
P
M
C
C
P
M
B
C
I
M
B
C
K
M
C
C
P
M
C
C
P
M
C
C
P
M
B
C
I
M
B
C
K
M
C
H
P
A
C
T
R
M
C
H
P
A
C
T
R
M
C
H
P
A
C
T
R
M
C
H
P
A
C
T
R
M
C
H
P
A
C
T
R
M
C
H
P
A
C
T
R
M
Cabling trough
Cabling trough
P
S
U
P
S
U
P
S
U
P
S
U
Tool box

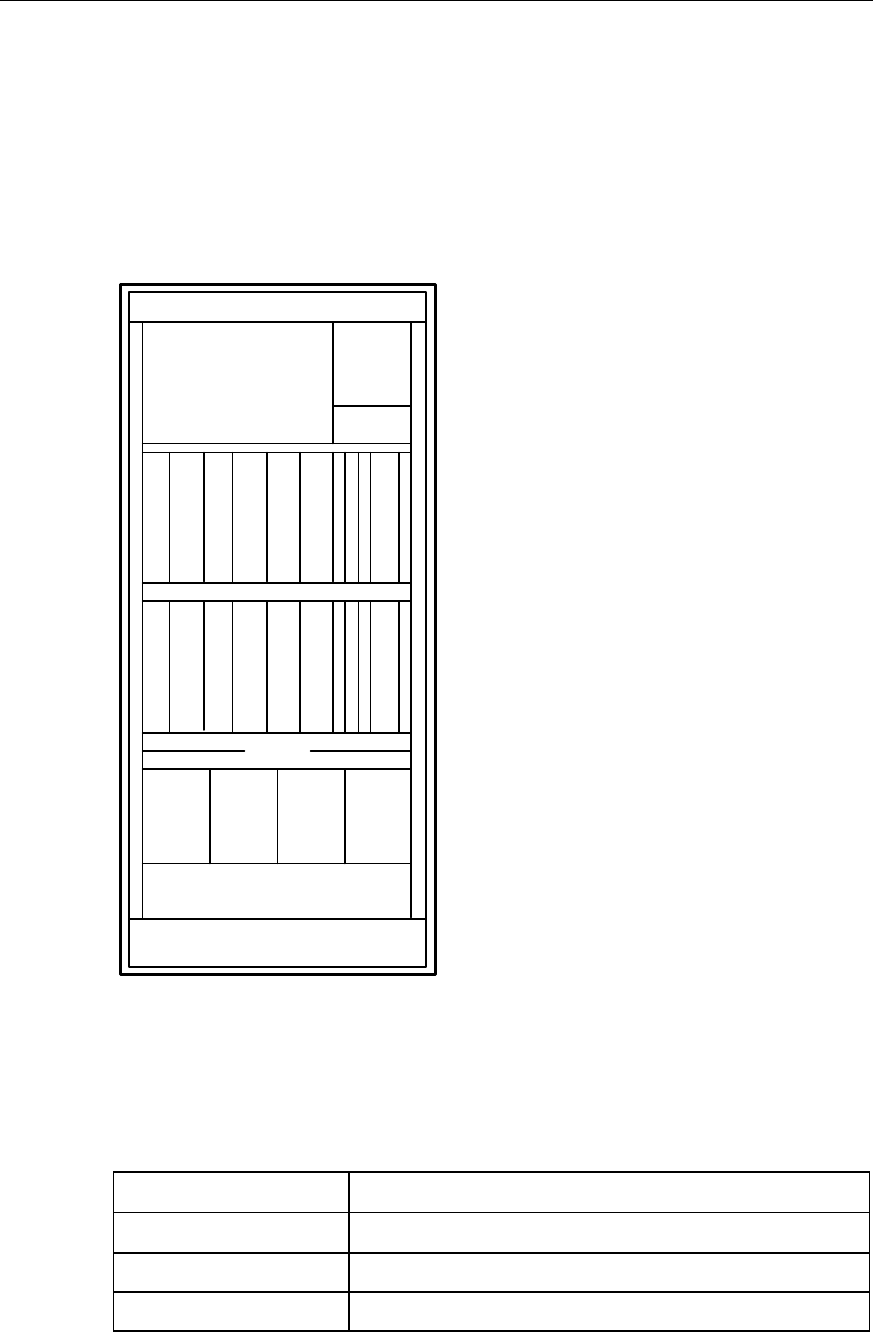

Figure 3-2 A fully-equipped BTS3606 cabinet
Table 3-1 lists the boards and modules of the BTS3606.
Table 3-1 Boards and modules of the BTS3606
Acronyms Full name
BCIM BTS Control Interface Module
BCKM BTS Control and Clock Module
CCPM Compact-BTS Channel Process Module
![](/img.php?id=447574&img=bgc.png)
Technical Manual
Airbridge BTS3606 CDMA Base Station System Description
Chapter 3 Product Architecture
3-3
Acronyms Full name
CDDU Compact-BTS Dual Duplexer Unit
CFMM Compact-BTS Fan Monitor Module
CHPA Compact-BTS High power Amplifier
CPCM Compact-BTS Power Combination Module
CSLM Compact-BTS Serial port Lightningproof Module
CTRM Compact-BTS Transceiver Module
HPCM Compact-BTS High Precision Clock Module
PSU Power Supply Unit
3.2 System Structure
The BTS3606 system consists of baseband subsystem, Radio Frequency (RF)
subsystem, power supply subsystem, and antenna and feeder subsystem, as shown
in Figure 3-3.
BSC
Baseband
subsystem
Power supply
subsystem
RF
subsystem
Abis
interface
Um
interface
MS Antenna & feeder
subsystem
-48V/+24V
BTS3606
Figure 3-3 BTS3606 system structure
3.2.1 Baseband Subsystem
The baseband subsystem comprises the BCKM, the BCIM, and the CCPM. It can
l Provide Abis interface and process the Abis interface protocol.
l Provide a fiber interface to the RF subsystem, and process the Um physical layer
and Common Channel (CCH) MAC layer protocols.
l Implement modulation/demodulation of baseband data and the coding/decoding
of CDMA channels.
l Provide synchronization clock signal to the BTS.
![](/img.php?id=447574&img=bgd.png)
Technical Manual
Airbridge BTS3606 CDMA Base Station System Description
Chapter 3 Product Architecture
3-4
l Perform system resource management, operation and maintenance, and
environment monitoring.
3.2.2 RF Subsystem
The RF subsystem consists of the BTRM, the BHPA, the CDDU, and the CPCM. It
performs the different functions in different directions:
I. In forward direction, the RF subsystem performs the following functions:
l Perform power-adjustable up-conversion.
l Implement linear power amplification.
l Complete power synthesis (optional).
l Filter the modulated transmission signals.
l Send the signals to the antenna & feeder subsystem.
II. In reverse direction, the RF subsystem performs the following functions:
l Filter the signals received by the antenna to suppress out-band interference.
l Fulfill low-noise amplification.
l Perform division.
l Implement noise factor–adjustable down-conversion.
l Perform channel-selective filtering.
l Send the signals to the baseband subsystem.
3.2.3 Antenna and Feeder Subsystem
The antenna and feeder subsystem of the BTS3606 includes two parts: the RF part
and the satellite synchronization part.
l RF antenna and feeder
This part covers the transmitting and receiving antennas, and feeders. It
transmits and receives signals on the air interface.
l Satellite synchronization antenna and feeder
This part includes the satellite signal receiving antenna, feeder, and lightning
arrester. It receives synchronization signals from the satellites (GPS or
GLONASS) to provide precise clock source for the BTS.
3.2.4 Power Supply Subsystem
When the -48V DC input is employed, the power supply subsystem comprises:
l Power Supply Unit (PSU)
l Power distribution unit
l Lightning protection unit
![](/img.php?id=447574&img=bge.png)
Technical Manual
Airbridge BTS3606 CDMA Base Station System Description
Chapter 3 Product Architecture
3-5
l Monitoring unit
The PSU is a DC/DC power supply with -48V DC input and +27V DC output.
The power supply subsystem has the following features:
l Current equalizing
l Hot backup
l Centralized management
l Distributed power supply
These features improve the security and reliability of the power system.
When the +24V DC input is adopted, there is no need to configure the PSU for the
power supply subsystem.
3.3 Physical Interface
The BTS3606 provides the following physical interfaces.
Table 3-2 Physical interfaces on the BTS3606
Interface Type Quantity Function
E1
Abis interface T1 8
Connect to the transmission system that
connects to the BSC. Support IMA/UNI and
cascading. When E1 is adopted, 75W and
120W load interfaces are available. When T1 is
adopted, the 100W load interface is available.
ODU3601C cascading
interface Optical fiber 8
Each CCPM provides two optical interfaces.
When the BTS3606 needs to be cascaded with
ODU3601C, it can be cascaded with a
maximum of three ODU3601Cs.
GPS/GLONASS 2 Provide reliable and stable clock signal.
Clock interface External
synchronization clock
input 1 Provide high-precision clock.
Maintenance interface Ethernet interface 1 Provide local maintenance path.
Power supply 1 Provide -48V/+24V DC power input Power supply and
Protection Ground
(PGND) PGND 1 Provide lightning protection for the BTS.
Monitoring interface Environment
monitoring interface 1 Connect to the environment monitor.
Antenna feeder interface RF signal 6 Correspond to three sectors. Each sector
corresponds to two DIN connectors, which can
be used for both transmitting and receiving.
![](/img.php?id=447574&img=bgf.png)
Technical Manual
Airbridge BTS3606 CDMA Base Station System Description
Chapter 4 Main Functions
4-1
Chapter 4 Main Functions
The Um interface of the BTS3606 supports the TIA/EIA IS-2000 Rel.A standard. It is
compatible with the TIA/EIA-95-A/B standard. The minimum performance satisfies
TIA/EIA-97-D requirements.
The Abis interface complies with the 3GPP2 A.R0003 standard.
4.1 Power Control
The CDMA system is a self-interference system. Every subscriber is an interference
source to other subscribers. If it is possible to ensure that every MS transmits the
minimum power it needs, the whole system capacity can reach the maximum.
Therefore, power control directly affects the system capacity and the service quality.
Power control is classified into forward power control and reverse power control.
Forward power control is used to control the transmit power of the BTS. Reverse
power control aims to control the transmit power of the MS.
I. Forward power control
Several methods can be applied to realize forward power control, depending on the
MS protocol version and the system parameters.
l Power control based on PMRM
When the MS uses the Power Measurement Report Message (PMRM) for power
control, it determines the method and frequency of reporting PMRM in
accordance with the received control message contained in the system
parameter message.
l Power control based on EIB
When the MS uses the Erasure Indicator Bit (EIB) for power control, it detects
forward frame quality and sends this information to the BTS through EIB. The
BTS will adjust the transmit power according to the EIB information.
l Forward fast power control
The MS adjusts the BTS power according to the power control bit. The power
control bit can be transmitted at a maximum speed of 800 bit/s.
As the CDMA 1X system supports the high-speed data service, the requirement
on forward power control becomes higher.
![](/img.php?id=447574&img=bg10.png)
Technical Manual
Airbridge BTS3606 CDMA Base Station System Description
Chapter 4 Main Functions
4-2
The forward fast power control can control the transmit power of forward channel
accurately, reducing interference and improving the capacity.
II. Reverse power control
Reverse power control includes open-loop power control and close-loop power
control. The close-loop power control can be further classified into inner-loop power
control and outer-loop power control.
l Open-loop power control
The MS determines the transmit power to access the BTS according to the
received pilot signal strength.
l Close-loop power control
The BTS issues a power control command to the MS, and performs the
adjustment according to the feedback from the MS.

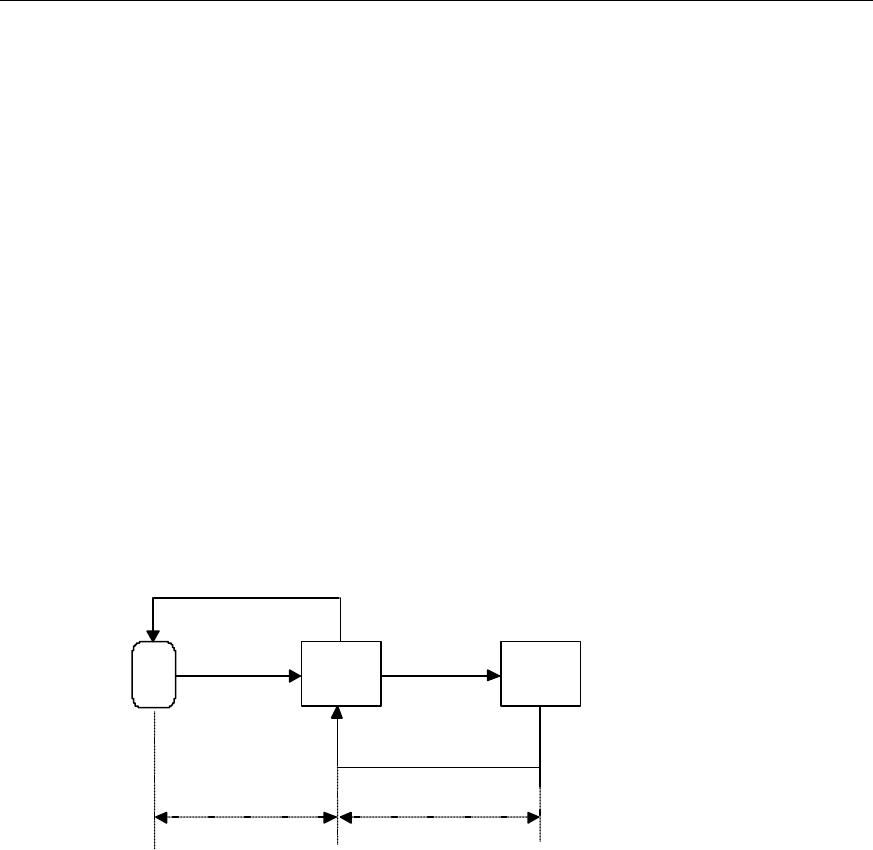

Figure 4-1 illustrates the principle of close-loop power control.
MS BTS BSC
Eb/Nt FER
Power Control Bit
Eb/Nt changing
quantity
Inner loop Outer loop
Figure 4-1 Close-loop power control
In the inner-loop power control mode, the BTS issues the power control bit according
to the received Eb/Nt value.
In the outer-loop power control mode, the BSC adjusts the Eb/Nt setting value
according to the Frame Error Rate (FER) of the received reverse signal. Then the
BTS uses the newly set Eb/Nt value to issue the power control bit. In this way, the
transmit power of the MS can be controlled.
![](/img.php?id=447574&img=bg11.png)
Technical Manual
Airbridge BTS3606 CDMA Base Station System Description
Chapter 4 Main Functions
4-3
4.2 Handoff
When the MS moves out of the current serving cell/sector or the conversation quality
deteriorates to an unacceptable degree, the MS will be handed off to another
cell/sector to maintain the ongoing conversation.
If the MS handoff helps to improve conversation quality and network performance, it
is also possible to trigger the handoff procedure.
I. Soft handoff
The soft handoff happens between adjacent cells which serve on the same frequency
and belong to different BTSs. The two different BTSs can belong to the same BSC, or
two different BSCs connected with A3/A7 interface.
In the soft handoff procedure, the MS maintains the connection with the previous cell
till it establishes the communication with the new cell. The MS can establish radio
links with multiple cells, select and combine data received from these links to improve
the conversation quality and reduce call drops.
II. Softer handoff
The softer handoff happens between adjacent sectors that serve on the same
frequency and belong to the same BTS. In fact, it is a special case of soft handoff.
Since the MS establishes radio links with multiple sectors under the same BTS, the
BTS can combine the diversity signals received by its sectors from the MS.
Therefore, the conversation quality during softer handoff is better than that of soft
handoff.
III. Hard handoff
In the hard handoff procedure, the MS firstly interrupts the connection with the
previous cell, and then set up the connection with the new cell. Therefore, call drop
may occur.
Hard handoff includes:
l Intra-frequency hard handoff: Handoff between the BSCs without A3/A7 interface
in-between.
l Inter-frequency hard handoff: Handoff between cells serving on different
frequencies.
![](/img.php?id=447574&img=bg12.png)
Technical Manual
Airbridge BTS3606 CDMA Base Station System Description
Chapter 4 Main Functions
4-4
4.3 Radio Configuration
The Um interface of the BTS3606 supports CDMA 1X. It is compatible with IS-95A/B
standards. The spreading rate is 1.2288 Mcps.
The CDMA 1X physical layer supports multiple Radio Configurations (RCs). Different
radio configurations support the frames of the different rate sets, and have different
channel configurations and spreading spectrum structures.
The transmission combinations supported by the BTS3606 include:
l Forward RC1 and reverse RC1
l Forward RC2 and reverse RC2
l Forward RC3 or RC4, and reverse RC3
l Forward RC5 and reverse RC4
Each RC supports traffic channel at different data rates. The performance of the
CDMA 1X system varies with RCs. For example, the CDMA 1X system with RC1 and
RC2 is compatible with IS-95A/B.
4.4 Channel Configuration
A series of physical channels have been defined on the Um interface. These physical
channels include different types according to the channel features. Different RCs
support different channels.
I. Forward channel
1) Forward Common Channel
l Forward Pilot Channel (F-PICH): It provides synchronization signals to the MSs
working in the BTS coverage. Different from other channels, the F-PICH is an
unmodulated spread spectrum signal that is always in the transmitting status.
l Forward Sync Channel (F-SYNCH): It provides the initial time synchronization
information to MSs working in the BTS coverage.
l Forward Paging Channel (F-PCH): It sends the system information and
MS-specific message to the MSs working in the BTS coverage. Each CDMA
channel in a sector can support seven paging channels at most.
l Forward Quick Paging Channel (F-QPCH): The BTS uses this channel to send
the paging order and system configuration change order to slotted-mode MSs,
instructing them to receive the paging messages. Thus the MS battery energy
can be saved.
2) Forward Dedicated Channel
l Forward Dedicated Control Channel (F-DCCH): It carries traffic information and
signaling information between the MS and the BTS.
![](/img.php?id=447574&img=bg13.png)
Technical Manual
Airbridge BTS3606 CDMA Base Station System Description
Chapter 4 Main Functions
4-5
l Forward Fundamental Channel (F-FCH): It carries traffic information between the
MS and the BTS.
l Forward Supplemental Channel (F-SCH): It carries traffic information between
the MS and the BTS. It is only applicable to RC3, RC4 and RC5.
II. Reverse channel
1) Reverse Common Channel
Reverse Access Channel (R-ACH): The MS uses this channel to initiate the
communication with the BTS and respond to paging channel message.
The MS uses random access protocol to initiate access procedure. Regarding each
supported paging channel, thirty-two access channels can be supported at most.
2) Reverse Dedicated Channel
l Reverse Fundamental Channel (R-FCH): It carries the traffic information
between the MS and the BTS.
l Reverse Dedicated Control Channel (R-DCCH): It carries traffic information and
signaling information between the MS and the BTS.
l Reverse Supplemental Channel (R-SCH): It carries the traffic information
between the MS and the BTS. It is applicable to RC3 and RC4 only.
4.5 Receiving Diversity
The BTS3606 supports receiving diversity function. The receiving diversity is realized
through two sets of independent receiving equipment, each of which comprises
antenna, feeder, CDDU, and main/diversity receiving channels.
The two sets of receiving equipment demodulate the received signals simultaneously.
Then the baseband processing unit decodes the signals with diversity combining
algorithm so as to provide some diversity gain.
The receiving diversity enhances the anti-attenuation capability of the BTS receiver,
and ensures the receiving effect of the BTS under complicated radio environment.
4.6 Cell Breathing
The BTS3606 can control the coverage of a cell and balance the system load by
adjusting the transmit power. This function has great significance for the CDMA
system. The transmit power of the BTS3606 for cell breathing ranges from 0 dB to 24
dB. It can be adjusted at a step of 0.5 dB.
![](/img.php?id=447574&img=bg14.png)
Technical Manual
Airbridge BTS3606 CDMA Base Station System Description
Chapter 5 Reliability Design
5-1
Chapter 5 Reliability Design
5.1 System Reliability
I. De-rating design
Lower the electrical stress and temperature stress on the high-power or
heat-generating components to values less than the rated ones. In this way, users
can delay performance degeneration and prolong the service life of these
components.
II. Quality control of components
The category, specifications and manufacturers of the components are carefully
selected depending on the requirements of the product reliability and maintainability.
The replaceability and normalization of components is also important for selection.
All components are excellent ones selected through aging test. Strict quality control is
implemented on hardware assembling procedures to ensure high reliability and
stability in the long run.
III. Thermal design
The thermal design focuses on following items to minimize the impact of temperature
changes upon product performance:
l Component selection
l Circuit design
l Mechanical design
l Heat dissipation design
The thermal design of the BTS3606 ensures that it can work reliably in a wide range
of temperatures.
IV. EMC design
The design ensures that the BTS3606 keeps at an acceptable level owing to the
Electro Magnetic Interference (EMI) from other equipment in the same
electromagnetic environment. At the same time, the EMI generated by the BTS3606
does not degrade the performance of other equipment in the same electromagnetic
environment to an unacceptable level.
![](/img.php?id=447574&img=bg15.png)
Technical Manual
Airbridge BTS3606 CDMA Base Station System Description
Chapter 5 Reliability Design
5-2
V. Redundancy design
For the purpose of reliability, the system is designed with several sets of units
performing the same function. The system does not fail unless the specified sets of
units fail.
VI. Reliability design for input voltage
l The system is protected against reverse connection of power supply.
l The input voltage of the -48V DC power supply is checked and alarm signal will
be generated when the voltage is too low or too high.
l The system is protected against sharp voltage drop and lightning strikes.
l The system provides protection for program and data in the case of power
failure.
VII. Maintainability design
The reasonable internal wiring of the BTS facilitates board replacement. To replace a
faulty board, only the cable of this board is required to be removed. The board can be
removed and inserted directly from the front of the cabinet.
In addition, board indicators are provided to help users identify board status.
VIII. Fault monitoring and handling
The BTS3606 system is equipped with the functions of self-detection and fault
diagnosis. It can not only record, output and print various fault information, but collect
environment condition information and generate alarms if there is any problem.
The hardware fault detection procedures include:
l Fault locating
l Isolating the faulty components
l Automatic switchover to the standby components that operate normally
The system will make a final confirmation on a hardware fault through repeated
detection, thus avoiding the reconfiguration of the system or the degradation of QoS
owing to contingent faults.
When faults occur to the software, automatic error-correction and recovery functions
will be executed, including restarting and reloading.
The network management system records, outputs, and notify the users of critical
faults. In this way, users can operate and maintain the system with ease through
maintenance console.
![](/img.php?id=447574&img=bg16.png)
Technical Manual
Airbridge BTS3606 CDMA Base Station System Description
Chapter 5 Reliability Design
5-3
5.2 Hardware Reliability
I. Protection against wrong insertion of boards
When a board is inserted into a wrong slot, the special guide pins prevents the board
from touching the backplane. This avoids the possible damage to the equipment
owing to wrong insertion.
II. Active-standby switchover of BCKM
The active BCKM can back up the file data to the standby BCKM periodically. Once
critical faults occur to the active BCKM, the original standby BCKM functions as the
active BCKM to ensure normal operation of the BTS.
III. CE pool design of the CCPM
The CE pool design of the CCPM enhances the reliability of the system.
IV. Status monitoring and alarm report
The BCKM can monitor the status of other boards or modules, and report alarms to
ensure timely fault location.
V. Distributed power supply
The system adopts distributed power supply. The DC/DC power supply module works
in the N+1 redundancy mode. When an error occurs to a module, it sends the alarm
to the BAM. It also supports online insertion and removal of boards.
5.3 Software Reliability
I. Periodic check of key resources
This function aims to check the software resource which has been occupied for a long
time. If certain resource becomes unavailable owing to software error, the check
mechanism will release that resource and output logs and alarms.
II. Process monitoring
Process monitoring provides channel for outputting various software and hardware
faults while the software is running. It can monitor the running status of a specific task
or system, and report the information to the outside
![](/img.php?id=447574&img=bg17.png)
Technical Manual
Airbridge BTS3606 CDMA Base Station System Description
Chapter 5 Reliability Design
5-4
III. Data check
l Check the data consistency of different processing boards, restore the data
consistency, and output logs and alarms.
l Check the consistency of the data input by the user to ensure correct reference
relation among data.
l Use the rollback function to restore the data to the initial state when the
modification of some data fails at certain point.
IV. Fault isolation
In the BTS3606, when a fault occurs to one software module, other software modules
can run normally.
In addition, the software has the capability of fault tolerance and correction. The minor
operation exceptions will not cause the reset or reboot of the system.
V. Software backoff
The system provides such function as program and data restoration. When the
upgrade fails, the function helps restore to the original program and data
configuration.
VI. Log function
The operation and maintenance software can automatically record users' operations
and save them into a log file. When an unknown error occurs to the system, log files
can help to trace the situation in the normal condition for fault location or data
restoration.
![](/img.php?id=447574&img=bg18.png)
Technical Manual
Airbridge BTS3606 CDMA Base Station System Description
Chapter 6 Operation and Maintenance System
6-1
Chapter 6 Operation and Maintenance System
The operation and maintenance system covers the local operation and maintenance
system, and the M2000 Mobile Integrated Network Management System (hereinafter
briefed as M2000 system).
This chapter introduces how to perform the local and remote maintenance through
the local operation and maintenance system.
The basic structure and functions of the M2000 system are also briefed in this chapter.
The detailed information is available in the related manual of M2000.
6.1 Structure
6.1.1 Local Operation and Maintenance System

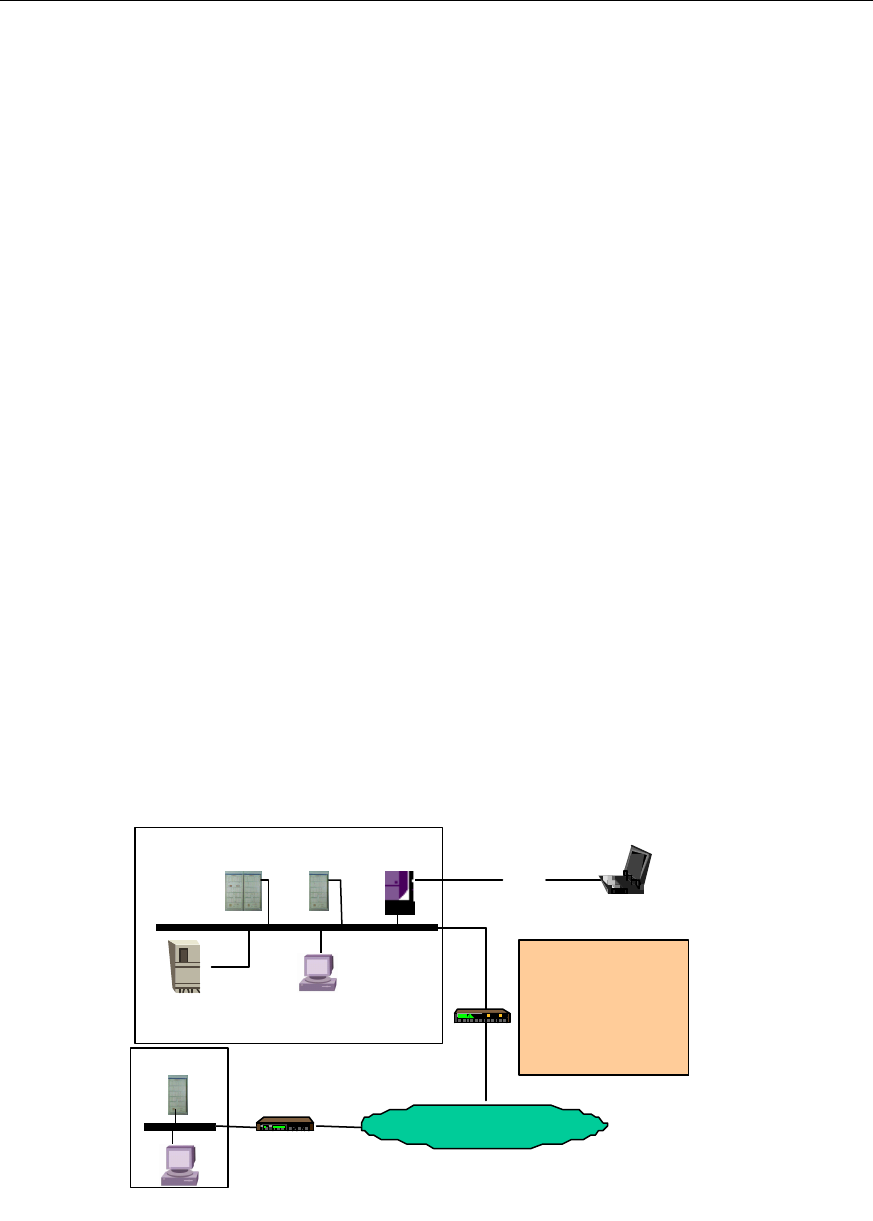

Figure 6-1 shows the structure of the BSS local operation and maintenance system.
BTS
BSC
Router
Router
internet
IPOA
IPOA
IP over Ethernet
IP over Ethernet
IP over Ethernet
IP over Ethernet
IP over Ethernet
BTS
BAM
Figure 6-1 BSS local operation and maintenance system
I. Remote maintenance
The local operation and maintenance system of the BSS is designed in Client/Server
(C/S) structure. The operation procedures are as follows:
1) The user inputs operation commands through Local Maintenance Terminal
(LMT).
2) As the server, the BAM processes the commands from the Clients.
3) After the processing, the BAM sends these commands to the host (BSC or BTS)
and then waits for the response.
![](/img.php?id=447574&img=bg19.png)
Technical Manual
Airbridge BTS3606 CDMA Base Station System Description
Chapter 6 Operation and Maintenance System
6-2
4) Then the BAM records the operation results (such as success, failure, timeout, or
abnormality) and sends the results to the LMT in a specified format.
Users can perform remote maintenance and monitor all the BTSs through the local
operation and maintenance system. Meanwhile, users can collect information from
these BTSs for network planning.
II. Local maintenance
l Users can implement local maintenance by logging in to the BTS through Telnet
Client.
l Users can perform various operations and maintenance on the BTS using the
MML commands.
l Users can use the reverse maintenance function to maintain the whole BSS on
the LMT of the BTS.
6.1.2 Mobile Integrated Network Management System
The M2000 system implements the centralized maintenance function. In this system,
the M2000 server is the core. Various mobile network elements (such as BSC, MSC,
and HLR) are connected to the system through Local Area Network (LAN) or Wide
Area Network (WAN).
The BSC is connected to the M2000 system through the BAM.

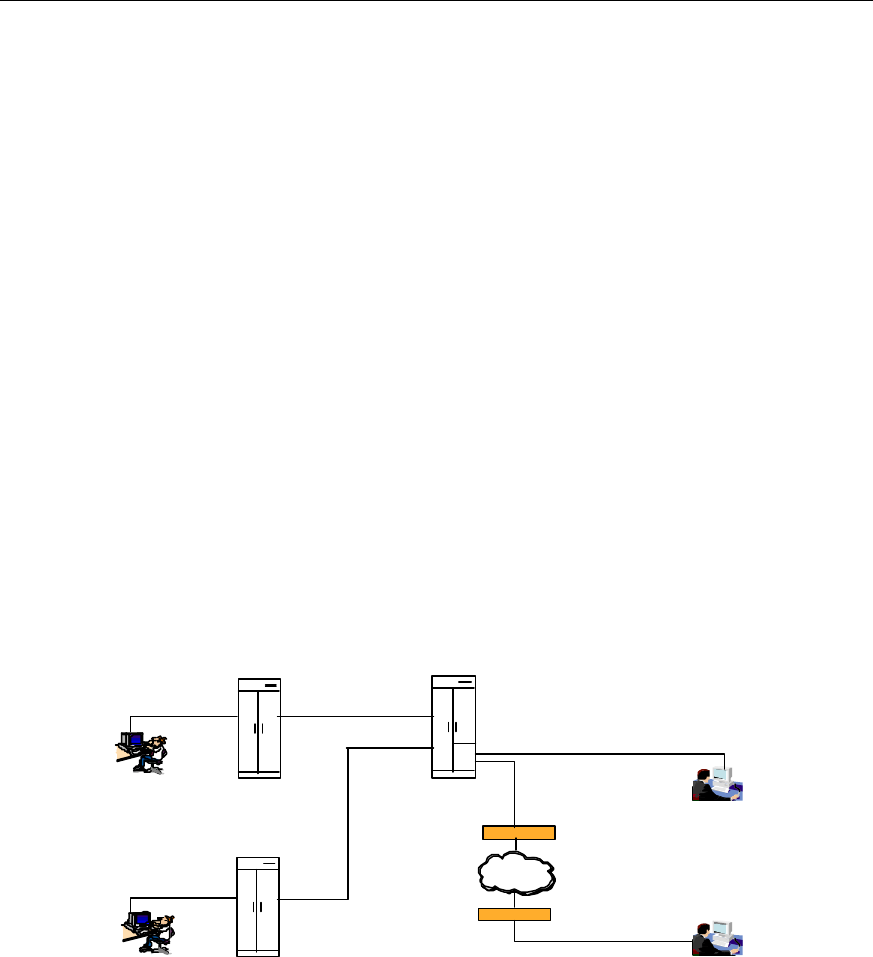

Figure 6-2 shows the typical networking of the M2000 mobile integrated network
management system.
E1, DN, X.25 and frame relay.
Dialup Server
LAN
NE NE
M2000 Server WS
l
lSupport remote dialup
maintenance
NE
PSTN
Support E1, DDN,
X.25 and frame relay.
Figure 6-2 Networking of M2000 mobile integrated network management system
The M2000 system performs the following functions:
![](/img.php?id=447574&img=bg1a.png)
Technical Manual
Airbridge BTS3606 CDMA Base Station System Description
Chapter 6 Operation and Maintenance System
6-3
l Configuration management. Collect, store, query, and modify the NE equipment
data within the network system.
l Performance management. User can register the traffic measurement tasks of
the NEs on the Client, and can view the execution results of the registered traffic
measurement tasks on the whole network.
l Fault management. User can set combined conditions to get the required alarm
data of the NEs from the Alarm Client, view the results, and perform related
operations
6.2 Operation and Maintenance Function
The BTS3606 provides powerful operation and maintenance functions to answer
user's requirement. These functions include security management, alarm
management, loading management, configuration management, equipment
management, test management, and tracing management.
I. Security management
To prevent illegal operation, the system provides powerful security management
function to control users' operations and the operating equipment.
Users need to log in for authentication before operating the BTS3606. The system
provides multi-level authority mechanism so that only the authorized user can perform
the operation of specified command sets.
In addition, the timeout locking function is provided. When there is no user operation
for a long time, the system will automatically lock the screen. The user needs to enter
the right password to go on operating the system.
Before the execution of important commands, the system displays the possible
results upon the execution and prompts the user for confirmation.
II. Alarm management
The system performs centralized management over the alarms of the BSC and the
BTS. The BSS Maintenance Console provides real-time alarm management function:
l Collect alarms
l Clear alarms
l Query alarms
l Handle alarms
l Save alarms
l Interpret alarms
l Prompt alarms
l Shield alarms
l Filter alarms
![](/img.php?id=447574&img=bg1b.png)
Technical Manual
Airbridge BTS3606 CDMA Base Station System Description
Chapter 6 Operation and Maintenance System
6-4
l Acknowledge alarms
l Analyze alarms
In addition, the alarm management system provides online help and hierarchical
filtering to help locate faults and provide alarm recovery method.
While reporting alarms, the BTS3606 drives status indicators and alarm box to give
audible and visual alarms.
III. Loading management
The loading management allows the loading of the software and the configuration
data.
Software loading involves the downloading and activation of the Central Processing
Unit (CPU) software and the Field Programmable Gate Array (FPGA) logic.
Configuration data loading includes both the downloading and uploading of
configuration data.
IV. Configuration management
The configuration management is to configure BTS equipment and radio resources. It
also enables the user to query the configuration data and check data consistency.
Both online and offline configuration functions are provided together with batch
processing function for data configuration.
V. Equipment management
The equipment management is to monitor and query the status of the board and the
system, facilitating the user to understand the running status of the system timely. It
also provides users with operation log and system running log to facilitate fault
location and clearing.
The equipment management function includes:
l Version query
l Status query
l Electronic label query
l Log management
l Equipment reset
l Resource blocking/unblocking
l Power supply management
![](/img.php?id=447574&img=bg1c.png)
Technical Manual
Airbridge BTS3606 CDMA Base Station System Description
Chapter 6 Operation and Maintenance System
6-5
VI. Test management
The test management facilitates fault location and the optimization of system
performance. It covers board loopback test, self-detection test, and Abis link test.
VII. Tracing management
The tracing management is implemented for the purpose of fault location and
performance measurement analysis. The traced objects include various interfaces
and BTS resources.
The tracing results of some resources (such as CPU resource and cell resource) can
be displayed in graphics on real-time basis.
![](/img.php?id=447574&img=bg1d.png)
Technical Manual
Airbridge BTS3606 CDMA Base Station System Description
Chapter 7 Technical Specifications
7-1
Chapter 7 Technical Specifications
7.1 Structure and Environment Specifications
Cabinet dimensions (Height
%
Width
%
Depth) 1400 mm % 600 mm % 650 mm
Power supply -48 V DC (ranging from –40 V DC to –60 V DC)
+24 V DC (ranging from +21 V DC to +29 V DC)
Weight Ÿ 250 kg
Power consumption Ÿ 3400 W
Ambient temperature -5âC to 50âC
Relative humidity 5% to 90%
Equipment room noise Ÿ 70 dBA (The noise varies with the ambient temperature)
Reliability
Availability ¦ 99.999%
MTBF ¦ 100000 h
MTTR Ÿ1 h
7.2 Capacity Specifications
There are two types of CCPMs. One has two optical interfaces, while the other has no
optical interface.
A maximum of four CCPMs can be configured in the BTS3606. The baseband
processing capability is 12 sector carriers.
I. Capacity without ODU3601Cs cascaded
Max. number of sectors per cabinet 3
Max. number of carriers per sector 2
Max. number of sector carriers per cabinet 6
![](/img.php?id=447574&img=bg1e.png)
Technical Manual
Airbridge BTS3606 CDMA Base Station System Description
Chapter 7 Technical Specifications
7-2
II. Capacity with ODU3601Cs cascaded
Each CCPM with optical interfaces can connect up to three ODU3601Cs, and each
optical interface can be cascaded with three levels of ODCU3601Cs.
7.3 Transmitter and Receiver Specifications at 450 MHz
Band
I. Transmitter specifications
Working band 460 MHz to 467 MHz
Channel bandwidth 1.23 MHz
Channel precision 25 kHz, 20 kHz
Frequency tolerance Ÿ ! 0.05 ppm
Transmit power 25 W (the maximum value measured at the feeder port on the top
of the cabinet)
II. Receiver specifications
Working band 450 MHz to 457 MHz
Channel bandwidth 1.23 MHz
Channel precision 25 kHz, 20 kHz
Sensitivity of signal receiver Better than -127 dBm (RC3, main and diversity receiving)
7.4 Transmitter and Receiver Specifications at 800 MHz
Band
I. Transmitter specifications
Working band 869 MHz to 894 MHz
Channel bandwidth 1.23 MHz
Channel precision 30 kHz
Frequency tolerance Ÿ ! 0.05 ppm
Transmit power 25 W (the maximum value measured at the feeder port on the top
of the cabinet)
![](/img.php?id=447574&img=bg1f.png)
Technical Manual
Airbridge BTS3606 CDMA Base Station System Description
Chapter 7 Technical Specifications
7-3
II. Receiver specifications
Working band 824 MHz to 849 MHz
Channel bandwidth 1.23 MHz
Channel precision 30 kHz
Sensitivity of signal receiver Better than -127 dBm (RC3, main and diversity receiving)
7.5 Transmitter and Receiver Specifications at 1900MHz
I. Transmitter specifications
Working band 1930 MHz to 1990 MHz
Channel bandwidth 1.23 MHz
Channel precision Ÿ 50 kHz
Frequency tolerance ! 0.05ppm
Transmit power 25 W (the maximum value measured at the feeder port on the top of the
cabinet)
II. Receiver specifications
Working band 1850 MHz to 1910 MHz
Channel bandwidth 1.23 MHz
Channel precision 50 kHz
Sensitivity of signal
receiver Better than -126 dBm (RC3, main and diversity receiving)
7.6 Specifications for ODU3601C Cascading
Max. distance of single cascading 10 km, 70 km
Max. number of cascading levels 3
Max. total distance of all cascadings 90 km
