Huawei Technologies C205S CDMA 1X Digital Mobile Phone User Manual
Huawei Technologies Co.,Ltd CDMA 1X Digital Mobile Phone
User Manual
![](/img.php?id=1035067&img=bg1.png)
C205s
CDMA 1X Mobile Phone
Copyright © 2008 Huawei Technologies Co., Ltd.
and other Huawei trademarks are the trademarks or registered trademarks of Huawei Technologies Co., Ltd.
in the People’s Republic of China and certain other countries. All other trademarks mentioned in this manual are the
property of their respective holders. The information in this manual is subject to change without notice. Every effort
has been made in the preparation of this manual to ensure accuracy of the contents, but all statements, information,
and recommendations in this manual do not constitute the warranty of any kind, express or implied.
Huawei Technologies Co., Ltd.
Address: Huawei Industrial Base, Bantian, Longgang, Shenzhen 518129, People's Republic of China
Tel: +86-755-28780808 Global Hotline: +86-755-28560808
E-mail: mobile@huawei.com Website: www.huawei.com
![](/img.php?id=1035067&img=bg2.png)
ii
Copyright © 2008 Huawei Technologies Co., Ltd.
All Rights Reserved
No part of this manual may be reproduced or transmitted in any
form or by any means without prior written consent of Huawei
Technologies Co., Ltd.
Trademarks
and other Huawei trademarks are the trademarks or
registered trademarks of Huawei Technologies Co., Ltd. in the
People’s Republic of China and certain other countries.
All other trademarks mentioned in this manual are the property
of their respective holders.
Notice
The information in this manual is subject to change without
notice. Every effort has been made in the preparation of this
manual to ensure accuracy of the contents, but all statements,
information, and recommendations in this manual do not
constitute the warranty of any kind, express or implied.
i
Table of Contents
1 Getting to Know Your Phone........................................................1
2 Menu Tree.......................................................................................4
3 Getting Started...............................................................................5
4 Text Input........................................................................................8
5 Warnings and Precautions .......................................................... 11
![](/img.php?id=1035067&img=bg5.png)
1
1 Getting to Know Your Phone

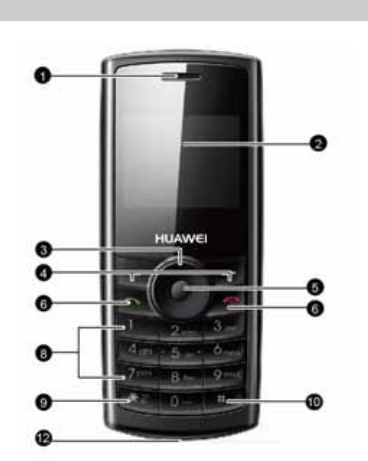

Your Phone
![](/img.php?id=1035067&img=bg6.png)
2
Note
z There are two C205s models. One has a removable
user identity module (R-UIM) and the other does not.
z This manual describes the C205s with the R-UIM. If
a function is marked with "'", it indicates that this
function is only available in the C205s with the
R-UIM. But the remaining functions are supported by
both the C205s models.
Appearance Descriptions
1 Earpiece –
2 Screen –
Press to write message.
Press to access the inbox.
Press to set the alarms.
3 Navigation keys
Press to view the calendar.
4 Soft keys z When the phone is closed, press
and to enable or
disable the keyguard.
z Select the option displayed on the
lower left corner of the screen.
5 OK key Confirm a selection or display a menu.
z Access the Call History screen.
6 Dialing key
z Make or answer a call.
7 End/Power key z Power on or off the phone (by
![](/img.php?id=1035067&img=bg7.png)
3
pressing and holding it).
z End or reject a call.
z Press and hold 1 to access Voice
Mail.
z Press and hold 2–9 to speed dial a
phone number.
8 Number keys
z Press and hold 0 to input +
9 * key Enable or disable the vibration mode
(by pressing and holding it).
10 # key Enable the phone lock (by pressing
and holding it).
11 Speaker –
12 Charger interface –
Screen Icons
Icon Meaning Icon Description
Signal strength Battery level
Non-service Roaming
New Message Vibration
Alarm clock
![](/img.php?id=1035067&img=bg8.png)
4
2 Menu Tree
Messages Phone Book Call History
1 Write Message
2 Inbox
3 Outbox
4 Voice Mail
5 Delete
6 Msg Settings
1 Search
2 New
3 Groups
4 Speed Dial
5 Delete
6 Options
1 Missed Calls
2 Received Calls
3 Dialed Calls
4 Delete
5 Call Duration
Extras Sound Settings
1 Alarm
2 Calculator
3 Calendar
4 Game
5 Time Zones
6 SW Version
1 Volume
2 Ring Type
3 Ring Tones
4 Alarm Tones
5 Key Tones
6 Keybeep Length
7 Power Up
8 Power Down
9 SMS Recv. Tone
10 SMS Send Tone
1 Display
2 Time
3 Call Settings
4 Phone Settings
5 Security
6 Auto Key Guard
7 Factory Set.
8 Privacy
![](/img.php?id=1035067&img=bg9.png)
5
3 Getting Started
Installing the Battery
To install the battery, do as follows.
1
3
Removing the Battery
To remove the battery, do as follows.
1
"'"Installing/Removing the UIM Card
After removing the battery, do as follows to install or remove the
UIM card.
Charging the Battery
1. Connect the charger to the charger interface at the bottom of
your phone. Make sure that the arrow on the charger
![](/img.php?id=1035067&img=bga.png)
6
connector faces the front side of the phone.
2. Connect the charger to a power socket.
3. The phone starts charging. The screen displays the charging
animation.
4. When the animation becomes static, disconnect the charger
from the power socket.
5. Disconnect the charger from the phone. Press the gray
buttons on both sides of the charger connector, and then pull
it out from the charger interface.
Accessing a Menu
1. In the standby mode, press to display the main
menu.
2. Press to select a function menu.
3. Press to display the selected menu.
4. Press to select a submenu and press to
display it.
5. Press to return to the previous menu or exit the
function menu.
6. Press to return to the standby screen.
Making a Call
1. In the standby mode, press the number keys to enter a phone
number.
2. Press to dial the number.
3. Press to end the call or cancel the dialing.
![](/img.php?id=1035067&img=bgb.png)
7
z When the phone is locked, you need to unlock the
phone first. Otherwise, you can only make emergency
calls.
z Press continuously to enter *, P or T.
Receiving a Call
When there is an incoming call, you can do as follows:
z Press , or to answer the call.
z Press or to reject the call.
z When the any key answer function is enabled, press any
key to answer the call (except and ).
z When the auto-answer function is enabled, the call is
answered automatically in the preset duration.
During a call, press to adjust the earpiece volume
for a better calling effect.
Phone Lock
The phone lock protects your phone from unauthorized use. The
default phone lock code is "0000".
![](/img.php?id=1035067&img=bgc.png)
8
4 Text Input
Text Input Modes
The phone supports the following text input modes:
z Alphabetical text input mode:
\: Upper case /lower case alphabetical text input
mode
z Predictive input mode:
\: Upper case /lower case predictive English input
mode
z "123" input mode: Enter numbers.
z Symbol input mode: Enter symbols.
Basic Operations
In the text editing mode, you can choose the following options:
z Press to switch the text input modes.
z Press and hold to switch between the "123" input
mode and the current text input mode.
z Press to switch between uppercase and lowercase.
z Press and hold to display the symbol list.
z Press to delete the letter on the left of the cursor.
z Press and hold to clear all the letters at a time.
z In any input mode (except the "123" input mode), press
to enter a space.
![](/img.php?id=1035067&img=bgd.png)
9
z When selecting a letter or word, press to confirm the
selection followed by the cursor on the left/right.
Alphabetical Text Input
Press the key labeled with the desired letter once to enter the
first letter on the key, twice to enter the second letter on the key,
and so on.
Predictive Input
1. According to the sequence of the word, press the
corresponding key labeled with the desired letter once.
Then the phone displays the commonly used words
according to the numeric sequence of key presses.
2. Press to select the word.
3. Press to enter the word.
Entering Numbers
z In the "123" input mode, enter a number by pressing the
number key labeled with the desired digit directly.
z In alphabetical text input mode, press a number key
continuously.
z In predictive input mode, press a number key and then
press until the desired digit appears on the screen.
z In any input mode (except the "123" input mode), press and
hold a number key until the desired digit appears on the
screen.
Entering Symbols
z In the symbol input mode, enter the symbol by pressing the
![](/img.php?id=1035067&img=bge.png)
10
corresponding number key.
z In any input mode (except the "123" input mode), press
1
and then press continuously to select a
symbol; or press
1
continuously to select a symbol.
11
5 Warnings and Precautions
Electronic Device
z Power off your phone near high-precision electronic devices.
The phone may affect the performance of these devices.
z Such devices include hearing aids, pacemakers, fire alarm
systems, automatic gates, and other automatic-control
devices. If you are using an electronic medical device,
consult the device manufacturer to confirm whether the
radio wave affects the operation of this device.
z Pacemaker manufacturers recommend that a minimum
separation of 15cm be maintained between a mobile phone
and a pacemaker to avoid potential interference with the
pace-maker. To achieve this use the phone on the opposite
ear to your pacemaker and do not carry it in a breast pocket.
Hospital
Pay attention to the following points in hospitals or health care
facilities:
z Do not take your phone into the operating room (OR),
intensive care unit (ICU), or coronary care unit (CCU).
z Do not use your phone at places for medical treatment
where phone use is prohibited.
z When using your phone near someone who is suffering from
a heart disease, turn down the ring tone volume or vibration
properly so that it does not affect the person.
Area with Inflammables and Explosives
In any area with inflammables and explosives, power off your
phone and do not take out, install or charge the battery, to avoid
explosion and fire. Areas with inflammables and explosives
include, but are not limited to:
z Gas station
12
z Area for storing fuels (such as the bunk under the deck of a
ship)
z Device/Vehicle for transporting and storing fuels or chemical
products
z Area with chemical substances and particles (such as:
granule, dust, metal powder) in the air
z Area with the sign of "Explosives"
z Area with the sign of "Power off bi-direction wireless
equipment"
z Area where it is generally suggested to stop the engine or a
vehicle
Traffic Safety
z Please observe local laws and regulations on phone use.
Do not use your phone while driving to avoid traffic accident.
z Secure the phone on its holder. Do not place the phone on
the seat or other places where it can get loose in a sudden
stop or collision.
z Use the phone after the vehicle stops at a safe place.
z If your phone supports the hands-free function, or the phone
can be used with earphones, or there is any
vehicle-mounted equipment with hands-free function, use
them in emergency.
z Do not place the phone over the air bag or in the air bag
outspread area. Otherwise, the phone may hurt you owing
to the strong force when the air bag inflates.
z Observe the rules and regulations of airline companies.
When boarding or approaching a plane, power off the phone
and take out the battery. In areas where phone use is
prohibited, power off the phone. Otherwise, the radio signal
of the phone may disturb the plane control signals. Power
off your phone before boarding an aircraft.
13
Storage Environment
z Do not place magnetic storage media such as magnetic
cards and floppy disks near the phone. Radiation from the
phone may erase the information stored on them.
z Do not put your phone, battery, or other accessories in
containers with strong magnetic field, such as an induction
cooker and a microwave oven. Otherwise, circuit failure, fire,
or explosion may occur.
z Do not leave your phone, battery, or charger in a very hot or
cold place. Otherwise, malfunction of the products, fire, or
explosion may occur.
z Keep the ambient temperature between 0℃ and 45 while ℃
the battery is being charged. Keep the ambient temperature
between –20℃ and 60 for storing the battery. If the ℃
ambient temperature is too low (especially below 0 ) or too ℃
high, the capacity and life of the battery will be reduced.
z Do not place sharp metal objects such as pins near the
earpiece. The earpiece may attract these objects and hurt
you when you are using the phone.
z Do not subject your phone, battery, and charger to serious
collision or shock. Otherwise, battery leakage, phone
malfunction, overheat, fire, or explosion may occur.
z Do not put your phone in the back pocket of your trousers or
skirt, to avoid phone damage while seated.
z Children Safety
z Put your phone, battery, and charger in places beyond the
reach of children. Do not allow children to use the phone,
battery, or charger without guidance.
z Do not allow children to put the battery in mouth, for
electrolyte in the battery is poisonous.
z Do not allow children to touch the small fittings. Otherwise,
suffocation or gullet jam can be caused if children swallow
14
the small fittings.
z Operating Environment
z The phone, battery, and charger are not water-resistant.
Keep them dry. Protect the phone, battery and charger from
water or vapor. Do not touch the phone with a wet hand.
Otherwise, short-circuit and malfunction of the product or
electric shock may occur.
z Do not use the phone in dusty, damp and dirty places or
places with magnetic field. Otherwise, malfunction of the
circuit may occur.
z Do not power on or off the phone when it is near your ears to
avoid negative impact on your health.
z When carrying or using the phone, keep the antenna at
least one inch (2.5 centimeters) away from your body, to
avoid negative impact on your health caused by radio
frequency leakage.
z If you feel uncomfortable (such as falling sick or qualm) after
playing games on your phone for a long time, please go to
see a doctor immediately.
z On a thunder stormy day, do not use your phone outdoors or
when it is being charged.
z Do not touch the antenna when a call is going on. Touching
the antenna may affect call quality and cause the phone to
operate with more power. As a result, the talk time and
standby time are shortened.
z The phone may interfere with nearby TV sets, radios and
PCs.
z In accordance with international standards for radio
frequency and radiation, use phone accessories approved
by the manufacturer only.
z While using the mobile phone, observe the local laws and
regulations, and respect others' privacy and legal rights.
![](/img.php?id=1035067&img=bg13.png)
15
z Clearing and Maintenance
z Before you clean or maintain the phone, power off the
phone and disconnect it from the charger. Otherwise,
electric shock or short-circuit of the battery or charger may
occur.
z Do not use any chemical detergent, powder, or other
chemical agent (such as alcohol and benzene) to clean the
phone and the charge. Otherwise, part damage or a fire can
be caused. You can clean the phone and the charger with a
piece of soft antistatic cloth that is a little wet.
z Do not scratch the shell of the phone. Otherwise, the shed
coating may cause skin allergy. Once it happens, stop using
the phone at once and go to see a doctor.
z Keep the plug dry when you clean it, to prevent fire.
z If the phone or any of its fittings does not work, turn to the
local authorize service center for help.
z Do not dismantle the mobile phone or accessories. Only an
authorized service center is allowed to maintain the mobile
phone.
z Environment Protection
z Please observe the local regulations regarding the disposal
of your packaging materials, exhausted battery and old
phone and please promote their recycling. Do not dispose of
exhausted battery or old phone in municipal waste or fire.
Otherwise, explosion may occur.
z This HUAWEI device complies with Directive 2002/95/EC
on the restriction of the use of certain hazardous substances
in electrical and electronic equipment.
z : This symbol indicates that the equipment carrying this
mark must NOT be thrown into general waste but should be
collected separately and properly recycled under local
regulations.
16
Emergency Call
You can use your phone for emergency calls. However,
connections in all conditions cannot be guaranteed. You should
never rely solely on the phone for essential communications.
Battery
z Use the battery approved by the manufacturer only.
Otherwise, explosion may occur.
z Do not dispose of the battery in fire. Otherwise, the battery
may ignite or explode.
z Do not connect two poles of the battery with conductors
such as cables, jewelries or any other metal material.
Otherwise, the battery is short-circuited and it may burn your
body.
z Do not disassemble the battery or solder the battery poles.
Otherwise fluid leakage, overheat, fire, or explosion may
occur.
z If there is battery leakage, smoke, or strange smell, stop
using the battery and keep it away from open flame to avoid
fire or explosion. Then turn to an authorized maintenance
engineer for help.
z If the battery fluid contacts your skin or cloth, wash with
clean water immediately to avoid irritation to the skin.
z If the battery fluid gets into eyes, do not rub your eyes.
Otherwise, your eyes can be hurt. Wash with clean water
and go to see a doctor immediately.
z If there is battery deformation, color change or abnormal
heating while you charge or store the battery, take it out
immediately and stop using it. Otherwise, battery leakage,
overheat, explosion, or fire may occur.
z When installing the battery, do not push the battery by force
lest battery fluid leak out or the battery crack.
z Do not take out the battery when the phone is turned on.
17
z If you do not use the battery for a long time, store it in
normal temperature after charging.
z Charger
z Use the charger approved by the phone manufacturer only.
Any violation of this rule may result in fire or malfunction of
the charger.
z Do not short-circuit the charger. Short-circuiting the charger
may cause fire or malfunction of the charger.
z If the power cord is damaged (for example, the lead is
exposed or broken), or the plug becomes loose, stop using
the cable at once. Otherwise, electric shock, short-circuit of
the charger, or fire may occur.
z Keep the charger dry. Once water or other liquid leaks into
the charger, electrical leakage or other faults may occur.
z Do not use the charger in a dusty and damp environment.
Keep the power cord away from any heating appliance.
z Ensure the charger is properly plugged into the power
socket properly when charging the battery. Improper
insertion may result in electric shock, fire, or explosion. To
unplug the charger, pull the plug off rather than tear the
power cord.
z Use the AC power supply defined in the specifications of the
charger. An improper power voltage can cause fire or
malfunction of the charger.
z Do not place any heavy object on the power cord of the
charger. Do not damage, change, or pluck the power cord.
Otherwise electric shock or fire may occur.
z When you are charging the battery with the charger, do not
touch the plug, power cord or the charger with a wet hand.
Otherwise, electric shock can be caused.
z Once the liquid such as water leaks into the charger,
remove the plug of the charger from the socket immediately.
18
Otherwise, overheating, fire and other malfunction may
occur.
Certification Information (SAR)
THIS DEVICE MEETS THE GOVERNMENT'S
REQUIREMENTS FOR EXPOSURE TO RADIO FREQUENCY
ELECTROMAGNETIC FIELD.
Your mobile phone is a low-power radio transmitter and receiver.
When it is turned on, it emits low levels of radio frequency energy
(also known as radio waves or radio frequency fields).
Governments around the world have adopted comprehensive
international safety guidelines, developed by scientific
organizations, e.g. ICNIRP (International Commission on
Non-Ionizing Radiation Protection) and IEEE (Institute of
Electrical and Electronics Engineers Inc.), through periodic and
thorough evaluation of scientific studies. These guidelines
establish permitted levels of radio wave exposure for the general
population. The levels include a safety margin designed to
assure the safety of all persons, regardless of age and health,
and to account for any variations in measurements.
Specific Absorption Rate (SAR) is the unit of measurement for
the amount of radio frequency energy absorbed by the body
when using a mobile phone. The SAR value is determined at the
highest certified power level in laboratory conditions, but the
actual SAR level of the mobile phone while operating can be well
below the value. This is because the mobile phone is designed to
use the minimum power required to reach the network.
All models of Huawei′s mobile phone are designed to meet radio
frequency exposure guidelines. Before a phone model is
available for sale to the public, it must be tested and certified to
the FCC that it does not exceed the limit established by the
government-adopted requirement for safe exposure. The tests
are performed in positions and locations (that is, at the ear and
worn on the body) as required by the FCC for each model. For
19
body worn operation, this phone has been tested and meets FCC
RF exposure guidelines when the handset is positioned a
minimum of 15 mm from the body with an accessory that
contains no metal part. Use of other accessories may not ensure
compliance with FCC RF exposure guidelines.
The SAR limit adopted by the USA and Canada is 1.6
watts/kilogram (W/kg) averaged over one gram of tissue. The
highest SAR value reported to the FCC and IC for this device
type when tested for use at the ear is 1.11 W/kg, and when
properly worn on the body is 0.668 W/kg.
The SAR limit adopted by the CNIRP is 2.0W/kg over one gram
of tissue. The value guarantees a safe distance to protect mobile
phone users and the difference caused by measurement errors.
Under different test requirements and frequency, the value
varies.
Statement
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
Operation is subject to the condition that this device does not
cause harmful interface.
This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
z Reorient or relocate the receiving antenna.
z Increase the separation between the equipment and
20
receiver.
z Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
z Consult the dealer or an experienced radio/TV technician for
help.
Warning: Changes or modifications made to this equipment not
expressly approved by HUAWEI may void the FCC authorization
to operate this equipment.
Version: V100R001 _01 Part Number: 31018474
