Huawei Technologies C2601 CDMA Mobile Phone User Manual C2601 User Guide
Huawei Technologies Co.,Ltd CDMA Mobile Phone C2601 User Guide
User Manual
C2601
CDMA 1X Mobile Phone
Copyright © 2007 Huawei Technologies Co., Ltd.
and other Huawei trademarks are the trademarks or registered trademarks of Huawei Technologies Co., Ltd.
in the People’s Republic of China and certain other countries. All other trademarks mentioned in this manual are the
property of their respective holders. The information in this manual is subject to change without notice. Every effort
has been made in the preparation of this manual to ensure accuracy of the contents, but all statements, information,
and recommendations in this manual do not constitute the warranty of any kind, express or implied.
Huawei Technologies Co., Ltd.
Address: Huawei Industrial Base, Bantian, Longgang, Shenzhen 518129, People's Republic of China
Tel: +86-755-28780808 Global Hotline: +86-755-28560808
E-mail: mobile@huawei.com Website: www.huawei.com
1
Your Phone
Screen
Dial/Send Key
Number Keys
Navigation Keys
Left Soft Key Right Soft Ke
y
Earpiece
Ke
y
Charger Interface
Key
End/Power Key
Microphone
2
Keys and Functions
Press… To…
z View the dialled calls in the standby mode.
z Make or answer a call.
z Power on or off the phone (by pressing and holding
it).
z End a call or reject an incoming call.
z Return to the home screen.
Select the option displayed on the lower left corner of
the screen.
Select the option displayed on the lower right corner of
the screen.
z Display the Profiles interface ( ), the Messages
interface ( ), the Scheduler interface ( ), and
the Alarm interface ( ) in the standby mode.
z Increase the volume ( or ) or decrease the
volume ( or ) during a call.
–
z Enter numbers and characters.
z Speed-dial phone numbers in the standby mode (by
pressing and holding the 1-9 keys).
z Select a submenu item labeled the corresponding
number.
3
Press… To…
z Enter the * symbol.
z Enable or disable the Meeting profile (by pressing
and holding it).
z Provide different functions according to the phone
features being used.
z Enter the # symbol.
z Lock the keypad in the standby mode (by pressing
and holding it).
z Provide different functions according to the phone
features being used.
Screen Icons
Icon Description Icon Description
Network signal strength Battery power level
Calling… General profile
Voice privacy Meeting profile
Roaming… Silent profile
CDMA 1X network Outdoor profile
Message received Keypad locked
Emergency message
received Alarm clock on
Memory for messages full Voice mail
4
Menu Tree
Messages Tools
1 Recorder
2 Alarm
3 Scheduler
4 Calculator
5 Gallery
Profiles
1 Write Message
2 Inbox
3 Outbox
4 Draft
5 Voice Mail
6 Templates
7 Message Settings
8 Delete All
Contacts
1 General
2 Meeting
3 Silent
4 Outdoor
Settings
1 Display
2 Call Settings
3 Phone Settings
4 Security
1 Search
2 Add New
3 Groups
4 Speed Dial
5 Copy All (*)
6 Delete All
7 My Phone No.
8 Memory Status
Call Log
1 Missed Calls
2 Received Calls
3 Dialled Calls
4 Call Duration
5 Delete All
Copy All (*)
If the UIM card is available, the Copy
All submenu item is displayed under
the Contacts item.
5

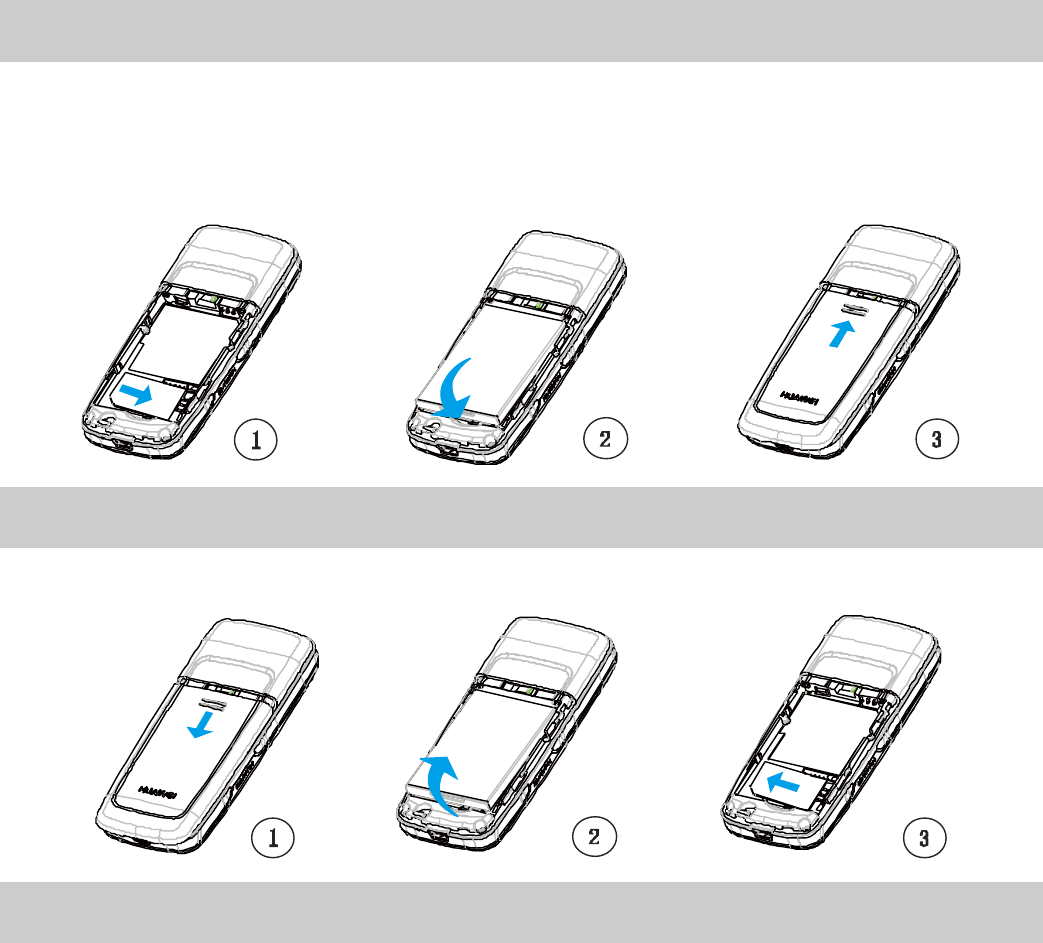

Installing the UIM Card and Battery
Consult the network operator whether a UIM card is needed.
Make sure that the golden area on the UIM card is facing downwards
and the cut-off edge is correctly aligned with the card holder.
Removing the Battery and UIM Card
Make sure that your phone is powered off.
Charging the Battery
1. Connect the charger to the charger interface at the bottom of your
phone.
Make sure that the arrow on the charger connector faces the front
of the phone.
2. Connect the charger to an AC power socket.
3. During the charging, the charging icon is displaying in animation.
4. When the charging icon becomes static, the battery is fully
charged. Disconnect the charger from the AC power socket.
5. Disconnect the charger from the phone.
6
Using the Function Menu
1. In the standby mode, press (Menu) to display the Menu
interface.
2. Press to scroll to a menu item.
3. Press (Select) to display the menu.
4. Display the submenu in either of the ways:
z Press to scroll to a submenu item and press (Select)
to display the submenu.
z Press the number key corresponding to the number of a submenu
to display it.
5. Press (Back) to return to the previous menu or quit the
function menu.
Press to return to the home screen.
Making a Call
1. In the standby mode, enter a phone number.
z To make an international call, press four times to enter the
international long distance code of "+". Then enter the number to
be dialled, in the format of "country code + region code + phone
number".
z To call a number with an extension, press twice to insert
"P", or press three times to insert "T" between the phone
number and the extension.
2. Press to dial the number.
3. Press to end the call.
7
Note
z When the phone is locked, enter the lock code to unlock
the phone first; otherwise, you can make emergency calls
or answer calls only.
z In the standby mode, press to view the dialled calls.
Select a record and press to dial.
z Select a contact from the contacts and press to dial.
z Select a message in the inbox and press to dial.
Answering a Call
When there is an incoming call, you can press , (Answer)
to answer it, or press (Silence) to mute the tone, or press
to reject the call. If the Any-key Answer function is enabled, you can
press any key except and to answer an incoming call.
Phone Lock
The phone lock function protects your phone from unauthorized use.
The default phone lock code is 000000. You can change it into any
numeric string of 4 to 8 digits.
If the phone lock function is enabled, you need to enter the correct
phone lock code when the phone is powered on or in standby mode.
PIN and PUK
The personal identity number (PIN) protects your UIM card from
unauthorized use. The PIN unlocking key (PUK) can unblock the
blocked PIN. Both PIN and PUK are delivered with the UIM card.
For details, consult your service provider.
If you enter wrong PINs for a specified number of times
consecutively, the phone asks you to enter the PUK code.
If you enter wrong PUKs for a specified number of times
consecutively, the UIM card is invalidated permanently. Contact your
service provider for a new card.
8
Locking the Keypad
In the standby mode, press and hold to lock the keypad. When
the keypad is locked, you can still answer an incoming call or make
emergency calls by pressing .
You can press and to unlock the keypad.
When the Keyguard function is enabled, if there is no operation on
the phone for a preset period in the standby mode, the keypad is
locked automatically.
Changing the Text Input Modes
The indicator of the current text input mode is displayed on the
screen. In the editing mode, press to change the input mode.
Note
z In the editing mode, press (Clear) once to delete
the letter on the left of the cursor. Press and hold
(Clear) to delete all the letters at a time.
z In the "eZiEn" input mode, press to enter a space.
In the "ABC" or "abc" input mode, press once to
enter a space, twice to enter "0", and three times to
move the cursor to the next line.
z In the "ABC" or "abc" input mode, press
repeatedly to enter the commonly used punctuations. In
the "eZiEn" input mode, press to enter a full stop.
9
Entering English (eZiEn)
In the "eZiEn" input mode, do the following to enter English letters:
1. Press each key only once according to the spelling sequence of
the desired word. Then the phone displays the commonly used
word according to the numeric sequence of key presses.
2. Press to scroll to the desired word.
3. Press to enter the word.
Press to enter the word and a space.
Entering English (ABC and abc)
In the "ABC" or "abc" input mode, you can press a key labeled the
desired letters once to enter the first letter on the key, twice to enter
the second letter on the key, and so on.
If the letter you want to enter is on the same key as the previous one,
you can enter the latter only after the cursor appears again or after
you press to move the cursor to the next space.
Entering Numbers
z In the "123" input mode, press a key labeled the desired number.
z In the "ABC" or "abc" input mode, press a numeric key
repeatedly or press and hold it until the desired number appears
on the screen.
z In the "eZiEn" input mode, press a numeric key and then press
until the desired number appears on the screen.
10
Entering Symbols
1. In any input mode, press to display a symbol list.
2. Press to scroll to the desired symbol.
3. Press the number key to enter the symbol.
11
Warnings and Precautions
Electronic Device
z Power off your phone near high-precision electronic devices. The phone may
affect the performance of these devices.
z Such devices include hearing aids, pacemakers, fire alarm systems, automatic
gates, and other automatic control devices. If you are using an electronic
medical device, consult the device manufacturer to confirm whether the radio
wave affects the operation of this device.
z Pacemaker manufacturers recommend that a minimum distance of 15cm be
maintained between a mobile phone and a pacemaker to avoid potential
interference with the pacemaker. To achieve this, use the phone on the
opposite ear to your pacemaker and do not carry it in a breast pocket.
Hospital
Pay attention to the following points at hospitals or health care facilities:
z Do not take your phone into the operating room (OR), intensive care unit
(ICU), or coronary care unit (CCU).
z Do not use your phone at places for medical treatment where phone use is
prohibited.
z When using your phone near someone who is suffering from a heart disease,
turn down the ring tone volume or vibration properly so that it does not affect
the person.
Area with Inflammables and Explosives
In any area with inflammables and explosives, power off your phone and do not
take out, install or charge the battery, to avoid explosion and fire. Areas with
inflammables and explosives include, but are not limited to the following:
z Gas station
z Area for storing fuels (such as the bunk under the deck of a ship)
z Device/vehicle for transporting and storing fuels or chemical products
z Area with chemical substances and particles (such as granule, dust and metal
powder) in the air
z Area with the sign of "Explosives"
z Area with the sign of "Power off bidirectional wireless equipment"
z Area where it is generally suggested to stop the engine of a vehicle
12
Traffic Safety
z Please observe local laws and regulations on phone use. Do not use your
phone while driving to avoid traffic accident.
z Secure the phone on its holder. Do not place the phone on the seat or other
places where it can get loose in a sudden stop or collision.
z Use the phone after the vehicle stops at a safe place.
z If your phone supports the hands-free function, or the phone can be used with
earphones, or there is any vehicle-mounted equipment with hands-free
function, use them in emergency.
z Do not place the phone over the air bag or in the air bag outspread area.
Otherwise, the phone may hurt you owing to the strong force when the air bag
inflates.
z Observe the rules and regulations of airline companies. When boarding or
approaching a aircraft, power off the phone and take out the battery. In areas
where phone use is prohibited, power off the phone. Otherwise, the radio
signal of the phone may disturb the aircraft control signals. Power off your
phone before boarding an aircraft.
Storage Environment
z Do not place magnetic storage media such as magnetic cards and floppy disks
near the phone. Radiation from the phone may erase the information stored on
them.
z Do not put your phone, battery, or other accessories in containers with strong
magnetic field, such as an induction cooker and a microwave oven. Otherwise,
circuit failure, fire, or explosion may occur.
z Do not leave your phone, battery, or charger in a very hot or cold place.
Otherwise, malfunction of the products, fire, or explosion may occur.
z Keep the ambient temperature between 0 and 45 while the battery is ℃℃
being charged. Keep the ambient temperature between –20 and ℃60 for ℃
storing the battery. If the ambient temperature is too low (especially below
0 ) or too high, the cap℃acity and life of the battery will be reduced.
z Do not place sharp metal objects such as pins near the earpiece. The earpiece
may attract these objects that can hurt you when you are using the phone.
z Do not subject your phone, battery, and charger to serious collision or shock.
Otherwise, battery leakage, phone malfunction, overheat, fire, or explosion
may occur.
z Do not put your phone in the back pocket of your trousers or skirt, to avoid
phone damage while seated.
13
Children Safety
z Put your phone, battery, and charger at places beyond the reach of children.
Do not allow children to use the phone, battery, or charger without guidance.
z Do not allow children to put the battery in mouth, for electrolyte in the battery
is poisonous.
z Do not allow children to touch the small fittings. Otherwise, suffocation or
gullet jam can be caused if children swallow the small fittings.
Operating Environment
z The phone, battery, and charger are not water-resistant. Keep them dry.
Protect the phone, battery and charger from water or vapor. Do not touch the
phone with a wet hand. Otherwise, short-circuit and malfunction of the
product or electric shock may occur.
z Do not use the phone in dusty, damp and dirty places or places with magnetic
field. Otherwise, malfunction of the circuit may occur.
z Do not power on or off the phone when it is near your ears to avoid negative
impact on your health.
z When carrying or using the phone, keep the antenna at least one inch (2.5
centimeters) away from your body, to avoid negative impact on your health
caused by radio frequency leakage.
z If you feel uncomfortable (such as falling sick or qualm) after playing games
on your phone for a long time, please go to see a doctor immediately.
z On a thunder stormy day, do not use your phone outdoors or when it is being
charged.
z Do not touch the antenna when a call is going on. Touching the antenna may
affect call quality and cause the phone to operate with more power. As a result,
the talk time and standby time are shortened.
z The phone may interfere with nearby TV sets, radios and PCs.
z In accordance with international standards for radio frequency and radiation,
use phone accessories approved by the manufacturer only.
z While using the mobile phone, observe the local laws and regulations, and
respect others' privacy and legal rights.
Clearing and Maintenance
z Before you clean or maintain the phone, power off the phone and disconnect it
from the charger. Otherwise, electric shock or short-circuit of the battery or
charger may occur.
14
z Do not use any chemical detergent, powder, or other chemical agent (such as
alcohol and benzene) to clean the phone and the charger. Otherwise, part
damage or a fire can be caused. You can clean the phone and the charger with
a piece of soft antistatic cloth that is a little wet.
z Do not scratch the shell of the phone. Otherwise, the shed coating may cause
skin allergy. Once it happens, stop using the phone at once and go to see a
doctor.
z Keep the plug dry when you clean it, to prevent fire.
z If the phone or any of its fittings does not work, turn to the local authorized
service center for help.
z Do not dismantle the mobile phone or accessories. Only an authorized service
center is allowed to maintain the mobile phone.
Environment Protection
z Please observe the local regulations regarding the disposal of your packaging
materials, exhausted battery and old phone and please promote their recycling.
Do not dispose of exhausted battery or old phone in municipal waste or fire.
Otherwise, explosion may occur.
z This HUAWEI device complies with Directive 2002/95/EC on the restriction
of the use of certain hazardous substances in electrical and electronic
equipment.
z : This symbol indicates that the equipment carry-ing this mark must
NOT be thrown into general waste but should be collected separately and
properly recy-cled under local regulations.
Emergency Call
You can use your phone for emergency calls. However, connections in all
conditions cannot be guaranteed. You should never rely solely on the phone for
essential communications.
Battery
z Use the battery approved by the manufacturer only. Otherwise, explosion may
occur.
z Do not dispose of the battery in fire. Otherwise, the battery may ignite or
explode.
z Do not connect two poles of the battery with conductors such as cables,
jewelries or any other metal material. Otherwise, the battery is short-circuited
and it may burn your body.
15
z Do not disassemble the battery or solder the battery poles. Otherwise fluid
leakage, overheat, fire, or explosion may occur.
z If there is battery leakage, smoke, or strange smell, stop using the battery and
keep it away from open flame to avoid fire or explosion. Then turn to an
authorized maintenance engineer for help.
z If the battery fluid contacts your skin or cloth, wash with clean water
immediately to avoid irritation to the skin.
z If the battery fluid gets into eyes, do not rub your eyes. Otherwise, your eyes
can be hurt. Wash with clean water and go to see a doctor immediately.
z If there is battery deformation, color change or abnormal heating while you
charge or store the battery, take it out immediately and stop using it.
Otherwise, battery leakage, overheat, explosion, or fire may occur.
z When installing the battery, do not push the battery by force lest battery fluid
leak out or the battery crack.
z Do not take out the battery when the phone is turned on.
z If you do not use the battery for a long time, store it in normal temperature
after charging.
Charger
z Use the charger approved by the phone manufacturer only. Any violation of
this rule may result in fire or malfunction of the charger.
z Do not short-circuit the charger. Short-circuiting the charger may cause fire or
malfunction of the charger.
z If the power cord is damaged (for example, the lead is exposed or broken), or
the plug becomes loose, stop using the cable at once. Otherwise, electric
shock, short-circuit of the charger, or fire may occur.
z Keep the charger dry. Once water or other liquid leaks into the charger,
electrical leakage or other faults may occur.
z Do not use the charger in a dusty and damp environment. Keep the power
cord away from any heating appliance.
z Ensure the charger is properly plugged into the power socket when charging
the battery. Improper insertion may result in electric shock, fire, or explosion.
To unplug the charger, pull the plug off rather than tear the power cord.
z Use the AC power supply defined in the specifications of the charger. An
improper power voltage can cause fire or malfunction of the charger.
16
z Do not place any heavy object on the power cord of the charger. Do not
damage, change, or pluck the power cord. Otherwise electric shock or fire
may occur.
z When you are charging the battery with the charger, do not touch the plug,
power cord or the charger with a wet hand. Otherwise, electric shock can be
caused.
z Once the liquid such as water leaks into the charger, remove the plug of the
charger from the socket immediately. Otherwise, overheating, fire and other
malfunction may occur.
Certification Information (SAR)
THIS DEVICE MEETS THE GOVERNMENT'S REQUIREMENTS FOR
EXPOSURE TO RADIO FREQUENCY ELECTROMAGNETIC FIELD.
Your mobile phone is a low-power radio transmitter and receiver. When it is
turned on, it emits low levels of radio frequency energy (also known as radio
waves or radio frequency fields).
Governments around the world have adopted comprehensive international safety
guidelines, developed by scientific organizations, e.g. ICNIRP (International
Commission on Non-Ionizing Radiation Protection) and IEEE (Institute of
Electrical and Electronics Engineers Inc.), through periodic and thorough
evaluation of scientific studies. These guidelines establish permitted levels of
radio wave exposure for the general population. The levels include a safety
margin designed to assure the safety of all persons, regardless of age and health,
and to account for any variations in measurements.
Specific Absorption Rate (SAR) is the unit of measurement for the amount of
radio frequency energy absorbed by the body when using a mobile phone. The
SAR value is determined at the highest certified power level in laboratory
conditions, but the actual SAR level of the mobile phone while operating can be
well below the value. This is because the mobile phone is designed to use the
minimum power required to reach the network.
All models of Huawei’s mobile phone are designed to meet radio frequency
exposure guidelines. Before a phone model is available for sale to the public, it
must be tested and certified to the FCC that it does not exceed the limit
established by the government-adopted requirement for safe exposure. The tests
are performed in positions and locations (that is, at the ear and worn on the body)
as required by the FCC for each model. For body worn operation, this phone has
been tested and meets FCC RF exposure guidelines when the handset is
positioned a minimum of 15 mm from the body with an accessory that contains
no metal part. Use of other accessories may not ensure compliance with FCC RF
exposure guidelines.
17
The SAR limit adopted by the USA and Canada is 1.6 watts/kilogram (W/kg)
averaged over one gram of tissue. The highest SAR value reported to the FCC and
IC for this device type when tested for use at the ear is 0.972 W/kg, and when
properly worn on the body is 0.988 W/kg.
The SAR limit adopted by the CNIRP is 2.0W/kg over one gram of tissue. The
value guarantees a safe distance to protect mobile phone users and the difference
caused by measurement errors. Under different test requirements and frequency,
the value varies.
Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. Operation is subject to the condition that this device does not cause
harmful interface.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
z Reorient or relocate the receiving antenna.
z Increase the separation between the equipment and receiver.
z Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
z Consult the dealer or an experienced radio/TV technician for help.
Warning: Changes or modifications made to this equipment not expressly
approved by HUAWEI may void the FCC authorization to operate this
equipment.
Version: V100R001C16_02 Part Number: 31017682
