Huawei Technologies C2610 CDMA 1X Digital Mobile Phone User Manual
Huawei Technologies Co.,Ltd CDMA 1X Digital Mobile Phone
User Manual
![](/img.php?id=1244624&img=bg1.png)
![](/img.php?id=1244624&img=bg2.png)
Copyright © Huawei Technologies Co., Ltd. 2009.
All rights reserved.
No part of this document may be reproduced or transmitted in
any form or by any means without prior written consent of
Huawei Technologies Co., Ltd.
The product described in this manual may include copyrighted
software of Huawei Technologies Co., Ltd and possible
licensors. Customers shall not in any manner reproduce,
distribute, modify, decompile, disassemble, decrypt, extract,
reverse engineer, lease, assign, or sublicense the said software,
unless such restrictions are prohibited by applicable laws or
such actions are approved by respective copyright holders
under licenses.
Trademarks and Permissions
, HUAWEI, and are trademarks or registered
trademarks of Huawei Technologies Co., Ltd.
Other trademarks, product, service and company names
mentioned are the property of their respective owners.
Notice
Some features of the product and its accessories described
herein rely on the software installed, capacities and settings of
local network, and may not be activated or may be limited by
local network operators or network service providers, thus the
descriptions herein may not exactly match the product or its
accessories you purchase.
Huawei Technologies Co., Ltd reserves the right to change or
modify any information or specifications contained in this
manual without prior notice or obligation.
NO WARRANTY
THE CONTENTS OF THIS MANUAL ARE PROVIDED “AS IS”.
EXCEPT AS REQUIRED BY APPLICABLE LAWS, NO
WARRANTIES OF ANY KIND, EITHER EXPRESS OR
IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE
ACCURACY, RELIABILITY OR CONTENTS OF THIS
MANUAL.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE
LAW, IN NO CASE SHALL HUAWEI TECHNOLOGIES CO.,
LTD BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT,
OR CONSEQUENTIAL DAMAGES, OR LOST PROFITS,
BUSINESS, REVENUE, DATA, GOODWILL OR ANTICIPATED
SAVINGS.
Import and Export Regulations
Customers shall comply with all applicable export or import
laws and regulations and will obtain all necessary
governmental permits and licenses in order to export, re-export
or import the product mentioned in this manual including the
software and technical data therein.
i
Table of Contents
1 Your Phone......................................................................................1
2 Keys and Functions........................................................................2
3 Screen Icons....................................................................................4
4 Menu Tree.......................................................................................5
5 Installing the UIM Card and Battery...........................................6
6 Charging the Battery .....................................................................6
7 Using the Function Menu ..............................................................7
8 Making a Call .................................................................................7
9 Answering a Call ............................................................................8
10 Recording a Voice Clip ................................................................8
11 Phone Lock....................................................................................9
12 PIN and PUK................................................................................9
13 Locking the Keypad.....................................................................9
14 Changing the Text Input Modes ...............................................10
15 Entering English (eZiEn) ..........................................................10
16 Entering English (ABC and abc) .............................................. 11
17 Entering Numbers...................................................................... 11
18 Entering Symbols .......................................................................12
19 Warnings and Precautions ........................................................13
![](/img.php?id=1244624&img=bg5.png)
1 Your Phone
*Key
OK Key
Microphone
Earpiece
Navigation Keys
Right Soft Key
End/Power Key
# Key
Screen
Left Soft Key
Dial/Send Key
Number Keys
Charger Interfac
e
Note The following figure is provided only for your reference.
The appearance of the actual product may differ.
1
![](/img.php?id=1244624&img=bg6.png)
2 Keys and Functions
Press… To…
z View the dialled calls in the standby mode.
z Make or answer a call.
z Power on or off the phone (by pressing and
holding it).
z End a call or reject an incoming call.
z Return to the standby mode.
Select the option displayed on the lower left corner
of the screen.
Select the option displayed on the lower right
corner of the screen.
z Display the Profiles interface ( ), the
Messages interface ( ), the Scheduler
interface ( ), and the Alarm interface
() in the standby mode.
z Increase the volume ( or ) or
decrease the volume ( or ) during a
call.
2
![](/img.php?id=1244624&img=bg7.png)
Press… To…
–
z Enter numbers and characters.
z Speed-dial phone numbers in the standby mode
(by pressing and holding the 1-9 keys).
z Select a submenu item labeled the
corresponding number.
z Enter the * symbol.
z Enable or disable the Meeting profile in the
standby mode (by pressing and holding it).
z Provide different functions according to the
phone features being used.
z Enter the # symbol.
z Lock the keypad in the standby mode (by
pressing and holding it).
z Provide different functions according to the
phone features being used.
3
![](/img.php?id=1244624&img=bg8.png)
3 Screen Icons
Icon Description Icon Description
Network signal strength Battery power level
Calling… General profile
Silent profile Meeting profile
CDMA 1X network Outdoor profile
Message received Keypad locked
Emergency message
received Alarm clock on
Memory for messages
full Voice Privacy
4
![](/img.php?id=1244624&img=bg9.png)
4 Menu Tree
1MissedCalls
2 Received Calls
3 Dialled Calls
4 Call Duration
5 Delete All
1WriteMessage
2Inbox
3 Outbox
4Draft
5VoiceMail
6 Templates
7MessageSettings
8 Delete All
Messages
1Search
2AddNew
3Groups
4SpeedDial
6
7
8
1Recorder
2Alarm
3Scheduler
4Calculator
5Gallery
6Line Game
1 General
2 Meeting
3Silent
4 Outdoor
1Display
2CallSettings
3PhoneSettings
4Security
Settings
Brew
Profiles
Memory Status
Delete AllDelete All
5Copy All
My Phone No.
Call Log
Contacts
Tools
5
![](/img.php?id=1244624&img=bga.png)

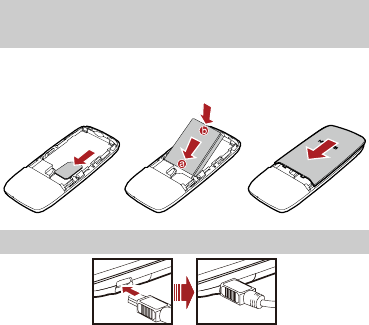

5 Installing the UIM Card and
Battery
Make sure that the golden area on the UIM card is facing
downwards and the cut-off edge is correctly aligned with the
card holder.
6 Charging the Battery
1. Connect the charger to the charger interface at the bottom of
your phone.
2. Connect the charger to an AC power socket.
3. During the charging, the charging icon is displaying in
animation.
4. When the charging icon becomes static, the battery is fully
charged. Disconnect the charger from the AC power socket.
5. Disconnect the charger from the phone.
6
![](/img.php?id=1244624&img=bgb.png)
7 Using the Function Menu
1. In the standby mode, press (Menu) to display the
Menu interface.
2. Press to scroll to a menu item.
3. Press (Select) to display the menu.
4. Display the submenu in either of the ways:
z Press to scroll to a submenu item and press
(Select) to display the submenu.
z Press the number key corresponding to the number of a
submenu to display it.
5. Press (Back) to return to the previous menu or quit
the function menu.
Press to return to the standby mode.
8 Making a Call
1. In the standby mode, enter a phone number.
z To make an international call, press four times to
enter the international long distance code of "+". Then enter
the number to be dialled, in the format of "country code +
region code + phone number".
z To call a number with an extension, press twice to
insert "P", or press three times to insert "T" between
the phone number and the extension.
7
![](/img.php?id=1244624&img=bgc.png)
2. Press to dial the number.
3. Press to end the call.
z When the phone is locked, enter the lock code to
unlock the phone first; otherwise, you can make
emergency calls or answer calls only.
z In the standby mode, press to view the dialled
calls. Select a record and press to dial.
z Select a contact from the contacts and press
to dial.
z Select a message in the inbox and press to
dial.
9 Answering a Call
When there is an incoming call, you can press or
(Answer) to answer it, press or to
reject the call. If the Any-key Answer function is enabled, you
can press any key except and to answer an
incoming call.
10 Recording a Voice Clip
1. In the standby mode, select Menu > Tools > Recorder.
2. Press (Start) to start recording.
3. Press (Stop) to stop recoding.
8
![](/img.php?id=1244624&img=bgd.png)
4. Press (Options) to select Play for playing the
voice clip.
All the voice clips are saved in the Menu > Tools > Gallery >
Voice Folder.
11 Phone Lock
The phone lock function protects your phone from unauthorized
use. The default phone lock code is 000000. You can change it
into any numeric string of 4 to 8 digits.
If the phone lock function is enabled, you need to enter the
correct phone lock code when the phone is powered on or in
standby mode.
12 PIN and PUK
The personal identity number (PIN) protects your UIM card
from unauthorized use. The PIN unlocking key (PUK) can
unblock the blocked PIN. Both PIN and PUK are delivered with
the UIM card. For details, consult your service provider.
If you enter wrong PINs for a specified number of times
consecutively, the phone asks you to enter the PUK code.
If you enter wrong PUKs for a specified number of times
consecutively, the UIM card is invalidated permanently. Contact
your service provider for a new card.
13 Locking the Keypad
In the standby mode, press and hold to lock the keypad.
When the keypad is locked, you can still answer an incoming
call or make emergency calls by pressing .
9
![](/img.php?id=1244624&img=bge.png)
You can press and to unlock the keypad.
When the Keyguard function is enabled, if there is no
operation on the phone for a preset period in the standby mode,
the keypad is locked automatically.
14 Changing the Text Input Modes
The indicator of the current text input mode is displayed on the
screen. In the editing mode, press to change the input
mode.
z In the editing mode, press (Clear) once to
delete the letter on the left of the cursor. Press and
hold (Clear) to delete all the letters at a time.
z In the "eZiEn" input mode, press to enter a
space. In the "ABC" or "abc" input mode, press
once to enter a space, twice to enter "0", and
three times to move the cursor to the next line.
z In the "ABC" or "abc" input mode, press
repeatedly to enter the commonly used punctuations.
In the "eZiEn" input mode, press to enter a full
stop.
15 Entering English (eZiEn)
In the "eZiEn" input mode, do the following to enter English
letters:
1. Press each key only once according to the spelling
sequence of the desired word. Then the phone displays the
10
![](/img.php?id=1244624&img=bgf.png)
commonly used words according to the numeric sequence
of key presses.
2. Press or to scroll to the desired word.
3. Press to switch the selected characters between
upper case and lower case.
4. Press to enter the word.
Press to enter the word and a space.
16 Entering English (ABC and abc)
In the "ABC" or "abc" input mode, you can press a key labeled
the desired letters once to enter the first letter on the key, twice
to enter the second letter on the key, and so on.
If the letter you want to enter is on the same key as the
previous one, you can enter the latter only after the cursor
appears again or after you press to move the cursor to
the next space.
17 Entering Numbers
z In the "123" input mode, press a key labeled the desired
number.
z In the "ABC" or "abc" input mode, press a numeric key
repeatedly or press and hold it until the desired number
appears on the screen.
z In the "eZiEn" input mode, press a numeric key and then
press until the desired number appears on the
screen.
11
![](/img.php?id=1244624&img=bg10.png)
18 Entering Symbols
1. In any input mode, press to display a symbol list.
2. Press to scroll to the desired symbol.
3. Press the number key to enter the symbol.
12
![](/img.php?id=1244624&img=bg11.png)
19 Warnings and Precautions
This section contains important information pertaining to the
operating instructions of your device. It also contains
information about how to use the mobile safely. Read this
information carefully before using your device.
Electronic Device
Power off your device if using the device is prohibited. Do not
use the device when it causes danger or interference with
electronic devices.
Medical Device
z Power off your device and follow the rules and regulations
set forth by the hospitals and health care facilities.
z Pacemaker manufacturers recommend that a minimum
distance of 15 cm be maintained between a device and a
pacemaker to prevent potential interference with the
pacemaker. If you are using a pacemaker, use the device on
the opposite side of the pacemaker and do not carry the
device in your front pocket.
z Some wireless devices may affect the performance of the
hearing aids. For any such problems, consult your service
provider.
Potentially Explosive Atmospheres
Switch off your device in any area with a potentially explosive
atmosphere, and comply with all signs and instructions. Areas
that may have potentially explosive atmospheres include the
areas where you would normally be advised to turn off your
vehicle engine. Triggering of sparks in such areas could cause
an explosion or fire, resulting in bodily injuries or even deaths.
Do not switch on the device at refueling points such as service
stations. Comply with restrictions on the use of radio equipment
13
14
in fuel depots, storage, and distribution areas, and chemical
plants. Also, adhere to restrictions in areas where blasting
operations are in progress. Before using the device, watch out
for areas that have potentially explosive atmosphere that are
often, but not always, clearly marked. Such locations include
areas below the deck on boats, chemical transfer or storage
facilities and areas where the air contains chemicals or
particles such as grain, dust, or metal powders. Ask the
manufacturers of vehicles using liquefied petroleum gas (such
as propane or butane) if this device can be safely used in their
vicinity.
Traffic Security
Observe local laws and regulations while using the device. Also,
if using the device while driving a vehicle, please comply with
the following guidelines:
z Concentrate on driving. Your first responsibility is to drive
safely.
z Do not talk on the device while driving. Use hands-free
accessories.
z When you have to make or answer a call, park the vehicle at
the road side before using your device.
z RF signals may affect electronic systems of motor vehicles.
For more information, consult the vehicle manufacturer.
z In a motor vehicle, do not place the device over the air bag
or in the air bag deployment area. Otherwise, the device
may hurt you owing to the strong force when the air bag
inflates.
z Do not use your device while flying in an aircraft. Switch off
your device before boarding an aircraft. Using wireless
devices in an aircraft may be dangerous to the operation of
the aircraft, disrupt the wireless telephone network, and may
be considered illegal.
15
Operating Environment
z Do not use or charge the device in dusty, damp or dirty
places or places with magnetic fields. Otherwise, the circuit
may not function properly.
z The device complies with the RF specifications when the
device is used near your ear or at a distance of 1.5 cm from
your body. Ensure that the device accessories such as a
device case and a device holster are not composed of metal
components. Keep your device 1.5 cm away from your body
to meet the requirement earlier mentioned.
z On a thunder and stormy day, do not use your device when
it is being charged, to prevent any danger caused by
lightning.
z When you are on a call, do not touch the antenna. Touching
the antenna affects the call quality and results in increase in
power consumption. As a result, the talk time and standby
time are reduced.
z While using the device, observe the local laws and
regulations, and respect others' privacy and legal rights.
z Use accessories authorized by manufacturers. Using
unauthorized accessories will render the warranty null and
void.
z Keep the ambient temperature between 0 and ℃45 while ℃
the device is being charged. Keep the ambient temperature
between -20 to ℃60 for using the device powered by ℃
battery.
Preventing Hearing Damage
Using the receiver, earbuds, headphones, speakerphone, or
earpieces at high volume can result in permanent hearing loss.
Be extremely careful when listening at high decibel levels. Set
the volume to a safe level. If you experience strange sounds in
your ears like ringing or if you hear muffled speech, get your
hearing checked. If you continue to use high volume, your
16
hearing will soon get affected.
Hearing experts offer the following suggestions to protect your
hearing:
z Reduce the time you use the receiver, earbuds, headphones,
speakerphone, or earpieces at high volume.
z Do not increase the volume to block noisy surroundings.
z Reduce the volume if you can’t hear people speaking near
you.
Safety of Children
Please comply with all precautions with regard to children's
safety. Letting the child play with your device or its accessories,
which may include parts that can be detached from the device,
may prove dangerous, as it may present a choking hazard.
Make sure that small children are kept away from the device
and accessories.
Environment Protection
Follow all the local regulations regarding the disposal of your
devices or electrical accessories (such as chargers, headsets,
or batteries). Recycle them. Do not dispose of an exhausted
battery or a used device in a garbage can.
Accessories
Use only the accessories, such as the charger, battery, and
headset, delivered by manufacturer. Using accessories of other
manufacturers or vendors with this device model might
invalidate any approval or warranty applicable to the device,
might result in the non-operation of the device, and might be
dangerous.
17
Battery and Charger
z The battery can be charged and discharged hundreds of
times before it eventually wears out. When the standby time
and talk time are shorter than normal, replace the battery.
z Use the AC power supply defined in the specifications of the
charger. An improper power voltage may cause fire or the
charger may not function properly.
z Do not connect two poles of the battery with conductors
such as metal materials, keys or jewelries. Otherwise, the
battery may be short-circuiting and may cause injuries and
burns on your body.
z Do not disassemble the battery or solder the battery poles.
Otherwise, it may lead to electrolyte leakage, overheating,
fire, or explosion.
z If battery electrolyte leaks out, make sure that the electrolyte
does not touch your skin and eyes. When the electrolyte
touches your skin or splashes into your eyes, wash your
eyes with clean water immediately and consult a doctor.
z If the battery is damaged, or the color changes or gets
abnormally heated while you charge or store the battery,
remove the battery immediately and stop using it. Otherwise,
it may lead to battery leakage, overheating, explosion, or
fire.
z If the power cable is damaged (for example, the lead is
exposed or broken), or the plug loosens, stop using the
cable at once. Otherwise, it may lead to electric shock,
short-circuit of the charger, or a fire.
z Do not dispose of batteries in fire as they may explode.
Batteries may also explode if damaged.
Clearing and Maintenance
z The device, battery, and charger are not water-resistant
Keep them dry. Protect the device, battery and charger from
water or vapor. Do not touch the device and charger with a
18
wet hand. Otherwise, it may lead to short-circuit or
malfunction of the device and electric shock to the user.
z Do not place your device, battery, or charger in places
where it can get damaged because of collision. Otherwise, it
may lead to battery leakage, device malfunction,
overheating, fire, or explosion.
z If the ambient temperature is considerably low or high, the
capacity and life of the battery is reduced. When the
temperature is lower than 0 , performance of the battery is ℃
affected.
z Do not place magnetic storage media such as magnetic
cards and floppy disks near the device. Radiation from the
device may erase the information stored on them.
z Do not leave your device, battery, or charger in a very hot or
cold place. Otherwise, they may not function properly and
may lead to a fire or an explosion.
z Do not place sharp metal objects such as pins near the
earpiece. The earpiece may attract these objects and hurt
you when you are using the device.
z Before you clean or maintain the device, power off the
device and disconnect it from the charger.
z Do not use any chemical detergent, powder, or other
chemical agents (such as alcohol and benzene) to clean the
device and the charger. Otherwise, parts of the device may
get damaged or a fire can be caused. You can clean the
device and the charger with a piece of damp and soft
antistatic cloth.
z Do not dismantle the device or accessories. Otherwise,
manufacturer is not liable to pay for damages as the device
and accessories are not covered by warranty.
Emergency Call
You can use your device for emergency calls in the service
area. The connection, however, cannot be guaranteed in all
19
conditions. You should not rely solely on the device for
essential communications.
Certification Information (SAR)
THIS DEVICE MEETS THE GOVERNMENT'S
REQUIREMENTS FOR EXPOSURE TO RADIO FREQUENCY
ELECTROMAGNETIC FIELD.
Your device is a low-power radio transmitter and receiver.
When it is turned on, it emits low levels of radio frequency
energy (also known as radio waves or radio frequency fields).
Governments around the world have adopted comprehensive
international safety guidelines, developed by scientific
organizations, e.g. International Commission on Non-Ionizing
Radiation Protection (ICNIRP) and Institute of Electrical and
Electronics Engineers Inc. (IEEE), through periodic and
thorough evaluation of scientific studies. These guidelines
establish permitted levels of radio wave exposure for the
general population. The levels include a safety margin
designed to assure the safety of all persons, regardless of age
and health, and to account for any variations in measurements.
Specific Absorption Rate (SAR) is the unit of measurement for
the amount of radio frequency energy absorbed by the body
when using a device. The SAR value is determined at the
highest certified power level in laboratory conditions, but the
actual SAR level of the device while being operated can be well
below the value. This is because the device is designed to use
the minimum power required to reach the network.
Before a device model is available for sale to the public, it must
be tested and certified by the Federal Communications
Commission (FCC), ensuring that it does not exceed the limit
established by the government-adopted requirement for safe
exposure. The tests are performed in positions and locations
(that is, at the ear and worn on the body) as required by the
20
FCC for each model. For body worn operation, this device has
been tested and meets FCC RF exposure guidelines when the
handset is positioned a minimum of 15 mm from the body with
an accessory that contains no metal part. Use of other
accessories may not ensure compliance with FCC RF
exposure guidelines.
The SAR limit adopted by USA and Canada is 1.6
watts/kilogram (W/kg) averaged over one gram of tissue. The
highest SAR value reported to the FCC and IC for this device
type when tested for use at the ear is 1.14W/kg, and when
properly worn on the body is 1.08W/kg.
The SAR limit adopted by the CNIRP is 2.0 W/kg over one
gram of tissue. The value guarantees a safe distance to protect
device users and the difference caused by measurement errors.
Under different test requirements and frequency, the value
varies.
Statement
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules.
This device complies with part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept
any interference received, including interference that may
cause undesired operation.
These limits are designed to provide reasonable protection
against harmful interference in a residential installation. The
operation is subject to the condition that this device does not
cause harmful interface.
This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
21
communications. There is no guarantee, however, that
interference does not occur in a particular installation. If this
equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
z Reorient or relocate the receiving antenna.
z Increase the separation between the equipment and
receiver.
z Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
z Consult the dealer or an experienced radio/TV technician for
help.
Warning: Changes or modifications made to this equipment
not expressly approved by manufacturer may void the FCC
authorization to operate this equipment.
Version: V100R001C16_01 Part Number: 3101xxxx
