Huawei Technologies C2857 CDMA 1X Digital Mobile Phone User Manual
Huawei Technologies Co.,Ltd CDMA 1X Digital Mobile Phone
user manual
C2857
CDMA 1X Mobile Phone
USER GUIDE
Please refer color and shape to product.
Huawei reserves the right to make changes or improvements to any of the products without prior notice.
Huawei Technologies Co., Ltd.
Address:
Huawei Industrial Base, Bantian, Longgang, Shenzhen 518129, People’s Republic of China
Tel:
+86-755-28780808
Global Hotline:
+86-755-28560808
E-mail:
mobile@huawei.com
Website:
www.huawei.com
1
Copyright © Huawei Technologies Co., Ltd. 2011. All rights reserved.
No part of this document may be reproduced or transmitted in any form or by
any means without prior written consent of Huawei Technologies Co., Ltd.
The product described in this manual may include copyrighted software of
Huawei Technologies Co., Ltd and possible licensors. Customers shall not in
any manner reproduce, distribute, modify, decompile, disassemble, decrypt,
extract, reverse engineer, lease, assign, or sublicense the said software,
unless such restrictions are prohibited by applicable laws or such actions are
approved by respective copyright holders under licenses.
Trademarks and Permissions
, HUAWEI, and
are trademarks or registered trademarks of
Huawei Technologies Co., Ltd.
Other trademarks, product, service and company names mentioned are the
property of their respective owners.
Notice
Some features of the product and its accessories described herein rely on
the software installed, capacities and settings of local network, and may not
be activated or may be limited by local network operators or network service
providers, thus the descriptions herein may not exactly match the product or
its accessories you purchase.
Huawei Technologies Co., Ltd reserves the right to change or modify any
information or specifications contained in this manual without prior notice or
obligation.
2
NO WARRANTY
THE CONTENTS OF THIS MANUAL ARE PROVIDED "AS IS". EXCEPT AS
REQUIRED BY APPLICABLE LAWS, NO WARRANTIES OF ANY KIND,
EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY,
RELIABILITY OR CONTENTS OF THIS MANUAL.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO
CASE SHALL HUAWEI TECHNOLOGIES CO., LTD BE LIABLE FOR ANY
SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, OR
LOST PROFITS, BUSINESS, REVENUE, DATA, GOODWILL OR
ANTICIPATED SAVINGS.
Import and Export Regulations
Customers shall comply with all applicable export or import laws and
regulations and will obtain all necessary governmental permits and licenses
in order to export, re-export or import the product mentioned in this manual
including the software and technical data therein.
Contents
3
1 Installing the UIM Card and the Battery ................................................... 1
2 Charging the Battery................................................................................... 1
3 Getting to Know Your Phone ..................................................................... 2
4 Keys and Functions .................................................................................... 3
5 Screen Icons ................................................................................................ 4
6 Call Function ................................................................................................ 5
Making a Call............................................................................................... 5
Answering a Call ........................................................................................ 6
7 Creating and Sending a Text Message ..................................................... 6
8 Security......................................................................................................... 7
Locking the Keypad ................................................................................... 7
Enabling the Phone Lock .......................................................................... 7
PIN and PUK ................................................................................................ 7
9 Text input ...................................................................................................... 8
Entering English Letters (in Abc Mode) .................................................. 8
Entering an English Word (in En Mode) .................................................. 8
Entering a Number ..................................................................................... 8
Entering a Symbol ...................................................................................... 9
10 Enabling the Power-Saving Mode .......................................................... 9
11 Alarms ........................................................................................................ 9
Enabling an Alarm ...................................................................................... 9
Disabling One or All Alarms.................................................................... 10
12 FM Radio .................................................................................................. 10
Switching On/Off the Radio .................................................................... 10
Automatic Tuning ..................................................................................... 10
Manual Tuning .......................................................................................... 10
Listening to a Radio Program................................................................. 11
Recording a Radio Program ................................................................... 11
13 Recording an Audio Clip ........................................................................ 11
1
1 Installing the UIM Card and the Battery
Contact your network operator to check whether a User Identity Module (UIM)
card is required for the phone.
When installing the UIM card, ensure that the gold contact area on the UIM
card is facing downward and that the beveled edge of the UIM card is
properly aligned with that of the UIM card slot.
2 Charging the Battery
1. Connect the charger to the charger connector of the phone.
2. Connect the charger to a power socket. Charging starts and the charging
icon is displayed in animation.
2
3. When the charging icon animation stops, indicating that the charging is
complete, disconnect the charger from the phone.

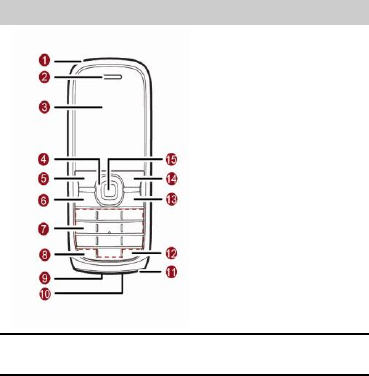

3 Getting to Know Your Phone
1. Strap hole
2. Earpiece
3. Screen
4. Navigation keys
5. Left soft key
6. Call key
7. Number keys
8. * key
9. Headset jack
10.
Charger connector
11.
Microphone
12.
# key
13.
End key
14.
Right soft key
15.
Confirm key
Note
The preceding figure is provided for your reference only.
3
4 Keys and Functions
Press...
To...
End key
Power on or off the phone (press and hold the key).
End or reject a call.
Call key
Dial a number or answer a call.
Left soft key
Access the main menu in standby mode.
Select the option displayed in the lower left corner of
the screen (directly above the key).
Right soft key
Return to the previous menu or exit the function
menu from a menu screen.
Select the option displayed in the lower right corner
of the screen (directly above the key).
Navigation keys
In standby mode,
Up navigation key: access Profiles.
Down navigation key: access Messages.
Left navigation key: access Scheduler.
Right navigation key: access Alarms.
During a call,
Up navigation key or Right navigation key: increase
the volume.
Left navigation key or Down navigation key: decrease
the volume.
Confirm key
Confirm a selection or display a menu.
4
Press...
To...
Number keys
Enter numbers, letters, and symbols.
Speed-dial phone numbers (press and hold the
desired key 2-9 in standby mode after a phone
number is assigned to the number key).
Access the submenu labeled with the corresponding
number.
* key
Activate or deactivate the Meeting profile (press and
hold the key in standby mode).
# key
Lock the keypad (press and hold the key in standby
mode).
5 Screen Icons
Icon
Indicates...
Icon
Indicates...
Signal strength
Battery power level
5
Icon
Indicates...
Icon
Indicates...
No signal
Code division multiple
access (CDMA) 1X
network available.
Domestic roaming
International roaming
Call in progress
Keypad locked
New message received
Memory full
Emergency message
received
General profile activated
Silence profile activated
Meeting profile activated
Outdoor profile activated
My Profile 1 profile
activated
My Profile 2 profile
activated
Voicemail message
received
Alarm on
6 Call Function
Note
You can only dial emergency numbers and answer incoming calls when the
keypad is locked. Unlock the keypad to make calls.
Making a Call
1. In standby mode, press the Number keys to enter a phone number.
6
To make an international call, press the * key twice to enter a plus sign
(+), and then enter the country or region code, area code, and phone
number in sequence.
To dial an extension number, enter the phone number, press the * key
three times to enter P or four times to enter T, and then enter the
extension number.
2. Press the Call key to dial the number.
3. Press the End key to end the call or cancel the dialing.
Note
In standby mode, you can press the Call key to access the call log, select
a desired number, and then press the Call key again to dial the number.
In Contacts, select a desired number, and then press the Call key to dial
the number.
In Inbox of Messages, select a desired message, and then press the Call
key to call the message sender.
Answering a Call
When there is an incoming call, press the Call key to answer the call or the
End key to reject the call. If the any-key answer function is enabled, press
any key except the Right soft key and the End key to answer the call.
7 Creating and Sending a Text Message
1. In standby mode, select Menu > Messages > Create Message.
2. Write the message, and then select Options > Send.
3. Edit the list of message recipients.
4. Press the Confirm key to send the message.
7
8 Security
Locking the Keypad
To prevent unintentional operations, you can press and hold the # key in
standby mode to lock the keypad. When the keypad is locked, you can press
the Call key to answer an incoming call and make an emergency call.
To unlock the keypad, press the Left soft key and then the * key.
Enabling the Phone Lock
The phone lock protects your phone from unauthorized use. By default, the
phone lock is disabled.
Select Menu > Settings > Security Settings > Phone Lock to enable the
phone lock with the following options:
Immediate: to enable the phone lock immediately.
Power On: to enable the phone lock when the phone is powered on next
time.
When you enable the phone lock, you are prompted to enter the phone lock
code. The default phone lock code is 000000. You can change the code to
any string of four to eight digits.
PIN and PUK
Contact your network operator as to whether a User Identity Module (UIM)
card is required for your phone.
The personal identification number (PIN) protects your UIM card from
unauthorized use. The PIN Unlock Key (PUK) is used to unlock a blocked
PIN.
If you enter wrong PINs three times consecutively, the phone prompts you to
enter the PUK. If you enter wrong PUKs 10 times consecutively, the UIM
card becomes permanently invalidated. In this case, contact your network
operator for a replacement.
The PIN and the PUK are provided with your UIM card. For details, contact
your network operator.
8
9 Text input
In editing mode, press the # key to switch between text input modes.
Entering English Letters (in Abc Mode)
In Abc mode, press the number key labeled with the desired letter once to
enter the first letter on the key, twice to enter the second letter on the key,
and so on.
If the letter that you want to enter is on the same key as the previous letter,
enter the desired letter after the cursor appears again or after you press the
Right navigation key to move the cursor to the right of the previous letter.
Entering an English Word (in En Mode)
To enter an English word in En mode, do the following:
1. Press each number key only once according to the spelling sequence of
the desired word. As you enter, the phone attempts to predict the desired
word and displays candidate words.
2. Press the Up navigation key or the Down navigation key to scroll to the
desired word.
3. Press the Right navigation key to enter the desired word or press the 0
key to enter the desired word followed by a space.
Entering a Number
In 123 mode, press the number key labeled with the desired digit.
In Abc mode, press and hold or repeatedly press the number key labeled
with the desired number until the number appears on the screen.
In En mode, press the number key labeled with the desired number, and
then press the Up navigation key or the Down navigation key until the
number appears on the screen.
9
Tip
In En mode, press the 0 key to enter a space. In Abc mode, press the 0
key once to enter a space, twice to enter 0, and three times to enter a
linefeed.
In Abc mode, repeatedly press the 1 key to enter the commonly used
punctuations. In En mode, press the 1 key once to enter a period and
twice or three times to enter a smiley.
Entering a Symbol
1. In any text entry mode, press the * key to display the symbol list.
2. Use the Navigation keys to scroll to the desired symbol, and then press
the Confirm key to enter the symbol. You can also press the number key
corresponding to the desired symbol to enter the symbol.
10 Enabling the Power-Saving Mode
In standby mode, if the screen backlight is on and if the keypad is
unlocked, press the End key to turn off the screen backlight.
If the screen backlight is off and if the keypad is locked, you can press
the Left soft key or the End key to turn on the screen backlight.
In standby mode, select Menu > Settings > Phone Settings >
Power-saving mode > On to enable the power-saving mode, in which
the keypad backlight is off from 09:00 to 17:00.
11 Alarms
You can set a maximum of five alarms. To set an alarm, on the main menu
screen, select Tools > Alarms to access the Alarms screen.
Enabling an Alarm
1. On the Alarms screen, select an alarm, and then set the alarm time,
repeat days, and alarm tone.
10
2. Save the settings to enable the alarm.
Disabling One or All Alarms
On the Alarms screen, select an alarm and then select Off to disable the
alarm or select Cancel All to disable all alarms.
Note
When an alarm rings, select Stop to stop the alarm. If you select Snooze,
the alarm will stop temporarily, and then ring again after five minutes.
You can customize the days for repeating an alarm. You can browse the
seven days in a week, and then select the days that you want the alarm
to ring.
12 FM Radio
Note
To use the FM radio, connect the headset to the headset jack of the phone
first.
Switching On/Off the Radio
In standby mode, select Menu> Radio to switch on the radio.
On the radio screen, select Options> Switch off to switch off the radio.
Automatic Tuning
1. On the radio screen, select Options > Auto Tuning.
2. Use the Navigation keys to select Automatic Tuning. The phone
performs automatic tuning, and then saves the channels found to the
channel list.
Manual Tuning
1. On the radio screen, select Options > Auto Tuning.
2. Use the Navigation keys to select Manual Tuning.
11
3. Use the Left navigation key or the Right navigation key to perform
manual tuning.
Listening to a Radio Program
When listening to a radio program, you can perform the following operations:
Press the Up navigation key or the Down navigation key to adjust the
volume.
Press the Left navigation key or the Right navigation key to switch
between channels.
Recording a Radio Program
Note
Before recording a radio program, ensure that the channel has been saved
in the channel list.
To record the program being played on a saved channel, select Options >
Start Record when you listen to the program.
All recorded files are stored in Menu > Tools > My Files > Musics >
recorder.
13 Recording an Audio Clip
1. In standby mode, select Menu > Tools > Recorder.
2. Press the Confirm key to start recording.
3. Press the Left soft key to stop recording.
4. Press the Confirm key to play the recorded audio clip.
All recorded audio clips are stored in Menu > Tools > My Files > Musics >
recorder.
12
14 Warnings and Precautions
This section contains important information pertaining to the operating
instructions of your device. It also contains information about how to use the
device safely. Read this information carefully before using your device.
Electronic Device
Power off your device if using the device is prohibited. Do not use the device
when using the device causes danger or interference with electronic devices.
Medical Device
Follow rules and regulations set forth by hospitals and health care
facilities. Do not use your device when using the device is prohibited.
Pacemaker manufacturers recommend that a minimum distance of 15
cm be maintained between a device and a pacemaker to prevent
potential interference with the pacemaker. If you are using a pacemaker,
use the device on the opposite side of the pacemaker and do not carry
the device in your front pocket.
Potentially Explosive Atmosphere
Power off your device in any area with a potentially explosive atmosphere,
and comply with all signs and instructions. Areas that may have potentially
explosive atmospheres include the areas where you would normally be
advised to turn off your vehicle engine. Triggering of sparks in such areas
could cause an explosion or a fire, resulting in bodily injuries or even deaths.
Do not power on your device at refueling points such as service stations.
Comply with restrictions on the use of radio equipment in fuel depots,
storage, and distribution areas, and chemical plants. In addition, adhere to
restrictions in areas where blasting operations are in progress. Before using
the device, watch out for areas that have potentially explosive atmospheres
that are often, but not always, clearly marked. Such locations include areas
below the deck on boats, chemical transfer or storage facilities, and areas
where the air contains chemicals or particles such as grain, dust, or metal
powders. Ask the manufacturers of vehicles using liquefied petroleum gas
(such as propane or butane) whether this device can be safely used in their
vicinity.
13
Traffic Security
Observe local laws and regulations while using the device. In addition, if
using the device while driving a vehicle, comply with the following guidelines:
Concentrate on driving. Your first responsibility is to drive safely.
Do not talk on the device while driving. Use hands-free accessories.
When you have to make or answer a call, park the vehicle on the road
side before using your device.
Radio frequency (RF) signals may affect electronic systems of motor
vehicles. For more information, consult the vehicle manufacturer.
In a motor vehicle, do not place the device over the air bag or in the air
bag deployment area. Otherwise, the device may hurt you owing to the
strong force when the air bag inflates.
Do not use your device while flying in an aircraft. Power off your device
before boarding the aircraft. Using wireless devices in the aircraft may
cause danger to the operation of the aircraft and disrupt the wireless
telephone network. It may also be considered illegal.
Operating Environment
Do not use or charge the device in dusty, damp, and dirty places or
places with magnetic fields. Otherwise, a malfunction of the circuit may
be caused.
The device complies with the RF specifications when the device is used
near your ear or at a distance of 1.5 cm from your body. Ensure that the
device accessories such as a device case and a device holster are not
composed of metal components. Keep your device 1.5 cm away from
your body to meet the requirement earlier mentioned.
On a stormy day with thunder, do not use your device when it is being
charged, to prevent any danger caused by lightning.
When you are on a call, do not touch the antenna. Touching the antenna
affects the call quality and results in increase in power consumption. As a
result, the talk time and the standby time are reduced.
14
While using the device, observe the local laws and regulations, and
respect others' privacy and legal rights.
Keep the ambient temperature between 0° C and 40° C while the
device is being charged. Keep the ambient temperature between 0° C to
40° C while the device powered by a battery is being used.
Prevention of Hearing Damage
Using a headset at high volume can damage your hearing. To reduce the
risk of damage to hearing, lower the headset volume to a safe and
comfortable level.
Safety of Children
Comply with all precautions with regard to children's safety. Letting children
play with your device or its accessories, which may include parts that can be
detached from the device, may be dangerous, as it may present a choking
hazard. Ensure that small children are kept away from the device and its
accessories.
Accessories
Use the accessories delivered only by the manufacturer. Using accessories
of other manufacturers or vendors with this device model may invalidate any
approval or warranty applicable to the device, result in the non-operation of
the device, and cause danger.
Battery and Charger
Unplug the charger from the socket and the device when the device is
not in use.
The battery can be charged and discharged hundreds of times before it
eventually wears out. When the standby time and the talk time are
shorter than the normal time, replace the battery.
Use the alternating current (AC) power supply defined in the
specifications of the charger. An improper power voltage may cause a
fire or a malfunction of the charger.
Do not connect two poles of the battery with conductors, such as metal
materials, keys, or any jewellery. Otherwise, the battery may get
short-circuited and may cause injuries and burns on your body.
15
Do not disassemble the battery or solder the battery poles. Otherwise, an
electrolyte leakage, an overheating, a fire, or an explosion may be
caused.
If battery electrolyte leaks out, ensure that the electrolyte does not touch
your skin and eyes. When the electrolyte touches your skin or splashes
into your eyes, wash your skin or eyes with clean water immediately and
consult a doctor.
If there is a case of battery deformation, color change, or abnormal
heating while you charge or store the battery, remove the battery
immediately and stop using it. Otherwise, a battery leakage, an
overheating, an explosion, or a fire may be caused.
If the power cable is damaged (for example, the cord is exposed or
broken), or the plug loosens, stop using the cable at once. Otherwise, an
electric shock, a short circuit of the charger, or a fire may be caused.
Do not dispose of batteries in fire as they may explode. Batteries may
also explode if damaged.
Danger of explosion if battery is incorrectly replaced. Recycle or dispose
of used batteries according to the local regulations or reference
instruction supplied with your device.
Cleaning and Maintenance
The device, battery, and charger are not water-resistant. Keep them dry
and protect them from water and vapor. Do not touch the device or the
charger with a wet hand. Otherwise, a short circuit, a malfunction of the
device, and an electric shock to the user may be caused.
Do not place your device, battery, and charger in places where they can
get damaged because of collision. Otherwise, a battery leakage, a device
malfunction, an overheating, a fire, or an explosion may be caused.
Do not place magnetic storage media such as magnetic cards and floppy
disks near the device. Radiation from the device may erase the
information stored on them.
Do not leave your device, battery, and charger in a place with an
extremely high or low temperature. Otherwise, they may not function
16
properly and may lead to a fire or an explosion. When the temperature is
lower than 0° C, performance of the battery is affected.
Do not place sharp metal objects such as pins near the earpiece. The
earpiece may attract these objects and hurt you when you are using the
device.
Before you clean or maintain the device, power off the device and
disconnect it from the charger.
Do not use any chemical detergent, powder, or other agents (such as
alcohol and benzene) to clean the device and the charger. Otherwise,
parts of the device may get damaged or a fire can be caused. You can
clean the device and the charger with a piece of damp and soft antistatic
cloth.
Do not dismantle the device or accessories. Otherwise, the warranty on
the device and its accessories is rendered invalid and the manufacturer
is not liable to pay for the damage.
Emergency Call
You can use your device for emergency calls in the service area. The
connection, however, cannot be guaranteed in all conditions. You should not
rely solely on the device for essential communications.
Certification Information (SAR)
This device meets guidelines for exposure to radio waves.
Your device is a low-power radio transmitter and receiver. As recommended
by international guidelines, the device is designed not to exceed the limits for
exposure to radio waves. These guidelines were developed by the
independent scientific organization International Commission on
Non-Ionizing Radiation Protection (ICNIRP) and include safety measures
designed to ensure safety for all users, regardless of age and health.
The Specific Absorption Rate (SAR) is the unit of measurement for the
amount of radio frequency energy absorbed by the body when a device is
being used. The SAR value is determined at the highest certified power level
in laboratory conditions, but the actual SAR level of the device when the
17
device is being operated can be well below the value. This is because the
device is designed to use the minimum power required to reach the network.
The SAR limit adopted by USA and Canada is 1.6 watts/kilogram (W/kg)
averaged over one gram of tissue. The highest SAR value reported to the
Federal Communications Commission (FCC) and the Industry Canada (IC)
for this device type when the device is tested for use at the ear is 1.12 W/kg,
and that when the device is properly worn on the body is 0.979 W/kg.
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause
undesired operation.
Warning: Changes or modifications made to this device not expressly
approved by Huawei Technologies Co., Ltd. may void the FCC authorization
to operate this device.
Version: V100R001C58_01 Part Number: 3101XXXX
