Huawei Technologies CM990 cdma2000 Digital Mobile Phone User Manual

Huawei Technologies Co.,Ltd cdma2000 Digital Mobile Phone

User Manual

Quick Start Guide
CM990
Getting to know your phone
Thank you for choosing the HUAWEI smartphone.
First, let's take a look at a few basics:
Press and hold the power button to power on your
phone. After your phone is powered up, you can use the
power button to turn the screen off and on.
Headset jack
Power
Volume
key
Charger/Data port
Front
camera
Earpiece
Back
Home
Menu
Status indicator
Preparing your phone
To insert a card, the battery and a microSD card please
perform the steps shown in the following figures.
Your phone is shipped with the battery partially charged.
It is recommended that you fully charge the battery
before using it for the first time.
Installing the battery
Charging the battery
Close the battery cover
1 2
3
5
4
a
b
Remove the battery cover Insert the microSD card
(optional)

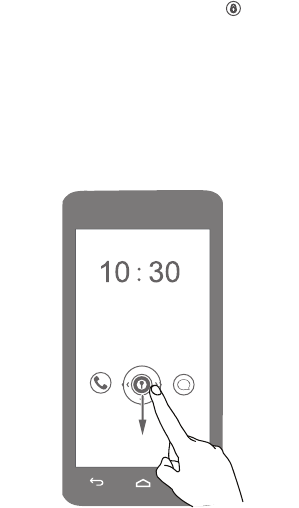

Locking and unlocking the screen
When you are not using your phone, press the power
button to turn off the screen.
After being idle for a specified period of time, your phone
automatically locks its screen.
Follow the onscreen instructions and drag to unlock
the screen or open an application.
Personalizing your home screen
The unique Me Widget can group widgets that you often
use. You can touch an icon to open a widget.
Touch and hold Me Widget until your phone vibrates,
then release your finger and touch to customize your
Me Widget.
Status bar
Display area
10:30
Managing contacts
Touch to open
People
.
From the contact list, touch >
Manage contacts
to
import contacts from the SIM card, microSD card, or
another Bluetooth device.
Touch the
Groups
tab page to group your contacts for
easier management.
Create
contact
10:30
Making a call
Touch to open the dialer.
You can dial a phone number directly or touch to
choose a contact.
You can also touch a phone number in places like
messages, email and webpages to make a call.
To answer an incoming call, drag to .
**********
10:30
Sending messages
Touch to open
Messaging
.
Adding a photo or audio clip to a text message turns it
into a multimedia message.
You can also save attachments from multimedia
messages.
Attach file
**********
10:30
Happy birthday!
Taking a photo or video
Touch to open
Camera
.
n photo mode, let your camera focus automatically or
touch the screen to focus the camera. Then touch to
take a photo. In video mode, frame the scene and touch
to record a video.
Open option
menu
Zoom in
or out
Replay photo
or video
Switch between
photo and
video modes
A
Listening to music
Touch to open
Play Music
.
You can copy songs to your phone and immerse yourself
with extraordinary audio experience anytime.
You can play songs by name, artist, album and more.
For more help
Need more help?
Touch to open
Help Center
.
Want to obtain the user guide?
Search for and download the User Guide from
www.huaweidevice.com.
Want to learn more about Huawei Emotion UI?
Visit en.ui.vmall.com for the latest information.
?
?
Safety information
This section contains important information about the
operation of your device. It also contains information
about how to use the device safely. Read this information
carefully before using your device.
Electronic device
Do not use your device if using the device is prohibited.
Do not use the device if doing so causes danger or
interference with other electronic devices.
Interference with medical equipment
Follow rules and regulations set forth by hospitals and
health care facilities. Do not use your device where
prohibited.
Some wireless devices may affect the performance of
hearing aids or pacemakers. Consult your service
provider for more information.
Pacemaker manufacturers recommend that a
minimum distance of 15 cm be maintained between a
device and a pacemaker to prevent potential
interference with the pacemaker. If using a
pacemaker, hold the device on the side opposite the
pacemaker and do not carry the device in your front
pocket.
Protecting your hearing when using a headset
To prevent possible hearing damage, do
not listen at high volume levels for long periods.
Using a headset at high volumes may damage your
hearing. To reduce this risk, lower the headset volume
to a safe and comfortable level.
Exposure to high volumes while driving may cause
distraction and increase your risk of an accident.
Areas with flammables and explosives
Do not use the device where flammables or explosives
are stored (in a gas station, oil depot, or chemical
plant, for example). Using your device in these
environments increases the risk of explosion or fire. In
addition, follow the instructions indicated in text or
symbols.
Do not store or transport the device in containers with
flammable liquids, gases, or explosives.
Traffic security
Observe local laws and regulations while using the
device. To reduce the risk of accidents, do not use your
wireless device while driving.
Concentrate on driving. Your first responsibility is to
drive safely.
Do not hold the device while driving. Use hands-free
accessories.
When you must make or answer a call, pull off the
road safely and park the vehicle first.
RF signals may affect the electronic systems of motor
vehicles. For more information, consult the vehicle
manufacturer.
Do not place the device over the air bag or in the air
bag deployment area in a motor vehicle. Doing so may
hurt you because of the strong force when the air bag
inflates.
Do not use your device while flying in an aircraft or
immediately before boarding. Using wireless devices in
an aircraft may disrupt wireless networks, present a
hazard to aircraft operation, or be illegal.
Operating environment
Avoid dusty, damp, or dirty environments. Avoid
magnetic fields. Using the device in these
environments may result in circuit malfunctions.
Do not use your device during thunderstorms to
protect your device against any danger caused by
lightning.
Ideal operating temperatures are 0 °C to 35 °C. Ideal
storage temperatures are -20 °C to 70 °C. Extreme
heat or cold may damage your device or accessories.
Do not expose your device to direct sunlight (such as
on a car dashboard) for prolonged periods.
To protect your device or accessories from fire or
electrical shock hazards, avoid rain and moisture.
Keep the device away from sources of heat and fire,
such as a heater, microwave oven, stove, water
heater, radiator, or candle.
Do not place sharp metal objects, such as pins, near
the earpiece or speaker. The earpiece may attract
these objects and result in injury.
Stop using your device or applications for a while if the
device is overheated. If skin is exposed to an
overheated device for an extended period, low
temperature burn symptoms, such as red spots and
darker pigmentation, may occur.
Do not use your device's camera flash directly in the
eyes of people or pets. Otherwise temporary loss of
vision or damage to the eyes may occur.
Do not touch the device's antenna. Otherwise,
communication quality may be reduced.
Do not allow children or pets to bite or suck the device
or accessories. Doing so may result in damage or
explosion.
Observe local laws and regulations, and respect the
privacy and legal rights of others.
Child's safety
Comply with all precautions with regard to child's
safety. Letting children play with the device or its
accessories may be dangerous. The device includes
detachable parts that may present a choking hazard.
Keep away from children.
The device and its accessories are not intended for use
by children. Children should only use the device with
adult supervision.
Accessories
Using an unapproved or incompatible power adapter,
charger or battery may cause fire, explosion or other
hazards.
Choose only accessories approved for use with this
model by the device manufacturer. The use of any
other types of accessories may void the warranty, may
violate local regulations and laws, and may be
dangerous. Please contact your retailer for information
about the availability of approved accessories in your
area.
Charger safety
For pluggable devices, the socket-outlet shall be
installed near the devices and shall be easily accessible.
Unplug the charger from electrical outlets and the
device when not in use.
Do not drop or cause an impact to the charger.
If the power cable is damaged (for example, the cord is
exposed or broken), or the plug loosens, stop using it
at once. Continued use may lead to electric shocks,
short circuits, or fire.
Do not touch the power cord with wet hands or pull
the power cord to disconnect the charger.
Do not touch the device or the charger with wet
hands. Doing so may lead to short circuits,
malfunctions, or electric shocks.
If your charger has been exposed to water, other
liquids, or excessive moisture, take it to an authorized
service center for inspection.
Ensure that the charger meets the requirements of
Clause 2.5 in IEC60950-1/EN60950-1 and has been
tested and approved according to national or local
standards.
Connect the device only to products with the USB-IF
logo or with USB-IF compliance program completion.
Battery safety
Do not connect battery poles with conductors, such as
keys, jewelry, or other metal materials. Doing so may
short-circuit the battery and cause injuries or burns.
Keep the battery away from excessive heat and direct
sunlight. Do not place it on or in heating devices, such
as microwave ovens, stoves, or radiators. Batteries
may explode if overheated.
Do not attempt to modify or remanufacture the
battery, insert foreign objects into it, or immerse or
expose it to water or other liquids. Doing so may lead
to fire, explosion, or other hazards.
If the battery leaks, ensure that the electrolyte does
not make direct contact with your skins or eyes. If the
electrolyte touches your skins or splashes into your
eyes, immediately flush with clean water and consult a
doctor.
In case of battery deformation, color change, or
overheating while charging or storing, immediately
stop using the device and remove the battery.
Continued use may lead to battery leakage, fire, or
explosion.
Do not put batteries in fire as they may explode.
Damaged batteries may also explode.
Dispose of used batteries in accordance with local
regulations. Improper battery use may lead to fire,
explosion, or other hazards.
Do not allow children or pets to bite or suck the
battery. Doing so may result in damage or explosion.
Do not smash or pierce the battery, or expose it to
high external pressure. Doing so may lead to a short
circuit or overheating.
Do not drop the device or battery. If the device or
battery is dropped, especially on a hard surface, and
may be damaged.
If the device standby time shortens significantly,
replace the battery.
Cleaning and maintenance
Keep the device and accessories dry. Do not attempt
to dry it with an external heat source, such as a
microwave oven or hair dryer.
Do not expose your device or accessories to extreme
heat or cold. These environments may interfere with
proper function and may lead to fire or explosion.
Avoid collision, which may lead to device
malfunctions, overheating, fire, or explosion.
Before you clean or maintain the device, stop using it,
stop all applications, and disconnect all cables
connected to it.
Do not use any chemical detergent, powder, or other
chemical agents (such as alcohol and benzene) to
clean the device or accessories. These substances may
cause damage to parts or present a fire hazard. Use a
clean, soft, and dry cloth to clean the device and
accessories.
Do not place magnetic stripe cards, such as credit
cards and phone cards, near the device for extended
periods of time. Otherwise the magnetic stripe cards
may be damaged.
Do not dismantle or remanufacture the device and its
accessories. This voids the warranty and releases the
manufacturer from liability for damage. In case of
damage, contact an authorized service center for
assistance or repair.
If the device screen is broken in a collision,
immediately stop using the device. Do not touch or
attempt to remove the broken parts. Promptly contact
an authorized service center.
Emergency calls
The availability of emergency calls is subject to your
cellular network quality, service provider policy, and local
laws and regulations. Never rely solely on your device for
critical communications like medical emergencies.
Environmental protection
The device and its accessories (if included), such as the
power adapter, headset, and battery should not be
disposed of with household garbage.
Disposal of the device and its accessories is subject to
local regulations. Support proper collection and
recycling.
FCC Regulatory Compliance
Body worn operation
The device complies with RF specifications when used
near your ear or at a distance of 1.5 cm from your body.
Ensure that the device accessories, such as a device case
and device holster, are not composed of metal
components. Keep the device away from your body to
meet the distance requirement.
Certification information (SAR)
This device is also designed to meet the requirements for
exposure to radio waves established by the Federal
Communications Commission (USA).
The SAR limit adopted by the USA is 1.6 W/kg averaged
over one gram of tissue. The highest SAR value reported
to the FCC for this device type complies with this limit.
The highest SAR value reported to the FCC for this device
type when using at the ear is 0.419 W/kg, and when
properly worn on the body is 0.996 W/kg, and when
using the Wi-Fi hotspot function is 1.196 W/Kg.
FCC statement
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following
measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and
receiver.
--Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
--Consult the dealer or an experienced radio/TV
technician for help.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and (2)
this device must accept any interference received,
including interference that may cause undesired
operation.
Caution:
Any changes or modifications to this device not
expressly approved by Huawei Technologies Co., Ltd. for
compliance could void the user's authority to operate the
equipment.
Personal Information and Data
Security
The use of some functions or third-party applications on
your device could result in your personal information and
data being lost or becoming accessible to others. Several
measures are recommended to help you protect personal
and confidential information.
Place your device in a safe area to prevent it from
unauthorized use.
Set your device screen to lock and create a password
or unlock pattern to open it.
Periodically back up personal information kept on your
SIM card, memory card, or stored in your device
memory. If you change to a different device, be sure to
move or delete any personal information on your old
device.
If you are worried about viruses when you receive
messages or emails from a stranger, you can delete
them without opening them.
If you use your device to browse the Internet, avoid
websites that might pose a security risk to avoid theft
of your personal information.
If you use services such as Wi-Fi tether or Bluetooth,
set passwords for these services to prevent
unauthorized access. When these services are not in
use, turn them off.
Install or upgrade device security software and
regularly scan for viruses.
Be sure to obtain third-party applications from a
legitimate source. Downloaded third-party
applications should be scanned for viruses.
Install security software or patches released by Huawei
or third-party application providers.
Some applications require and transmit location
information. As a result, a third-party may be able to
share your location information.
Your device may provide detection and diagnostic
information to third-party application providers. Third
party vendors use this information to improve their
products and services.
If you have concerns about the security of your
personal information and data, please contact
mobile@huawei.com.
Legal Notice
Copyright © Huawei Technologies Co., Ltd. 2013.
All rights reserved.
Trademarks and Permissions
, , and are trademarks or registered
trademarks of Huawei Technologies Co., Ltd.
Android™ is a trademark of Google Inc.
The
Bluetooth
®
word mark and logos are registered
trademarks owned by
Bluetooth SIG, Inc.
and any use of
such marks by Huawei Technologies Co., Ltd. is under
license.
Other trademarks, product, service and company names
mentioned may be the property of their respective
owners.
Privacy Policy
To better understand how we protect your personal
information, please see the privacy policy at
http://consumer.huawei.com/en/privacy-policy/
index.htm.
THIS DOCUMENT IS FOR INFORMATION PURPOSE ONLY,
AND DOES NOT CONSTITUTE ANY KIND OF
WARRANTIES.
Model: HUAWEI CM990
Please visit
www.huaweidevice.com/worldwide/support/hotline
for recently updated hotline and email address in your
country or region.
31010XXX

Navigation menu
