UserManual
1
Thank you for purchasing the DC04. This DC04 brings you
a high speed wireless network connection.
This document will help you understand your DC04 so you can start using it right away. Please
read this document carefully before using your DC04.
For detailed instructions for logging in to the web management page, refer to "Logging In to
the Web Management Page" on page 14.
2
Getting to Know Your DC04
Note:
The DC04 function descriptions and illustrations in this document are for your reference
only. The product you have purchased may vary.
Application Scenarios
Wi-Fi devices (such as smartphones, tablet computers, and game consoles) or computers can
all access the Internet through DC04. The specific connection procedure depends on the
operating system of the Wi-Fi device or computer. Establish a connection according to your
device's specific instructions.
To access the Internet through a USB port connection, install the driver according to the
instructions.
3

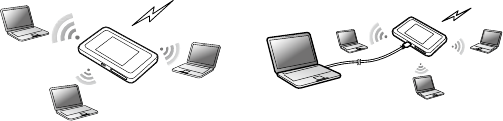

Scenario 1: Connecting multiple devices
through Wi-Fi
Scenario 2: Connecting multiple devices
through Wi-Fi and USB simultaneously
4
Appearance
2
1
3
4
Power button Lanyard hole
Screen Micro USB port
5

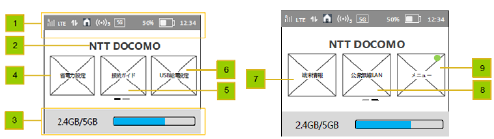

Screen
Status bar
Character zone
When connect to 3G/LTE network, show the operator name
When connect to public Wi-Fi hotspot, show the SSID name of the hotspot
When SIM card is not normal, show "PIN1 code required"/"PIN unlock code required";
Data usage information
6
If user set the data information, show used data and total data.If user turn off the display of
data on Home screen, hide this zone.
Power save settings
usercantapontoviewinformationof“Powersavesettings”.
Wi-Fi connection guide
usercantapontoviewinformationof"Wi‐Ficonnectionguide".
SSID&password
usercantapontosetdataof“Chargingfunction”.
About
usercantapontoviewdeviceinformation.
Public WLAN
usercantapontoviewinformationof“PublicWLANsetting”.
Menu
usercantapontoviewmorefunctions.
7

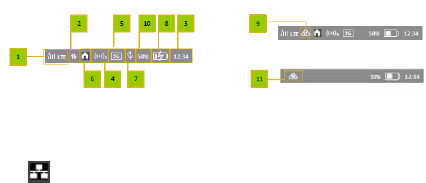

Signal icon
R: when in roaming status; Show network mode, including "3G/LTE".
: when connecting to public Wi-Fi hotspot.
Icon of traffic.
Show the icon when connect to network. When there is upload and download data the icon
changes color. When disconnect from network, hide the icon.
Time information
Wi-Fi
8
Wi-Fi turned on.
Number of connected Wi-Fi devices.
Wi-Fi Mode
DFS
When DC04 is during DFS checking progress, the DFS icon show and flashes. When DC04
connect to the 5G_W52/W53 network that can be only used indoor only, show this icon.
Otherwise hide the icon.
USB
Show it when connected to USB cable and DC04 supports Charging with standard functions
process. If connected to USB cable only for charging, hide this icon.
Battery
: Battery level from low to high.
Overheating
Ifthedevice’stemperatureisoverheatingin[48,54)degreeandconnecttonetwork,show
9
theicon.
% of current battery.
⓫Flying mode
Ifthedevice’stemperatureisin[54,58)degree,showtheicon.
10
SSID and Wireless Network Encryption Key
When a Wi-Fi device establishes a connection to the DC04 for the first time, you may need to
enter the default Service Set Identifier (SSID) and wireless network encryption key. These are
printed on the DC04.

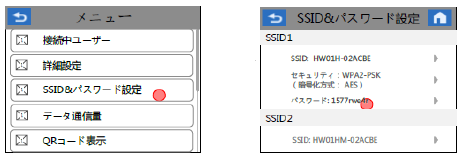

To view the current SSID and wireless network encryption key on the screen:
1. Press the Menu> SSID&password on
the homepage.
2. The SSID and Password display on the
screen.
11
Getting Started
Installing a SIM Card
Caution:
Use a standard miniUIM card compatible with the DC04, otherwise you will damage your
DC04.
Charging the Battery
If the battery has not been used for an extended period of time, recharge it before use.
Note:
Only use chargers compatible with the DC04 and provided by a designated
manufacturer. Use of an incompatible charger or one from an unknown manufacturer
may cause the DC04 to malfunction, fail, or could even cause a fire. Such use voids all
warranties, whether expressed or implied, on the product.
The DC04’s charger model is HW-050200XYZ. X and Y represent letters or numbers
that vary by region. For details about the specific charger model, contact an authorized
dealer.
12
Connecting to the Internet via Wi-Fi
The DC04's management parameters have been preset according to your operator's
requirements. You can quickly connect to the Internet by following these steps:
Step 1: Turn on the DC04
Press and hold the button until the screen lights up, indicating that the DC04 is turned on.
Note:
Press and hold the button to turn off the DC04.
Step 2. Establish a Wi-Fi connection (using a computer running the
Windows XP operating system as an example)
1. Ensure that the DC04's Wi-Fi function is on.
2. Select Start > Control Panel > Network Connections > Wireless Network Connection.
Note:
Before establishing a Wi-Fi connection, ensure that the computer is equipped with a
13
wireless network adapter. If the computer indicates a wireless network connection, the
wireless network adapter can be used. Otherwise, verify that your wireless network
adapter is working properly.
3. Click View available wireless networks to view a list of available wireless networks.
4. Select the wireless network connection with the DC04's SSID and click Connect.
Note:
If the wireless network connection is encrypted, enter the correct wireless network
encryption key.
Press the WPS button twice to view the current SSID and wireless network encryption
key on the screen.
5. Wait a moment for the wireless network connection icon to appear in the system tray in
the lower right corner of the computer screen. The wireless network connection is then
established.
Step 3: Connect to the Internet
If data is transmitted, the DC04 will automatically connect to the Internet. If data is not
transmitted for a period of time, the DC04 will automatically disconnect from the network
14
connection.
Logging In to the Web Management Page
1. Make sure the connection between the DC04 and the Wi-Fi device or computer is
working normally.
2. Open the browser, and enter http://DC04.com in the address box.
3. Enter the password to log in to the web management page.
Note:
The default password is admin.
15
Daily Use
Battery Saving Mode
If the DC04 has been inactive for some time, the DC04 enters the standby mode, in which the
display screen turns off. Pressing any button causes the display screen to light up.
When the DC04 is being powered only by the battery, you can choose to enable or disable the
automatic Wi-Fi turnoff function. If this function is enabled and if no Wi-Fi devices access the
DC04 for a period of time, the Wi-Fi turns off automatically. You can press any button to turn
the Wi-Fi on again.
Verifying the PIN
If the PIN verification function is enabled, log in to the web management page and enter the
correct PIN according to the instructions. PIN/PUK codes are supplied by your operator along
with the SIM card. For details, please consult your operator.
16
Restoring to Factory Settings
If you forget some configuration parameters, you can restore the DC04 to its factory settings
and then configure the DC04 again.
Press and hold the RESET button until the display screen turns off. The DC04 is then restored to
its factory settings.
Note:
After you carry out this operation, the DC04's personal configuration parameters will all
be deleted. All configurations on the web management page will be restored to the
factory settings.
17
Example 1: Connecting to a Game Console (for example, PSP)
through Wi-Fi
1. On the PSP, turn on the WLAN.
2. Choose Settings > Network Settings.
3. Select Infrastructure Mode.
4. Select New Connection, and enter the
connection name.
5. Select Scan to search for wireless
networks. A list of access points will be
displayed on the screen.
6. Select the access point with the DC04's
SSID, and press the ► button on the PSP.
Confirm the SSID, and enter the correct
wireless network encryption key.
7. Press the ► button to proceed to the
next step, and then press the X button to
save settings.
18
8. Select Test Connection to test whether
the network connection is successful.
9. You can now open the browser and
access the network.
19
Example 2: Connecting to a Tablet Computer (for example, iPad)
through Wi-Fi
1. Touch Settings > WLAN to turn on WLAN.
2. The tablet computer automatically
searches for wireless connections and
displays a list of access points.
3. Select the access point with the DC04's
SSID.
4. If required, enter the correct wireless
network encryption key, and tap Join.
(The lock icon indicates that the encryption
key is required to connect to this wireless
network.)
Note:
Wi-Fi devices, such as an iPhone, iPod touch, PS3 and NDSi, can all access the Internet
through the DC04. For specific operations, refer to the Wi-Fi device's user manual.
20
Tips
When the DC04 is in use for an extended period of time, it will become warm and may
overheat. Should this happen, the DC04 will automatically close the network connection and
turn off to protect itself from damage. If this occurs, place the DC04 in a well ventilated space
to allow the heat to dissipate, then turn it on and continue to use it as normal.
If you are unable to use the DC04 as normal, try the following:
Consult the user manual on the web management page.
Restart the DC04.
Restore the DC04 to the factory settings.
Consult your operator.
Version: V100R001_01
