User Manual 1

Thank you for choosing the Mobile Broadband
USB Modem. With your USB Modem, you can
access a wireless network at high speed.
Note:
This manual describes the appearance of the USB Modem, as well as the
procedures for preparation, installation, and removal. For operation details
about the management program, see the online help included in the
management program.
Getting to Know Your USB Modem

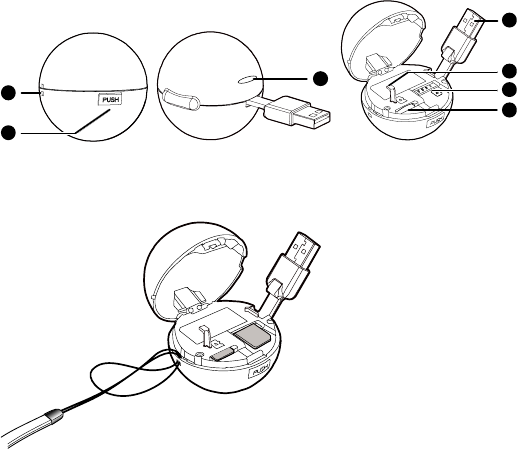

The following figure shows the appearance of the USB Modem. It is
provided only for your reference. The actual product may be different.
1
2
3
4
5
6
7
n Strap Hole
You can tie a strap to the USB Modem through the strap hole.
o Push Button
You can press this push button to open the USB Modem Cover.
p Indicator
It indicates the status of the USB Modem.
z Green, blinking twice every 3s: The USB Modem is powered on.
z Green, blinking once every 3s: The USB Modem is registering with a 2G
network.
z Blue, blinking once every 3s: The USB Modem is registering with a
3G/3G+ network.
z Green, solid: The USB Modem is connected to a 2G network.
z Blue, solid: The USB Modem is connected to a 3G network.
z Cyan, solid: The USB Modem is connected to a 3G+ network.
z Off: The USB Modem is removed.
q Bolt
It holds the USB Connector when the USB Modem Cover is closed.
r USB Connector
It connects the USB Modem to a PC.
s SIM/USIM Card Slot
It holds a Subscriber Identity Module (SIM)/Universal Subscriber Identity
Module (USIM) card.
t MicroSD Card Slot
It holds a microSD card.
Getting Your USB Modem Ready
1. Press the push button and then open the USB Modem cover.

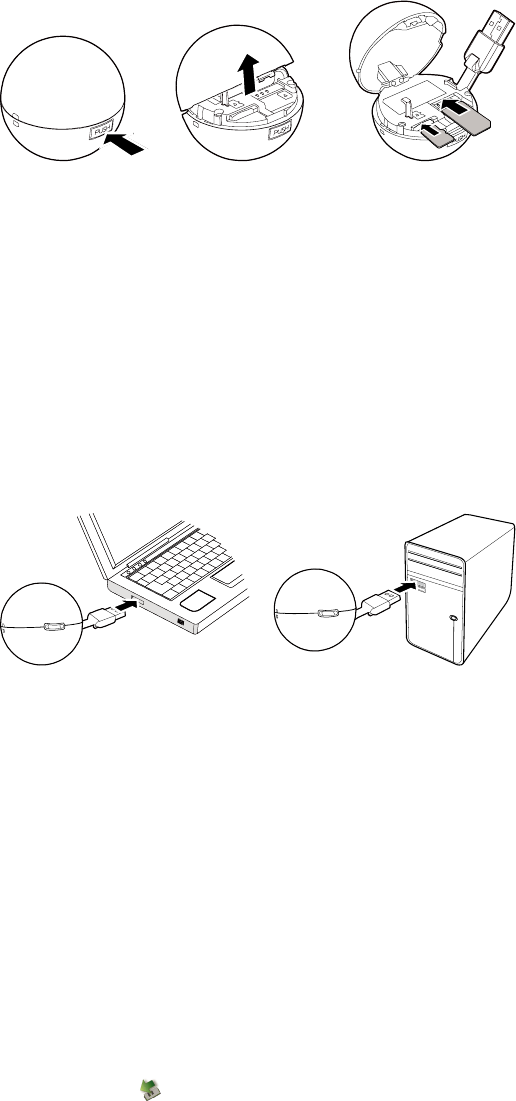

2. Insert the SIM/USIM card and the microSD card into the
corresponding card slots, as shown in the following figure.
3. Replace the USB Modem cover.
Note:
z The microSD card is an optional accessory. If it is not provided in the
package, you can buy one yourself.
z Ensure that the beveled edge of the SIM/USIM card is properly aligned
with that of the SIM/USIM card slot and the microSD card is inserted
according to the direction as labeled on the microSD card slot.
z Do not remove the microSD or SIM/USIM card when the card is in use.
Otherwise, the card as well as your USB Modem may get damaged and
the data stored on the card may be corrupted.
Installation/Removal Guide
The procedure for installing the management program depends on the
operating system (OS) installed on your PC. The following sections take
Windows XP as an example.
Connecting the USB Modem to a PC
Plug the USB Modem into the USB port of your PC.
Installing the USB Modem Management Program
1. Connect the USB Modem with the PC.
2. The OS automatically detects and recognizes the new hardware and
starts the installation wizard.
Note:
If the auto-run program does not respond, find the AutoRun.exe file in
the driver path. Then double-click AutoRun.exe to run the program.
3. Follow the on-screen instructions of the installation wizard.
4. After the program is installed, a shortcut icon for the management
program appears on the desktop.
Starting the Management Program
After being installed, the management program starts automatically. Then
every time the USB Modem is connected to the PC, the management
program starts automatically.
You can also double-click the shortcut icon on the desktop to start the
management program.
Removing the USB Modem
1. Double-click in the notification area. Then the Unplug or Eject
Hardware dialog box appears.
2. Select the corresponding hardware and then click Stop.
3. When the message "It is safe to remove the device" appears,
remove the USB Modem.
Uninstalling the Management Program
1. Choose Start > Control Panel > Add or Remove Programs.
2. Find the management program and click Remove to uninstall the
management program.
Note:
Exit the management program before uninstalling it.
