Huawei Technologies E5338 Mobile WiFi User Manual III

Huawei Technologies Co.,Ltd Mobile WiFi III

Contents

User Manual III

Quick Start
1
Thank you for purchasing the Mobile WiFi. This Mobile
WiFi brings you a high speed wireless network connection.
This document will help you understand your Mobile WiFi so you can start using it right away.
Please read this document carefully before using your Mobile WiFi.
For detailed information about the functions and configurations of the Mobile WiFi, refer to
the online help on the web management page that comes with the Mobile WiFi.
For detailed instructions for logging in to the web management page, refer to "Logging In to
the Web Management Page".
2
Getting to Know Your Mobile WiFi
Note:
The Mobile WiFi function descriptions and illustrations in this document are for your
reference only. The product you have purchased may vary.
Application Scenarios
Wi-Fi devices (such as smartphones, tablet computers, and game consoles) or computers can
all access the Internet through Mobile WiFi. The specific connection procedure depends on the
operating system of the Wi-Fi device or computer. Establish a connection according to your
device's specific instructions.
3

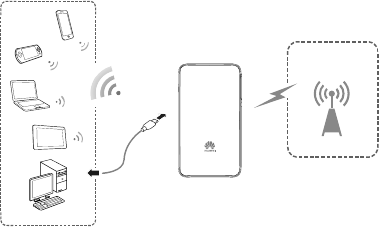

Scenario 1: Accessing the Internet Using a 3G or 2G Network
The Mobile WiFi uses your operator's 3G, or 2G network to access the Internet.
3G/2G
4
Scenario 2: Accessing the Internet Using a Wi-Fi Network
The Mobile WiFi supports the Wi-Fi Extender function. When you use the Mobile WiFi in Wi-Fi
coverage areas, for example, an airport, cafe, hotel, or your home, your Mobile WiFi will
connect to known Wi-Fi hotspots, helping you save mobile data usage. For details about
adding Wi-Fi hotspots, see "Adding a Wi-Fi Hotspot".
Wi-Fi Hotspot
5
Appearance
Signal indicator
Wi-Fi indicator
Battery indicator
Roaming indicator
Micro-SIM card tray
Power button
Power indicator
Micro USB port
R
1 2 3 4
5
6
8
7
6
Indicator
Indicator Status Description
Signal
Green Strong signal
Orange Weak signal
Red No signal
Wi-Fi Green Wi-Fi turned on
Blue Connected to a Wi-Fi hotspot
Battery
Green Sufficient battery
Blinking green Charging the battery
Red Low battery
R
Roaming Green Roaming
7
SSID and Wireless Network Encryption Key
When a Wi-Fi device establishes a connection to the Mobile WiFi for the first time, you may
need to enter the default Service Set Identifier (SSID) and wireless network encryption key.
The default SSID and encryption key are printed on the Mobile WiFi label.
It is recommended that you log in to the web management page and change your SSID and
network encryption key.
Connecting an Android Device to the Mobile WiFi Using a 2D Barcode
1. Search for HUAWEI Mobile WiFi in Google Play or HUAWEI App Center and download the
app to your Android device.
2. Scan the 2D Barcode on the Mobile WiFi label using the HUAWEI Mobile WiFi App.
Your Android device will then connect to the Mobile WiFi.
8
Getting Started

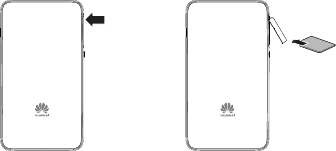

Installing
Install the micro-SIM card according to the illustration.
Note:
Do not remove the micro-SIM card when it is in use. Doing so will affect the performance
of your Mobile WiFi and data stored on the micro-SIM card may be lost.
9
Charging the Battery
If the Mobile WiFi has not been used for a long time or if the battery is fully depleted, the
Mobile WiFi may not power on immediately after the charger is plugged in. Please charge the
battery for a while before attempting to power on the Mobile WiFi.
Method 1: Use the charger to charge the device
Note:
Only use chargers compatible with the
Mobile WiFi and provided by a
designated manufacturer. Use of an
incompatible charger or one from an
unknown manufacturer may cause the
Mobile WiFi to malfunction, fail, or
could even cause a fire. Such use voids
all warranties, whether expressed or
implied, on the product.
The charger is an optional accessory. If it is not included in the package, you may
contact an authorized dealer to buy a charger compatible with the Mobile WiFi.
10
The Mobile WiFi's charger model is HW-050100XYW. X and Y represent letters or
numbers that vary by region. For details about the specific charger model, contact an
authorized dealer.

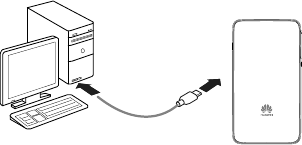

Method 2: Charge the device through a computer connection
Use the data cable provided with your device to connect the Mobile WiFi to the computer.
11
Turning on the Mobile WiFi
Press and hold the power button until the indicators light up, indicating
that the Mobile WiFi is turned on.
Note:
Press and hold the power button to turn off the Mobile WiFi.
Verifying the PIN
If the Mobile WiFi's network parameters have been correctly configured but you cannot access
the Internet after powering it on, PIN verification may be enabled. Log in to the web
management page and enter the PIN when prompted. To avoid entering the PIN every time
you power on the Mobile WiFi, disable PIN verification from the web management page.
The PIN/PUK is delivered with your SIM card. For more details, contact your service provider.
12
Connecting to the Internet
Using a 3G or 2G Network
By default, the Mobile WiFi's management parameters have been preset according to your
operator's requirements. The Mobile WiFi will be connected to the Internet after its startup.
If data is transmitted, the Mobile WiFi will automatically connect to the Internet. If data is not
transmitted for a period of time, the Mobile WiFi will automatically disconnect from the
network connection.
Note:
You can log in to the web management page to enable or disable the automatic dialing
while roaming function. If this function is turned off, when the Mobile WiFi enters a
roaming network, it will automatically disconnect from the Internet connection that has
already been established. You will need to manually establish this network connection
again.
13
Using a Wi-Fi Network
1. Ensure that the Wi-Fi extender function is enabled.
2. The Mobile WiFi automatically connects to a Wi-Fi hotspot set by your service provider or
yourself. When the Mobile WiFi is connected to a Wi-Fi hotspot, is blue.
Note:
After connecting to a Wi-Fi network, the Mobile WiFi automatically reconnects to the
network the next time you are under that network's coverage.
For details about adding Wi-Fi hotspots, see "Adding a Wi-Fi Hotspot".
14
Logging In to the Web Management Page
1. Make sure the connection between the Mobile WiFi and the Wi-Fi device or computer is
working normally.
2. Open the browser, and enter http://192.168.8.1 in the address box.
Note:
If the IP address conflicts with other IP addresses on the network, the IP address of the
Mobile WiFi automatically changes.
3. Enter the user name and password to log in to the web management page.
Note:
The default user name is admin.
The default password is admin.
15
Turning Wi-Fi Extender On or Off
You can log in to the Mobile WiFi's web management page to enable or disable the Wi-Fi
extender.
Note:
After the Wi-Fi extender function is enabled, up to 9 Wi-Fi devices can be connected to
the Mobile WiFi.
Adding a Wi-Fi Hotspot
1. Log in to the web management page.
2. From the settings page, choose Wi-Fi extender.
3. Scan for Wi-Fi hotspots and connect to the desired one.
16
Battery Saving Mode
If the Mobile WiFi has been inactive for some time, the Mobile WiFi enters the standby mode,
the power indicator ( ) blinks slowly. Press the power button to light up the indicators.
When the Mobile WiFi is being powered only by the battery, you can choose to enable or
disable the automatic Wi-Fi off function. If this function is enabled and if no Wi-Fi devices
access the Mobile WiFi for a period of time, the Wi-Fi turns off automatically. You can press any
button to turn the Wi-Fi on again.
Restoring to Factory Settings
If you forget the user name, password, or SSID you have set, you can
restore the Mobile WiFi to its factory settings.
To do so, simply press and hold the reset button until the Mobile WiFi
restarts.
Example 1: Connecting to a Computer (for example, running the
Windows 7 operating system) through Wi-Fi
1. Ensure that the Mobile WiFi's Wi-Fi function is on.
2. Select Start > Control Panel > Network and Internet > Network and Sharing Center >
Connect to a network.
Note:
Before establishing a Wi-Fi connection, ensure that the computer is equipped with a
wireless network adapter. If the computer indicates a wireless network connection, the
wireless network adapter can be used. Otherwise, verify that your wireless network
adapter is working properly.
3. Select the wireless network connection with the Mobile WiFi's SSID and click Connect.
Note:
If the wireless network connection is encrypted, enter the correct wireless network
encryption key.
The default SSID and encryption key are printed on the Mobile WiFi's label.
4. Wait a moment for the wireless network connection icon to appear in the system tray in
the lower right corner of the computer screen. The wireless network connection is then
established.
Example 2: Connecting to a Tablet Computer (for example, iPad)
through Wi-Fi
1. Touch Settings > WLAN to turn on WLAN.
2. The tablet computer automatically
searches for wireless connections and
displays a list of access points.
3. Select the access point with the Mobile
WiFi's SSID.
4. If required, enter the correct wireless
network encryption key, and tap Join.
(The lock icon indicates that the encryption
key is required to connect to this wireless
network.)
Note:
Wi-Fi devices, such as an iPhone, iPod touch, PS3 and NDSi, can all access the Internet
through the Mobile WiFi. For specific operations, refer to the Wi-Fi device's user manual.
Tips
When the Mobile WiFi is in use for an extended period of time, it will become warm and may
overheat. Should this happen, the Mobile WiFi will automatically close the network connection
and turn off to protect itself from damage. If this occurs, place the Mobile WiFi in a well
ventilated space to allow the heat to dissipate, then turn it on and continue to use it as normal.
If you are unable to use the Mobile WiFi as normal, try the following:
Consult the online help on the web management page.
Restart the Mobile WiFi.
Restore the Mobile WiFi to the factory settings.
Consult your operator.
TM
is a trademark of ETSI.
