User Manual
1
Thank you for purchasing the Mobile WiFi. This Mobile
WiFi brings you a high speed wireless network connection.
This document will help you understand your Mobile WiFi so you can start using it right away.
Please read this document carefully before using your Mobile WiFi.
For detailed information about the functions and configurations of the Mobile WiFi, refer to
the online help on the web management page that comes with the Mobile WiFi.
For detailed instructions for logging in to the web management page, refer to "Logging In to
the Web Management Page" on page 14.
![](/img.php?id=1792791&img=bg2.png)
2
Getting to Know Your Mobile WiFi
Note:
The Mobile WiFi function descriptions and illustrations in this document are for your
reference only. The product you have purchased may vary.
Application Scenario
Wi-Fi devices (such as smartphones, tablet
computers, and game consoles) can all access
the Internet through Mobile WiFi. The specific
connection procedure depends on the operating
system of the Wi-Fi device. Establish a
connection according to your device's specific
instructions.
![](/img.php?id=1792791&img=bg3.png)
3
Appearance
6
7
8
2
3
4
5
1
Screen Lanyard hole
WPS button USB port (micro B USB)
Power/Wi-Fi button Reset button
SIM card slot microSD card slot
![](/img.php?id=1792791&img=bg4.png)
4
Screen
R
000:00
B
1
5
A
4G
6
7
8
9
4
2
3
Signal strength
: The signal strength from weak to strong.
Network type
4G/3G/2G: Accessing to the 4G/3G/2G network.
Wi-Fi
Wi-Fi turned on.
![](/img.php?id=1792791&img=bg5.png)
5
Number of connected Wi-Fi devices.
Internet connection mode
A: Automatic mode.
M: Manual mode.
Battery
: The battery level from weak to strong.
SMS
New messages.
Number of new messages.
Network connection status
Internet connection is set up.
Roaming status
Roaming on.
![](/img.php?id=1792791&img=bg6.png)
6
Traffic Statistics
Data traffic information.
Connection time.
Note:
Data traffic information is for your reference only. For more accurate data traffic
information, please consult your service provider.
SSID and Wireless Network Encryption Key
When a Wi-Fi device establishes a connection to the Mobile WiFi for the first time, you may
need to enter the default Service Set Identifier
(SSID) and wireless network encryption key.
These can be found in the gift box.
In addition, press the button twice to view
the current SSID and wireless network
encryption key on the screen.
![](/img.php?id=1792791&img=bg7.png)
7
Getting Started

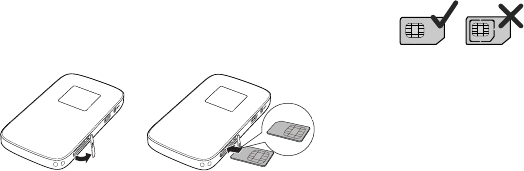

Installing a SIM Card
Caution:
Use a standard SIM card compatible with the Mobile WiFi,
otherwise you will damage your Mobile WiFi.
Install the SIM card according to the illustration.
Note:
When removing the SIM card, open the tab and gently press the SIM card in, then
![](/img.php?id=1792791&img=bg8.png)
8
release. The card will automatically pop out.
Do not remove the SIM card when it is in use. Doing so will affect the performance of
your Mobile WiFi and data stored on the SIM card may be lost.

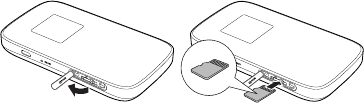

Installing the microSD Card
Install the microSD card according to the illustration.
Note:
The microSD card is an optional accessory. If no microSD card is included in the
package, please purchase one separately.
![](/img.php?id=1792791&img=bg9.png)
9
When removing the microSD card, open the tab and gently press the microSD card in,
then release. The card will automatically pop out.
Do not remove the microSD card when it is in use. Doing so will affect the
performance of your Mobile WiFi and data stored on the microSD card may be lost.
Charging the Battery
Charge your Mobile WiFi the first time you use it or if it has not been used for a long time.
Method 1: Use the power adapter to charge the device
Note:
Only use chargers compatible with
the Mobile WiFi and provided by a
designated manufacturer
(HW-050200U3W). Use of an
incompatible charger or one from an
unknown manufacturer may cause
the Mobile WiFi to malfunction, fail,
or could even cause a fire. Such use
![](/img.php?id=1792791&img=bga.png)
10
voids all warranties, whether expressed or implied, on the product.
The power adapter is an optional accessory. If it has not been included in the package,
please contact the local dealer to buy an adapter compatible with the Mobile WiFi.

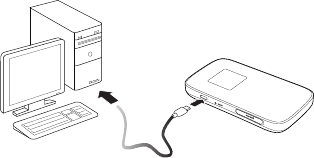

Method 2: Charge the device through a computer connection
Use the data cable provided with your device to connect the Mobile WiFi to the computer.
![](/img.php?id=1792791&img=bgb.png)
11
Connecting to the Internet via Wi-Fi
The Mobile WiFi's management parameters have been preset according to your operator's
requirements. You can quickly connect to the Internet by following these steps:

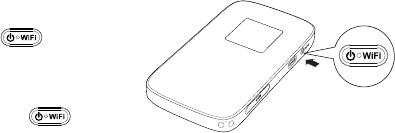

Step 1: Turn on the Mobile WiFi
Press and hold the button until
the screen lights up, indicating that the
Mobile WiFi is turned on.
Note:
Press and hold the button
to turn off the Mobile WiFi.
Step 2. Establish a Wi-Fi connection (using a computer running the
Windows XP operating system as an example)
1. Ensure that the Mobile WiFi's Wi-Fi function is on.
2. Select Start > Control Panel > Network Connections > Wireless Network Connection.
![](/img.php?id=1792791&img=bgc.png)
12
Note:
Before establishing a Wi-Fi connection, ensure that the computer is equipped with a
wireless network adapter. If the computer indicates a wireless network connection, the
wireless network adapter can be used. Otherwise, verify that your wireless network
adapter is working properly.
3. Click to view a list of available wireless networks.
4. Select the wireless network connection with the Mobile WiFi's SSID and click Connect.
Note:
If the wireless network connection is encrypted, enter the correct wireless network
encryption key.
Press twice to view the current SSID and wireless network encryption key on the
screen.
5. Wait a moment for the wireless network connection icon to appear in the system tray in
the lower right corner of the computer screen. The wireless network connection is then
established.
![](/img.php?id=1792791&img=bgd.png)
13
Step 3: Connect to the Internet
After successfully establishing a Wi-Fi connection, you can connect to the Internet using the
following methods.
Note:
Select an appropriate Internet connection mode according to your billing method. For
instance, if your network service calculates your bill by network connection time, it is
recommended that you select manual connection mode. For detailed information about
your network fees, please contact your operator.
Mode Operations
Automatic If data is transmitted, the Mobile WiFi will automatically connect to the
Internet. If data is not transmitted for a period of time, the Mobile WiFi
will automatically disconnect from the network connection.
Manual After logging in to the web management page, connect to or disconnect
from the network according to the instructions.
14
Note:
You can log in to the web management page and select an Internet connection mode.
You can enable or disable the automatic dialing while roaming function. If this function
is turned off, when the Mobile WiFi enters a roaming network, it will automatically
disconnect from the Internet connection that has already been established. You will
need to manually establish this network connection again.
Logging In to the Web Management Page
1. Make sure the connection between the Mobile WiFi and the Wi-Fi device or computer is
working normally.
2. Open the browser, and enter http://192.168.1.1 in the address box.
3. Enter the password to log in to the web management page.
Note:
The default password is admin.
15
Daily Use
Battery Saving Mode
If the Mobile WiFi has been inactive for some time, the display screen will turn off. Pressing any
button causes the display screen to light up.
When the Mobile WiFi is being powered only by the battery, you can choose to enable or
disable the automatic Wi-Fi turnoff function. If this function is enabled and if no Wi-Fi devices
access the Mobile WiFi for a period of time, the Wi-Fi turns off automatically. You can press any
button to turn the Wi-Fi on again.
Verifying the PIN
If the PIN verification function is enabled, log in to the web management page and enter the
correct PIN according to the instructions. PIN/PUK codes are supplied by your operator along
with the SIM card. For details, please consult your operator.
![](/img.php?id=1792791&img=bg10.png)
16
Establishing a WPS Connection
If the Wi-Fi device to be connected to the Mobile WiFi supports WPS, the wireless network
encryption key is generated automatically and there is no need to enter it manually. The steps
for WPS connection are as follows:
1. Turn on the Mobile WiFi.
2. Turn on the Wi-Fi device to be
connected to the Mobile WiFi.

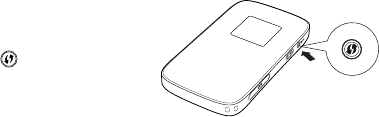

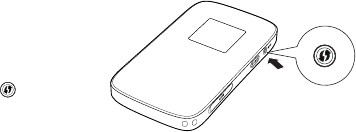

3. Activate the Mobile WiFi's WPS.
Note:
Press and hold the button to
activate Mobile WiFi's WPS.
4. Activate the Wi-Fi device's WPS.
Note:
For specific instructions for the Wi-Fi device, refer to the device's user manual.
![](/img.php?id=1792791&img=bg11.png)
17
Restoring to Factory Settings
If you forget some configuration
parameters, you can restore the Mobile
WiFi to its factory settings and then
configure the Mobile WiFi again.
Press and hold the RESET button until
the display screen turns off. The Mobile
WiFi is then restored to its factory
settings.
Note:
After you carry out this operation, the Mobile WiFi's personal configuration parameters
will all be deleted. All configurations on the web management page will be restored to
the factory settings.
![](/img.php?id=1792791&img=bg12.png)
18
Example 1: Connecting to a Game Console (for example, PSP)
through Wi-Fi
1. On the PSP, turn on the WLAN.
2. Choose Settings > Network Settings.
3. Select Infrastructure Mode.
4. Select New Connection, and enter the
connection name.
5. Select Scan to search for wireless
networks. A list of access points will be
displayed on the screen.
6. Select the access point with the Mobile
WiFi's SSID, and press the ► button on
the PSP. Confirm the SSID, and enter the
correct wireless network encryption key.
7. Press the ► button to proceed to the
next step, and then press the X button to
save settings.
![](/img.php?id=1792791&img=bg13.png)
19
8. Select Test Connection to test whether
the network connection is successful.
9. You can now open the browser and
access the network.
![](/img.php?id=1792791&img=bg14.png)
20
Example 2: Connecting to a Tablet Computer (for example, iPad)
through Wi-Fi
1. Touch Settings > WLAN to turn on WLAN.
2. The tablet computer automatically
searches for wireless connections and
displays a list of access points.
3. Select the access point with the Mobile
WiFi's SSID.
4. If required, enter the correct wireless
network encryption key, and tap Join.
(The lock icon indicates that the encryption
key is required to connect to this wireless
network.)
Note:
Wi-Fi devices, such as an iPhone, iPod touch, PS3 and NDSi, can all access the Internet
through the Mobile WiFi. For specific operations, refer to the Wi-Fi device's user manual.
21
Tips
When the Mobile WiFi is in use for an extended period of time, it will become warm and may
overheat. Should this happen, the Mobile WiFi will automatically close the network connection
and turn off to protect itself from damage. If this occurs, place the Mobile WiFi in a well
ventilated space to allow the heat to dissipate, then turn it on and continue to use it as normal.
If you are unable to use the Mobile WiFi as normal, try the following:
Consult the online help on the web management page.
Restart the Mobile WiFi.
Restore the Mobile WiFi to the factory settings.
Consult your operator.
Version: V100R001_01 Part Number: 3101XXXX
