User Manual

Product Description

HUAWEI E870 HSPA Data Card

V100R001

Issue 03

Date 2007-08-13

HUAWEI TECHNOLOGIES CO., LTD.

Issue 03 (2007-08-13) Commercial in Confidence Page 2 of 25

Huawei Technologies Co., Ltd. provides customers with comprehensive technical support and service.

Please feel free to contact our local office or company headquarters.

Huawei Technologies Co., Ltd.

Address: Huawei Industrial Base

Bantian, Longgang

Shenzhen 518129

People's Republic of China

Website: http://www.huawei.com

Email: support@huawei.com

No part of this document may be reproduced or transmitted in any form or by any means without prior

written consent of Huawei Technologies Co., Ltd.

Trademarks and Permissions

and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.

All other trademarks and trade names mentioned in this document are the property of their respective

holders.

Notice

The information in this document is subject to change without notice. Every effort has been made in the

preparation of this document to ensure accuracy of the contents, but all statements, information, and

recommendations in this document do not constitute the warranty of any kind, express or implied.

HUAWEI E870 HSPA Data Card V100R001

Product Description

Issue 03 (2007-08-13) Commercial in Confidence Page 3 of 25

About This Document

Author

Prepared by Liu Jun 43364,

Xie Juan 00102126

Date 2007-08-24

Reviewed by Xieguifu2777,

heyongquan33575,

pengyulong41654,

zhou tao tao 45174,

wuyongfeng25514,

linxiaoyan60077,

zhongzhen10650,

lihaiyan41759,

lilidan37500,

haoyongfeng33504,

caidongyan28393,

qianzexu25888,

yinjie 64840

Date 2007-07-26

Approved by Date

Summary

This document provides information about the major functions, supported services,

system architecture, and technical references of HUAWEI E870 HSPA USB Modem

(hereinafter referred to as the E870).

This document includes:

Chapter Details

1 Overview The supported network modes, basic services and

functions, and the appearance of the E870.

2 Features The supported features and technical

specifications of the E870.

3 Services and Applications The services and applications of the E870.

4 System Architecture The architecture of the E870.

HUAWEI E870 HSPA Data Card V100R001

Product Description

Issue 03 (2007-08-13) Commercial in Confidence Page 4 of 25

Chapter Details

5 Packing List The technical references of the E870.

6 Technical Reference The items contained in the package of the E870.

HUAWEI E870 HSPA Data Card V100R001

Product Description

Issue 03 (2007-08-13) Commercial in Confidence Page 5 of 25

History

Issue Details Date Author Approved by

01 Creation 2007-03-14 Xxx xxx Xxx xxxxxx

HUAWEI E870 HSPA Data Card V100R001

Product Description

Issue 03 (2007-08-13) Commercial in Confidence Page 7 of 25

Contents

1 Overview..........................................................................................................................8

2 Features...........................................................................................................................9

2.1 Main Features .................................................................................................................................. 9

2.2 Technical Specifications ................................................................................................................... 9

2.2.1 Hardware ................................................................................................................................. 9

2.2.2 Antenna ................................................................................................................................. 12

2.2.3 Software................................................................................................................................. 13

2.2.4 Dashboard ............................................................................................................................. 14

3 Services and Applications ...........................................................................................16

3.1 SMS................................................................................................................................................ 16

3.2 Data Service................................................................................................................................... 16

4 System Architecture .....................................................................................................17

4.1 System Architecture ....................................................................................................................... 17

4.2 Functional Modules ........................................................................................................................ 18

5 Packing List...................................................................................................................19

6 Technical Reference .....................................................................................................20

6.1 Layer 1 Specifications (Physical) ................................................................................................... 20

6.2 Layer 2 Specifications (MAC/RLC)................................................................................................. 20

6.3 Layer 3 Specifications (RRC) ......................................................................................................... 20

6.4 Layer 3 NAS/Core Network (MCM)................................................................................................ 20

6.5 GSM Protocol Specifications.......................................................................................................... 21

6.6 GPRS Protocol Specifications........................................................................................................ 21

6.7 General Specifications ................................................................................................................... 21

6.8 Performance/Test Specifications .................................................................................................... 22

6.9 USIM Specifications ....................................................................................................................... 22

A Acronyms and Abbreviations......................................................................................23

HUAWEI E870 HSPA Data Card V100R001

Product Description

Issue 03 (2007-08-13) Commercial in Confidence Page 8 of 25

1 Overview

HUAWEI E870 Data Card (hereinafter referred to as the E870) is a multi-mode

wireless terminal for mobile professionals.

The E870 supports the following standards:

z High speed downlink packet access (HSDPA)

z High speed uplink packet access (HSUPA)

z Universal Mobile Telecommunications System (UMTS)

z Global system for mobile communications (GSM)

z General packet radio service (GPRS)

z Enhanced data rates for global evolution (EDGE)

The E870 supports the following services:

z WCDMA/EDGE/GPRS packet switched (PS) domain data services and short

messaging service (SMS)

z WCDMA/GSM circuit switched (CS) domain SMS

You can insert the E870 to the ExpressCard interface of a laptop. In the service area

of the HSPA/WCDMA/GPRS/EDGE/GSM network, your can surf the Internet and

send/receive messages or e-mails cordlessly. With fast speed, reliable performance,

and easy operation of the E870, you can experience more in mobile life.

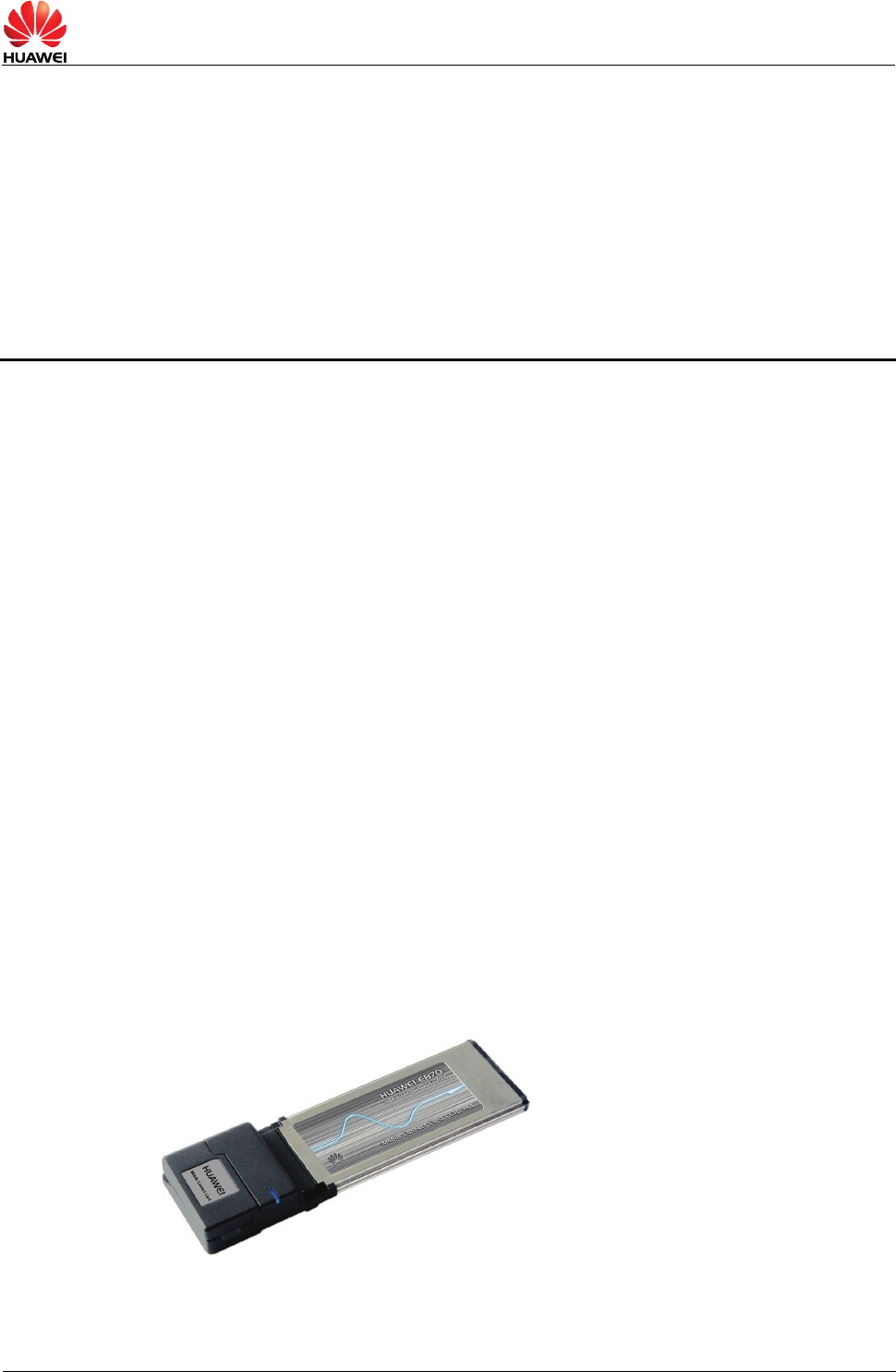

Figure 1-1 shows the profile of the E870.

Figure 1-1 E870 profile

HUAWEI E870 HSPA Data Card V100R001

Product Description

Issue 03 (2007-08-13) Commercial in Confidence Page 9 of 25

2 Features

2.1 Main Features

The E870 supports the following:

z UMTS FDD Band I, UMTS FDD Band II, UMTS FDD Band V

z GSM/GPRS/EDGE 850 MHz/900 MHz/1800 MHz/1900 MHz

z WCDMA 2100MHz receive diversity

z HSDPA PS domain service of up to 7.2 Mbit/s downlink (DL)

z HSUPA PS domain service of up to 2 Mbit/s uplink (UL)

z WCDMA PS domain data service of up to 384 kbit/s UL/DL

z EDGE PS domain data service of up to 236.8 kbit/s UL/DL

z GPRS PS domain data service of up to 85.6 kbit/s UL/DL

z CS domain SMS based on WCDMA/GSM and SMS group sending

z PS domain data service based on WCDMA/EDGE/GPRS

z PS domain SMS based on WCDMA/EDGE/GPRS and SMS group sending

z High-capacity SMS inbox

z PC/SC Driver function

z The Plug&Play function that the driver is installed when the E870 is inserted to a

laptop

2.2 Technical Specifications

2.2.1 Hardware

Table 2-1 lists the hardware specifications of the E870.

Table 2-1 Hardware specifications

Item Description

Technical

standards

z HSDPA/WCDMA: 3GPP FDD R5, HSUPA R6

z GSM/GPRS/EDGE: 3GPP R4

HUAWEI E870 HSPA Data Card V100R001

Product Description

Issue 03 (2007-08-13) Commercial in Confidence Page 10 of 25

Item Description

UMTS FDD Band V z UL: 824–849 MHz

z DL: 869–894 MHz

UMTS FDD Band II z UL: 1850–1910 MHz

z DL: 1930–1990 MHz

UMTS FDD Band I z UL: 1920–1980 MHz

z DL: 2110–2170 MHz

GSM/GPRS/EDGE 850 MHz z UL: 824–849 MHz

z DL: 869–894 MHz

GSM/GPRS/EDGE 900 MHz z UL: 880–915 MHz

z DL: 925–960 MHz

GSM/GPRS/EDGE 1800 MHz z UL: 1710–1785 MHz

z DL: 1805–1880 MHz

Operating

frequency

GSM/GPRS/EDGE 1900 MHz z UL: 1850–1910 MHz

z DL: 1930–1990 MHz

External

interface

ExpressCard interface ExpressCard Standard 1.1,

ExpressCard/54 or

ExpressCard/34 Slot

HUAWEI E870 HSPA Data Card V100R001

Product Description

Issue 03 (2007-08-13) Commercial in Confidence Page 11 of 25

Item Description

LED z When the E870 is inserted to

the ExpressCard slot of a

laptop, the LED blinks the

green light. The LED is on for

100 ms and off for 100 ms.

Then it is on for 100 ms and

off for 2700 ms.

z When the E870 registers to

the GSM/GPRS network, the

LED blinks the green light.

The LED is on for 100 ms and

off for 2900 ms.

z When the E870 registers to

the UMTS network, the LED

blinks the blue light. The LED

is on for 100 ms and off for

2900 ms.

z When the E870 connects to

the GPRS/EDGE network, the

LED is always on and in

green.

z When the E870 connects to

the UMTS network, the LED is

always on and in blue.

z When the E870 connects to

the HSDPA network, the LED

is always on and in cyan.

z When the E870 is removed

from a laptop, the LED is off.

Antenna interface SSMB

SIM/USIM card interface Standard 6-pin SIM card

interface

Maximum

transmitting

power

z WCDMA/HSPA 2100MHz/1900MHz/850MHz: + 24 dBm (Power

Class 3)

z GSM/GPRS 850MHz/900 MHz: +33 dBm (Power Class 4)

z GSM/GPRS 1800 MHz/1900 MHz: +30 dBm (Power Class 1)

z EDGE 850MHz/900 MHz: +27 dBm (Power Class E2)

z EDGE 1800 MHz/1900 MHz: + 26 dBm (Power Class E2)

Static

receiving

sensitivity

z WCDMA/HSPA 2100 MHz/1900MHz/850MHz: compliant with

3GPP TS 25.101 (R5)

z GSM/GPRS/EDGE 850MHz/900 MHz/1800 MHz/1900 MHz:

compliant with 3GPP TS 05.05 (R99)

Power

consumption

Average < 3 W

HUAWEI E870 HSPA Data Card V100R001

Product Description

Issue 03 (2007-08-13) Commercial in Confidence Page 12 of 25

Item Description

Power

supply

z Input voltage: 3.0–3.6 V

z Input current < 1A

z Powered by ExpressCard slot

Dimensions

(L × W × H)

112.5 mm × 34 mm × 10.5 mm

Weight < 60 g

Operating –10℃ to +55℃ Temperature

Storage –20℃ to +70℃

Humidity 5% to 95%

Note:

z 3GPP = The 3rd Generation Partnership Project

z LED = light-emitting diode

z SIM = subscriber identity module

z UMTS = universal mobile telecommunications system

z USIM = UMTS subscriber identity module

2.2.2 Antenna

Table 2-2 lists the main antenna specifications of the E870.

Table 2-2 Main antenna specifications

Item Description

Frequency range z 824–960 MHz

z 1710–2170 MHz

Input impedance 50 Ω

Voltage standing wave ratio ≤ 4

Peak gain ≥ –2 dbi

Power capacity 4 W

Polarization Linear polarization

Table 2-3 lists the sub-antenna specifications of the E870.

HUAWEI E870 HSPA Data Card V100R001

Product Description

Issue 03 (2007-08-13) Commercial in Confidence Page 13 of 25

Table 2-3 Sub-antenna specifications

Item Description

Frequency range 2110–2170 MHz

Input impedance 50 Ω

Voltage standing wave ratio ≤ 4

Peak gain ≥ –5 dbi

Power capacity 4 W

Polarization Linear polarization

2.2.3 Software

Table 2-4 lists the software specifications of the E870.

Table 2-4 Software specifications

Item Description

GSM CS z UL: 9.6/14.4 kbit/s

z DL: 9.6/14.4 kbit/s

GPRS z UL: 85.6 kbit/s (compliant with Multislot

Class 12)

z DL: 85.6 kbit/s

EDGE z UL: 236.8 kbit/s (compliant with Multislot

Class 12)

z DL: 236.8 kbit/s

WCDMA CS z UL: 64 kbit/s

z DL: 64 kbit/s

WCDMA PS z UL: 384 kbit/s

z DL: 384 kbit/s

WCDMA with HSDPA

DL: 7.2 Mbit/s

Data

service

WCDMA with HSUPA

UL: 2 Mbit/s

SMS z Based on PS domain of WCDMA/EDGE/GPRS

z Based on CS domain of WCDMA/GSM

Operating Windows 2000/Windows XP/Windows Vista/MAC OS

HUAWEI E870 HSPA Data Card V100R001

Product Description

Issue 03 (2007-08-13) Commercial in Confidence Page 14 of 25

Item Description

system Minimum requirements:

z Card slot: ExpressCard/54 slot or ExpressCard/34 slot

z CPU frequency: 866 MHz

z Memory: 128 MB RAM

z Spare hard disk capacity: 100 MB

z Resolution: 800 × 600

Recommended configuration:

z CPU: 866 MHz Pentium or above

z Memory: 128 MB or above

z Spare hard disk capacity: 100 MB or above

z Resolution: 1024 × 768 or above

2.2.4 Dashboard

Table 2-5 lists the dashboard specifications of the E870.

Table 2-5 Dashboard specifications

Item Description

Writing: You can enter up to 500 English letters or 250

Chinese characters each time.

Sending/Receiving: A message can contain up to 160

English letters or 70 Chinese characters.

Splitting: A message that contains more than 160 English

letters or 70 Chinese characters is split into multiple

messages to send.

Group sending: You can send a message to up to 20

recipients each time.

Storage

z The SIM/USIM card capacity decides how many

messages can be stored in the outbox/inbox/draft

box/delivery report box of the SIM/USIM card.

z The hard disk space decides how many messages can be

stored in the outbox/inbox/draft box/delivery report box of

a laptop.

Sorting: You can sort messages by the sender/recipient

name, send/receive time, phone number, and content and

so on.

SMS

Importing: You can import messages form the SIM/USIM

card to a laptop.

HUAWEI E870 HSPA Data Card V100R001

Product Description

Issue 03 (2007-08-13) Commercial in Confidence Page 15 of 25

Item Description

Ringtone: Message ringtone is supported (can be

customized).

Current connection:

z Duration

z Flow

z Send/Receive flow and rate

z Maximum send/receive rate

Previous connection

z Duration

z Send/Receive flow

Flow display and

statistics (data

service)

Total

z Duration

z Send/Receive flow

Capacity: It is subject to the SIM/USIM card capacity or the

hard disk space.

Management: Name, phone numbers (mobile phone, home

number, and office number), e-mail address, and remarks.

Message sending from the phonebook.

Phonebook

Importing/Exporting: Import/Export contacts between the

SIM/USIM card and a laptop.

Network connection settings (auto/manual network selection

and registration).

Network status display (signal, operator name, system mode

and so on).

Selection of network connection types (for example:

WCDMA preferred, GPRS/EDGE preferred,).

Selection of network frequency

z All band

z GSM 850 MHz/900 MHz/1800 MHz/1900 MHz

z WCDMA 850 MHz/1900 MHz/2100 MHz

Other functions

PIN management: activate/deactivate PIN, PIN lock,

changing PIN, unblocking PIN by using the PUK.

Note:

z PIN = personal identification number

z PUK = PIN unblocking key

HUAWEI E870 HSPA Data Card V100R001

Product Description

Issue 03 (2007-08-13) Commercial in Confidence Page 16 of 25

3 Services and Applications

3.1 SMS

The E870 features the following:

z SMS based on GSM/WCDMA CS domain.

z SMS based on GPRS/WCDMA PS domain.

On the dashboard, you can select a bearing domain for message sending: PS or CS.

The E870 supports message writing/sending/receiving/group sending. You can

manage messages through the dashboard. Also, you can import/export messages

between the SIM/USIM card and a laptop.

3.2 Data Service

The E870 supports the following data services:

z CS domain data service based on WCDMA/GSM

z PS domain data service based on HSDPA/WCDMA/EDGE/GPRS

You can send/receive e-mails, surf the Internet, and download files through an

established wireless data channel.

Enter *99# or *98# to launch the PS domain data service. On the dashboard, you can

select a network type for the PS domain data service. The operation procedures of the

CS domain data service are similar as that of the PS domain data service except the

access number. Contact your service provider to get the access number.

HUAWEI E870 HSPA Data Card V100R001

Product Description

Issue 03 (2007-08-13) Commercial in Confidence Page 17 of 25

4 System Architecture

4.1 System Architecture

Figure 4-1 shows the diagram of the system architecture.

Figure 4-1 System architecture diagram

E870 PC/Laptop

Protocol

stack

processing

DMSS Background

module

Application

system

Hardware

module

driver

USB

Driver

Radio

frequency

module

Baseband

signal

processing

Bottom layer

drivers

(including

USB driver)

Platform service subsystem

Application

management

User

Interface

USB

Interface

Express Card

USB Interface

HUAWEI E870 HSPA Data Card V100R001

Product Description

Issue 03 (2007-08-13) Commercial in Confidence Page 18 of 25

4.2 Functional Modules

Radio Frequency (RF) Module

It sends/receives radio signals and modulates/demodulates between RF signals and

baseband signals.

Baseband Signal Processing

It processes HSDPA/WCDMA/EDGE/GPRS/GSM baseband digital signals, including:

Modulate/Demodulate HSDPA/WCDMA baseband, Modulate/Demodulate

EDGE/GPRS/GSM baseband, Encode/Decode HSDPA/WCDMA channel,

Encode/Decode EDGE/GPRS/GSM channel.

Bottom Layer Driver

It drives peripherals and implements the Plug&Play function. Peripherals include

universal serial bus (USB), LED and SIM/USIM.

Platform Service Subsystem

It initializes programs, diagnoses, downloads data and serves as a watchdog.

Protocol Stack System

It processes Layer 2 and Layer 3 protocols of HSDPA/WCDMA/GSM/GPRS/EDGE.

Application System

It sends laptop commands to the bottom layer protocol for processing and returns the

value to the laptop. Current application includes call management, message

management, and CS/PS domain service management.

User Interface

It provides interfaces to connect peripherals. Interfaces are for LED, SIM/USIM, and

external antenna.

Express Card USB

It provides the USB interface as defined in the ExpressCard Standard. USB driver

function is realized on a laptop. The functions help exchange information between the

dashboard and the E870.

Application Management

It realizes the message sending/receiving function on a laptop. It provides the CS/PS

domain Web-browsing interface. Also, it refreshes the E870 status periodically.

HUAWEI E870 HSPA Data Card V100R001

Product Description

Issue 03 (2007-08-13) Commercial in Confidence Page 19 of 25

5 Packing List

Table 5-1 lists the packing list of the E870.

Table 5-1 Packing list

Item Quantity Remarks

HUAWEI E870 data card 1 Standard

Adapter 1 Standard

HUAWEI E870 data card quick start 1 Standard

Certificate of conformance 1 Standard

HUAWEI E870 HSPA Data Card V100R001

Product Description

Issue 03 (2007-08-13) Commercial in Confidence Page 20 of 25

6 Technical Reference

6.1 Layer 1 Specifications (Physical)

z Examples of Channel Coding and Multiplexing TR 25.944 (V3.3.0)

z Physical Layer–General Description TS 25.201 (V3.1.0)

z Physical Channels and Mapping of Transport Channels onto Physical Channels

(FDD) TS 25.211 (V3.5.0)

z Multiplexing and Channel Coding (FDD) TS 25.212 (V3.5.0)

z Spreading and Modulation (FDD) TS 25.213 (V3.4.0)

z Physical Layer–Procedures (FDD) TS 25.214 (V3.5.0)

z Physical Layer–Measurements (FDD) TS 25.215 (V3.5.0)

6.2 Layer 2 Specifications (MAC/RLC)

z MAC Protocol Specification TS 25.321 (V3.6.0)

z RLC Protocol Specification TS 25.322 (V3.5.0)

6.3 Layer 3 Specifications (RRC)

z UE Interlayer Procedures in Connected Mode TS 25.303 (V3.6.0)

z UE Procedures in Idle Mode TS 25.304 (V3.5.0)

z RRC Protocol Specification TS 25.331 (V3.5.0)

6.4 Layer 3 NAS/Core Network (MCM)

z Architectural Requirements for Release 1999 TS 23.121 (V3.5.1)

z NAS Functions Related to Mobile Station (MS) in Idle Mode TS 23.122 (V3.5.0)

z Mobile Radio Interface Signaling Layer 3–General Aspects TS 24.007 (V3.6.0)

z Mobile Radio Interface Layer 3 Specification–Core Network TS 24.008 (V3.6.0)

z PP SMS Support on Mobile Radio Interface TS24.011 (V3.5.0)

HUAWEI E870 HSPA Data Card V100R001

Product Description

Issue 03 (2007-08-13) Commercial in Confidence Page 21 of 25

6.5 GSM Protocol Specifications

z Mobile Radio Interface Layer 3 Specification, Radio Resource Control Protocol

TS 04.18 (V8.10.0)

z Mobile Station–Base Station System (MS–BSS) interface; Data Link (DL) Layer

Specification TS 04.06 (V8.11.0)

z Digital Cellular Telecommunications System (Phase 2+); Multiplexing and

Multiple Access on the Radio Path TS 05.02 (V8.9.0)

z Technical Specification Group GERAN; Channel coding TS 05.03 (V8.6.1)

z Digital Cellular Telecommunications System (Phase 2+); Radio Subsystem Link

Control TS 05.08 (V8.a.0)

z Digital Cellular Telecommunications System (Phase 2+); Radio Subsystem

Synchronization TS 05.10 (V8.8.0)

6.6 GPRS Protocol Specifications

z Overall Description of the GPRS Radio Interface; stage 2 TS 3.64 (V8.8.0)

z Mobile Radio Interface Layer 3 Specification TS 04.08 (V8.0.0)

z Mobile Radio Interface Layer 3 Specification: Radio Resource Control Protocol

TS 04.18 (V8.10.0)

z General Packet Radio Service (GPRS): Mobile Station (MS)–Base Station

System (BSS) interface; Radio Link Control/Medium Access Control (RLC/MAC)

protocol TS 04.60 (V8.10.0)

z Mobile Station–Serving GPRS Support Node (MS-SGSN) Logical Link Control

(LLC) Layer Specification TS 04.64 (V8.6.0)

z Mobile Station–Serving GPRS Support Node (MS-SGSN); Subnetwork

Dependent Convergence Protocol (SNDCP) TS 04.65 (V8.1.0)

z Multiplexing and Multiple Access on the Radio Path TS 05.02 (V8.9.0)

z Channel Coding TS 05.03 (V8.6.1)

z Modulation TS 05.04 (V8.3.0)

z Radio Transmission and Reception TS 05.05 (V8.10.0)

z General Packet Radio Service (GPRS); Stage 1 TS 22.060 (V3.5.0)

z Mobile Execution Environment (MexE) TS 23.057 (V3.4.0)

z General Packet Radio Service (GPRS) Service description; stage 2 TS 23.060

(V8.8.0)

6.7 General Specifications

z UE Capability Requirements TR 21.904 (V3.3.0)

z UE Radio Access Capabilities TR 25.926 (V3.2.0)

z Vocabulary TR 25.990 (V3.0.0)

z Radio Interface Protocol Architecture TS 25.301 (V3.6.0)

z Services Provided by the Physical Layer TS 25.302 (V3.7.0)

z Synchronization in UTRAN Stage 2 TS 25.402 (V3.4.0)

HUAWEI E870 HSPA Data Card V100R001

Product Description

Issue 03 (2007-08-13) Commercial in Confidence Page 22 of 25

6.8 Performance/Test Specifications

z UE Radio Transmission and Reception (FDD) TS 25.101 (V3.5.0)

z Common Test Environments for User Equipment (UE) TS 34.108 (V3.2.0)

z Special Conformance Testing Functions TS 34.109 (V3.2.0)

z Terminal Conformance Specification TS 34.121 (V3.3.0)

z User Equipment (UE) Conformance Specification; Part 1: Protocol Conformance

TS 34.123-1 (V3.2.0)

z User Equipment (UE) Conformance Specification; Part 2: Protocol Conformance

TS 34.123-2 (V3.2.0)

z Terminal Conformance Specification, Radio Transmission and Reception (FDD)

TS 34.121 (V3.3.0)

z S48 User Equipment (UE) Conformance Specification; Part 2: Implementation

Conformance Statement (ICS) Specification TS 34.123-2 (V3.2.0)

6.9 USIM Specifications

z SIM and IC Card Requirements TS 21.111 (V3.3.0)

z 3rd Gen. Partnership Proj Tech. Spec. Group Terminals; SIM App. Toolkit (USAT)

TS 31.111 (V3.3.0)

HUAWEI E870 HSPA Data Card V100R001

Product Description

Issue 03 (2007-08-13) Commercial in Confidence Page 23 of 25

A Acronyms and Abbreviations

3GPP 3rd Generation Partnership Project

AMR Adaptive Multi-rate Codec

CPU Central Processing Unit

CS Circuit Switched domain

CS # Coding Scheme

DCS Digital Cellular System

DL Downlink

EDGE Enhanced Data Rates for Global Evolution

GSM Global System for Mobile Communications

GPRS General Packet Radio Service (System)

HSDPA High Speed Downlink Packet Access

HSPA High Speed Packet Access

HUAWEI E870 HSPA Data Card V100R001

Product Description

Issue 03 (2007-08-13) Commercial in Confidence Page 24 of 25

HSUPA High Speed Uplink Packet Access

LED Light-emitting Diode

MAC Media Access Control

MCS # Modulation Coding Scheme

NAS Network Access Server

PCMCIA Personal Computer Memory Card International Association

PCSC Personal Computer Smart Card

PIN Personal Identification Number

PS Packet Switched Domain

PUK PIN Unblocking Key

RAM Random Access Memory

RLC Radio Link Control

RRC Radio Resource Control

SIM Subscriber Identity Module

SMS Short Messaging Service

UE User Equipment

UL Uplink

UMTS Universal Mobile Telecommunications System

USB Universal Serial Bus

HUAWEI E870 HSPA Data Card V100R001

Product Description

Issue 03 (2007-08-13) Commercial in Confidence Page 25 of 25

USIM UMTS Subscriber Identity Module

WCDMA Wideband Code Division Multiple Access

Huawei Technologies E870 HSPA Express PCI Data Card User Manual

Huawei Technologies Co.,Ltd HSPA Express PCI Data Card

Contents

User Manual

Navigation menu

Namespaces

Views

Navigation
