CPE eA360 Series

User Guide

About This Document

Issue 01 (2014-07-30)

Huawei Proprietary and Confidential

ii

About This Document

Overview

This document describes the hardware, functions, installation, configuration, operation and

maintenance (OM) of the eA360 series customer premises equipment (CPE).

Product Version

Product Name

Product Version

eA360 Series CPE

V100R001

Intended Audience

This document is intended for:

 System engineers

 Product engineers

 Technical support engineers

Issue 01 (2014-07-30)

This is the first commercial release.

CPE eA360 Series

User Guide

Contents

Issue 01 (2014-07-30)

Huawei Proprietary and Confidential

iii

Contents

About This Document .................................................................................................................... ii

1 Overview ......................................................................................................................................... 1

1.1 Product Introduction ..................................................................................................................................................... 1

1.2 Application Scenarios ................................................................................................................................................... 2

1.3 Hardware Specifications ............................................................................................................................................... 5

1.4 Antenna Specifications ................................................................................................................................................. 6

2 Hardware ........................................................................................................................................ 7

2.1 eA360 Hardware ........................................................................................................................................................... 7

2.2 eA360 Cables ................................................................................................................................................................ 8

2.2.1 PoE Network Cable ................................................................................................................................................... 8

3 Installation.................................................................................................................................... 10

3.1 Installation Preparation ............................................................................................................................................... 10

3.2 Installation Procedure ................................................................................................................................................. 11

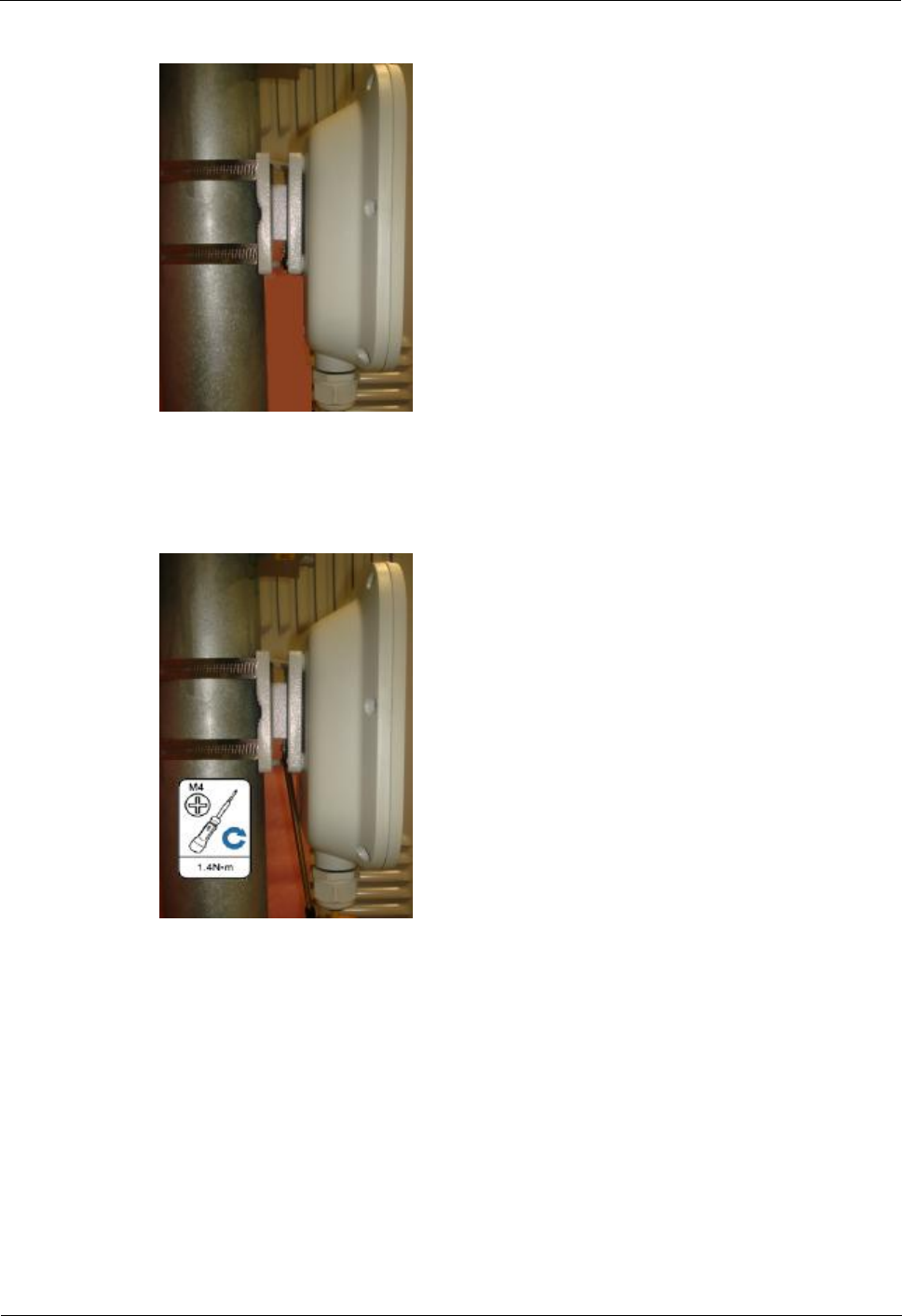

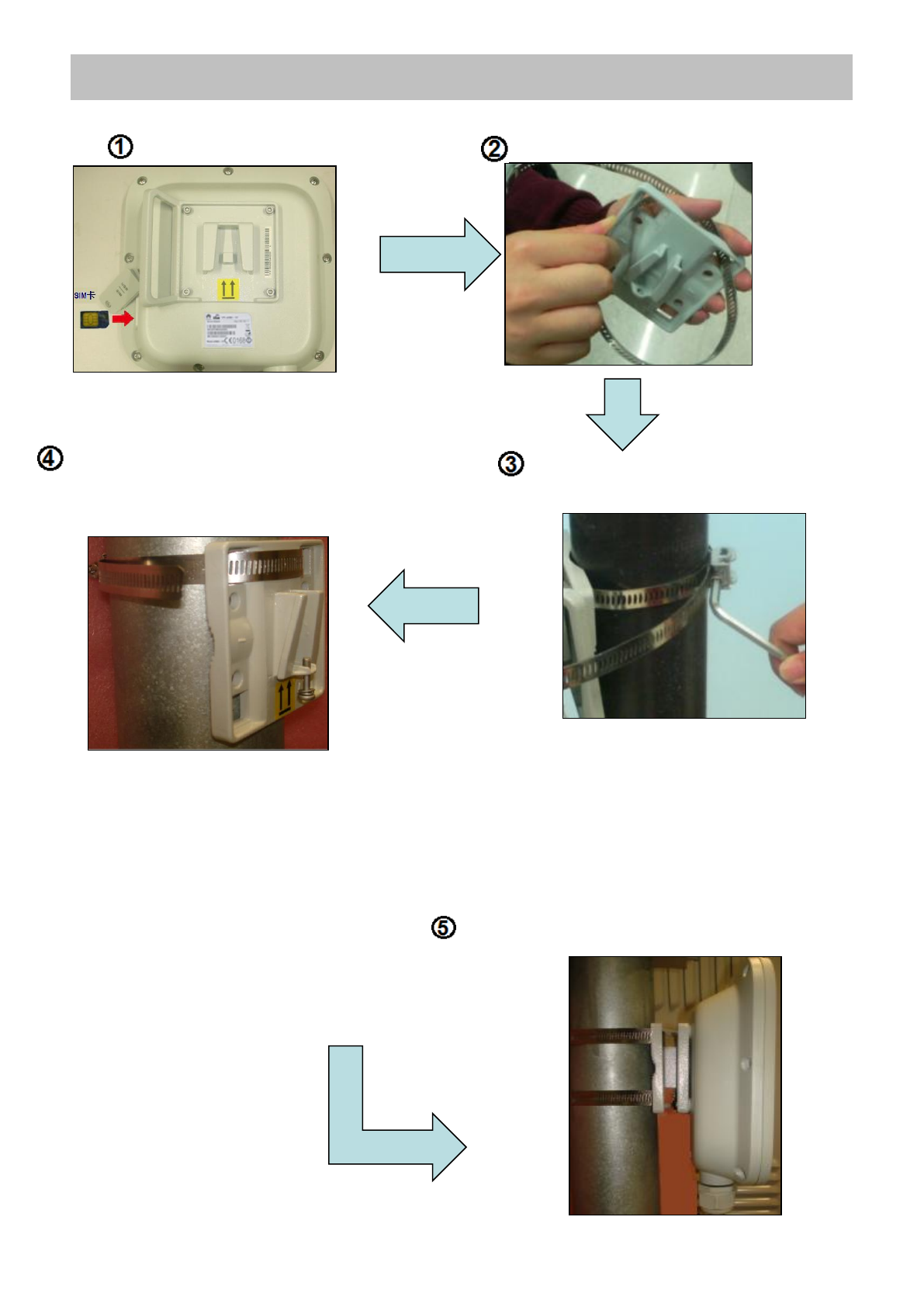

3.2.1 Mounting on a Utility Pole ...................................................................................................................................... 11

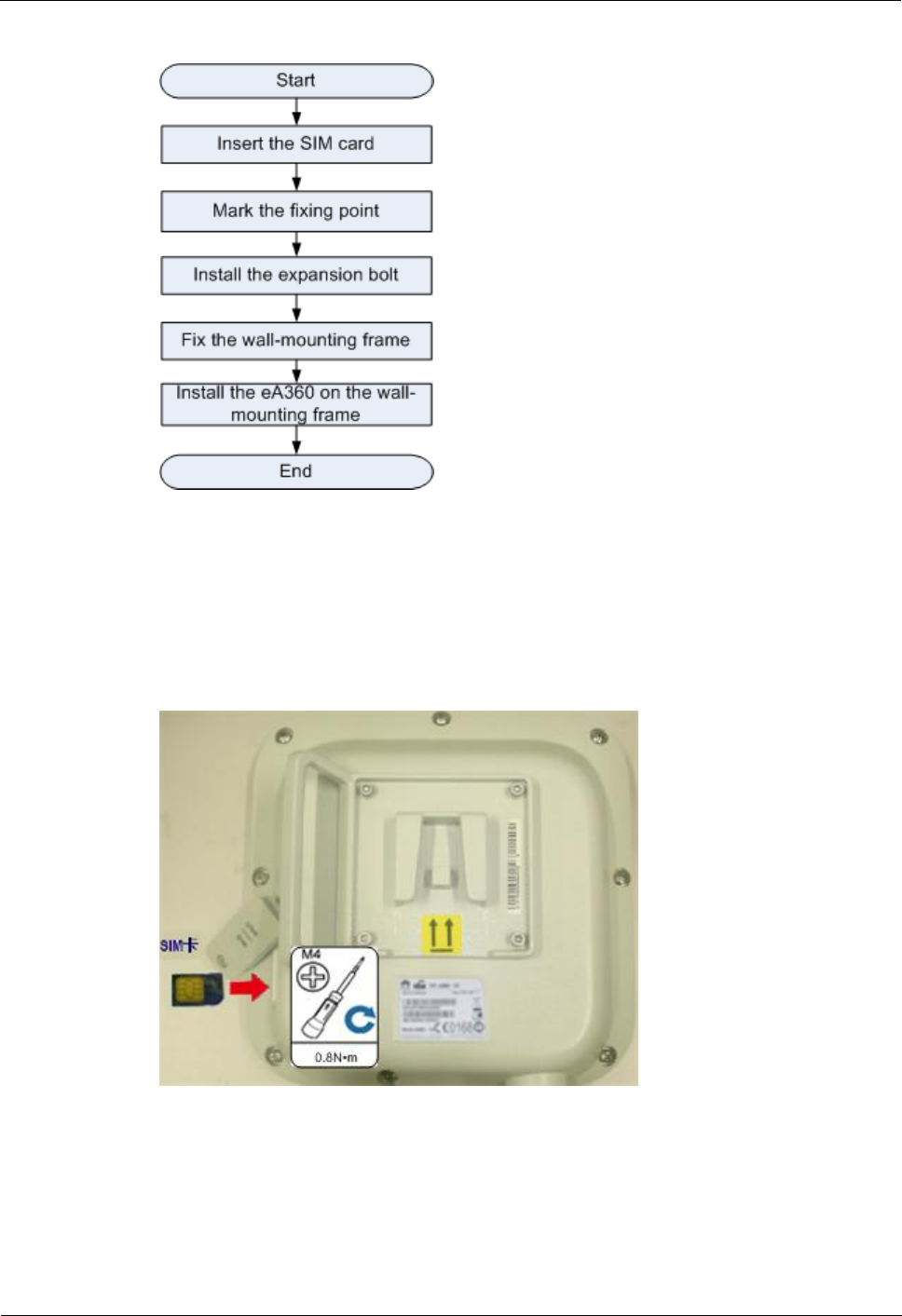

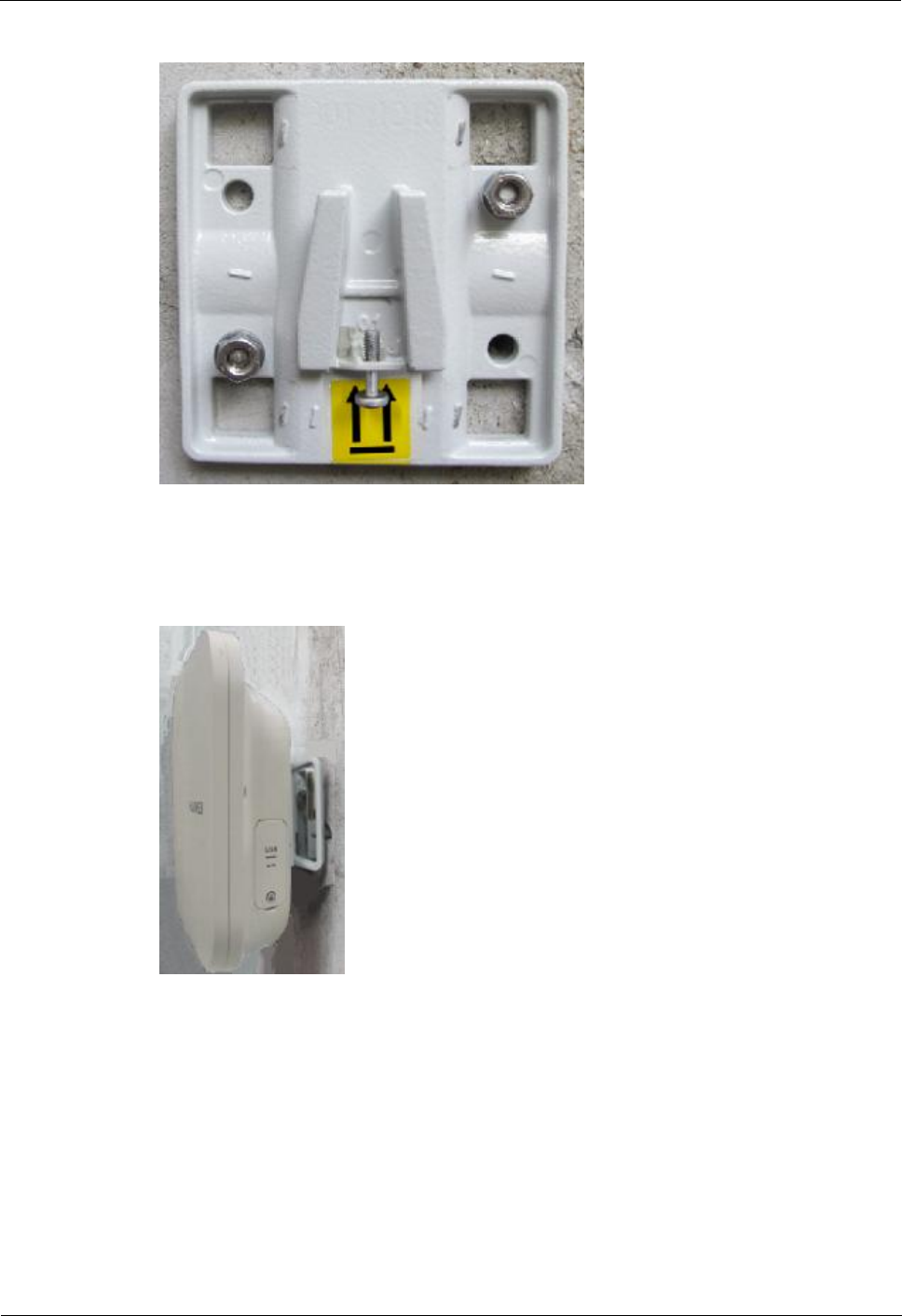

3.2.2 Mounting on the Wall .............................................................................................................................................. 15

3.2.3 Cable Connection ..................................................................................................................................................... 20

3.3 Installation Check ....................................................................................................................................................... 23

4 Configuring the eA360 ............................................................................................................... 26

5 Maintenance ................................................................................................................................. 27

5.1 Maintenance Preparation ............................................................................................................................................ 27

5.2 Fault Diagnosis ........................................................................................................................................................... 27

6 Legal Notice .................................................................................................................................. 29

6.1 Privacy Policy ............................................................................................................................................................. 29

7 Acronyms and Abbreviations ................................................................................................... 30

CPE eA360 Series

User Guide

1 Overview

Issue 01 (2014-07-30)

Huawei Proprietary and Confidential

1

1 Overview

About This Chapter

This chapter describes the functions, applications, and specifications of the product.

1.1 Product Introduction

HUAWEI eA360 is a piece of customer premises equipment (CPE) that functions as the long

term evolution (LTE) wireless gateway. It implements the conversion between LTE wireless

data and wired Ethernet data and supports data backhaul. The eA360 series can be used

independently and deployed outdoors.

The eA360 supports the LTE R8 standards and provides the following services:

 Data services

The eA360 series uses LTE broadband technologies to support high-speed broadband

network access, data backhaul, and video surveillance.

 Small-scale local area network (LAN)

The eA360 series can connect to external concentrators and Ethernet switches or routers

to set up a LAN with multiple computers. When terminal devices on the LAN connect to

the eA360 using network cables, the terminal devices can provide data services.

 Security services

The eA360 series supports the firewall and PIN password, which protects your

computers when you access the Internet.

 Firewall services

The eA360 series supports the following firewall services:

− Firewall enabling or disabling: enables or disables firewalls.

− Media access control (MAC) address filtering: prevents certain MAC addresses from

accessing the computers on a LAN.

− IP address filtering: blocks certain IP addresses from accessing the local computers.

− URL filtering: prevents computers from accessing certain URLs.

 Local and remote management and maintenance

The eA360 series can be locally configured in the local city to implement device

management and network configuration, thereby ensuring stable operation of the device.

CPE eA360 Series

User Guide

1 Overview

Issue 01 (2014-07-30)

Huawei Proprietary and Confidential

2

1.2 Application Scenarios

The eA360 provides wireless broadband and wired Ethernet data services.

The eA360 is intended to be deployed in wISP network. They can also be deployed in

industrial, public security and enterprise network if the performance is acceptable to the

network operator.

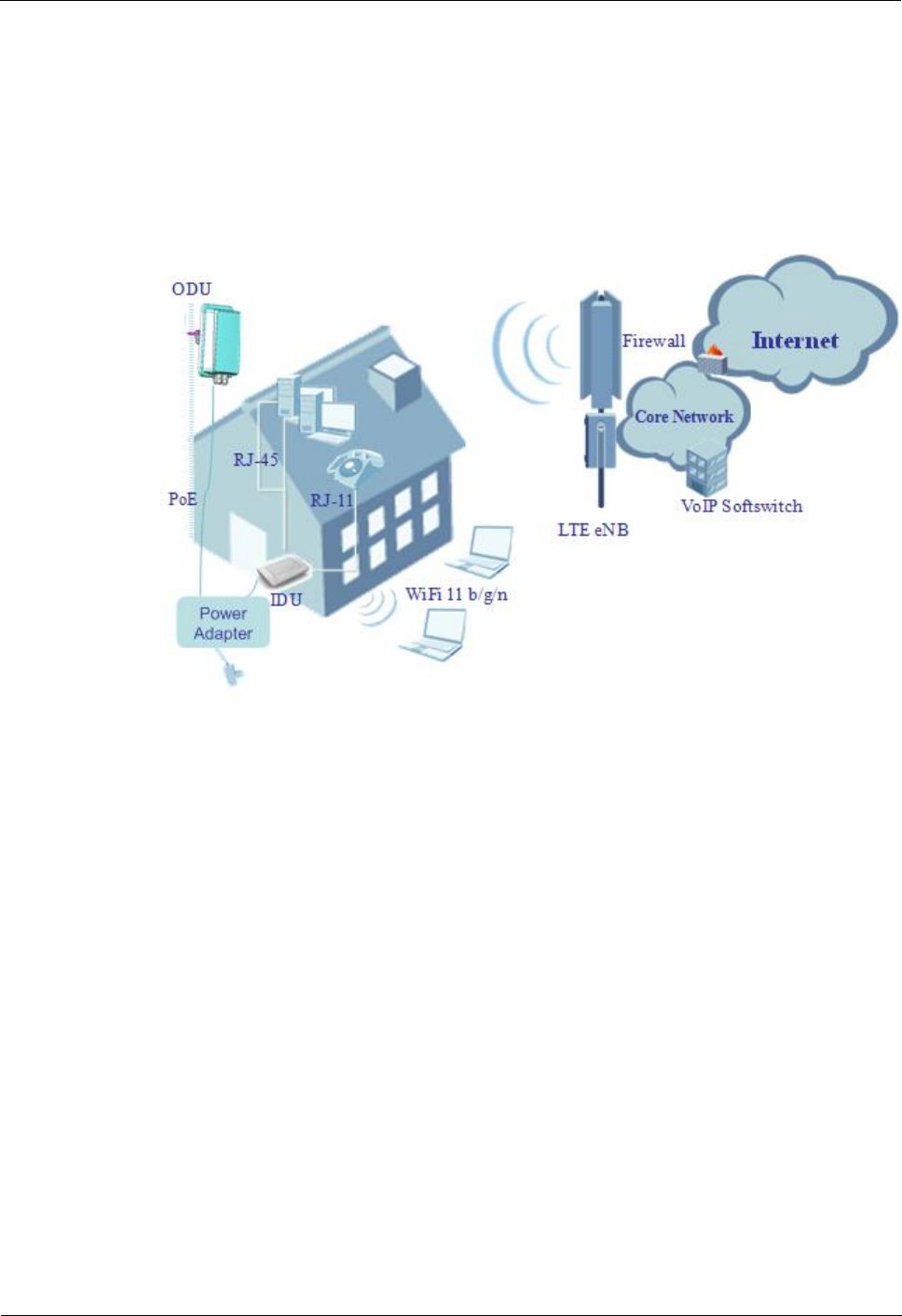

Figure 1-1 The eA360 deployed deployed in wISP network

The eA360 provides a variety of data services, such as LTE-TDD wireless routing and

converting LTE wireless data into wired Ethernet data, and vice versa. Figure 1-2 shows an

application scenario in which the eA360 is used in private industrial networks.

CPE eA360 Series

User Guide

1 Overview

Issue 01 (2014-07-30)

Huawei Proprietary and Confidential

3

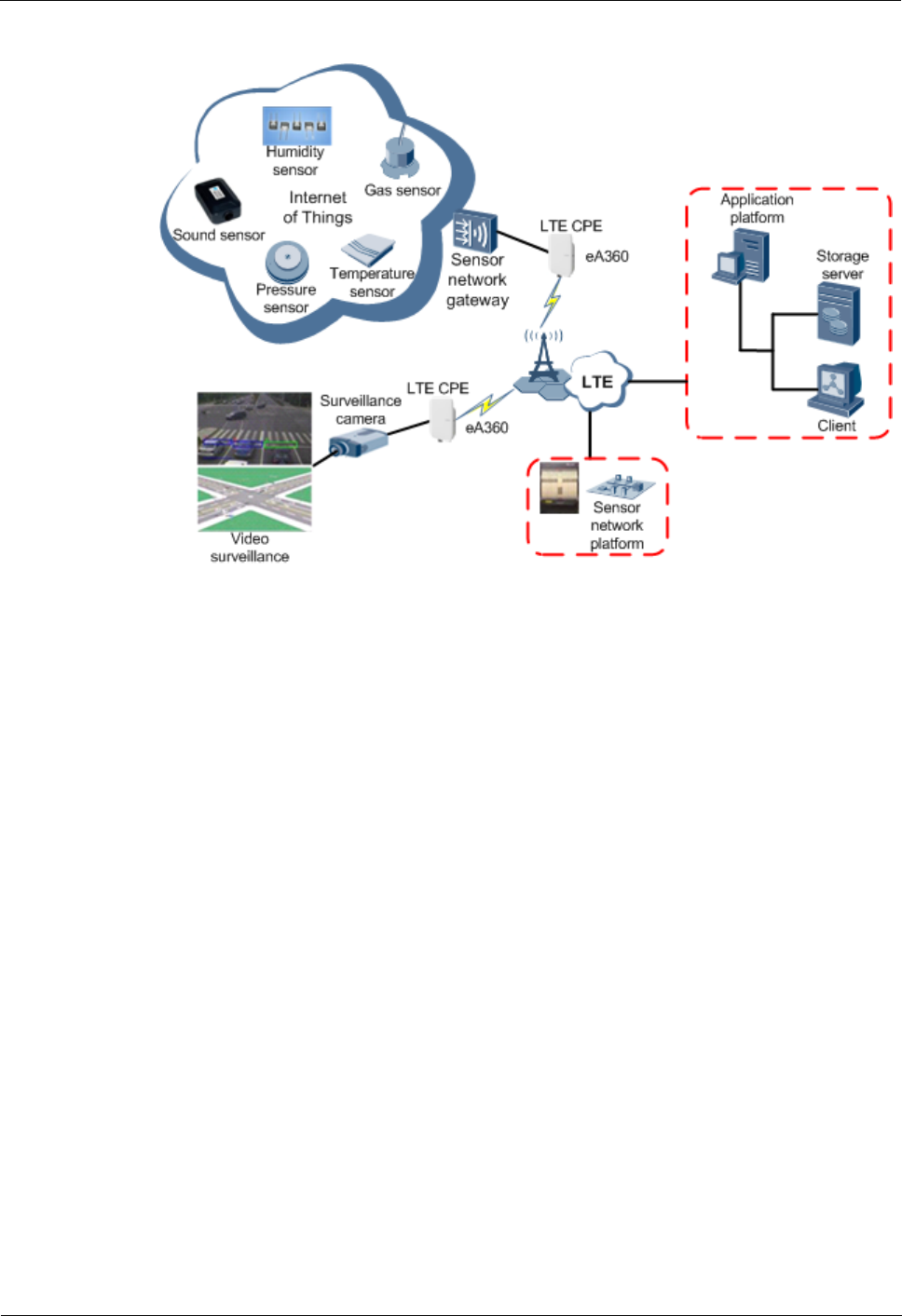

Figure 1-2 The eA360 deployed in industrial private networks

The following example describes how to use the eA360 for video monitoring.

1. Use a power adapter to supply power for the eA360 or video camera, as shown in Figure

1-3.

CPE eA360 Series

User Guide

1 Overview

Issue 01 (2014-07-30)

Huawei Proprietary and Confidential

4

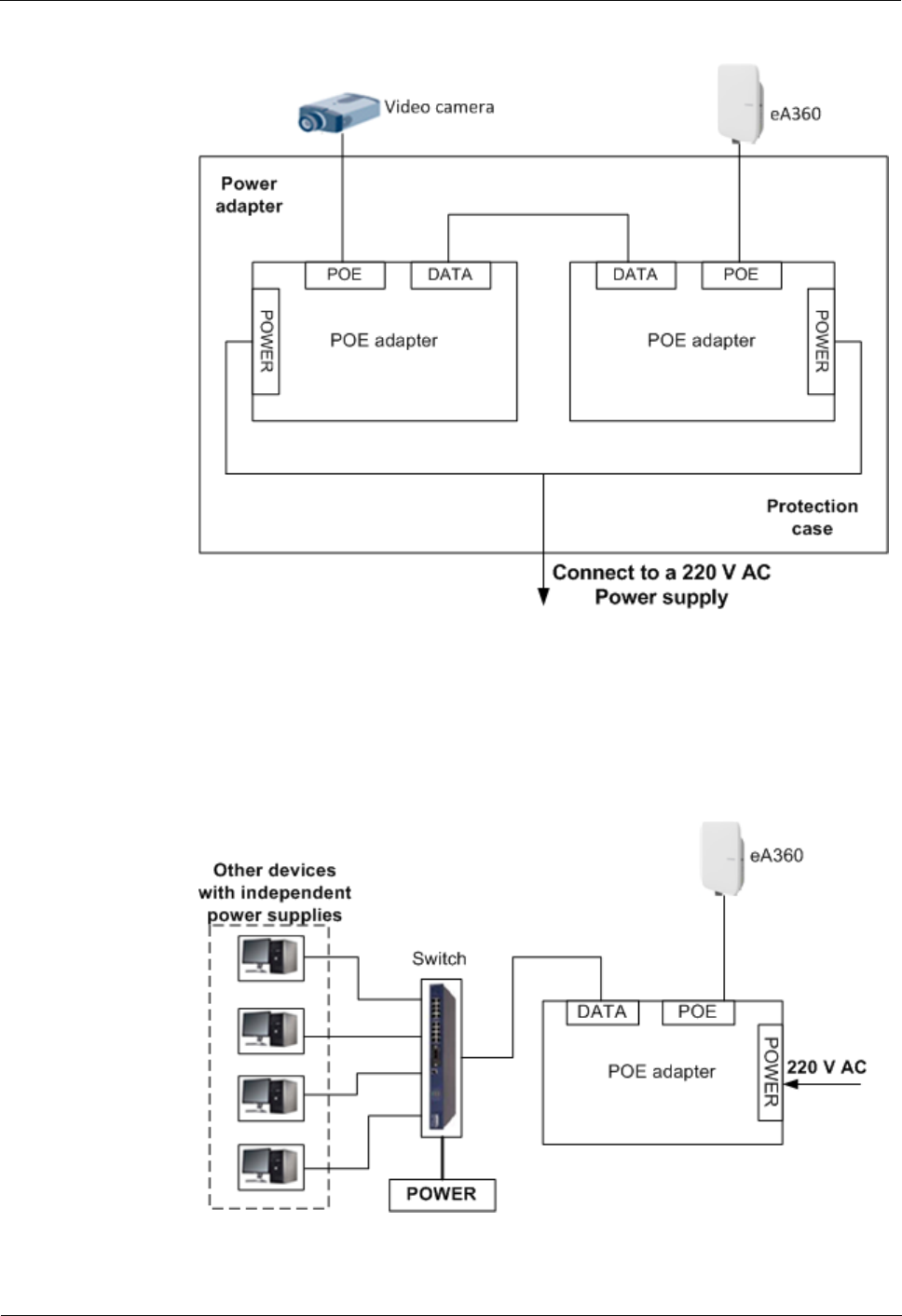

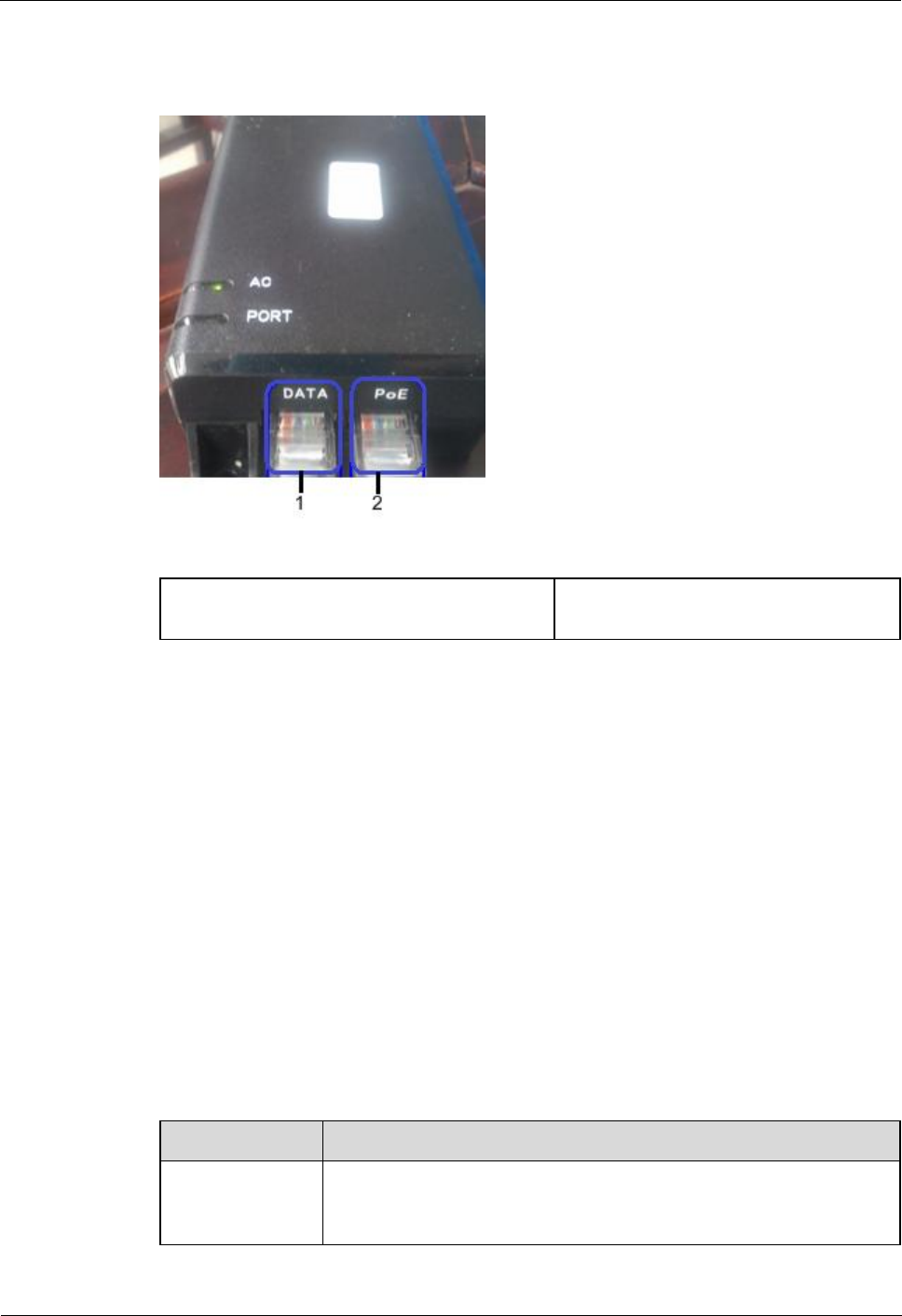

Figure 1-3 The eA360 connected to a video camera.

2. Use a network cable to connect the eA360 to an external device. If the eA360 connects

to a single device, connect the power adapter directly to the eA360. If the eA360

connects to multiple devices, connect the power adapter to a Hub or switch and then to

the eA360, as shown in Figure 1-4.

Figure 1-4 The eA360 connected to multiple devices

CPE eA360 Series

User Guide

1 Overview

Issue 01 (2014-07-30)

Huawei Proprietary and Confidential

5

1.3 Hardware Specifications

Table 1-1 describes the technical specifications of eA360.

Table 1-1 Technical specifications of eA360

Category

eA360s

Working temperature

-40°C to 60°C

Storage temperature

-40°C to 70°C

Relative humidity

5% RH to 95% RH

Installation method

Mounted on utility poles or walls

Utility pole diameter

60 mm to 114 mm

Notes: The hardware of the eA360-123 supports the Wlan function, but the software

close the WLAN function,It doesn’t display to the user ,at the same time,the user can’t

open the Wlan function;

1.4 Antenna Specifications

Table 1-2 lists the eA360 antenna's specifications.

Table 1-2 eA360s LTE antenna specifications

Item

eA360-118

eA360-123

eA360–135

Band

1785 MHz to 1805

MHz (Band 62)

1880 MHz to 1920

MHz (Band 39)

2300 MHz to 2400

MHz (Band 40)

2570 MHz to 2620

MHz (Band 38)

3400 MHz to 3600

MHz (Band 42)

3600 MHz to 3800

MHz (Band 43)

Input impedance

50 ohm

SWR

< 2

Gain

12±1 dBi

13±1dBi

16±1dBi

Polarization

cross Dual polarization

Radiation pattern

Directional antenna

CPE eA360 Series

User Guide

2 Hardware

Issue 01 (2014-07-30)

Huawei Proprietary and Confidential

7

2 Hardware

About This Chapter

This chapter describes the hardware and cables of the eA360s.

2.1 eA360 Hardware

This section describes the appearance, ports, and indicators of the eA360.

Appearance

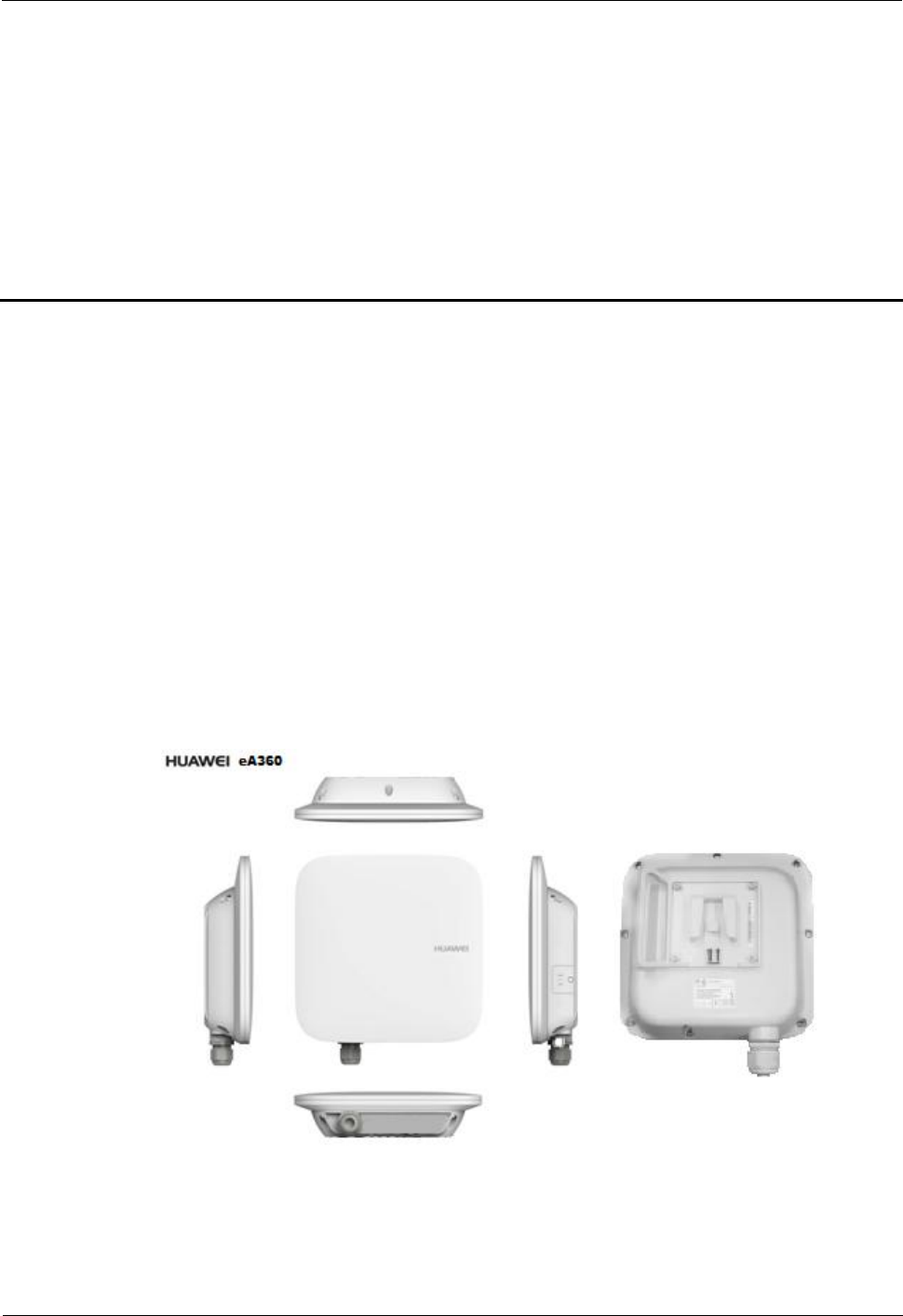

Figure 2-1 shows the appearance of the eA360.

Figure 2-1 eA360 appearance

CPE eA360 Series

User Guide

2 Hardware

Issue 01 (2014-07-30)

Huawei Proprietary and Confidential

8

Panel

The panel of the eA360 provides the Power over Ethernet (PoE) port, SIM card maintenance

window, and indicator.

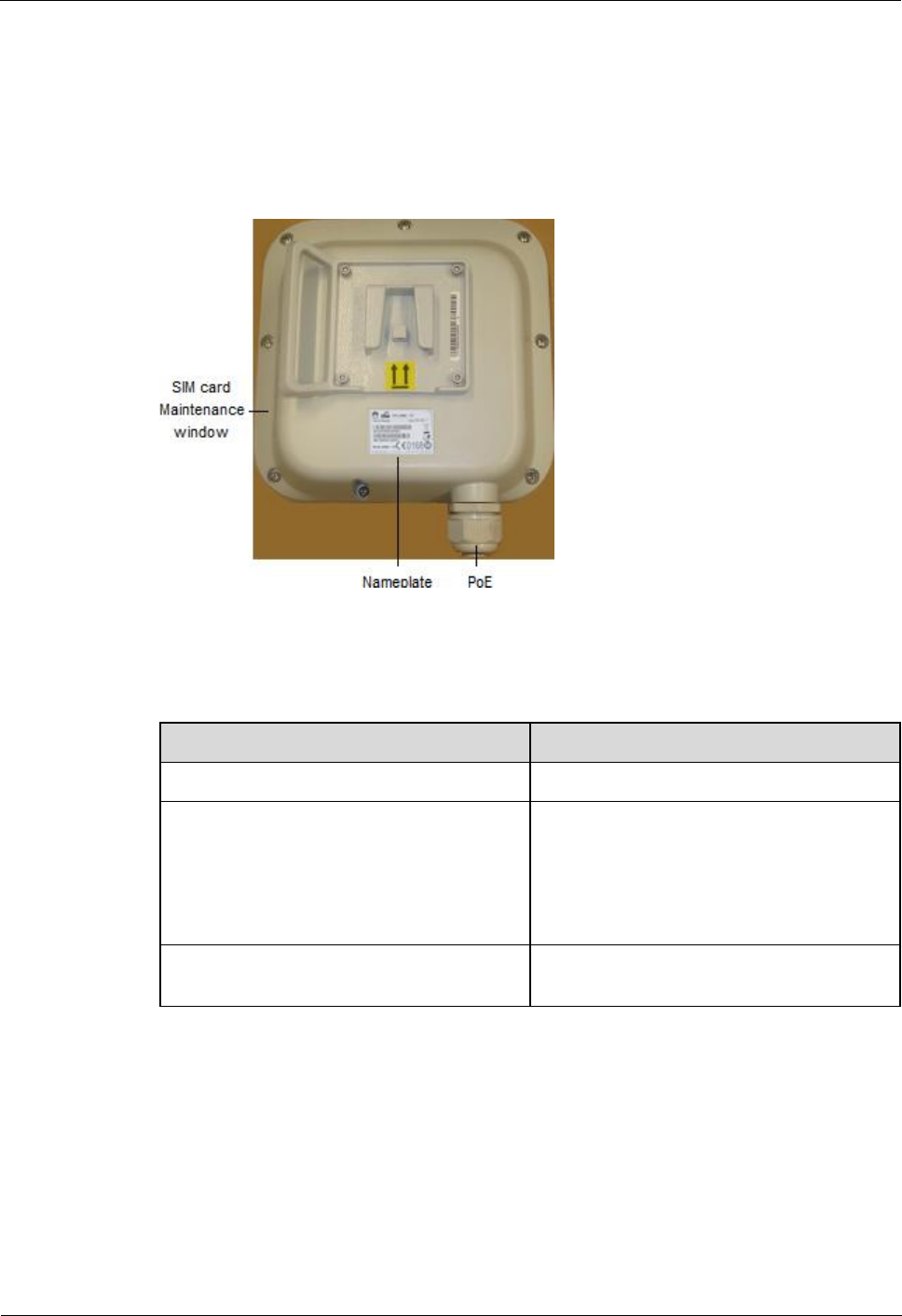

Figure 2-2 shows the panel of the eA360.

Figure 2-2 Panel of the eA360

Table 2-1 lists the ports of the eA360.

Table 2-1 Ports on the eA360

Name

Description

PoE

PoE port

SIM card maintenance window

Consists of the SIM card slot and USB port.

 A SIM card is inserted into the SIM card

slot.

 The USB port is used for internal

commissioning.

Nameplate

Displays the identifier information of a

vendor

2.2 eA360 Cables

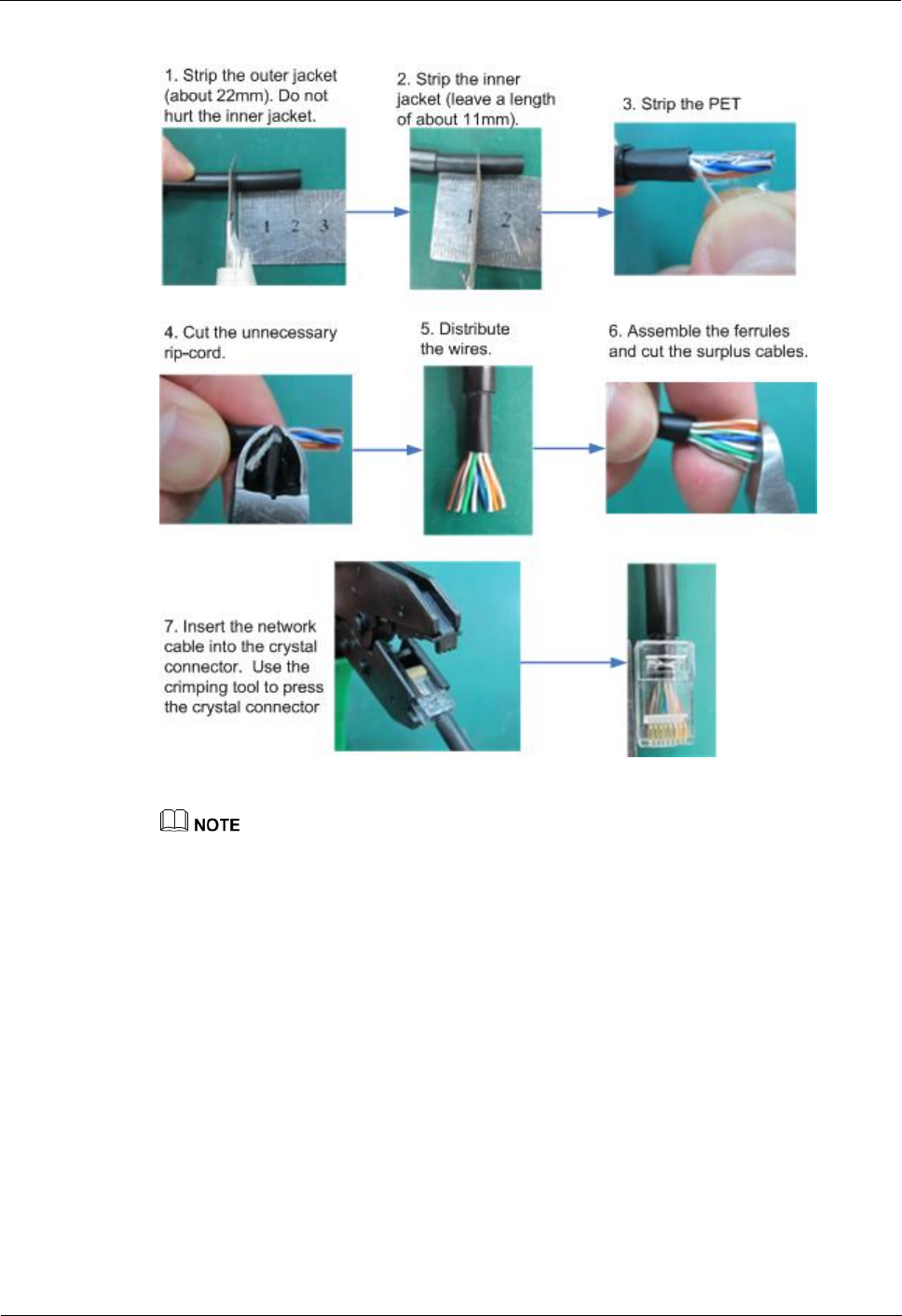

2.2.1 PoE Network Cable

The power over ethernet (PoE) network cable is an unshielded network cable that is used to

connect the PoE port of the eA360. The PoE network cable connects to an RJ45 connector at

both ends.

CPE eA360 Series

User Guide

2 Hardware

Issue 01 (2014-07-30)

Huawei Proprietary and Confidential

9

Background Information

The PoE network cable transmits data signals to the eA360 and provides DC power for the

equipment.

Technical Specifications

Table 2-2 lists the technical specifications of the PoE network cable.

Table 2-2 Technical specifications of the PoE network cable

Name

Description

Color

Black

Outer diameter

6.8 mm

Working temperature range

–40°C to 75°C

CPE eA360 Series

User Guide

3 Installation

Issue 01 (2014-07-30)

Huawei Proprietary and Confidential

10

3 Installation

About This Chapter

This section describes how to install the eA360s.

3.1 Installation Preparation

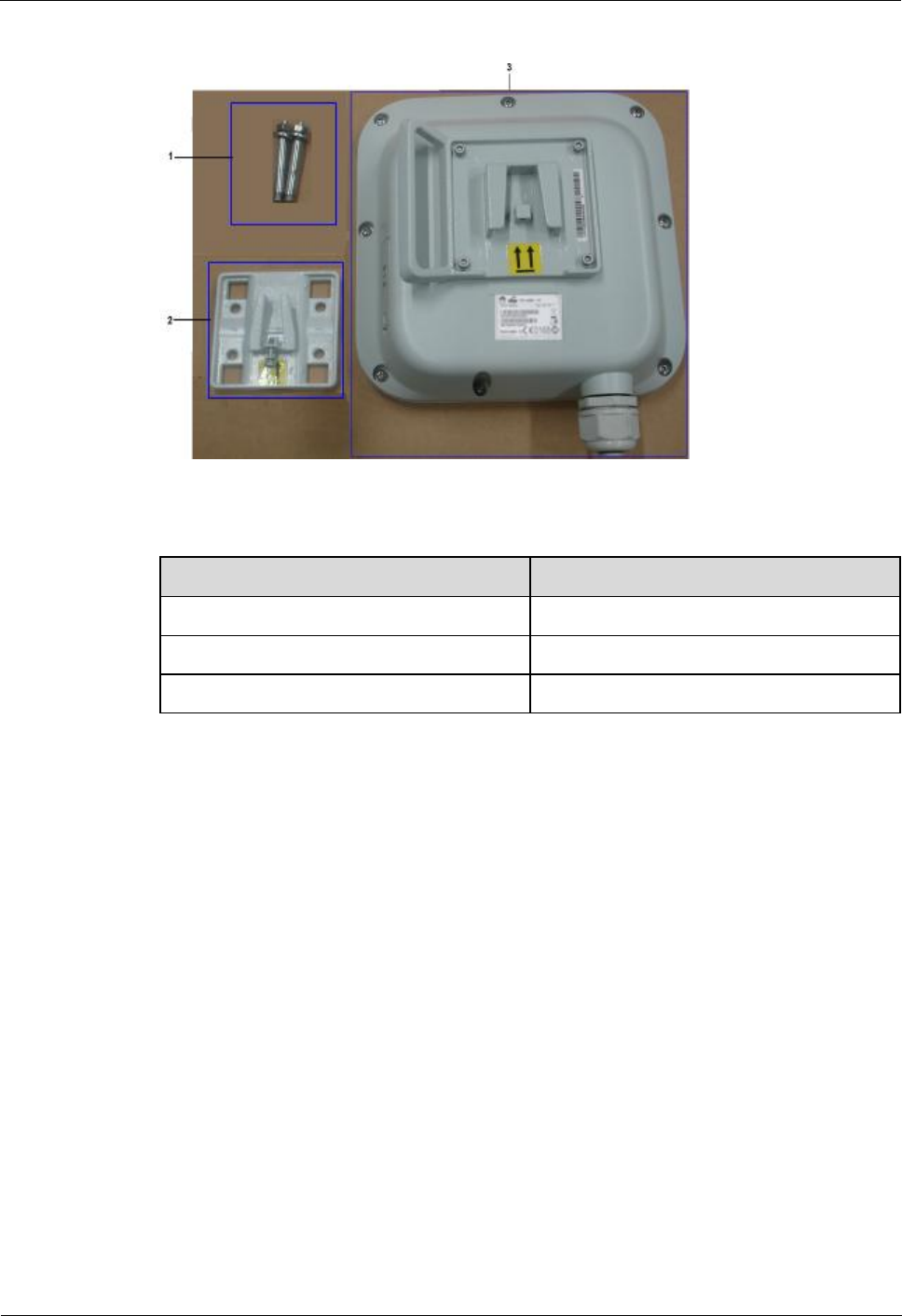

Before you install the eA360, unpack and inspect the equipment delivered to the site and

prepare the related tools. The product must be installed by professional, and the distance

should keep at least 20 meters to the roadways or in locations where it can be shown that the

ground power level of -44 dBm in the A or B blocks or -55 dBm in the C or D blocks in part

27 will not be exceeded at the nearest road location.

Prerequisites

Perform the following operations to inspect the goods delivered to the site:

1. Unpack the equipment, count the total number of items based on the packing list

attached to each packing case, and check whether each packing case is intact.

2. Check whether the models and quantities are consistent with those specified on the

Packing List.

3. Record the serial number of the CPE.

Precautions

 Power on an CPE within 24 hours after unpacking it. If you power off an CPE for

maintenance, restore power to the CPE within 24 hours.

 To avoid direct lightning, CPE must be installed in the protection angle of 45 degrees

below a separate lightning rod, or protection angle of 45 degrees below a surrounding

high-rise building.

Installation Tools

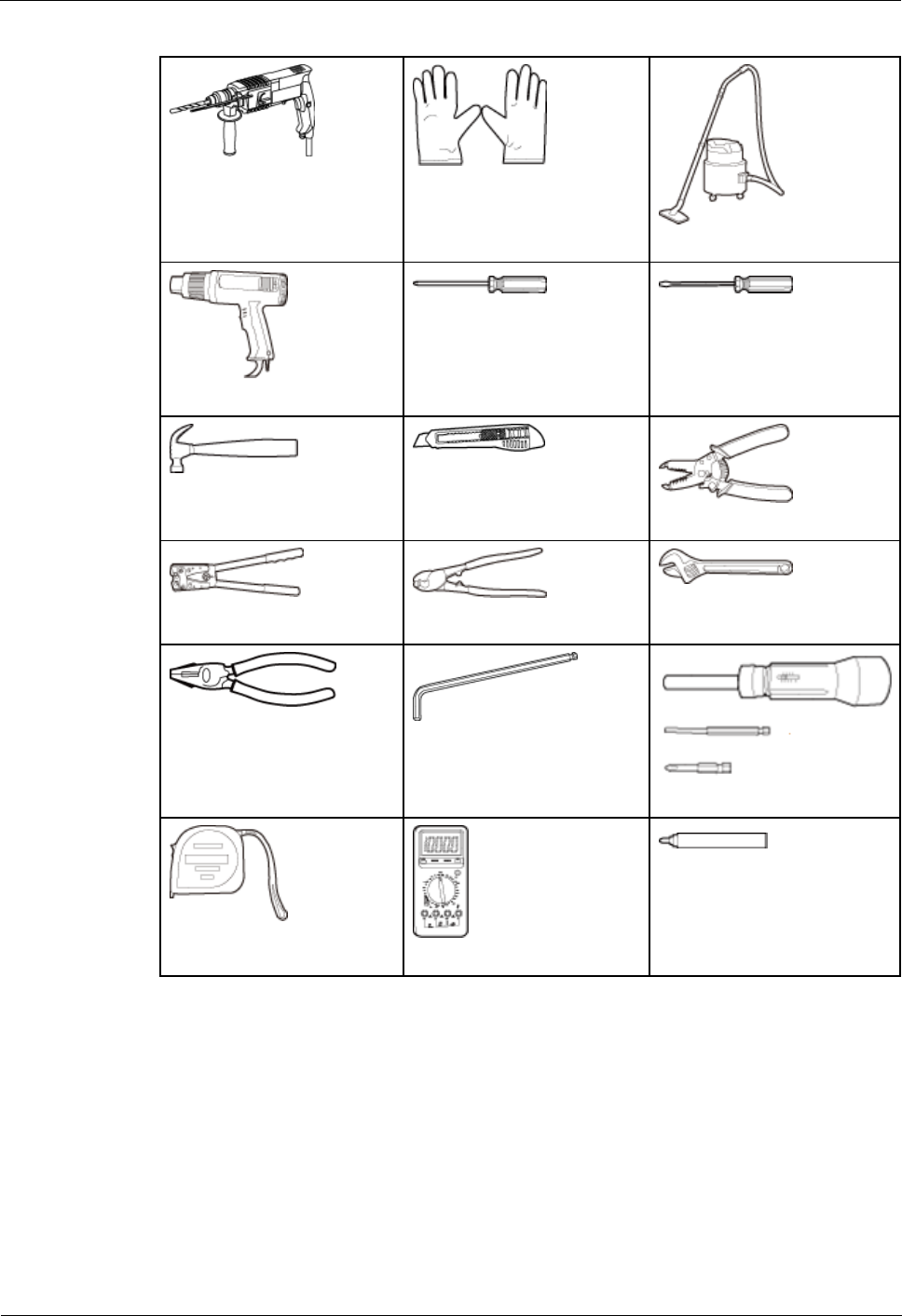

Table 3-1 lists the tools used for installing the eA360.

CPE eA360 Series

User Guide

3 Installation

Issue 01 (2014-07-30)

Huawei Proprietary and Confidential

11

Table 3-1 Installation tools

Hammer drill

ESD gloves

Vacuum cleaner

Heat gun

Phillips screwdriver

(M3–M6)

Flat-head screwdriver

(M3–M6)

Claw hammer

Utility knife

Wire stripper

Power cable crimping tool

Cable cutter

Adjustable wrench (open end

≥32 mm)

Vise

Hex key (M5,M6)

Phillips torque screwdriver

Measuring tape

Multimeter

Marker (diameter ≤ 10 mm)

3.2 Installation Procedure

3.2.1 Mounting on a Utility Pole

Prerequisites

The eA360 and mounting components are ready, as shown in Figure 3-1 and Table 3-2.

CPE eA360 Series

User Guide

3 Installation

Issue 01 (2014-07-30)

Huawei Proprietary and Confidential

12

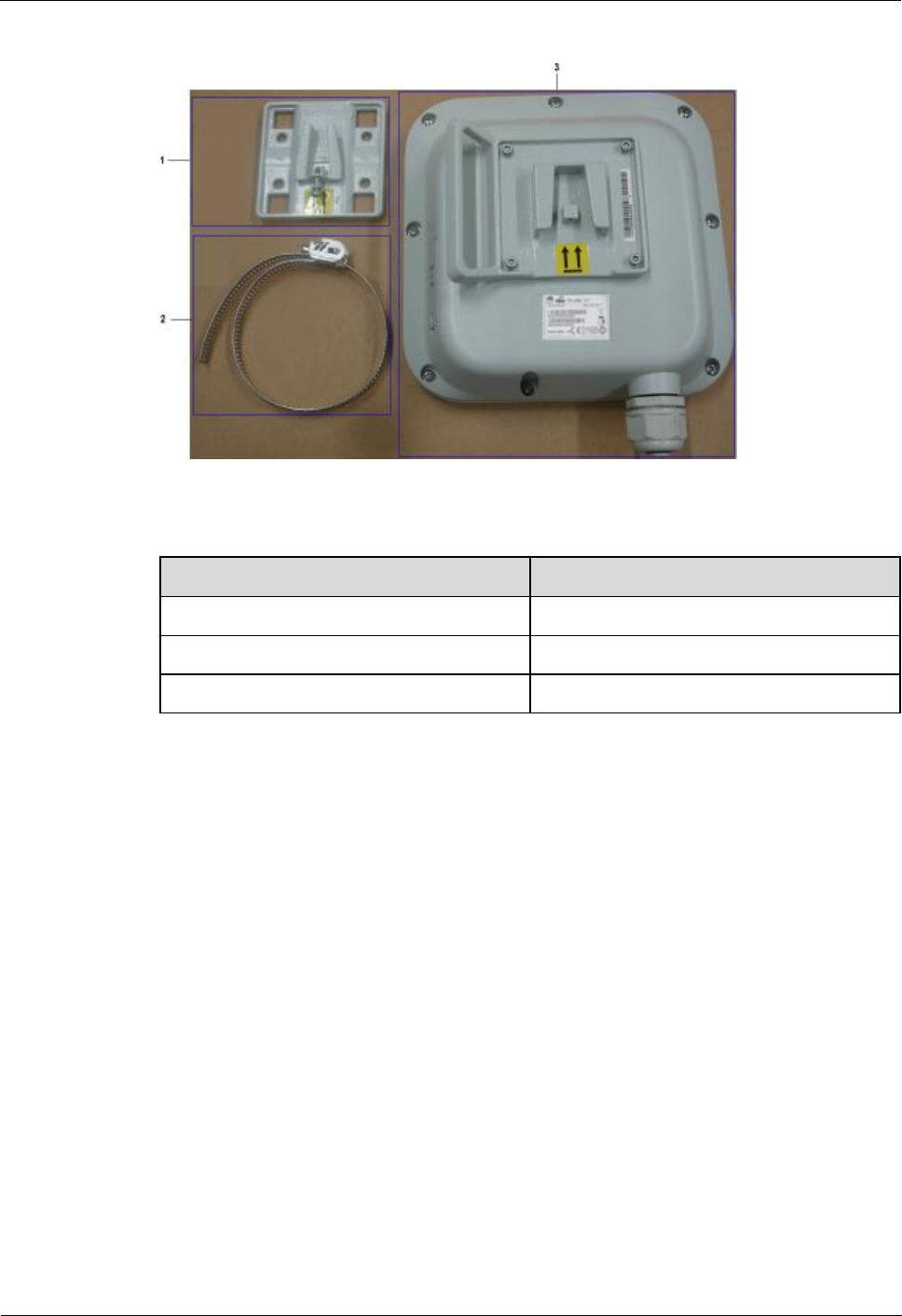

Figure 3-1 eA360 and mounting components

Table 3-2 Mounting components

No.

Name

1

Mounting frame

2

Hose clamp

3

CPE

Context

Figure 3-2 shows the flowchart for mounting the eA360 on a utility pole without an angle

adjusting component.

CPE eA360 Series

User Guide

3 Installation

Issue 01 (2014-07-30)

Huawei Proprietary and Confidential

13

Figure 3-2 Flowchart for mounting the eA360 on a utility pole without an angle adjusting

component

Procedure

Step 1 Open the SIM card maintenance window of the eA360 and insert the SIM card, as shown in

Figure 3-3.

Figure 3-3 Installing the SIM card

Step 2 Insert the hose clamp to the wall-mounting frame, as shown in Figure 3-4.

CPE eA360 Series

User Guide

3 Installation

Issue 01 (2014-07-30)

Huawei Proprietary and Confidential

14

Figure 3-4 Inserting the hose clamp to the wall-mounting frame

Insert the end of the hose clamp that does not contain a screw into the square hole on top of the

wall-mounting frame on the back of the unit. When half of the hose clamp passes through the square

hole, slightly kink the protruding part and insert it into the other square hole on the front of the unit.

Step 3 Install the hose clamp with the wall-mounting frame on the utility pole, and use a M6 hex key

to rotate the screw on the hose clamp to adjust the length of the hose clamp until it is correctly

connected, as shown in Figure 3-5.

If the hose clamp is too long, cut off the extra part. Apply anti-rust oil to the cut in case it gets

rusty.

Figure 3-5 Adjusting the length of the hose clamp

Step 4 Fix the eA360 on the wall-mounting frame through the dovetail groove, as shown in Figure

3-6.

CPE eA360 Series

User Guide

3 Installation

Issue 01 (2014-07-30)

Huawei Proprietary and Confidential

15

Figure 3-6 Installing the eA360 on the wall-mounting frame

Step 5 Tighten the wall-mounting frame's screw, as shown in Figure 3-7.

Figure 3-7 Tightening the screw

----End

3.2.2 Mounting on the Wall

Prerequisites

The eA360 and mounting components are ready, as shown in Figure 3-8 and Table 3-3.

CPE eA360 Series

User Guide

3 Installation

Issue 01 (2014-07-30)

Huawei Proprietary and Confidential

16

Figure 3-8 eA360 and wall-mounting components

Table 3-3 Wall-mounting components

No.

Name

1

Wall-mounting screw

2

Mounting frame

3

CPE

Context

Figure 3-9 shows the flowchart for mounting the CPE on the wall.

CPE eA360 Series

User Guide

3 Installation

Issue 01 (2014-07-30)

Huawei Proprietary and Confidential

17

Figure 3-9 Wall-mounting flowchart

Procedure

Step 1 Open the SIM card maintenance window of the eA360 and insert the SIM card, as shown in

Figure 3-10.

Figure 3-10 Installing the SIM card

Step 2 Hold the wall-mounting frame tightly against the wall, use a level to adjust the horizontal

position, and mark the fixing points with a marker, as shown in Figure 3-11

CPE eA360 Series

User Guide

3 Installation

Issue 01 (2014-07-30)

Huawei Proprietary and Confidential

18

Figure 3-11 Marking the fixing points

Step 3 Use a drill with 8 mm drill bit to drill holes in the fixing points. Then remove the dust from

the holes and install the expansion bolts, as shown in Figure 3-12.

Figure 3-12 Installing the expansion bolt

Step 4 Align the two fixing points with the bolts on the wall and tighten the expansion bolt's screw

nut to fix the wall-mounting frame, as shown in Figure 3-13.

CPE eA360 Series

User Guide

3 Installation

Issue 01 (2014-07-30)

Huawei Proprietary and Confidential

19

Figure 3-13 Fixing the wall-mounting frame

Step 5 Fix eA360 to the wall-mount frame using the dovetail groove, as shown in Figure 3-14.

Figure 3-14 Fixing the CPE

Step 6 Tighten the wall-mounting frame's screw, as shown in Figure 3-15.

CPE eA360 Series

User Guide

3 Installation

Issue 01 (2014-07-30)

Huawei Proprietary and Confidential

20

Figure 3-15 Tightening the screw

----End

3.2.3 Cable Connection

This section describes the procedure for connecting the eA360 cables.

Procedure

Step 1 Install the crystal connector to PoE network cable, as shown in Figure 3-16.

CPE eA360 Series

User Guide

3 Installation

Issue 01 (2014-07-30)

Huawei Proprietary and Confidential

21

Figure 3-16 Install crystal connector

When making PoE network cables, follow the international standard EIA/TIA568A or EIA/TIA568A to

arrange the cables. Make sure that the two ends of each network cable use the same standard.

Step 2 Connect the PoE network cable.

1. Diassemble the PG-head screw cap and air-proof block on the PoE port, and pass the

network cable through them, as shown in Figure 3-17.

CPE eA360 Series

User Guide

3 Installation

Issue 01 (2014-07-30)

Huawei Proprietary and Confidential

22

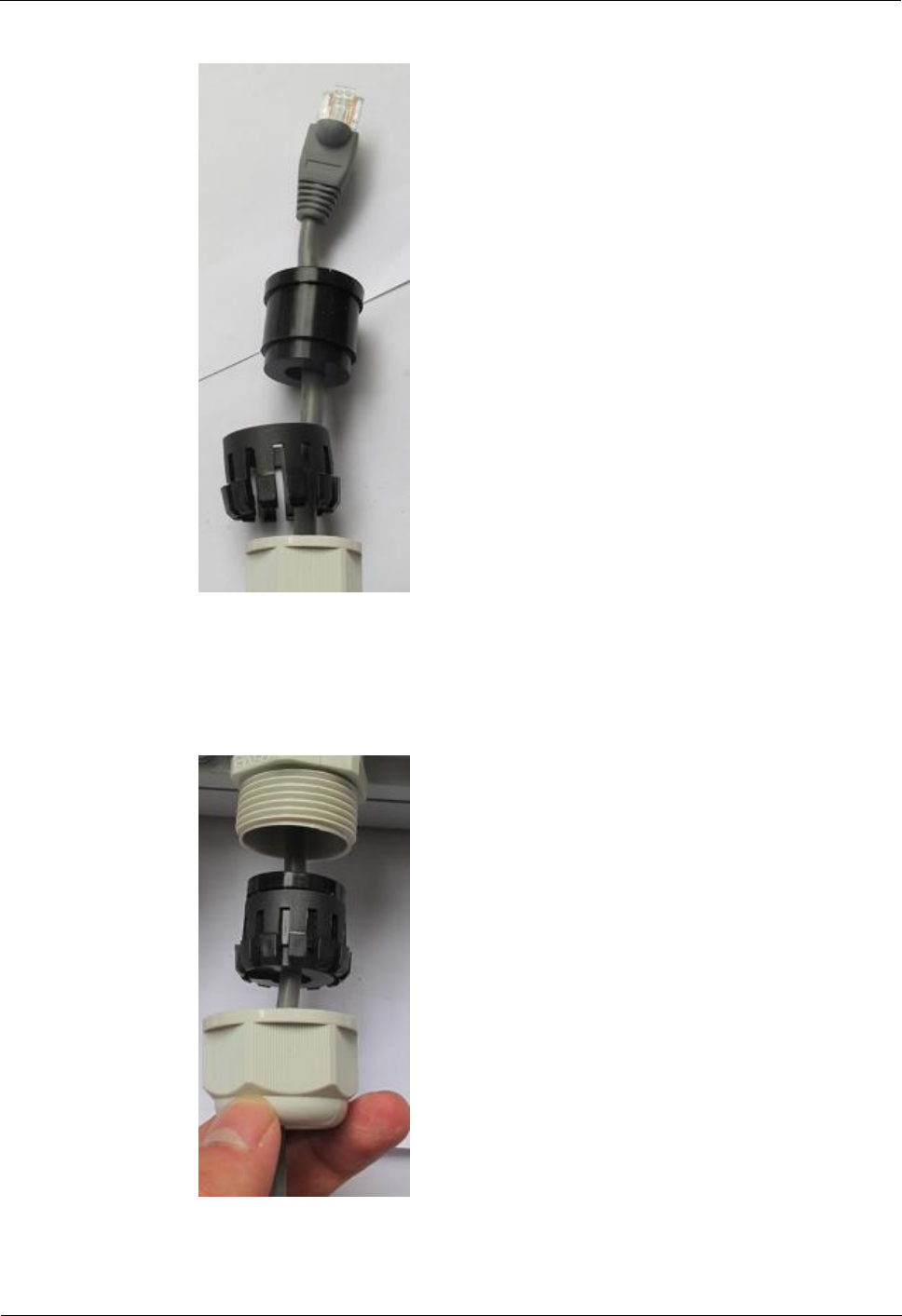

Figure 3-17 Passing the network cable through the PG-head screw cap and air-proof block

2. Connect the network cable to the network adapter, and manually rotate the screw cap to

ensure that the lock block adheres to the network cable, as shown in Figure 3-18.

Figure 3-18 Installing the PG-head screw cap and air-proof block

Step 3 Connect the PoE adapter.

CPE eA360 Series

User Guide

3 Installation

Issue 01 (2014-07-30)

Huawei Proprietary and Confidential

23

Connect one end of the PoE network cable to the adapter, as shown in Figure 3-19.

Figure 3-19 Connecting the PoE adapter

1. DATA port: connects to the compuer

network cable.

2. PoE port: connects to the PoE network

cable.

----End

3.3 Installation Check

After you install the eA360, perform a hardware installation check and a power-on check.

Prerequisites

The eA360 hardware has been installed.

Procedure

Step 1 Check whether the eA360 hardware is correctly installed.

When performing the hardware check for the eA360, check the items listed in Table 3-4 in

order.

Table 3-4 Hardware installation check of the eA360

No.

Check Item

1

The installation position must strictly comply with the design

drawings, meet the installation space requirements, and reserve space

for maintenance.

CPE eA360 Series

User Guide

3 Installation

Issue 01 (2014-07-30)

Huawei Proprietary and Confidential

24

No.

Check Item

2

When the eA360 is mounted on a metal utility pole, the fixture must

be firmly installed, and the CPE must be attached.

3

When the eA360 is mounted on the wall, the installation hole on the

fixture must be aligned with the one on the expansion bolt. In addition,

the fixture must be tightly and firmly attached to the wall and must not

wobble when you shake it.

When checking the cable connections of the eA360, check the items listed in Table 3-5 in

order.

Table 3-5 Cable connection check of the eA360

No.

Check Item

1

No cable is short-circuited or inversely connected.

2

The connector of the PoE network cable must be appropriately

connected.

The waterproof connector of PoE must be tightened.

Step 2 Perform the power-on check, as shown in Figure 3-20.

Figure 3-20 Power-on check of the eA360

CPE eA360 Series

User Guide

3 Installation

Issue 01 (2014-07-30)

Huawei Proprietary and Confidential

25

The items listed in Table 3-6 must be checked during eA360 indicator check.

Table 3-6 Indicator check

No.

Check Item

1

When the eA360 powers on, the POWER indicator is on.

2

When the eA360 powers on, the RSSI indicator is steady on

or blinks.

If the RSSI indicator is off when the eA360 powers on, the signal strength is too weak. Check the power

supply.

----End

CPE eA360 Series

User Guide

4 Configuring the eA360

Issue 01 (2014-07-30)

Huawei Proprietary and Confidential

26

4 Configuring the eA360

The Web management page of the eA360 is based on the network browser. It allows you to

use the browser to easily set, configure, and manage devices.

Prerequisites

 The deployment on the network side is complete.The computer has been connected to

the eA360.

 The installation of the eA360 is complete.

 The eA360 starts correctly based on default parameters during power-on.

Procedure

Step 1 Start the IE browser, enter http://192.168.1.1 in the address bar, and press Enter. Connect the

eA360 from the near end using the Web management page.

Use Internet Explorer 7 (IE7) or later versions.

Step 2 Log in to the web management page with User name set to default value admin and

Password set to default value 4GCPE@hw.

Step 3 Choose System > Password Modification to modify the New Password.

Use the default values of other parameters. To change the default settings, contact technical support

engineers for help.

----End

CPE eA360 Series

User Guide

5 Maintenance

Issue 01 (2014-07-30)

Huawei Proprietary and Confidential

27

5 Maintenance

About This Chapter

This chapter describes the maintenance preparation and fault diagnosis methods for the

eA360.

5.1 Maintenance Preparation

Before performing site maintenance for the eA360, learn about the sit information, select

required maintenance items, and prepare related tools.

Learning About the Site Information

Gather the following site information before going to the eA360 site to perform maintenance.

 Persisting faults and alarms

 Hardware configuration

 Natural environment

Selecting Maintenance Items

Select suitable maintenance items based on the eA360 site conditions.

Maintenance items must include the following aspects:

 Natural environment of the eA360 site

 Power of the eA360

 eA360

5.2 Fault Diagnosis

When the CPE does not run properly, use the tools on the Web management page to perform

initial diagnosis.

CPE eA360 Series

User Guide

5 Maintenance

Issue 01 (2014-07-30)

Huawei Proprietary and Confidential

28

Prerequisites

 The network deployment is complete.

 The installation of the eA360 is complete.

 The eA360 starts appropriately based on default parameters after power-on.

Procedure

 When the CPE fails to access the Internet, run the Ping functions to quickly check the

network connection status.

1. Start the IE browser, enter http://192.168.1.1 in the address bar, and press Enter. Log in

to the Web management page, and enter User name and Password.

Use Internet Explorer 7 (IE7) or later versions.

2. Choose System > Diagnosisto display the Diagnosis page.

3. Set Method to Ping.

4. Enter the domain name in the Destination IP address or domain box.

5. Set Packet size and Timeout and select the Enable check box behind Do not

Fragment.

6. Click Ping.

7. Wait until the operation is performed. The command output is displayed in the Result

box.

Packet Length indicates the bytes of a sent packet, and ranges from 1 to 9,000 bytes.

Timeout indicates the timeout period of each reply, and ranges from 1 to 10 seconds.

 When the CPE does not run properly, the System Check can be used to preliminarily

identify the problem.

1. Start the IE browser, enter http://192.168.1.1 in the address bar, and press Enter. Then

enter the correct password and click Log In.

Use Internet Explorer 7 (IE7) or later versions.

2. Click System > Diagnosis to display the Diagnose page.

3. Set Method to System Check.

4. Click Check.

5. Wait until the system check is performed. The possible causes will be displayed on the

page.

6. Click Export to export the detailed information to the computer. If necessary, send the

detailed information to maintenance personnel.

----End

CPE eA360 Series

User Guide

6 Legal Notice

Issue 01 (2014-07-30)

Huawei Proprietary and Confidential

29

6 Legal Notice

6.1 Privacy Policy

To better understand how we protect your personal information, please see the privacy policy

at http://consumer.huawei.com/privacy-policy.

CPE eA360 Series

User Guide

7 Acronyms and Abbreviations

Issue 01 (2014-07-30)

Huawei Proprietary and Confidential

30

7 Acronyms and Abbreviations

This section lists the acronyms and abbreviations related to the eA360.

Table 7-1 List of acronyms and abbreviations

Acronym/Abbreviation

Full Name

3GPP

3rd Generation Partnership Project

CPE

Customer Premises Equipment

LTE

Long Term Evolution

MAC

Media Access Control

PoE

Power over Ethernet

SIM

Subscriber Identity Module

URL

Uniform Resource Location

WAN

Wide Area Network

CPE eA360

HUAWEI TECHNOLOGIES CO., LTD.

Quick Installation Guide

Install the CPE eA360（Mounting on a Utility Pole）

Insert the SIM card Insert the hose clamp to the mounting frame

1

(Optional) Install the angle adjusting compoment

on the mounting frame and adjust the angle

Install the CPE on the angle adjusting compoment

3-a Loosen the bolt of hose clamp.

3-b Adjust the length of the hose clamp.

3-c Impact into the bolt of hose clamp，

fixup the length of the hose clamp.

3-d Use the M6 hex key to tighten the

bolt and fix the hose clamp completely.

Install the hose clamp on the utility

pole and adjust the length of the

hose and fix it

Install the CPE eA360（Mounting on the Wall）

Insert the SIM card Marking the fixing points

Installing the expansion bolt

Fix the the wall-mounting

frame to the wall

Fix the eA360 on the wall-mounting frame

2

Huawei Technologies Co., Ltd.

Huawei Industrial Base Bantian, Longgang

Shenzhen 518129

People's Republic of China

Website: http://www.huawei.com

Email: support_e@huawei.com

Customer Service Tel: 4008229999

Issue: 01

Part number: 31010SEQ

Date: 2014-05-30

3

Install the POE Network Cable

For more details, please refer to “eA360 Series CPE User Guide”.

You can download the eA360 Series CPE User Guide in the following

path of http://support.huawei.com/enterprise :

Product Support > Enterprise Wireless > eLTE > eLTE Terminal.

Install the Cables of CPE eA360

Environmental protection

This product complies with the design requirements for environmental protection. The

storage, use, and placement of the product must follow national laws and regulations.

DANGER

WARNING

CAUTION

TIP

NOTE

Following All Safety Precautions

Before any operation, read the instructions and precautions in this document carefully to

minimize the possibility of accidents. The Danger, Caution, and Note items in the

documents do not cover all the safety precautions that must be followed. They only

provide the generic safety precautions for operations.

When operating Huawei products and equipment, you must comply with safety

precautions and special safety instructions related to the equipment provided by

Huawei. The safety precautions in the document are related to only Huawei products.

Huawei is not liable for any consequence that results from the violation of universal

regulations for safety operations and safety codes on design, production, and

equipment use.

Complying with the Local Safety Regulations

When operating the device, comply with the local safety regulations.

Qualified Personnel Only

The installation and maintenance personnel of Huawei equipment must be trained and

master the correct operating methods and safety precautions before beginning work.

Symbols

Indicates a hazard with a high level of risk, which if not avoided, will result in

death or serious injury.

Indicates a potentially hazardous situation, which if not avoided, could result in

equipment damage, data loss, performance degradation, or unexpected results.

Indicates a tip that may help you solve a problem or save time.

Safety of Personnel

•The AC power supply provides power for running the system. Direct contact with the

high voltage power supply or contact through damp objects may result in serious

injury.

•In a thunderstorm, do not perform operations on high voltage and AC power supply

facilities or on a steel tower and mast.

•Power off the device before performing operations on the power supply equipment.

•Protect yourself when drilling holes. Flying dust may hurt your eyes or you may

inhale the dust.

•When working at a height, be cautious about falling objects.

Device Safety

•Leave space around the device for heat dissipation. Keep the device away from

heat and fire, for example, electric heaters and candles.

•Do not disassemble the device. When the device has a fault, contact the operator.

•Ensure that the device is always kept in a dry environment. If any liquid leaks

through the device, power off the device and contact the operator.

•If you detect smoke, unusual sound, or smell emanating from the device, unplug the

device immediately.

•Power off the device during thunder and lightning.

•Do not hang anything on the power cable or plug. Do not cover the device.

•Before cleaning the device, unplug it. Use a soft, dry cloth to clean the device exterior.

•Ensure that the power plug is clean and dry. Do not use a damaged or aged power

cable.

■

Indicates a hazard with a medium or low level of risk, which if not avoided, could

result in minor or moderate injury.

Provides additional information to emphasize and supplement important points of

the main text.

Safety Information

4

Regulatory Compliance Statement

eA360-123

Issue : 01

Date: 2014-8-14

HUAWEI TECHNOLOGIES CO., LTD.

Issue () Huawei Proprietary and Confidential

No part of this document may be reproduced or transmitted in any form or by any means without prior written

consent of Huawei Technologies Co., Ltd.

Trademarks and Permissions

and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.

All other trademarks and trade names mentioned in this document are the property of their respective holders.

Notice

The purchased products, services and features are stipulated by the contract made between Huawei and the customer.

All or part of the products, services and features described in this document may not be within the purchase scope or

the usage scope. Unless otherwise specified in the contract, all statements, information, and recommendations in this

document are provided "AS IS" without warranties, guarantees or representations of any kind, either express or

implied.

The information in this document is subject to change without notice. Every effort has been made in the preparation

of this document to ensure accuracy of the contents, but all statements, information, and recommendations in this

document do not constitute the warranty of any kind, express or implied.

Huawei Technologies Co., Ltd.

Address: Huawei Industrial Base

Bantian, Longgang

Shenzhen 518129

People's Republic of China

Website: http://www.huawei.com

Email: support@huawei.com

1 Regulatory Compliance Statement

Issue () Huawei Proprietary and Confidential

1 Regulatory Compliance Statement

About This Chapter

1.1 Declaration of Conformity to European Directives

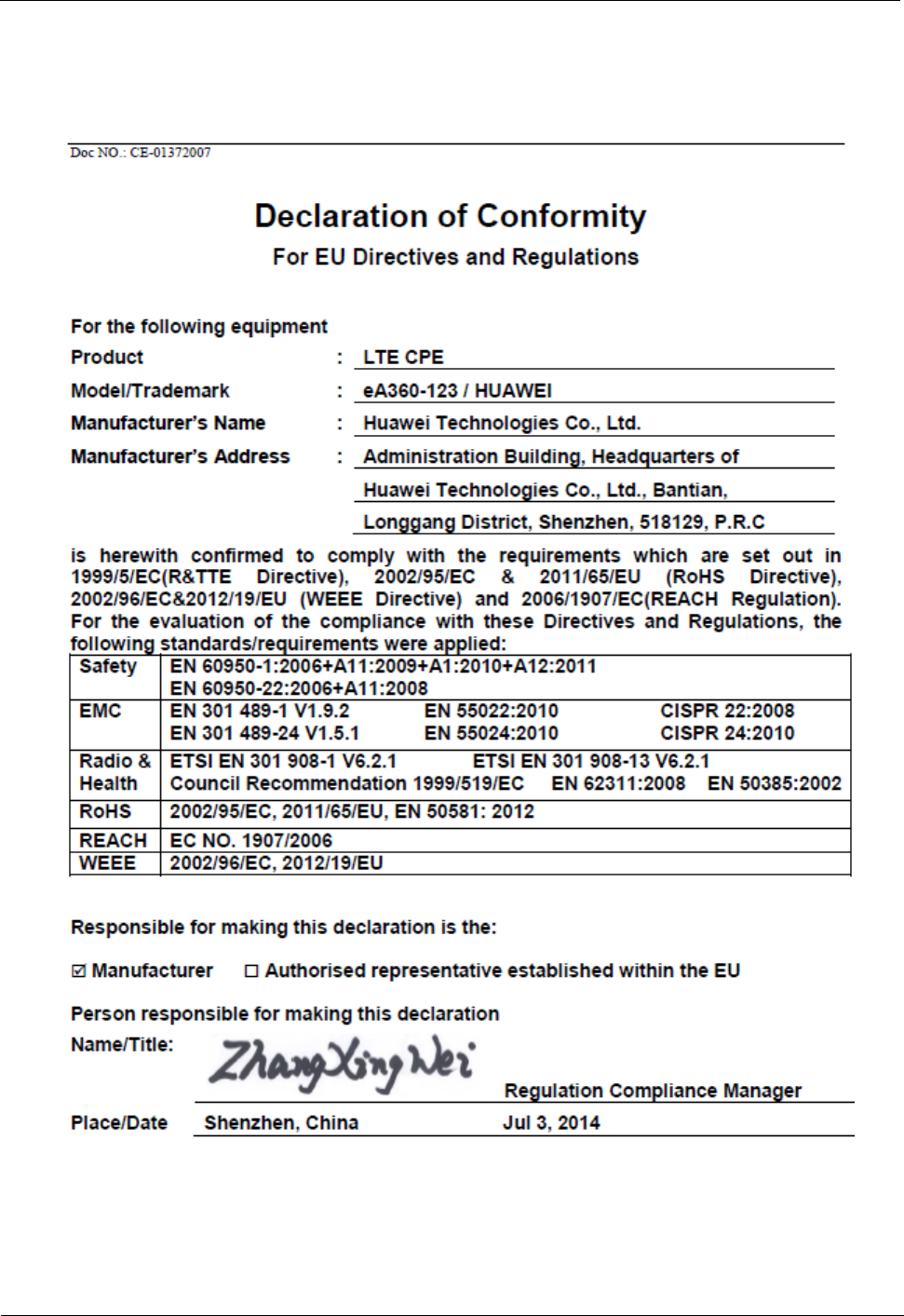

Figure 1-1 Declaration of Conformity to European Directives

1 Regulatory Compliance Statement

1-2 Huawei Proprietary and Confidential

2 Regulatory Compliance Information

Issue (01) Huawei Proprietary and Confidential

2 Regulatory Compliance Information

About This Chapter

2.1 Regulatory Compliance Standards

2.2 European Regulatory Compliance

2.3 U.S.A Regulatory Compliance

2.4 Canada Regulatory Compliance

2.5 CISPR 22 Compliance

2.6 China RoHS hazardous substance table

2.7 India RoHS hazardous substance table

2.8 Other Markets

2.1 Regulatory Compliance Standards

This product complies with the standards listed in Table 2-1.

2 Regulatory Compliance Information

2-2 Huawei Proprietary and Confidential

Table 2-1 Regulatory compliance standards

Discipline Standards

EMC z CISPR22 Class B

z CISPR24

z EN55022 Class B

z EN50024

z ETSI EN 301 489 Class B

z CFR 47 FCC Part 15 Class B

z FCC Part 2

z FCC Part 27

z ICES 003 Class B

z AS/NZS CISPR22 Class B

z GB9254 Class B

z VCCI Class B

z CNS 13438 Class B

z IEC61000-3-2

z IEC61000-3-3

z EN61000-3-2

z EN61000-3-3

Safety z IEC 60950-1

z IEC60950-22

z IEC/EN41003

z EN 60950-1

z UL 60950-1

z CSA C22.2 No 60950-1

z AS/NZS 60950.1

z BS EN 60950-1

z IS 13252

z GB4943

RF z ETSI EN 301 908

Health z ICNIRP Guideline

z 1999-519-EC

z EN 50385

z EN 62311

z OET Bulletin 65

z IEEE Std C95.1

Environmental protection z 2011/65/EU (RoHS)

z EC NO. 1907/2006 (REACH)

z 2002/96/EC (WEEE)

2 Regulatory Compliance Information

Issue (01) Huawei Proprietary and Confidential

Discipline Standards

Grounding z ITU-T K.27

z ETSI EN 300 253

NOTE

EMC: electromagnetic compatibility

NEBS: Network Equipment Build Standard

RF: radio frequency

CISPR: International Special Committee on Radio Interference

EN: European Standard

ETSI: European Telecommunications Standards Institute

CFR: Code of Federal Regulations

FCC: Federal Communication Commission

IEC: International Electrotechnical Commission

AS/NZS: Australian/New Zealand Standard

VCCI: Voluntary Control Council for Interference

CNS: Chinese National Standard

UL: Underwriters Laboratories

CSA: Canadian Standards Association

BS: British Standard

IS: Indian Standard

GR: General Requirement

FDA: Food and Drug Administration

BTS: Base Transceiver Station

GSM: Global System for Mobile communications

WLAN: wireless local area network

ICNIRP: International Commission on Non-Ionizing Radiation Protection

OET: Office of Engineering Technology

IEEE: Institute of Electrical and Electronics Engineers

RoHS: restriction of the use of certain hazardous substances

2.2 European Regulatory Compliance

This product complies with the following European directives and regulations.

z 2004/108/EC (EMC)

z 2006/95/EC (low voltage)

z 1999/5/EC (R&TTE)

z 2011/65/EU (RoHS)

z EC NO. 1907/2006 (REACH)

z 2002/96/EC (WEEE)

Product complies with Directive 2002/95/EC, 2011/65/EU and other similar regulations from

the countries outside the European Union, on the RoHS in electrical and electronic equipment.

The device does not contain lead, mercury, cadmium, and hexavalent chromium and

2 Regulatory Compliance Information

2-4 Huawei Proprietary and Confidential

brominated flame retardants (Polybrominated Biphenyls (PBB) or Polybrominated Diphenyl

Ethers (PBDE)) except for those exempted applications allowed by RoHS directive for

technical reasons.

Product complies with Regulation EC NO. 1907/2006 (REACH) and other similar regulations

from the countries outside the European Union. Huawei will notify to the European Chemical

Agency (ECHA) or the customer when necessary and regulation requires.

Product complies with Directive 2002/96/EC on waste electrical and electronic equipment

(WEEE). Huawei is responsible for recycling its end-of-life devices, and please contact

Huawei local service center when recycling is required. Huawei strictly complies with the EU

Waste Electrical and Electronic Equipment Directive (WEEE Directive) and electronic waste

management regulations enacted by different countries worldwide. In addition, Huawei has

established a system for recycling and reuse of electronic wastes, and it can provide service of

dismantling and recycling for WEEE. By Huawei recycling system, the waste can be handled

environmentally and the resource can be recycled and reused fully, which is also Huawei

WEEE stratagem in the word. Most of the materials in product are recyclable, and our

packaging is designed to be recycled and should be handled in accordance with your local

recycling policies.

In accordance with Article 11(2) in Directive 2002/96/EC (WEEE), products were marked

with the following symbol: a cross-out wheeled waste bin with a bar beneath as below:

2.3 U.S.A Regulatory Compliance

2.3.1 FCC Part 15

This product complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

z This device does not cause harmful interference.

z This device must accept any interference received, including interference that may cause

undesired operation.

If this device is modified without authorization from Huawei, the device may no longer

comply with FCC requirements for Class B digital devices. In that a case, your right to use the

2 Regulatory Compliance Information

Issue (01) Huawei Proprietary and Confidential

device may be limited by FCC regulations. Moreover, you may be required to correct any

interference to radio or television communications at your own expense.

This device has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation.

This device generates, uses and radiates radio frequency energy. If it is not installed and used

in accordance with the instructions, it may cause harmful interference to radio

communications.

However, there is no guarantee that interference will not occur in a particular installation. If

this device does cause harmful interference to radio or television reception, which can be

determined by turning the device off and on, the user may take one or more of the following

measures:

z Reorient or relocate the receiving antenna.

z Reinforce the separation between the device and receiver.

z Connect the device into an outlet on a circuit different from that to which the receiver is

connected.

z Consult the dealer or an experienced radio or TV technician for assistance.

2.4 Canada Regulatory Compliance

This device is designed and manufactured not to exceed the emission limits for

exposure to radio frequency (RF) energy set by Industrial Canada and meets the

requirements for radiation exposure limits set forth for an uncontrolled environment.

Cet appareil est conçu et fabriqué pour ne pas dépasser les limites d'émission pour

l'exposition à la fréquence radio (RF) de l'énergie fixé par l'Industrielle Canada et

répond aux exigences en matière de limites d'exposition aux rayonnements définies

pour un environnement non contrôlé.

In order to avoid the possibility of exceeding the Industrial Canada radio frequency

exposure limits, human proximity to the device antenna shall not be less than 20 cm

during normal operation;

Afin d'éviter la possibilité de dépasser les limites d'exposition aux fréquences radio

industrielle du Canada, la proximité humaine pour l'appareil antenne ne doit pas être

inférieure à 20 cm au cours fonctionnement normal.;

2.5 CISPR 22 Compliance

This product complies with CISPR 22 for Class B by the ITE.

Class A ITE is a category of all other ITE that satisfies only the Class A ITE regulations, and

not the Class B ITE regulations. Such equipment should not be restricted in its sale but the

following warning shall be included in the instructions for use:

2 Regulatory Compliance Information

2-6 Huawei Proprietary and Confidential

2.6 China RoHS hazardous substance table

This products described in this guide complies with “the Administration on the Control of Pollution Caused by

Electronic Information Products” which is also called China RoHS

部件名称产品中有害物质或元素的名称及含量

镉铅汞六价铬多溴联苯多溴联苯醚

Frame 〇 ╳ 〇〇〇〇

Alloy Parts 〇 ╳ 〇〇〇〇

Power Adapter 〇 ╳ 〇〇〇〇

Metal Fittings 〇〇〇〇〇〇

PCBA 〇 ╳ 〇〇〇〇

Capacitor 〇 ╳ 〇〇〇〇

Other electronics 〇 ╳ 〇〇〇〇

Screen 〇〇〇〇〇〇

Solder 〇 ╳ 〇〇〇〇

Cable ╳ ╳ 〇〇〇〇

Plastic and Polymer 〇 ╳ 〇〇〇 ╳

Label 〇〇〇〇〇〇

Battery 〇〇〇〇〇〇

〇：表示该有毒有害物质在该部件所有均质材料中的含量均在SJ/T11363-2006 标准规定的限量要求以下。

╳：表示该有毒有害物质至少在该部件的某一均质材料中的含量超出SJ/T11363-2006 标准规定的限量要

求。

2.7 India RoHS hazardous substance table

This products described in this guide complies with the “e-waste (Management and Handling) Rules, 2011”of

India which is also called India RoHS.

2 Regulatory Compliance Information

Issue (01) Huawei Proprietary and Confidential

Part Descriptions Restricted Substances in Product

Cd Pb Hg Cr(VI) PBBs PBDEs

Frame 〇 ╳ 〇〇〇〇

Alloy Parts 〇 ╳ 〇〇〇〇

Power Adapter 〇 ╳ 〇〇〇〇

Metal Fittings 〇〇〇〇〇〇

PCBA 〇 ╳ 〇〇〇〇

Capacitor 〇 ╳ 〇〇〇〇

Other electronics 〇 ╳ 〇〇〇〇

Screen 〇〇〇〇〇〇

Solder 〇 ╳ 〇〇〇〇

Cable ╳ ╳ 〇〇〇〇

Plastic and Polymer 〇 ╳ 〇〇〇 ╳

Label 〇〇〇〇〇〇

Battery 〇〇〇〇〇〇

〇: indicates that the content of the toxic and hazardous substance in all the Homogeneous Materials of the part is

below the concentration limit requirement as described in the e-waste (Management and Handling) Rules, 2011.

╳: indicates that the content of the toxic and hazardous substance in at least one Homogeneous Material of the

part exceeds the concentration limit requirement as described in S in the e-waste (Management and Handling)

Rules, 2011.

2.8 Other Markets

For relevant compliance information/documentation for markets not mentioned above,

Please contact Huawei representative

Huawei Technologies EA360-123 LTE CPE User Manual User Guide

Huawei Technologies Co.,Ltd LTE CPE User Guide

User Manual

Navigation menu

Namespaces

Views

Navigation
