EchoLife EG8245H GPON Terminal
![](/img.php?id=3594897&img=bg2.png)
1
Safety Precautions
To use the device properly and safely, read the safety precautions carefully before using the device
and strictly observe these precautions when using the device.
Store devices and accessories in temperature –10°C to +35°C and relative humidity 30%–85%
RH for at most 9 months. If the ambient temperature or relative humidity is overhigh or overlow,
the device may be faulty.
Used only indoors. Do not lead metallic cables, such as network cables and telephone lines
outdoors.
Do not look directly into the optical port without eye protection.
Keep the device out of the reach of children as the components or accessories may be
swallowed.
Install the device in strict compliance with the requirements of the supplier. Reserve a space of
at least 10 cm above and around the device for heat dissipation. During the installation, keep
the device away from electric appliances that generate strong magnetic or electric fields, such
as microwave ovens, refrigerators, and mobile phones.
The described input voltage range should comply with the local power grid. For example, the
input voltage of the adapter is 200–240 V AC for European Union; the input voltage of the
adapter is 100–140 V AC for America.
If the power adapter is damaged and its internal circuit is exposed due to manmade factors, do
not touch the exposed circuit, which may bring safety risks.
Only power adapters delivered with the device can be used. Otherwise, the device may be
abnormal or unsecure.
Dry your hands before connecting or disconnecting cables. Stop the device and switch off the
power before connecting or disconnecting cables.
Do not place any object on the device, so that the device will not be damaged due to
overheating or deformation.
Prevent objects, such as metal, from entering the device through the heat dissipation hole.
Switch off the power and disconnect all cables, including the power cable, optical fiber, and
network cable, during periods of lightning activities. The socket-outlet shall be installed near
the power adapter and shall be easily accessible. Before use the power adapter, please check
no damage on the adapter.
Do not lead the strength member of the optical fiber or other metal parts indoors. Do not install
telephone lines, network cables, power adapters or power adapter cables outdoors. Adopting
these measures will help prevent device damage and bodily injuries which are especially prone
during thunderstorms.
If an abnormality occurs, for example, liquid entering the device, smoke, unusual sound,
and smell, stop the device immediately, switch off the power, disconnect all cables (such as
the power cable, optical cable, and network cable) to the device, and contact the authorized
service center.
Do not disassemble the device without permission. In the case of a device fault, contact the
authorized service center.
Dispose of the packing materials, expired batteries, and old or abandoned devices in
accordance to local laws and regulations (recycling them is strongly recommended).
Do not change the structure, safety design, or performance design of the device without prior
authorization.
The device should be installed and operated with a minimum distance of 20 cm between the
radiator and your body.
Safety precautions:
![](/img.php?id=3594897&img=bg3.png)
Laser Safety:
Detailed description
Keep the optical ports of the module clean, and cap them when they are not used.
Prevent the end faces of the optical interfaces of the module from being damaged by hard
objects.
Exercise caution when removing and reinserting the fibers for the SC optical ports on the
module. Do not damage the ceramic sockets of optical components.
The goldfinger unit of the module supports no more than 50 times of removal and reinsertion.
Laser products that are safe during use, including long-term direct intrabeam viewing, even
when exposure occurs while using optical viewing instruments (eye loupes or binoculars).
Class 1 also includes high power lasers that are fully enclosed so that no potentially hazardous
radiation is accessible during use (embedded laser product).Intrabeam viewing of Class 1 laser
products which emit visible radiant energy may still produce dazzling visual effects, particularly
in low ambient light.
Do not look into fiber end faces without eye protection using an optical meter (such as magnifier
and microscope) within 100 mm, unless you ensure that the laser output is disabled. When
operating an optical meter, observe the operation requirements.
This device complies with IEC 60825-1: 2007-03 Rule.
Output average power
Under normal circumstances, the maximum optical output average power of the optical module
is 8.0dBm. In the abnormal case, output average power of the optical module is less than 11
dBm.

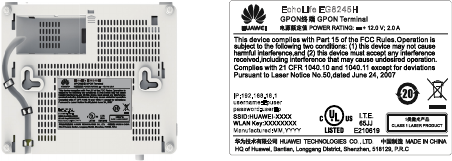

Nameplate information
Class 1 warning sign is written on the product lable,which is posted on the product.
“Complies with 21 CFR 1040.10 and 1040.11 except for deviations Pursuant to Laser Notice
No.50,dated June 24,2007” is written on the product lable,which is posted on the product.
The manufacturer’s address and production date information is reected in the product lable,
which is attached on the above of the product.
FCC ID:QISEG8245HE
EchoLife EG8245H
Manufactured:M M,Y YYY
IP:192.168.18. 1
username:Ep use r
password:us erE p
Fireproof precautions:
Keep the device away from large heat source equipment, bare ames, and high-power devices,
such as electric heaters, candles, and blow drier, to eliminate safety risks.
If there are aged cables or power socket facilities on the power supply line to or near the
device, replace them in time to eliminate safety risks. The power supply voltage of the device
must meet the input voltage requirement.
2
FCC ID:QISEG8245HE
Echo Life EG 8245H
Manuf actured:M M,YYYY
IP:19 2.168.18. 1
usern ame:Epuse r
passw ord:userE p
![](/img.php?id=3594897&img=bg4.png)
3
Product Overview
Product Function
EG8245H
4 Ethernet ports
2 POTS ports
1 USB port
Wi-Fi access
Technical Specifications
NOTE
The appearance shown in this document may be different from the actual appearance
of the product. The actual product provided by the carrier prevails.
Installing the GPON Terminal
1. Do not install GPON terminals outdoors or on the outdoor cabinets.
2. GPON terminals can be mounted onto a wall or be placed on a
workbench. Do not install GPON terminals in other modes, such as the
ceiling.
3. The terminal cannot be connected to other devices such as GPON
terminals, switch and router.
4.Use of controls or adjustments or performance of procedures other than
those specified herein may result in hazardous radiation exposure.
Caution
Item Specifications
Weight (including the power
adapter) About 1000 g
System power supply See the nameplate on the device.
Power adapter input See the nameplate on the adapter.
Maximum power consumption ≤15.5 W
Ambient temperature 0ºC- +40ºC
Ambient humidity 5% RH - 95% RH (non-condensing)
![](/img.php?id=3594897&img=bg5.png)
4
Mounting a GPON terminal on the desk
The figure below shows an EG8245H that is horizontally placed on a desk.
Mounting a GPON terminal onto the wall

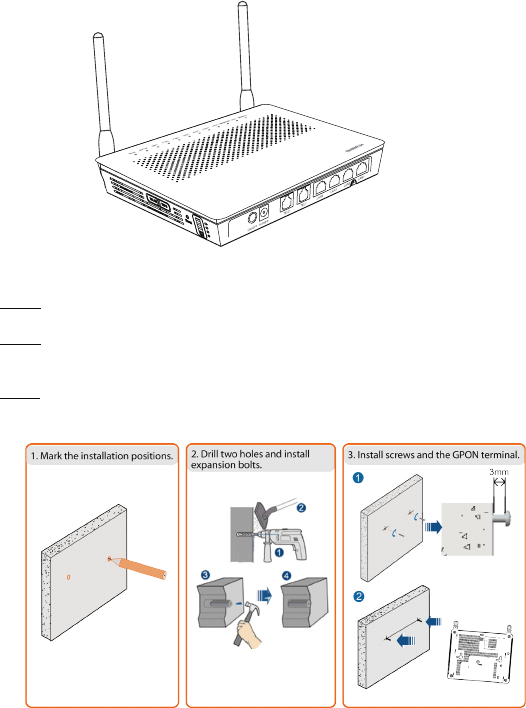

Step 1 Mark the positions of two holes used for mounting a GPON terminal, ensure
that the two holes have the same spacing as the two mounting holes.
Step 2 Select a proper drill according to the outer diameter of the screws. Use a
hammer drill to drill the marked positions on the wall. Then clean the wall and
install two expansion bolts.
Step 3 Use a screwdriver to fasten the screws into the expansion bolts, leaving the
heads of the screws 3 mm over the wall. Then install the GPON terminal to the
screws.
![](/img.php?id=3594897&img=bg6.png)
5

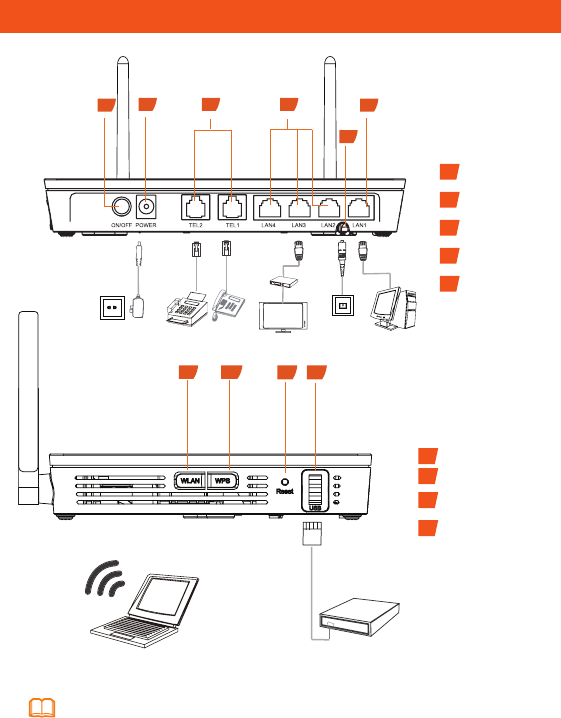

Connecting Cables
1Power switch
2Power port
3POTS port
4Ethernet port
5Optical port
6USB port
7Reset
8WPS switch
9WLAN switch
Fax machinePhone
PC
TV set
IP STB
Optical port
Power socket
12
5
4
4
3
Wi-Fi terminal USB storage device
7
8
9
6
NOTE
The appearance shown in this document may be different from the actual appearance
of the product. The actual product provided by the carrier prevails.
![](/img.php?id=3594897&img=bg7.png)
6
NOTE
1.The type of the optical connector connected to the optical port in the wall is determined
by practical conditions.
2.To ensure normal use of fibers, make sure that the fiber bend radius is larger than 30
mm.
Step 2 Use a network cable to connect the LAN port to a PC or the Ethernet port on
the IP STB.
Step 3 Use a phone line to connect the TEL port to a phone or fax machine.
Step 4 Use a power adapter to connect the POWER port to the power socket.
The preceding figure connects the power adapter as an example. When connecting the
backup battery unit , please see the usage guide to the backup battery for details .
NOTE
Step 1 Use an optical fiber to connect the optical port on the ONT and the optical port on
the wall.The optical port of the EG8245H is at the back of the device. For how to
connect the optical ports, see the following figure:
Step 5 Use a USB data cable to connect the USB port to the USB storage device.
Step 6 Press the ON/OFF power switch.
Step 7 Press the WLAN switch to enable the Wi-Fi access function. By default, this
function is enabled.
Step 8 Press the WPS switch to enable the WPS encryption function.
Before enabling the WPS encryption function of a GPON terminal, ensure that the function
is set in the system software in advance. After successful setting, press the WPS switch
for the settings to take effect.
NOTE
Insert the other end of the optical fiber into the optical port on the
wall.

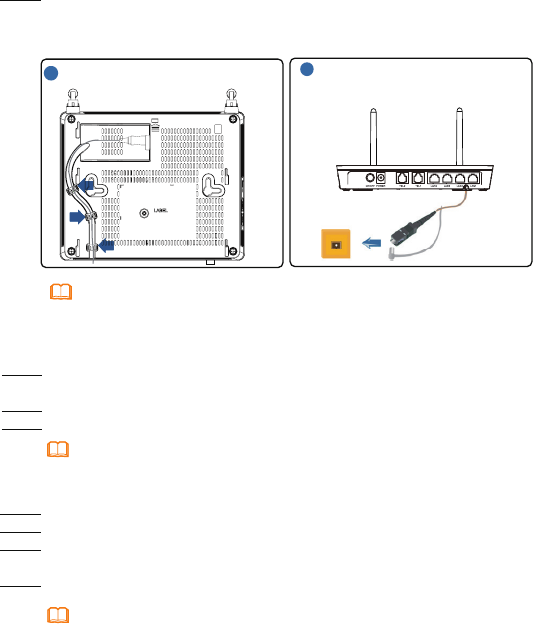

Insert one end of the optical fiber into the optical port on the ONT, and
secure the optical fiber by fitting it on the holders. For the positions of
holders, see the arrows indicated in the following figure:
![](/img.php?id=3594897&img=bg8.png)
7
Logging in to the Web Configuration Window
Step 1 Set the IP address of the PC in the same subnet as the management
IP address of the GPON terminal.
Step 2 Enter the management IP address of the GPON terminal in the
address bar of Internet Explorer and press Enter.
The login window is displayed.
Step 3 In the login window, select your preferred language, enter the user
name and password (printed on the nameplate of the device.),and
click Login. After the password is authenticated, the Web
configuration window is displayed.
NOTE
You can find the default management IP address on the nameplate
of the device.
NOTE
-If you do not perform any operations after logging in to the
system for five minutes, you will exit the system and the system
automatically returns to the login interface.
-The system will be locked if you input incorrect user name and
password three consecutive times. One minute later, it will be
unlocked.
-Change the initial password after logging in to the web page.
![](/img.php?id=3594897&img=bg9.png)
8
EG8245H supporting Wi-Fi , a wireless network coverage is subject to the number,
thickness, and positions of walls, materials, ceilings, or other objects that radio
signals traverse. Besides, metarial type and background radio frenquency (RF) noise
also affect the coverage of a wireless network. You can maximize the coverage of a
wireless network using the following methods:
1. Decrease the number of walls and ceilings between EG8245H and other
network devices.
Each wall or ceiling reduces the coverage of a wireless network by one to 30
meters. Install EG8245H at a proper place to avoid walls or ceilings whenever
possible.
2. Observe the straight line rule when installing network devices.
The distance for which signals have to traverse at a 45° corner of two 0.5 meter-
thick walls reaches approximately one meter. To better receive signals, devices
should be installed at places where signals can directly traverse walls or ceilings.
3. Note the impact of building materials on the wireless network coverage.
A metal door or aluminum wall may limit the coverage of a wireless network.
Install access points, wireless routers, and computers, so signals can traverse
walls or open passageways. Materials and objects such as FRP products, metal
products, insulative walls, filing cabinets, bricks, and concrete weaken radio
signals.
4. When connecting EG8245H to a wireless network, keep it far from the
following devices:
- Electronic devices or components that produce RF noises (keep a distance of
more than 2 meters between such a device and EG8245H.)
- 2.4 GHz wireless mobile phones or X-10 devices (such as microwave ovens,
home security systems, blue-tooth devices, and refrigerators) that greatly weaken
or even eliminate radio signals. Even if a 2.4 GHz wireless mobile phone is not
connected to a wireless network, the phone base still sends signals that interfere
the wireless network.
NOTE
Configuring Wi-Fi Parameters
Step 1 Choose the WLAN tab and choose WLAN Basic Configuration.
Step 2 In the pane, select the Enable WLAN option box. In the dialog box that is
displayed, set the basic Wi-Fi parameters, including the SSID, authentication
mode, and encryption mode. For example,
Step 3 Click Apply.
-SSID: See the nameplate on the device.
-WPA PreSharedKey: See the nameplate on the device.
SSID indicates the name of a wireless network searched by the Wi-Fi
terminal; WPA PreSharedKey indicates the authentication password for the
Wi-Fi terminal to access a wireless network.
![](/img.php?id=3594897&img=bga.png)
9
Indicator Description
Table 1 Indicator status description 1
Indicator Status Description
WPS
Steady on The WPS function is enabled.
Blinking A Wi-Fi terminal is accessing the system.
Off The WPS function is disabled.
WLAN
Steady on The WLAN function is enabled.
Blinking Data is being transmitted on the WLAN port.
Off The WLAN function is disabled.
USB
Steady on The USB port is connected and is working in the host
mode, but no data is transmitted.
Blinks twice a
second Data is being transmitted on the USB port.
Off The system is not powered on or the USB port is not
connected.
TEL1–
TEL2
Steady on The terminal is registered with the softswitch but no
service ows are transmitted.
Blinking Service ows are transmitted.
Off The terminal is not powered on or fails to be
registered to the softswitch.
LAN1–
LAN4
Steady on The Ethernet connection is in the normal state.
Blinking Data is being transmitted on the Ethernet port.
Off The Ethernet connection is not set up.
LOS/PON See Table 2.
POWER
Steady green The terminal is powered on.
Off The power supply is cut off.
![](/img.php?id=3594897&img=bgb.png)
Table 2 Indicator status description 2
Indicator Description
Status
No.
Status Description
PON LOS
1Off Off
The GPON terminal is prohibited
by the upper-layer device, contact
the service provider for help.
2Blinks twice a
second Off
The GPON terminal attempts to
set up a connection with its upper-
layer device.
3 Steady on Off
A connection is set up between
the GPON terminal and its upper-
layer device.
4Off Blinks once two
seconds
The GPON terminal is not
connected to optical fibers or
does not receive optical signals.
5Blinks twice a
second
Blinks twice a
second
The GPON terminal is a rogue
terminal, contact the service
provider for help.
6Blinks once
two seconds
Blinks once
two seconds The hardware is faulty.
10
![](/img.php?id=3594897&img=bgc.png)
ErP Product Information
Hereby, Huawei Technologies Co., Ltd. declares that the product meets the directive
2009/125/EC and its implementation regulation (EC) NO 1275/2008 amended by
(EC) 278/2009,(EC) 642/2009,(EU) 617/2013,(EU) 801/2013,and its implementation
regulation (EC) NO 278/2009.
The power consumption of product in networked standby if all wired network ports are
connected and all wireless network ports are activated is less than 20 W.
For the product information displayed on the manufacturers’ freely accessible websites
required by (EU) No 801/2013 , please visit http://support.huawei.com.
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement
This device complies with FCC radiation exposure limits set forth for an uncontrolled
environment and it also complies with Part 15 of the FCC RF Rules. This equipment
must be installed and operated in accordance with provided instructions and the
antenna(s) used for this transmitter must be installed to provide a separation distance
of at least 20cm from all persons and must not be co-located or operating in conjunction
with any other antenna or transmitter. End-users and installers must be provide with
antenna installationinstructions and consider removing the no-collocation statement.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following
two conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
NOTE
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
11
![](/img.php?id=3594897&img=bgd.png)
12
The LOS indicator blinks.
If the LOS indicator blinks once two seconds, check whether the pigtail fiber
is properly connected and the connector is clean.
If the GPON terminal blinks twice a second, contact the service provider for
help.
The PON indicator is off.
Check whether the OPTICAL port and optical fiber is properly connected.
The GPON terminal fails to register with the upper-layer device. Contact the
service provider for help.
The phone does not ring upon an incoming call but communication is in
normal state when the phone is in off-hook state.
The GPON terminal provides a maximum of 60 V AC ringing current
voltage. Check whether the ringing current voltage of the phone is higher
than 60 V AC. If it is higher than 60 V AC, replace it with another phone.
How to reset the GPON terminal?
Press Reset by using a needle-type object.
How can I restore factory defaults?
Press Reset by using a needle-type object for longer than 10s to restore
factory defaults and reset the GPON terminal. If the indicator is off and then
is lit, the system restarts successfully.
FAQs
![](/img.php?id=3594897&img=bge.png)
User Information
Personal or
company's full name:__________________________________________________
Address/Postal Code:_________________________________________________
Telephone:__________________________________________________________
Email:______________________________________________________________
Product Type:________________________________________________________
Product Serial Number:________________________________________________
Purchase Date:______________________________________________________
Invoice Number:______________________________________________________
Dealer's Name:______________________________________________________
Dealer's Address:_____________________________________________________
Dealer's Telephone:___________________________________________________
Warranty Card
Thank you for choosing Huawei Technologies Co., Ltd. To get better services,
please read this warranty card carefully, fill in the required information, and
preserve this card in good condition.
Preserve well. No reissue.
Dealer's Seal
![](/img.php?id=3594897&img=bgf.png)
Limited Warranty
Subject to the exclusions contained below, Huawei Technologies Co., Ltd. (Huawei
for short) warrants its access terminals ("Products") to be free from defects in
materials and workmanship under normal consumer usage for one year from
the date of purchase of the product ("Warranty period"). During the warranty
period, a Huawei authorized service partner shall remedy defects in materials and
workmanship free of charge.
Special Notice:
1. The warranty card shall be applicable only after being stamped by the dealer.
2. The warranty card must be preserved in good condition and free of any scratch or
alteration.
3. To claim such service for defects that are not included in the following exclusion
terms, the warranty card and the invoice that records that product serial number
shall be presented to a Huawei authorized service partner.
Exclusions:
In any of the following cases, the warranty card becomes unenforceable or
inapplicable without prior notice:
1. The defects are caused by improper handling in transportation and assembly.
2. The defects are caused by the fact that the product is dismantled or altered by
anyone that is not from a Huawei authorized service partner.
3. The defects are caused by the fact that the product is used in a harsh environment
that is not suitable for the operation of the product.
4. The defects are caused by any force majeure including but not limited to fire,
earthquake, lightning, and tsunami.
5. The defects are caused by the fact that the product is used or handled incorrectly,
roughly or not as instructed in the applicable User Guide.
6. The normal wear and tear, including but not limited to the normal wear and tear of
the shell and the power module, shall not be covered by the limited warranty.
7. The warranty card is altered or illegible, or the product serial number recorded on
the warranty card is inconsistent with the actual one imprinted or labeled on the
product.
In any case that is not covered by this limited warranty or should the warranty expire,
Huawei shall charge for the service(s) claimed for the products if the product is still
remediable. Huawei reserves all rights to interpret this limited warranty.
Huawei Technologies Co., Ltd.
Address: Huawei Industrial Base
Bantian, Longgang
Shenzhen 518129
People's Republic of China
Website: http://www.huawei.com
![](/img.php?id=3594897&img=bg10.png)
Issue: 01 (2017-05-12)
BOM number
Qualification Card
PASS
Copyright © Huawei Technologies Co., Ltd. 2017. All rights reserved.
No part of this document may be reproduced or transmitted in any form or by any
means without prior written consent of Huawei Technologies Co., Ltd.
Trademarks and Permissions
and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.
All other trademarks and trade names mentioned in this document are the property of
their respective holders.
Notice
The information in this document is subject to change without notice. Unless
otherwise stated, this guide serves only as a guide. All statements, information, and
recommendations in this document do not constitute a warranty of any kind, expressed
or implied.
