Huawei Technologies EM730 HSDPA Module User Manual

Huawei Technologies Co.,Ltd HSDPA Module

Installation Manual

Copyright © 2008 Huawei Technologies Co., Ltd.
All Rights Reserved
No part of this document may be reproduced or transmitted in any form or by any
means without prior written consent of Huawei Technologies Co., Ltd.
Trademarks and Permissions
and other Huawei trademarks are trademarks of Huawei Technologies Co.,
Ltd.
All other trademarks and trade names mentioned in this document are the
property of their respective holders.
Notice
The information in this document is subject to change without notice. Every effort
has been made in the preparation of this document to ensure accuracy of the
contents, but all statements, information, and recommendations in this document
do not constitute the warranty of any kind, express or implied.
i
Table of Contents
Getting to Know the EM730V........................................................... 1
Requirements for the PC................................................................. 2
Preparing the EM730V.................................................................... 3
Installation Guide .......................................................................... 4
Safety Information........................................................................10
1
Thank you for purchasing Huawei EM730V HSDPA
Embedded PC Module.
Note:
This manual briefly describes the preparation, the process for
installing/uninstalling, and safety precautions for using Huawei EM730V
HSDPA Embedded PC Module (hereinafter referred to as the EM730V).
You are recommended to read the manual before using the EM730V.
The signal strength and the transmission rate are affected by the actual
environment.
Getting to Know the EM730V

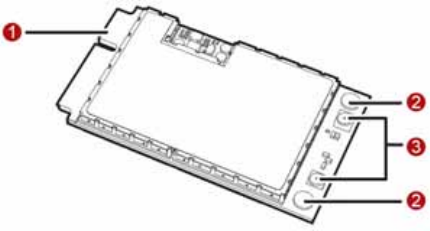

The following figure shows the appearance of the EM730V. The actual product may
differ.
2
Mini PCI Express connector
It is used to connect the EM730V to the WWAN Mini PCI Express interface of the
PC.
Screw holes
They are used to fix the EM730V on the main board of the PC with screws.
Antenna interfaces
They are used to connect antennas.
EM730V has an external antenna which connect with laptop.
The max gain which is allowed of external antenna is
850M:<2.1dBi
1900M:<4.2dBi
Requirements for the PC
To use the EM730V, the PC must meet the following requirements:
WWAN Mini PCI Express interface.
Windows 2000 SP4, Windows XP SP2, Windows Vista and Linux 2.6.18 or
above
The hardware of your PC must meet or exceed the recommended system
requirements for the installed version of OS.
Display resolution: 800 × 600 or above.
3
Preparing the EM730V
Locate the WWAN Mini PCI Express interface on the main board of the PC. Find the
main antenna and the auxiliary antenna.
If a USIM/SIM card is provided by your service provider, insert the USIM/SIM card
into the USIM/SIM card slot on the main board of the PC.
Note:
In certain cases, your PC may be disassembled only by the professionals.
Before you install the EM730V onto the main board of the PC, consult the PC
manufacturer or read the user manual of the PC.
4
Installation Guide
Installing the EM730V onto the Main Board of the PC

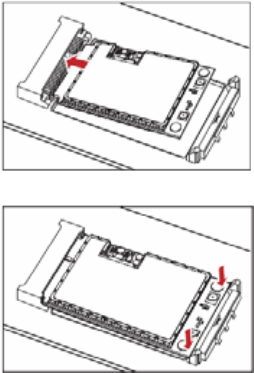

1. Insert the Mini PCI Express connector of the EM730V into the WWAN Mini PCI
Express interface on the main board of the PC.
2. Press downwards to fix the EM730V in the module slot.
5

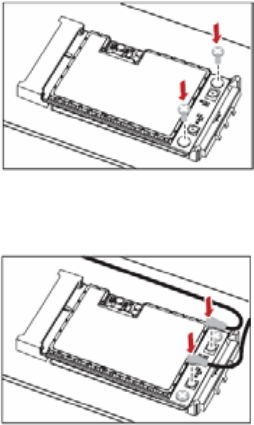

3. Use a screwdriver to fix the EM730V onto the main board of the PC with two
screws provided in the EM730V packing box.
4. Insert the connector of the main antenna into the MAIN antenna interface (M)
of the EM730V according to the indication on the label of the EM730V. Insert
the connector of the auxiliary antenna into the AUX antenna interface (A) of
the EM730V in the same way.
Note:
Insert the antenna connectors vertically into the antenna interfaces of the
EM730V.
6
Do not pinch the antenna cable or damage the connectors. Otherwise, the
wireless performance of the EM730V may be reduced or the EM730V cannot
work normally.
Ensure that the antenna cables are routed through the channel in the frame of
the PC and do not lay across the raised edges of the frame.
7
Removing the EM730V from the Main Board of the PC

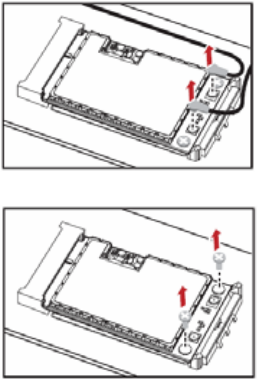

1. Disconnect the antenna cables from the EM730V. You can lift the connectors
with a small screwdriver.
2. Remove the two screws with the screwdriver.
8

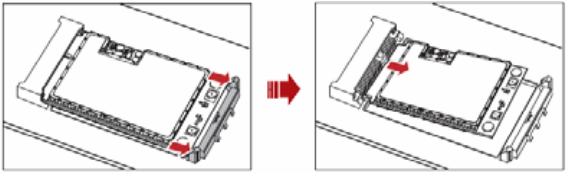

3. Slide backwards the two clips to release the EM730V from the slot. Then, lift
up the EM730V.
Installing the EM730V Software
A disk is provided in the EM730V packing box. The disk contains the management
program and the driver of the EM730V.
1. Insert the disk into the disk drive of the PC.
2. Find the AutoRun.exe file under the disk path. Then double-click
AutoRun.exe to run the program.
3. Follow the prompts of the installation wizard.
4. After the program is installed, the shortcut icon of the management program
is displayed on the desktop.
Uninstalling the Management Program
1. Choose Start > Control Panel.
9
2. Find the management program, and click Add/Remove Program to
uninstall the management program.
Note: It is recommended to restart the PC after the uninstallation to ensure that
the management program is completely uninstalled.
10
Safety Information
Read the safety information carefully to ensure the correct and safe use of your
wireless device.
Interference
Do not use your wireless device if using the device is prohibited or when it causes
danger or interference with electric devices.
Medical Device
Do not use your wireless device and follow the rules and regulations set forth
by the hospitals and health care facilities.
Some wireless devices may affect the performance of the hearing aids. For
any such problems, consult your service provider.
If you are using an electronic medical device, consult the doctor or device
manufacturer to confirm whether the radio wave affects the operation of this
device.
Area with Inflammables and Explosives
To prevent explosions and fires in areas that are stored with inflammable and
explosive devices, do not use your wireless device and observe the rules. Areas
stored with inflammables and explosives include but are not limited to the
following:
Gas station
Fuel depot (such as the bunk below the deck of a ship)
Container/Vehicle for storing or transporting fuels or chemical products
Area where the air contains chemical substances and particles (such as
11
granule, dust, or metal powder)
Area indicated with the "Explosives" sign
Area indicated with the "Power off bi-direction wireless equipment" sign
Area where you are generally suggested to stop the engine of a vehicle
Traffic Security
Observe local laws and regulations while using the wireless device. To prevent
accidents, do not use your wireless device while driving.
RF signals may affect electronic systems of motor vehicles. For more
information, consult the vehicle manufacturer.
In a motor vehicle, do not place the wireless device over the air bag or in the
air bag deployment area. Otherwise, the wireless device may hurt you owing
to the strong force when the air bag inflates.
Observe the rules and regulations of airline companies. When boarding,
switch off your wireless device. Otherwise, the radio signal of the wireless
device may interfere with the plane control signals.
Safety of Children
Do not allow children to use the wireless device without guidance. Small and
sharp components of the wireless device may cause danger to children or cause
suffocation if children swallow the components.
Environment Protection
Observe the local regulations regarding the disposal of your packaging materials,
used wireless device and accessories, and promote their recycling.
12
WEEE Approval
The wireless device is in compliance with the essential requirements and other
relevant provisions of the Waste Electrical and Electronic Equipment Directive
2002/96/EC (WEEE Directive).
RoHS Approval
The wireless device is in compliance with the restriction of the use of certain
hazardous substances in electrical and electronic equipment Directive
2002/95/EC (RoHS Directive).
Laws and Regulations Observance
Observe laws and regulations when using your wireless device. Respect the
privacy and legal rights of the others.
Care and Maintenance
It is normal that your wireless device gets hot when you use or charge it. Before
you clean or maintain the wireless device, stop all applications and power off the
wireless device.
Use your wireless device and accessories with care and in clean environment.
Keep the wireless device from a fire or a lit cigarette.
Protect your wireless device and accessories from water and vapor and keep
them dry.
Do not drop, throw or bend your wireless device.
Clean your wireless device with a piece of damp and soft antistatic cloth. Do
not use any chemical agents (such as alcohol and benzene), chemical
detergent, or powder to clean it.
Do not leave your wireless device and accessories in a place with a
13
considerably low or high temperature.
Use only accessories of the wireless device approved by the manufacture.
Contact the authorized service center for any abnormity of the wireless device
or accessories.
Do not dismantle the wireless device or accessories. Otherwise, the wireless
device and accessories are not covered by the warranty.
Emergency Call
This wireless device functions through receiving and transmitting radio signals.
Therefore, the connection cannot be guaranteed in all conditions. In an
emergency, you should not rely solely on the wireless device for essential
communications.
Body Worn Operation
Important safety information regarding radiofrequency radiation (RF) exposure
Failure to observe these instructions could result in your RF exposure exceeding
the relevant guideline limits.
Regulatory Information
The following approvals and notices apply in specific regions as noted.
CE Approval (European Union)
The wireless device is approved to be used in the member states of the EU. The
wireless device is in compliance with the essential requirements and other
relevant provisions of the Radio and Telecommunications Terminal Equipment
Directive 1999/5/EC (R&TTE Directive).
Federal Communications Commission Notice (United States): Before a wireless
device model is available for sale to the public, it must be tested and certified to
the FCC that it does not exceed the limit established by the government-adopted
14
requirement for safe exposure.
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Warning: Changes or modifications made to this equipment not expressly
approved by HUAWEI may void the FCC authorization to operate this equipment.
When this device should be installed and operated , a minimum distance of 20 cm
between the radiator of external antenna and your body must be required.
