Huawei Technologies EM770W HSPA MODULE User Manual
Huawei Technologies Co.,Ltd HSPA MODULE Users Manual
Contents
Users Manual
![](/img.php?id=1249095&img=bg1.png)
I
In
nt
te
el
l-
-P
Po
ow
we
er
re
ed
d
C
Co
on
nv
ve
er
rt
ti
ib
bl
le
e
C
Cl
la
as
ss
sm
ma
at
te
e
P
PC
C
U
Us
se
er
r’
’s
s
M
Ma
an
nu
ua
al
l
© Copyright 2010
All Rights Reserved.
The information in this document is subject to change without prior notice
in order to improve reliability, design and function and does not represent
a commitment on the part of the manufacturer.
In no event will the manufacturer be liable for direct, indirect, special,
incidental, or consequential damages arising out of the use or inability to
use the product or documentation, even if advised of the possibility of
such damages.
This document contains proprietary information protected by copyright. All
rights are reserved. No part of this manual may be reproduced by any
mechanical, electronic, or other means in any form without prior written
permission of the manufacturer.
Limitation of Liability
While reasonable efforts have been made to ensure the accuracy of this
manual, the manufacturer and distributor assume no liability resulting from
errors or omissions in this manual, or from the use of the information
contained herein.
i
C
Co
on
nt
te
en
nt
ts
s
Contents ..................................................................................................... i
Before You Start ....................................................................................... 3
Attention: Teachers and Parents.........................................................3
For Your Safety ...................................................................................4
Caring for Your Netbook......................................................................4
Regulatory Information ............................................................................ 5
Federal Communications Commission Notice ....................................5
Modifications........................................................................................5
Connections to Peripheral Devices .....................................................5
SAR Exposure .....................................................................................6
Declaration of Conformity .................................................................... 6
European Notice..................................................................................6
Canadian Notice ..................................................................................7
Power Cord Requirement ....................................................................7
Power Cord Notice ..............................................................................9
Battery Pack Safety .............................................................................9
Lithium Battery Warning / Bridge Battery Warning............................ 10
Heat Related Safety Notice ...............................................................11
Headset and Earphone Volume Level Notice ...................................11
Cleaning the Keyboard ......................................................................12
Travel Notice .....................................................................................12
Touring the Netbook...............................................................................13
Front ..................................................................................................13
Left view.............................................................................................15
Right view ..........................................................................................16
Back...................................................................................................17
Top.....................................................................................................18
ii
Base...................................................................................................19
Getting Started ........................................................................................ 20

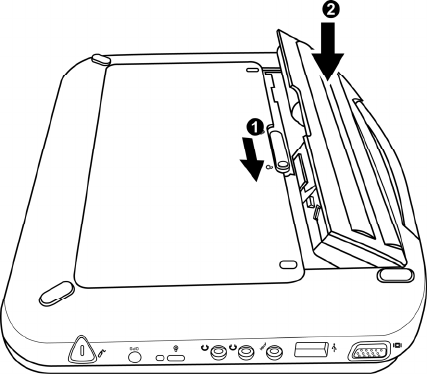

Installing the Battery ..........................................................................20
Charging the Battery..........................................................................21
Opening the LCD Panel.....................................................................22
Switching the Power On ....................................................................22
LED Status Indicators........................................................................24
Using the Netbook ..................................................................................25
Using the Keyboard ...........................................................................25
Using the Touch Pad .........................................................................26
Using the Touch Screen ....................................................................27
Rotating the Display Panel ................................................................27
Using the Built-in Rotating Camera ...................................................30
Sharing the Same Audio Source .......................................................31
Using Your Netbook as a GPS Device..............................................31
Conserving the Battery Power...........................................................32
BIOS Setup .............................................................................................. 33
Entering BIOS Setup .........................................................................33

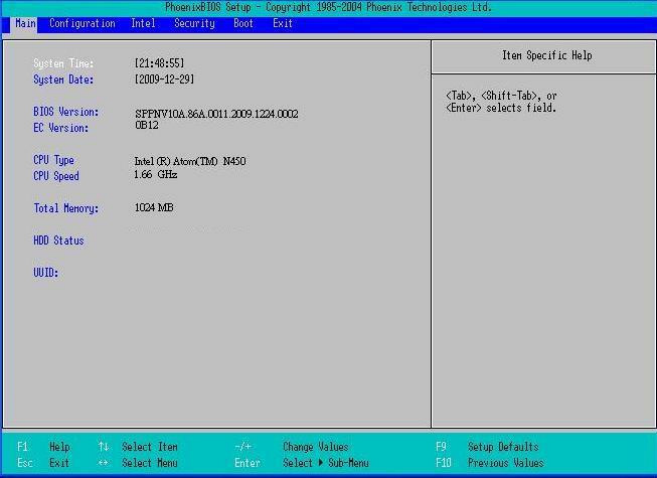

Main Setup.........................................................................................33

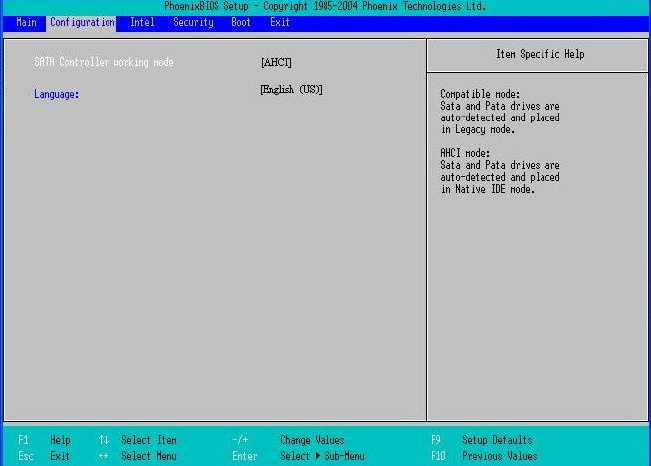

Configuration Setup...........................................................................34
Intel Setup..........................................................................................35

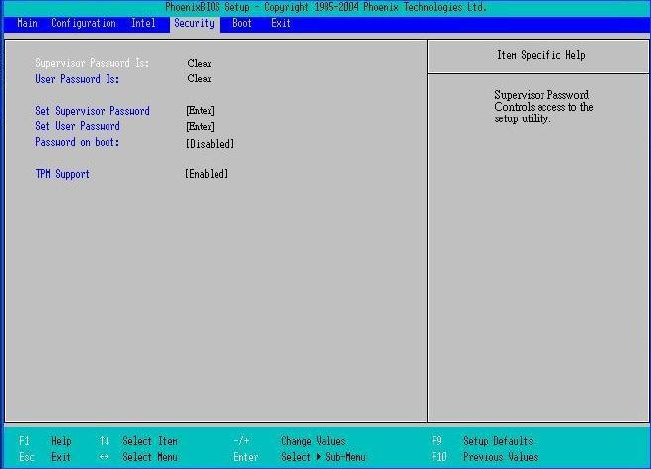

Security Setup ...................................................................................36

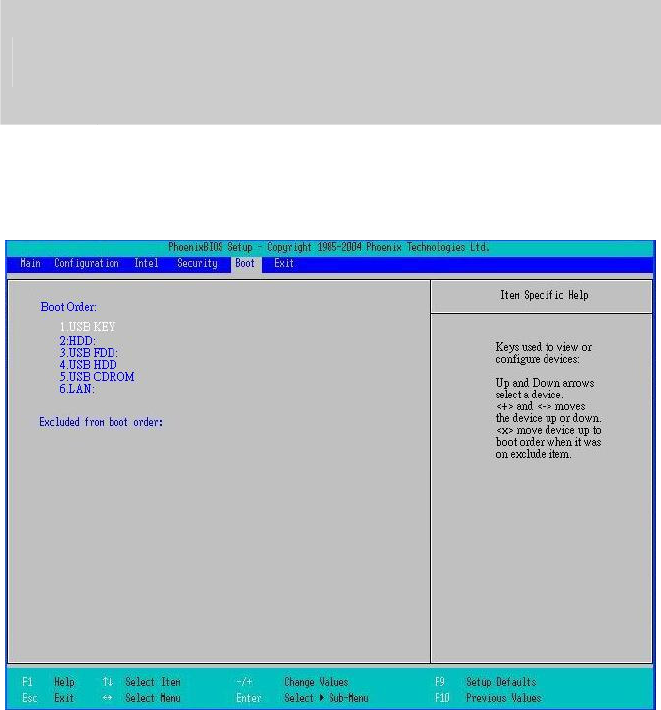

Boot Setup.........................................................................................37

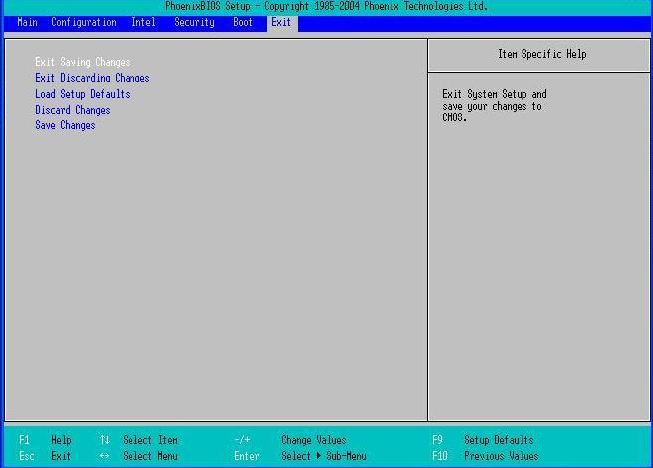

Exit Setup ..........................................................................................38
Troubleshooting ..................................................................................... 39
Specifications .........................................................................................40
Index.........................................................................................................42
![](/img.php?id=1249095&img=bg5.png)
3
B
Be
ef
fo
or
re
e
Y
Yo
ou
u
S
St
ta
ar
rt
t
Attention: Teachers and Parents
This product is an educational tool designed for school age children, ages
6 and up. Make sure that students understand this product is an
educational tool and not a toy.
Students under age 10 must be supervised by an adult when using this
netbook. Explain to students the safe and proper handling of the netbook,
power supply, battery pack, and power cord.
Before students take the netbook home, instruct students to keep power
cords, small accessories, and loose parts away from younger children at
all times. Emphasize to students that any damage to the netbook or loose
parts should be reported immediately to a teacher or parent.
It is recommended that students do not use the netbook for more than 30
minutes without taking a break. A break should be at least five minutes
long.
To ensure the netbook is in good working condition, periodically inspect
the netbook, power supply and power cord for damage, and replace if
necessary.
Keep the power cord away
from younger children.
![](/img.php?id=1249095&img=bg6.png)
4
For Your Safety
Before using in the classroom or home environment, make sure that
students understand the following precautions:
• Do not drop, crush, or step on the netbook.
• Do not place objects or apply heavy pressure on the netbook.
• Do not place on uneven or unstable work surfaces.
• Do not block the openings provided for ventilation, as overheating may
occur.
• Do not use or store the netbook in extreme weather conditions.
• Do not expose to sudden changes in temperature or humidity: keep the
netbook away from heating and A/C vents.
• Do not expose to magnetic fields.
• Do not expose to direct sunlight.
• Do not place near fire or other sources of heat.
• Do not expose to rain or moisture.
• Do not leave the netbook turned on or plugged in when enclosed in a
non-ventilated container, such as a backpack, as overheating may
occur.
Caring for Your Netbook
• Do not spray water or any other cleaning fluids directly on the display.
• Do not clean the netbook when it is plugged into a wall socket.
• Make sure the netbook is turned off before cleaning, and clean with a
slightly damp cloth.
• When you are not using the netbook, keep the LCD panel closed to
protect the screen from dust.
• Make sure the touch pad does not come into contact with dirt, liquids,
or grease.
• Use the AC adapter whenever an AC wall outlet is available to prolong
the battery life and usage cycle.
Note
The netbook can withstand a fall from 70cm. However, if any errors
occur after a fall, contact the repair center for service.
5
R
Re
eg
gu
ul
la
at
to
or
ry
y
I
In
nf
fo
or
rm
ma
at
ti
io
on
n
Federal Communications Commission Notice
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio or television technician for
help.
Exposure to Radio Frequency Radiation: The radiated output power of
this device is below the FCC radio frequency exposure limits.
Nevertheless, the device should be used in such a manner that the
potential for human contact is minimized during normal operation of
notebook/netbook computers.
Modifications
The FCC requires the user to be notified that any changes or
modifications made to this device that are not expressly approved by the
Manufacturer may void the user’s authority to operate the equipment.
Connections to Peripheral Devices
Connections to this device must be made with shielded cables with
metallic RFI/EMI connector hoods to maintain compliance with FCC Rules
and Regulations.
Operation on the 5.15-5.25GHz frequency band is restricted to indoor use
only. The FCC requires indoor use for the 5.15-5.25GHz band to reduce
the potential for harmful interference to co-channel Mobile Satellite
5.725 GHz and 5.725 –5.850 GHz band when associated with an access
point (AP).”
6
SAR Exposure
This device has been tested for compliance with FCC RF Exposure (SAR)
limits in typical flat configurations.
Declaration of Conformity
This device complies with Part 15 the FCC Rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
European Notice
Products with the CE Marking comply with both the EMC Directive
(2004/108/EC) and the Low Voltage Directive (2006/95/EC) and R&TTE
Directive (1999/5/EC) issued by the Commission of the European
Community.
Compliance with these directives implies conformity to the following
European Norms:
• EN55022: 2006, CLASS B
• EN61000-3-2: 2006, CLASS D
• EN61000-3-3: 1995+A1: 2001+A2: 2005
• EN55024: 1998+A1: 2001+A2: 2003
• IEC61000-4-2: 2001 ED. 1.2
• IEC61000-4-3: 2006 ED. 3.0
• IEC61000-4-4: 2004 ED. 2.0
• IEC61000-4-5: 2005 ED. 2.0
• IEC61000-4-6: 2006 ED. 2.2
• IEC61000-4-8: 2001 ED. 1.1
• IEC61000-4-11: 2004 ED. 2.0
• EN300328, EN301489-1, EN301489-17
• EN60950 (IEC60950)
Changes or modifications not expressly approved by the party responsible
for compliance could void the user‘s authority to operate the equipment.
The antenna(s) used for this transmitter must not be co-located or operating
in conjunction with any other antenna or transmitter.
![](/img.php?id=1249095&img=bg9.png)
7
Canadian Notice
This Class B digital apparatus meets all requirements of the Canadian
Interference-Causing Equipment Regulations. Wireless operation is
subject to 2 conditions. The first is that the wireless device may not cause
interference. The second is that the wireless device must accept any
interference, including interference that may cause undesired operation of
the device.
When using IEEE 802.11a wireless LAN, this product is restricted to
indoor use, due to its operation in the 5.15- to 5.25-GHz frequency range.
Industry Canada requires this product to be used indoors for the
frequency range of 5.15 GHz to 5.25 GHz to reduce the potential for
harmful interference to co-channel mobile satellite systems. High-power
radar is allocated as the primary user of the 5.25- to 5.35-GHz and 5.65-
to 5.85-GHz bands. These radar stations can cause interference with
and/or damage to this device.
Attachment Limitations Statement
Users should ensure for their own protection that the electrical ground
connections of the power utility, telephone lines and internal metallic water
pipe system, if present, are connected together. This precaution may be
particularly important in rural areas.
Caution
Users should not attempt to make such connections themselves,
but should contact the appropriate electric inspection authority, or
electrician, as appropriate.
Power Cord Requirement
The power cord supplied with the AC adapter should match the plug and
voltage requirements for your local area. Regulatory approval for the AC
adapter has been obtained using the power cord for the local area.
However, if you travel to a different area and need to connect to a
different outlet or voltage, you should use one of the power cords listed
below. To purchase a power cord (including one for a country not listed
below) or a replacement AC adapter, contact your local dealer.
U.S. and Canada
• The cord set must be UL/ETL-Listed and CSA-Certified or UL/C-ETL
Listed.
![](/img.php?id=1249095&img=bga.png)
8
• The minimum specifications for the flexible cord are (1) No. 18 AWG,
(2) Type SPT-2, and (3) 2-conductor.
• The cord set must have a rated current capacity of at least 7A.
• The attachment plug must be an earth-grounding type with a NEMA
1-15P (7A, 125V) configuration.
Japan
• All components of the cord set (cord, connector, and plug) must bear a
“PSE” mark and registration number in accordance with the Japanese
Dentori Law.
• The minimum specifications for the flexible cord are: (1) 0.75 mm2
conductors, (2) Type VCT or VCTF, and (3) 3-conductor.
• The cord set must have minimum rated current capacity of 7 A.
• The attachment plug must be a two-pole, grounded type with a
Japanese Industrial Standard C8303 (15 A, 125 VAC) configuration.
Other Countries
• The cord set fittings must bear the certification mark of the agency
responsible for evaluation in a specific country.
Acceptable agencies are:
• CCC (China)
• The flexible cord must be of a HAR (harmonized) type HO5VVF
3-conductor cord with a minimum conductor size of 0.03 square
inches.
• The minimum specification for the flexible cord for Class II product
are: (1) 2X0.75 mm2 conductors, (2) 2-conductor cord.
• The cord set must have a current capacity of at least 10 A and a
nominal voltage rating of 125 / 250 VAC.
Note: This model IS DESIGNED TO USE WITH THE
FOLLOWING AC ADAPTER MODEL ONLY
Manufacture: LI SHIN INTERNATIONAL ENTERPRISE CORP.
Manufacture: Delta
9
Power Cord Notice
To reduce the risk of electric shock or damage to the equipment:
• Plug the power cord into an AC outlet that is easily accessible at all
times.
• Disconnect power from the computer by unplugging the power cord
from the AC outlet (not by unplugging the power cord from the
computer).
• If provided with a 3-pin attachment plug on the power cord, plug the
cord into a grounded (earthed) 3-pin outlet. Do not disable the power
cord grounding pin, for example, by attaching a 2-pin adapter. The
grounding pin is an important safety feature.
• Only the AC adapter provided with the computer should be used with
the computer.
Battery Pack Safety
• Keep the battery away from children.
• The battery pack is intended to use only with this netbook.
• To reduce potential safety issues, only the battery provided with the
computer, a replacement battery provided by Intel, or a compatible
battery purchased as an accessory from HP should be used with the
computer.
• The battery pack is not replaceable by the end user. Only qualified
service technicians should replace the battery pack.
• To reduce the risk of fire or burns, do not disassemble, crush, or
puncture a battery; short the external contacts on a battery; or dispose
of a battery in fire or water. Do not expose a battery to temperatures
above 60ºC (140ºF).
• Handle a damaged or leaking battery with extreme care. If you come in
contact with the electrolyte, wash the exposed area with soap and
water. If it contacts the eye, flush the eye with water for 15 minutes and
seek medical attention.
• Do not charge the battery pack if the ambient temperature exceeds
45°C (113°F).
• To obtain a replacement battery, contact your local dealer.
![](/img.php?id=1249095&img=bgc.png)
10
• When discarding a battery pack, contact your local waste disposal
provider regarding local restrictions on the disposal or recycling of
batteries.
• Use only supplied AC Adapter for charging.
Caution: Danger of explosion if battery is incorrectly replaced.
Only qualified service technicians should replace and
discard the battery pack. Replace only with same or
equivalent type recommended by the manufacturer.
Discard used batteries according to the manufacturer’s
instructions or local laws.
Vorsicht: Explisionsgefahr bei unsachgernazen Austausch der
Batterie. Ersatz ur durch denselben oder einem vom
Hersteller empfohlenem ahnlichen Typ. Entsorgung
gebrauchter Batterien navh Angaben des Herstellers.
Lithium Battery Warning / Bridge Battery
Warning
This netbook contains a lithium battery to power the clock and calendar
circuitry.
Caution: Danger of explosion if battery is replaced incorrectly.
Replace only with the same or equivalent type
recommended by the manufacturer. Discard used
batteries according to the manufacturer’s instructions.
Note: Il y a danger d’xplosion s’il y a remplacement incorrect
de la batterie. Remplacer uniquement avcc unc batterie
du meme type ou d’un type recommande par le
constructer. Mettre au rebut les batteries usages
conformement aux instructions du fabricant.
Vorsicht: Explosionsgefahr bei unsachgemBen Austausch der
Batterie Ersatz nur durch denselben oder einem vom
Hersteller empfohlenem ahnlichen Typ. Entsorgung
gebrauchter Batterien nach Angaben des Herstellers.
Der Arbeitsplatzbezogene Schalldruckpegel nach DIN 45 635 betragt
70dB (A) oder weniger.
![](/img.php?id=1249095&img=bgd.png)
11
Zum Netzanschlua dieses Gerates ist eine geprufte Leitung zu verwenden.
Fur einen Nennstrom bis 6A und einem Gerategewicht groBer 3kg ist eine
Leitung nicht leichter als (1) H05VV-F, 3G, 0.75mm2 (2) 2 x 0.75 mm2
conductors einzusetzen.
Die Steckdose muB nahe dem Gerat angebracht und leicht zuganglich
sein.
Caution: This part is hot. Be careful.
Vorsicht: Diese Flachewird sehr heiss.
When you see this symbol, be careful as this spot may be very hot. The
heat is generated from the CPU.
Heat Related Safety Notice
The computer and the AC adapter comply with the user-accessible
surface temperature limits defined by the International Standard for Safety
of Information Technology Equipment (IEC 60950).
To reduce the possibility of heat-related injuries or of overheating the
computer:
• Do not place the computer directly on your lap or obstruct the
computer air vents.
• Use the computer only on a hard, flat surface. Do not allow another
hard surface, such as an adjoining optional printer, or a soft surface,
such as pillows or rugs or clothing, to block airflow.
• Do not allow the AC adapter to contact the skin or a soft surface, such
as pillows or rugs or clothing, during operation.
Headset and Earphone Volume Level Notice
• Listening to music at high volume levels and for extended durations
can damage one's hearing. To reduce the risk of hearing damage,
lower the volume to a safe, comfortable level and reduce the amount of
time listening at high levels.
• For your own safety, before using headsets or earphones, always reset
the volume. Some headphones are louder than other headphones,
even if the volume control setting is the same.
• Changing the default audio or equalizer settings might lead to higher
volume and should only be done with caution.
![](/img.php?id=1249095&img=bge.png)
12
Cleaning the Keyboard
To reduce the risk of electric shock or damage to internal components:
• Do not use a vacuum cleaner attachment to clean the keyboard. A
vacuum cleaner can deposit household debris on the keyboard surface.
• Clean the keyboard regularly to prevent keys from sticking and to
remove dust, lint, and particles that can become trapped beneath the
keys. A can of compressed air with a straw extension can be used to
blow air around and under the keys to loosen and remove debris.
Travel Notice
A
Warning
To reduce the risk of electric shock, fire, or damage to the
equipment, do not attempt to power the computer with a voltage
converter kit sold for appliances.
![](/img.php?id=1249095&img=bgf.png)
13
T
To
ou
ur
ri
in
ng
g
t
th
he
e
N
Ne
et
tb
bo
oo
ok
k
Front
1. Built-in rotating
camera
Use the Built-in rotating camera for video
conferencing.
2. Microphone The built-in microphone allows the netbook to
receive audio input.
3. LCD display Contents of the current system operation are
displayed here.
4. Camera button When the camera software is running, press
this button to captures images/videos.
5. Home button Press this button to return to the desktop.
Press twice to bring up the system menu.
6. Stereo speakers The stereo speakers allow for audio output.
![](/img.php?id=1249095&img=bg10.png)
14
7. LED status
indicators
The operation status of your netbook is
displayed here. See “LED Status Indicators”.
8. Keyboard Use the keyboard to enter data.
9. Touch pad Use the touch pad and two buttons as a
mouse. See “Using The Touch Pad”.
10. Page up button This button functions the same way as the
“Page Up” key.
11 Page down
button This button functions the same way as the
“Page down” key.
12. Power button Press this button to turn your netbook on and
off. See “Switching the Power On”.
13. LED status
indicators
The operation status of your netbook is
displayed here. See “LED Status Indicators”.
![](/img.php?id=1249095&img=bg11.png)
15
Left view
1. External monitor
port Use this port to connect to an external monitor.
2. USB 2.0 port
Use this port to connect Universal Serial Bus
devices. The netbook supports v.2.0 of the USB
standard.
3. Microphone jack Use the microphone jack to connect an external
microphone.
4. Headphone
jacks
Use the headphone jacks to connect external
headphone sets.
5. Kensington
security slot
Attach a Kensington lock to this slot to secure
your notebook.
6. GPS antenna
port
Use this port to connect an external GPS
antenna.
7. Stylus pen slot The Stylus pen for the touch screen is stored
here.
![](/img.php?id=1249095&img=bg12.png)
16
Right view
1. Memory card
slot
Insert a memory card into this slot to read the
stored data on the memory card.
2. USB 2.0 port
Use this port to connect Universal Serial Bus
devices. The netbook supports v.2.0 of the USB
standard.
3. Ventilation
opening
The ventilation opening allows the netbook to
cool off and prevent overheating. Do not block
this opening when the netbook is turned on.
4. Power adapter
port
Connect your AC adapter to this port to power
up your netbook and charge the battery pack.
5. LAN (RJ-45) port Use this port to connect a standard RJ-45 plug
of a router or ADSL modem.
![](/img.php?id=1249095&img=bg13.png)
17
Back
1. Handle Use the handle to carry the netbook.
2. Name field Place your name tag here.
![](/img.php?id=1249095&img=bg14.png)
18
Top
1. LED status
indicators
The operation status of your netbook is
displayed here. See “LED Status Indicators”.
![](/img.php?id=1249095&img=bg15.png)
19
Base
1. Battery bay The battery pack is stored here.
2. Battery lock switch Use the battery lock switch to lock the
battery pack in the battery bay.
3. Ventilation openings
The ventilation openings allow the netbook
to cool off and prevent overheating. Do not
block these openings when the netbook is
turned on.
![](/img.php?id=1249095&img=bg16.png)
20
G
Ge
et
tt
ti
in
ng
g
S
St
ta
ar
rt
te
ed
d
Congratulations on your purchase of the Intel-powered convertible
classmate PC. Your netbook features a built-in rotating camera, two
headphone ports for sharing music, a rotating LCD display panel, and
touch screen functions. In this section, you will be introduced to the basic
operations of your netbook.
Installing the Battery
Before installing or removing the battery, make sure the Netbook is turned
off.
To install the battery pack:
1. Align the tabs on the battery pack with the slots in the battery bay, and
insert the battery pack into the battery bay.
2. Slide and hold the battery lock switch to the right, in the unlocked
position.
3. Slide the battery pack down gently but firmly until it locks into place.
4. Slide the battery lock switch left into the locked position.
![](/img.php?id=1249095&img=bg17.png)
21
To remove the battery pack:
1. Slide and hold the battery lock switch to the right, in the unlocked
position.
2. Lift and remove the battery.
Note
You must charge the battery pack for at least six hours before using
it for the first time.
Charging the Battery
To charge the battery, plug the AC adaptor into the netbook and an
electrical outlet. Whenever possible, use the AC adaptor to keep the
netbook connected to a power source.
For a totally discharged battery, it will take approximately two hours to
charge to 90% capacity, and approximately three hours to 100% while the
netbook is powered off. It will take about five hours to charge the battery
to 100% capacity while the netbook is powered on.
If the system runs at heavy loads or in a high temperature environment,
the battery may not be fully charged. You need to continue to charge it
with the AC adaptor plugged in until the charging LED turns green.
• Low battery warning: When the battery power is reduced to 10
percent, the battery status LED blinks orange and the system beeps
every 16 seconds.
• Very low battery warning: When the battery power is reduced to five
percent, the battery status LED blinks orange and the system beeps
every 4 seconds.
A
Warning
Always use the AC adapter and power cord included with this
package. Using a replacement may result in damage to your
netbook.
Note
The system will not charge the battery when the temperature
exceeds 40 degrees Celsius.
![](/img.php?id=1249095&img=bg18.png)
22
Opening the LCD Panel
To open the LCD panel:
1. Steady the base of the netbook with one hand.
2. Hold a corner of the LCD panel with the other hand.
3. Gently raise the LCD panel to the upright position.
A
Warning
Never slam the LCD panel shut, as this may damage the netbook.
Note
Do not grip the Built-in rotating camera when trying to open or close
the LCD panel.
Switching the Power On
Once you have connected your AC adapter or charged the battery pack,
you can power on your netbook.
When you power on your netbook, the Power-On Self Test (POST) runs
automatically to check the internal hardware and configuration. After the
POST is completed, your netbook loads the installed operating system.
If hardware configuration has been changed or the POST fails, a warning
message may appear on the screen. This message will inform you of any
errors or invalid settings, and prompt you to run the BIOS Setup Utility to
correct the problem.
![](/img.php?id=1249095&img=bg19.png)
23
To switch the power on:
Press the power button.
To switch the power off:
1. Make sure all applications are turned off.
2. Press the Windows logo key, and then click Shut down.
A
Warning
• Never turn the netbook off during the POST, or an
unrecoverable error may occur.
• Never turn the netbook off while the hard disk is in use, or
system data may be lost or corrupted.
![](/img.php?id=1249095&img=bg1a.png)
24
LED Status Indicators
The netbook has LED status indicators on the top of the LCD panel, to the
left of the LCD display and above the keyboard, allowing you to see the
system and power status of your netbook at a glance.
Blue light indicates the numeric keypad is activated.
Blue light indicates the caps-lock is activated.
Blue light indicates the system is reading/writing data.
Blue light indicates the system is on.
Blue light indicates the battery is fully charged and the AC
adapter is plugged in.
Orange light indicates the battery is charging.
Blinking orange light indicates the battery power is low.
No light indicates the battery pack is not installed in your
system.
Blue light → off → orange light → off → blue light indicates the
battery temperature is too high.
Blinking blue light indicates WLAN operation in progress.
Blue light indicates the WLAN is on.
![](/img.php?id=1249095&img=bg1b.png)
25
U
Us
si
in
ng
g
t
th
he
e
N
Ne
et
tb
bo
oo
ok
k
Using the Keyboard
You can use certain key combinations to quickly configure system settings.
Graphic
symbol Action System control
Fn + F1 Turn the WLAN module off or on.
Fn + F2 Enter the sleep mode.
Fn + F3 Turn off the volume output.
Fn + F4 Decrease the speaker volume.
Fn + F5 Increase the speaker volume.
Fn + F6 Switch the display between the LCD
panel and the external monitor.
Fn + F7 Decrease the brightness of the LCD.
Fn + F8 Increase the brightness of the LCD.
Fn + Pause
(Break) View system properties.
Fn + SysRq
(PrtSc)
Capture the on screen display as a
graphic.
Fn + Ins (Num LK) Lock and unlock the number pad.
![](/img.php?id=1249095&img=bg1c.png)
26
Fn + Del (Scr LK) Turn the scroll lock function on or off.
Fn + ↑ (PgUp) Move to the previous page.
Fn + ↓ (PgDn) Move to the next page.
Fn + ← (Home) Move the cursor to the beginning of a
row.
Fn + → (End) Move the cursor to the end of a row.
Using the Touch Pad
The touch pad includes a touch-sensitive pad, a scroll bar and two buttons,
and can be used like a mouse. You can move the cursor on the screen,
select items, and call up menus.
• To move the cursor on the screen, move the tip of your finger across
the touch pad.
• To scroll up or down, slide your finger up or down the scroll bar.
• To left-click, press the left button once.
• To double click, quickly press the left button twice.
• To right-click, press the right button once.
• To drag and drop, press and hold the left button, and move your finger
on the touch pad to the desired location.
![](/img.php?id=1249095&img=bg1d.png)
27
Using the Touch Screen
The display panel of your netbook also works as a touch screen. You can
use the stylus pen to control system operations, or as a pen for writing or
illustration applications. The first time you power on the netbook, follow
the on screen instructions to activate the touch screen.
A
Warning
Do not tap or write on the screen with excessive force. Doing so
may damage the LCD display.
Rotating the Display Panel
The display panel of your notebook can rotate up to 180 degrees,
clockwise or counterclockwise. You can fold it down with the display
facing up, and use it as a writing pad. In the folded position, the internal
sensor intuitively switches the screen display to match the orientation of
the netbook. You can rotate the screen horizontally or vertically to suit
your needs.
To rotate the display panel:
1. Lightly grip the bottom corners of the display panel with your fingers
while keeping your palms on the base of the netbook.
2. Gently turn in the clockwise or counterclockwise direction.
![](/img.php?id=1249095&img=bg1e.png)
28
3. Turn 180 degrees until the display panel gently snaps into place.
A
Warning
Do not try to turn the display panel more than 180 degrees.
Note
If you rotate the display panel clockwise, you must turn it
counterclockwise to return to its original position. If you rotate the
display panel counterclockwise, you must turn it clockwise to return
to its original position.
![](/img.php?id=1249095&img=bg1f.png)
29
To use the display panel as a writing pad:
1. Make sure the display panel has been rotated 180 degrees.
2. Hold the display panel by one or both of the upper corners.
3. Gently lower the display panel to the closed position.
![](/img.php?id=1249095&img=bg20.png)
30
Using the Built-in Rotating Camera
The built-in rotating camera can rotate up to 180 degrees, and is equipped
with an internal sensor to automatically switch to the correct orientation.
You can rotate the built-in rotating camera back and forth to use on both
sides of the display panel.
To rotate the built-in rotating camera:
1. Hold the edge of the built-in rotating camera with your thumb and
index finger.
2. Use your thumb to push the bottom edge of the built-in rotating
camera up.
3. Gently turn outwards until it locks into the 180 degrees position.
Note
The built-in rotating camera must be returned to its original position
for the display panel to close properly.
![](/img.php?id=1249095&img=bg21.png)
31
Sharing the Same Audio Source
The two headphone ports located on the left side of the netbook allow two
persons to share the same audio source, such as music, movies and
videos.
To share the same audio source:
1. Plug in two sets of headphones.
2. Open the audio or video file you wish to listen to.
A
Warning
Loud volume may damage your hearing. Listen to music at a
moderate level, and avoid continuous use of headphones over a
long period of time.
Using Your Netbook as a GPS Device
Your netbook can operate as a GPS device with an optional 3G network
card.
To enable GPS functionality, you will need:
• A 3G network card. Contact your retailer for details.
• GPS receiver. You can use the built-in GPS receiver on your netbook,
or install an external antenna for better reception.
• GPS software. You must install GPS software to use your netbook for
navigation.
To use your netbook for GPS navigation:
1. Adjust the placement of your netbook for the clearest reception
possible with the internal or external antenna.
2. Open the GPS software and follow the instructions on the screen.
Note
Move outdoors or to an open area to use GPS functionality. GPS
relies on satellites and needs a line of sight. Tall trees and buildings
interfere with satellite signals.
![](/img.php?id=1249095&img=bg22.png)
32
Note
Some GPS software allow you to use voice commands, such as
turning the volume up or down, entering addresses and asking how
much farther until the next turn. You can speak your commands into
the built-in microphone or a microphone connected to the netbook.
Conserving the Battery Power
You can use a combination of key controls to enter the sleep or
hibernation mode to conserve the battery power.
• In the sleep mode, hardware devices, such as the display panel and
hard disk, are turned off to conserve energy.
• In the hibernation mode, all system data are saved in the hard disk
before powering down. No power or very little power is drawn from the
battery module.
To enter the sleep mode:
Press and hold [Fn + F2].
To enter the hibernation mode in Windows:
1. Press the Windows logo key, and then press [U].
2. When the popup window appears, press and hold [Shift + H].
To exit the sleep or hibernation mode:
Press the power button.
Note
When exiting the hibernation mode, the amount of time the system
requires to restore all its previous contents can range from five to
twenty minutes, depending on how much RAM has been installed
on your netbook.
![](/img.php?id=1249095&img=bg23.png)
33
B
BI
IO
OS
S
S
Se
et
tu
up
p
The BIOS (Basic Input/Output System) Setup Utility runs and maintains a
variety of hardware functions. It is a menu-driven software, which allows
you to easily configure and change the settings. When turning on the
netbook for the first time, you may get a message prompting you to run
the BIOS Setup Utility.
Entering BIOS Setup
Turn on the power, and press the DEL key quickly when the POST
(Power-On Self Test) is running.
Main Setup
In this menu you can change the time and date, and view basic processor
and system memory information.
• System Time: Enter the time in HH:MM:SS format.
• System Date: Enter the date in MM/DD/YY format.
• BIOS Version: Displays the BIOS revision number.
• EC Version: Displays the EC revision number.
![](/img.php?id=1249095&img=bg24.png)
34
• CPU Type: Displays the CPU type.
• CPU Speed: Displays the CPU speed.
• Total Memory: Displays the total memory available in the system.
• HDD status: Displays the HDD model.
• UUID: Displays your Universally Unique ID.
Configuration Setup
In this menu you can configure advanced settings.
• SATA Controller working mode: Place your SATA controller in
Legacy mode or Native IDE mode.
• Language: Supports English and Spanish for the BIOS Setup menu.
![](/img.php?id=1249095&img=bg25.png)
35
Intel Setup
In this menu you can control the configuration of the internal graphics
display device.
• Video (Intel IGO) Control Sub-Menu: You can change the settings of
your graphics display device here.
![](/img.php?id=1249095&img=bg26.png)
36
Security Setup
In this menu you can set up supervisor and user passwords to protect
system information and limit third party access.
• Supervisor Password Is: Displays the supervisor password.
• User Password Is: Displays the user password.
• Set Supervisor Password: Enter and confirm your new password.
You will be asked to enter this password each time you enter the setup
utility.
• Set User Password: The supervisor password must be set before you
can set the user password. You will be asked to enter this password
each time the netbook is powered on.
• Password on boot: When enabled, a password is required during
system boot. Either the supervisor or user password will be accepted.
• TPM Support: Trusted Platform Module technology enables remote
attestation, sealed storage, authentication of hardware devices and
disk encryption.
![](/img.php?id=1249095&img=bg27.png)
37
Note
• Passwords are not case sensitive.
• Write the passwords down and keep in a safe location. If you
forget the passwords, the netbook may need to be sent back to
the factory or to an authorized service dealer to reset the
passwords.
Boot Setup
In this menu you can decide the order of boot devices to load the
operating system.
![](/img.php?id=1249095&img=bg28.png)
38
Exit Setup
• Exit Saving Changes: Exit system setup and save your changes to
CMOS.
• Exit Discarding Changes: Exit system setup without saving changes
to CMOS.
• Load Setup Defaults: Load default values for all setup items.
• Discard Changes: Load previous values from CMOS for all setup
items.
• Save Changes: Save setup data to CMOS.
39
T
Tr
ro
ou
ub
bl
le
es
sh
ho
oo
ot
ti
in
ng
g
Troubleshooting activity should only be performed by an adult.
Your netbook has been fully tested and complies with the system
specifications before shipping. However, incorrect operations and/or
mishandling may cause problems. You may also encounter simple setup
or operating problems that can be solved by considering the following
suggestions. If the problem persists, contact your dealer for service.
• Make sure the AC adapter is properly plugged into the netbook and a
wall outlet.
• Check to see if the power indicator of the netbook is on.
• Check to see if your keyboard is operational by pressing and holding
any key.
• Make sure all devices connected to the external ports are plugged in
properly. You can also remove these devices to eliminate them as the
source of the problem.
• Some software programs may cause problems during your routine use.
Consult the software vendor for problem solving.
• An incorrect setting in the BIOS Setup Utility may cause the system to
malfunction. If you are unsure of the changes you made, go to the
BIOS Setup Utility and load default settings.
![](/img.php?id=1249095&img=bg2a.png)
40
S
Sp
pe
ec
ci
if
fi
ic
ca
at
ti
io
on
ns
s
Items Prototype
Dimensions
(W x D x H)
w/o handle: 268 mm x 213 mmx 38.4 mm (front side)
with handle: 268 mm x 207.83 mmx 38.4 mm (front
side)
All dimensions with tolerance 0.4mm
Weight Target 4 Cell battery model type: 1.3kg
6 Cell battery model type: 1.4kg
CPU Intel® Atom N450 1.66GHz, 512 KB L2 cache,
FSB=533 MHz
Chipset Intel® NM10 Express Chipset
System Memory DDR2 533/667 So-DIMM SDRAM module, 1GB
System Storage Option 1: NAND flash 8/16/32 GB
Option 2: 2.5” HDD 160 GB/250GB
Boot ROM SPI BIOS Phoenix code, 8MB flash ROM (TBD)
LCD 10.1" WSVGA (1024 x 600) TFT LCD with LED
backlight, LVDS interface
Touch screen 4-wire 10.1’’ ITO resistive touch screen/Multi touch
Graphics Embedded in Processor Intel® Atom N450
Graphics Memory Share system memory
I/O ports
2 USB 2.0
2x Headphone out,
Mic-in
DC-in
RJ-45
VGA-Out
Audio HD audio codec, CX20671-11Z
Audio I/O Headphone out, Mic-in, Internal mono MIC, Internal
Stereo Speakers
Wireless (optional)
WLAN 802.11b/g/n 1x2 2.4GHz band with mesh
or
WLAN 802.11a/b/g/n 2x2 dual band option
LAN Built-in Ethernet, JMC261
10 / 100M based Ethernet LAN (Support WOL)
Card Reader 2-in-1 SD/MMC memory card reader, JMC261
Webcam (optional)
Integrated 1.3M Pixel Camera to support
7~9fps@1280x1024/
30fps@640x480; + x1 D-Mic
Embedded controller Winbond WPCE776S (w/KBC)
![](/img.php?id=1249095&img=bg2b.png)
41
Battery
4-cell 3.7V / 2200+mAH Lithium-Ion battery with
capacitor indicator on body
6-cell 3.7V / 2600+mAH Lithium-Ion battery with
capacitor indicator on body
Buttons/Switches
Lid/Tablet switch (magnetic switch)
System On/Off button
4 Bezel buttons for Tablet function
Status Indicators WLAN, HDD, Power, Battery
Accelerometer 3-D digital accelerometer
CDMA2000 (Option) 1x EV-DO Rev.A and Rev.0, CDMA 1xRTT
EM660
WCDMA (Option) GPRS/EDGE, UMTS, HSDPA, HSUPA
EM770W
TPM (Option) TPM 1.2
GPS Civilian usage for Navigation, accuracy <10m
MPE-1000
Bluetooth Integrated Bluetooth V2.1
BCM92070MD_REF
Keyboard
83keys, Travel: 1.7mm +-0.2mm, Height: 4.3mm
+-0.2mm
Integrated Keyboard with Hot key
Touch pad Touch Pad with Left and Right Click Button
Power Adapter 19.5 ~ 21.5V, 0~2A 40W
Operating System
• Windows XP: Pro
• Windows 7: Starter, Home Basic and
Professional
• Linux: Moblin 2.0 or kernel is 2.6.20+
42
I
In
nd
de
ex
x
A
AC adapter
replacing, 7
audio sharing, 31
B
battery
charging time, 21
installing, 20
removing, 21
status
indicators, 21
battery safety, 9
BIOS
configuration, 33
C
care and
maintenance, 4
E
external monitor
connecting, 15
F
factory settings
restoring, 38
G
GPS
antenna, 15
navigation, 31
H
headphones, 15,
31
K
keyboard
controls, 25
L
LCD display
opening, 22
rotating, 27
M
memory card
inserting, 16
microphone, 13,
15
P
password
setting up, 36
S
switching the
power on and off,
23
system
settings, 33
status indicators,
24
T
touch pad, 26
touch screen, 27
stylus pen, 15,
27
using as writing
pad, 29
U
USB
connecting, 15
