User Manual

END1CTLA Monitoring Board

User Manual

Issue

Date

2018

UAWEI

ECHNOLOGIES

., L

Issue 01 (2018-02-09) Huawei

Proprietary and Confidential

No part of this document may be reproduced or transmitted in any form or by any means without prior

written consent of Huawei Technologies Co., Ltd.

Trademarks and Permissions

and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.

All other trademarks and trade names mentioned in this document are the property of their respective

holders.

Notice

The purchased products, services and features are stipulated by the contract made between Huawei and

the customer. All or part of the products, services and features described in this document may not be

within the purchase scope or the usage scope. Unless otherwise specified in the contract, all statements,

information, and recommendations in this document are provided "AS IS" without warranties, guarantees or

representations of any kind, either express or implied.

The information in this document is subject to change without notice. Every effort has been made in the

preparation of this document to ensure accuracy of the contents, but all statements, information, and

recommendations in this document do not constitute a warranty of any kind, express or implied.

Huawei Technologies Co., Ltd.

Address: Huawei Industrial Base

Bantian, Longgang

Shenzhen 518129

People's Republic of China

Website: http://www.huawei.com

Email: support@huawei.com

SUN2000L Monitoring Board

User Manual

Contents

Issue 01 (2018-02-09) Huawei

Proprietary and Confidential

s Co., Ltd.

Contents

1 Appearance ..................................................................................................................................... 1

2 Functions ......................................................................................................................................... 3

3 Specifications ................................................................................................................................. 4

4 Applicable Products ..................................................................................................................... 7

5 Installation...................................................................................................................................... 8

6 STATEMENT ................................................................................................................................. 9

SUN2000L Monitoring Board

User Manual

Appearance

Issue 01 (2018-02-09) Huawei Proprietary and Confide

ntial

Appearance

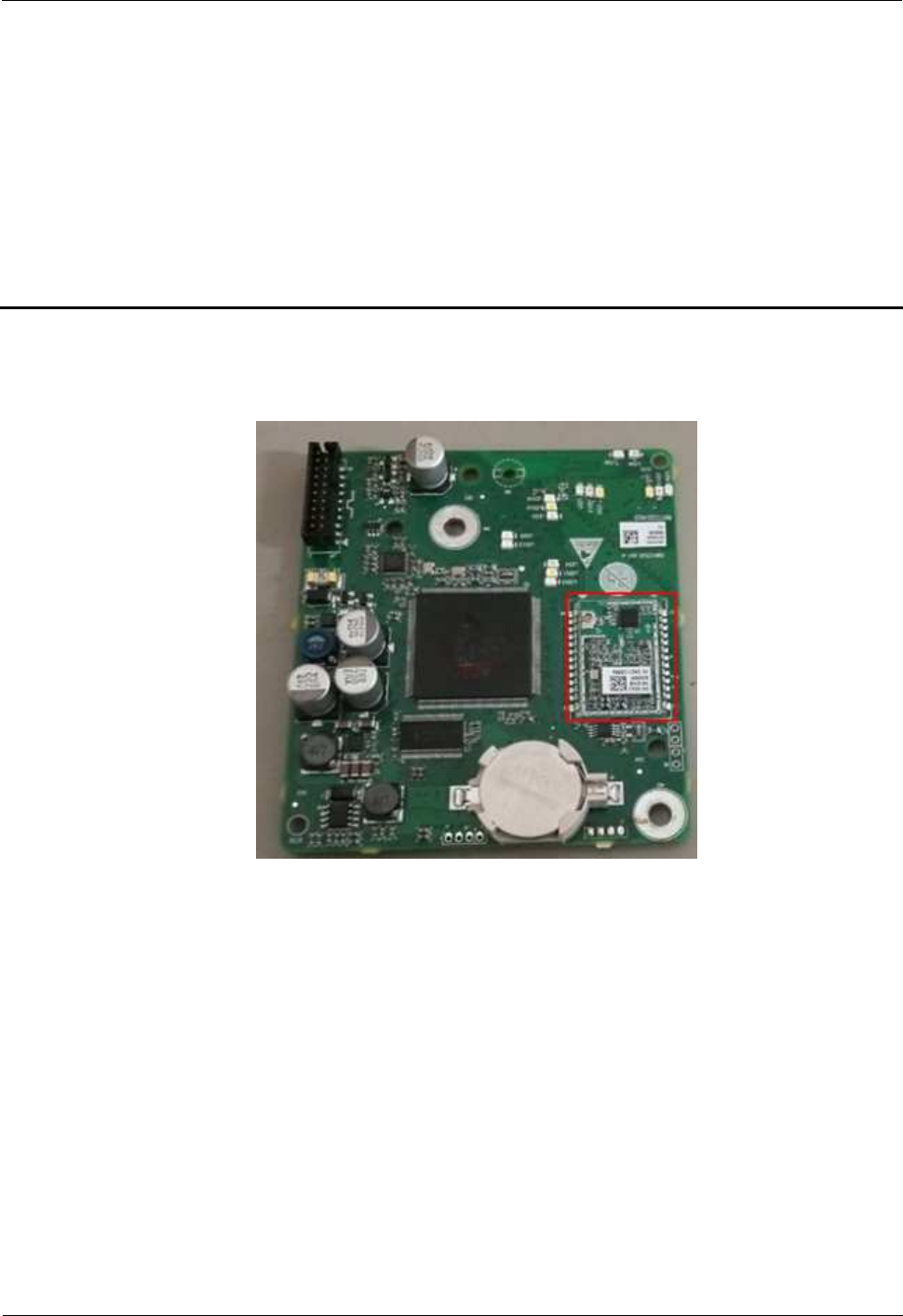

Figure 1-1 Monitoring board

WIFI

Module

SUN2000L Monitoring Board

User Manual

Appearance

Issue 01 (2018-02-09) Huawei Proprietary and Confide

ntial

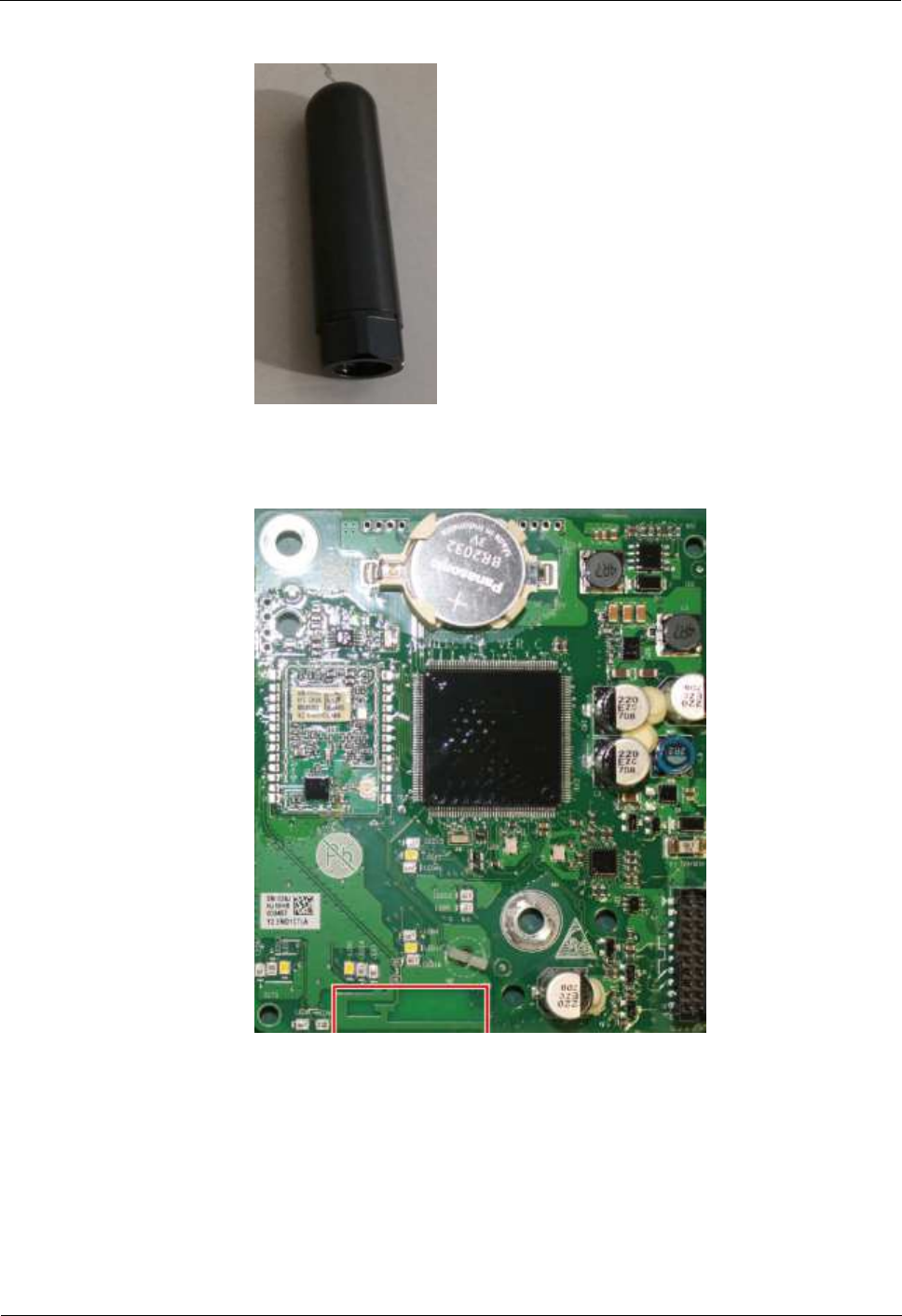

Figure 1-2 WiFi antenna

Figure 1-3 PCB onboard antenna

SUN2000L Monitoring Board

User Manual

Functions

Issue 01 (2018-02-09) Huawei

Proprietary and Confidential

Functions

 The monitoring board receives information from the sampling control unit, processes,

stores, and displays the information, and reports it to the management system.

 The monitoring board receives commands and upgrade program packages from the

management system or mobile app, parses them, and then delivers them to the sampling

control unit for execution.

 Multiple ports such as WiFi/RS485 are provided for communication and networking.

 The WiFi module soldered on the monitoring board transmits and receives radio signals.

SUN2000L Monitoring Board

User Manual

Specifications

Issue 01 (2018-02-09) Huawei

Proprietary and Confidential

Specifications

I. Board electrical specifications

① Board operating environment

Environmental Specifications Operating

Environmen

t Condition

Transportat

ion

Environme

Condition

Storage

Environm

ent

Condition

Remarks

Item Specificat

ions

Unit

Cli

mat

Tempe

rature

Lower

threshold

°C –35 –40 –40 /

Upper

threshold

°C +70 +80 +80 /

Humid

ity

Lower

threshold

% 5 / 5 /

Upper

threshold

% 95 / 95

Condensa

tion

Yes

/No

No / No

Altitud

Lower

threshold

m 0 0 0 0–3000 m

(above 2000

m: refer to

GB/T

3859.2

derating

specification

s.)

② Key electrical specifications

SUN2000L Monitoring Board

User Manual

Specifications

Issue 01 (2018-02-09) Huawei

Proprietary and Confidential

Table 3-1

Item Specifications Remarks

Input voltage range 12 V DC±10%

Board power consumption (0.5~2.5) W

Radio operating frequency 2.4 (2.412~2.612) GHz

Radio transmit power 16 dBm +/- 3 dB Average

II. Board port definitions

Table 3-2

Pin No. Pin Name Description Remarks

1 12VDC 12 V power input

2 RS485A RS485 +

3 12VDC 12 V power input

4 RS485B RS485 –

5 USB_DM USB data line

6 USB_VBUS USB power supply

7 USB_DP USB data line

8 GND Ground

9 PLC_TXD PLC transmit

10 5VDC 5 V power supply

11 PLC_RXD PLC receive

12 GND Ground

13 CTLS Battery enable

control signal

14 RapidSHD Rapid shutdown

signal

15 SPS_FAULT DC standby power

supply (SPS) status

detection signal

16 Alarm Alarm signal

17 GND Ground

18 CANL CAN

communication data

line

SUN2000L Monitoring Board

User Manual

Specifications

Issue 01 (2018-02-09) Huawei

Proprietary and Confidential

Pin No. Pin Name Description Remarks

19 GND Ground

20 CANH CAN

communication data

line

SUN2000L Monitoring Board

User Man

ual

Applicable Products

Issue 01 (2018-02-09) Huawei

Proprietary and Confidential

Applicable Products

The monitoring board is applicable to SUN2000L high-efficiency series:

 China edition

 Europe edition

 North America edition

SUN2000L Monitoring Board

User Manual

Installation

Issue 01 (2018-02-09) Huawei

Proprietary and Confidential

Installation

The OEM integrator has to be aware not to provide information to the end user regarding how

to install or remove this RF module in the user manual of the end product which integrates

this module. The module shall be only used with listed antenna(s) that has been originally

tested and certified with this module. The final end product must be labeled in a visible area

with the following: contains FCC ID: QISEND1CTLA or contains IC: 6369A-END1CTLA.

SUN2000L Monitoring Board

User Manual

STATEMENT

Issue 01 (2018-02-09) Huawei

Proprietary and Confidential

STATEMENT

1.1 U.S.A Regulatory Compliance

1.1.1 FCC Part 15B

Product complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions:

 This device does not cause harmful interference.

 This device must accept any interference received, including interference that may cause

undesired operation.

If this device is modified without authorization from Huawei, the device may no longer

comply with FCC requirements for Class B digital devices. In that a case, your right to use the

device may be limited by FCC regulations. Moreover, you may be required to correct any

interference to radio or television communications at your own expense.

This device has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation.

This device generates, uses and radiates radio frequency energy. If it is not installed and used

in accordance with the instructions, it may cause harmful interference to radio

communications.

However, there is no guarantee that interference will not occur in a particular installation. If

this device does cause harmful interference to radio or television reception, which can be

determined by turning the device off and on, the user may take one or more of the following

measures:

 Reorient or relocate the receiving antenna.

 Reinforce the separation between the device and receiver.

 Connect the device into an outlet on a circuit different from that to which the receiver is

connected.

 Consult the dealer or an experienced radio or TV technician for assistance.

The manufacturer is not responsible for any radio or TV interference caused by unauthorized

modifications to this equipment. Such modifications could void the user authority to operate

the equipment.

1.2 Canada Regulatory Compliance

1.2.1 RSS-Gen statement- Licence-Exempt radio apparatus

SUN2000L Monitoring Board

User Manual

STATEMENT

Issue 01 (2018-02-09) Huawei

Proprietary and Confidential

ENGLISH:

This product complies with Industry Canada’s licence-exempt RSSs. Operation is subject to

the following two conditions:

(1) This device may not cause interference; and

(2) This device must accept any interference, including interference that may cause undesired

operation of the device.

FRENCH:

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio

exempts de licence. L’exploitation est autorisée aux deux conditions suivantes:

(1) l’appareil ne doit pas produire de brouillage;

 Connect the device into an outlet on a circuit different from that to which the receiver is

connected.

 Consult the dealer or an experienced radio or TV technician for assistance.

The manufacturer is not responsible for any radio or TV interference caused by unauthorized

modifications to this equipment. Such modifications could void the user authority to operate

the equipment.

1.2.2 RSS-Gen statement – Detachable transmitter antenna

ENGLISH:

This device, as licence-exempt radio apparatus, equips with detachable antenna.

This radio transmitter (IC: 6369A-END1CTLA) has been approved by Industry Canada to

operate with the antenna types listed below with the maximum permissible gain indicated.

Antenna types not included in this list, having a gain greater than the maximum gain indicated

for that type, are strictly prohibited for use with this device.

Table 6-1 lists all antenna types approved for use with the device.

FRENCH:

Cet appareil, en tant que dispositif radio exempt de licence, fonctionne avec une antenne

amovible.

Le présent émetteur radio (IC: 6369A-END1CTLA) a été approuvé par Industrie Canada pour

fonctionner avec les types d'antenne énumérés ci‑dessous et ayant un gain admissible

maximal. Les types d'antenne non inclus dans cette liste, et dont le gain est supérieur au gain

maximal indiqué, sont strictement interdits pour l'exploitation de l'émetteur.

Table 6-1 liste de tous les types d'antennes pour lesquelles l'utilisation avec l'appareil est

approuvée.

Table 6-1 Approved antenna types / Types d'antennes approuvées

Antenna Type /

Type d'antenne

Maximum Permissible Gain (in dBi) /

Gain maximum autorisé

Remark /

Remarque

Omni-directional 4.5 dBi External

SUN2000L Monitoring Board

User Manual

STATEMENT

Issue 01 (2018-02-09) Huawei

Proprietary and Confidential

1.3 RF Exposure (Health) Information

This equipment complies with relevant RF radiation exposure limits set forth for a

public/uncontrolled environment. This equipment should be installed and/or operated with a

minimum distance as below between the radiator and your body.

 20 centimeters
