Huawei Technologies ESPACE6810 IP PHONE User Manual
Huawei Technologies Co.,Ltd IP PHONE Users Manual
Users Manual
Huawei IP Phone eSpace 6810
User Manual
HUAWEI TECHNOLOGIES CO., LTD.
Huawei Technologies Proprietary
Huawei IP Phone eSpace 6810
V100R001C02
User Manual
Issue 01
Date 2011-12-07
Huawei Technologies Proprietary
Huawei Technologies Co., Ltd. provides customers with comprehensive
technical support and service. Please feel free to contact our local office or
company headquarters.
Huawei Technologies Co., Ltd.
Address: Huawei Industrial Base
Bantian, Longgang
Shenzhen 518129
People's Republic of China
Website: http://www.huawei.com
Email: Support@huawei.com.
Copyright © Huawei Technologies Co., Ltd. 2011. All rights
reserved.
No part of this document may be reproduced or transmitted in any form or
by any means without prior written consent of Huawei Technologies Co.,
Ltd.
Trademarks and Permissions
and other Huawei trademarks are trademarks of Huawei
Technologies Co., Ltd.
All other trademarks and trade names mentioned in this document are the
property of their respective holders.
Notice
The information in this document is subject to change without notice. Every
effort has been made in the preparation of this document to ensure
accuracy of the contents, but all statements, information, and
recommendations in this document do not constitute the warranty of any
kind, express or implied.
Huawei IP Phone eSpace 6810
User Manual Contents
i
Contents
1 Safety Precautions..................................................................................... 2
2 Product Overview...................................................................................... 5
Packing List.........................................................................................................5
Features................................................................................................................6
Hardware specifications.......................................................................................7
Technical specifications.......................................................................................8
3 Installing the eSpace 6810....................................................................... 10
Cable Connections of the eSpace 6810..............................................................10
Starting the eSpace 6810....................................................................................11
Safety Compliance.............................................................................................11
Warranty of Quality...........................................................................................12
4 Configuring the eSpace 6810.................................................................. 13
Configuring the Phone Through the Keypad .....................................................13
Configuring the Phone Through Web Browser..................................................16

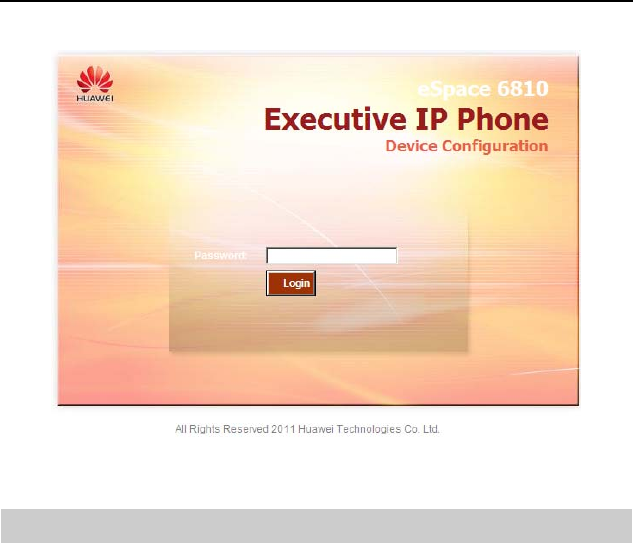

Accessing the Web Configuration Menu..................................................16
Configuration Page............................................................................................17
Saving the Configuration Changes ...........................................................21
Rebooting the eSpace 6810 Remotely ......................................................22
5 Using the eSpace 6810............................................................................. 23
Getting to Know the Keyboard..........................................................................23
Huawei IP Phone eSpace 6810
User Manual Contents
ii
Instructions of Using the Phone.........................................................................24
Handset, Speakerphone, and Headset Modes ...........................................24
Multiple SIP Accounts and Lines.............................................................25
Making a Call...........................................................................................25
Making a Call by Using an IP Address.....................................................26
Quick IP Call Mode..................................................................................27
Answering a Call......................................................................................27
Do-Not-Disturb.........................................................................................27
Call Waiting/Call Holding........................................................................28
Muting ......................................................................................................28
Call Transfer.............................................................................................28
Three-Way Conference Call.....................................................................29
Voice Messages........................................................................................29
Manager and Secretary Function..............................................................30
6 Restoring Factory Default Settings........................................................ 32
7 FAQs......................................................................................................... 33
Huawei IP Phone eSpace 6810
User Manual Error! Style not defined.Error! Style
not defined.
1
Huawei IP Phone eSpace 6810
User Manual
Thank you for purchasing the Huawei IP Phone eSpace 6810 (the eSpace 6810 for
short).
eSpace 6810 is an high-quality IP phone.
Huawei IP Phone eSpace 6810
User Manual Error! Style not defined.Error! Style
not defined.
2
1 Safety Precautions
General Requirements:
z Before you install and use the device, read these safety precautions carefully and
observe them during operation.
z During storage, transportation, and operation of the device, keep the device dry.
z During storage, transportation, and operation of the device, avoid collision and
crash of the device.
z Never attempt to dismantle the device by yourself. In case of any fault, contact the
appointed maintenance center for repair.
z Without prior written consent, no organization or individual is permitted to make
any change to the structure or safety design of the device. Huawei Technologies Co.,
Ltd. is not liable to any consequences or legal issues due to such changes.
z While using the device, observe all applicable laws, directives and regulations, and
respect the legal rights of other people.
Environmental Requirements:
z Place the device at a well-ventilated place. Do not dispose the device to direct
sunlight.
z Keep the device clean and free of dusts.
z Place the device on a stable platform.
z Do not place any object on top of the device. Otherwise, the device may be too hot
during operation. It can even be deformed or damaged by the heavy load.
z Keep at least 10 cm between the device and the closest object for heat dissipation.
z Do not place the device on or near any object that can easily catch fire, such as
something made of rubber.
z Keep the device far away from any heat source or bare fire, such as a candle or an
electric heater.
z Keep the device far away from any household appliance with strong magnetic field
or electromagnetic field, such as a microwave oven or a refrigerator.
Huawei IP Phone eSpace 6810
User Manual Error! Style not defined.Error! Style
not defined.
3
Operating Requirements:
z Do not let a child operate the device without guidance.
z Do not let a child play with the device or any accessory. Swallowing the accessories
may lead to peril.
z Use the accessories provided or authorized by the manufacturer only.
z The power supply of the device shall meet the requirements of the input voltage of
the device. Use the provided lightning protection power socket only.
z Before plugging or unplugging any cable, shut down the device and disconnect it
from the power supply.
z While plugging or unplugging any cable, make sure that your hands are completely
dry.
z Do not tread on, pull, or over-bend any cable. Otherwise, the cable may be damaged,
leading to malfunction of the device.
z Do not use an old or a damaged power cable.
z During lightning weather, stop using the device and disconnect it from the power
supply. Unplug the power plug and the ADSL（Asymmetric Digital Subscriber
Line） twisted pair (the radio frequency cable) to avoid lightning strike.
z If the device is not used for a long time, disconnect it from the power supply and
unplug the power plug.
z Do not look directly into the optical interface and the laser-transmitting interface on
the device, or the infrared transmitting interface on the remote control with your
eyes. Otherwise, your eyes may be injured.
z In any of the following cases, stop using the device, disconnect it from the power
supply, and unplug the power plug immediately: there is smoke emitted from the
device, or there is some abnormal noise or smell. Contact the specified maintenance
center for repair.
z Avoid any object (such as metal shavings) from entering the device from the heat
dissipation intakes.
z Before connecting any other cable, connect the grounding cable of the device first.
Do not disconnect the grounding cable until you disconnect all other cables.
z Make sure that the three-phase power socket is grounded reliably. The neutral line
and the live line shall not be connected inversely.
z Do not scratch or abrade the shell of the device. This may lead to malfunctions of
the device. The shed painting material may also lead to skin allergy.
Huawei IP Phone eSpace 6810
User Manual Error! Style not defined.Error! Style
not defined.
4
Cleaning Requirements:
z Before cleaning the device, stop using it and disconnect it from the power supply.
z Use a piece of soft dry cloth to clean the device.
z Keep the power plug clean and dry. Using a dirty or wet power plug may lead to
electric shock or other perils.
Huawei IP Phone eSpace 6810
User Manual Error! Style not defined.Error! Style
not defined.
5
2 Product Overview
Packing List
The following items are included in the eSpace 6810 package. Verify the packing items.
Contact your distributor immediately if any one is missing.
Table 2-1 Packing items
Item Quantity
Main case 1
Handset 1
Coiled handset cord 1
Specialized power adapter 1
Straight-through cable 1
Phone Stand 1
Wall-mount bracket 2
eSpace 6810 Quick Start 1
CD 1
Warranty card 1
Certificate of quality 1
Huawei IP Phone eSpace 6810
User Manual Error! Style not defined.Error! Style
not defined.
6
Product Picture Product Overview
The eSpace 6810 is a
next-generation enterprise IP
phone. The eSpace 6810
provides rich functions, is
easy to use, and supports
integrated PoE and HD Voice.
Features
Table 2-2 Key features of the eSpace 6810
Feature Description
Open standard compatibility SIP 2.0, TCP/IP/UDP, RTP/RTC, HTTP/HTTPS,
ARP/RARP, ICMP, DNS (A record and SRV
record), DHCP, PPPoE, TFTP, NTP and Telnet.
High audio quality Adopting the advanced DSP technology.
Traditional features Standard voice features including caller ID
display, call waiting, call holding, call transferring,
call forwarding, call blocking, call rejecting, mute
and off-hook autodial.
Advanced functions Supporting the following functions:
z Multi-lines
z Headset enabled
z Backlit graphic LCD
z Five navigation keys
z Function keys such as call holding, headset
mode, call forward, three-party conference, do
not disturb, address book, voice message box,
and mute
Huawei IP Phone eSpace 6810
User Manual Error! Style not defined.Error! Style
not defined.
7
Feature Description
Advanced features z Customized ring tones
z Download of ring tones
z Download of address book in xml format and
screensaver files
z SRTP voice call encrypted with the Advanced
Encryption Standard (AES)
z Setting of dialing rule and advance business
functions, such as BroadSoft SCA
z For details of advanced features, see the
Huawei IP Phone eSpace
6810&6830&6850&6870 Administrator
Manual
Hardware specifications
Table 2-3 Hardware specifications
Item Specification
Ethernet ports Providing two Ethernet ports of 10/100 Mbit/s
and full/half duplex
Ethernet polarity can be automatically
detected.
Graphic LCD display Pixel:180 x 60
Headset port RJ22 headset port and 2.5 mm earphone jack
LED LED indicators that can be on in two colors
(green and red)
PoE The build-in automatic detector obtains the
PoE that is based on the IEEE 802.3af standard.
Universal switching Input: 100–240 V AC 50Hz or 60Hz
Power adapter Output: +5V DC, 1200mA, UL certified
Dimension (W × H × D) 222mm × 210mm × 93mm
Weight 0.98kg
Temperature 0°C to 40°C
Huawei IP Phone eSpace 6810
User Manual Error! Style not defined.Error! Style
not defined.
8
Item Specification
Humidity 10% to 90% (non-condensing)
Compliance FCC/CE/C-Tick
Technical specifications
Table 2-4 Technical specifications of the eSpace 6810
Item Specification
Lines Two straight-through lines.
Supporting the SIP 2.0, TCP/UDP/IP, HTTP, HTTPS,
PPPoE, RTP/RTCP, SRTP by SDES, HTTP, ARP/RARP,
ICMP, DNS, DHCP, NTP, TFTP, NTP/SNTP, and
SIMPLE/PRESENCE protocols.
Supporting RFC3903, RFC3856, RFC3863, and RFC4235.
Supported protocol
Supporting RFC 3428.
Up to 50 incoming IM messages can be stored. If more than
50 incoming IM messages are present, the system drops the
latest IM message.
Function keys z Ten dedicated keys: Hold, SEND, SPEAKER, Headset
Mode, TRNF (transfer), CONF (conference),
MUTE/DEL, DND, Phone Book, and MSG (message).
z Five navigation keys.
z Three XML programmable soft keys.
Supporting the upgrade of the NAT-friendly remote
software (through TFTP or HTTP) for the devices that are
deployed behind the firewall or the NAT.
Device management
Supporting the address book function.
Handset, Hands-free, and headset modes in full duplex.
Advanced DSP.
Dynamic negotiation of codec and voice payload length.
HD Voice.
Audio features
Supporting the G.723.1 (6.3K or 5.3K), G.729A/B, G.711
µ/A, G.726-32K, G.722 (broadband), and iLBC CODECs.
Huawei IP Phone eSpace 6810
User Manual Error! Style not defined.Error! Style
not defined.
9
Item Specification
In-band and out-of-band DTMF (in audio, RFC2833, or SIP
INFO mode).
Echo Cancellation.
Supporting the sidetone cancellation, advanced jitter buffer
control, and packet delay and loss concealment.
Telephony features Intuitive GUI, download of the phone book (XML), voice
mail indicator, download of custom ring tones.
Call holding, call transferring (attended/blind),
Do-Not-Disturb, call forwarding, call waiting, call waiting
mute, redial, call log, volume control, caller ID display,
multi-party conference call, dialing with a prefix, off-hook
autodial, automatic answer, and dialing.
Supporting manual configuration for static network through
keyboard and LCD, or by logging in to the Web page.
Dynamic network parameters are provided by the DHCP
server.
Supporting NAT traversal by using IETF STUN and
symmetric RTP.
Supporting AES-based IP phone configuration file update.
Supporting unified IP phone configuration through the
BroadSoft XML Provision server.
Supporting 802.1x-based network accessing authentication.
Network and
provisioning
Supporting the IEEE 802.1p/q tagging (VLAN) and Layer 3
ToS protocols.
Supporting firmware upgrade through TFTP or HTTP and
authentication of configuration files before changing.
Software upgrade
Providing the specific URL for users to download
configuration files and upgrade files.
Advanced server
features Message waiting indicator light.
Supporting DNS SRV query.
Security Supporting DIGEST authentication and encryption by using
MD5, MD5-sess, and SRTP.
Huawei IP Phone eSpace 6810
User Manual Error! Style not defined.Error! Style
not defined.
10
3 Installing the eSpace 6810
Cable Connections of the eSpace 6810
Figure 3-1 Connecting the eSpace 6810
Huawei IP Phone eSpace 6810
User Manual Error! Style not defined.Error! Style
not defined.
11
Table 3-1 Description of the connectors
No. Connector Description
(1) PC port The port is the 10/100 Mbit/s RJ-45 PC port. You can
use the straight-through cable to connect the PC port.
When using the PC phone, you can configure the port.
(Optional)
(2) LAN port The port is the 10/100 Mbit/s RJ-45 LAN port. You
need to use the straight-through cable to connect the
LAN port to the Ethernet port.The phone supports
PoE (802.3af) power. In this case, you must connect
the port to the switch supporting PoE power.
(3) Power port 5Vpower port. After the network cable connection is
complete, use the special power adapter of the phone
to connect the power port and power to switch on the
phone.
(4) Headset port RJ-22 port. If you want to use the headset for
communication, install the headset socket to the port.
(5) Handset port RJ-22 port. If you want to use the headset for
communication, install the headset socket to the port.
(6) Earphone jack A 2.5 mm jack in convenience of talk with an
earphone.
Starting the eSpace 6810
After the eSpace 6810 is powered on, a progress bar is displayed on its screen. This
progress bar disappears after the startup page is accessed.
Safety Compliance
The eSpace 6810 complies with the Federal Communications Commission (FCC),
Confermite Europeenne (CE), China Compulsory Certification (CCC), and various
safety standards. The eSpace 6810 specialized power adapter is compliant with the
Underwriter Laboratories (UL) standard. Use only the matching power adapter
provided with the package. The manufacturer’s warranty does not cover damages to the
phone caused by unsupported power adapters.
Huawei IP Phone eSpace 6810
User Manual Error! Style not defined.Error! Style
not defined.
12
Warranty of Quality
If you purchased the eSpace 6810 from a distributor, contact the distributor for
replacement, repair, or refund. If you purchased the product directly from Huawei,
contact Huawei sales and service representatives for a return materials authorization
(RMA) number before you return the product. Huawei reserves the right to remedy the
warranty policy without prior notification.
Use a power adapter provided by the eSpace 6810; otherwise, damages can
be caused to the products and the manufacturer warranty is void.
Huawei IP Phone eSpace 6810
User Manual Error! Style not defined.Error! Style
not defined.
13
4 Configuring the eSpace 6810
Configuring the Phone Through the Keypad
To enter the configuration menu, press MENU. View the menu by pressing UP,
DOWN, LEFT, or RIGHT. Press MENU to confirm the selection of a menu item, and
delete an entry by pressing BackSpace. The phone automatically exits the menu when
an incoming call comes or the phone is off-hook. If no keypad operation is performed
within one minute, the IP phone automatically displays the standby image.
Table 4-1 Keypad configuration menu
Menu Configuration Description
Call History Displays history records of received, dialed, transfered and missed
calls.
Status Displays the network status, account status, software version,
MAC address, and hardware version of the phone.
Phone Book Displays the phone book and related option.
z [New Entry]
Add a phone book record.
After the fields such as First Name, Last name, Number,
and Acct are set or selected, select Confirm Add and press
MENU to confirm the operation. Select Cancel & Return
and press MENU to cancel the added information and return
to the previous menu.
z [Download Phonebook]
Select Download Phonebook and press MENU. Then the
phone downloads the updated phone book from the TFTP or
HTTP server. This requires corresponding configuration of
the download items of the phone book on the Web page.
z [Delete All Entries]
Delete all contacts in the phone book.
Huawei IP Phone eSpace 6810
User Manual Error! Style not defined.Error! Style
not defined.
14
Menu Configuration Description
Direct IP call The input field of the destination IP address is provided when
Direct IP call is selected. Type the destination IP address such as
10.10.10.2, press OK soft key to confirm the operation and send
the call; press the Cancel soft key to cancel the call and return to
previous menu. If the input information is incorrect, press
BackSpace soft key to delete it.
Displays the preference submenus of a user.
z [Do Not Disturb]
Choose this menu to enable or disable the DND function.
z [Ring Tone]
Choose this menu to set different ring tones.
z [Ring Volume]
Press MENU to hear the selected ring volume. Press LEFT or
RIGHT to turn up or turn down the volume.
z [LCD Contrast]
Choose this menu to set the LCD screen contrast.
z [LCD Brightness]
Set the LCD brightness of the IP phone in active and idle
states. The value ranges from 0 to 8.
z [Download SCR XML]
Send a request to the HTTP/TFTP server for downloading a
screen saver to replace the original one. For details on how to
configure this service, see the Huawei IP Phone eSpace
6810&6830&6850&6870 Administrator Guide or contact the
administrator.
z [Erase Custom SCR]
Restore the factory setting for the standby image.
z [Display Language]
Choose this menu to select the language.
z [Time Settings]
Set the date and time of the IP phone.
Preference
Press LEFT or select Back to return to the main menu.
Huawei IP Phone eSpace 6810
User Manual Error! Style not defined.Error! Style
not defined.
15
Menu Configuration Description
Display the configuration submenus.
z [SIP]
Set the SIP server for each account, including Account, SIP
proxy, Outbound proxy, SIP user ID, SIP Auth ID, SIP
password, SIP transport, and Audio CODECs.
z [Upgrade]
Configure the firmware server and the file download server.
Select either TFTP or HTTP to upgrade the firmware or
configure the phone.
z [Factory Reset]
Type the MAC address on back of the phone. Press OK
softkey to restore the factory reset settings. Factory reset
clears all configurations and restores the phone to factory
settings.
z [Layer 2 QoS]
Configure the 802.1Q VLAN tag and 802.1P priority.
Config
Press LEFT or select Back to return to the main menu.
These items are used for factory testing and not recommended for
users.
z [Audio Loopback]
Speak to the handset. If you hear your voice in the handset,
your audio works well. Press MENU to exit the mode.
z [Diagnostic Mode]
All LEDs are on. Press any key on the keypad to display the
key name on the LCD. Pick up the handset or press MENU to
exit the diagnostic mode.
Factory
Functions
Press LEFT or select Back to return to the main menu.
Network Enable or disable the DHCP protocol. Set the IP address, subnet
mask, and gateway address by using the keypad if the static IP
mode is selected.
Reboot Reboot the device.
Exit Exit the menu.
Huawei IP Phone eSpace 6810
User Manual Error! Style not defined.Error! Style
not defined.
16
Configuring the Phone Through Web Browser
The Web server embedded in the eSpace 6810 responds to the HTTP, HTTPS GET, or
POST requests. Embedded HTML pages allow a user to configure the IP phone through
any Web browser such as Microsoft Internet Explorer or Mozilla Firefox.
Accessing the Web Configuration Menu
Connect the phone and computer on a reachable network. Do as follows:
Connect the computer to the same hub or switch as the phone is connected to. In
absence of a hub/switch (or free ports on the hub/switch), connect the computer directly
to the phone by using the PC port on the phone. Make sure that the phone is powered on
and displays the IP address.
To access the Web configuration menu of the phone, do as follows:
Step 1 Start the Web browser on your computer.
Step 2 Enter the IP address of the phone in the address box of the browser. If the
phone is properly connected to a working Internet. The format of the address
is xxx.xxx.xxx.xxx, in which xxx stands for a number from 0-255. You can use
this number to access the Web configuration menu. For example, if the phone
displays 10.10.10.1, enter http://10.10.10.1 in the address box of the browser.
Step 3 Enter the administrator password(the default password is admin.) to access
the Web configuration menu.
Huawei IP Phone eSpace 6810
User Manual Error! Style not defined.Error! Style
not defined.
17
Figure 4-1 Login page
Configuration Page
This section describes the options of Status and Basic Settings on the Web
configuration page.
The functions available for the end user are as follows:
z Status: Display the network status, account status, software version, and MAC
address of the phone.
z Basic Settings: Basic preferences such as date and time settings.
Huawei IP Phone eSpace 6810
User Manual Error! Style not defined.Error! Style
not defined.
18
Figure 4-2 Status page
Table 4-2 Device configuration on the Status tab page
Field Description
MAC Address The device ID in the hexadecimal format.
This is an important ID for service provider to solve
problems.
IP Address The IP address of the eSpace 6810.
Part Number The code of a product.
Product Model The product model.
Software Version Information about the current software version. The value
of prog indicates the main version number.
System Up Time The power-on duration since the last reboot.
System Time The current time of the system.
Registered Whether accounts are registered on the related SIP
server(s).
The eSpace 6810 supports two unique SIP accounts.
Huawei IP Phone eSpace 6810
User Manual Error! Style not defined.Error! Style
not defined.
19
Field Description
PPPoE Link Up Whether the PPPoE connection is enabled when the phone
is connected to a DSL modem.
Figure 4-3 Basic setting page
Table 4-3 Description of the basic setting page
Field Description
End User Password This parameter allows changing the login password of an end
user.
This field is case sensitive with a maximum length of 30
characters.
Huawei IP Phone eSpace 6810
User Manual Error! Style not defined.Error! Style
not defined.
20
Field Description
IP Address The eSpace 6810 operates in two modes:
z DHCP/PPPoE Mode:
All the field values for the static IP mode are not
available even though they are stored in the Flash
memory. The eSpace 6810 acquires its IP address from
the first DHCP server that the eSpace 6810 detects on its
LAN. To use the PPPoE feature, set the PPPoE account.
The eSpace 6810 establishes a PPPoE session if any of
the PPPoE fields are set.
Host Name and Domain Name:The special DHCP
options that are added to the DHCP Discover and DHCP
Request after configuration.
Preferred DNS: The eSpace 6810 uses the DNS server if
Preferred DNS is configured.
z Static IP Mode:
Configure all of the following fields: IP address, Subnet
Mask, Gateway, Default Router IP address, DNS
Server 1 (primary), and DNS Server 2 (secondary).
802.1X mode This parameter is set to perform the 802.1X authentication
when the IP phone is connected to a switch. You can click
Disable to disable the authentication function, and click
EAP-MD5 to perform the registration authentication.
z Identify
ID used during the 802.1x authentication
z MD5 Password
MD5 password used during the 802.1X authentication
Iine Keys This parameter is set for specifying function modes of line
keys. By default, the value of Key Mode is Line, which is
used by common lines. If the value of Key Mode is Shared
Line, it indicates that the BroadSoft SCA functions are
enabled and that accounts scattered in various areas can share
the line.
Time Zone This parameter controls the date and time display according
to the specified time zone. If the DHCP Option 2 is enabled,
the DHCP server overrides and centrally controls the setting
of Time Zone in the phone. The feature functions on the
phone only when you set the NTP server correctly.
Huawei IP Phone eSpace 6810
User Manual Error! Style not defined.Error! Style
not defined.
21
Field Description
LCD Backlight
Brightness This parameter is set for adjusting the LCD brightness of the
IP phone in active and idle states. The value ranges from 0 to
8.
LCD Contrast LCD contrast. The value ranges from 0 to 20.
Time Display
Format The LCD time is displayed in 12-hour or 24-hour format.
Disable in-call
DTMF display The default value is No. If the parameter is set to Yes, the
DTMF digits that are pressed during the call will not be
displayed on the LCD for security reasons.
Disable Missed Call
Backlight The default value is No. By default, the LCD backlight is on
when a missed call exists.
HEADSET Key
Mode Select default answering or dialing mode as the headset
mode. When selecting a default mode, press HEADSET to
enter the headset dialing status. If you press HEADSET
when setting Toggle Headset/Speaker, the headset icon is
displayed on the LCD. In this case, press , you can make
a call or answer a call in Headset mode.
Call History Flash
Writing This parameter is set for configuring the duration of
recording data of Call History, Phone Book, and Settings on
the Web configuration page into flash memory.
z Write Timeout
Write timeout indicates that the duration of flash writing. The
range is 30-3600, in seconds. The default value is 300s.
z Max Unsaved Log
This parameter is set for adjusting the max flash writing items
during the recording duration. The range is 0-500. 0 means
this option is disabled.
Do not change the value optionally. Consult the enterprise
administrator before any change.
Saving the Configuration Changes
After changing the settings, click Update on the bottom of the page to save the change.
If you want to change an item after submitting the setting, click a tab to access the
configuration page. Then click Reboot to reboot the phone, and all the changes take
effect.
Huawei IP Phone eSpace 6810
User Manual Error! Style not defined.Error! Style
not defined.
22
Rebooting the eSpace 6810 Remotely
Click Reboot in the configuration menu to reboot the eSpace 6810 remotely. Wait 60
seconds to log in again.
Huawei IP Phone eSpace 6810
User Manual Error! Style not defined.Error! Style
not defined.
23
5 Using the eSpace 6810
Getting to Know the Keyboard
Figure 5-1 Getting to know the keypad
Table 5-1 eSpace 6810 keypad
Key Description
LINE Key z Two line keys with dual-color LED indicator lights.
Each line key supports an independent SIP account.
z The two line keys provide the hands-free feature.
TRANSFER Transfer the current call to another number.
CONF Set up a three-party conference call for the caller and callee.
MUTE Mute the call (the other party cannot hear your voice).
HOLD Hold the current call, and press the corresponding LINE key
to resume the call.
Huawei IP Phone eSpace 6810
User Manual Error! Style not defined.Error! Style
not defined.
24
Key Description
Press the key to receive voice mails or other messages.
Press the key to enter the hands-free mode. Press it again to
exit the hands-free mode.
Press the key to display the phone book and associated
items.
SEND Press the key to send a call after you have dialed phone
numbers.
Note:
If you do not press SEND, the number will be sent after a
pre-configured time delay.
After the phone is off-hook, press the key to redial the last
dialed number.
HEADSET Dial or answer with the headset.
MENU z Enter the keypad configuration MENU mode when the
phone is in idle mode.
z Use as MENU key to confirm the operation during
keypad configuration.
<0>–<9>,<*>, and
<#> Standard phone pad: 10 digits, the corresponding 26
alphanumeric letters, and special characters.
Soft keys 1-3 XML soft keys, which can provide different functions, such
as BackSpace and Cancel.
The operation of pressing SEND is effective only in the specified dialing
time.
Instructions of Using the Phone
Handset, Speakerphone, and Headset Modes
You can switch the modes among handset, speakerphone, and headset.
z To switch between the handset and speakerphone modes, press SPEAKER, that is,
.
Huawei IP Phone eSpace 6810
User Manual Error! Style not defined.Error! Style
not defined.
25
z To switch between the handset and headset modes, press HEADSET.
z To switch between the speakerphone and headset modes, press HEADSET or
SPEAKER, that is, .
Multiple SIP Accounts and Lines
The eSpace 6810 supports two independent SIP accounts. Each SIP account matches
with a SIP server, users, and NAT. Each of the two line keys matches with one SIP
account.
For example, set the account name of the two SIP accounts as VoIP 1 and VoIP 2.
Ensure that each account is activated and registered. When LINE1 is pressed, you will
hear a dial tone and see "VoIP 1" on the LCD. When LINE2 is pressed, you will hear a
dial tone and see "VoIP 2" on the LCD. When LINE1 is pressed, the LCD displays
"VoIP 1." To make a call, select the line you wish to use. You can switch lines before
dialing any number.
z When the phone is idle, press the corresponding key to answer the incoming call
that is designated to an account.
z If the line is occupied, the LED of the next available LINE key blinks to remind
you of an incoming call. This feature should be supported by the SIP server.
Making a Call
Dialing
You can use headset and handset or press to make a phone call.
Step 1 Pick up the handset; or press , or enable the headset. Or press a LINEx
key to activate the speakerphone. The corresponding LED is on.
Step 2 Hear a dial tone. The LED light of the first line (LINE1) LED is on. You can
also select another SIP account by pressing the corresponding LINE key.
Step 3 Enter the phone number and press SEND or Dial soft key.
Redialing
You can press SEND or the Redial soft key to redial the last dialed phone number. For
the redialed number, the phone will use the same SIP account for dialing the last phone
number.
Dialing Through the Call History
Call a phone number from the phone’s call history. When you dial a call from the
history, the phone uses the same SIP account that is used for this call last time.
Huawei IP Phone eSpace 6810
User Manual Error! Style not defined.Error! Style
not defined.
26
Step 1 Press MENU to access the main menu.
Step 2 Select Call History and press MENU to confirm.
Step 3 Select Answered Calls, Dialed Calls, Missed Calls,Transferred Calls or
Forwarded Calls depending on your requirements and press MENU to
confirm.
Step 4 Select a phone number by using arrow keys and press Dial soft key to dial the
number.
Dialing Through the Phone Book
You can call a number through the phone book.
Each entry in the phone book can be assigned with an individual SIP account. The
phone uses the SIP account to make a phone call.
Step 1 Access the phone book by:
z Pressing DOWN.
z Pressing .
z Pressing MENU. Then select Phone book and press MENU.
Step 2 Select a phone number by using arrow keys and press MENU to confirm.
Step 3 Select Dial and press MENU to dial the number.
Making a Call by Using an IP Address
Direct IP calls allow two phones to talk to each other in a special way without a SIP
proxy. VoIP calls can be made between two phones when:
z Both phones have public IP addresses.
z Both phones obtain the private or public IP addresses on the same LAN network.
z Both phones can be connected through a router by using public or private IP
addresses (with a valid port or DMZ).
All the necessary ports on the two phones must be enabled.
To make a direct IP call, do as follows:
Step 1 Press MENU to access the main menu.
Step 2 Select Direct IP Call by using the UP and DOWN keys.
Step 3 Press MENU to confirm.
Step 4 Type the destination IP address.
Step 5 Press the OK soft key to initiate a call.
Huawei IP Phone eSpace 6810
User Manual Error! Style not defined.Error! Style
not defined.
27
For example, if the destination IP address is 10.10.10.1, type 10*10*10*1. The * key
represents the dot.
Quick IP Call Mode
Dial an IP address in the same LAN by typing the last octet of the IP address. This
simulates a PBX function using the CMSA or CD without a SIP server. In this mode,
the controlled static IP address is recommended.
On the Advanced Settings page, set Use Quick IP-call Mode to Yes. When #xxx is
dialed (The range of x is 0–9 and xxx cannot be larger than 255.), a direct IP call is
initiated as aaa.bbb.ccc.XXX. aaa.bbb.ccc is the local IP address regardless of the
subnet mask. The numbers #xx or #x are also valid.
The following is an example.
z 10.10.10.2 calls 10.10.10.3 — dial #3, followed by SEND.
z 10.10.10.2 calls 10.10.10.23 –– dial #23, followed by SEND.
z 10.10.10.2 calls 10.10.10.123 –– dial #123, followed by SEND.
If the SIP server is configured, a direct IP-IP call still works. If you use the
STUN, the direct IP-IP call also uses the STUN. Set Use Random Port to
No when completing direct IP calls.
Answering a Call
z An incoming call: The phone rings. The corresponding account LINEx blinks. Pick
up the handset, press , enable the headset, or press the blinking LINEx key to
answer the call.
z Multiple incoming calls: The call waiting tone is played. The next available line
will blink in red. Answer an incoming call by pressing the LINEx key.
Do-Not-Disturb
To block all incoming calls, you can enable the Do-Not-Disturb (DND) function. The
phone will not ring when an incoming call comes.
Method 1: When the phone is in idle mode, press DND to enable the DND function and
press DND again to disable the DND function.
Method 2: Toggle the DND function as follows:
Step 1 Press MENU.
Step 2 Select Preference by pressing the arrow keys, and then press MENU.
Step 3 Select Do Not Disturb by pressing the arrow keys and press MENU.
Huawei IP Phone eSpace 6810
User Manual Error! Style not defined.Error! Style
not defined.
28
Step 4 Select Enable DND or Disable DND and press MENU.
Call Waiting/Call Holding
z Hold: Keep a call on hold by pressing HOLD.
z Resume: Resume the call by pressing the corresponding LINEx key with a blinking
LED.
z Multiple calls: Automatically keep an active call on hold by selecting another
available LINEx key or answering another call. If an incoming call comes when all
lines are in use, the call waiting tone (discontinuous tone) is displayed.
Muting
To enable or disable the muting function during a call, press MUTE. Then "LINEx:
MUTE" is displayed on the LCD for the muted call.
Call Transfer
The eSpace 6810 supports both blind and attended (or supervised) transfer:
Blind transfer:
Step 1 Pick up the handset; press , or enable the headset by pressing HEADSET
to establish a conversation.
Step 2 Press TRANSFER for a dial tone.
Step 3 Dial the number of a third party and press SEND to transfer the active call.
Attended (or supervised) transfer:
To transfer calls by one account, the other one must be unoccupied.
Step 1 Pick up the handset; press , or enable the headset by pressing HEADSET
to establish a conversation.
Step 2 Press another available LINE key for a dial tone.
Step 3 Dial the number of a third party and press SEND.
Step 4 If the call is established, press TRANSFER and select the previous LINE key,
the transfer is finished.
z If the call is not established, press the previous LINE key to return to the
previous conversation.
Huawei IP Phone eSpace 6810
User Manual Error! Style not defined.Error! Style
not defined.
29
z If the call is canceled and terminated before the call of the third party is
connected, the eSpace 6810 rings, indicating that a call is held.
To transfer calls across different SIP domains, the VoIP service providers
must support this feature.
Three-Way Conference Call
The eSpace 6810 can host conference calls and support three-way conference calls.
Initiating a Conference Call
Step 1 Pick up the handset, press , or enable the headset by pressing HEADSET
to establish a call.
Step 2 Press another available LINE key to wait for the dial tone. Dial the phone
number of the third party and press SEND. If the call is established, press
CONF to initiate a three-way conference call. If the call is not established,
press LINEx key to resume the previous call.
Step 3 Press the previous LINE key to enable the call to join the conference.
Ending a Conference Call
Press HOLD to pause the conference call and put all parties on hold. If you want to
speak to an individual party, select the corresponding blinking LINEx key.
If the caller hangs up, the other two parties hang up automatically and the conference
ends. If either the second party or the third party hangs up, the rest two parties establish
the two-way conversation.
If both the second party and the third party hang up, the caller will hang up
automatically. In this case, the conference ends.
Voice Messages
A blinking red message waiting indicator (MWI) indicates a message is waiting. This
function takes effective only when the Subscribe for MWI field is set to Yes. The
default value is No. Press the key to retrieve the message. The interactive voice
response (IVR) system prompts the user to retrieve the message. Press a specific LINEx
to retrieve messages for a specific line account.
Huawei IP Phone eSpace 6810
User Manual Error! Style not defined.Error! Style
not defined.
30
Each line has a separate voice mail account. Each account requires a
voice mail portal number to be configured through the Voice Mail User
ID field.
The ways to check voice messages are as follows:
z Press to check the voice message of the primary account.
z Check each line for waiting tone (discontinuous).
Manager and Secretary Function
After a line of the manager's phone is bound to a line of the secretary's phone, all calls
to the manager will be connected to the secretary's phone at the same time. The
secretary determines whether to transfer the call to the manager.
Assume that manager A's phone has two lines. LINE 1 is bound to LINE 1 of
secretary B's phone, and LINE 2 is a private line. The following describes the
manager and secretary function's process.
For details on how to configure the manager and secretary service, see the
Huawei IP Phone eSpace 6810&6830&6850&6870 Administrator
Manual or contact the administrator.
Step 1 Customer C calls manager A.
The phone of secretary B rings. The LINE 1 indicator on both manager A's
phone and secretary B's phone blinks.
Step 2 Secretary B presses the LINE1 key and answers the call.
Step 3 Secretary B presses the soft key SeizeLine soft key and enters the number of
the manager A's private line to call manager A.
The call between secretary B and customer C is held.
Step 4 Manager A presses the LINE2 key and answers the call from secretary B.
Step 5 Manager A presses the LINE1 key and talks with customer C.
The call between manager A and secretary B is held. If secretary B hangs up,
the call ends.
Step 6 Manager A or customer C hangs up.
Huawei IP Phone eSpace 6810
User Manual Error! Style not defined.Error! Style
not defined.
31
The call ends, and the LINE 1 indicator is off.
Huawei IP Phone eSpace 6810
User Manual Error! Style not defined.Error! Style
not defined.
32
6 Restoring Factory Default Settings
Restoring the factory default settings can clear all configuration information
about the eSpace 6810. Back up or print all the settings before you restore
factory default settings. Huawei is not responsible for parameter loss or
failier to connect to your VoIP service provider due to the operation of
restoring the factory default settings.
To restore the factory default settings, do as follows:
Step 1 Press MENU to access the keypad configuration UI menu, and select Config.
Press MENU to access submenus, and select Factory Reset. For details, see
Table 4-1.
Step 2 Type the MAC address that is printed on the bottom of the sticker by using the
following rules:
z 0–9: 0–9
z A: 22 (Press the 2 key twice and A is displayed on the LCD.)
z B: 222
z C: 2222
z D: 33 (Press the 3 key twice and D is displayed on the LCD.)
z E: 333
z F: 3333
For example, if the MAC address is 0018820E3956, type 00188203333956. The LCD
displays the entered MAC address 0018820E3956.
If digits are duplicate in the MAC address, for example, 22, you need to
press RIGHT to move the cursor or wait for four seconds for typing
another 2.
Step 3 Press the OK soft key.
Huawei IP Phone eSpace 6810
User Manual Error! Style not defined.Error! Style
not defined.
33
7 FAQs
Question: What codecs are supported by the eSpace 6810?
Answer:The eSpace 6810 supports a wide range of codecs: G711 a/µ, G729, G723.1,
G726-32k, G722 (broadband), GSM, and iLBC.
Question: How many VoIP accounts are supported on the eSpace 6810?
Answer:The eSpace 6810 IP phone supports two different SIP (VoIP) accounts. These
accounts can be on the same server or different servers of different service providers.
Question: How to reject an incoming call?
Answer:Press Reject softkey when receiving an incoming call or press DND to
enable the DND function when the phone is idle. The call is rejected and forwarded to
your voice mailbox if you configure the voice mailbox.
FCC Warning:
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired
operation.
Any Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
FCC 15.105 Class B (b) For a Class B digital device or peripheral, the instructions
furnished the user shall include the following or similar statement, placed in a
prominent location in the text of the manual:
Note: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference
Huawei IP Phone eSpace 6810
User Manual Error! Style not defined.Error! Style
not defined.
34
will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
HUAWEI TECHNOLOGIES CO., LTD.
Huawei Industrial Base
Bantian, Longgang
Shenzhen 518129
People's Republic of China
www.huawei.com
