Huawei Technologies ETS1360 US PCS Licensed Transmitter User Manual ETS1160 1360
Huawei Technologies Co.,Ltd US PCS Licensed Transmitter ETS1160 1360
Manual
Notice
Copyright © Huawei Technologies Co., Ltd.
2009. All rights reserved.
1No part of this document may be reproduced or
transmitted in any form or by any means without
prior written consent of Huawei Technologies
Co., Ltd.
2The product described in this manual may
include copyrighted software of Huawei Technol-
ogies Co., Ltd and possible licensors. Customers
shall not in any manner reproduce, distribute,
modify, decompile, disassemble, decrypt,
extract, reverse engineer, lease, assign, or subli-
cense the said software, unless such restrictions
are prohibited by applicable laws or such actions
are approved by respective copyright holders
under licenses.
3
Trademarks and Permissions
4 HUAWEI, and are trademarks or
registered trademarks of Huawei Technologies
Co., Ltd.
5Other trademarks, product, service and
company names mentioned are the property of
their respective owners.
6
Notice
7Some features of the product and its accessories
described herein rely on the software installed,
capacities and settings of local network, and
may not be activated or may be limited by local
network operators or network service providers,
thus the descriptions herein may not exactly
match the product or its accessories you pur-
chase.
8Huawei Technologies Co., Ltd reserves the right
to change or modify any information or specifica-
tions contained in this manual without prior
notice or obligation.
9
NO WARRANTY
10 THE CONTENTS OF THIS MANUAL ARE PRO-
VIDED “AS IS”. EXCEPT AS REQUIRED BY
APPLICABLE LAWS, NO WARRANTIES OF
ANY KIND, EITHER EXPRESS OR IMPLIED,
INCLUDING BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF MERCHANTABIL-
ITY AND FITNESS FOR A PARTICULAR PUR-
POSE, ARE MADE IN RELATION TO THE
ACCURACY, RELIABILITY OR CONTENTS OF
THIS MANUAL.
11 TO THE MAXIMUM EXTENT PERMITTED BY
APPLICABLE LAW, IN NO CASE SHALL HUA-
WEI TECHNOLOGIES CO., LTD BE LIABLE
FOR ANY SPECIAL, INCIDENTAL, INDIRECT,
OR CONSEQUENTIAL DAMAGES, OR LOST
PROFITS, BUSINESS, REVENUE, DATA,
GOODWILL OR ANTICIPATED SAVINGS.
Import and Export Regulations
12 Customers shall comply with all applicable
export or import laws and regulations and will
obtain all necessary governmental permits and
licenses in order to export, re-export or import
the product mentioned in this manual including
the software and technical data therein.
Table of Contents 1
Introduction 1
Packing List ................................................1
Front View ..................................................1
Rear View...................................................2
Installation 3
Installing the Battery...................................3
Installing the SIM/USIM Card .....................3
Installing the Power Adapter ......................4
Installing the Antenna.................................4
Connecting the Terminal ............................4
Viewing the Signal Strength .......................5
Mounting the FWT......................................6
General Functions 7
Booting the FWT ........................................7
Making or Answering Calls.........................7
Adjusting the Voice Volume .......................7
Advanced Functions 9
Supplementary Services ............................9
Wireless Data Service ................................9
Security ....................................................10
Troubleshooting 11
Warnings and Precautions 12
1Table of Contents
1
1Introduction
Packing List
Note
To access the Internet, you need to purchase
the required data suite. For more information,
please consult your local sales agent.

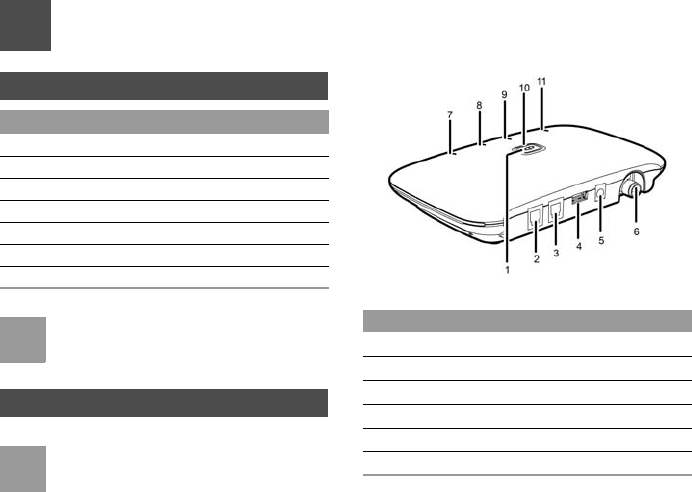

Front View
Note
The figures are only for your reference, please
refer color and shape to product.
The main ports on the host are described as follows:
The LEDs on the host are described as follows:
Item Quantity
FWT (Fixed Wireless Terminal) host 1
Power adapter 1
Phone cable 1
Battery (Rechargeable) 1
Certificate of Quality 1
User Guide 1
Antenna(Optional) 1
NO. Item
1FWT switch
2Telephone port 1
3Telephone port 2
4Data port
5DC input
6Antenna port
Rear View
2

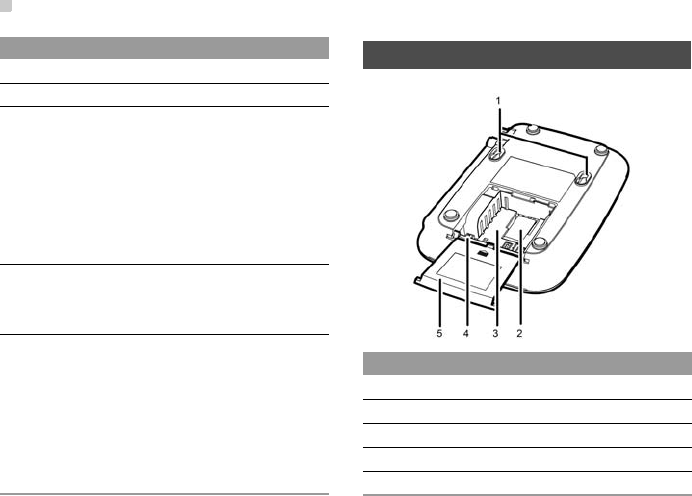

Rear View
NO. Item
7Signal strength indicator: L2
8Signal strength indicator: L1
9Battery indicator
Steady on and in red: The battery is fully
electricity or fully charged.
Fast blinking in red: The battery needs
to be recharged.
Slow blinking in red: The battery is being
charged.
10 Power indicator
Steady on and in blue: The FWT is con-
nected with the power adapter.
11 Network mode
Double blinking in blue: searching the
network.
Blinking in blue: registering with the 2G
network.
Steady on and in blue: registering with
the 3G network.
No. Item
1Wall-mounting brackets
2SIM/USIM card slot
3Battery container
4Battery port
5Battery container cover
3
2Installation
Note
Before installing or removing the battery,
antenna, or SIM/USIM card, you need to swich
off the FWT and disconnect the FWT from the
power adapter.

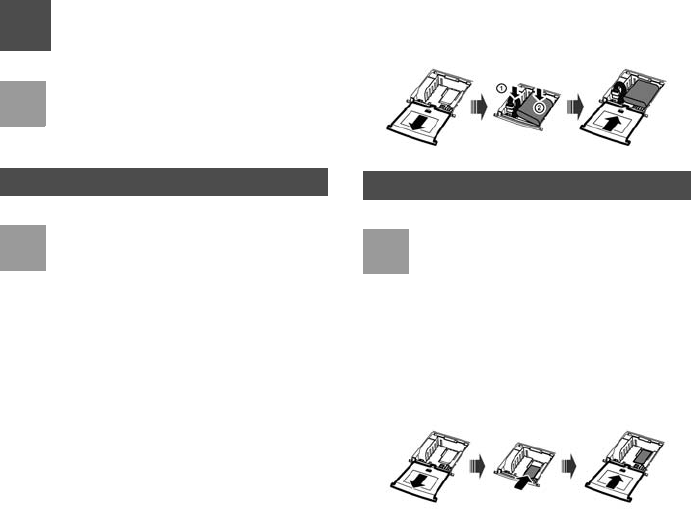

Installing the Battery
Note
• When the ambient temperature exceeds the
temparature allowed for charging, the system
will stop charging the battery.
• When the power adapter is in use, the FWT
will automatically charge the battery and stop
charging when the battery is fully charged.
• Remove the battery if the FWT is left unused
for a long period.
• Make sure that the battery has been charged
for more than 8 hours before it supplies
power for the FWT at the first time. The
charging time depends on the environmental
temperature and battery life.
Insert the connection cable of the battery into the bat-
tery port (make sure the battery is correctly inserted),
and then seat the battery in the battery container.
Installing the SIM/USIM Card
Note
• Consult the local agent to determine whether
to install the SIM/USIM card or not.
•The SIM/USIM card and contact point are vul-
nerable to damage such as scarring or bend-
ing, so you need to insert or remove it with
care.
Insert the card into the card slot. Put the side with a
corner cutting backwards and the side with a golden
contact downwards. Make sure the card is completely
inserted into the slot.
Installing the Power Adapter
4
Installing the Power Adapter
In normal conditions, the FWT relies on the external
power adapter for power supply.
1Insert one end of the power adapter into the DC
input port, and the other end into the power sup-
ply jack.
2 If the power indicator is in blue, the connection
is correct.
Use the battery only in the case that the electricity
has failed or the external power adapter is unavail-
able. You must make sure that the battery has been
fully charged before putting it into use.
Installing the Antenna
1Make sure that the FWT is switched off.
2Align the antenna with the antenna port on the
FWT host in the direction shown in the figure,
and then screw the antenna, ensuring that the
connection is secure.
Connecting the Terminal
Note
• Switch off the FWT and disconnect the power
adapter.
• Use the cable provided by the manufacturer.
Viewing the Signal Strength
5

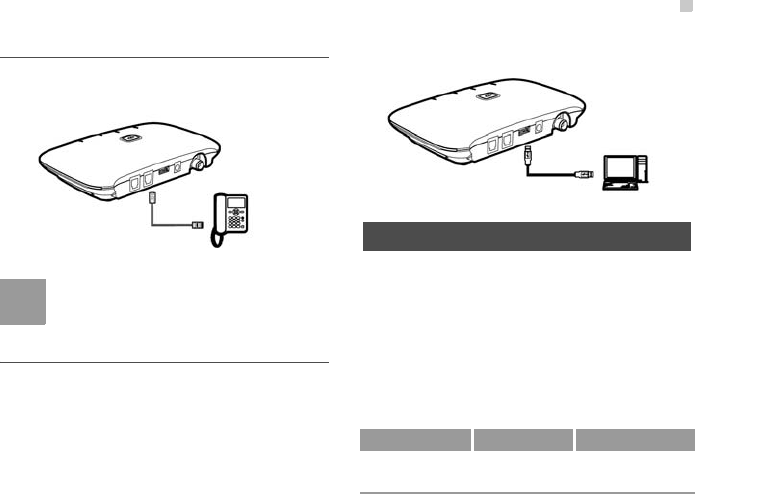

Connecting the FWT to a Telephone
The FWT provides two telephone ports. They are in
parallel connection and use the same number.
Note
To avoid the call effect from interfering by the
wireless signal, place the telephone one meter
away from the FWT
Connecting the FWT to a PC
After purchasing the data service suite, you can use
data services by connecting the FWT to a PC, and
maintain the FWT on the PC. For details, consult
your local agent.
Viewing the Signal Strength
Power on the FWT and wait until some signal
strength indicators are on or until you can hear the
dial tone.
• If all signal strength indicators remain off for 5 minutes
and only the fault tone is heard. No signals can be
received.
• Turn the antenna but all signal LEDs still keep off. The
signal quality is very poor. If the dial tone can be heard
in some area, position the antenna towards it.
Indicators Signal Level Signal Strength
L1 and L2
remain off
0No signal
Mounting the FWT
6
The required signal strength is level 1 or above.
Note
• If the L2 is fast blinking in blue, it indicates
that the SIM/USIM card is not in place, the
SIM/USIM card is faulty, the PIN code is
locked, or the PIN code is not entered.
• If the signal strength is in level 1 or 3, the sig-
nal strength indicators of level 1 or 3 should
be on for 80 percent of the time.
Mounting the FWT
Horizontal Mounting
Place the FWT on a smooth surface with cool air and
good ventilation. Keep the FWT away from other
objects around for at least 10 cm.
Vertical Mounting
Fix wall screws into the wall with the screw heads
extending approximately 3 mm from the surface of
the wall, align the mounting brackets with the screws,
push the host towards the wall, and mate the brack-
ets with the screws, ensuring the host is stable.
L1 is steady on
and in blue
1Weak
L2 is steady on
and in blue
3Medium
L1 and L2 are
steady on and in
blue
5Strong
Indicators Signal Level Signal Strength
7
3General Functions
Booting the FWT
The boot process of the FWT will last about 20 sec-
onds. Then you can view the signal strength.
Note
If the signal strength indicators remain off, the
FWT may be faulty or not in coverage area.
Please consult the local agent.
Making or Answering Calls
1Before off-hook, make sure at least one signal
strength LED is on.
2Dial the number in either of the following ways:
• Dial a telephone number in a regular way, and the
number will be dialed out in several seconds.
• Dial all the digits of the number plus one #. The
FWT will immediately dial the number.
3Make sure to hook on the telephone in place, so
that you can receive calls.
Adjusting the Voice Volume
You can adjust the voice volume either when the tele-
phone is in standby mode or working mode. Four vol-
ume levels are available, with level 1 being the lowest
and level 4 the highest.
Adjusting the Volume in Standby
Mode
1Hook off and you can hear the dial tone, which
means the telephone service is available.
2Press #*1 to adjust the volume.
3Press keys from 1 to 4 to select the desired vol-
umn. The keys from 1 to 4 represents volumn
level from 1 to 4.
4After selecting the desired volume, press * key
to save it. If you hear the confirmation tone of a
"toot", you have successfully set the volume
level.
Adjusting the Voice Volume
8
5You can hear the dial tone again, which means
that the FWT has returned to the off-hook state,
and you can proceed to make other operations.
Note
If you hear the reject tone of "toot, toot", you
have pressed an incorrect key. The syetem will
return to the off-hook state, and you can retry to
make the setting after hearing the dial tone
again.
Adjusting the Volume During a Call
1If you are in a session with the remote party, you
can press #*1 to adjust the volume.
2Press keys from 1 to 4 to select the desired vol-
umn. The keys from 1 to 4 represents volumn
level from 1 to 4.
3After selecting the desired volume, press * key
to save it. If you hear the confirmation tone of a
"toot", you have successfully set the volume
level.
4Keep in session mode.
Note
If you hear the reject tone of "toot, toot" when
setting the volume, you have pressed an incor-
rect key and this setting attempt is failed. How-
ever, the session mode remains and you can
perform operations from Step 1 to 4 to adjust
the volume again.
9
4Advanced Functions
Supplementary Services
You need the network carrier to enable the services.
Here are several typical services for your reference:
Three-Way Calling, Call Forward, Call Holding, Call
Waiting, Caller ID Display, Emergency Call.
Wireless Data Service
Installing the Management Program
Install the modem driver and management program
before the first use.
1Connect the FWT to a PC with a compatible data
cable. The system finds the new hardware and
installs the modem driver automatically.
2The installation program automatically starts,
and then the installation interface is displayed.
3Follow the instructions of the installation pro-
gram.
4When the installation completes, a shortcut icon
of the Terminal Management is displayed on the
desktop and the FWT is restarted.
Internet Service
1To launch the program, double-click the shortcut
icon of the Terminal Management on the desk-
top.
2Click Connection to access the Internet.
Note
After setting the network and connection pro-
files, you can access the network through the
Terminal Management.
Short Text Message
1To launch the program, double-click the shortcut
icon of the Terminal Management on the desk-
top.
Security
10
2Click Text to send or receive the short text mes-
sages.
Phone Book
1To launch the program, double-click the shortcut
icon of the Terminal Management on the desk-
top.
2Click Phonebook to access the phone book.
Note
For details of data service, see Wireless Termi-
nal User Manual in the Online Help.
Security
The Personal Identification Number (PIN) code pro-
tects the SIM/USIM card from unauthorized use. The
PIN Unblocking Key (PUK) code can unblock the PIN
code. The PIN and PUK codes are provided with your
SIM card. For details, consult your service provider.
Connecting the FWT to a telephone,then configure
the PIN code thought the telephone keyguard .Fol-
low the instructions :
• Turn on the PIN code: Press **031*PIN code#
• Turn off the PIN code: Press **030*PIN code#
• Check up the PIN code: Press **03*PIN code#
• Modify the PIN code: Press **04*old PIN code*new PIN
code*new PIN code#
Note
You can configure the PIN/PUK code thought
the Terminal Management. For details, see
Wireless Terminal User Manual in the Online
Help.
11
5Troubleshooting
The FWT is not connected to a power adapter. The
switch of the FWT is switched on, but the battery indi-
cator is still off.
Check whether the battery is installed.
If the battery is installed, the problem may result from low
power supply of the battery. Please charge the battery.
Connect the power adapter to the FWT, switch the
FWT, but the power indicator remains off.
Check whether the output voltage of the power adapter meet
the requirement of the FWT.
Switch on the FWT, the power indicator is in normal
state, but all signal strength indicators are off.
Check whether the antenna is correctly installed.
The signal strength indicator is in normal state, but
no dial tone is heard after off-hook.
Check the connection between the telephone and the FWT.
The voice is unstable and discontinuous.
Check how many signal indicators are on. If less than 1 are
on, the network signal is weak. Move the FWT to a position
with stronger signal. The signal strength may be led by
environmental interference. For details, consult the carrier.
The volume is too loud or too low.
Following the "Adjusting the Volume during a call".
The handfree function cannot be used.
If an FWT is connected with two phones at the same time, and
one is in use, the other phone's handfree function may not
work. You can use the handset.
The modem driver can not be installed automatically.
1. Restart your FWT.
2. Make sure the FWT is powered on and the USB cable is
well connected.
3. Make sure your operating system is Windows 2000,
Windows XP, or Vista (32-bit or 64-bit).
4. Check your computer, if there is a virtual CD-ROM, right-
click it and select open. Then you can find the setup.exe and
double-click it to start the installation.
5. If the above methods cannot help you, contact your local
agent.
12
6Warnings and Precautions
To use the FWT correctly and safely, read the following cau-
tions and let your children know these before using the FWT.
Basic Cautions
• According to the packing list, check items in the package
box to make sure that they are complete and undamaged.
• Before installing and using the FWT, read this user guide
carefully.
Electronic Device
Power off your FWT near high-precision electronic devices.
The FWT may affect the performance of these devices.
Such devices include hearing aids, pacemakers, fire alarm
systems, automatic gates, and other automatic-control
devices. If you are using an electronic medical device, consult
the device manufacturer and confirm whether the radio waves
affect the operation of the electronic device.
Hospital
Pay attention to the following points in hospitals or health care
facilities:
• Do not take your FWT into the operating room (OR), inten-
sive care unit (ICU), or coronary care unit (CCU).
• Power off your FWT near medial devices.
• Observe any instructions wherever the use of wireless
device is prohibited.
Traffic Safety
•Do not use your FWT while driving. Secure the FWT on its
holder. Do not place the FWT on the seat or other places
where it can get loose in a sudden stop or collision.
•Observe the rules and regulations of airline companies.
Power off your FWT before boarding an aircraft.
Operating Environment
•Do not place magnetic storage media such as magnetic
cards and floppy disks near the FWT. Radiation from the
FWT may erase the information stored on them.
• Do not put your FWT, battery, or other accessories in con-
tainers with strong magnetic field, such as the induction
cooker and microwave oven. Otherwise, circuit failure, fire,
or explosion may result.
• Do not place or use the FWT, the battery or the power
adapter near any heat sources such as fire or a heater; or
places with flammable gases; or areas with electrical appli-
ances that give out heat. Otherwise, it will cause fire, explo-
sion and breakdown of the FWT.
• Because the FWT needs to eliminate heat during working,
put the FWT and the power supply in a ventilated and shad-
owy place. Never airproof the FWT or put something on it or
place it near water, fire as well as inflammable and explo-
sive materials.
• Because the FWT contains precision devices, you should
put it in a dry place and away from moist materials.
• Before cleaning the FWT, please power off the FWT, and
then disconnect the power supply and take out the battery.
Before moving the FWT, please disconnect the external
power supply.
13
• Do not subject your FWT, battery, and power adapter to seri-
ous collision or shock. Otherwise, battery leakage, FWT
malfunction, overheats, fire, or explosion may result.
• Do not place sharp metal objects such as pins near the ear-
piece. The earpiece may attract these objects and hurt you
when you are using the FWT.
• Do not place the FWT in the area over the air bag or in the
air bag deployment area. Otherwise, the FWT may hurt you
owing to the strong force when the air bag inflates.
• In raining and lightning, disconnect the power adapter from
external power supply and power off the FWT.
• Put your FWT, battery, and power adapter in places beyond
the reach of children. Do not allow children to use the FWT,
battery, or power adapter without guidance.
• Do not touch the antenna when a call is going on. Touching
the antenna may affect call quality and cause the FWT to
operate at a power level higher than needed.
• The network signal condition will directly affect the quality
and stability of the call. Consequently, you should place the
FWT in a place where it can receive network signal well. Do
not put FWT in a building with an iron or metal roof. The dis-
tance between FWT and other metal materials (such as
metal brackets or metal doors and windows) should be
greater than 25cm and the distance between FWTs should
be greater than 30cm.
• Do not open the chassis in any case and the device should
be maintained by a qualified maintenance department.
• Without permission, you are not allowed to modify the archi-
tecture and security design of FWT. You must bear any con-
sequence resulted from the operation without permission.
•Your FWT is designed to conform to the authoritative inter-
national radio frequency (RF) specifications. Use FWT
accessories approved by Huawei only.
Emergency Call
You can use your FWT for emergency calls. However, connec-
tions in all conditions cannot be guaranteed. You should never
rely solely on the FWT for essential communications.
Battery
• If the battery fluid gets into eyes, do not rub them. Wash with
clean water and seek medical assistance immediately.
• If the battery fluid contacts skin or cloth, wash with clean
water immediately to avoid irritation to the skin.
• Do not dispose of the battery in fire. Otherwise, the battery
may ignite or explode.
• When installing the battery on your FWT, do not push the
battery by force lest battery fluid leak out or the battery
crack.
• Do not connect two poles of the battery with metallic materi-
als such as cables.
• Do not disassemble the battery or solder the battery poles.
Otherwise, fluid leakage, overheat, fire, or explosion may
result.
• If there is battery leakage, smoke, or strange smell, stop
using the battery and keep it away from open flame to avoid
fire or explosion.
• Disconnect the power adapter and take out the battery
when the FWT is not used for a long time.
14
• Do select its self-contained complete battery and power
adapter; otherwise, the FWT may be spoiled. Huawei Tech-
nologies Co., Ltd is not responsible for any consequences
caused by using non-standard batteries or power supplies.
Dispose of used batteries according to the instructions.
• Dispose of the battery according to local laws or regulations.
Power Adapter
•Use AC power as specified for the power adapter. Any viola-
tion of this rule may result in fire or malfunction of the power
adapter.
• Do not short-circuit the power adapter. Short-circuiting the
power adapter may cause fire or malfunction of the power
adapter.
• Remove the dust on the power plug regularly.
• Do not use worn-out power cords. Otherwise, electric shock,
short-circuiting of the power adapter, or fire may result.
• Do not put the power adapter near the container filled with
liquid such as water. If the liquid comes into the power
adapter, electrical leakage or other faults may result.
• If the liquid such as water comes into the power adapter
accidentally, remove the plug of the power adapter from the
socket immediately.
• Disconnect the power adapter from the socket before clean-
ing or maintaining it. Otherwise, electric shock or short-
circuiting of the battery or power adapter may result.
• Ensure the plug of the power adapter is properly inserted
into the power socket when charging the battery. Improper
insertion may result in electric shock, fire, or explosion.
•Do not place any heavy object on the power cord of the
power adapter. Do not damage, change, or pluck the power
cord.
Using the USB Cable
When using the USB cable, observe the following require-
ments. Otherwise, the FWT or PC may fail.
• When the USB cable is used to connect the FWT to a
PC,connect the USB cable with the FWT first.
• When the FWT communicates with a PC,do not disconnect
the USB cable with the FWT or PC may fail.
• When disconnecting the USB cable,disconnect it from the
PC first.
Environmental Protection
Please abide by the local laws in proposing of the package
materials of your FWT, consumed batteries and used FWT,
and try to recycle them.
Regulatory Information
•The antenna(s) used for this transmitter must be installed to
provide a separation distance of at least 20cm from all per-
sons.
•Please observe the national local regulations in the location
where product is to be used. This product may be restricted
for use in some or all countries of European Union.
FCC Statement
15
This device has been tested and found to comply with the lim-
its for a Class B digital device, pursuant to Part 15 of the FCC
Rules.These limits are designed to provide reasonable protec-
tion against harmful interference in a residential installation.
This device generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio commu-
nications. However, there is no guarantee that interference will
not occur in a particular installation. If this device does cause
harmful interference to radio or television reception, which can
be determined by turning the device off and on, the user is
encouraged to try to correct the interference by one or more of
the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the device and receiver.
--Connect the device into an outlet on a circuit different from
that to which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for
help.
This device complies with part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must
accept any interference received, including interference that
may cause undesired operation.
Warning: Changes or modifications made to this device not
expressly approved by manufacturer name: Huawei Technolo-
gies Co., Ltd. may void the FCC authorization to operate this
device.
EU Declaration of Conformity
Hereby,Huawei Technologies Co.,Ltd., declares that this
ETS1160 is in compliance with the essential requirements and
other relevant provisions of Directive 1999/5/EC.
The declaration of conformity may be consulted at www.hua-
weidevice.com/certification.
Version: V100R001_01 Part Number: 31010AEN
