Packing List
The Fixed Wireless Terminal (hereinafter referred to as FWT) package box contains the
following items. If any of the items is lost or damaged, contact your local dealer.
y Main unit, handset, and coiled cord
y Power adapter
y Battery (rechargeable)
y Antenna (optional)
y Certificate of Quality
y User Guide
Your Fixed Wireless Terminal

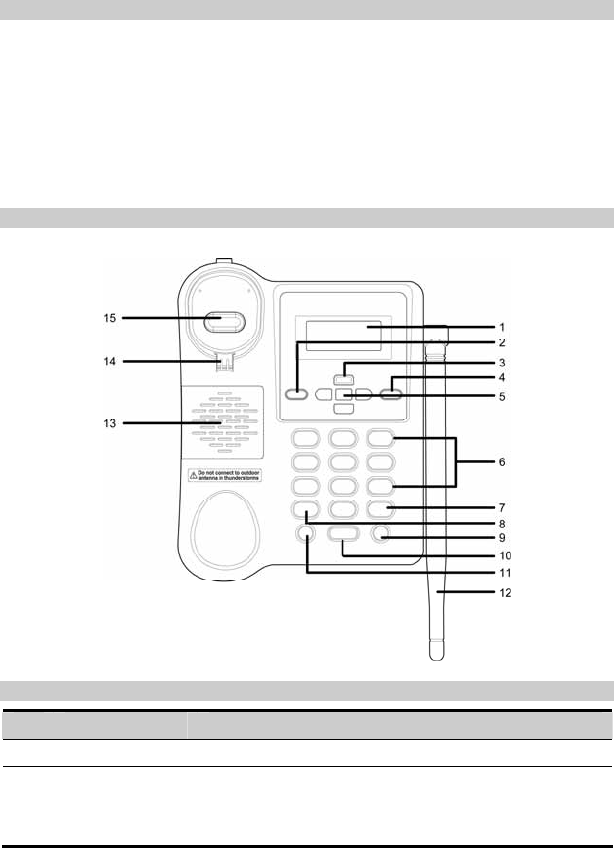

Keys and Functions
No. Item Description
1 Screen Display information.
2 Left soft key
y Access the main menu in standby mode.
y Select the option displayed on the lower left corner of the
screen.
y Answer a call.
1
No. Item Description
3 Scroll keys
y Access the shortcut screen in standby mode.
y Adjust the microphone and the earpiece volume during a
call.
4 Right soft key
y Access the contact screen in standby mode.
y Select the option displayed on the lower right corner of the
screen.
5 OK key
y Access the main menu in standby mode.
y Select the option displayed on the lower left corner of the
display screen.
6 Number key y Number keys from 0 to 9: Enter numbers and characters.
y Number keys from 1 to 9: Speed dial a phone number.
7 # key
y Lock the FWT in standby mode.
y Switch between different input methods in text input
mode.
8 * key y Activate/deactivate the quiet profile in standby mode (by
pressing and holding this key).
y Access the punctuation screen in editing mode.
9 Call/Redial key
y Make or answer a call.
y View the call history in standby mode.
10 HANDFREE key
y Make or answer a call without lifting the handset.
y Cancel the dialing, when dialing a number in the
hands-free mode.
y End the current call during a call in the hands-free mode.
11 End key
y End a call or reject an incoming call.
y Power on or off the FWT (by pressing and holding it).
y Return to the standby mode.
12 Antenna To receive signals.
13 Loudspeaker Phone ringing.
14 Handset retaining
clip Fix the handset when the FWT is wall-mounted.
15 Heaver End the current call or other operations.
Screen Icons
Icon Description Icon Description
Network signal strength / Calling / No service
2
Icon Description Icon Description
Alarm clock is on Hands-free mode
Message received Powered by the power adapter
Voice message received Battery power level

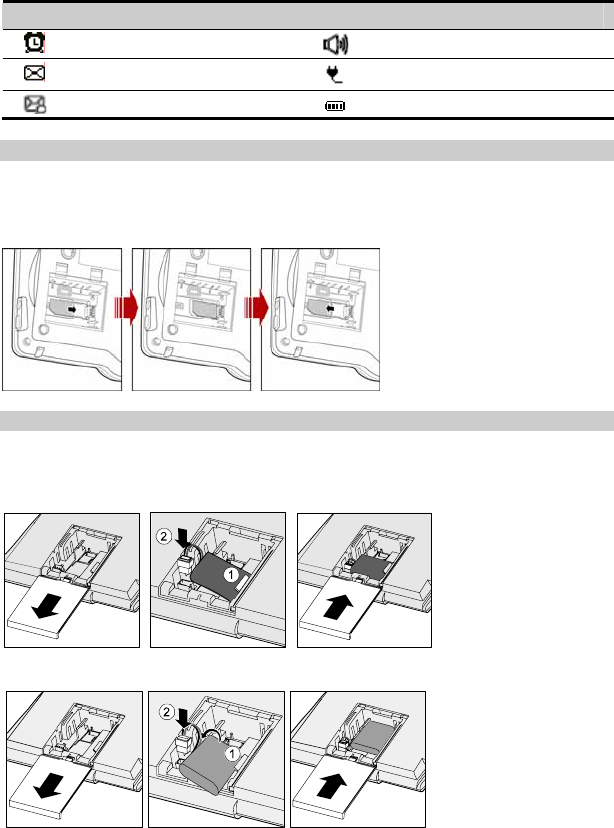

Installing the R-UIM Card (Optional)
Consult the network operator whether the R-UIM card is needed.
Power off the FWT and unplug the power cable, and install the R-UIM card as shown. Make
sure that the golden contact on the R-UIM card is facing downwards.
Installing the Battery
Power off the FWT and unplug the power cable, and install the battery as shown. Make sure
that the battery cord plug matches the battery jack. Do not insert the battery reversely.
y Method 1 (600mAh) :
y Method 2 (1000mAh) :
3
Note There are two ways of installation. Which one to choose is decided by the
size of your battery. You can also ask your network operator for more
information.
Using the Power Adapter and Charging the Battery
1.
2.
3.
4.
Install the battery based on the battery installation steps.
Connect one end of the power adapter cable to the FWT and the other to the power socket.
The battery charging icon is displayed on the screen. The battery charging icon becomes
static when the battery is fully charged.
When the battery is fully charged, disconnect the power adapter from the power socket
first. Then disconnect the power adapter from the FWT
Menu Tree
Phone Book Messages CallHistory
5.
6.
7.
8.
9.
10.
11.
1.
2.
3.
4.
5.
6.
7.
1.
2.
3.
4.
5.
Search
Add New
Groups
Speed Dial
Delete All
My Phone Num
Memory Status
Write Message
Inbox
Outbox
Draft
Voice Mail
Message Settings
Delete All
Missed Calls
Received Calls
Dialed Calls
Call Duration
Delete All
Fun & Utility Profiles Settings
1.
2.
3.
4.
5.
6.
7.
1.
2.
3.
1.
2.
3.
4.
Alarm
Schedule
Calculator
Stopwatch
World Clock
Line Game
Smash Game
General
Outdoor
Quiet
Display
Call Settings
Phone Settings
Security
4
Using the Menu
In standby mode, press Left soft key or to display the main menu. 1.
Press or to select a menu item.
2.
Press Left soft key or to display submenu.
3.
4. Access the submenu in either of the ways:
y Press or to scroll to a submenu item and press Left soft key or to
access it.
y Press the number key corresponding to the number of a submenu to access it.
Press Right soft key to return to the previous menu or return to the home screen. 5.
6. Press to return to the standby mode
Making a Call
1.
2.
In standby mode or off-hook mode, enter a phone number.
Press to dial the number.
Press or hook up to cancel the dialing.
3.
Note
y When the FWT is locked, enter the lock code to unlock the FWT first;
otherwise, you can only make emergency calls or answer calls.
y In standby mode, press to view the call history. Select a record
and press to dial this number.
y Select a phone number from Phone Book and press to call this
contact.
Answering a Call
When there is an incoming call, press , , , Left soft key or off hook to answer it,
or press or hook up to end it.
If the any-key answer function is activated, you can press any key except Right soft key and
to answer an incoming call.
FWT Lock
The FWT lock protects your FWT from unauthorized use. The default FWT lock code is
000000. You can change it into any numeric string of 4 to 8 digits.
5
PIN and PUK
The personal identity number (PIN) protects your R-UIM card from unauthorized use. The
PIN unblocking key (PUK) can unblock the blocked PIN. Both the PIN and PUK are delivered
with the R-UIM card. For details, consult your service provider.
Keypad Lock
In standby mode, press and hold the # key to lock the keypad. In this case, you can answer an
incoming calls or make emergency calls.
In standby mode, press Left soft key or and then press the * key to unlock the keypad.
In standby mode, if the automatic keypad lock function is enabled and the standby time
exceeds the preset period, the keypad will be automatically locked
Changing Text Input Modes
In editing mode, the current text input mode is displayed. Press the # key to change the input
mode.
Note
y In the editing mode, press Right soft key once to delete the letter on
the left of the cursor. Press and hold Right soft key to delete all the
entered letters.
y In the "ABC" or "abc" input mode, press 0 once to enter a space, press
0 for two consecutive times to enter a "0", and press 0 for three
consecutive times to start a new line.
y In the "ABC" or "abc" input mode, press 1 repeatedly to select and
enter the commonly used punctuations.
Entering English (ABC or abc)
In ABC or abc input mode, press number keys to enter English letters.
Press a number key once to enter the first letter on the key; press the key twice to enter the
second letter on the key, and the rest may be deduced by analogy.
Note
If the letter you want to enter is on the same key of the previous one, you
can enter the latter one only after the cursor appears again or after you
press to move the cursor to the next space.
Intelligent Input (eZiEn)
In eZiEn input mode, press number keys to enter English words.
1.
2.
According to the word to be entered, press the corresponding number keys once, and the
FWT makes out the candidate words.
Press or or the * key to select the word.
6
7
3. Press or to confirm your selection. The word is displayed in the input area.
Alternatively, press the 0 key to confirm your selection and enter a space behind the word.
Entering Numbers
In the "123" input mode, press a key labeled with the desired number. 1.
2.
3.
In the "ABC" or "abc" input mode, press the key consecutively until the desired number
is displayed.
In the "eZiEn" input mode, press the number key and then press the or key
until the desired number is displayed.
Entering Symbols
In any input mode, press the * key to display a symbol list. 1.
2. Press or to select the desired symbol.
3. Press the corresponding number key to enter the symbol.
Warnings and Precautions
Before using the HUAWEI Fixed Wireless Terminal (hereinafter referred to as the FWT), read the following cautions and let
your children know these, so that you can use your FWT correctly and safely.
Basic Cautions
y According to the packing list, check items in the package box to make sure that they are complete and undamaged.
y Before installing and using the FWT, read this User Manual carefully.
Electronic Device
y Power off your FWT near high-precision electronic devices. The FWT may affect the performance of these devices.
Such devices include hearing aids, pacemakers, fire alarm systems, automatic gates, and other automatic-control devices.
If you are using an electronic medical d
y evice, consult the device manufacturer and confirm whether the radio waves affect
on of the electronic device.
Pay
, or coronary care unit (CCU).
ctions wherever the use of wireless device is prohibited.
r
r places where
collision.
y
owy
ter, fire as well as inflammable and explosive
materials.
the operati
Hospital
attention to the following points in hospitals or health care facilities:
y Do not take your FWT into the operating room (OR), intensive care unit (ICU)
yPower off your FWT near medial devices.
y Observe any instru
T affic Safety
y Do not use your FWT while driving. Secure the FWT on its holder. Do not place the FWT on the seat or othe
it can get loose in a sudden stop or
y Observe the rules and regulations of airline companies. Power off your FWT before boarding an aircraft.
Operating Environment
Do not place magnetic storage media such as magnetic cards and floppy disk
ys near the FWT. Radiation from the FWT
may erase the information stored on them.
Do not put your FWT, battery, or other accessories in containers with strong magnetic field, such as the induction cooker
and microwave oven. Otherwise, circuit failure, fire, or explosion may result.
yDo not place or use the FWT, the battery or the power adapter near any heat sources such as fire or a heater; or places
with flammable gases; or areas with electrical appliances that give out heat. Otherwise, it will cause fire, explosion and
breakdown of the FWT
y Because the FWT needs to eliminate heat during working, put the FWT and the power supply in a ventilated and shad
place. Never airproof the FWT or put something on it or place it near wa
8
f
y
o
e FWT
tance
han
hould be greater than 30cm.
s in any case and the device should be maintained by a qualified maintenance department.
T is designed to conform to the authoritative international radio frequency (RF) specifications. Use FWT
es approved by Huawei only.
kin.
y
such as cables.
y he battery or solder the battery poles. Otherwise, fluid leakage, overheat, fire, or explosion may
d power adapter; otherwise, the FWT may be spoiled. Huawei
P
he power
e power adapter may cause fire or malfunction of the power
plug regularly.
ds. Otherwise, electric shock, short-circuiting of the power adapter, or fire may result.
y Because the FWT contains precision devices, you should put it in a dry place and away from moist materials.
y Before cleaning the FWT, please power off the FWT, and then disconnect the power supply and take out the battery.
Before moving the FWT, please disconnect the external power supply.
y Do not subject your FWT, battery, and power adapter to serious collision or shock. Otherwise, battery leakage, FWT
malfunction, overheats, fire, or explosion may result.
y Do not place sharp metal objects such as pins near the earpiece. The earpiece may attract these objects and hurt you
when you are using the FWT.
y Do not place the FWT in the area over the air bag or in the air bag deployment area. Otherwise, the FWT may hurt you
owing to the strong force when the air bag inflates.
yIn raining and lightning, disconnect the power adapter from external power supply and power off the FWT, In this case, i
the outdoor antenna is used, do not touch the FWT and antenna.
Put your FWT, battery, and power adapter in places beyond the reach of children. Do not allow children to use the FWT,
battery, or power adapter without guidance.
y Do not touch the antenna when a call is going on. Touching the antenna may affect call quality and cause the FWT t
operate at a power level higher than needed.
yThe network signal condition will directly affect the quality and stability of the call. Consequently, you should place th
in a place where it can receive network signal well. Do not put FWT in a building with an iron or metal roof. The dis
between FWT and other metal materials (such as metal brackets or metal doors and windows) should be greater t
25cm and the distance between FWTs s
y Do not open the chassi
y Without permission, you are not allowed to modify the architecture and security design of FWT. You must bear any
consequence resulted from the operation without permission.
y Your FW
accessori
Emergency Call
y You can use your FWT for emergency calls. However, connections in all conditions cannot be guaranteed. You should
never rely solely on the FWT for essential communications.
Battery
y If the battery fluid gets into eyes, do not rub them. Wash with clean water and seek medical assistance immediately.
y If the battery fluid contacts skin or cloth, wash with clean water immediately to avoid irritation to the s
y Do not dispose of the battery in fire. Otherwise, the battery may ignite or explode.
When installing the battery on your FWT, do not push the battery by force lest battery fluid leak out or the battery crack.
y Do not connect two poles of the battery with metallic materials
Do not disassemble t
result.
y If there is battery leakage, smoke, or strange smell, stop using the battery and keep it away from open flame to avoid fire
or explosion.
y Disconnect the power adapter and take out the battery when the FWT is not used for a long time.
yDo select its self-contained complete battery an
Technologies Co., Ltd is not responsible for any consequences caused by using non-standard batteries or power supplies.
Dispose of used batteries according to the instructions.
y Dispose of the battery according to local laws or regulations.
ower Adapter
y Use AC power as specified for the power adapter. Any violation of this rule may result in fire or malfunction of t
adapter.
yDo not short-circuit the power adapter. Short-circuiting th
adapter.
y Remove the dust on the power
y Do not use worn-out power cor
y ower adapter, Do not put the power adapter near the container filled with liquid such as water. If the liquid comes into the p
electrical leakage or other faults may result.
y If the liquid such as water comes into the power adapter accidentally, remove the plug of the power adapter from the
socket immediately.
9
socket before cleaning or maintaining it. Otherwise, electric shock or
esult in electric shock, fire, or explosion.
he power cord of the power adapter. Do not damage, change, or pluck the power cord.
y
tection
Abide by the local laws in proposing of the package materials of your FWT, consumed batteries and used FWT, and try to
recycle them.
Regulatory Information
y The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20cm from all
persons.
y Please observe the national local regulations in the location where product is to be used. This product may be restricted for
use in some or all countries of European Union.
y This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must accept any interference received, including interference that
may cause undesired operation.
y Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to
operate the equipment.
y Disconnect the power adapter from the
short-circuiting of the battery or power adapter may result.
yEnsure the plug of the power adapter is properly inserted into the power socket when charging the battery. Improper
insertion may r
y Do not place any heavy object on t
Using the USB Cable
To use the USB cable, you need operate abiding strictly by the following rules. Otherwise, your FWT or PC may be damaged:
yTo connect your FWT and PC with the USB cable, connect to the FWT at first, and then connect to the PC.
yIn the process of communication between your FWT and PC, it is strictly forbidden to plug or pull out the USB cable.
To disconnect your FWT and PC from the USB cable, disconnect from the PC at first, and then disconnect from the FWT.
nvironmental ProE
y
Version: V100R001_01 Part Number: 31019744
