Welcome to HUAWEI ETS2028/2228/2528 Fixed Wireless
Terminal.
HUAWEI ETS2028/2228/2528 Fixed Wireless Terminal
User Guide
Copyright © 2006 Huawei Technologies Co., Ltd.
All Rights Reserved
No part of this manual may be reproduced or transmitted
in any form or by any means without prior written consent
of Huawei Technologies Co., Ltd.
Trademarks
and HUAWEI are trademarks of Huawei
Technologies Co., Ltd. All other trademarks and trade
names mentioned in this manual are the property of their
respective holders.
Notice
The information in this manual is subject to change
without notice. Every effort has been made in the
preparation of this manual to ensure accuracy of the
contents, but all statements, information, and
recommendations in this manual do not constitute the
warranty of any kind, expressed or implied.
i
Table of Contents
1 Warnings and Precautions.....................................................................................................1
2 Introduction...........................................................................................................................7
Packing List ...................................................................................................................7

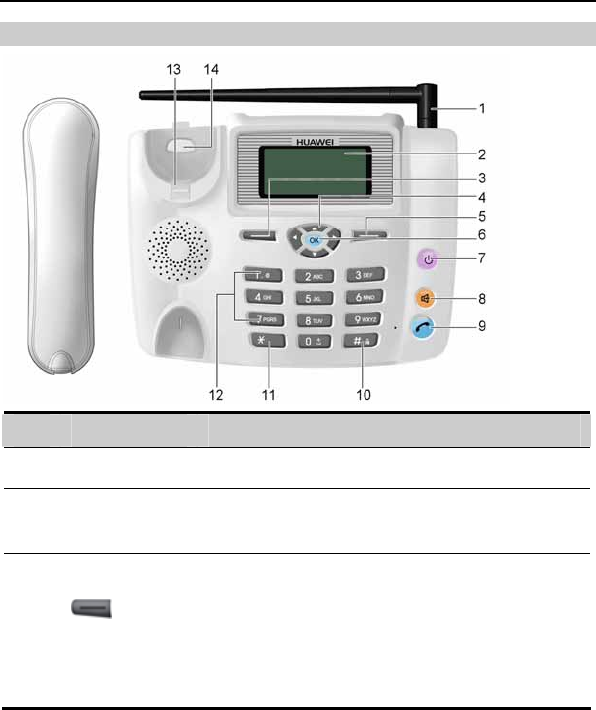

Appearance of the FWT ................................................................................................8
Icons.............................................................................................................................12
3 Installation...........................................................................................................................14
Installing the UIM Card (Optional).............................................................................14
Installing the Power Adapter or the Spare Battery......................................................14
Installing the Antenna..................................................................................................16
Placing the FWT..........................................................................................................17
Validating.....................................................................................................................18
4 Basic Operations .................................................................................................................19
Powering the FWT On or Off......................................................................................19
Making a Call ..............................................................................................................19
Answering a Call .........................................................................................................20
Operations During a Call.............................................................................................20
Locking the Keypad ....................................................................................................21
5 Text Entry............................................................................................................................22
Text Input Mode ..........................................................................................................22
Entering Letters ...........................................................................................................22
6 Messages .............................................................................................................................25
Writing and Sending a Message ..................................................................................25
Viewing a Message......................................................................................................25
Deleting a Message......................................................................................................26
Voice Mail....................................................................................................................26
Message Settings .........................................................................................................27
7 Phone Book .........................................................................................................................30
Adding a Contact.........................................................................................................30
Searching for a Contact ...............................................................................................30
Editing a Contact .........................................................................................................31
ii
Deleting a Contact .......................................................................................................31
Copying a Contact .......................................................................................................31
Groups..........................................................................................................................32
Memory Status.............................................................................................................32
Saving My FWT Number............................................................................................33
8 Settings................................................................................................................................34
Call Settings.................................................................................................................34
Profile Settings ............................................................................................................35
Security Settings..........................................................................................................37
Supplementary Services Settings ................................................................................38
9 FM Radio(Optional)............................................................................................................40
Switching the Radio On/Off........................................................................................40
Searching for a Channel ..............................................................................................40
Setting a Frequency .....................................................................................................41
Adding a Channel........................................................................................................42
Deleting a Channel ......................................................................................................42
10 Fun & Utility.....................................................................................................................43
11 Menu Commands ..............................................................................................................45
12 Maintenance and Troubleshooting...............................................................48
Maintenance.................................................................................................................48
Troubleshooting...........................................................................................................48
13 Specifications ....................................................................................................................51
1
1 Warnings and Precautions
Before using HUAWEI Fixed Wireless Terminal (hereinafter
referred to as FWT), read the following cautions and let your
children know these, so that you can use your FWT correctly
and safely.
Basic Cautions
According to the packing list, check items in the package box to
make sure that they are complete and undamaged.
Before installing and using FWT, read the user manual carefully.
Electronic Device
Switch off your FWT near high-precision electronic devices
such as hearing aids, pacemakers, fire alarm systems,
automatic gates, and other automatic-control devices. The FWT
may affect the performance of these devices.
Such devices include hearing aids, pacemakers, fire alarm
systems, automatic gates, and other automatic-control devices.
If you are using an electronic medical device, consult the device
manufacturer and confirm whether the radio waves affect the
operation of the electronic device.
Hospital
Pay attention to the following points in hospitals or health care
facilities:
y Do not take your FWT into the operating room (OR), intensive
care unit (ICU), or coronary care unit (CCU).
2
y Switch off your FWT near medial devices.
y Observe any instructions wherever the use of wireless device
is prohibited.
Traffic Safety
y Do not use your FWT while driving. Secure the FWT on its
holder. Do not place the FWT on the seat or other places
where it can get loose in a sudden stop or collision.
y Observe the rules and regulations of airline companies.
Switch off your FWT before boarding an aircraft.
Operating Environment
y Do not place magnetic storage media such as magnetic cards
and floppy disks near the FWT. Radiation from the FWT may
erase the information stored on them.
y Do not put your FWT, battery, or other accessories in
containers with strong magnetic field, such as the induction
cooker and microwave oven. Otherwise, circuit failure, fire, or
explosion may result.
y Do not place or use the FWT, the battery or the power adapter
near any heat sources such as fire or a heater; or places with
flammable gases; or areas with electrical appliances that give
out heat. Otherwise, it will cause fire, explosion and
breakdown of the FWT
y Because FWT needs to eliminate heat during working, put the
FWT and the power supply in a ventilated and shadowy place.
Never airproof the FWT or put something on it or place it near
water, fire as well as inflammable and explosive materials.
y Place the FWT in a dry place. Do not put a towel over the
FWT, or put it in a box or a suitcase while using.
y Because FWT contains precision devices, you should put it in
a dry place and away from moist materials.
3
y Before cleaning FWT, please turn off the FWT, and then
disconnect the power supply and take out the battery. Before
moving FWT, please disconnect the external power supply.
y Do not subject your FWT, battery, and power adapter to
serious collision or shock. Otherwise, battery leakage, FWT
malfunction, overheats, fire, or explosion may result.
y Do not place sharp metal objects such as pins near the
earpiece. The earpiece may attract these objects and hurt you
when you are using the FWT.
y Do not place the FWT in the area over the air bag or in the air
bag deployment area. Otherwise, the FWT may hurt you
owing to the strong force when the air bag inflates.
y Put your FWT, battery, and power adapter in places beyond
the reach of children. Do not allow children to use the FWT,
battery, or power adapter without guidance.
y Do not touch the antenna when a call is going on. Touching
the antenna may affect call quality and cause the FWT to
operate at a power level higher than needed.
y The network signal condition will directly affect the quality and
stability of the call. Consequently, you should place FWT in a
place where it can receive network signal well. Do not put
FWT in a building with an iron or metal roof. The distance
between FWT and other metal materials (such as metal
brackets or metal doors and windows) should be greater than
25cm and the distance between FWTs should be greater than
30cm.
y Do not open the chassis in any case and the device should be
maintained by a qualified maintenance department.
y Without permission, you are not allowed to modify the
architecture and security design of FWT. You must bear any
consequence resulted from the operation without permission
y Your FWT is designed to conform to the authoritative
international radio frequency (RF) specifications. Use FWT
accessories approved by Huawei only.
4
y The antenna(s) used for this transmitter must be installed to
provide a separation distance of at least 20cm from all
persons.
Emergency Call
You can use your FWT for emergency calls. However,
connections in all conditions cannot be guaranteed. You should
never rely solely on the FWT for essential communications.
Battery
y If the battery fluid gets into eyes, do not rub them. Wash with
clean water and seek medical assistance immediately.
y If the battery fluid contacts skin or cloth, wash with clean
water immediately to avoid irritation to the skin.
y Do not dispose of the battery in fire. Otherwise, the battery
may ignite or explode.
y When installing the battery on your FWT, do not push the
battery by force lest battery fluid leak out or the battery crack.
y Do not connect two poles of the battery with metallic materials
such as cables.
y Do not disassemble the battery or solder the battery poles.
Otherwise fluid leakage, overheat, fire, or explosion may
result.
y If there is battery leakage, smoke, or strange smell, stop using
the battery and keep it away from open flame to avoid fire or
explosion.
y Disconnect the power adapter and take out the spare battery
when FWT is not used for a long time.
y Do select its self-contained complete battery and power
adapter, otherwise, FWT may be spoiled. Dispose of used
batteries according to the instructions
y Dispose of the battery according to local laws or regulations.
5
Power Adapter
y Use AC power as specified for the power adapter. Any
violation of this rule may result in fire or malfunction of the
power adapter.
y Do not short-circuit the power adapter. Short-circuiting the
power adapter may cause fire or malfunction of the power
adapter.
y Remove the dust on the power plug regularly.
y Do not use worn-out power cords. Otherwise, electric shock,
short-circuiting of the power adapter, or fire may result.
y Do not put the power adapter near the container filled with
liquid such as water. If the liquid comes into the power adapter,
electrical leakage or other faults may result.
y If the liquid such as water comes into the power adapter
accidentally, remove the plug of the power adapter from the
socket immediately.
y Disconnect the power adapter from the socket before
cleaning or maintaining it. Otherwise, electric shock or
short-circuiting of the battery or power adapter may result.
y Ensure the plug of the power adapter is properly inserted into
the power socket when charging the battery. Improper
insertion may result in electric shock, fire, or explosion.
y Do not place any heavy object on the power cord of the power
adapter. Do not damage, change, or pluck the power cord.
Environmental Protection
Please abide by the local laws in disposing of the package
materials of your FWT, consumed batteries and used FWT, and
try to recycle them.
Please observe the national local regulations in the location
where product is to be used. This product may be restricted for
use in some or all countries of European Union.
6
Statement
This device complies with part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept
any interference received, including interference that may
cause undesired operation.
The antenna(s) used for this transmitter must be installed to
provide a separation distance of at least 20cm from all persons.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to
operate the equipment. In cases where the manual is provided
only in a form other than paper, such as on a computer disk or
over the internet, the information required by this section may
be included in the manual in that alternative form, provided the
user can reasonably be expected to have the capability to
access information in that form.
Note: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generate, uses and can radiate
radio frequency energy and, if not installed and used in
accordance with the instruction, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by
turning off and on the user is encouraged to try to correct the
interference by one or more of the following measures.
7
2 Introduction
Packing List
The FWT package box contains the following items. If any of the
items is lost or damaged, contact your local dealer.
Item Quanti
ty Item Quantit
y
Main unit, handset,
and coiled cord
1 Certificate of
Quality
1
Power adapter 1 Spare battery 1
Fixed Wireless
Terminal User
manual
1 Antenna
(optional)
1
8
Appearance of the FWT
Front View
No. Item Description
1 antenna To receive signals.
2 Display
screen
To display information.
3 Left soft key
z In the standby mode, press it to
access the main menu.
z In the non-standby mode, press it to
perform the operation displayed on
the lower left corner of the screen.
z Press this key to answer a call.
9
No. Item Description
4 Scroll key
z Up key: In the standby mode, press it
to access the Calendar screen;
during a call, press it to increase the
volume.
z Down key: In the standby mode,
press it to enable the radio (or alarm
clock); during a call, press it to
decrease the volume.
z Left key: In the standby mode, press
it to view the call records.
z Right key: In the standby mode,
press it to access the Write message
screen.
5 Right soft
key
z In the standby mode, press it to
access the Phone Book screen.
z In the non-standby mode, press it to
perform the operation displayed on
the lower right corner of the display
screen.
6 OK key
z In the standby mode, press it to
access the home screen.
z In the non-standby mode, press it to
perform the operation displayed on
the lower left corner of the display
screen.
7 End key
z Press it to end a call or cancel the
dialing.
z Press and hold it for two seconds to
power your FWT on or off.
z In the non-standby mode, press it to
return to the standby mode.
10
No. Item Description
8 HANDFRE
E key
z In the standby mode, press it to
make or answer a call without lifting
the handset.
z When dialing a number, press it to
cancel the dialing.
z During a call, press it to end the
current call.
9 Call/Redial
key
z Press it to make or answer a call.
z In the standby mode, press it to view
the call history.
10 # key z In the standby mode, press and hold
it to lock the FWT.
z Press it to switch between input
methods and so on.
11 * key z In the standby mode, press and hold
it repeatedly to activate/cancel the
quiet profile.
z Press it repeatedly to enter a symbol
and so on.
12 Number
keys
Press 0–9 keys to enter
numbers/characters or speed dial a
phone number.
13 Handset
retaining
clip
When the FWT is wall-mounted, it is
used it to fix the handset.
14 Heaver End the current call or other operations.
11

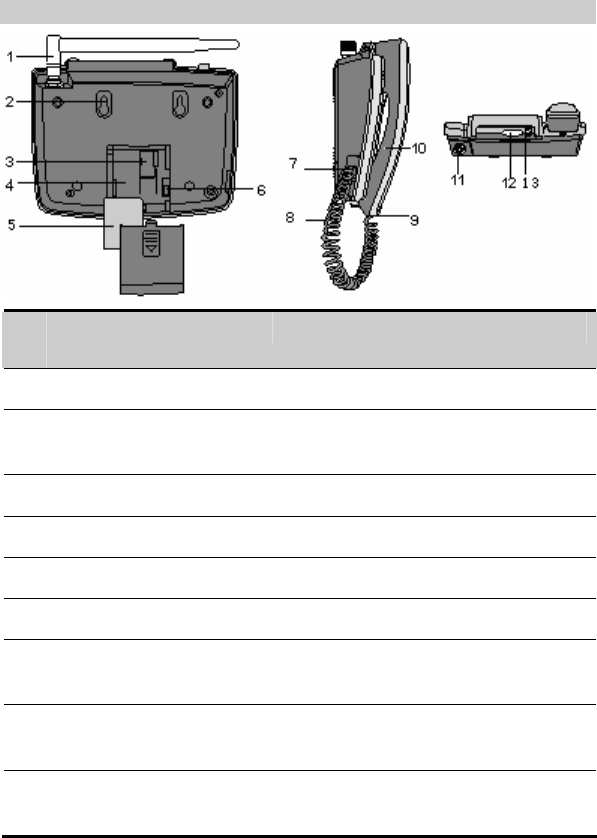

Back View
No
. Item Description
1 Antenna To receive signals.
2 Hook To fix the FWT when installed
vertically.
3 UIM case slot To house the UIM card
4 Battery case To house the spare battery.
5 Spare battery To supply the FWT with power.
6 Battery cord jack To connect to the battery cord.
7 Coiled cord jack on
the Main unit
To connect to the handset
coiled cord.
8 Coiled cord To connect to the handset to
the Main unit.
9 Coiled cord jack on
handset
To connect to the handset
coiled cord.
12
No
. Item Description
10 Handset To make a call or answer a call
by lifting it.
11 Antenna jack To connect to the antenna
12 DB9 serial port To maintain the FWT through it.
13 Power jack To connect to the power
adapter for power supply.
Icons
Icon Description
Indicates the signal strength. The more the bars,
the stronger the signal strength.
Indicates there is a new message.
Indicates there is a new voice message.
Indicates there is an outgoing call or an ongoing
call.
Indicates the alarm clock is activated.
Indicates the battery power level. The more the
bars, the higher the power level.
Indicates the FWT is powered by the power
adapter.
Indicates the FWT is in hands-free mode.
Indicates the network not available.
13
14
3 Installation
Installing the UIM Card (Optional)
Caution:
y Consult your service provider to decide whether to use
a user identity module (UIM) card.
y The UIM card and its golden contact can be easily
damaged by a scratch or bend. Be careful when
installing or removing the UIM card.

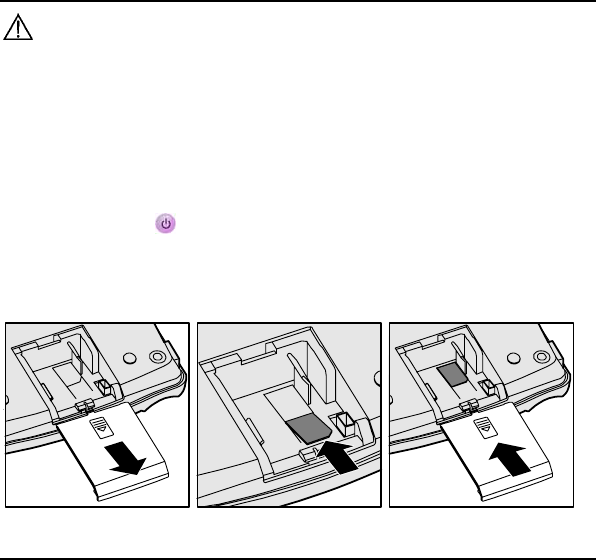

Press and hold to power your FWT off and then disconnect
it from the power socket. Install the UIM card according to the
following figure. Make sure that the golden contact of the UIM
card is facing downwards.
Installing the Power Adapter or the Spare Battery
Note:
y The FWT can be powered by the power adapter or the
spare battery.
15
y If the FWT is connected to the power adapter and the
spare battery is inserted, the FWT is powered by the
power adapter, and meanwhile, the spare battery is
charged.
y Charge the spare battery for at least eight hours for the
first time. If a fully-charged spare battery is left unused
for a long time, charge it for at least five minutes before
using it again.
y If the FWT is powered solely by the spare battery, the
talk time is three hours to five hours or the standby time
is 40 hours to 120 hours (the talk time and the standby
time are network dependent).
Installing the Power Adapter
Press and hold to power off your FWT. Connect the power
adapter to the FWT, and plug it to the power socket.
Installing the Spare Battery

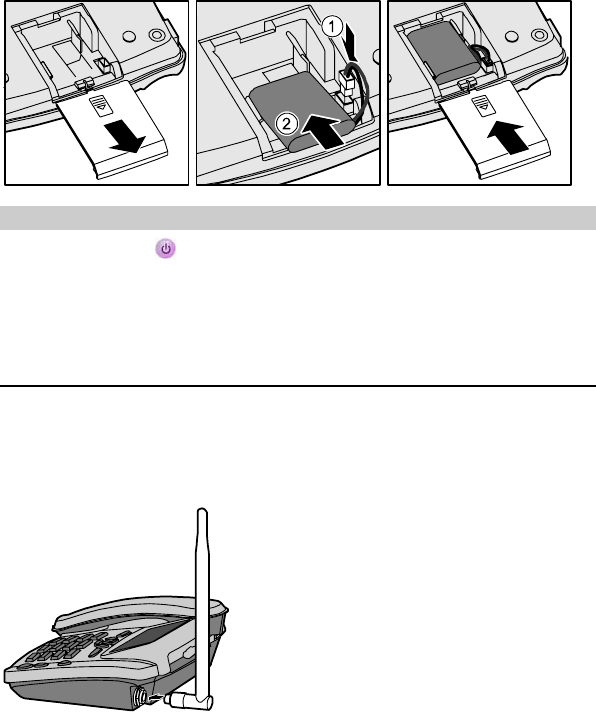

Press and hold to power off your FWT and then disconnect
the FWT from the power socket. Then install the spare battery
as shown in the following figure. When installing the spare
battery, make sure that the battery cord plug matches the
battery jack. Do not insert reversely.
16
Removing the Spare Battery
Press and hold to power off your FWT and then disconnect
the FWT from the power socket. Then remove the battery
house cover. Disconnect the battery cord and take out the spare
battery.
Installing the Antenna
Power off your FWT and disconnect the FWT from the power
socket. Then connect the antenna to the antenna jack on the
Main unit. Make sure that the antenna is stably connected to the
antenna jack.
17
Checking the Signal Strength
1. After installing the antenna, press and hold to power on
your FWT. Wait until the signal strength icon appears or you
can hear the dialing tone when you lift the handset.
2. If the signal strength icon does not appear after five minutes
or you hear the failure tone when you lift the handset, it
indicates that the FWT is not receiving signals. In this case,
you need to adjust the direction of the antenna until you can
hear the dialing tone on lifting the handset.
3. If there is no signals even after you adjust the antenna in 360
degrees angle, it indicates that the signal is weak in the
particular site. Either change the site or consult your service
provider.
Placing the FWT
You can place the FWT horizontally or vertically.
Horizontally
Place the FWT on a flat surface. Select a cool and ventilated
site for the FWT to dissipate the heat.
Vertically

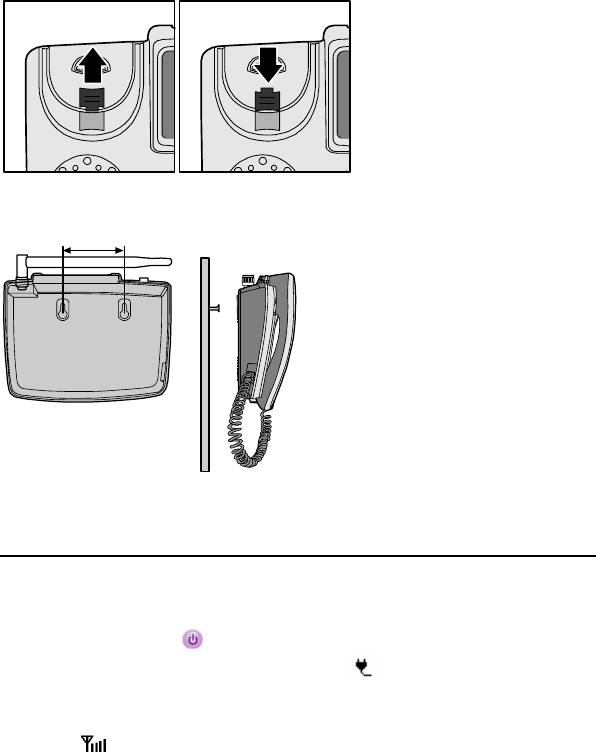

1. Pull out the Handset retaining clip from the slot and turn it
around. Then push it back so that the handset will not fall
down when FWT is placed vertically.
18
2. According to the distance between the two hooks (7.7 cm),
hammer two nails into the wall with 3 mm end left out.
7.7cm
3. Snap the hooks to the nails.
Validating
After installing the FWT, you can make a call to check whether it
is correctly installed.
1. Press and hold to power on your FWT. After connecting
the FWT to the power socket, the icon appears,
indicating that the FWT is powered normally.
2. Lift the handset. In the standby mode, the signal strength
icon appears normally.
3. If you are able to make a call, it indicates that the FWT is
installed correctly.
19
4 Basic Operations
Powering the FWT On or Off
When the FWT is powered off, press and hold to power it
on.
In the standby mode, press and hold to power it off.
Making a Call
Making a Call Through the Keypad
1. In the standby mode, press number keys to enter a phone
number. If the entered phone number is wrong, press .
2. Press to dial the phone number.
3. Press to end the call or cancel the dialing.
Making a Call from the Dialed Calls List
1. In the standby mode, press to access the Dialed Calls
screen.
2. Press the Up/Down key to scroll up or down the dialed calls.
3. Press to dial.
Making a Call from the Phone Book
1. In the phone book, search for the contact to dial.
2. Press to dial.
Speed Dialing a Call
The speed dial function allows you to dial a phone number by
pressing one number key. You can only set the speed dial
20
function for contacts saved in the FWT.
1. Select Menu > Phone Book > Speed Dial.
2. Press the Up/Down key to scroll up or down the items.
3. If a number key is not assigned to a contact, press to
select a contact from the phone book.
4. If a number key is assigned to a contact, press for the
following options:
y Change: Change a contact.
y Delete: Delete the contact.
Answering a Call
In the standby mode, you can lift the handset, press , or
to answer a call.
Activating the Any Key Answer Function
In the standby mode, select Menu > Settings > Call Settings >
Any-key Answer to set the any-key answer function.
If the any-key answer function is activated, you can press any
key to answer an incoming call (except and ).
Rejecting a Call
If you want to reject an incoming call, press or .
Adjusting the Volume
During a call, you can press the up/right key to increase the
volume or press the down/left key to decrease the volume.
Operations During a Call
During a call, press to select the following options:
y Save Number: Enter a phone number and save it to the
phone book.
21
y Phone Book: Access the Phone Book screen.
y Messages: Access the Messages screen.
y Third Party Call: The function is network dependent. For
details, consult your service provider.
y Voice Privacy: The function is network dependent. For
details, see "Voice Privacy" on page 34.
Locking the Keypad
Even when the keypad is locked, you can lift the handset, press
or press to answer a call.
Locking the Keypad Manually
Press and hold the # key for two seconds to lock the keypad.
Locking the Keypad Automatically
With the keyguard function activated, if there is no operation
within the preset time when the FWT is in the standby mode,
the keypad is automatically locked.
1. Select Menu > Settings > Phone Settings > Keyguard.
2. Press the Up/Down key to select:
y Off: Deactivate the keyguard function.
y 30 Seconds, 2 Minutes or 5 Minutes: Set the FWT to lock
automatically if there is no operation in 30 seconds, 2 minutes
or 5 minutes.
Unlocking the Keypad
Press . Then press the * key to unlock the keypad.
22
5 Text Entry
Text Input Mode
While entering text, you can press the # key to change the input
mode. The following table lists the input modes and their
indicators.
Indicator Text Input Mode
eZiEn Smart English
ABC English upper case
abc English lower case
123 Numbers
Note:
In the edit mode, press once to delete the letter on
the left of the cursor. Press and hold for over two
seconds to delete all letters.
Entering Letters
Smart English Input
In the "eZiEn" input mode, follow the steps described below to
enter English.
1. According to the word to enter, press the corresponding
number keys once, and the FWT makes out candidate
words.
23
2. Press the Up/Down key or the * key to select the word.
3. Press the right key to confirm your selection. The word is
displayed in the input area.
Alternatively, press the 0 key to confirm your selection and
enter a space behind the word.
Note:
y After you enter several letters, the FWT can give other
letters to make out the candidate words. Press the
Up/Down key or the * key to scroll the words and press
the right key to confirm; or press number keys to enter
letters.
y Press repeatedly the 1 key to enter punctuation.
y Press the 0 key to enter a space.
y Press the * key to display the symbol list.
y Press the # key to change the case of letters.
Alphabetical Text Input
Alphabetical text input allows you to enter uppercase ("ABC") or
lowercase ("abc") English letters. You can press the number
key labeled with desired letters once to enter the first letter on
the key, twice to enter the second letter on the key, and by
analogy.
If the letter you want to enter is on the same key as the previous
one, you can enter the letter only after the cursor appears again
or after you move the cursor to the next space.
Press the 1 key to enter a full stop or other symbols. Press the 0
key to enter a space. Press the * key to display the symbol list.
Entering Numbers
Do the following to enter numbers:
y In the "123" input mode, press number keys labeled with
desired digits.
24
y In the "ABC" or "abc" input mode, press the number key
repeatedly until the desired digit appears on the screen.
y In the "eZiEn" input mode, press the number key and then
press the Up/Down key until the desired digit appears on the
display screen.
Entering Symbols
1. In any input mode, press the * key to display the symbol list.
2. Press the Up/Down key to scroll up or down the symbol list.
3. Press the corresponding number key to enter a symbol.
25
6 Messages
Writing and Sending a Message
1. Select Menu > Messages > Write Message.
2. Write the message. You can enter up to 160 English letters.
When writing the message, you can press for the
following operations:
y Insert Template: Insert a commonly used phrase.
y Insert Phone Number: Insert a contact number from the
phone book.
3. After writing the message, press for the following
operations:
y Send: Send the message.
y Send&Save: Send the message and save it to the outbox.
y Save: Save the message to the draft.
4. You can insert up to 10 recipients. Do the following:
y Enter the phone number directly.
y Select Search > Search Phone Book to insert a contact
from the phone book.
y Select Search > Search Groups to insert a contact from the
message group.
5. Press the to send a message.
Viewing a Message
Viewing the Inbox
The inbox stores received messages.
When there is a new message, the FWT alerts and the icon
26
appears on the display screen. If the icon blinks, it indicates
that the message memory is full. Do the following to view the
inbox:
1. Select Menu > Messages > Inbox.
2. Press the Up/Down key to scroll up or down the messages.
3. Press (View) to view the message.
4. Press (Options) to select Reply, Delete, Forward,
Call or Save Number.
Viewing the Outbox and the Draft
The outbox stores messages that are sent successfully. You
can delete, forward or re-send a message in the outbox.
The draft stores drafts and messages that are not sent
successfully. You can edit, send or delete messages in the draft.
Deleting a Message
1. Select Menu > Messages > Delete All.
2. Select the messages to delete:
y Inbox: Delete messages in the inbox.
y Outbox: Delete messages in the outbox.
y Draft: Delete messages in the draft.
y UIM Card: Delete messages saved in the UIM card.
Applicable only if a UIM card is available.
y Phone: Delete messages saved in the FWT.
y All: Delete messages saved in both the FWT and the UIM
card.
3. Press (Yes) to delete and press (No) to cancel.
Voice Mail
Calling the Voice Mail Center
1. Select Menu > Messages > Voice Mail > Options.
27
2. Select Call Voice Mail Center and press (Select) to
call the voice mail center.
Setting or Viewing the Voice Mail Number
1. Select Menu > Messages > Voice Mail > Voice Mail
Number.
2. If the voice mail number is already set, you can view and edit
it; if not, enter the voice mail number and press (OK).
Note:
The voice mail function is network dependent. You must
subscribe for the service. For the voice mail number and
other information, consult your service provider.
Clearing the Voice Mail Notification
1. Select Menu > Messages > Voice Mail.
2. Select Clear Voice Mail Notification and press
(Select).
Message Settings
Setting a Template
Your FWT provides 10 commonly used phrases. You can insert
these phrases when you edit a message. You can also
customize the phrases.
1. Select Menu > Message > Message Settings > Templates.
2. Press the Up/Down key to scroll up or down the phrases.
3. Press (Select) to select the phrase to edit.
4. Press (OK) to save the edited phrase.
Setting a Message Group
You can send a message to a message group directly instead of
group members one by one. It is different from the phone book
group. You can set up to 10 message groups. You can only add
28
contacts saved in the FWT to a message group.
1. Select Menu > Messages > Message Settings >
Group Settings.
2. Press the Up/Down key to scroll up or down the message
groups.
3. Press (Options) to select View, Add, Rename or
Delete All.
Setting the Auto Save Function
Select Menu > Messages > Message Settings > Auto Save to
set the auto save function. You can select:
y Send And Save: Activate the auto save function. Messages
are automatically saved after being sent. Messages sent
successfully are saved to the outbox. Messages not sent are
saved to the draft.
y Send Only: Deactivate the auto save function.
Setting the Auto Delete Function
Select Menu > Messages > Message Settings > Auto Delete.
y On: Activate the auto delete function. If the memory in use is
full and there is a new message, the FWT automatically
deletes the earliest message.
y Off: Deactivate the auto delete function. If the memory in use
is full, the FWT cannot receive messages. You need to delete
some messages manually. Then the FWT can receive new
messages.
Setting the Priority
Select Menu > Messages > Message Settings > Priority. You
can set the sending sequence of messages from the short
message service center (SMSC). The priority level from low to
high is normal, urgent, and emergency.
29
The priority function is network dependent. For details, consult
your service provider.
Setting the Delivery Ack
Select Menu > Messages > Message Settings > Delivery Ack.
You can set whether to receive a delivery report after a
message is sent.
Setting the Memory Status
Select Menu > Messages > Message Settings > Memory
Status to view the memory status.
30
7 Phone Book
Adding a Contact
A contact is saved to the memory in use.
1. Select Menu > Phone Book > Add New.
2. Enter the name and press (OK).
3. Set other options:
y If the memory in use is the FWT, you can set: Name,
General Number, Home Number, Office Number, and
Memo (you need to set at least one phone number).
y If the memory in use is the UIM card, you can set General
Number only.
4. Press (OK) to save the settings and press the
Up/Down key to set other items.
5. Press (Save) to save the contact or press (Back)
to cancel.
Searching for a Contact
1. Select Menu > Phone Book > Search.
2. Enter the name and press (OK).
3. Press the Up/Down key to scroll up or down the contacts.
y Press (View) to view the details of the contact.
Note:
Press (OK) to display the contacts. Press the
number key labeled with the initial letter of the contact.
The contacts names beginning with the letter (or the
adjacent letter) are displayed.
31
Editing a Contact
1. Select Menu > Phone Book > Search to search for the
contact to edit.
2. Press (Options) and select Edit.
3. Press (Save) to save the contact or press (Back)
to cancel.
Deleting a Contact
Delete a Contact
1. Select Menu > Phone Book > Search to search for a
contact to delete.
2. Press (Options) and select Delete.
3. Press (Yes) to delete the contact or press (No)
to cancel.
Delete All Contacts
1. Select Menu > Phone Book > Delete All.
2. Enter the correct FWT lock code and press (OK).
3. Select Phone to delete all the contacts saved in the FWT. If
the UIM card is available, select UIM Card to delete all the
contacts saved in the UIM card.
Copying a Contact
If the UIM card is available, you can copy one or all contacts
from the FWT to the UIM card and from the UIM card to the
FWT.
Copying a Contact
1. Search for a contact to copy.
32
2. Press (Options) and select Copy To UIM or Copy To
Phone. If the contact is saved in UIM card, select Copy To
Phone to copy it to the FWT. If the contact is saved in FWT,
select Copy To UIM to copy it to the UIM card.
3. Press (Yes) to copy the contact or press (No) to
cancel.
Copying All Contacts
1. Select Menu > Phone Book > Copy All.
2. Select UIM To Phone or Phone To UIM.
y If you select UIM To Phone, all contacts are copied to the
FWT.
y If you select Phone To UIM, all contacts are copied to the UIM
card.
3. Press (Yes) to copy the contacts or press (No)
to cancel.
Groups
You can sort contacts into different groups for easy
management. You can set up to 10 groups.
1. Select Menu > Phone Book > Groups.
2. Press the Up/Down key to scroll up or down the groups.
3. Press (Options) for the following options:
y View: View the contacts of a group.
y Add: Add a contact to the group.
y Group Ring: Set a ring tone for the incoming calls of the
group members.
y Rename: Rename the group.
y Delete All: Delete all contacts of a group.
Memory Status
Your FWT can save up to 500 contacts. The number of contacts
that can be saved in the UIM card is determined by its capacity.
33
Viewing the Memory Status
Select Menu > Phone Book > Memory Status to view the
memory status.
Saving My FWT Number
1. Select Menu > Phone Book > My Phone Num.
2. Press (Edit) to edit the FWT number.
3. Press (OK) to save the FWT number.
34
8 Settings
Call Settings
Minute Alert
If the minute alert function is activated, your FWT notifies you of
the call duration by giving an alert 10 seconds before the end of
each minute.
1. Select Menu > Settings > Call Settings > Minute Alert.
2. Select one of the following options:
y On: Activate the minute alert function.
y Off: Deactivate the minute alert function.
Voice Privacy
The voice privacy function can protect your conversion from
interception. The voice privacy function is network dependent.
For details, consult your service provider.
Select Menu > Settings > Call Settings > Voice Privacy:
y Standard: Deactivate the voice privacy function.
y Enhanced: Activate the voice privacy function.
Auto Dial
If the auto dial function is activated, it means that the phone
number you keyed in is dialed automatically at the time you set
without pressing the key. If the time you set for auto dialing
is too short, an incomplete number may be dialed before you
key in the whole number.
35
1. Select Menu > Settings > Call Settings >Auto Dial.
2. Select one of the following options: “Off”, “After 3
Seconds”, “After 4 Seconds”, “After 5 Seconds”, After 6
Seconds”, “After 7 Seconds”, “After 8 Seconds” and
“After 9 Seconds”.
Shortcut Key Settings
The FWT provides shortcut keys for your convenience.
Note:
In the standby mode, the default shortcut key settings are
shown as follows:
y Up key: press it to access the Calendar screen; during
a call, press it to increase the volume.
y Down key: press it to enable the radio (or alarm clock);
during a call, press it to decrease the volume.
y Left key: press it to view the call records.
y Right key: press it to access the Write message screen.
1. In the standby mode, Select Menu> Settings> Phone
Settings> Shortcut to set the shortcut keys.
2. Press / / / to set the corresponding shortcut
keys.
y Press [Select] to select one of the following shortcut key
options: Disable, Message Edit, Message Inbox, Radio,
Lunar Date, Calculator, Volume Setting, Message Menu,
Alarm, Schedule, Stopwatch, World Clock, Gallery, Line
Game, Smash Game, Profile, Voice Message, Phone Book,
and Call History.
Profile Settings
Your FWT provides three profiles. You can activate or
36
customize a profile.
Selecting a Profile
1. In the standby mode, select Menu > Profiles.
2. Press the Up/Down key to scroll up or down the profiles:
General, Outdoor, and Quiet.
3. Press (Select) and select Set to activate the profile.
Note:
In the standby mode, press and hold the * key to activate
the quiet mode. Press and hold the * key again to restore
the FWT to the previous mode.
Editing a Profile
1. In the standby mode, select Menu > Profiles.
2. Press the Up/Down key to scroll up or down the profiles:
General, Outdoor and Quiet.
3. Press (Select) and select Edit to edit a profile. You
can set the following items:
y Volume: Adjust the volume of Ring and Key.
y Incoming Call: Select a ring tone for incoming calls. 10 ring
tones are available.
y Alarm Clock: Select an alert tone for the alarm clock. 10
alert tones are available.
y SMS Alert: Select a message tone. 5 message tones are
available.
y Key Tone: Select a keypad tone. Select Off to deactivate the
keypad tone.
y Power On/Off Tone: Activate or deactivate the power-on
and power-off tone.
37
Security Settings
Note:
The emergency call function of the FWT is not affected by
the operation of FWT lock function.
Setting the FWT Lock
The FWT lock protects your FWT from unauthorized usage. If
necessary, you can activate the FWT lock. You can change the
default FWT lock code (000000) into a numeric string of 4 to 8
digits.
Remember the FWT code. In case you forget it, contact your
service provider.
If the FWT lock activated, you have to enter the FWT code
every time you power on the FWT. Enter the correct FWT lock
code and press (OK).
1. Select Menu > Settings > Security > Phone Lock.
2. Enter the correct FWT lock code and press (OK).
3. Select On/Off to activate or deactivate the FWT lock.
4. Select Change Code. Then enter the new FWT lock code
and press (OK).
5. Re-enter the new FWT lock code and press (OK).
Setting the PIN Lock
The personal identification number (PIN) code protects the UIM
card from unauthorized usage. The PIN unblocking key (PUK)
code can unblock the PIN code. PIN and PUK are delivered
with the UIM card. For details, consult your service provider.
38
Note:
y If you enter wrong PIN codes three times consecutively,
the FWT prompts you to enter the correct PUK code. If
you enter wrong PUK code several times, consult your
service provider for the correct PUK code.
y If you enter wrong PUK codes 10 times consecutively,
the UIM card is invalidated. Contact your service
provider to retrieve a new card.
If the PIN code is activated, you have to enter the PIN code
every time you power on the FWT. Enter the correct PIN code
and press (OK).
Do the following to set the PIN code:
1. Select Menu > Settings > Security > PIN Lock.
2. Enter the correct PIN code and press (OK).
3. Select On/Off to activate or deactivate PIN code.
4. Select Change Code to change the PIN code.
Changing the PIN Lock
When the FWT is working well, you can change the PIN code
by referring to the process of setting the PIN lock.
When the PIN code is locked, you can enter correct PUK code
to unlock the PIN Code. If you enter wrong PUK codes 10 times
consecutively, the UIM card is invalidated. Contact your service
provider to retrieve a new card.
1. Enter correct PUK code and press (OK).
2. Enter new PIN code and press (OK).
3. Re-enter the new PIN code and press (OK).
Supplementary Services Settings
For the specific supplementary services of the FWT, consult the
39
carrier. The supplementary services need special commission.
This section only introduces some typical supplementary
services.
y Caller ID display: When there is an incoming call, the FWT
displays the phone number of the caller on the screen.
y Three way calling: Three parties can hold a conversation at
the same time.
y Call forwarding: The incoming calls are forwarded to the
specified phone accordingly to facilitate you to answer.
Supplementary services are network dependent. For details,
consult your service provider.
40
9 FM Radio(Optional)
Switching the Radio On/Off
Switching the Radio On
1. In the standby mode, select Menu > FM Radio.
The FWT displays "Radio On!". The radio is switched on and
the broadcasting screen is displayed.
2. Select a channel to listen to the radio broadcast.
Switching the Radio Off
1. In the standby mode, select Menu > FM Radio.
2. Press (Options) and select Switch Off.
3. Press (Select) to switch the radio off and return to the
home screen.
Searching for a Channel
Auto Tuning
1. In the standby mode, select Menu > FM Radio.
2. Press (Options) and select Auto Tuning.
3. The FWT searches the available channels and saves them.
Note:
The FWT can save up to 20 channels.
Manual Tuning
1. In the standby mode, select Menu > FM Radio.
41
2. Press (Options) and select Manual Tuning. You can
tune the radio channel manually.
3. The FWT searches for an available channel.
4. Press the Up/Down key to switch a channel.
5. Press (Set) to add the channel to the channel list or
press (Back) to stop tuning and return to the
broadcasting screen.
Inching Tuning
1. In the standby mode, select Menu > FM Radio.
2. Press (Options) and select Inching Tuning.
3. Press the Up/Down key and the FWT searches for all
available channels between 87.5 MHz and 108.0 MHz. The
tuning increases or decreases 0.1 MHz each time.
4. Press (Set) to add a channel to the channel list and
return to the broadcasting screen or press (
Back) to
stop tuning and return to the broadcasting screen.
Setting a Frequency
1. In the standby mode, select Menu > FM Radio.
2. Press (Options) and select Set Frequency.
3. Enter a frequency ranges from 87.5 MHz to 108.0 MHz.
If you enter 3 digits before the decimal, the cursor moves to
the right of the decimal automatically; if you enter 2 digits
before the decimal, press the right key to move the cursor to
the right of the decimal.
4. Press (OK) to save the settings and return to the
broadcasting screen; press (Clear) to clear the
settings and return to the broadcasting screen; press the
left/right key to move the cursor to clear all the settings.
42
Adding a Channel
1. After searching for or set a frequency, press (Options)
and select Save Channel.
2. Press the Up/Down key to scroll up or down the channel list.
3. Press (OK) to complete the settings.
If you set the frequency of the selected channel, the FWT
prompts "Replace existing channel?" Press (Yes) to
replace. Press (No) to re-select.
Deleting a Channel
1. In the standby mode, select Menu > FM Radio.
2. Press (Options) and select Delete Channel.
3. Press the Up/Down key to scroll up or down the channel list.
4. Press (Delete) to delete a non-empty channel.
5. Press (Yes) to delete; press (No) to cancel.
43
10 Fun & Utility
Alarm Clock
After the alarm clock is activated, it rings at the specified time
when your FWT is powered on. You can set up to five alarm
clocks.
1. Select Menu > Fun&Utility > Alarm.
2. Press the Up/Down key to scroll up or down the alarm
clocks.
3. Press (Select) to select an alarm clock.
4. Select Alarm On to startup the alarm clock.
5. Enter the time and press (OK).
6. Select:
y Once: The alarm clock rings only once.
y Everyday: The alarm clock rings once every day.
y Custom: The alarm clock rings on the specified days.
Note:
y When the alarm clock rings, press (Stop) to turn
off the alarm clock. Alternatively, press (Snooze)
to snooze the alarm clock for five minutes.
y If you do not turn off the alarm clock in 45 seconds, the
alarm clock automatically snoozes. After five minutes,
the alarm clock rings again. It alerts automatically for 6
times before it stops.
Schedule
1. Select Menu > Fun&Utility > Schedule.
44
2. Press (Options) to select: Add Schedule, View
Current Month, View All, Delete All, Delete Passed,
Memory Status and Go To Date.
45
11 Menu Commands
Phone Book
See "Phone Book" on page 30.
Messages
See "Messages" on page 25.
Call History
Missed Calls
Received Calls
Dialed Calls
z Press the Up/Down key to scroll up
or down the records (up to 20).
z Press to dial a record.
z You can save, delete or send a
message to a record.
Call Duration z The FWT records the duration of
the last call, dialed calls, received
calls, and all calls. You can view or
reset the duration.
z The call duration recorded by the
FWT may differ from that in the call
detail record (CDR) of your service
provider. The difference is
determined by factors such as the
network functioning and the
round-up settings.
Delete All You can delete all the missed calls,
received calls or dialed calls.
46
Fun & Utility
Alarm See "Alarm Clock" on page 43.
Schedule See "Schedule" on page 43.
Calculator You can use the calculator for basic
calculations. Press the # key to enter
the decimal point. Press the * key to
select operators such as add, subtract,
multiply and divide. Press to
display the results.
Stopwatch The FWT provides the stopwatch
function, which can record up to 9
hours 59 minutes 59 seconds and 990
milliseconds.
World Clock You can view the Greenwich Mean
Time (GMT), current time of other 31
major time zones around the world,
and local time.
Line Game For details, see Help in your FWT.
Smash Game For details, see Help in your FWT.
Profiles
See "Profile Settings" on page 33.
47
Settings
Display You can set backlight, contrast, date
format, time format, and banner.
You can set the backlight to off, always
on, or ff if there is no operation on the
FWT for 10 seconds, 20 seconds or 30
seconds.
You can press the left/right key to
increase or decrease the contrast.
You can set the date format to
yyyy-mm-dd, dd-mm-yyyy or
mm-dd-yyyy.
You can set the time format to 12-hour
or 24-hour.
You can activate or deactivate the
banner.
Call Settings See "Call Settings" on page 34.
Phone Settings You can select a language, set the
keyguard function and shortcut keys.
You can select English or Chinese as
the FWT language.
For details of the keyguard settings,
see "Locking the Keypad" on page 20.
Security See "Security Settings" on page 37.
48
12 Maintenance and
Troubleshooting
Maintenance
1. Place the FWT in a clean and dry environment. The
temperature of the place should be no higher than 55°C or
lower than -10°C.
2. If the FWT is covered with dust, please clean it with fine
clean cloth. Do not clean it with cleanser or other chemical
solvents.
3. If the FWT does not operate normally due to a failed spare
battery, please replace the spare battery in time or use the
power adapter to supply the FWT with power.
4. If the FWT does not work normally, contact your service
provider.
Troubleshooting
The display screen does not turn on after the FWT is
powered on (the FWT is not connected to the power
adapter).
1. Make sure that the spare battery is installed.
2. The battery level is low. Connect the FWT to the power
adapter.
The display screen does not turn on after the FWT is
powered on (the FWT is connected to the power adapter).
1. The voltage output of the power adapter does not meet the
requirement of the FWT. Check whether the AC input is
normal and the power adapter is the approved one.
49
2. The external voltage of the power adapter is low or unstable;
disrupting the normal functioning of the FWT. Check whether
the external voltage of the power adapter is normal. You can
also install the spare battery in the FWT.
There is no signal icon on the display screen.
1. Make sure that the antenna is installed properly.
2. If still there is no signal, contact your service provider to
check whether the FWT is in the signal coverage area.
Time is not displayed.
1. Make sure that idle time is set “On” Status through pressing
Setting>Display>Idle Time
2. if the problem persists ,Make sure that the antenna is
installed properly.
3. Adjust the antenna direction or move the FWT to a place
covered where the signal is better.
4. If the problem persists, contact your service provider to
check whether the FWT is within the signal coverage area.
After the FWT is powered off, there is no display
sometimes while sometimes there is power supply icon
and blinking battery icon.
No information on the display screen is a normal status of FWT
after power-off. The power supply icon and a blinking battery
icon indicate that the battery is being charged.
There is the ring tone after the busy tone.
The ring tone indicates that there is an incoming call. If you are
not in a call, you can answer the call.
After lifting the handset, there is a ring tone when you are
ready to dial or are dialing a phone number.
It indicates that there is an incoming call. If you are not in a
conversation, you can answer the call.
50
There is only the battery icon on the display screen.
It indicates that the FWT is powered by the spare battery. If the
FWT is powered solely by the spare battery and the battery icon
is blinking without any bar inside, it indicates that the battery
level is low. Use the power adapter to charge the battery or
replace the spare battery.
51
13 Specifications
Item Description
Dimensions (W × D × H) 214 mm × 156 mm × 77 mm
Weight Less than 700 g
Placement mode Horizontal or wall mounting
Input voltage Switch power supply
AC: 90 V–264 V
DC: 12 V
Spare battery Type: NiMH
Capacity: 3.6 V 1000 mAh
3.6 V 1500 mAh
(Optional)
Maximum transmitter
power
23 dBm
Typical conversation power
consumption
1.2 W
Typical stand-by power
consumption
40 mW
Ambient temperature -10°C to 55°C
Storage temperature -20°C to 70°C
Relative humidity 5% to 95%

Navigation menu
