Introduction
This section introduces you the features of your new device.
Package Contents
Top View
Bottom View
Package Contents
After opening the package, check to make sure that you have all the parts shown
below. If any item is missing or broken, please contact service provider.
Sprint Phone Connect Antenna Battery
2
Getting Started Poster
Power Adapter Getting Started Poster
Note:
The figures in this document are provided only for your reference. The
actual shape and color of the product may differ slightly.
Customer must provide their own home telephone. Home telephone can
be either traditional corded phone or cordless phone.
3
Top View
10
11
7
9
8
6
54321
1 Power indicator 7 Telephone port 1
2 Voice mail indicator 8 Telephone port 2
3 Battery indicator 9 DC 12V power port
4 Signal indicator 10 USB port*
5 Signal strength indicator 11 Antenna port
6 Power on/off switch
4
* Note: Never place a USB-based device into the USB port of the Sprint Phone
Connect under any circumstances. Doing so may damage the device and
negate its warranty. The port was designed for diagnostic purposes only; it is
not intended for customer use.
Bottom View
41 32
1 Battery cover 3 Battery port
2 Battery slot 4 Wall-mounting brackets
5
Installation and Operation
Installing the Battery
Installing the Antenna
Installing the Power Adapter
Connecting your Telephone to Sprint Phone Connect
Powering on the Device
Understanding the Indicators
Making Calls
Receiving Calls
Adjusting the In-Call Volume
Installing the Battery

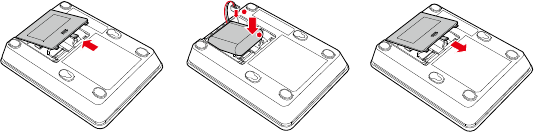

Remove the battery cover. Carefully insert the battery connection cable into the
battery port, ensure that the battery terminals are not reversed. Place the battery in
the battery slot and return the battery cover.
6
1
2
Note:
If the ambient temperature exceeds the temperature allowed for charging
(–10°C to +50°C), the device stops charging the battery.
Talk time is approximately 2.5 hours and standby time is approximately 30
hours. Actual values will vary with the network environment.
The battery is intended for backup purposes only (in the event of a power
failure).
When the power adapter is connected the battery will automatically
charge.
When fully charged the battery will automatically stop charging.
Remove the battery if the device is not use for a long time.
Installing the Antenna

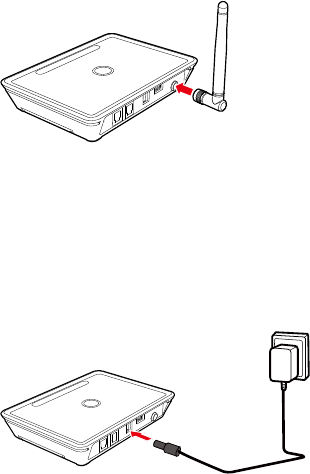

Make sure the device is turned off. Align the antenna with the antenna port on the
device as illustrated below. Screw the antenna into the port, ensuring that the
connection is secure.
7
Installing the Power Adapter
Under normal usage, the device relies on the external power adapter for its power
supply. Insert the power adapter into the DC input port, and plug the unit into an AC
wall outlet.
Note: Backup battery power will only be used during power failure or if the external
power adapter is not in use.
8
Connecting your Telephone to Sprint Phone
Connect
The Sprint Phone Connect device provides ports for up to two telephones. The ports
use the same telephone number.
1. Unplug your telephone from your wall's telephone jack.
2. Plug the end of your telephone's cord into one of the telephone ports (the other
end of the cord must remain plugged into the back of your home telephone base
unit).

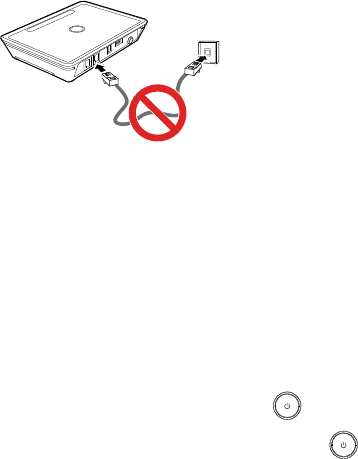

Warning: Do not plug Sprint Phone Connect into your telephone wall jack.
9
Note:
The telephone and telephone cord are not included. Customer must
provide own telephone and telephone cord.
The device and telephone cord are for indoor use only.
Only telephones connected directly to the Sprint Phone Connect will
receive service.
If the Sprint Phone Connect is connected to a cordless phone base
station, any extension phones compatible with that base station will also
receive service.
Powering on the Device
To power the device on, press and hold the button until power indicator turns on.
Note: To power the device off, press and hold the button until all indicators
turn off.
10
Understanding the Indicators

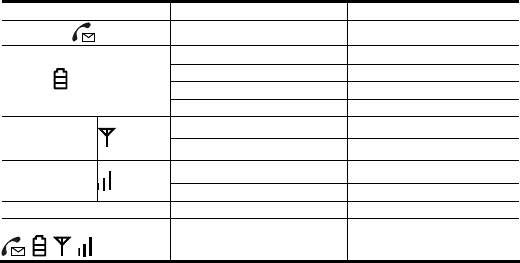

The table below describes a possible status for each of the device indicators.
Icon Indicator Status
Voice mail Blinking Green New Message
Green Full Charge
Blinking Green Partial Charge
Blinking Red Low Charge
Battery
Solid Red No Battery Charge
Green With signal
Signal Off Without signal
Green Good or Ok
Signal
Strength Red Poor or None
Power White The device is on
Software update
Blinking Green from Left to
Right
The software is being
updated
Making Calls
1. Before making a call, make sure signal and signal strength indicators are lit up.
2. Place a call by entering the desired telephone number.
3. When your call is complete, hang up or return the phone to the receiver to ensure
that you can receive calls.
11
Receiving Calls
For customers with a new telephone number, simply share your new number with
friends & family. When they call, answer the phone connected to your Sprint Phone
Connect device.
Adjusting the In-Call Volume
You can adjust the in-call volume in standby mode or during a call. Four volume levels
are available, with level 1 being the lowest and level 4 the highest.
Adjusting the In-Call Volume in Standby Mode
1. Pick up the handset.
If you hear the dial tone, the telephone service is available.
2. Enter ##1 to adjust the in-call volume.
3. Press the 14 keys to select the desired volume level.
4. Press the * key to save the volume level.
If you hear the confirm tone "toot", you have successfully set the volume level.
If you hear the dial tone again, the device has returned to the off-hook state, and
you can proceed to configure other settings.
Note: If you hear the reject tone "toot, toot", you have pressed an incorrect key and
failed to adjust the in-call volume. Wait until the device returns to the off-hook
state and you hear the dial tone again. Then repeat steps 2 to 4 to adjust the
in-call volume again.
Adjusting the In-Call Volume During a Call
1. While engaged in a call, enter ##1 to adjust the in-call volume.
2. Press the 14 keys to select the desired volume level.
12
3. Press the * key to save the volume level.
If you hear the confirm tone "toot", you have successfully set the volume level.
4. Continue with your call.
Note: If you hear the reject tone "toot, toot", you have pressed an incorrect key and
failed to adjust the in-call volume. Continue with your call, and repeat steps 1
to 4.
13
General Functions
Mounting the Device
Using Call Waiting
Making a 3-Way Call
Using Voice Mail
Using Call Forwarding
Assistive Communication Devices
Mounting the Device
Horizontal Mounting
Place the device on a smooth surface with good ventilation. Place it at least 4 inches
away from other objects.
Note: Avoid placing Sprint Phone Connect near other electrical equipment, such as
Refrigerator, Television, and Microwave.
Wall Mounting
Fix two wall screws (not included) into the wall with the screw heads extending
approximately 0.1 inches from the surface of the wall. The distance between two
14
screws should be 4 inches. Align the mounting brackets with the screws, push the
device towards the wall, and connect the brackets with the screws ensuring that the
device is stable.
Using Call Waiting
When you are on a call, Call Waiting alerts you to incoming calls.
To use call waiting:
1. When you hear a beep from the receiver on any connected phone during a call, it
means a second caller is trying to connect.
2. Press the FLASH key to answer to the second call.
3. Press the FLASH key again to return to the first call.
Making a 3-Way Call
You can talk with two parties at the same time by using the 3-way call feature on your
Sprint Phone Connect. Airtime and other charges, which may include toll or long
distance charges will apply for all simultaneous calls. Not available in some areas.
1. While on the first call, dial the number of the second party.
2. Press the FLASH key, the first party is automatically put on hold while the call is
made.
3. When the 2nd party answers, press the FLASH key to initiate the 3-way call.
4. If the second party does not answer, press the FLASH key to end the connection
and return to the first party.
5. To end both conversations, press the END key.
Note: FLASH key will vary by telephone type.
15
Using Voice Mail
1. The voice mail indicator ( ) will blink green to indicate that you have one or
more unheard voice mail messages.
2. Dial *86 to access your voice mail.
3. Follow the system prompts to listen to and manage your voice mails.
Note:
Dial *86 and follow the system prompts to create your password and
record your message.
Please refer to the Troubleshooting section for additional details on
accessing voice mail, or if you would like to use a home telephone
answering machine as your preferred method to manage your voice mail
messages.
Using Call Forwarding
Sprint Phone Connect allows customers to forward calls to another phone number,
including your mobile phone or office number. Your home phone will not ring until you
deactivate the service. Airtime applies to forwarded calls even if you send the call to
landline telephones.
To Activate Call Forwarding:
1. Dial *72.
2. Immediately enter the phone number where you want calls to be forwarded (e.g.
*72-212-123-4567).
3. You will hear a confirmation tone.
4. Hang up your home phone or return the phone receiver to its base.
16
To Deactivate Call Forwarding:
1. Dial *73.
2. You will hear a confirmation tone.
3. Hang up your home phone or return the phone receiver to its base.
Assistive Communication Devices
TTY (Text Telephony) and TDD (Telecommunications Device for the Deaf) allow
individuals who are deaf, hard of hearing, or have speech or language disabilities to
communicate by telephone.
When a user types his or her conversation on a TTY keyboard, it is transmitted as
tones through the telephone. Tones are received by the other person’s TTY, translated
into text and displayed on the screen. In order to use the TTY network, you must have
a TTY-compatible phone and be in the TTY mode to place or receive calls. Note that
most digital wireless devices are TTY-compatible.
17
Troubleshooting
Why am I not getting a dial tone on my handset?
1. Ensure that the power adaptor is properly connected and that the power indicator
is illuminated.
2. Check to make sure the telephone cable is securely plugged in.
Can I create a shortcut to access my voice mail?
The availability of a shortcut feature to access voice mail messages depends solely
on the capabilities of the corded or cordless phone that you use with Sprint Phone
Connect. Please refer to the user material that came with your phone. If your home
phone does not support a shortcut feature to access voice messages, you may have
the option to save your voice mail number into the address book on the handset and
assign that number to the #1 speed dial position on your phone's keypad. Remember,
you can always dial *86 to access your voice mail.
Can I use my telephone answering device instead
of voice mail?
Yes. Set the answering device to fewer rings in order to pick up the call before voice
mail. Alternatively, turn off your home answering machine or increase the number of
rings if you would like to use the voice mail service. Please refer to the user material
provided by the Home Answering Machine manufacturer for instructions.
18
Does 911 work on this device?
Yes, but since the Sprint Phone Connect is designed for an indoor environment,
please be prepared to provide your location inside the premises to public service
personnel. The GPS chipset embedded in this device will work best if the device is
located near a window or other opening.
Does this product work during a power outage?
While the Sprint Phone Connect has a backup battery, if the landline device requires
external power to operate, service (including the ability to make and receive 911 calls)
will not be available during a power outage.
Service will only be available during a power outage if the home telephone connected
to the device does not rely on external power to operate (as is the case with many
corded phones).
How long is the battery life of Sprint Phone
Connect?
Talk time is approximately 2.5 hours and standby time is approximately 30 hours.
Actual values can vary with environmental conditions.
How does Caller ID (CID) work?
CID allows you to see the caller's name and/or phone number before you take the call.
Monthly subscription charges may apply. Please consult your service provider for
further information.
19
Can I adjust the volume on my telephone?
You can adjust the volume using your telephone connected to the Sprint Phone
Connect. Four volume levels are available, with level 1 being the softest and level 4
the loudest. The default setting is level 2.
How to set the TTY mode?
Enter the keys # # 5 6 * n # to set the TTY mode.
n=0: TTY off mode. The standard voice speaking mode and the listening mode.
This is the default setting.
n=1: TTY full mode. Transmit and receive the TTY characters.
n=2: VCO mode. Receive TTY characters but transmit by speaking into the
speaker.
n=3: HCO mode. Transmit TTY characters but receive by listening to the receiver.
Why do I get the recording, "Call cannot be
completed as dialed?"
Check the number to ensure you're dialing correctly, without pauses longer than two
seconds between dialed digits.
20
Warnings and Precautions
This section contains important information pertaining to the operating instructions of
your device. It also contains information about how to use the device safely. Read this
information carefully before using your device.
Electronic Device
Power off your device if using the device is prohibited. Do not use the device when
using the device causes danger or interference with electronic devices.
Medical Device
Follow rules and regulations set forth by hospitals and health care facilities. Do not
use your device when using the device is prohibited.
Pacemaker manufacturers recommend that a minimum distance of 15 cm be
maintained between a device and a pacemaker to prevent potential interference
with the pacemaker. If you are using a pacemaker, use the device on the opposite
side of the pacemaker and do not carry the device in your front pocket.
Some wireless devices may affect the performance of hearing aids. For any such
problems, consult your service provider.
Potentially Explosive Atmosphere
Power off your device in any area with a potentially explosive atmosphere, and
comply with all signs and instructions. Areas that may have potentially explosive
atmospheres include the areas where you would normally be advised to turn off your
vehicle engine. Triggering of sparks in such areas could cause an explosion or a fire,
resulting in bodily injuries or even deaths. Do not power on your device at refueling
points such as service stations. Comply with restrictions on the use of radio
equipment in fuel depots, storage, and distribution areas, and chemical plants. In
addition, adhere to restrictions in areas where blasting operations are in progress.
Before using the device, watch out for areas that have potentially explosive
21
atmospheres that are often, but not always, clearly marked. Such locations include
areas below the deck on boats, chemical transfer or storage facilities, and areas
where the air contains chemicals or particles such as grain, dust, or metal powders.
Ask the manufacturers of vehicles using liquefied petroleum gas (such as propane or
butane) whether this device can be safely used in their vicinity.
Traffic Security
Do not use your device while driving, and observe the local laws and regulations.
Do not use your device while flying in an aircraft. Power off your device before
boarding an aircraft. Using wireless devices in an aircraft may cause danger to the
operation of the aircraft and disrupt the wireless telephone network. It may also be
considered illegal.
Operating Environment
Do not use or charge the device in dusty, damp, and dirty places or places with
magnetic fields. Otherwise, it may result in a malfunction of the circuit.
On a stormy day with thunder, do not use your device, to prevent any danger
caused by lightning.
Do not install outdoor antenna, because it may damage your device.
When you are on a call, do not touch the antenna. Touching the antenna affects the
call quality and results in increase in power consumption. As a result, the talk time
and the standby time are reduced.
Use accessories authorized by the manufacturer. Using unauthorized accessories
will render the warranty null and void.
Because the device needs to disperse heat during working, place the device and
the power supply in a ventilated and shady place. Never cover the device, put
objects on it, or place it near water, fire as well as inflammable and explosive
materials.
This device should be installed and operated with a minimum distance of 20 cm
between the antenna and all persons.
22
Keep the ambient temperature between -10°C and 50°C while the device is being
charged. Keep the ambient temperature between -10°C to 50°C for using the
device powered by a battery.
Safety of Children
Comply with all precautions with regard to children's safety. Letting the child play with
your device or its accessories, which may include parts that can be detached from the
device, may be dangerous, as it may present a choking hazard. Ensure that small
children are kept away from the device and accessories.
Accessories
Use the accessories delivered only by the manufacturer. Using accessories of other
manufacturers or vendors with this device model may invalidate any approval or
warranty applicable to the device, result in the non-operation of the device, and cause
danger.
Battery and Charger
Unplug the charger from the electrical plug and the device when not in use.
Do not connect two poles of the battery with conductors, such as metal materials,
keys, or jewelries. Otherwise, the battery may be short-circuited and may cause
injuries and burns on your body.
Do not disassemble the battery or solder the battery poles. Otherwise, it may lead
to electrolyte leakage, overheating, fire, or explosion.
If battery electrolyte leaks out, ensure that the electrolyte does not touch your skin
and eyes. When the electrolyte touches your skin or splashes into your eyes, wash
your eyes with clean water immediately and consult a doctor.
If there is a case of battery deformation, color change, or abnormal heating while
you charge or store the battery, remove the battery immediately and stop using it.
Otherwise, it may lead to battery leakage, overheating, explosion, or fire.
23
If the power cable is damaged (for example, the cord is exposed or broken), or the
plug loosens, stop using the cable at once. Otherwise, it may lead to an electric
shock, a short circuit of the charger, or a fire.
Do not dispose of batteries in fire as they may explode. Batteries may also explode
if damaged.
Danger of explosion if battery is incorrectly replaced. Recycle or dispose of used
batteries according to the local regulations or reference instruction supplied with
your device.
Cleaning and Maintenance
The device, battery, and charger are not water-resistant. Keep them dry. Protect
the device, battery, and charger from water or vapor. Do not touch the device or the
charger with a wet hand. Otherwise, it may lead to a short circuit, a malfunction of
the device, and an electric shock to the user.
Do not place your device, battery, and charger in places where they can get
damaged because of collision. Otherwise, it may lead to battery leakage, device
malfunction, overheating, fire, or explosion.
Do not place magnetic storage media such as magnetic cards and floppy disks
near the device. Radiation from the device may erase the information stored on
them.
Do not leave your device, battery, and charger in a place with an extreme high or
low temperature. Otherwise, they may not function properly and may lead to a fire
or an explosion.
Do not place sharp metal objects such as pins near the earpiece. The earpiece
may attract these objects and hurt you when you are using the device.
Before you clean or maintain the device, power off the device and disconnect it
from the charger.
Do not use any chemical detergent, powder, or other chemical agents (such as
alcohol and benzene) to clean the device and the charger. Otherwise, parts of the
device may be damaged or a fire can be caused. You can clean the device and the
charger with a piece of damp and soft antistatic cloth.
24
Do not dismantle the device or accessories. Otherwise, the warranty on the device
and accessories is invalid and the manufacturer is not liable to pay for the damage.
Emergency Call
You can use your device for emergency calls in the service area. The connection,
however, cannot be guaranteed in all conditions. You should not rely solely on the
device for essential communications.
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
Warning: Changes or modifications made to this device not expressly approved
by Huawei Technologies Co., Ltd. may void the FCC authorization to operate this
device.
25
Copyright © Huawei Technologies Co., Ltd. 2012. All rights reserved.
No part of this document may be reproduced or transmitted in any form or by any
means without prior written consent of Huawei Technologies Co., Ltd.
The product described in this manual may include copyrighted software of Huawei
Technologies Co., Ltd. and possible licensors. Customers shall not in any manner
reproduce, distribute, modify, decompile, disassemble, decrypt, extract, reverse
engineer, lease, assign, or sublicense the said software, unless such restrictions are
prohibited by applicable laws or such actions are approved by respective copyright
holders under licenses.
Trademarks and Permissions
, , and are trademarks or registered trademarks of Huawei
Technologies Co., Ltd.
Other trademarks, product, service and company names mentioned are the property
of their respective owners.
Notice
Some features of the product and its accessories described herein rely on the
software installed, capacities and settings of local network, and may not be activated
or may be limited by local network operators or network service providers. Thus the
descriptions herein may not exactly match the product or its accessories you
purchase.
Huawei Technologies Co., Ltd. reserves the right to change or modify any information
or specifications contained in this manual without prior notice or obligation.
NO WARRANTY
THE CONTENTS OF THIS MANUAL ARE PROVIDED “AS IS”. EXCEPT AS
26
REQUIRED BY APPLICABLE LAWS, NO WARRANTIES OF ANY KIND, EITHER
EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR
CONTENTS OF THIS MANUAL.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO CASE
SHALL HUAWEI TECHNOLOGIES CO., LTD. BE LIABLE FOR ANY SPECIAL,
INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, OR LOST PROFITS,
BUSINESS, REVENUE, DATA, GOODWILL OR ANTICIPATED SAVINGS.
Import and Export Regulations
Customers shall comply with all applicable export or import laws and regulations and
will obtain all necessary governmental permits and licenses in order to export,
re-export or import the product mentioned in this manual including the software and
technical data therein.

Navigation menu
