User Manual II

User Guide
VERIZON WIRELESS
HOME PHONE CONNECT
label
Welcome to Verizon Wireless
Thank you for choosing Verizon Wireless Home Phone Connect.
You’re now connected to Americas most reliable wireless network. This guide will help you
understand your new wireless device and all of its capabilities. So let’s get started.
Contents
1 Introduction ................................................................................................................................................................................... 1
Package Contents ...........................................................................................................................................................1
Top View .............................................................................................................................................................................2
Bottom View......................................................................................................................................................................3
2 Installation and Activation ........................................................................................................................................................ 4
Step 1: Installing the Battery ....................................................................................................................................... 4
Step 2: Installing the Antenna..................................................................................................................................... 5
Step 3: Installing the Power Adapter ........................................................................................................................ 5
Step 4: Connecting your Telephone to Home Phone Connect........................................................................ 6
Step 5: Powering on the Device ................................................................................................................................. 8
Step 6: Activating the Device......................................................................................................................................8
Step 7: Understanding the Indicators ......................................................................................................................9
Step 8: Making Calls .....................................................................................................................................................10
Step 9: Receiving Calls.................................................................................................................................................10
3 General Functions......................................................................................................................................................................12
Mounting the Device...................................................................................................................................................12
Making a 3-Way Call .....................................................................................................................................................13
Using Voice Mail.............................................................................................................................................................14
Using Call Forwarding .................................................................................................................................................14
Important Facts About Your Home Phone Connect..........................................................................................15
Assistive Communication Devices...........................................................................................................................16
4 Frequently Asked Questions...................................................................................................................................................17
1
1 0B0BIntroduction

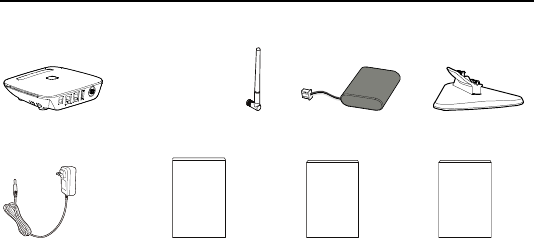

Package Contents
The package should contain the following items. Please contact Verizon Wireless if any of
the items are missing or damaged.
Verizon Wireless Home Phone Connect Antenna Battery Desktop stand
User Guide
Quick Reference
Guide
Product Sa fety
and Warranty
Information
Power Adapter User Guide Quick Reference
Guide
Product Safety and
Warranty Information
Note:
Customer must provide their own home telephone. Home telephone can be
either traditional corded phone or cordless phone. Home telephone must be
single line touch tone. Home phone Connect is not compatible with multi line
equipment, rotary dial or pulse dial.
2
Top View
Note:
The figures are only for your reference, the actual shape and color of the
product may differ slightly.
1
876
9
2345
10
* Note: Never place a USB-based device into the USB port of the Home Phone Connect
under any circumstances. Doing so may damage the device and negate its warranty. The
port was designed for diagnostic purposes only; it is not intended for customer use.
1 DC 12V power port 6 Power indicator
2 Telephone port 1 7 Voice mail indicator
3 Telephone port 2 8 Battery indicator
4 USB port* 9 Signal strength indicators
5 Antenna port 10 Power on/off switch
3
4
4B4BBottom View
1 2 3
1 Wall-mounting brackets 3 Battery port
2 Battery cover 4 Desktop stand
4
2 Installation and Activation
5B5BStep 1: Installing the Battery
Remove the battery cover. Carefully insert the battery connection cable into the battery
port. The connection cable will click into place when correctly inserted. Place the battery in
the battery slot and return the battery cover.
Note:
The device takes approximately 3.5 hours to charge fully. The charge time may
be impacted by environmental factors.
Talk time is approximately 2 hours and standby time is approximately 36
hours. Actual values will vary with the network environment.
The battery is intended for backup purposes only (in the event of a power
failure).
When the power adapter is connected the battery will automatically charge.
When fully charged the battery will automatically stop charging.
Remove the battery if the device will be unused for a period exceeding 2
weeks.
5

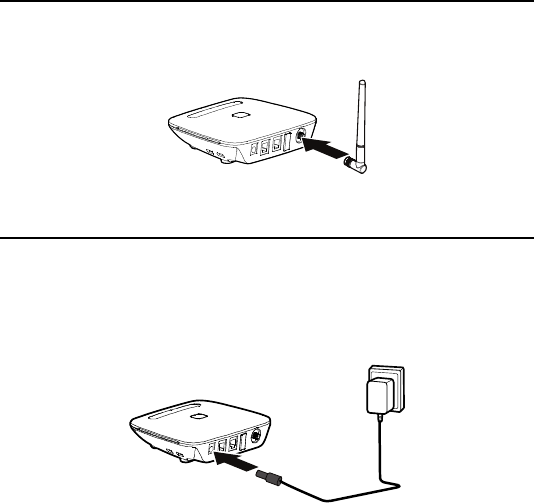

6B6BStep 2: Installing the Antenna
Make sure the device is turned off. Align the antenna with the antenna port on the device
as illustrated below. Screw the antenna into the port, ensuring that the connection is
secure.
7B7BStep 3: Installing the Power Adapter
Under normal usage, the device relies on the external power adapter for its power supply.
Insert the power adapter into the DC input port, and plug the unit into an AC wall outlet.
Note:
Back up battery power will only be used during power failure or if the external
power adapter is not in use.
6

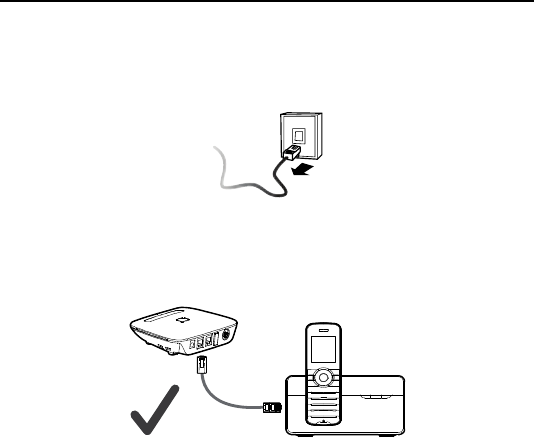

8B8BStep 4: Connecting your Telephone to Home Phone Connect
The Home Phone Connect device provides ports for up to two telephones. The ports use
the same telephone number.
First, unplug your telephone from your wall's telephone jack.
Second, plug the end of your telephone's cord into one of the telephone ports (the other
end of the cord must remain plugged into the back of your home telephone base unit).
7
Warning: Do not plug Home Phone Connect into your telephone wall jack.
Note:
The telephone and telephone cord are not included. Customer must provide
own telephone and telephone cord.
The device and telephone cord are for indoor use only.
Only telephones connected directly to the Home Phone Connect will receive
service.
If the Home Phone Connect is connected to a cordless phone base station,
any extension phones compatible with that base station will also receive
service.
8
Step 5: Powering on the Device
Press the button to power on the device. When the device is on, the power indicator
will be blue.
Note:
Press and hold the button for 1 second to power off the device.
11B11BStep 6: Activating the Device
If your device has not yet been activated, please follow the steps below:
19B19BCustomer Activating New Number
Dial *228 on the telephone connected to your Home Phone Connect. You will hear a
recording: Press 1 to program your Home Phone Connect. When programming is complete,
hang up. Your Home Phone Connect is now programmed.
9
Customer Transferring their Current Home Number
Dial *228 on the telephone connected to your Home Phone Connect. You will hear a
recording: Press 1 to program your Home Phone Connect. When programming is complete,
hang up. Your Home Phone Connect is now programmed.
Note:
Customers transferring in their home number will not be able to receive calls
on the Home Phone Connect device until the transfer process is completed.
The transfer process can take 2 -10 business days. To make and receive calls,
the home telephone should be connected directly to the wall jack, until the
transfer process is completed.
Step 7: Understanding the Indicators
The table below describes a possible status for each of the device indicators.
Icon Indicator Status
Voice mail Blinking Blue New Message
Blue Full Charge
Blinking Blue Partial Charge
Blinking Red Low Charge
Battery
Solid Red No Battery Charge
All Blinking in Blue Roaming
Three Blue Strong Signal
Two Blue Moderate Signal
Signal Strength
One Blue Weak Signal
10
Icon Indicator Status
Power Blue The device is on
Software update
Blinking Blue from Left
to Right
The software is being
updated
13B13BStep 8: Making Calls
1. Before making a call, make sure at least one of the signal strength indicators
( ) is lit up.
2. Place a call by entering the desired telephone number, including area code.
3. When your call is complete, hang up or return the phone to the receiver to ensure
that you can receive calls.
14B14BStep 9: Receiving Calls
For customers with a new telephone number, simply share your new number with
friends & family. When they call, answer the phone connected to your Home Phone
Connect device.
For customers that are transferring their current home number to the Home Phone
Connect, do not disconnect your existing home phone from the wall jack during the
transfer process.
Incoming calls will continue to ring on your existing home phone until the transfer is
complete.
The transfer process may take 2 to 10 business days to complete.
You will receive an email (to the email address provided) when your transfer is
complete.
11
To check status of your transfer, call 877-567-4899.
Once the transfer is complete, disconnect the phones attached to your home wall jacks.
Connect your phone to the Home Phone Connect device. You will now be able to make
and receive calls through the Home Phone Connect device.
9B9B
12
3 General Functions
10B10BMounting the Device
19B19BHorizontal Mounting
Place the device on a smooth surface with good ventilation. Place it at least 4 inches away
from other objects.
Note:
Avoid placing Home Phone Connect near other electrical equipment, such as
Refrigerator, Television, and/or Microwave.
Wall Mounting
Fix two wall screws (not included) into the wall with the screw heads extending
approximately 0.1 inches from the surface of the wall. The diameter of a screw head should
be between 0.22 inches and 0.28 inches. The distance between two screws should be 4
inches. Align the mounting brackets with the screws, push the device towards the wall,
and connect the brackets with the screws ensuring that the device is stable.
13

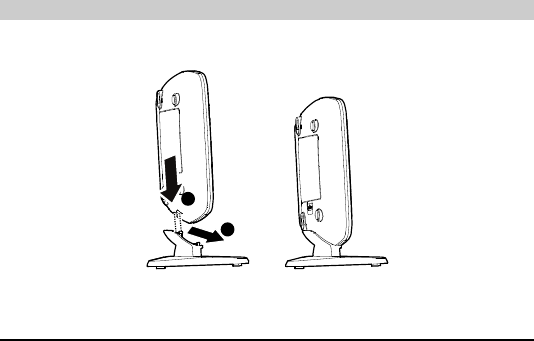

Desktop Stand Installation
Home Phone Connect device can be placed vertically on the desktop stand vertically, as
illustrated below.
1
2
Making a 3-Way Call
You can talk with two parties at the same time by using the 3-way call feature on your
Home Phone Connect. Airtime and other charges, which may include toll or long distance
charges will apply for all simultaneous calls. Not available in some areas.
1. While on the first call, dial the 10-digit number of the second party.
2. Press FLASH; the first party is automatically put on hold while the call is made.
3. When the 2nd party answers, press FLASH to initiate the 3-way call.
4. If the second party does not answer, press the FLASH key twice to end the
connection and return to the first party.
5. To end both conversations, press the FLASH key.
14
Note:
3-Way Calling is an included feature that is typically added to your account
when you first activate service. If you wish to confirm you have this feature,
sign in to My Verizon to view the calling features available on your account.
*FLASH key will vary by telephone type.
Using Voice Mail
1. The voice mail indicator ( ) will blink blue to indicate that you have one or more
unheard voice mail messages.
2. Dial * 86 to access your voice mail.
3. Follow the system prompts to listen to and manage your voice mails. (for more details
about your voicemail service, please visit www.verizonwireless.com/voicemail)
Note
Please refer to the Troubleshooting section for additional details on accessing
voice mail, or if you would like to use a home telephone answering machine
as your preferred method to manage your voice mail messages.
Using Call Forwarding
Verizon Wireless Home Phone Connect allows customers to forward calls to another phone
number, including your mobile phone or office number. Your home phone will not ring
until you deactivate the service. Airtime applies to forwarded calls even if you send the call
to landline telephones.
15
To Activate Call Forwarding:
1. Dial *72.
2. Immediately enter the phone number where you want calls to be forwarded (e.g.
*72-212-123-4567).
3. You will hear a confirmation tone.
4. Hang up your home phone or return the phone receiver to its base.
To Deactivate Call Forwarding:
1. Dial *73.
2. You will hear a confirmation tone.
3. Hang up your home phone or return the phone receiver to its base.
Important Facts About Your Home Phone Connect
21B21B10-Digit Dialing
Your Verizon Wireless Home Phone Connect may require 10-digit dialing in most areas.
Customers may need to use the three-digit Area Code when dialing local and long
distance numbers.
Your Verizon Wireless Home Phone Connect does not support rotary or pulse dialing
phones.
23B23BFax Machine Compatibility
25B25BYour Verizon Wireless Home Phone Connect does not support incoming or outgoing fax
service.
16
24B24BHome Security Systems
26B26BYour Verizon Wireless Home Phone Connect may not be compatible with certain Home
Security systems. Please check with your security system provider to confirm the
compatibility requirements of your Home Security system.
24B24BOther Incompatibilities
Additional incompatibilities for the Home Phone Connect device include:
Sending or Receiving Collect Calls
DSL or Dial up Internet Service
DVR, Dish Network, and DirecTV
Mobile Merchant Machines (credit card machines)
Any type of PBX or Centex System
Medical or Life Alert Dependencies
18B18BAssistive Communication Devices
TTY (Text Telephony) and TDD (Telecommunications Device for the Deaf) allow individuals
who are deaf, hard of hearing, or have speech or language disabilities to communicate by
telephone.
When a user types his or her conversation on a TTY keyboard, it is transmitted as tones
through the telephone. Tones are received by the other persons TTY, translated into text
and displayed on the screen. In order to use the TTY network, you must have a
TTY-compatible phone and be in the TTY mode to place or receive calls. Note that most
digital wireless devices are TTY-compatible.
17
4 1B1BFrequently Asked Questions
Why am I not getting a dial tone on my handset?
1. Ensure that the power adaptor is properly connected (refer to page XX5XX of the User
Guide) and that the power indicator is illuminated (refer to page 9 of the User Guide).
2. Check to make sure the telephone cable is securely plugged in (refer to page XX6XX of the
User Guide).
3. Check to make sure you are not roaming outside of the Verizon Wireless network.
Can I create a shortcut to access my voice mail?
The availability of a shortcut feature to access voice mail messages depends solely on the
capabilities of the corded or cordless phone that you use with Home Phone Connect.
Please refer to the user material that came with your phone. If your home phone does not
support a shortcut feature to access voice messages, you may have the option to save your
voice mail number into the address book on the handset and assign that number to the #1
speed dial position on your phone's keypad. Remember, you can always dial * 8 6 to access
your voice mail.
18
Can I use my telephone answering device instead of
voice mail?
Yes. Set the answering device to fewer rings in order to pick up the call before Verizon
Wireless voice mail. Alternatively, turn off your home answering machine or increase the
number of rings if you would like to use the Verizon Wireless voice mail service. Please refer
to the user material provided by the Home Answering Machine manufacturer for
instructions.
Does 911 work on this device?
Yes, but since the Home Phone Connect Adaptor is designed for an indoor environment,
please be prepared to provide your location inside the premises to public service
personnel. The GPS chipset embedded in this device will work best if the device is located
near a window or other opening.
Does this product work during a power outage?
While the Home Phone Connect Adaptor has a backup battery, if the landline device
requires external power to operate, service (including the ability to make and receive 911
calls) will not be available during a power outage.
Service will only be available during a power outage if the home telephone connected to
the device does not rely on external power to operate (as is the case with many corded
phones).
19
How long is the battery life of Home Phone Connect?
Talk time is approximately 2 hours and standby time is approximately 36 hours. Actual
values can vary with environmental conditions.
How does Caller ID (CID) work?
CID allows you to see the caller's name and/or phone number before you take the call.
Monthly subscription charges may apply. Please consult your carrier for further
information.
Can I adjust the volume on my telephone?
You can adjust the volume using your telephone connected to the Home Phone Connect
device. Four volume levels are available, with level 1 being the softest and level 4 the
loudest. The default setting is level 4.
1. Take the phone off the hook so you can hear the dial tone and verify that telephone
service is available.
2. Press # # 1 to adjust the volume.
3. Press keys 1 to 4 to select the desired volume.
4. After selecting the desired volume, press the * key to save it. If you hear a single
confirmation tone, you have successfully set the volume level.
Note: If you hear a double tone you have pressed an incorrect key. The system will return to
the off-hook state, and you can try adjusting the volume again when you hear the dial
tone.
20
How to set the TTY mode?
Enter the keys # # 5 6 * n # to set the TTY mode.
n=0: TTY off mode. The standard voice speaking mode and the listening mode. This is
the default setting.
n=1: TTY full mode. Transmit and receive the TTY characters.
n=2: VCO mode. Receive TTY characters but transmit by speaking into the speaker.
n=3: HCO mode. Transmit TTY characters but receive by listening to the receiver.
Why do I get the recording, "Call cannot be completed as
dialed?"
Check the number to ensure you're dialing correctly, without pauses longer than two
seconds between dialed digits.
Version: V100R001_02 Part Number: 96720695

Navigation menu
