Huawei Technologies F617-50 Fixed Wireless Terminal User Manual UserManual
Huawei Technologies Co.,Ltd Fixed Wireless Terminal UserManual
UserManual
F617
User Guide
1
1 Getting to know your F617
Front view
1
2
3
4
5
678
1
Left function key
Access the main menu in standby mode.
Select the option displayed in the lower left corner
of the screen.
2
Navigation keys
Access the main menu by pressing the OK key in
standby mode.
Access a shortcut menu by pressing the
corresponding navigation key in standby mode.
Adjust the volume by pressing the navigation keys
during a call.
The figures in this guide are provided for your reference only.
2
3
Right function
key
Select the option displayed in the lower right corner
of the screen.
4
Mute key
Press this key to mute or unmute an ongoing call.
5
End key
End or reject a call.
Press and hold this key to power the phone on or
off.
Return to the standby mode.
6
Hands-free key
Make or answer a call without lifting the handset in
standby mode.
In the hands-free mode, cancel the dialing when
dialing a number or end the current call.
7
Call key
Make or answer a call.
View the dialed calls in standby mode.
8
Number and
symbol keys
Enter numbers, letters, and symbols.
Speed-dial a user-assigned phone number by
pressing and holding 2~9 key in standby mode.
Press # key to switch between text input methods
in editing mode.
Press * key to display the symbol list in editing
mode.
3
Back and side view
3 4 5 6
7
1 2
1
Battery cover
2
SIM card slot
3
Battery container
4
Battery cord jack
5
Coiled cord jack on main unit
6
Power jack
7
USB port (only for
maintenance purposes)
2 Screen icons
Full reception
Calling
No service
Alarm clock
Hands-free mode
Unread message
Unopened voicemail
message
Powered by the power
adapter
Full battery
Update available
2G network
3G network
In silent profile
4
3 Installation
Ensure that F617 is powered off and disconnected from the power adapter.

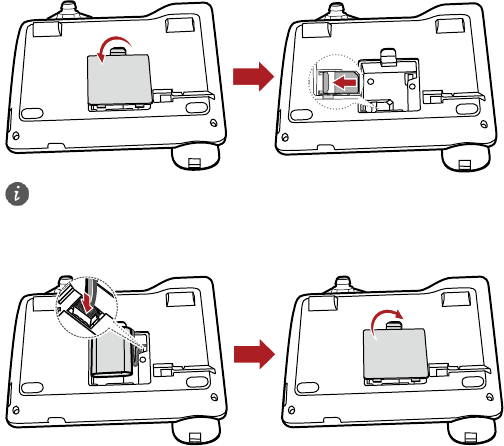

Installing the SIM card
Ensure that the golden contacts of the SIM card are facing downward and that the
beveled edge of the SIM card is properly aligned with that of the SIM card slot. Then
check that the SIM card is fully inserted.
Installing the battery
Ensure that the battery is correctly installed.
Do not frequently remove the SIM card when using F617.
When new phones are delivered, the battery power is low. Therefore, charge the
phone for a while and then power on the phone the first time you use it.
If the phone will not be used for a long t ime, remove the battery from the phone.
5
Connecting the power adapter
When you use F617, it is recommended that you connect the power adapter to F617.
4 Powering on
Press and hold until the screen lights up to power on the phone.
5 Calling
Making a call
1. In standby mode, press the number keys to enter a phone number.
2. Press to dial the number.
3. Press to end the call or cancel the dialing.
If the battery has not been used for a long t ime or the battery is exhausted, the
screen of F617 may not function when you charge the battery again. This is normal.
After the battery is being charged for a while, you can power on the phone for use.
The battery supplies power for only a limited period. Ensure that the battery has
been fully charged before putting it in use.
Press and hold to power off the phone.
You can also use the following methods to dial the number:
In standby mode, press to view the dialed calls. Find the desired number in
the dialed calls, and then press to dial the number.
Find the desired number in the contacts, and then press to dial the number.
6
Answering or rejecting a call
When there is an incoming call, press to answer the call; press to reject
the call.
6 Messages
Sending a message
1. Select Messages > Write message.
2. Write the message.
3. Press and then add a recipient using the following methods:
– Enter the recipient's phone number.
– Add the recipient from the contacts.
4. Press to send the message.
Reading a message
1. Select Messages > Inbox.
2. Press / to scroll to a message in the list.
3. Press to open and read the message.
7 Text input methods
Input methods functions
The input methods have following basic functions:
In edit ing mode, press the # key to switch between input methods.
In edit ing mode, you can press to delete the character to the left of the
cursor or press and hold to delete all characters.
In predict ive and tradit ional input mode, press the 0 key to enter a space.
In any input method, press the * key to display the symbol list.
Press to manage the message.
7
Traditional input
In tradit ional input mode, press the number keys to enter letters. Press a number key
repeatedly until the desired character appears. If the next letter you want to enter is on
the same key as the current one, wait until the current letter is entered, and then enter
the next one.
Predictive input
1. Press the keys labeled with the letters required to spell the desired word once
according to the spelling sequence of the word. As you enter letters, the phone
attempts to predict the desired word and displays candidate words.
2. Press / to scroll to the desired word.
3. Press to enter the word, or press the 0 key to enter the word followed by a
space.
Number input
In 123 input mode, enter a desired number by pressing the number key.
In tradit ional input mode, press and hold corresponding number key to enter
numbers.
8 Internet connection

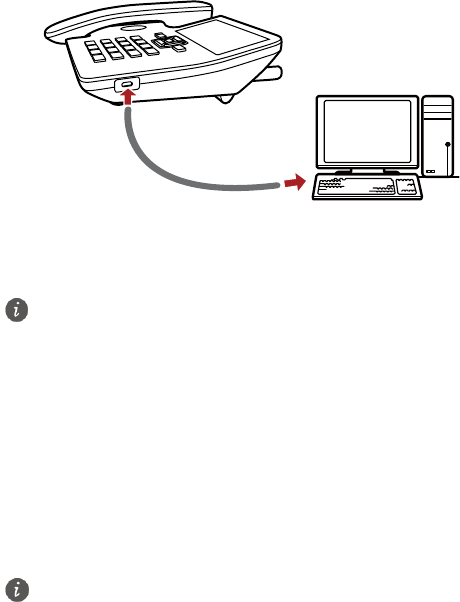

Connecting your F617 to a computer
F617 can be connected to a computer to provide data services. You need to purchase the
data service suite. For details, consult your service provider.
8
Installing the management program
If you are using the data service for the first t ime, you need to install the management
program.
1. Connect F617 to a computer with a compatible USB cable, the installation program
automatically starts.
2. Follow the instructions of the installation program.
3. When the installation completes, a shortcut icon of the management program is
displayed on the desktop.
Accessing the Internet
You can access the Internet after setting the network connection.
1. Double click the shortcut icon of the management program.
2. Click Settings to set the network connection. If you use the default settings, skip the
settings operations.
3. Click Connect. After the login completes, you can access the Internet.
The operating system configuration requirement of a computer: Windows XP, Windows
Vista, Windows 7, Windows 10.
For details, consult your service provider.
9
9 Security
Setting the phone lock
The phone lock protects your phone from unauthorized use. If you enable phone lock,
you will be prompted to enter a phone lock code before you use the phone.
Select Settings > Security settings > Power-on password to set the phone lock. You
can change the default phone lock code (000000) to a personal password. It is
recommended that you periodically change this phone lock code for enhanced security.
Setting the keypad lock
In standby mode, press and hold # key to lock the keypad. In this case, you can only dial
emergency numbers and answer incoming calls.
In standby mode, press and then * key to unlock the keypad.
Select Settings > Phone settings > Auto keypad lock to set the keypad lock. If
automatic keypad lock function is enabled, the keypad will be automatically locked
when the standby t ime exceeds the preset period in standby mode.
PIN and PUK
Personal identification number (PIN) code helps effectively prevent unauthorized use
of your SIM card. Personal unblocking key (PUK) code helps change the locked PIN code.
If you enter the wrong PIN code for three times, your SIM card will be locked. In this
case, you need to enter the PUK code to unblock the locked PIN code. Please note that
if you enter the wrong PUK code for ten times, your SIM card will be permanently
locked, you need to consult your service provider to replace your SIM card. PIN code
and PUK code are provided together with the SIM card. For details, consult your service
provider.
10 Updating your F617
Your F617 can be automatically or manually updated.
To enable automatic update on your F617, choose Settings > Software update >
Automatically update.
To manually update your F617, choose Settings > Software update > Manual
When clearing the user sett ings, you must enter the correct power-on password.
10
update.
11 FAQs
If problems occur during the use of the phone, refer to the following sections for a
proper solution. If a problem persists, contact your phone vendor.
What can I do if F617 cannot be powered on?
1. Remove the battery cover and check whether the battery is installed properly.
2. If the battery is properly installed, a possible cause for the problem is that the
battery power is low. Charge the battery, and then try to power on the phone.
What can I do if no information is displayed on the
screen?
If the phone is not used for a long time and the battery runs out of power, the phone
may not display any information when it is being charged. This is a normal
phenomenon. The phone can be powered on after the battery is charged for a while.
What can I do if battery cannot be charged?
1. Check that the power adapter and the power socket are connected properly.
2. Replace the power adapter or the battery with a new one of the same model.
What can I do if the signal reception is poor?
1. Check that the SIM card is installed properly.
2. Place the phone at a location where strong signals can be received.
What can I do if the in-call volume is too high or too low?
During a call, press navigation keys to adjust the volume.
12 For more help
Please visit http://consumer.huawei.com/en/support/hotline for recently updated
hotline and email address in your country or region.
11
13 Safety information
This section contains important information about the operation of your device. It also
contains information about how to use the device safely. Read this information
carefully before using your device.
Electronic device
Do not use your device if using the device is prohibited. Do not use the device if doing
so causes danger or interference with other electronic devices.
Interference with medical equipment
Follow rules and regulations set forth by hospitals and health care facilities. Do
not use your device where prohibited.
Some wireless devices may affect the performance of hearing aids or pacemakers.
Consult your service provider for more information.
Pacemaker manufacturers recommend that a minimum distance of 15 cm be
maintained between a device and a pacemaker to prevent potential interference
with the pacemaker. If using a pacemaker, hold the device on the side opposite the
pacemaker and do not carry the device in your front pocket.
Protecting your hearing when using a headset
Using a headset at high volumes may damage your hearing. To reduce this risk,
lower the headset volume to a safe and comfortable level.
Exposure to high volumes while driving may cause distraction and increase your
risk of an accident.
Areas with flammables and explosives
Do not use the device where flammables or explosives are stored (in a gas station,
oil depot, or chemical plant, for example). Using your device in these environments
increases the risk of explosion or fire. In addition, follow the instructions indicated
in text or symbols.
Do not store or transport the device in containers with flammable liquids, gases, or
explosives.
Traffic security
Observe local laws and regulations while using the device. To reduce the risk of
accidents, do not use your wireless device while driving.
Concentrate on driving. Your first responsibility is to drive safely.
Do not hold the device while driving. Use hands-free accessories.
12
When you must make or answer a call, pull off the road safely and park the vehicle
first.
RF signals may affect the electronic systems of motor vehicles. For more
information, consult the vehicle manufacturer.
Do not place the device over the air bag or in the air bag deployment area in a
motor vehicle. Doing so may hurt you because of the strong force when the air bag
inflates.
Do not use your device while flying in an aircraft or immediately before boarding.
Using wireless devices in an aircraft may disrupt wireless networks, present a
hazard to aircraft operation, or be illegal.
Operating environment
Avoid dusty, damp, or dirty environments. Avoid magnetic fields. Using the device
in these environments may result in circuit malfunct ions.
Before connecting and disconnecting cables, stop using the device and disconnect
it from the power supply. Ensure that your hands are dry during operation.
Place the device on a stable surface.
Keep the device away from electronic appliances that generate strong magnetic or
electric fields, such as a microwave oven or refrigerator.
During thunderstorms, power off your device and remove all cables connected to it
to protect against lightning strikes.
Do not use your device during thunderstorms to protect your device against any
danger caused by lightning.
Ideal operating temperatures are 0 °C to 45 °C. Ideal storage temperatures are
–30 °C to +70 °C. Extreme heat or cold may damage your device or accessories.
Keep the device and accessories in a well-vent ilated and cool area away from
direct sunlight. Do not enclose or cover your device with towels or other objects.
Do not place the device in a container with poor heat dissipation, such as a box or
bag.
Do not expose your device to direct sunlight (such as on a car dashboard) for
prolonged periods.
To protect your device or accessories from fire or electrical shock hazards, avoid
rain and moisture.
Keep the device away from sources of heat and fire, such as a heater, microwave
oven, stove, water heater, radiator, or candle.
Do not place any object, such as a candle or a water container, on the device. If any
foreign object or liquid enters the device, immediately stop using it, power it off,
and remove all cables connected to it. Then, contact an authorized service center.
Do not block device openings. Reserve a minimum of 10 cm around the device to
13
dissipate heat.
Do not place sharp metal objects, such as pins, near the earpiece or speaker. The
earpiece may attract these objects and result in injury.
Stop using your device or applications for a while if the device is overheated. If skin
is exposed to an overheated device for an extended period, low temperature burn
symptoms, such as red spots and darker pigmentation, may occur.
Do not touch the device's antenna. Otherwise, communication quality may be
reduced.
Do not allow children or pets to bite or suck the device or accessories. Doing so
may result in damage or explosion.
Observe local laws and regulations, and respect the privacy and legal rights of
others.
Keep the device in a place with good reception. The distance between the device
and other metal materials (such as metal brackets or metal doors and windows)
should be greater than 25 cm and the distance between the device should be
greater than 30 cm.
Child's safety
Comply with all precautions with regard to child's safety. Letting children play
with the device or its accessories may be dangerous. The device includes
detachable parts that may present a choking hazard. Keep away from children.
The device and its accessories are not intended for use by children. Children should
only use the device with adult supervision.
Accessories
Using an unapproved or incompatible power adapter, charger or battery may
cause fire, explosion or other hazards.
Choose only accessories approved for use with this model by the device
manufacturer. The use of any other types of accessories may void the warranty,
may violate local regulations and laws, and may be dangerous. Please contact your
retailer for information about the availability of approved accessories in your area.
Charger safety
For pluggable devices, the socket-outlet shall be installed near the devices and
shall be easily accessible.
Unplug the charger from electrical outlets and the device when not in use.
Do not drop or cause an impact to the charger.
If the power cable is damaged (for example, the cord is exposed or broken), or the
plug loosens, stop using it at once. Continued use may lead to electric shocks,
short circuits, or fire.
14
Do not touch the power cord with wet hands or pull the power cord to disconnect
the charger.
Do not touch the device or the charger with wet hands. Doing so may lead to short
circuits, malfunctions, or electric shocks.
If your charger has been exposed to water, other liquids, or excessive moisture,
take it to an authorized service center for inspection.
Ensure that the charger meets the requirements of Clause 2.5 in IEC60950-
1/EN60950-1/UL60950-1 and has been tested and approved according to national
or local standards.
Connect the device only to products with the USB-IF logo or with USB-IF
compliance program completion.
Battery safety
Do not connect battery poles with conductors, such as keys, jewelry, or other metal
materials. Doing so may short-circuit the battery and cause injuries or burns.
Keep the battery away from excessive heat and direct sunlight. Do not place it on
or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may
explode if overheated.
Do not attempt to modify or remanufacture the battery, insert foreign objects into
it, or immerse or expose it to water or other liquids. Doing so may lead to fire,
explosion, or other hazards.
If the battery leaks, ensure that the electrolyte does not make direct contact with
your skins or eyes. If the electrolyte touches your skins or splashes into your eyes,
immediately flush with clean water and consult a doctor.
In case of battery deformation, color change, or overheating while charging or
storing, immediately stop using the device and remove the battery. Continued use
may lead to battery leakage, fire, or explosion.
Do not put batteries in fire as they may explode. Damaged batteries may also
explode.
Dispose of used batteries in accordance with local regulations. Improper battery
use may lead to fire, explosion, or other hazards.
Do not allow children or pets to bite or suck the battery. Doing so may result in
damage or explosion.
Do not smash or pierce the battery, or expose it to high external pressure. Doing so
may lead to a short circuit or overheating.
Do not drop the device or battery. If the device or battery is dropped, especially on
a hard surface, it may be damaged.
If the device standby time shortens significantly, replace the battery.
15
Cleaning and maintenance
During storage, transportation, and operation of the device, keep it dry and
protect it from collision.
Keep the device and accessories dry. Do not attempt to dry it with an external heat
source, such as a microwave oven or hair dryer.
Do not expose your device or accessories to extreme heat or cold. These
environments may interfere with proper function and may lead to fire or explosion.
Avoid collision, which may lead to device malfunctions, overheating, fire, or
explosion.
If the device is not going to be used for an extended period of time, power it off,
and remove all cables connected to it.
If anything unusual occurs (for example, if the device emits smoke or any unusual
sound or smell), immediately stop using it, power it off, remove all cables
connected to it, and contact an authorized service center.
Do not trample, pull, or excessively bend any cable. Doing so may damage the
cable, causing the device to malfunction.
Before you clean or maintain the device, stop using it, stop all applications, and
disconnect all cables connected to it.
Do not use any chemical detergent, powder, or other chemical agents (such as
alcohol and benzene) to clean the device or accessories. These substances may
cause damage to parts or present a fire hazard. Use a clean, soft, and dry cloth to
clean the device and accessories.
Do not place magnetic stripe cards, such as credit cards and phone cards, near the
device for extended periods of time. Otherwise the magnetic stripe cards may be
damaged.
Do not dismantle or remanufacture the device and its accessories. This voids the
warranty and releases the manufacturer from liability for damage. In case of
damage, contact an authorized service center for assistance or repair.
If the device screen is broken in a collision, immediately stop using the device. Do
not touch or attempt to remove the broken parts. Promptly contact an authorized
service center.
Emergency calls
The availability of emergency calls is subject to your cellular network quality, service
provider policy, and local laws and regulations. Never rely solely on your device for
critical communications like medical emergencies.
Environmental protection
The device and its accessories (if included), such as the power adapter, headset, and
battery should not be disposed of with household garbage.
16
Disposal of the device and its accessories is subject to local regulations. Support
proper collection and recycling.
FCC Regulatory Compliance
RF exposure requirements
The device complies with RF specifications when used at a distance of 2.5 cm from your
body. Ensure that the device accessories, such as a device case and device holster, are
not composed of metal components. Keep the device away from your body to meet the
distance requirement.
Certification information (SAR)
This device is also designed to meet the requirements for exposure to radio waves
established by the Federal Communications Commission (USA).
The SAR limit adopted by the USA is 1.6 W/kg averaged over one gram of tissue. The
highest SAR value reported to the FCC for this device type complies with this limit.
The highest SAR value reported to the FCC for this device type when using in portable
exposure conditions is 0.48 W/kg.
FCC statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
Caution: Any changes or modifications to this device not expressly approved by
Huawei Technologies Co., Ltd. for compliance could void the user's authority to operate
the equipment.
17
This device is intended to be attached to a receiver that is not used to receive over-the-
air broadcast signals. Connection of this device in any other fashion may cause harmful
interference to radio communications and is in violation of the FCC Rules, part 15.
14 Legal Notice
Copyright © Huawei Technologies Co., Ltd. 2015. All rights reserved.
No part of this manual may be reproduced or transmitted in any form or by any means
without prior written consent of Huawei Technologies Co., Ltd. and its affiliates
("Huawei").
The product described in this manual may include copyrighted software of Huawei and
possible licensors. Customers shall not in any manner reproduce, distribute, modify,
decompile, disassemble, decrypt, extract, reverse engineer, lease, assign, or sublicense
the said software, unless such restrictions are prohibited by applicable laws or such
actions are approved by respective copyright holders.
Trademarks and Permissions
, , and are trademarks or registered trademarks of Huawei
Technologies Co., Ltd.
Other trademarks, product, service and company names mentioned may be the
property of their respective owners.
Notice
Some features of the product and its accessories described herein rely on the software
installed, capacities and settings of local network, and therefore may not be activated
or may be limited by local network operators or network service providers.
Thus, the descriptions herein may not exactly match the product or its accessories
which you purchase.
Huawei reserves the right to change or modify any information or specifications
contained in this manual without prior notice and without any liability.
DISCLAIMER
ALL CONTENTS OF THIS MANUAL ARE PROVIDED "AS IS". EXCEPT AS REQUIRED BY
APPLICABLE LAWS, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED,
INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN
RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS MANUAL.
18
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL
HUAWEI BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR
CONSEQUENTIAL DAMAGES, OR LOSS OF PROFITS, BUSINESS, REVENUE, DATA,
GOODWILL SAVINGS OR ANTICIPATED SAVINGS REGARDLESS OF WHETHER SUCH
LOSSES ARE FORSEEABLE OR NOT.
THE MAXIMUM LIABILITY (THIS LIMITATION SHALL NOT APPLY TO LIABILITY FOR
PERSONAL INJURY TO THE EXTENT APPLICABLE LAW PROHIBITS SUCH A
LIMITATION) OF HUAWEI ARISING FROM THE USE OF THE PRODUCT DESCRIBED IN
THIS MANUAL SHALL BE LIMITED TO THE AMOUNT PAID BY CUSTOMERS FOR THE
PURCHASE OF THIS PRODUCT.
Import and Export Regulations
Customers shall comply with all applicable export or import laws and regulations and
be responsible to obtain all necessary governmental permits and licenses in order to
export, re-export or import the product mentioned in this manual including the
software and technical data therein.
Privacy Policy
To better understand how we protect your personal information, please see the privacy
policy at http://consumer.huawei.com/privacy-policy.
96724063_01
96724063_01
