Huawei Technologies G1157 GSM Mobile Phone User Manual HUAWEI G1157 20091016
Huawei Technologies Co.,Ltd GSM Mobile Phone HUAWEI G1157 20091016
(HUAWEI G1157) User Manual_20091016
G1157
GSM Mobile Phone
User Guide
Huawei Technologies Co., Ltd.
Address: Huawei Industrial Base, Bantian, Longgang, Shenzhen 518129,
People's Republic of China
Tel: +86-755-28780808 Global Hotline: +86-755-28560808
E-mail: mobile@huawei.com Website: www.huawei.com
Copyright © Huawei Technologies Co., Ltd. 2009. All rights
reserved.
No part of this document may be reproduced or transmitted in any form
or by any means without prior written consent of Huawei Technologies
Co., Ltd.
The product described in this manual may include copyrighted software
of Huawei Technologies Co., Ltd and possible licensors. Customers shall
not in any manner reproduce, distribute, modify, decompile, disassemble,
decrypt, extract, reverse engineer, lease, assign, or sublicense the said
software, unless such restrictions are prohibited by applicable laws or
such actions are approved by respective copyright holders under
licenses.
Trademarks and Permissions
, HUAWEI, and are trademarks or registered trademarks
of Huawei Technologies Co., Ltd.
Other trademarks, products, services, and company names mentioned
are the property of their respective owners.
Notice
Some features of the product and its accessories described herein rely on
the software installed, capacities and settings of local network, and may
not be activated or may be limited by local network operators or network
service providers. Thus the descriptions herein may not exactly match
the product or its accessories you purchase.
Huawei Technologies Co., Ltd reserves the right to change or modify any
information or specifications contained in this manual without prior notice
or obligation.
NO WARRANTY
THE CONTENTS OF THIS MANUAL ARE PROVIDED “AS IS”. EXCEPT AS
REQUIRED BY APPLICABLE LAWS, NO WARRANTIES OF ANY KIND,
EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY,
RELIABILITY OR CONTENTS OF THIS MANUAL.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO CASE
SHALL HUAWEI TECHNOLOGIES CO., LTD BE LIABLE FOR ANY SPECIAL,
INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, OR LOST
PROFITS, BUSINESS, REVENUE, DATA, GOODWILL OR ANTICIPATED
SAVINGS.
Import and Export Regulations
Customers shall comply with all applicable export or import laws and
regulations and will obtain all necessary governmental permits and
licenses in order to export, re-export or import the product mentioned in
this manual including the software and technical data therein.
Table of Contents
Your Phone.................................................... 5
Keys and Functions ........................................ 6
Screen Icons ................................................. 8
Installing the SIM Card................................. 10
Removing the SIM Card ................................ 10
Charging the Battery.................................... 10
Using the Function Menu............................... 11
Making a Call............................................... 11
Answering a Call .......................................... 12
Phone Lock ................................................. 12
PIN and PUK................................................ 14
Locking the Keypad...................................... 14
Changing the Text Input Modes ..................... 15
Multi-tap Input Mode.................................... 15
Predictive Input Mode................................... 16
Entering Digits............................................. 16
Entering Symbols......................................... 16
5

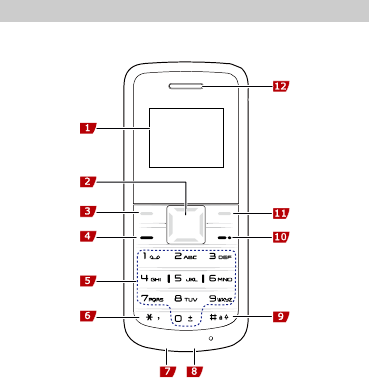

Your Phone
The following figure shows the appearance of your
phone and it is for your reference only.
1 Screen 7 Flashlight
2 Navigation key 8 Charger/Headset jack
3 Left soft key 9 # key
4 Call/Answer key 10 End/Power key
5 Number keys 11 Right soft key
6
6 * key 12 Earpiece
Keys and Functions
Press… To…
Make a call.
Answer an incoming call.
View the Dialed calls in standby mode.
Power on or off the phone
(by pressing and
holding it for about 3s).
End a call, or reject an incoming call.
Return to the standby mode.
Display Menu in standby mode.
Select the highlighted item.
Display Contacts in standby mode.
Return to the previous menu.
7
Press… To…
In standby mode, press and hold ( )
for about 2s or press ( ) twice
consecutive times to turn on the flashlight.
Press ( ) again to turn off the
flashlight.
Access: Alarm clock ( ), Call
Records ( ), and Calculator
( ) in standby mode.
-
Enter numbers, letters, and characters.
Enter + in standby mode (by pressing and
hold the 0 key for about 3s).
Call the voice mail center
in standby mode
(by pressing and holding the 1 key for
about 3s).
Speed-dial phone numbers in standby
mode (by pressing and holding the 2-9
keys for about 3s).
Select a submenu item labeled with the
corresponding number.
8
Press… To…
In standby mode, press the key once to
enter *, press and hold the key to enter P.
Display the symbol list in any input mode.
Enter #.
Lock the keypad in standby mode (by
pressing and holding the key for about 3s).
Change input modes when editing texts.
If the phone cannot be powered on after you
press and hold , the reason is probably that
the battery is used up. In this case, charge the
phone for five minutes (during this period, the
charging animation may be not displayed on the
screen) and power it on again.
Screen Icons
Icon Description
Signal strength.
A new text message is received.
The phone is roaming.
The call forwarding function is enabled.
A headset is connected to the phone.
9
The FM radio is activated.
An alarm is activated.
The keypad is locked.
Battery charge level.
The Standard profile is activated.
The Conference profile is activated.
The Outdoor profile is activated.
The Mute profile is activated.
The Customize profile is activated.
Missed call(s).
10
Installing the SIM Card
Before installing the SIM card, ensure that your phone is
powered off. Ensure that the golden contact area on the
SIM card is facing downward, and the beveled corner is
properly aligned with the SIM card slot.
Removing the SIM Card
Before removing the SIM card, ensure that your phone is
powered off.
Charging the Battery
1. Connect the charger to an AC power socket.
2. Connect the charger to the charger jack on the
phone.
3. Wait until the battery is completely charged.
During the charging, the charging icon is displaying in
11
animation. When the charging icon becomes static,
the battery is fully charged.
4. Disconnect the charger from the phone.
5. Disconnect the charger from the AC power socket.
Using the Function Menu
1. In standby mode, press (Menu).
2. Press to select the desired function menu.
3. Press (Select) to display the selected menu.
4. Select a submenu in either of the following ways:
Press to scroll to the desired menu.
Press the number key corresponding to the serial
number of the menu.
5. Press (Select) to display the menu.
6. Press (Back) to return to the previous menu
or exit the function menu.
To return to the standby mode, press .
Making a Call
1. In standby mode, enter the phone number.
To make an international call, press and hold to
enter the international long distance code. Then enter
the country code or region code, area code, and
phone number in sequence.
12
To call an extension, enter the phone number, press
and hold to insert P, and then enter the
extension number.
2. Press to dial the number.
3. Press to end the call.
You can also make a call through call logs,
contacts, and messages.
During a call, press to adjust the volume.
Answering a Call
When there is an incoming call, you can do as follows:
Press to answer it.
Press (Options), and select Accept to answer
it.
Press (Reject) or to reject it.
If the Any key answer function is enabled, you can
press any key except and to answer an
incoming call.
Phone Lock
The phone lock protects your phone from unauthorized
use. By default, the phone lock function is disabled. You
can change the default phone lock code (0000) into any
numeric string in the range of four to eight digits.
13
Do remember your phone lock code. If you forget it,
contact the service center.
14
PIN and PUK
The personal identification number (PIN) protects
your SIM card from unauthorized use. The PIN
unblocking key (PUK) can unlock the blocked PIN.
Both PIN and PUK are delivered with the SIM card. For
details, consult your service provider.
If you enter wrong PINs for a specified number of
times consecutively, the phone asks you to enter the
PUK. If you enter wrong PUKs for a specified number
of times consecutively, the SIM card is invalidated
permanently. Contact your service provider for a new
one.
Locking the Keypad
In standby mode, press and hold for about 3s to
lock the keypad. To unlock the keypad, press
and then in succession.
If the Keypad lock function is enabled and the phone
is idle for a preset period in standby mode, the keypad
is locked automatically.
When the keypad is locked, you can press
to answer an incoming call or make emergency
calls.
15
Changing the Text Input Modes
The indicator of the current text input mode is
displayed on the upper left corner of the screen. You
can press to change the text input mode.
Indicator Text Input Mode
ABC, Abc and abc Multi-tap input mode
Eng Predictive input mode
123 Number input mode
Press (Delete) once to delete the letter
on the left of the cursor. Press and hold
(Delete) for about 3s to delete all the letters.
Multi-tap Input Mode
In multi-tap input mode, you can press a key labeled
with the desired letter once to enter the first letter on
the key, twice to enter the second letter on the key,
and so on.
Press consecutively to select and enter
commonly used punctuations.
Press once to enter a space, twice to
enter 0.
16
Predictive Input Mode
In predictive input mode, do as follows to enter a
word:
1. Press each key only once according to the spelling
sequence of the desired word.
The phone displays the commonly used word
according to the numeric sequence of key presses.
2. Press to scroll to the desired word.
You can press to switch the selected
characters between upper case and lower case.
3. Press to enter the word.
Press to display commonly used
punctuations.
Press to enter a space.
Entering Digits
In "123" input mode, you can directly press number
keys labeled with desired digits.
In multi-tap input mode, press the number key
consecutively until the desired digit appears on the
screen.
Entering Symbols
1. Press to display the symbol list.
2. Press to scroll to the desired symbol.
3. Press to enter the symbol.
17
FM Radio
The headset cable functions as an antenna as well. To
ensure good reception of radio programs, do not
disconnect the headset from the phone or severely
bend the headset cable.
1. Connect a compatible headset to the phone..
2. Select Menu > Applications > FM radio to launch
the FM radio.
3. On the FM radio screen, you can do as follows:
Press to change the channel.
Press and hold for about 3s to make the
phone automatically search for channels.
Press the number key corresponding to the serial
number of a channel to play the channel.
Press to adjust the volume.
Press (Options) to set the frequency, view
and set channel list, tune, or power off the FM radio.
Warnings and Precautions
This section contains important information pertaining
to the operating instructions of your device. It also
contains information about how to use the mobile
safely. Read this information carefully before using
your device.
18
Electronic Device
Power off your device if using the device is prohibited.
Do not use the device when it causes danger or
interference with electronic devices.
Medical Device
Power off your device and follow the rules and
regulations set forth by the hospitals and health
care facilities.
Pacemaker manufacturers recommend that a
minimum distance of 15 cm be maintained between
a device and a pacemaker to prevent potential
interference with the pacemaker. If you are using a
pacemaker, use the device on the opposite side of
the pacemaker and do not carry the device in your
front pocket.
Some wireless devices may affect the performance
of the hearing aids. For any such problems, consult
your service provider.
Potentially Explosive Atmospheres
Switch off your device in any area with a potentially
explosive atmosphere, and comply with all signs and
instructions. Areas that may have potentially
explosive atmospheres include the areas where you
would normally be advised to turn off your vehicle
engine. Triggering of sparks in such areas could cause
an explosion or fire, resulting in bodily injuries or even
deaths. Do not switch on the device at refueling points
such as service stations. Comply with restrictions on
the use of radio equipment in fuel depots, storage,
and distribution areas, and chemical plants. Also,
19
adhere to restrictions in areas where blasting
operations are in progress. Before using the device,
watch out for areas that have potentially explosive
atmosphere that are often, but not always, clearly
marked. Such locations include areas below the deck
on boats, chemical transfer or storage facilities and
areas where the air contains chemicals or particles
such as grain, dust, or metal powders. Ask the
manufacturers of vehicles using liquefied petroleum
gas (such as propane or butane) if this device can be
safely used in their vicinity.
Traffic Security
Observe local laws and regulations while using the
device. Also, if using the device while driving a vehicle,
please comply with the following guidelines:
Concentrate on driving. Your first responsibility is to
drive safely.
Do not talk on the device while driving. Use
hands-free accessories.
When you have to make or answer a call, park the
vehicle at the road side before using your device.
RF signals may affect electronic systems of motor
vehicles. For more information, consult the vehicle
manufacturer.
In a motor vehicle, do not place the device over the
air bag or in the air bag deployment area.
Otherwise, the device may hurt you owing to the
strong force when the air bag inflates.
Do not use your device while flying in an aircraft.
Switch off your device before boarding an aircraft.
20
Using wireless devices in an aircraft may be
dangerous to the operation of the aircraft, disrupt
the wireless telephone network, and may be
considered illegal.
Operating Environment
Do not use or charge the device in dusty, damp or
dirty places or places with magnetic fields.
Otherwise, the circuit may not function properly.
The device complies with the RF specifications
when the device is used near your ear or at[0] a
distance of 1.5 cm from your body. Ensure that the
device accessories such as a device case and a
device holster are not composed of metal
components. Keep your device 1.5 cm away from
your body to meet the requirement earlier
mentioned.
On a thunder and stormy day, do not use your
device when it is being charged, to prevent any
danger caused by lightning.
When you are on a call, do not touch the antenna.
Touching the antenna affects the call quality and
results in increase in power consumption. As a
result, the talk time and standby time are reduced.
While using the device, observe the local laws and
regulations, and respect others' privacy and legal
rights.
Use accessories authorized by manufacturers.
Using unauthorized accessories will render the
warranty null and void.
21
Keep the ambient temperature between 0°C and
45°C while the device is being charged. Keep the
ambient temperature between -10°C to 55℃ for
using the device powered by battery.
Preventing Hearing Damage
Using the receiver, earbuds, headphones,
speakerphone, or earpieces at high volume can result
in permanent hearing loss. Be extremely careful when
listening at high decibel levels. Set the volume to a
safe level. If you experience strange sounds in your
ears like ringing or if you hear muffled speech, get
your hearing checked. If you continue to use high
volume, your hearing will soon get affected.
Hearing experts offer the following suggestions to
protect your hearing:
Reduce the time you use the receiver, earbuds,
headphones, speakerphone, or earpieces at high
volume.
Do not increase the volume to block noisy
surroundings.
Reduce the volume if you can’t hear people
speaking near you.
Safety of Children
Please comply with all precautions with regard to
children's safety. Letting the child play with your
device or its accessories, which may include parts that
can be detached from the device, may prove
dangerous, as it may present a choking hazard. Make
sure that small children are kept away from the device
and accessories.
22
Environment Protection
Follow all the local regulations regarding the disposal
of your devices or electrical accessories (such as
chargers, headsets, or batteries). Recycle them. Do
not dispose of an exhausted battery or a used device
in a garbage can.
Accessories
Use only the accessories, such as the charger, battery,
and headset, delivered by manufacturer. Using
accessories of other manufacturers or vendors with
this device model might invalidate any approval or
warranty applicable to the device, might result in the
non-operation of the device, and might be dangerous.
Battery and Charger
The battery can be charged and discharged
hundreds of times before it eventually wears out.
When the standby time and talk time are shorter
than normal, replace the battery.
Use the AC power supply defined in the
specifications of the charger. An improper power
voltage may cause fire or the charger may not
function properly.
Do not connect two poles of the battery with
conductors such as metal materials, keys or
jewelries. Otherwise, the battery may be
short-circuiting and may cause injuries and burns
on your body.
Do not disassemble the battery or solder the
battery poles. Otherwise, it may lead to electrolyte
leakage, overheating, fire, or explosion.
23
If battery electrolyte leaks out, make sure that the
electrolyte does not touch your skin and eyes.
When the electrolyte touches your skin or splashes
into your eyes, wash your eyes with clean water
immediately and consult a doctor.
If the battery is damaged, or the color changes or
gets abnormally heated while you charge or store
the battery, remove the battery immediately and
stop using it. Otherwise, it may lead to battery
leakage, overheating, explosion, or fire.
If the power cable is damaged (for example, the
lead is exposed or broken), or the plug loosens,
stop using the cable at once. Otherwise, it may lead
to electric shock, short-circuit of the charger, or a
fire.
Do not dispose of batteries in fire as they may
explode. Batteries may also explode if damaged.
Clearing and Maintenance
The device, battery, and charger are not
water-resistant Keep them dry. Protect the device,
battery and charger from water or vapor. Do not
touch the device and charger with a wet hand.
Otherwise, it may lead to short-circuit or
malfunction of the device and electric shock to the
user.
Do not place your device, battery, or charger in
places where it can get damaged because of
collision. Otherwise, it may lead to battery leakage,
device malfunction, overheating, fire, or explosion.
If the ambient temperature is considerably low or
high, the capacity and life of the battery is reduced.
24
When the temperature is lower than 0°C,
performance of the battery is affected.
Do not place magnetic storage media such as
magnetic cards and floppy disks near the device.
Radiation from the device may erase the
information stored on them.
Do not leave your device, battery, or charger in a
very hot or cold place. Otherwise, they may not
function properly and may lead to a fire or an
explosion.
Do not place sharp metal objects such as pins near
the earpiece. The earpiece may attract these
objects and hurt you when you are using the
device.
Before you clean or maintain the device, power off
the device and disconnect it from the charger.
Do not use any chemical detergent, powder, or
other chemical agents (such as alcohol and
benzene) to clean the device and the charger.
Otherwise, parts of the device may get damaged or
a fire can be caused. You can clean the device and
the charger with a piece of damp and soft antistatic
cloth.
Do not dismantle the device or accessories.
Otherwise, manufacturer is not liable to pay for
damages as the device and accessories are not
covered by warranty.
Emergency Call
You can use your device for emergency calls in the
service area. The connection, however, cannot be
25
guaranteed in all conditions. You should not rely solely
on the device for essential communications.
Certification Information (SAR)
THIS DEVICE MEETS THE GOVERNMENT'S
REQUIREMENTS FOR EXPOSURE TO RADIO
FREQUENCY ELECTROMAGNETIC FIELD.
Your device is a low-power radio transmitter and
receiver. When it is turned on, it emits low levels of
radio frequency energy (also known as radio waves or
radio frequency fields).
Governments around the world have adopted
comprehensive international safety guidelines,
developed by scientific organizations, e.g.
International Commission on Non-Ionizing Radiation
Protection (ICNIRP) and Institute of Electrical and
Electronics Engineers Inc. (IEEE), through periodic
and thorough evaluation of scientific studies. These
guidelines establish permitted levels of radio wave
exposure for the general population. The levels
include a safety margin designed to assure the safety
of all persons, regardless of age and health, and to
account for any variations in measurements.
Specific Absorption Rate (SAR) is the unit of
measurement for the amount of radio frequency
energy absorbed by the body when using a device.
The SAR value is determined at the highest certified
power level in laboratory conditions, but the actual
SAR level of the device while being operated can be
well below the value. This is because the device is
designed to use the minimum power required to reach
the network.
26
Before a device model is available for sale to the public,
it must be tested and certified by the Federal
Communications Commission (FCC), ensuring that it
does not exceed the limit established by the
government-adopted requirement for safe exposure.
The tests are performed in positions and locations
(that is, at the ear and worn on the body) as required
by the FCC for each model. For body worn operation,
this device has been tested and meets FCC RF
exposure guidelines when the handset is positioned a
minimum of 15 mm from the body with an accessory
that contains no metal part. Use of other accessories
may not ensure compliance with FCC RF exposure
guidelines.
The SAR limit adopted by USA and Canada is 1.6
watts/kilogram (W/kg) averaged over one gram of
tissue. The highest SAR value reported to the FCC and
IC for this device type when tested for use at the ear is
XXXX W/kg, and when properly worn on the body is
XXXX W/kg.
The SAR limit adopted by the CNIRP is 2.0 W/kg over
one gram of tissue. The value guarantees a safe
distance to protect device users and the difference
caused by measurement errors. Under different test
requirements and frequency, the value varies.
Statement
This device complies with part 15 of the FCC Rules.
Operation is subject to the condition that this device
does not cause harmful interference.
27
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a
residential installation. The operation is subject to the
condition that this device does not cause harmful
interface.
This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. There is no
guarantee, however, that interference does not occur
in a particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to
correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment
and receiver.
Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV
technician for help.
Warning: Changes or modifications made to this
equipment not expressly approved by manufacturer
28
may void the FCC authorization to operate this
equipment.
RF exposure warning:
The equipment complies with FCC RF exposure limits
set forth for an uncontrolled environment. The
equipment must not be co-located or operating in
conjunction with any other antenna or transmitter.
SAR Value: 1.41 W/g.
Version: 01 NO.: 6010226
