Huawei Technologies G3501 GSM MOBILE PHONE User Manual
Huawei Technologies Co.,Ltd GSM MOBILE PHONE Users Manual
Users Manual
G3501
GSM Mobile Phone
User Guide
Huawei Technologies Co., Ltd.
Address: Huawei Industrial Base, Bantian, Longgang, Shenzhen 518129, People's Republic
of China
Tel: +86-755-28780808 Global Hotline: +86-755-28560808
E-mail: mobile@huawei.com Website: www.huawei.com
Copyright © Huawei Technologies Co., Ltd. 2009. All rights
reserved.
No part of this document may be reproduced or transmitted in any form or by any
means without prior written consent of Huawei Technologies Co., Ltd.
The product described in this manual may include copyrighted software of Huawei
Technologies Co., Ltd and possible licensors. Customers shall not in any manner
reproduce, distribute, modify, decompile, disassemble, decrypt, extract, reverse
engineer, lease, assign, or sublicense the said software, unless such restrictions are
prohibited by applicable laws or such actions are approved by respective copyright
holders under licenses.
Trademarks and Permissions
, HUAWEI, and are trademarks or registered trademarks of Huawei
Technologies Co., Ltd.
Other trademarks, products, services, and company names mentioned are the
property of their respective owners.
Notice
Some features of the product and its accessories described herein rely on the
software installed, capacities and settings of local network, and may not be
activated or may be limited by local network operators or network service providers.
Thus the descriptions herein may not exactly match the product or its accessories
you purchase.
Huawei Technologies Co., Ltd reserves the right to change or modify any
information or specifications contained in this manual without prior notice or
obligation.
NO WARRANTY
THE CONTENTS OF THIS MANUAL ARE PROVIDED “AS IS”. EXCEPT AS REQUIRED BY
APPLICABLE LAWS, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED,
INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY,
RELIABILITY OR CONTENTS OF THIS MANUAL.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO CASE SHALL HUAWEI
TECHNOLOGIES CO., LTD BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR
CONSEQUENTIAL DAMAGES, OR LOST PROFITS, BUSINESS, REVENUE, DATA, GOODWILL
OR ANTICIPATED SAVINGS.
Import and Export Regulations
Customers shall comply with all applicable export or import laws and regulations
and will obtain all necessary governmental permits and licenses in order to export,
re-export or import the product mentioned in this manual including the software
and technical data therein.
i
Table of Contents
1 Getting to Know Your Phone ..................................... 1
Your Phone ................................................................. 1
Keys and Functions...................................................... 2
Screen Icons ............................................................... 4
2 Getting Started .......................................................... 5
Installing the SIM Card and the Battery ........................ 5
Installing the microSD Card ......................................... 5
Charging the Battery ................................................... 5
Automatically Switching Between Profiles ..................... 6
Using the Function Menu ............................................. 6
Phone Lock ................................................................. 7
PIN and PUK ............................................................... 7
Locking the Keypad ..................................................... 7
3 Call Function .............................................................. 9
Making a Call .............................................................. 9
Answering a Call.......................................................... 9
4 Text Entry ................................................................ 11
Changing the Text Input Mode ................................... 11
Multitap Input Mode .................................................. 11
Smart Input Mode ..................................................... 12
Entering a Digit ......................................................... 12
Entering a Symbol ..................................................... 12
5 Phonebook ............................................................... 13
Creating a New Contact ............................................. 13
ii
Searching for a Contact ............................................. 13
6 Multimedia ............................................................... 14
Camera ..................................................................... 14
Video Recorder .......................................................... 14
Video Player .............................................................. 15
FM Radio................................................................... 15
Sound Recorder......................................................... 16
7 Messags ................................................................... 17
Writing and Sending a Text Message .......................... 17
Writing and Sending a Multimedia Message ................ 17
8 Services ................................................................... 19
Network Settings ....................................................... 19
Connecting to the Network ........................................ 20
9 Organizer ................................................................. 21
Ebook reader ............................................................ 21
10 Warnings and Precautions ..................................... 22
1
1 Getting to Know Your Phone

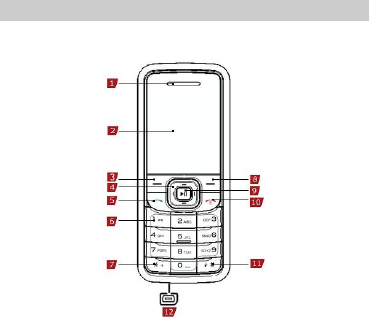

Your Phone
The following figure shows the appearance of your phone and it
is for your reference only.
1
Earpiece
7
* key
2
Screen
8
Right soft key
3
Left soft key
9
Confirm/Music key
4
Navigation keys
10
End/Power key
5
Call/Answer key
11
# key
6
Number keys
12
Charger/Headset jack
2
Keys and Functions
Press…
To…
Make a call.
Answer an incoming call.
View call logs in standby mode.
Power on or power off the phone (by pressing
and holding the key for about 3s for about 3s).
End a call or reject an incoming call.
Return to the standby mode.
Display Menu in standby mode.
Select the highlighted item.
Display Phonebook list in standby mode.
Return to the previous menu.
Display Audio player in standby mode.
Confirm a selection.
Take a picture on the Camera screen.
Access Shortcuts ( ), File manager
( ), Write message ( ), and Camera
( ) in standby mode.
Increase the volume ( ) or decrease the
volume ( ) during a call.
3
Press…
To…
Enter numbers, letters, and characters.
Call the voice mail center in standby mode (by
pressing and holding the 1 key for about 3s).
Speed-dial a phone number in standby mode if
the phone number is assigned to a key from 2 to
9 (by pressing and holding the key for about 3s).
Select a submenu item labeled with the
corresponding number.
Press the key once to enter *, twice to enter +,
three times to enter P, and four times to enter w
in standby mode.
Enable or disable the meeting mode in standby
mode (by pressing and holding the key for about
3s).
Display the symbol list in any text input mode.
Enter #.
Lock the keypad in standby mode (by pressing
and holding the key for about 3s).
Switch text input modes when editing texts.
4
Screen Icons
Icon
Indicates…
Signal strength.
The General profile is activated.
The Silence profile is activated.
The Meeting profile is activated.
The Outdoor profile is activated.
The Headset profile is activated.
Missed call(s).
The call forwarding function is enabled.
The stopwatch function is enabled.
A new text message is received.
A new multimedia message is received.
An alarm is activated.
The keypad is locked.
Battery power level.
Roaming
5
2 Getting Started
Installing the SIM Card and the Battery
Ensure that the golden contact area on the SIM card is facing
downward, and the beveled corner is properly aligned with the
SIM card slot.
Installing the microSD Card
You can expand the storage space by installing a microSD card
with a maximum capacity of up to 4 GB on your phone. Ensure
that inserting the memory card with the golden contact area
facing downward.
Charging the Battery
6
1. Connect the charger to the charger
jack on the phone.
2. Connect the charger to an AC power
socket.
3. Wait until the battery is completely charged.
During the charging, the charging icon is displayed in
animation. When the charging icon becomes static, the
battery is completely charged.
4. Disconnect the charger from the phone.
5. Disconnect the charger from the AC power socket.
Automatically Switching Between
Profiles
You can set your phone to activate different profiles for different
time period. The phone can automatically switch between
profiles for a maximum of three times in each day according to
your settings.
1. In standby mode, select Menu > User profiles > Profile
Switch Timing.
2. Select a option.
3. Press (Edit) to set the status, time and assign
profile.
Using the Function Menu
1. In standby mode, press (Menu).
2. Press to select the desired function menu.
3. Press (OK) or to display the selected menu.
7
4. Press to select a submenu.
5. Press (OK) or to display the menu.
6. Press (Back) to return to the previous menu or exit
the function menu.
To return to the standby mode, press .
Phone Lock
The phone lock protects your phone from unauthorized use. By
default, the phone lock function is disabled. You can change the
default phone lock code (1234) into any numeric string of four
to eight digits.
Do remember your phone lock code. If you forget it, contact the
service center.
PIN and PUK
The personal identification number (PIN) protects your SIM
card from unauthorized use. The PIN unblocking key (PUK) can
unlock the blocked PIN. Both PIN and PUK are delivered with
the SIM card. For details, contact your service provider.
If you enter wrong PINs for a specified number of times
consecutively, the phone asks you to enter the PUK.
If you enter wrong PUKs for a specified number of times
consecutively, the SIM card is invalidated permanently. Contact
your service provider for a new one.
Locking the Keypad
To lock the keypad, press and hold for about 3s.
8
To unlock the keypad, press (Unlock) and then in
succession.
If the Auto keypad lock function is enabled and the phone is
idle for a preset period in standby mode, the keypad is locked
automatically.
When the keypad is locked, you can press to answer an
incoming call or make an emergency call.
9
3 Call Function
Making a Call
1. In standby mode, enter the phone number.
To make an international call, press twice consecutively
to enter the international long distance code. Then enter the
country code or region code, area code, and phone number
in sequence.
To call an extension, enter the phone number, press
three times consecutively to insert P, and then enter the
extension number.
2. Press to dial the number.
3. Press to end the call.
You can also make a call through call logs, contacts,
and messages.
During a call, press and to adjust the
volume.
Answering a Call
When there is an incoming call, you can do as follows:
Press to answer it.
Press to reject it.
10
Press (Silent) to mute it, and then press
(Reject) to reject it.
If the Any key answer function is enabled, you can press any
key except and to answer an incoming call.
11
4 Text Entry
Changing the Text Input Mode
The indicator of the current text input mode is displayed in the
upper left corner of the screen. You can press to change
the text input mode.
Indicator
Text Input Mode
ABC and abc, ES and es
Multitap input mode
eZi ABC and eZi abc,
eZi ES and eZi es
Smart input mode
123
Number input mode
Press (Clear) once to delete the letter on the left
of the cursor. Press and hold (Clear) for about 3s
to clear all the letters.
Multitap Input Mode
In multitap input mode, you can press a key labeled with the
desired letter once to enter the first letter on the key, twice to
enter the second letter on the key, and so on.
Press once to enter a space, twice to enter 0.
12
Smart Input Mode
In smart input mode, enter a word as follows:
1. Press each key only once according to the spelling sequence
of the desired word.
The phone displays the commonly used word according to
the sequence of key presses.
2. Press to scroll to the desired word.
3. Press to enter the word.
Press to enter a space.
Entering a Digit
In "123" input mode, you can directly press a number key
labeled with the desired digit.
In multitap input mode, press the number key labeled with
the desired digit repeatedly until the digit appears on the
screen.
Entering a Symbol
1. Press to display the symbol list.
2. Press to scroll to the desired symbol.
3. Press to enter the symbol.
13
5 Phonebook
Creating a New Contact
1. Select Menu > Phonebook > Add new contact.
2. Select To SIM or To phone for saving the contact.
3. Edit the contact.
4. Press to save the contact.
Searching for a Contact
1. Press Menu > Phonebook.
2. Select from the following options:
Quick search: to enter the contact name, or the first
several letters of a contact name.
Search contact: to enter the intact phone name, and then
press (Options) > (Search).
14
6 Multimedia
Camera
Press in standby mode, or select Menu > Multimedia >
Camera to launch the camera.
In camera mode, you can do as follows:
Press to take a photo.
Then, press (Save) to save the photo, and press
(Delete) to delete it.
Press (Options) to view photos, or perform relevant
settings.
Video Recorder
1. Select Menu > Multimedia > Video recorder.
2. Press (Options) to set relevant parameters.
3. Press to start/stop recording.
15
Video Player
1. Select Menu > Multimedia > Video player.
2. Press to select a video file.
3. Press to play the video.
When the video is being played, you can do as follows:
Press and to adjust the volume.
Press and to fast forward or rewind the video.
Press to pause/continue the video.
4. Press (Stop) to stop playing the video.
FM Radio
The headset cable functions as an antenna as well. To ensure
good reception of radio programs, do not disconnect the
headset from the phone or severely bend the headset cable.
1. Connect a compatible headset to the phone.
2. Select Menu > Multimedia > FM radio.
3. On the FM radio screen, you can do as follows:
Press to stop/continue.
Press and to adjust the volume.
Press or to tune by 0.1 MHz.
Press and then or to switch channels.
16
Press the number key corresponding to the serial number of
a channel to play the channel.
Press (Options) and select Channel list, Manual
input, Auto search, settings, Record, Append or File
list.
Press the key on the headset cable to switch to the next
channel.
Sound Recorder
1. Select Menu > Multimedia > Sound recorder.
2. Press (Options) and select New Record.
3. During the recording process, press or to
pause/continue.
Press (Stop) to stop recording.
17
7 Messags
Writing and Sending a Text Message
1. Select Menu > Messages > Text message > Write
message.
2. Write the message.
3. Press (Options) for the following options:
Send only: to enter the phone number or select the
recipient from the phonebook list.
Save and send: to add the recipient and set to save the
message after sending it.
Send to many: to add up to 10 recipients at a time.
Send by groups: to add all members of a group as
recipients.
4. Press to send the message.
Writing and Sending a Multimedia
Message
1. Select Menu > Messages > MMS > Write message.
2. Select To, Cc, or Bcc.
Add phone numbers or email addresses to be sent, carbon
copied, or blind carbon copied to.
3. Select Subject.
Edit the subject of the message.
18
4. Select Edit content.
Edit the content of the message. You can add pictures, audio
and attachments to the multimedia message.
5. Press (Done) and select Send.
Contact your service provider for the availability of the
Multimedia Messaging Service (MMS) and the method
for subscribing to this service.
Open multimedia messages with caution. Objects in
multimedia messages may contain viruses that can
damage your phone, such as malicious software.
19
6.
8 Services
You can access WAP sites and use WAP-based services on your
phone. To access the WAP sites through your phone, you need
to subscribe the corresponding service from the service provider
and set the relevant parameters on your phone first.
For details about the service and the charges, contact your
service provider.
Network Settings
To access the WAP sites through your phone, you need to set
the data account and WAP parameters on your phone first.
Setting the Connection Profile
1. Press Menu > Services > Data account.
2. Select the network type.
3. Select your service provider.
4. Press (Edit) to set the account information.
5. Press (Done) to save the settings.
Setting the WAP
1. Press Menu > Services > Wap > Settings > Profiles.
2. Select your service provider.
3. Select Edit account, and set the account information.
4. Press (Done) to save the settings.
20
5. Select Activate account to activate the account.
Connecting to the Network
1. Press Menu > Services > Wap > Input address.
2. Enter a URL address.
3. Press (Options) and select Done to access the
address.
21
9 Organizer
Ebook reader
Your phone supports e-books in .txt formats.
1. Select Menu > Organizer > Ebook to display the bookshelf.
The phone automatically adds the e-books stored in the
Ebook folder of the phone or microSD card to the bookshelf.
2. Select an e-book.
3. Press (Options) for the following options.
Open ebook: to start reading the e-book.
Global settings: to set the font, scroll type, encoding, and
alignment.
4. Press (Back) to stop reading.
When reading an e-book, you can press and
to turn the pages.
Store e-books in the Ebook folder of the phone or the
microSD card. If you open an e-book in another folder,
the phone automatically moves the e-book to the
Ebook folder so that you can find it easily in your next
reading.
22
10 Warnings and Precautions
This section contains important information pertaining to the
operating instructions of your device. It also contains
information about how to use the mobile safely. Read this
information carefully before using your device.
Electronic Device
Power off your device if using the device is prohibited. Do not
use the device when it causes danger or interference with
electronic devices.
Medical Device
Power off your device and follow the rules and regulations
set forth by the hospitals and health care facilities.
Pacemaker manufacturers recommend that a minimum
distance of 15 cm be maintained between a device and a
pacemaker to prevent potential interference with the
pacemaker. If you are using a pacemaker, use the device on
the opposite side of the pacemaker and do not carry the
device in your front pocket.
Some wireless devices may affect the performance of the
hearing aids. For any such problems, consult your service
provider.
Potentially Explosive Atmospheres
Switch off your device in any area with a potentially explosive
atmosphere, and comply with all signs and instructions. Areas
that may have potentially explosive atmospheres include the
areas where you would normally be advised to turn off your
vehicle engine. Triggering of sparks in such areas could cause
an explosion or fire, resulting in bodily injuries or even deaths.
23
Do not switch on the device at refueling points such as service
stations. Comply with restrictions on the use of radio equipment
in fuel depots, storage, and distribution areas, and chemical
plants. Also, adhere to restrictions in areas where blasting
operations are in progress. Before using the device, watch out
for areas that have potentially explosive atmosphere that are
often, but not always, clearly marked. Such locations include
areas below the deck on boats, chemical transfer or storage
facilities and areas where the air contains chemicals or particles
such as grain, dust, or metal powders. Ask the manufacturers of
vehicles using liquefied petroleum gas (such as propane or
butane) if this device can be safely used in their vicinity.
Traffic Security
Observe local laws and regulations while using the device. Also,
if using the device while driving a vehicle, please comply with
the following guidelines:
Concentrate on driving. Your first responsibility is to drive
safely.
Do not talk on the device while driving. Use hands-free
accessories.
When you have to make or answer a call, park the vehicle at
the road side before using your device.
RF signals may affect electronic systems of motor vehicles.
For more information, consult the vehicle manufacturer.
In a motor vehicle, do not place the device over the air bag
or in the air bag deployment area. Otherwise, the device may
hurt you owing to the strong force when the air bag inflates.
Do not use your device while flying in an aircraft. Switch off
your device before boarding an aircraft. Using wireless
devices in an aircraft may be dangerous to the operation of
24
the aircraft, disrupt the wireless telephone network, and may
be considered illegal.
Operating Environment
Do not use or charge the device in dusty, damp or dirty
places or places with magnetic fields. Otherwise, the circuit
may not function properly.
The device complies with the RF specifications when the
device is used near your ear or at a distance of 1.5 cm from
your body. Ensure that the device accessories such as a
device case and a device holster are not composed of metal
components. Keep your device 1.5 cm away from your body
to meet the requirement earlier mentioned.
On a thunder and stormy day, do not use your device when it
is being charged, to prevent any danger caused by lightning.
When you are on a call, do not touch the antenna. Touching
the antenna affects the call quality and results in increase in
power consumption. As a result, the talk time and standby
time are reduced.
While using the device, observe the local laws and
regulations, and respect others' privacy and legal rights.
Use accessories authorized by manufacturers. Using
unauthorized accessories will render the warranty null and
void.
Keep the ambient temperature between 0°C and 45°C while
the device is being charged. Keep the ambient temperature
between -10°C to 55°C for using the device powered by
battery.
Preventing Hearing Damage
Using the receiver, earbuds, headphones, speakerphone, or
earpieces at high volume can result in permanent hearing loss.
25
Be extremely careful when listening at high decibel levels. Set
the volume to a safe level. If you experience strange sounds in
your ears like ringing or if you hear muffled speech, get your
hearing checked. If you continue to use high volume, your
hearing will soon get affected.
Hearing experts offer the following suggestions to protect your
hearing:
Reduce the time you use the receiver, earbuds, headphones,
speakerphone, or earpieces at high volume.
Do not increase the volume to block noisy surroundings.
Reduce the volume if you cannot hear people speaking near
you.
Safety of Children
Please comply with all precautions with regard to children's
safety. Letting the child play with your device or its accessories,
which may include parts that can be detached from the device,
may prove dangerous, as it may present a choking hazard.
Make sure that small children are kept away from the device
and accessories.
Environment Protection
Follow all the local regulations regarding the disposal of your
devices or electrical accessories (such as chargers, headsets, or
batteries). Recycle them. Do not dispose of an exhausted
battery or a used device in a garbage can.
Accessories
Use only the accessories, such as the charger, battery, and
headset, delivered by manufacturer. Using accessories of other
manufacturers or vendors with this device model might
invalidate any approval or warranty applicable to the device,
26
might result in the non-operation of the device, and might be
dangerous.
Battery and Charger
Unplug the charger from the electrical plug and the device
when not in use.
The battery can be charged and discharged hundreds of
times before it eventually wears out. When the standby time
and talk time are shorter than normal, replace the battery.
Use the AC power supply defined in the specifications of the
charger. An improper power voltage may cause fire or the
charger may not function properly.
If the ambient temperature is considerably low or high, the
capacity and life of the battery is reduced. When the
temperature is lower than 0°C, performance of the battery is
affected.
Do not connect two poles of the battery with conductors
such as metal materials, keys or jewelries. Otherwise, the
battery may be short-circuiting and may cause injuries and
burns on your body.
Do not disassemble the battery or solder the battery poles.
Otherwise, it may lead to electrolyte leakage, overheating,
fire, or explosion.
If battery electrolyte leaks out, make sure that the electrolyte
does not touch your skin and eyes. When the electrolyte
touches your skin or splashes into your eyes, wash your eyes
with clean water immediately and consult a doctor.
If the battery is damaged, or the color changes or gets
abnormally heated while you charge or store the battery,
remove the battery immediately and stop using it. Otherwise,
it may lead to battery leakage, overheating, explosion, or
fire.
27
If the power cable is damaged (for example, the lead is
exposed or broken), or the plug loosens, stop using the cable
at once. Otherwise, it may lead to electric shock, short-circuit
of the charger, or a fire.
Do not dispose of batteries in fire as they may explode.
Batteries may also explode if damaged.
Clearing and Maintenance
The device, battery, and charger are not water-resistant
Keep them dry. Protect the device, battery and charger from
water or vapor. Do not touch the device and charger with a
wet hand. Otherwise, it may lead to short-circuit or
malfunction of the device and electric shock to the user.
Do not place your device, battery, or charger in places where
it can get damaged because of collision. Otherwise, it may
lead to battery leakage, device malfunction, overheating, fire,
or explosion.
Do not place magnetic storage media such as magnetic cards
and floppy disks near the device. Radiation from the device
may erase the information stored on them.
Do not leave your device, battery, or charger in a very hot or
cold place. Otherwise, they may not function properly and
may lead to a fire or an explosion.
Do not place sharp metal objects such as pins near the
earpiece. The earpiece may attract these objects and hurt
you when you are using the device.
Before you clean or maintain the device, power off the device
and disconnect it from the charger.
Do not use any chemical detergent, powder, or other
chemical agents (such as alcohol and benzene) to clean the
device and the charger. Otherwise, parts of the device may
28
get damaged or a fire can be caused. You can clean the
device and the charger with a piece of damp and soft
antistatic cloth.
Do not dismantle the device or accessories. Otherwise,
manufacturer is not liable to pay for damages as the device
and accessories are not covered by warranty.
Emergency Call
You can use your device for emergency calls in the service area.
The connection, however, cannot be guaranteed in all
conditions. You should not rely solely on the device for essential
communications.
FCC Regulations:
This mobile phone complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device
must accept any interference received, including interference
that may cause undesired operation.
This mobile phone has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiated
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
29
installation If this equipment does cause harmful interference to
radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following
measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for
help.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user„s authority to
operate the equipment.
The antenna(s) used for this transmitter must not be
co-located or operating in conjunction with any other antenna
or transmitter.
30
RF Exposure
Information (SAR)
This mobile phone meets the government‟s requirements for
exposure to radio waves.
This phone is designed and manufactured not to exceed the
emission limits for exposure to radio frequency (RF) energy set
by the Federal Communications Commission of the U.S.
Government.
The exposure standard for wireless mobile phones employs a
unit of measurement known as the Specific Absorption Rate, or
SAR. The SAR limit set by the FCC is 1.6W/kg. *Tests for SAR
are conducted using standard operating positions accepted by
the FCC with the phone transmitting at its highest certified
power level in all tested frequency bands. Although the SAR is
determined at the highest certified power level, the actual SAR
level of the phone while operating can be well below the
maximum value. This is because the phone is designed to
operate at multiple power levels so as to use only the poser
required to reach the network. In general, the closer you are
to a wireless base station antenna, the lower the power output.
The highest SAR value for the model phone as reported to the
FCC when tested for use at the ear is 1.53 W/kg and when worn
on the body, as described in this user guide, is 0.874 W/kg
(Body-worn measurements differ among phone models,
depending upon available accessories and FCC requirements.)
31
While there may be differences between the SAR levels of
various phones and at various positions, they all meet the
government requirement.
The FCC has granted an Equipment Authorization for this model
phone with all reported SAR levels evaluated as in compliance
with the FCC RF exposure guidelines. SAR information on this
model phone is on file with the FCC and can be found under the
Display Grant section of www.fcc.gov/oet/ea/fccid after
searching on FCC ID: QISG3501.
For body worn operation, this phone has been tested and meets
the FCC RF exposure guidelines for use with an accessory that
contains no metal and the positions the handset a minimum of
1.5 cm from the body. Use of other accessories may not
ensure compliance with FCC RF exposure guidelines. If you do
no t use a body-worn accessory and are not holding the phone
at the ear, position the handset a minimum of 1.5 cm from your
body when the phone is switched on.
Version: V100R001_01 NO.: 6010202
