Huawei Technologies G6007 GSM Mobile Phone User Manual

Huawei Technologies Co.,Ltd GSM Mobile Phone

User Manual

User Guide
Welcome to HUAWEI
HUAWEI GSM Mobile Phone
i
Contents
1 Getting to Know Your Phone .................................................... 1
Your Phone .............................................................................1
Keys and Functions .................................................................2
Status Icons ............................................................................4
2 Getting Started ........................................................................ 5
Installing SIM Cards and the Battery .......................................5
Removing the Battery and SIM Cards .....................................5
Installing a microSD Card ........................................................6
Charging the Battery...............................................................6
Working with the Main Menu ................................................7
Automatically Switching Between Profiles ..............................7
Mass Storage ..........................................................................8
3 Voice Services .......................................................................... 8
Dual-Card Management .........................................................8
Making a Call ..........................................................................9
Answering a Call .....................................................................9
4 Text Input .............................................................................. 10
Changing the Text Input Mode .............................................10
Multi-Tap Input Mode ...........................................................11
Predictive Input Mode ..........................................................11
Number Input Mode .............................................................11
Entering Symbols ..................................................................11
5 Messaging ............................................................................. 12
Writing and Sending a Text Message ....................................12
Writing and Sending a Multimedia Message ........................12
ii
6 Phonebook ............................................................................ 14
Creating a Contact ...............................................................14
Searching for a Contact ........................................................14
Setting the Preferred Storage ................................................14
Copying Contacts .................................................................14
7 Multimedia ............................................................................ 15
Camera .................................................................................15
Audio Player .........................................................................16
FM Radio ..............................................................................17
8 Services ................................................................................. 17
Network ...............................................................................18
STK .......................................................................................19
Facebook (optional) ..............................................................19
9 Bluetooth (optional) ............................................................... 20
Using a Bluetooth Headset ...................................................20
Transferring Data ..................................................................20
10 File Manager ........................................................................ 21
11 Tools and Games .................................................................. 21
Alarm ....................................................................................21
Calculator .............................................................................21
Calendar ...............................................................................21
Ebook Reader .......................................................................22
Electronic Torch ....................................................................22
Games ..................................................................................22
Stopwatch ............................................................................23
Task ......................................................................................23
12 Security Settings ................................................................... 23
Phone Lock ...........................................................................23
iii
PIN and PUK .........................................................................24
Locking and Unlocking the Keypad.......................................24
13 Warnings and precautions .................................................... 25
1
1 Getting to Know Your Phone

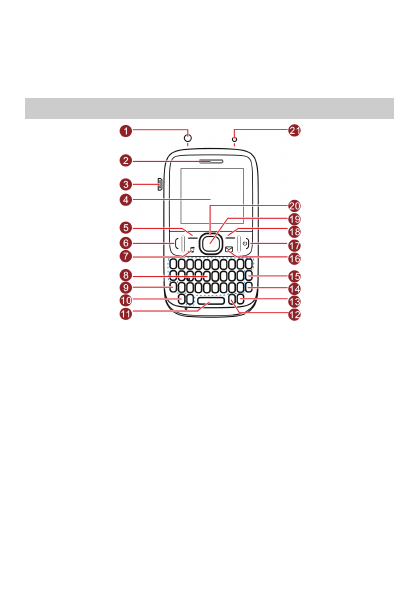

Your Phone
1 Headset jack 12 Sym key
2 Earpiece 13 Input method switching key
3 Charger jack/Universal serial
bus (USB) port 14 Enter key
4 Screen 15 Delete key
5 Left soft key 16 Message key
6 Call/Answer key 17 End/Power key
7 Audio player key 18 Right soft key
8 Keypad 19 OK/Confirm key
9 Fn key 20 Navigation keys
10 A/a key 21 Torch
11 Space key
2
The figure above shows the appearance of your phone and is
provided only for your reference.
Keys and Functions
Press
To
Make a call from the SIM card 1 or 2 in
standby mode.
Answer a call.
View call logs of SIM card 1 and 2 in standby
mode.
Power the phone on or off (press and hold the
key for about 3s).
End or reject a call.
Return to standby mode.
Access the main menu in standby mode.
Select a highlighted item.
Access
Contacts
in standby mode.
Return to the previous screen.
Access
Audio player
in standby mode.
Access
Inbox
in standby mode.
Access the main menu in standby mode.
Confirm a selection.
Scroll through the main menu (press ,
, , or ).
3
Press
To
through
through
Enter numbers, letters, and symbols.
Call voicemail in standby mode (press and
hold the
1
key for about 3s).
Select an option labeled with the
corresponding number.
Enter a space in editing mode.
Switch on or off torch in standby mode (press
and hold the key for about 3s).
Lock the keypad in standby mode (press and
hold the key for about 3s).
Switch between text input methods in editing
mode.
Switch between uppercase and lowercase in
editing mode.
Display the
symbol list in editing mode.
4
Status Icons
Icon
Indicates
/ Signal strength for SIM card 1 or 2.
/ New text messages for SIM card 1 or 2.
/ New multimedia messages for SIM card 1 or 2.
/ Call forwarding enabled for SIM card 1 or 2.
/ Missed calls for SIM card 1 or 2.
Alarms enabled.
Keypad locked.
Battery level.
Bluetooth on.
General
profile activated.
Silent
profile activated.
(optional)
Meeting
profile activated.
Outdoor
profile activated.
5
Icon
Indicates
A microSD card installed.
Headset connected.
Features marked with "optional" are optional. These features
may vary according to your service provider.
2 Getting Started
Installing SIM Cards and the Battery
You can install two Subscriber Identification Module (SIM) cards in
the phone at the same time. When inserting a SIM card, ensure that
the golden contact area on the SIM card is facing downward and
that the beveled edge of the SIM card is properly aligned with that
of the SIM card slot.
Removing the Battery and SIM Cards
Before removing the battery and SIM cards, ensure that your phone
is powered off.
6
Installing a microSD Card
Before installing or removing a microSD card, power the
phone off. When powered back on, the phone indicates
whether the microSD card has been correctly installed.
You can expand your phone's memory capacity by installing a
microSD card. When installing a microSD card, ensure that the gold
contact area faces down.
Charging the Battery
To charge the battery:
1. Connect the charger to the phone's charger jack.
2. Connect the charger to a power outlet.
3. Allow the battery to fully charge.
When the battery is charging, the charging icon blinks. When the
charging icon stops blinking, the battery is fully charged.
7
4. Disconnect the charger from the power outlet and then from the
phone.
Working with the Main Menu
1. In standby mode, press (Menu) to access the main
menu.
2. Press to scroll to the desired submenu, and press
to access the submenu.
3. Press or to scroll to an option, and press
(OK) or to select the option.
4. Press (Back) to return to the previous screen or to
return to the standby mode.
Automatically Switching Between Profiles
You can set your phone to activate different profiles at different
times. The phone can automatically switch between profiles up to a
maximum of three times a day.
To automatically switch between profiles:
1. Select Menu > Settings > User profiles > Profile Switch Timing.
2. Scroll to a time, and press (Edit) to select the profile to
be activated at the specified time.
3. Press (Done) to save the settings.
8
Mass Storage
When you have connected your phone to a computer using the USB
cable, Mass storage is displayed on the phone screen.
Select Mass storage to manage the files stored in the phone memory
or on the microSD card using the computer's file manager
application.
The phone memory and its microSD card are displayed as removable
disks on the computer. You can perform the following operations:
1. Double-click a disk to open it.
2. Copy, paste or delete files on a disk.
3. Disconnect the phone from the PC.
Ensure that you connect and disconnect the USB cable
correctly.
Do not run the formatting command on the computer to
format the phone memory; doing so may permanently
damage the phone memory.
You can transfer data and charge the battery by
connecting the phone to the computer with the USB
cable.
3 Voice Services
Dual-Card Management
Your phone supports dual-card dual-standby mode, but the two SIM
cards cannot be used simultaneously. When you are making a call or
using data services with one SIM card, the other SIM card becomes
unavailable, that is, no incoming calls can be received and the data
services cannot be used.
9
Making a Call
1. In standby mode, enter the phone number.
To make an international call, press to enter the plus sign (+),
and then enter the country or region code, area code, and phone
number.
To call an extension, enter the switchboard number, press to
enter P, press and then to enter W, and enter the
extension number.
2. Press to dial the number.
3. Press to end the call.
You can also make calls from call logs, contacts, or
messages.
During a call, you can press or to adjust the
in-call volume.
Answering a Call
When you receive an incoming call:
Press to answer the call.
Press (Answer) to answer the call.
Press to reject the call.
10
Press (Silent) to mute the ringtone, and press
(Reject) to reject the call.
Press (Silent) to mute the ringtone, press
(Answer) to answer the call.
If the Any key answer function is enabled, you can press any key
except and to answer a call.
4 Text Input
Changing the Text Input Mode
The current text input mode indicator is displayed in the upper left
corner of the screen. You can press to switch between text
input modes.
Text Input Mode
Multi-tap input mode
Predictive input mode
Number input mode
Press (
Clear
) or once to delete the
last entered
character. You can also press and hold (
Clear
) to
delete all the characters entered.
In any text input mode, press to start a new paragraph.
11
Multi-Tap Input Mode
In multi-tap input mode, press the key labeled with the desired letter.
Predictive Input Mode
To enter a word in predictive input mode:
1. Press each key once according to the spelling sequence of the
desired word.
The phone displays candidate words.
2. Press or to scroll left or right, and press or
to turn pages.
3. Press to enter the word.
Number Input Mode
In number mode, press the key labeled with the desired digit.
Entering Symbols
To enter a symbol with the QWERTY keypad in any input mode:
Using to Enter a Symbol
To enter only one symbol, press once and then the key
labeled with the desired symbol.
To enter multiple symbols, press twice and then the keys
labeled with the desired symbols.
Using to Enter a Symbol
1. Press to display the symbol list.
12
2. Press or to scroll left or right, and press or
to scroll up or down.
3. Press to select the desired symbol.
5 Messaging
Writing and Sending a Text Message
1. In standby mode, select Menu > Messages > Write message.
2. Write the message.
3. Press (Options), and select Send to.
4. Select Enter recipient, and enter the recipient's phone number; or
select Add from Phonebook and add a recipient from the
phonebook.
To add multiple recipients, repeat this step.
5. Once the recipient or recipients have been added, and press
to send the message or press (Options) for the
following options:
Send: send the message to the recipient or recipients.
Save: save the message to Drafts and exit the message editing
screen.
From SIM1 or From SIM2: select the SIM card that you want to
use to send or save the message.
Writing and Sending a Multimedia Message
1. In standby mode, select Menu > Messages > Write message.
13
2. Write the message.
Press (Options), if you select Add picture, Add sound,
Add video, or Add subject, the message automatically changes
from a text message to a multimedia message. You can also
select Switch to MMS to change from a text message to a
multimedia message.
3. On the message editing screen, press , or press
(Options) and select Send to.
4. Select Enter recipient to enter the recipients' phone numbers, or
select Add from Phonebook to add the desired recipients from
the phonebook.
5. Once the recipient has been added, press to immediately
send the message, or press (Options) for the following
options:
Send: send the message. Select From SIM1 or From SIM2 to
select the SIM card that you want to use to send the message.
Change to Cc: copy the message to the recipient.
Change to Bcc: blind copy the message to the recipient.
Save to Drafts: save the message to Drafts.
You can contact your service provider to determine the
availability of the Multimedia Messaging Service (MMS) and
the method for subscribing to the service.
Your phone supports a multimedia message up to 300 KB.
Open multimedia messages with caution. Objects in
multimedia messages may contain viruses and malicious
software that can damage your phone.
14
6 Phonebook
Creating a Contact
1. In standby mode, select Menu > Contacts > Add new contact.
2. Select To SIM1/SIM2 or To Phone for saving the contact.
3. Enter the contact information, press .
4. When prompted, press (Yes).
Searching for a Contact
1. In standby mode, select Menu > Contacts.
2. Enter the first letter of the contact name in the search box.
3. Press or to scroll to the desired contact.
Setting the Preferred Storage
You can set the storage where you want to save new contacts.
1. In standby mode, select Menu > Contacts.
2. Press (Options), and select Phonebook settings >
Preferred storage.
3. Scroll to SIM1, SIM2, Phone, or All as desired.
4. Press (OK).
Copying Contacts
You can copy contacts to the phone, SIM 1 card or SIM 2 card.
15
Copying One Contact
1. In standby mode, select Menu > Contacts.
2. Press or to scroll to the desired contact.
3. Press (Options), and select Copy.
4. Select To Phone, To SIM1, To SIM2, or To file to copy the contact
to the desired location.
Copying All Contacts
1. In standby mode, select Menu > Contacts.
2. Press (Options), and select Phonebook settings > Copy
contacts.
3. Press or to scroll to the desired option, such as
From Phone or From SIM1/SIM2.
4. Press (OK) to copy all contacts to the desired location.
7 Multimedia
Camera
The phone is equipped with a digital camera.
1. In standby mode, select Menu > Multimedia > Camera.
2. On the viewfinder screen:
Press (Options) to view pictures or configure the
camera settings.
Press or to adjust the exposure value.
16
Press or to zoom in or zoom out.
3. Focus the camera and press to take a picture.
4. Press (Back) to return to the viewfinder; or press
(Options) and select Delete to delete the picture.
Only image resolution is 160*128 can be set to wallpaper.
Audio Player
The audio player plays audio files stored in My music in the phone
memory or on the microSD card. If you want to listen to audio with
enhanced quality sound, use the headset provided.
1. In standby mode, select Menu > Multimedia > Audio player; or
press in standby mode to access Audio player.
2. Press to start playing audio files.
When playing audio files:
Press and to adjust the volume.
Press and to switch between audio files.
Press the button on the headset cable to switch between audio
files.
Press (List) to view the audio file list, and press
(Options) to configure the relevant settings.
3. Press to pause or continue.
17
FM Radio
Your phone is equipped with a built-in antenna, so you can listen to
radio programs though the loudspeaker. If the headset is included in
the product package, you can also use the headset to listen to the
FM radio.
1. In standby mode, select Menu > Multimedia > FM radio.
2. When listening to the radio:
Press to pause or continue.
Press and to adjust the volume.
Press or to switch between channels.
Press a number key to switch to the corresponding channel in
Channel list.
Press (Options) to view or edit the channel list,
manually set a frequency, record an audio clip, append a new
audio clip to an existing one, automatically search for and save
channels, and configure the relevant settings.
8 Services
You can access Wireless Application Protocol (WAP) sites and use
WAP-based services on your phone. To access WAP sites, you must
subscribe to the corresponding service from your service provider
and set the relevant parameters on your phone. For details about the
service and the charges, contact your service provider.
18
Network
Network Settings
Before accessing WAP sites, create your data account and configure
WAP parameters.
To set the connection profile:
1. In standby mode, select Menu > Settings > Connectivity > Data
account.
2. Press (Options), and select Add PS account.
3. Edit Account name, APN, User name, Password, Auth.type, SIM
selection and Advanced settings (such as Homepage, Connection
type, IP address). Set the parameters based on the information
provided by your service provider.
4. Press (OK) to save the settings.
If the data account provided by your service provider is
already set up on your phone, you do not need to create a
new data account.
To setting the WAP profile:
1. In standby mode, select Menu > Services > Internet services >
Settings > Data account.
2. Select SIM1 or SIM2.
3. Select your service provider, and press (OK) to select a
data account.
Selecting which SIM Card to connect to the Internet
If dual-SIM mode is enabled, you must select which SIM card to use
when connecting to the Internet.
19
To select a SIM card:
1. In standby mode, select Menu > Services > Internet services >
Settings > Select profile.
2. Scroll to SIM1, SIM2, or Always ask as desired.
3. Press (OK) to select the SIM card.
Opening a Webpage
1. In standby mode, select Menu > Services > Internet services >
Search or input URL.
2. Enter a Uniform Resource Locator (URL).
3. Press to open the webpage.
It is recommended that you clear cache regularly to ensure a
better browsing experience.
STK
The SIM Tool Kit (STK) function is provided only by some service
providers. It allows you to send text messages, read news, and use
other applications. For details, contact your service provider.
Facebook (optional)
The built-in social networking service (SNS) application Facebook on
your phone allow you to send instant messages and files any time.
Check that your phone has Internet access before you using the chat
application.
To use Facebook:
1. In standby mode, select Menu > Services > Facebook.
2. Enter your registered email address and password.
20
9 Bluetooth (optional)
Bluetooth enables you to exchange data with other Bluetooth
devices and use a Bluetooth headset.
Using a Bluetooth Headset
No Bluetooth headset is included in the product package.
1. In standby mode, select Menu > Settings > Connectivity >
Bluetooth > Power. Then select On to enable Bluetooth.
2. Select Search audio device to search for Bluetooth headsets in
range.
3. Select the desired Bluetooth headset, and press (Pair).
4. When a Bluetooth device is connected to the phone for the first
time, you need to enter a pairing password for verification. Enter
the password to pair with the Bluetooth headset.
After the phone is connected to the headset, a headset icon is
displayed on the standby screen.
Transferring Data
1. In standby mode, select Menu > Bluetooth Settings >
Connectivity > Bluetooth > Power. Then select On to enable
Bluetooth.
2. Select My device > Search new device to search for Bluetooth
devices in range.
3. Pair the phone with the desired device.
21
4. After pairing your phone with another Bluetooth device, you can
begin exchanging data with it.
10 File Manager
You can use File manager to organize files stored on your phone and
microSD card. You can view photos, listen to music and read ebooks
from File manager.
11 Tools and Games
Alarm
The Alarm application lets you set five alarms or modify existing
alarms.
You can set the alert time, repetition, and ring type.
Once an alarm has been set, the alarm icon is displayed on the
notification panel.
Calculator
The Calculator application lets you perform basic arithmetic
operations.
Calendar
The Calendar application lets you add events to the calendar and
keep track of them.
22
Ebook Reader
Your phone supports ebooks in .txt format.
1. In standby mode, select Menu > Too ls > Ebook reader to display
the bookshelf.
The phone automatically adds ebooks stored in Ebook on the
microSD card to the bookshelf.
2. Scroll to the desired ebook.
3. Press (Options), and then select Open ebook to start
reading the ebook.
You can also press (Options), and then select Global
settings to configure settings such as Font size, Scroll by and
Brightness.
4. Press (Back) to stop reading.
When reading an ebook, press and to turn
pages.
It is recommended that you store ebooks in
Ebook
on the
microSD card.
Electronic Torch
The electronic torch light the desired scene. Press (On) to
turn on the torch.
Games
For your entertainment, your phone comes pre-installed with game.
In standby mode, select Menu > Fun & Games > Games > Games
settings to set the Sound effect and Volume.
23
Stopwatch
Your phone equips with Typical stopwatch and nWay stopwatch.
Select a type of stopwatch to measure time.
Task
The Tasks application lets you view, add, edit, and delete tasks.
Once a task is added, the phone rings at the user-defined time to
remind you of that specific task.
12 Security Settings
Phone Lock
The phone lock protects your phone from unauthorized use. The
preset password to unlock your phone is 1234. By default, the
phone lock is disabled. Once the phone lock is enabled, you are
required to enter the password each time you power on the phone.
To enable the phone lock:
1. In standby mode, select Menu > Settings > Security settings >
Phone security > Phone lock.
2. Enter the password, and press (OK).
To change the password:
1. In standby mode, select Menu > Settings > Security settings >
Phone security > Change password.
2. Enter the old password and press (OK).
24
3. Enter a new password and press (OK).
The password must be a numeric string between four and eight
digits.
4. Enter the new password again to confirm it.
If you forget the password, contact your service provider.
PIN and PUK
The personal identification number (PIN) protects your SIM card from
unauthorized use.
If you incorrectly enter the PIN a specified number of times, the PIN
is blocked and the phone prompts you to enter the PIN unblocking
key (PUK).
If you incorrectly enter the PUK a specified number of times, the SIM
card will become permanently invalid, and you must contact your
service provider for a new SIM card.
Both the PIN and the PUK are provided with the SIM card. For details,
contact your service provider.
The lock for each SIM card must be configured separately.
To enable the PIN lock:
1. In standby mode, select Menu > Settings > Security settings >
SIM1or SIM2 security > PIN lock.
2. Enter the PIN and press (OK).
Locking and Unlocking the Keypad
To lock the keypad, press and hold in standby mode for 3s. To
unlock the keypad, press (Unlock) and then (OK).
25
If the Auto keypad lock function is enabled, the phone will
automatically lock the keypad after being idle in standby mode for a
preset period.
To enable the Auto keypad lock function, select Menu > Settings >
Security settings > Auto keypad lock in stand mode, scroll to a period,
and press (OK) to select the period.
When the keypad is locked, you can press to answer a
call or make an emergency call.
13 Warnings and precautions
This section contains important information about the operation of
your device. It also contains information about how to use the
device safely. Read this information carefully before using your
device.
Electronic device
Power off your device when use is prohibited. Do not use the device
if doing so causes danger or interference with other electronic
devices.
Accessories
Using an unapproved or incompatible charger or battery may
cause fire, explosion or other hazards.
Choose only batteries, chargers, and accessories approved for use
with this model by the device manufacturer. The use of any other
types of batteries, chargers, or accessories may void the warranty,
may violate local regulations and laws, and may be dangerous.
26
Please contact your retailer for information about the availability
of approved batteries, chargers, and accessories in your area.
Charger safety
Unplug the charger from electrical outlets and the device when
not in use.
Do not drop or cause an impact to the charger.
Do not touch the power cord with wet hands or pull the power
cord to disconnect the charger.
If the power cable is damaged (for example, the cord is exposed
or broken), or the plug loosens, stop using it at once. Continued
use may lead to electric shocks, short circuits, or fire.
If your device has been exposed to water, other liquids, or
excessive moisture, take it to an authorized service center for
inspection.
Connect the device only to products with the USB-IF logo or with
USB-IF compliance program completion.
For pluggable devices, the socket-outlet shall be installed near the
devices and shall be easily accessible.
Battery safety
Do not connect battery poles with conductors, such as keys,
jewelry, or other metal materials. Doing so may short-circuit the
battery and cause injuries or burns.
Do not solder battery poles or dismantle the battery. Doing so
may lead to electrolyte leakage, excessive heat, fire, or explosion.
Do not attempt to modify or remanufacture the battery, insert
foreign objects into it, or immerse or expose it to water or other
liquids. Doing so may lead to fire, explosion, or other hazards.
Keep the battery away from excessive heat and direct sunlight.
Do not place it on or in heating devices, such as microwave ovens,
stoves, or radiators. Batteries may explode if overheated.
If the battery leaks, ensure that the electrolyte does not make
direct contact with your skins or eyes. If the electrolyte touches
27
your skins or splashes into your eyes, immediately flush with clean
water and consult a doctor.
In case of battery deformation, color change, or overheating
while charging or storing, immediately stop using the device and
remove the battery. Continued use may lead to battery leakage,
fire, or explosion.
Do not put batteries in fire as they may explode. Damaged
batteries may also explode.
Do not drop the device or battery. If the device or battery is
dropped, especially on a hard surface, and may be damaged,
take it to an authorized service center for inspection.
Improper battery use may lead to fire, explosion, or other
hazards.
Dispose of used batteries in accordance with local regulations.
Do not smash or pierce the battery, or expose it to high external
pressure. Doing so may lead to a short circuit or overheating.
If the device standby and talk time shortens significantly, replace
the battery.
Operating environment
Avoid dusty, damp, or dirty environments. Avoid magnetic fields.
Using or charging your device in these environments may result in
circuit malfunctions.
Do not use your device during thunderstorms to protect your
device against any danger caused by lightning.
Observe local laws and regulations, and respect the privacy and
legal rights of others.
Avoid touching the antenna when you are on a call. Touching the
antenna affects call quality, increases power consumption, and
reduces talk and standby time.
Ideal operating temperatures are 0 °C to 40 °C. Ideal storage
temperatures are 0 °C to 40 °C. Extreme heat or cold may
damage your device or accessories.
Do not expose your device to direct sunlight (such as on a car
dashboard) for prolonged periods.
28
Do not place your device or batteries on or in heating devices,
such as microwave ovens, stoves, water heaters, or radiators.
Batteries may explode if overheated.
Stop using your device or applications for a while if the device is
overheated. If skin is exposed to an overheated device for an
extended period, low temperature burn symptoms, such as red
spots and darker pigmentation, may occur.
If your device has a camera flash, do not use it directly in the eyes
of people or pets. Otherwise temporary loss of vision or damage
to the eyes may occur.
Do not allow children or pets to bite or suck the device or battery.
Doing so may result in damage or explosion.
Protecting your hearing when using a headset
To prevent possible hearing damage, do not listen
at high volume levels for long periods.
Using a headset at high volumes may damage
your hearing. To reduce this risk, lower the
headset volume to a safe and comfortable level.
Exposure to high volumes while driving may cause distraction and
increase your risk of an accident.
Child's safety
Comply with all precautions with regard to child's safety. Letting
children play with the device or its accessories may be dangerous.
The device includes detachable parts that may present a choking
hazard. Keep away from children.
The device and its accessories are not intended for use by
children. Children should only use the device with adult
supervision.
Interference with medical equipment
Follow rules and regulations set forth by hospitals and health care
facilities. Do not use your device where prohibited.
Pacemaker manufacturers recommend that a minimum distance
of 15 cm be maintained between a device and a pacemaker to
29
prevent potential interference with the pacemaker. If using a
pacemaker, hold the device on the side opposite the pacemaker
and do not carry the device in your front pocket.
Some wireless devices may affect the performance of hearing
aids or pacemakers. Consult your service provider for more
information.
Areas with flammables and explosives
Do not use the device where flammables or explosives are stored
(in a gas station, oil depot, or chemical plant, for example). Using
your device in these environments increases the risk of explosion
or fire. In addition, follow the instructions indicated in text or
symbols.
Do not store or transport the device in containers with flammable
liquids, gases, or explosives.
Traffic security
Observe local laws and regulations while using the device. If using
the device while driving a vehicle, observe the following guidelines:
Concentrate on driving. Your first responsibility is to drive safely.
Do not hold the device while driving. Use hands-free accessories.
When you must make or answer a call, pull of the road safely and
park the vehicle first.
RF signals may affect the electronic systems of motor vehicles. For
more information, consult the vehicle manufacturer.
Do not place the device over the air bag or in the air bag
deployment area in a motor vehicle. Doing so may hurt you
because of the strong force when the air bag inflates.
Do not use your device while flying in an aircraft. Power off your
device before boarding. Using wireless devices in an aircraft may
disrupt wireless networks, present a hazard to aircraft operation,
or be illegal.
30
Cleaning and maintenance
Before you clean or maintain the device, power it off, and
disconnect it from the charger.
Do not use any chemical detergent, powder, or other chemical
agents (such as alcohol and benzene) to clean the device or
charger. These substances may cause damage to parts or present
a fire hazard. Use a clean, soft, and dry cloth to clean the device
and charger.
Keep the device and accessories dry. Protect them from water
and humidity. Do not touch the device or the charger with wet
hands. Doing so may lead to short circuits, malfunctions, or
electric shocks.
Avoid collision, which may lead to battery leakage, device
malfunctions, overheating, fire, or explosion.
Do not place magnetic storage media, such as magnetic cards
and floppy disks, near the device. Radiation from the device may
erase the information on magnetic storage media.
Do not expose your device, battery, or charger to extreme heat or
cold. These environments may interfere with proper function and
may lead to fire or explosion. Battery performance is affected at
temperatures lower than 0°C.
Do not place sharp metal objects, such as pins, near the earpiece
or speaker. The earpiece may attract these objects and result in
injury.
Do not dismantle the device or accessories. This voids the
warranty and releases the manufacturer from liability for damage.
If the device screen is broken in a collision, immediately stop
using the device. Do not touch or attempt to remove the broken
parts. Promptly contact an authorized service center.
Emergency calls
The availability of emergency calls is subject to your cellular network
quality, service provider policy, and local laws and regulations. Never
31
rely solely on your device for critical communications like medical
emergencies.
Environmental protection
The device and its accessories, including but not limited to the
power adapter, headset, and battery (if included) should not be
disposed of with household garbage.
Disposal of the device and its accessories is subject to local
regulations. Support proper collection and recycling.
FCC Regulatory Compliance
Body worn operation
The device complies with RF specifications when used near your ear
or at a distance of 1.5 cm from your body. Ensure that the device
accessories, such as a device case and device holster, are not
composed of metal components. Keep the device away from your
body to meet the distance requirement.
Certification information (SAR)
This device is also designed to meet the requirements for exposure to
radio waves established by the Federal Communications Commission
(USA).
The SAR limit adopted by the USA is 1.6 W/kg averaged over one
gram of tissue. The highest SAR value reported to the FCC for this
device type complies with this limit.
The highest SAR value reported to the FCC for this device type when
tested for use at the ear is 1.326 W/kg, and when properly worn on
the body is 1.057 W/kg.
FCC statement
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
32
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Caution: Any changes or modifications to this device not expressly
approved by Huawei Technologies Co., Ltd. for compliance could
void the user's authority to operate the equipment.
Please visit www.huaweidevice.com/worldwide/support/hotline for
recently updated hotline and email address in your country or region.
33
Copyright © Huawei Technologies Co., Ltd. 2013. All
rights reserved.
Trademarks and Permissions
, , and
are trademarks or registered
trademarks of Huawei Technologies Co., Ltd.
The Bluetooth® word mark and logos are registered trademarks
owned by Bluetooth SIG, Inc. and any use of such marks by Huawei
Technologies Co., Ltd. is under license.
Other trademarks, product, service and company names mentioned
may be the property of their respective owners.
Third-Party Software Statement
Huawei does not own the intellectual property of the third-party
software and applications that are delivered with this product.
Therefore, Huawei will not provide any warranty of any kind for third
party software and applications. Neither will Huawei provide support
to customers who use third-party software and applications, nor be
responsible or liable for the functions or performance of third-party
software and applications.
Third-party software and applications services may be interrupted or
terminated at any time, and Huawei does not guarantee the
availability of any content or service. Third-party service providers
provide content and services through network or transmission tools
outside of the control of Huawei. To the greatest extent permitted by
applicable law, it is explicitly stated that Huawei shall not
compensate or be liable for services provided by third-party service
providers, or the interruption or termination of third-party contents
or services.
34
Huawei shall not be responsible for the legality, quality, or any other
aspects of any software installed on this product, or for any
uploaded or downloaded third-party works in any form, including
but not limited texts, images, videos, or software etc. Customers
shall bear the risk for any and all effects, including incompatibility
between the software and this product, which result from installing
software or uploading or downloading the third-party works.
DISCLAIMER
ALL CONTENTS OF THIS MANUAL ARE PROVIDEDAS IS”. EXCEPT
AS REQUIRED BY APPLICABLE LAWS, NO WARRANTIES OF ANY
KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED
TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE
ACCURACY, RELIABILITY OR CONTENTS OF THIS MANUAL.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO
EVENT SHALL HUAWEI BE LIABLE FOR ANY SPECIAL, INCIDENTAL,
INDIRECT, OR CONSEQUENTIAL DAMAGES, OR LOSS OF PROFITS,
BUSINESS, REVENUE, DATA, GOODWILL SAVINGS OR ANTICIPATED
SAVINGS REGARDLESS OF WHETHER SUCH LOSSES ARE FORSEEABLE
OR N OT.
THE MAXIMUM LIABILITY (THIS LIMITATION SHALL NOT APPLY TO
LIABILITY FOR PERSONAL INJURY TO THE EXTENT APPLICABLE LAW
PROHIBITS SUCH A LIMITATION) OF HUAWEI ARISING FROM THE
USE OF THE PRODUCT DESCRIBED IN THIS MANUAL SHALL BE
LIMITED TO THE AMOUNT PAID BY CUSTOMERS FOR THE
PURCHASE OF THIS PRODUCT.
Privacy Policy
Please refer to our privacy policy on our websites for the information
about how we protect your personal information.
6011407_02
HUAWEI G6007

Navigation menu
