Huawei Technologies G6310 GSM Mobile Phone User Manual G6310 User Guide 20120703
Huawei Technologies Co.,Ltd GSM Mobile Phone G6310 User Guide 20120703
(G6310) User Guide_20120703
Copyright © Huawei Technologies Co., Ltd. 2012. All
rights reserved.
Trademarks and Permissions
, , and are trademarks or
registered trademarks of Huawei Technologies Co., Ltd.
Other trademarks, product, service and company names
mentioned are the property of their respective owners.
NO WARRANTY
THE CONTENTS OF THIS MANUAL ARE PROVIDED "AS IS".
EXCEPT AS REQUIRED BY APPLICABLE LAWS, NO WARRANTIES
OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT
NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE,
ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR
CONTENTS OF THIS MANUAL.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW,
IN NO CASE SHALL HUAWEI TECHNOLOGIES CO., LTD BE
LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR
CONSEQUENTIAL DAMAGES, OR LOST PROFITS, BUSINESS,
REVENUE, DATA, GOODWILL OR ANTICIPATED SAVINGS.
i
Contents
1 Getting to Know Your Phone .............................................. 1
Your Phone ........................................................................................1
Keys and Functions .........................................................................2
Screen Icons ......................................................................................5
2 Getting Started .................................................................... 6
Installing the SIM Card and the Battery ..................................6
Removing the Battery and the SIM Card ................................6
Installing and Removing a microSD Card ...............................7
Charging the Battery......................................................................7
Navigating the Main Menu .........................................................8
Automatically Switching Between Profiles .............................8
Phone Lock ........................................................................................9
Mass Storage ................................................................................. 10
PIN and PUK................................................................................... 10
Locking and Unlocking the Keypad ....................................... 11
Other Applications ....................................................................... 12
3 Voice Services ..................................................................... 12
Making a Call ................................................................................. 12
Answering a Call ........................................................................... 13
4 Text Input ........................................................................... 15
Changing the Text Input Mode ............................................... 15
ii
Entering a Word ............................................................................ 16
Entering a Number ...................................................................... 16
Entering a Symbol ........................................................................ 16
Using the Fn Key........................................................................... 17
5 Messaging .......................................................................... 18
Sending a Text Message ............................................................ 18
Sending a Multimedia Message ............................................. 18
6 Phonebook ......................................................................... 19
Creating a Contact ....................................................................... 19
Searching for a Contact ............................................................. 19
Setting the Preferred Storage .................................................. 20
Copying Contacts ......................................................................... 20
7 Video Recorder .................................................................. 21
8 Video Player ....................................................................... 21
9 Sound Recorder ................................................................. 22
10 Ebook Reader ................................................................... 23
11 Camera .............................................................................. 24
12 Audio Player ..................................................................... 25
13 FM Radio .......................................................................... 26
14 Java Applications ............................................................. 27
Installing a Java Application ..................................................... 28
Running a Java Application ...................................................... 28
Removing a Java Application ................................................... 29
iii
15 Wi-Fi (Optional) ............................................................... 29
16 Services ............................................................................. 30
Creating a Data Account ........................................................... 30
Connecting to the Internet ....................................................... 31
17 Bluetooth .......................................................................... 31
Connecting a Bluetooth Headset to Your Phone .............. 32
Transferring Data .......................................................................... 32
18 SNS Applications ............................................................. 33
19 STK .................................................................................... 34
20 Weather ............................................................................ 34
21 Warnings and Precautions .............................................. 35
1
1 Getting to Know Your Phone
Your Phone

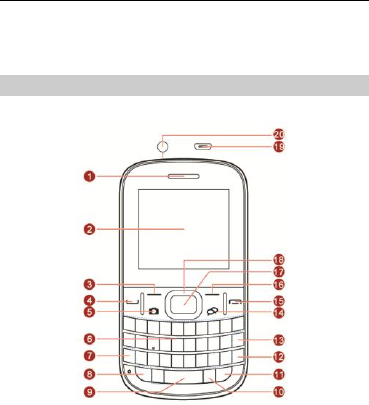

The following figure shows the appearance of your phone.
1
Earpiece
11
Input method switching key
2
Screen
12
Enter key
3
Left soft key
13
Delete key
4
Call/Answer key
14
Social networking services
(SNS) key
2
5
Camera key
15
End/Power key
6
Keypad
16
Right soft key
7
Fn key
17
OK/Confirm key
8
A/a key
18
Navigation keys
9
Space key
19
Charger jack/Universal serial
bus (USB) port
10
Sym key
20
Headset jack
Keys and Functions
Press…
To…
Make a call from subscriber identity module
(SIM) card in standby mode.
Answer a call.
View call logs in standby mode.
Power the phone on or off (press and hold the
key for about 3 seconds).
End or reject a call.
Return to standby mode.
Turn off the screen display.
Select the option displayed in the lower left corner
of the screen.
3
Press…
To…
Switch between Widget and Shortcuts in
standby mode.
Select the option displayed in the lower right
corner of the screen.
Access SNS in standby mode.
Access Camera in standby mode.
Confirm a selection.
Scroll through the main menu (press ,
, , or ).
Scroll to the desired shortcut icon in standby
mode (press , , , or ).
through
through
Enter numbers, letters, and symbols.
Call voicemail in standby mode (press and hold
the 1 key for about 3 seconds).
Select an option labeled with the corresponding
number.
Enter a space in editing mode.
Lock the keypad in standby mode (press and
hold the key for about 3 seconds).
Switch between text input methods in editing
mode.
4
Press…
To…
Switch between the upper and lower cases in
editing mode.
Display the Select symbol list in editing mode.
Activate or deactivate the Meeting profile in
standby mode (press and hold the key for about 3
seconds).
5
Screen Icons
Icon
Indicates…
Signal strength.
New text messages.
New multimedia messages.
Call forwarding enabled.
Missed calls.
Alarms enabled.
Keypad locked.
Battery level.
Ring only enabled.
Vib. Only enabled.
Vib. and ring enabled.
Vib. then ring enabled.
Silent profile activated.
Headset connected.
Bluetooth turned on.
6
2 Getting Started
Installing the SIM Card and the Battery
When installing a SIM card, ensure that the gold contact area
faces down, and that the beveled edge of the SIM card aligns
with that of the SIM card slot.
Removing the Battery and the SIM Card
Before removing the battery and the SIM card, ensure that your
phone is powered off.
7
Installing and Removing a microSD Card
Before installing or removing a microSD card, power the
phone off. When the phone is powered back on, it
indicates whether the microSD card has been correctly
installed.
You can expand your phone's memory capacity by installing a
microSD card. When installing a microSD card, ensure that the
gold contact area faces down.
Charging the Battery
1. Connect the small end of the USB cable to the phone's
charger jack and the large end to the charger.
2. Connect the charger to a power outlet.
8
3. Wait until the battery is fully charged.
While the battery is charging, the charging icon blinks. When
the charging icon stops blinking, the battery is fully charged.
4. Unplug the charger from the power outlet and the USB cable
from the phone.
Navigating the Main Menu
1. In standby mode, press (Menu) to access the main
menu.
2. Use to scroll to the desired application, and press
to access the application.
3. Press or to scroll to the desired option, and
press (OK) or to access the option.
4. Press (Back) to return to the previous screen or
press to return to standby mode.
Automatically Switching Between Profiles
You can configure your phone to activate different profiles at
different times. The phone can automatically switch between
profiles according to your settings.
To automatically switch between profiles:
1. Select Menu > User profiles > Profile switch timing.
2. Scroll to a clock.
9
3. Press (Edit) to set the profile to activate at a
specified time.
4. Press (Done) to save the settings.
Phone Lock
The phone lock protects your phone from unauthorized use.
The preset password to unlock your phone is 1234. By default,
the phone lock is disabled. Once you enable the phone lock,
you must enter the password each time you power on the
phone.
To enable the phone lock:
1. Select Menu > Settings > Security settings > Phone
security > Phone lock.
2. Enter the preset password, and press (OK).
To change the preset password:
1. Select Menu > Settings > Security settings > Phone
security > Change password.
2. Enter the preset password, and press (OK).
3. Enter a new password, and press (OK).
The password must be a numeric string between four and
eight digits.
4. Enter the new password again to confirm it.
If you forget the password, contact your service provider.
10
Mass Storage
When you have connected your phone to a computer using the
USB cable, you can select Mass storage to manage the files
stored in the phone memory or microSD card using the
computer's file manager application.
The phone memory and its microSD card are displayed as
removable disks on the computer. You can perform the
following operations:
Double-click a disk to open it.
Copy, paste, or delete files.
Disconnect the phone from the computer.
Ensure that you connect and disconnect the USB cable
correctly.
Do not run the formatting command on the computer
to format the phone memory; doing so may get
permanently damage the phone memory.
You can transfer data and charge the battery by
connecting the phone to the computer with the USB
cable.
PIN and PUK
The personal identification number (PIN) protects your SIM
card from unauthorized use.
If you incorrectly enter the PIN a specified number of times, the
PIN is blocked and the phone prompts you to enter the PIN
11
unblocking key (PUK). If this occurs, enter the PUK to unblock
the blocked PIN.
If you incorrectly enter the PUK a specified number of times,
the SIM card will become permanently invalid, and you must
contact your service provider for a new SIM card.
Both the PIN and the PUK are provided with the SIM card. For
details, contact your service provider.
To enable the PIN lock:
1. Select Menu > Settings > Security settings > SIM
security > PIN lock.
2. Enter the PIN, and press (OK).
Locking and Unlocking the Keypad
To lock the keypad, press and hold in standby mode for
about 3 seconds. To unlock the keypad, press
(Unlock), then (OK).
If the Auto keypad lock function is enabled, the phone will
automatically lock the keypad after being idle in standby mode
for a pre-defined period.
To enable the Auto keypad lock function, select Menu >
Settings > Security settings > Auto keypad lock, scroll to a
desired duration, and press (OK) to select the
duration.
12
When the keypad is locked, you can press to answer
a call or make an emergency call.
Other Applications
As well as being a communication device, your phone also
provides you with the following applications:
Calculator: perform basic calculation.
Stopwatch: time a process.
Ebook reader: read ebooks.
Calendar: view and add events or appointments on your
calendar.
Tasks: view and add tasks.
Alarm: set alarms.
Fun & Games: play games.
Java: run Java applications.
3 Voice Services
Making a Call
1. In standby mode, enter a phone number.
To make an international call, press to enter the plus
sign (+). Then enter the country or region code, area code,
and phone number.
13
To call an extension, enter the switchboard number, press
to enter P, and enter the extension number.
2. Press to dial the number.
3. Press to end the call.
You can also make calls from call logs, contacts, and
messages.
During a call, you can press or to adjust the
in-call volume.
Answering a Call
When you receive an incoming call:
Press or (Answer) to answer the call.
Press to reject the call.
Press (Silent) to mute the ringtone, and press
(Reject) to reject the call.
Press (Silent) to mute the ringtone, and press
(Answer) to answer the call.
14
If the Any key answer function is enabled, you can press any
key except and to answer a call.
15
4 Text Input
Changing the Text Input Mode
The current text input mode indicator is displayed in the upper
left corner of the screen. Press to switch between text
input modes.
Indicator
Text Input Mode
Abc
Traditional input mode
SAbc
Predictive input mode
123
Number input mode
Press (Clear) or to delete the last
character entered, or press and hold (Clear)
for about 3 seconds to delete all the characters entered.
Press to enter a space.
Press to start a new paragraph.
Press to switch between upper case and lower
case.
16
Entering a Word
To enter a word in traditional input mode, press the keys
labeled with the letters that spell the word.
To enter a word in predictive input mode:
1. Press each key once according to the spelling sequence of
the desired word.
The phone then displays candidate words associated with
the keystroke sequence.
2. Press , , , or to scroll to the desired
word.
You can also press or to scroll left or right, and
or to turn to the previous or next page.
3. Press to enter the selected word.
Entering a Number
In number input mode, press the desired number key.
Entering a Symbol
1. Press in any input mode to display the symbol list.
2. Press , , , or to scroll to the desired
symbol.
3. Press to enter the symbol.
17
Using the Fn Key
To enter only one symbol or digit, press once and then
the key labeled with the desired symbol.
To enter multiple symbols or digits, press twice and
then the keys labeled with the desired symbols or digits.
18
5 Messaging
Sending a Text Message
1. Select Menu > Messaging > Write message.
2. Write the message.
3. Press , and enter a recipient's phone number or add a
recipient from Phonebook.
4. Press to send the message.
Sending a Multimedia Message
1. Select Menu > Messaging > Write message.
2. Write the message.
3. Press (Options) for the following options:
Switch to MMS: change from a text message to a
multimedia message.
If you select Add picture, Add sound, Add video, or Add
subject, the phone changes a text message to a multimedia
message automatically.
Add picture: add a picture to the message.
Add sound: add an audio file to the message.
Add video: add a video file to the message.
Add subject: add a subject to the message.
19
4. Press , and enter a recipient's phone number or add a
recipient from Phonebook.
5. Press to send the message.
Contact your service provider to determine the
availability of the Multimedia Messaging Service (MMS)
and how to subscribe to the service.
Your phone supports multimedia messages up to 300
KB.
Open multimedia messages with caution. Objects in
multimedia messages may contain viruses and
malicious software that can damage your phone.
6 Phonebook
Creating a Contact
1. Select Menu > Phonebook > Add new contact.
2. Select To SIM or To phone.
3. Edit the contact information.
4. Press (Options) and select Save, or press
to save the contact.
Searching for a Contact
1. Select Menu > Phonebook.
20
2. Enter the first letter of the contact name in the search box.
Contacts whose names start with this letter will be displayed.
3. Press or to scroll to the desired contact.
Setting the Preferred Storage
1. Select Menu > Phonebook.
2. Press (Options), and select Phonebook settings >
Preferred storage.
3. Scroll to SIM, Phone, or Both as desired.
4. Press (OK) to select the preferred storage.
Copying Contacts
You can copy contacts to the phone, SIM card, or file.
Copying One Contact
1. Select Menu > Phonebook.
2. Press or to scroll to the desired contact.
3. Press (Options), and select Copy.
4. Select To phone, To SIM, or To file to copy the contact to
the desired location.
Copying Multiple Contacts
1. Select Menu > Phonebook.
2. Press (Options), and select Phonebook settings >
Copy contacts.
21
3. Press or to scroll to the desired option, such as
SIM to phone, or Phone to SIM.
4. Press (OK), and then press (Yes) to copy
the contacts to the desired location.
7 Video Recorder
To record a video:
1. Select Menu > Multimedia > Video recorder.
In video recording mode:
Press to configure video settings.
Press to start recording.
Press or to adjust the exposure.
Press to zoom in.
Press to zoom out.
Press to stop recording and save the video.
8 Video Player
The video player plays downloaded or recorded video files,
which are stored in the Videos folder of your phone memory or
22
microSD card. The folder can only be accessed through the File
manager application.
To play a video file:
1. Select Menu > Multimedia > Video player.
2. Press and to scroll to the desired video file.
3. Press to play the video file.
When the video file is playing:
Press or to adjust the volume.
Press or to rewind or fast-forward.
Press to pause or continue.
4. Press to stop playing the video file.
The video player supports files in .mp4 and .3gp formats.
9 Sound Recorder
The sound recorder functions as a digital recorder.
To record audio:
1. Select Menu > Multimedia > Sound recorder.
23
2. Press (Options), and select New record to start
recording.
While recording, you can press (Pause or Cont.) to
pause or continue.
3. Press (Stop) to stop recording and save the
recorded audio.
10 Ebook Reader
Your phone supports ebooks in .txt format.
To read an ebook:
1. Select Menu > Organizer > Ebook reader to display the
bookshelf.
The phone adds ebooks stored in the Ebook folder to the
bookshelf automatically.
2. Scroll to the desired ebook.
3. Press (Options), and select Open ebook to start
reading the ebook.
You can also press (Options), and select Global
settings to configure settings such as Font size, Scroll by,
Auto scroll, and Alignment.
4. Press (Back) to stop reading.
24
When reading an ebook, press and to
turn to the previous or next page.
Ebooks are stored in the Ebook folder of your phone
or microSD card.
11 Camera
The phone features a built-in 2.0-megapixel complementary
metal-oxide-semiconductor (CMOS) camera.
To take a picture:
1. Select Menu > Multimedia > Camera, or press in
standby mode.
2. On the viewfinder screen:
Press to view pictures or configure camera
settings.
Press or to adjust the exposure.
Press or to zoom in or zoom out.
Press the 1 key to set the picture size.
Press the 2 key to set the picture quality.
Press the 4 key to set the white balance.
Press the 6 key to set the self-timer.
Press the 7 key to set continuous shooting.
25
Press to switch to simplified mode.
3. Frame the picture you want to take on the viewfinder screen,
and press to take the picture.
4. Press to save the picture, or press
(Options), and select Delete to delete the picture.
12 Audio Player
The audio player plays audio files stored in the My music
folders of your phone memory or microSD card. For the best
audio quality, use the headset provided.
To play an audio file:
1. Select Menu > Multimedia > Audio player.
The phone automatically updates the playlist.
2. Press to start playing the playlist.
When playing the playlist:
Press or to adjust the volume.
Press or to switch between audio files.
Press and hold or to rewind or fast-forward.
26
Press the button on the headset cable to switch between
audio files.
Press (List) to view the playlist, and then
(Options) to configure the playlist settings.
Press to pause or continue.
13 FM Radio
The headset cable also functions as the FM radio antenna when
the radio is turned on. To ensure good radio reception, do not
disconnect the headset from the phone or bend the headset
cable excessively.
To listen to the radio:
1. Connect the headset to the phone.
2. Select Menu > Multimedia > FM radio.
When listening to the radio:
Press to pause or continue.
Press or to adjust the volume.
Press or to adjust the frequency in increments
of 0.1 MHz.
Press and hold or to go to the previous or next
channel in the saved channel list.
27
Press (Options), and select Auto search to search
for and save channels automatically.
Press a number key to switch to the corresponding channel
in the saved channel list.
Press the button on the headset cable to switch between
channels.
Press (Options), and select Record to record the
current radio program.
Press (Options) to configure settings such as
viewing or editing the channel list, manually setting a
frequency, and searching for and saving channels
automatically.
14 Java Applications
You can install third-party Java applications to expand your
phone's application and game capabilities.
28
Not all Java applications are compatible with your
phone. If you have trouble installing or running a Java
application, press to return to standby mode, and
remove the application from your phone.
Certain Java applications require network connections.
Therefore, ensure that the General Packet Radio
Service (GPRS) connection is properly set up on your
phone.
Installing a Java Application
1. Select a Java installation file in .jar or .jad format from Phone
or Memory card, press (Options), and select
Install to start the installation.
2. Press (Yes) to confirm the certification information.
3. Select Phone or Memory card to install the Java application.
When the installation is complete, the message "Installed" is
displayed.
Running a Java Application
1. Select Menu > Fun & Games > Java.
2. Scroll to the desired Java application.
3. Press (Options), and select Launch to run the Java
application.
29
Removing a Java Application
1. Select Menu > Fun & Games > Java.
2. Scroll to the desired Java application.
3. Press (Options), and select Delete to delete the
application.
4. Press (Yes) to confirm the certification information.
When the Java application is removed, Deleted is displayed.
You can only remove Java applications you have
installed.
15 Wi-Fi (Optional)
You can use your phone's Wi-Fi feature to access Wireless
Application Protocol (WAP) sites without configuring your data
account and WAP settings.
To access WAP sites with Wi-Fi, select Menu > Connectivity >
WLAN.
After Wireless Local Area Network (WLAN) is enabled, select
Options for the following:
Connect: connect to the selected WLAN.
Add: add a WLAN manually.
Define access point: view or edit the WLAN list.
30
WLAN status: view your phone’s Media Access Control
(MAC) address.
Disable WLAN: turn off Wi-Fi.
Power Save Mode: select a power saving mode.
Refresh: display available WLANs.
16 Services
You can use your service provider's network to access WAP sites
and use WAP-based services. To browse WAP pages using your
service provider's network, you must subscribe to the data
service from your service provider and configure your phone's
relevant settings.
Contact your service provider for details about the data service
and charges.
Creating a Data Account
Before accessing WAP sites on your phone, create your data
account and configure the WAP settings.
Setting the Connection Profile
1. Select Menu > Connectivity > Data account.
2. Press (Options), and select Add PS account.
3. Configure the relevant settings based on the information
provided by your service provider.
4. Press (OK) to save the settings.
31
If the data account provided by your service provider is
already set up on your phone, you do not need to create
a new data account.
Setting Up the Data Account
1. Select Menu > WAP > Settings > Data account.
2. Select your service provider, and press (OK).
Connecting to the Internet
1. Select Menu > WAP > Input address.
2. Enter the Uniform Resource Locator (URL) of the desired
WAP site.
3. Press (Options), and select Go to to access the
WAP site.
17 Bluetooth
Your phone supports Bluetooth. You can transfer data between
your phone and other Bluetooth devices, and talk on the phone
using a Bluetooth headset.
You can turn on Bluetooth by configuring Bluetooth
settings.
32
Connecting a Bluetooth Headset to Your
Phone
1. Select Menu > Connectivity > Bluetooth > Power > On to
turn on Bluetooth.
2. Select Search audio device to search for available Bluetooth
headsets.
3. Scroll to the desired Bluetooth headset, and press
(Pair).
When you pair your phone with the device for the first time,
a password is required.
4. Enter the password to pair the Bluetooth headset with your
phone.
When the Bluetooth headset is connected to your phone,
the headset icon is displayed on the standby screen,
indicating that the headset is ready for use.
A Bluetooth headset is not included in the product
package and must be purchased separately.
Transferring Data
1. Select Menu > Connectivity > Bluetooth > Power > On to
turn on Bluetooth.
2. Select My device > Search new device to search for
available Bluetooth devices.
33
3. Scroll to the desired Bluetooth device, and press
(Pair).
4. Transfer data between your phone and the Bluetooth device.
18 SNS Applications
You can send and receive instant messages and files with our
five built-in SNS applications: Facebook chat, Facebook,
Messenger, Gtalk, and Twitter. Depending on your phone's
operating system version, these applications are provided as
either pre-set links or clients.
Check your GPRS settings before using SNS
applications.
To save chat history, ensure that a microSD card is
installed.
To log on to Twitter:
Select Menu > Fun & Games > Java > Twitter, or press
and select Twitter.
Log on to Facebook chat, Facebook, Messenger, or
Gtalk in a similar fashion.
34
19 STK
The SIM Tool Kit (STK) function is provided only by some
service providers. It allows you to send text messages, read
news, and use other applications. For details, contact your
service provider.
20 Weather
Your phone supports AccuWeather.com, an application that
provides you with the most accurate and up-to-date weather
information for your chosen city.
To launch the weather application:
1. Select Menu > Organizer > Weather, or press
(Widget) in standby mode, and then press . By
default, the first widget is weather.
2. Press (Options) to select Update, Select City,
Delete City, Settings and More Info.
Check that you have installed a SIM card before using
this application.
35
21 Warnings and Precautions
This section contains important information pertaining to the
operating instructions of your device. It also contains
information about how to use the device safely. Read this
information carefully before using your device.
Electronic Device
Power off your device if using the device is prohibited. Do not
use the device when using the device causes danger or
interference with electronic devices.
Medical Device
Follow rules and regulations set forth by hospitals and
health care facilities. Do not use your device when using the
device is prohibited.
Pacemaker manufacturers recommend that a minimum
distance of 15 cm be maintained between a device and a
pacemaker to prevent potential interference with the
pacemaker. If you are using a pacemaker, use the device on
the opposite side of the pacemaker and do not carry the
device in your front pocket.
Potentially Explosive Atmosphere
Power off your device in any area with a potentially explosive
atmosphere, and comply with all signs and instructions. Areas
that may have potentially explosive atmospheres include the
areas where you would normally be advised to turn off your
vehicle engine. Triggering of sparks in such areas could cause
36
an explosion or a fire, resulting in bodily injuries or even deaths.
Do not power on your device at refueling points such as service
stations. Comply with restrictions on the use of radio
equipment in fuel depots, storage, and distribution areas, and
chemical plants. In addition, adhere to restrictions in areas
where blasting operations are in progress. Before using the
device, watch out for areas that have potentially explosive
atmospheres that are often, but not always, clearly marked.
Such locations include areas below the deck on boats, chemical
transfer or storage facilities, and areas where the air contains
chemicals or particles such as grain, dust, or metal powders.
Ask the manufacturers of vehicles using liquefied petroleum
gas (such as propane or butane) whether this device can be
safely used in their vicinity.
Traffic Security
Observe local laws and regulations while using the device. In
addition, if using the device while driving a vehicle, comply with
the following guidelines:
Concentrate on driving. Your first responsibility is to drive
safely.
Do not talk on the device while driving. Use hands-free
accessories.
When you have to make or answer a call, park the vehicle at
the road side before using your device.
RF signals may affect electronic systems of motor vehicles.
For more information, consult the vehicle manufacturer.
37
In a motor vehicle, do not place the device over the air bag
or in the air bag deployment area. Otherwise, the device
may hurt you owing to the strong force when the air bag
inflates.
Do not use your device while flying in an aircraft. Power off
your device before boarding an aircraft. Using wireless
devices in an aircraft may cause danger to the operation of
the aircraft and disrupt the wireless telephone network. It
may also be considered illegal.
Operating Environment
Do not use or charge the device in dusty, damp, and dirty
places or places with magnetic fields. Otherwise, it may
result in a malfunction of the circuit.
The device complies with the RF specifications when the
device is used near your ear or at a distance of 1.5 cm from
your body. Ensure that the device accessories such as a
device case and a device holster are not composed of metal
components. Keep your device 1.5 cm away from your body
to meet the requirement earlier mentioned.
On a stormy day with thunder, do not use your device when
it is being charged, to prevent any danger caused by
lightning.
When you are on a call, do not touch the antenna. Touching
the antenna affects the call quality and results in increase in
power consumption. As a result, the talk time and the
standby time are reduced.
38
While using the device, observe the local laws and
regulations, and respect others' privacy and legal rights.
Keep the ambient temperature between 0°C and 40°C while
the device is being charged. Keep the ambient temperature
between 0°C to 40°C for using the device powered by a
battery.
Prevention of Hearing Damage
Using a headset at high volume can damage your hearing. To
reduce the risk of damage to hearing, lower the headset
volume to a safe and comfortable level.
Safety of Children
Comply with all precautions with regard to children's safety.
Letting the child play with your device or its accessories, which
may include parts that can be detached from the device, may
be dangerous, as it may present a choking hazard. Ensure that
small children are kept away from the device and accessories.
Accessories
Use the accessories delivered only by the manufacturer. Using
accessories of other manufacturers or vendors with this device
model may invalidate any approval or warranty applicable to
the device, result in the non-operation of the device, and cause
danger.
Battery and Charger
Unplug the charger from the electrical plug and the device
when not in use.
39
The battery can be charged and discharged hundreds of
times before it eventually wears out. When the standby time
and the talk time are shorter than the normal time, replace
the battery.
Use the AC power supply defined in the specifications of the
charger. An improper power voltage may cause a fire or a
malfunction of the charger.
Do not connect two poles of the battery with conductors,
such as metal materials, keys, or jewelries. Otherwise, the
battery may be short-circuited and may cause injuries and
burns on your body.
Do not disassemble the battery or solder the battery poles.
Otherwise, it may lead to electrolyte leakage, overheating,
fire, or explosion.
If battery electrolyte leaks out, ensure that the electrolyte
does not touch your skin and eyes. When the electrolyte
touches your skin or splashes into your eyes, wash your eyes
with clean water immediately and consult a doctor.
If there is a case of battery deformation, color change, or
abnormal heating while you charge or store the battery,
remove the battery immediately and stop using it. Otherwise,
it may lead to battery leakage, overheating, explosion, or
fire.
If the power cable is damaged (for example, the cord is
exposed or broken), or the plug loosens, stop using the
cable at once. Otherwise, it may lead to an electric shock, a
short circuit of the charger, or a fire.
40
Do not dispose of batteries in fire as they may explode.
Batteries may also explode if damaged.
Danger of explosion if battery is incorrectly replaced. Recycle
or dispose of used batteries according to the local
regulations or reference instruction supplied with your
device.
Cleaning and Maintenance
The device, battery, and charger are not water-resistant.
Keep them dry. Protect the device, battery, and charger from
water or vapor. Do not touch the device or the charger with a
wet hand. Otherwise, it may lead to a short circuit, a
malfunction of the device, and an electric shock to the user.
Do not place your device, battery, and charger in places
where they can get damaged because of collision. Otherwise,
it may lead to battery leakage, device malfunction,
overheating, fire, or explosion.
Do not place magnetic storage media such as magnetic
cards and floppy disks near the device. Radiation from the
device may erase the information stored on them.
Do not leave your device, battery, and charger in a place
with an extreme high or low temperature. Otherwise, they
may not function properly and may lead to a fire or an
explosion. When the temperature is lower than 0°C,
performance of the battery is affected.
Do not place sharp metal objects such as pins near the
earpiece. The earpiece may attract these objects and hurt
you when you are using the device.
41
Before you clean or maintain the device, power off the
device and disconnect it from the charger.
Do not use any chemical detergent, powder, or other
chemical agents (such as alcohol and benzene) to clean the
device and the charger. Otherwise, parts of the device may
be damaged or a fire can be caused. You can clean the
device and the charger with a piece of damp and soft
antistatic cloth.
Do not dismantle the device or accessories. Otherwise, the
warranty on the device and accessories is invalid and the
manufacturer is not liable to pay for the damage.
Emergency Call
You can use your device for emergency calls in the service area.
The connection, however, cannot be guaranteed in all
conditions. You should not rely solely on the device for
essential communications.
Certification Information (SAR)
This device meets guidelines for exposure to radio waves.
Your device is a low-power radio transmitter and receiver. As
recommended by international guidelines, the device is
designed not to exceed the limits for exposure to radio waves.
These guidelines were developed by the independent scientific
organization International Commission on Non-Ionizing
Radiation Protection (ICNIRP) and include safety measures
designed to ensure safety for all users, regardless of age and
health.
42
The Specific Absorption Rate (SAR) is the unit of measurement
for the amount of radio frequency energy absorbed by the
body when using a device. The SAR value is determined at the
highest certified power level in laboratory conditions, but the
actual SAR level of the device when being operated can be well
below the value. This is because the device is designed to use
the minimum power required to reach the network.
The SAR limit adopted by USA and Canada is 1.6
watts/kilogram (W/kg) averaged over one gram of tissue. The
highest SAR value reported to the FCC and IC for this device
type when tested for use at the ear is 0.930 W/kg, and when
properly worn on the body is 1.26 W/kg.
The SAR limit also adopted by Europe is 2.0 W/kg averaged
over 10 grams of tissue. The highest SAR value for this device
type when tested at the ear is 0.930 W/kg, and when properly
worn on the body is 1.26 W/kg.
FCC Statement
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by
43
turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and
receiver.
Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for
help.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Warning: Changes or modifications made to this device not
expressly approved by Huawei Technologies Co., Ltd. may void
the FCC authorization to operate this device.
Disposal and Recycling Information
This symbol on the device (and any included batteries)
indicates that they should not be disposed of as normal
household garbage. Do not dispose of your device or batteries
44
as unsorted municipal waste. The device (and any batteries)
should be handed over to a certified collection point for
recycling or proper disposal at the end of their life.
For more detailed information about the recycling of the device
or batteries, contact your local city office, the household waste
disposal service, or the retail store where you purchased this
device.
The disposal of this device is subject to the Waste from
Electrical and Electronic Equipment (WEEE) directive of the
European Union. The reason for separating WEEE and batteries
from other waste is to minimize the potential environmental
impacts on human health of any hazardous substances that
may be present.
Reduction of Hazardous Substances
This device is compliant with the EU Registration, Evaluation,
Authorisation and Restriction of Chemicals (REACH) Regulation
(Regulation No 1907/2006/EC of the European Parliament and
of the Council) and the EU Restriction of Hazardous Substances
(RoHS) Directive (Directive 2002/95/EC of the European
Parliament and of the Council). For more information about the
REACH compliance of the device, visit the Web site
www.huaweidevice.com/certification. You are recommended to
visit the Web site regularly for up-to-date information.
EU Regulatory Conformance
Hereby, Huawei Technologies Co., Ltd. declares that this device
is in compliance with the essential requirements and other
relevant provisions of Directive 1999/5/EC.
45
For the declaration of conformity, visit the website
www.huaweidevice.com/certification.
Notice: Observe the national local regulations in the location
where the device is to be used. This device may be restricted for
use in some or all member states of the European Union (EU).
Notice: This device may be operated in all member states of the
EU.
France: Outdoor use limited to 10 mW e.i.r.p. within the band
2454-2483.5 MHz.
Italy: For private use, a general authorisation is required if
WAS/RLAN’s are used outside own premises. For public use, a
general authorisation is required.
Norway: This subsection does not apply for the geographical
area within a radius of 20 km from the centre of Ny-Å lesund.
Version: 01 NO.:6011131
