G6600
GSM Mobile Phone
User Guide
Huawei Technologies Co., Ltd.
Address: Huawei Industrial Base, Bantian, Longgang, Shenzhen
518129, People's Republic of China
Tel: +86-755-28780808 Global Hotline: +86-755-28560808
E-mail: mobile@huawei.com Website: www.huawei.com
Copyright © Huawei Technologies Co., Ltd. 2009. All rights
reserved.
No part of this document may be reproduced or transmitted in any form
or by any means without prior written consent of Huawei Technologies
Co., Ltd.
The product described in this manual may include copyrighted software
of Huawei Technologies Co., Ltd and possible licensors. Customers shall
not in any manner reproduce, distribute, modify, decompile, disassemble,
decrypt, extract, reverse engineer, lease, assign, or sublicense the said
software, unless such restrictions are prohibited by applicable laws or
such actions are approved by respective copyright holders under
licenses.
Trademarks and Permissions
, HUAWEI, and are trademarks or registered trademarks of
Huawei Technologies Co., Ltd.
Other trademarks, products, services, and company names mentioned
are the property of their respective owners.
Notice
Some features of the product and its accessories described herein rely on
the software installed, capacities and settings of the local network, and
may not be activated or may be limited by local network operators or
network service providers. Thus, the descriptions herein may not exactly
match the product or its accessories you purchase.
Huawei Technologies Co., Ltd reserves the right to change or modify any
information or specifications contained in this manual without prior notice
or obligation.
NO WARRANTY
THE CONTENTS OF THIS MANUAL ARE PROVIDED “AS IS”. EXCEPT AS
REQUIRED BY APPLICABLE LAWS, NO WARRANTIES OF ANY KIND,
EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY,
RELIABILITY OR CONTENTS OF THIS MANUAL.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO CASE
SHALL HUAWEI TECHNOLOGIES CO., LTD BE LIABLE FOR ANY SPECIAL,
INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, OR LOST
PROFITS, BUSINESS, REVENUE, DATA, GOODWILL OR ANTICIPATED
SAVINGS.
Import and Export Regulations
Customers shall comply with all applicable export or import laws and
regulations and will obtain all necessary governmental permits and
licenses in order to export, re-export or import the product mentioned in
this manual including the software and technical data therein.
You can travel all around the world by using the global
roaming function of the mobile phone that supports GSM
850/900/1800/1900 MHz frequency bands.
Nimbuzz, that is, an instant messaging client enables
you to enjoy real-time communications.
By using the email client, you can send and receive
emails at anytime and anywhere, which brings you close
to the information world.
With the office software installed on the mobile phone,
you can view all types of documents without any trouble,
such as Microsoft Word, PowerPoint, Excel, and Adobe
PDF.
Bluetooth stereo music can be transmitted wirelessly
between a Bluetooth stereo headset and the mobile
phone that supports the Bluetooth Version 2.1. In this
case, you can enjoy wonderful music at any moment as
desired.
i
Table of Contents
1 Getting Start ...................................................3
Your Phone.................................................... 3
Keys and Functions ........................................ 4
Screen Icons ................................................. 5
2 Installation .....................................................7
Installing the SIM Card and Battery.................. 7
Removing the SIM Card and the Battery ........... 7
Installing the microSD Card ............................ 7
Charging the Battery...................................... 8
3 Getting Started................................................9
Phone Lock ................................................... 9
PIN and PUK.................................................. 9
Automatically Switching Between Profiles.......... 9
File Management ......................................... 10
Extra.......................................................... 10
4 Voice Services...............................................10
Making a Call............................................... 10
Answering a Call .......................................... 11
5 Text Entry .....................................................12
Changing the Text Input Modes ..................... 12
Entering English Letters................................ 12
Entering Digits............................................. 12
Entering Symbols......................................... 13
ii
6 Messaging .....................................................14
Creating and Sending a Text Message............. 14
Creating and Sending a Multimedia Message
..... 14
Creating and Sending an Email ...................... 15
7 Contacts........................................................16
Creating a Contact ....................................... 16
Searching for a Contact ................................ 16
8 Multimedia ....................................................16
Camera ...................................................... 16
Video Player................................................ 17
Audio Player................................................ 18
FM Radio..................................................... 18
Video Recorder ............................................ 20
Photo Editor ................................................ 20
Sound Recorder........................................... 21
Ebook......................................................... 21
Answer machine .......................................... 22
9 Connectivity ..................................................22
USB ........................................................... 22
Bluetooth.................................................... 23
10 WAP ............................................................25
Setting the Connection Profile ....................... 25
Connecting to the Network............................ 25
11 Warnings and Precautions...........................27
3
1 Getting Start
Your Phone

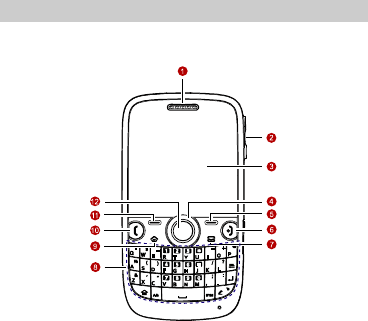

The following figure shows the appearance of your
phone and it is for your reference only.
1 Earpiece 7
Messaging key
2 Volume/Scroll key 8
Keypad
3 Screen 9
Function menu key
4 Navigation keys 10
Call/Answer key
5 Right soft key 11
Left soft key
4
6 End/Power key 12
Confirm key
Keys and Functions
Press … To …
z Make a call.
z Answer an incoming call.
z View call logs in standby mode.
z Power on or power off the phone (by
pressing and holding the key for about
3s).
z End a call or reject an incoming call.
z Return to the standby mode.
z Display Menu in standby mode.
z Select a highlighted item.
z Display Contacts in standby mode.
z Return to the previous menu.
Access Menu.
Access Messaging.
z Display Menu in standby mode.
z Confirm a selection.
5
Press … To …
Access Profiles ( ), Audio player
( ), Write message ( ), and
Camera ( ) respectively
in standby
mode.
z Enter digits, letters, and symbols.
z Call the voicemail in standby mode by
pressing and holding the 1 key for
about 3s.
z Speed-dial phone numbers in standby
mode by pressing and holding the keys
2–9 for about 3s.
z Select a submenu item labeled with the
corresponding number.
z Enable or disable the Meeting mode in
standby mode by pressing and holding
the # key for about 3s.
Screen Icons
Icon Indicates …
Signal strength.
GPRS signal.
The alert type is Ring only.
6
Icon Indicates …
The alert type is Vib. only.
The alert type is Vib. and ring.
The alert type is Vib. then ring.
The alert type is Silent.
The Bluetooth function is enabled.
The Headset profile is activated.
Missed call(s).
The call forwarding function is enabled.
A new text message is received.
A new multimedia message is received.
A new email is received.
A new push message is received.
An alarm or the schedule is activated.
The keypad is locked.
A microSD card is inserted into the phone.
Battery power level.
7
2 Installation
Installing the SIM Card and Battery
Ensure that the golden contact area on the SIM card is
facing downward, and the beveled corner is properly
aligned with the SIM card slot.
Removing the SIM Card and the
Battery
Before removing the SIM card, ensure that your phone is
powered off.
Installing the microSD Card
You can insert a microSD card to expand the memory
capacity of your phone.
8
When installing a microSD card, ensure that the golden
contact area on the microSD card is facing downwards,
and the beveled edge of the microSD card is properly
aligned with that of the card slot.
Charging the Battery
1. Connect the charger to an AC power socket.
2. Connect the charger to the charger jack on the
phone.
3. Wait until the battery is completely charged.
During the charging, the charging icon is displayed in
animation. When the charging icon becomes static,
the battery is fully charged.
4. Disconnect the charger from the phone.
5. Disconnect the charger from the AC power socket.
9
3 Getting Started
Phone Lock
The phone lock protects your phone from unauthorized
use. By default, the phone lock function is disabled. You
can change the default phone lock code (1234) into any
numeric string of four digits.
Do remember your phone lock code. If you forget it,
contact the service center.
PIN and PUK
The personal identification number (PIN) protects your
SIM card from unauthorized use. The PIN unblocking
key (PUK) can unlock the blocked PIN. Both PIN and PUK
are delivered with the SIM card. For details, contact your
service provider.
If you enter wrong PINs for a specified number of times
consecutively, the phone asks you to enter the PUK.
If you enter wrong PUKs for a specified number of times
consecutively, the SIM card is invalidated permanently.
Contact your service provider for a new one.
Automatically Switching Between
Profiles
You can set your phone to activate different profiles for
different time period. The phone can automatically
switch between profiles for a maximum of three times in
each day according to your settings.
10
1. In standby mode, select Menu > Profiles > Profile
auto switch.
2. Select a clock.
3. Set the status, time and assign profile.
4. Press (Done) to save the settings.
File Management
File Manager is used to manage multimedia information
in the phone memory or on the microSD card. This
function allows users to view current status of use of the
mobile phone and the storage cards as well as ebook,
images, photos, video and audio.
Extra
z Calculator: to perform simple calculation.
z Currency converter: to set the exchange rate, and
perform the currency converter.
z Stopwatch: to time a process.
z Java: you can download and install the java
applications and games.
z Games: you can enjoy the funny games.
z Ebook reader: to open e-books.
z Answer machine: to automatically answer the
incoming calls and record the calls.
4 Voice Services
Making a Call
11
1. In standby mode, enter the phone number.
z To make an international call, enter the international
long-distance code, country code or region code, area
code, and phone number in sequence.
z To call an extension number, enter P or W between
the phone number and the extension number.
2. Press to dial the number.
3. Press to end the call.
z You can also make a call through call logs,
contacts, and messages.
z During a call, you can press or to adjust the
volume.
Answering a Call
When there is an incoming call, you can do as follows:
z Press to answer the call.
z Press (Options) or , and then select
Answer to answer the call.
z Press to reject the call.
z Press (Silent) to mute the speaker, and
then press (Reject) again to reject the call.
z If the Any key answer function is enabled, you can
press any key except and to answer the
call.
12
5 Text Entry
Changing the Text Input Modes
The indicator of the current text input mode is displayed
in the upper left corner of the screen. You can press
and to change the text input mode.
z Press once to delete the character on the
left of the cursor. Press and hold for about
3s to clear all the letters.
z Press to enter a space.
z Press to move the cursor to the next line.
Entering English Letters
To enter a word, press the keys according to the spelling
sequence of the word.
Entering Digits
z In "123" input mode, you can directly press a number
key labeled with the desired digit.
z In "ABC", "Abc" or "abc" input mode, press and
then press the key labeled with the desired digit.
13
Entering Symbols
1. Press to display the symbol list.
2. Press to scroll to the desired symbol.
3. Press to enter the symbol.
Press and then press the keys labeled with the
commonly used symbols to enter the symbols.
14
6 Messaging
z Contact your service provider for the availability
of the Multimedia Messaging Service (MMS) and
Email, and the method of subscribing to the
services.
z Open multimedia messages and email with
caution. Objects in multimedia messages and
email may contain hazards that can damage your
phone, such as malicious software.
Creating and Sending a Text
Message
1. Select Menu > Messaging > SMS > Write
message.
2. Edit the text message.
3. Press to add the recipient(s).
You can enter the phone number of the recipient or
add the recipient through Contacts.
4. Press to send the message.
Creating and Sending a Multimedia
Message
1. Select Menu > Messaging > MMS > Write
message.
15
2. Select To, Cc or Bcc.
Add phone numbers or email addresses to be sent,
carbon copied, or blind carbon copied to.
3. Select Subject.
Edit the subject of the message.
4. Select Edit Content.
Edit the content of the message. You can add pictures,
attachments, slides, bookmarks, and audio to
multimedia messages.
5. Press (Options) and then select Done.
6. Press (Done) and then select Send.
Creating and Sending an Email
Before sending or receiving emails, you need to create
and activate an email account.
1. Select Menu > Messaging > Email > Write email.
2. Select To, Cc, or Bcc to add the email address of a
recipient.
3. Select Subject to edit the email subject.
4. Select Attachment to add an attachment.
A maximum of three attachments can be added to an
email.
5. Set the email priority.
6. Select Content to edit the text content of the email.
7. After editing the email, press (Done).
8. Press (OK) for the following options:
z Send: to send the email.
z Send and save: to send and save the email.
16
7 Contacts
Creating a Contact
1. Select Menu > Contacts > Add new contact.
2. Select To SIM or To phone for saving the contact.
3. Edit the contact.
4. Press to save the contact.
Searching for a Contact
1. Select Menu > Contacts.
2. Enter the first letter of the contact name.
3. Press to scroll to the contact.
8 Multimedia
Camera
1. Select Menu > Multimedia > Camera.
2. Press (Options), and then select to view
the photo album or set relevant parameters.
3. In camera mode, you can do as follows:
z Press to take a photo.
17
z Press to adjust brightness.
z Press to set the image size.
z Press to set the image quality.
z Press to set the white balance.
z Press to set the picture effect.
z Press to set the delay timer.
z Press to set the continue shot.
z Press to set the scene mode.
z Press to switch to video recorder.
z Press to switch to the simplified mode or exit.
Video Player
1. Select Menu > Multimedia > Video player.
2. Select a video file.
3. Press (Options) and then select Play.
You can do as follows when the video is being played:
z Press or to adjust the volume.
z Press to fast forward or rewind.
z Press or to pause/continue.
18
z Press to switch to full screen or exit.
4. Press (Stop) to stop playing the video.
Audio Player
1. Select Menu > Multimedia > Audio player.
2. Select a music file.
3. Press to play the music.
When the music is being played, you can do as
follows:
z Press or to adjust the volume.
z Press to fast forward or rewind the audio.
z Press to pause or continue.
z Press to stop playing the music.
4. Press to exit the screen of audio player and
play the audio in background.
FM Radio
Listening to the FM Radio
The headset cable functions as an antenna as well. To
ensure good reception of radio programs, do not
disconnect the headset from the phone or severely bend
the headset cable.
19
1. Connect a compatible headset to the phone.
2. Select Menu > Multimedia > FM radio.
3. On the FM radio screen, you can do as follows:
z Press to record the program, and then press
(Stop) to stop recording.
During the recording, you can press or
to pause or continue.
z Press or to adjust the volume.
z Press to activate or deactivate the tuning
mode.
z Press to change channels, or tune by 0.1 MHz
according to the tuning mode.
z Press to switch off the FM radio.
z Press (Options) to set the speaker, view
and set the channel list, adjust the frequency, or
perform other settings.
z Press (Back) to exit the FM radio screen and
play the program in background.
Schedule FM Record
1. Select Menu > Multimedia > Schedule FM record.
2. Press to select a schedule.
20
3. Perform the corresponding settings.
4. Press (Done) to save the settings.
Video Recorder
1. Select Menu > Multimedia > Video recorder.
2. Press (Options) to set relevant parameters.
3. Press to start recording a video clip.
During the recording, you can do as follows:
z Press to zoom in, and press to zoom
out.
z Press to adjust the brightness.
z Press to pause or continue.
z Press to switch to camera.
4. Press to stop recording the video.
Photo Editor
1. Select Menu > Multimedia > Image editor.
2. Press to edit Photo artist and Image tiles.
3. Edit the image.
You can adjust the image size, add the frame, seal or
text.
4. Press (Options) and then select Save as to
save the image.
21
Sound Recorder
1. Select Menu > Multimedia > Recorder.
2. Press (Options) and then select New
record.
During the recording process, press or
to pause/continue.
3. Press (Stop) to stop recording the audio
and save it.
4. Press (Options) and thenselect Play to play
the saved audio.
During the playing process, press or to
pause/continue, press to switch to the
previous or next audio clips.
Ebook
Your phone supports e-books in .txt and .pdb formats.
1. Select Menu > Extra > Ebook reader to display the
bookshelf.
The phone automatically adds the e-books stored in
the phone or on the microSD card to the bookshelf.
2. Select an e-book.
3. Press (Options), and then select from the
following options.
z Global settings: to set the font, scroll type,
encoding, and alignment.
z Open ebook: to start reading the e-book.
22
4. Press (Back) to stop reading.
z When reading an e-book, you can press
to turn the pages.
z Store e-books in the Ebook folder of the phone
or the microSD card. If you open an e-book in
another folder, the phone automatically moves
the e-book to the Ebook folder so that you can
find it easily in your next reading.
Answer machine
The phone can automatically answer the incoming calls
and save the calls through the answer machine.
1. Select Menu > Extra > Answer machine.
2. Select Settings.
You can enable or disable the auto answer function,
set the record timing and storage.
3. Press (Done) to save the settings.
9 Connectivity
USB
After connecting to the PC with USB data cable, you
phone can be used as a USB mass storage device.
You can only save the files to the corresponding folders
that are automatically created on the phone or the
23
microSD card. Because contents in only the default
folder can be read, do not create a folder by yourself.
1. Connect your phone to the PC by using the USB cable.
2. The phone is recognized as a USB mass storage
device.
3. Read the files saved in the phone memory and on
microSD card directly.
Bluetooth
Through Bluetooth, you can synchronize data between a
PC and your phone, exchange data with other Bluetooth
devices, or use a Bluetooth headset.
You can perform Bluetooth-related settings only after
enabling the Bluetooth function.
Select Menu > Settings > Connectivity > Bluetooth
> Power. Then select On to enable the Bluetooth
function.
Remote control
Using remote control function, the PC must support the
Bluetooth function.
1. Start the Bluetooth driver on the PC.
2. Pair the PC with the phone.
After pairing, you can remotely control the PC by
pressing the keypad of the phone. You can control the
desktop, media play, and presenter.
Using a Bluetooth Headset
No Bluetooth headset is delivered in the product
package. If a Bluetooth headset is required, you can buy
one.
24
1. Select Inquiry audio device to search for the
Bluetooth headset.
2. After searching, press (Pair).
3. Enter the password for pairing the Bluetooth headset.
After the phone sets up a connection with the headset,
the headset icon is displayed on the standby screen
and you can use the headset.
Transferring Data
Select My device > Inquiry new device to search for
available Bluetooth devices and then pair the phone with
the desired device. After pairing, you can transfer data
between the phone and the Bluetooth device.
When a Bluetooth device sets up a connection with the
phone for the first time, a pairing password needs to be
entered for authentication.
25
10 WAP
You can access WAP sites and use WAP-based services
on your phone. To access the WAP sites through your
phone, you need to subscribe to the corresponding
service from the service provider and set the relevant
parameters on your phone.
For details about the service and the charges, contact
your service provider.
Setting the Connection Profile
To access the WAP sites on your phone, you need to set
your account information first. The account information
is provided by your service provider.
1. Select Menu > Wap > Settings > Profiles.
2. Select your service provider.
3. Press and then select Activate profile.
4. Press to activate the profile.
Connecting to the Network
You can browse WAP pages on your phone after setting
the connection profile.
1. Select Menu > Wap.
2. Select a WAP site address in the list, or select Input
address to input an address.
3. Press (Options) and then select Go to.
The browser will display the corresponding WAP page.
26
27
11 Warnings and Precautions
This section contains important information pertaining
to the operating instructions of your device. It also
contains information about how to use the device safely.
Read this information carefully before using your device.
Electronic Device
Power off your device if using the device is prohibited.
Do not use the device when using the device causes
danger or interference with electronic devices.
Medical Device
z Follow rules and regulations set forth by hospitals and
health care facilities. Do not use your device when
using the device is prohibited.
z Pacemaker manufacturers recommend that a
minimum distance of 15 cm be maintained between a
device and a pacemaker to prevent potential
interference with the pacemaker. If you are using a
pacemaker, use the device on the opposite side of the
pacemaker and do not carry the device in your front
pocket.
Potentially Explosive Atmosphere
Power off your device in any area with a potentially
explosive atmosphere, and comply with all signs and
instructions. Areas that may have potentially explosive
atmospheres include the areas where you would
normally be advised to turn off your vehicle engine.
Triggering of sparks in such areas could cause an
28
explosion or a fire, resulting in bodily injuries or even
deaths. Do not power on your device at refueling points
such as service stations. Comply with restrictions on the
use of radio equipment in fuel depots, storage, and
distribution areas, and chemical plants. In addition,
adhere to restrictions in areas where blasting operations
are in progress. Before using the device, watch out for
areas that have potentially explosive atmospheres that
are often, but not always, clearly marked. Such
locations include areas below the deck on boats,
chemical transfer or storage facilities, and areas where
the air contains chemicals or particles such as grain,
dust, or metal powders. Ask the manufacturers of
vehicles using liquefied petroleum gas (such as propane
or butane) whether this device can be safely used in
their vicinity.
Traffic Security
Observe local laws and regulations while using the
device. In addition, if using the device while driving a
vehicle, comply with the following guidelines:
z Concentrate on driving. Your first responsibility is to
drive safely.
z Do not talk on the device while driving. Use
hands-free accessories.
z When you have to make or answer a call, park the
vehicle at the road side before using your device.
z RF signals may affect electronic systems of motor
vehicles. For more information, consult the vehicle
manufacturer.
z In a motor vehicle, do not place the device over the
air bag or in the air bag deployment area. Otherwise,
29
the device may hurt you owing to the strong force
when the air bag inflates.
z Do not use your device while flying in an aircraft.
Power off your device before boarding an aircraft.
Using wireless devices in an aircraft may cause
danger to the operation of the aircraft and disrupt the
wireless telephone network. It may also be
considered illegal.
Operating Environment
z Do not use or charge the device in dusty, damp, and
dirty places or places with magnetic fields. Otherwise,
it may result in a malfunction of the circuit.
z The device complies with the RF specifications when
the device is used near your ear or at a distance of 2.0
cm from your body. Ensure that the device
accessories such as a device case and a device holster
are not composed of metal components. Keep your
device 2.0 cm away from your body to meet the
requirement earlier mentioned.
z On a stormy day with thunder, do not use your device
when it is being charged, to prevent any danger
caused by lightning.
z When you are on a call, do not touch the antenna.
Touching the antenna affects the call quality and
results in increase in power consumption. As a result,
the talk time and the standby time are reduced.
z While using the device, observe the local laws and
regulations, and respect others' privacy and legal
rights.
30
z Keep the ambient temperature between 0°C and
55°C while the device is being charged. Keep the
ambient temperature between -10°C to 55°C for
using the device powered by a battery.
Prevention of Hearing Damage
Using a headset at high volume can damage your
hearing. To reduce the risk of damage to hearing, lower
the headset volume to a safe and comfortable level.
Safety of Children
Comply with all precautions with regard to children's
safety. Letting the child play with your device or its
accessories, which may include parts that can be
detached from the device, may be dangerous, as it may
present a choking hazard. Ensure that small children are
kept away from the device and accessories.
Accessories
Use the accessories delivered only by the manufacturer.
Using accessories of other manufacturers or vendors
with this device model may invalidate any approval or
warranty applicable to the device, result in the
non-operation of the device, and cause danger.
Battery and Charger
z Unplug the charger from the electrical plug and the
device when not in use.
z The battery can be charged and discharged hundreds
of times before it eventually wears out. When the
standby time and the talk time are shorter than the
normal time, replace the battery.
31
z Use the AC power supply defined in the specifications
of the charger. An improper power voltage may cause
a fire or a malfunction of the charger.
z Do not connect two poles of the battery with
conductors, such as metal materials, keys, or
jewelries. Otherwise, the battery may be
short-circuited and may cause injuries and burns on
your body.
z Do not disassemble the battery or solder the battery
poles. Otherwise, it may lead to electrolyte leakage,
overheating, fire, or explosion.
z If battery electrolyte leaks out, ensure that the
electrolyte does not touch your skin and eyes. When
the electrolyte touches your skin or splashes into your
eyes, wash your eyes with clean water immediately
and consult a doctor.
z If there is a case of battery deformation, color change,
or abnormal heating while you charge or store the
battery, remove the battery immediately and stop
using it. Otherwise, it may lead to battery leakage,
overheating, explosion, or fire.
z If the power cable is damaged (for example, the cord
is exposed or broken), or the plug loosens, stop using
the cable at once. Otherwise, it may lead to an
electric shock, a short circuit of the charger, or a fire.
z Do not dispose of batteries in fire as they may
explode. Batteries may also explode if damaged.
Cleaning and Maintenance
z The device, battery, and charger are not
water-resistant. Keep them dry. Protect the device,
32
battery, and charger from water or vapor. Do not
touch the device or the charger with a wet hand.
Otherwise, it may lead to a short circuit, a
malfunction of the device, and an electric shock to the
user.
z Do not place your device, battery, and charger in
places where they can get damaged because of
collision. Otherwise, it may lead to battery leakage,
device malfunction, overheating, fire, or explosion.
z Do not place magnetic storage media such as
magnetic cards and floppy disks near the device.
Radiation from the device may erase the information
stored on them.
z Do not leave your device, battery, and charger in a
place with an extreme high or low temperature.
Otherwise, they may not function properly and may
lead to a fire or an explosion. When the temperature
is lower than 0°C, performance of the battery is
affected.
z Do not place sharp metal objects such as pins near
the earpiece. The earpiece may attract these objects
and hurt you when you are using the device.
z Before you clean or maintain the device, power off the
device and disconnect it from the charger.
z Do not use any chemical detergent, powder, or other
chemical agents (such as alcohol and benzene) to
clean the device and the charger. Otherwise, parts of
the device may be damaged or a fire can be caused.
You can clean the device and the charger with a piece
of damp and soft antistatic cloth.
33
z Do not dismantle the device or accessories.
Otherwise, the warranty on the device and
accessories is invalid and the manufacturer is not
liable to pay for the damage.
Emergency Call
You can use your device for emergency calls in the
service area. The connection, however, cannot be
guaranteed in all conditions. You should not rely solely
on the device for essential communications.
Certification Information (SAR)
This mobile device meets guidelines for exposure to
radio waves.
Your device is a low-power radio transmitter and receiver.
As recommended by international guidelines, the mobile
device is designed not to exceed the limits for exposure
to radio waves. These guidelines were developed by the
independent scientific organization International
Commission on Non-Ionizing Radiation Protection
(ICNIRP) and include safety measures designed to
ensure safety for all users, regardless of age and health.
The Specific Absorption Rate (SAR) is the unit of
measurement for the amount of radio frequency energy
absorbed by the body when using a device. The SAR
value is determined at the highest certified power level
in laboratory conditions, but the actual SAR level of the
device when being operated can be well below the value.
This is because the device is designed to use the
minimum power required to reach the network.
The tests are performed in positions and locations (that
is, at the ear and worn on the body) as required by the
34
FCC for each model. For body worn operation, this
phone has been tested and meets FCC RF exposure
guidelines when the handset is positioned a minimum of
20 mm from the body with an accessory that contains no
metal part. Use of other accessories may not ensure
compliance with FCC RF exposure guidelines. The SAR
limit adopted by USA and Canada is 1.6 watts/kilogram
(W/kg) averaged over one gram of tissue. The highest
SAR value for this device type when tested at the ear is
0.803 W/kg, and when properly worn on the body is
1.39 W/kg.
The SAR limit also adopted by Europe is 2.0 W/kg
averaged over 10 grams of tissue. The highest SAR
value reported to the FCC and IC for this device type
when tested for use at the ear is 0.716 W/kg.
FCC Statement
This device has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15
of the Federal Communications Commission (FCC) rules.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.And
(2) his device must accept any interference received,
including interference that may cause undesired
operation.
Warning: Changes or modifications made to this device
not expressly approved by Huawei Technologies Co., Ltd.
may void the FCC authorization to operate this device.
Disposal and Recycling Information
35
This symbol on the device (and any included
batteries) indicates that they should not be
disposed of as normal household garbage. Do
not dispose of your device or batteries as
unsorted municipal waste. The device (and
any batteries) should be handed over to a
certified collection point for recycling or
proper disposal at the end of their life.
For more detailed information about the recycling of the
device or batteries, contact your local city office, the
household waste disposal service, or the retail store
where you purchased this device.
The disposal of this device is subject to the Waste from
Electrical and Electronic Equipment (WEEE) directive of
the European Union. The reason for separating WEEE
and batteries from other waste is to minimize the
potential environmental impacts on human health of any
hazardous substances that may be present.
Reduction of Hazardous Substances
This device is compliant with the EU Registration,
Evaluation, Authorisation and Restriction of Chemicals
(REACH) Regulation (Regulation No 1907/2006/EC of
the European Parliament and of the Council) and the EU
Restriction of Hazardous Substances (RoHS) Directive
(Directive 2002/95/EC of the European Parliament and
of the Council). For more information about the REACH
compliance of the device, visit the Web site
www.huaweidevice.com/certification. You are
recommended to visit the Web site regularly for
up-to-date information.
36
EU Regulatory Conformance
Hereby, Huawei Technologies Co., Ltd. declares that this
device is in compliance with the essential requirements
and other relevant provisions of Directive 1999/5/EC.
For the declaration of conformity, visit the Web site
www.huaweidevice.com/certification.
Notice: Observe the national local regulations in the
location where the device is to be used. This device may
be restricted for use in some or all countries of European
Union.
