Huawei Technologies G6608 GSM Mobile Phone User Manual User Guide Dual SIM 20110407
Huawei Technologies Co.,Ltd GSM Mobile Phone User Guide Dual SIM 20110407
User Guide-Dual SIM_20110407
Copyright © Huawei Technologies Co., Ltd. 2011. All
rights reserved.
Trademarks and Permissions
, , and are trademarks or
registered trademarks of Huawei Technologies Co., Ltd.
Other trademarks, product, service and company names
mentioned are the property of their respective owners.
NO WARRANTY
THE CONTENTS OF THIS MANUAL ARE PROVIDED “AS IS”.
EXCEPT AS REQUIRED BY APPLICABLE LAWS, NO WARRANTIES
OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT
NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE,
ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR
CONTENTS OF THIS MANUAL.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW,
IN NO CASE SHALL HUAWEI TECHNOLOGIES CO., LTD BE
LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR
CONSEQUENTIAL DAMAGES, OR LOST PROFITS, BUSINESS,
REVENUE, DATA, GOODWILL OR ANTICIPATED SAVINGS.
i
is a trademark of SRS Labs, Inc. WOW HD
technology is incorporated under license from SRS Labs, Inc.
WOW HD™ significantly improves the playback quality of audio,
delivering a dynamic 3D entertainment experience with deep,
rich bass and high frequency clarity for crisp detail.
i
Contents
1 Getting to Know Your Phone ................................................1
Your Phone ........................................................................................... 1
Keys and Functions ........................................................................... 2
Screen Icons......................................................................................... 4
2 Getting Started .......................................................................5
Installing the SIM Card and the Battery................................... 5
Removing the Battery and the SIM Card................................. 5
Installing a microSD Card............................................................... 6
Charging the Battery........................................................................ 6
Accessing a Function Menu .......................................................... 7
Accessing Shortcut Icons ............................................................... 7
Automatically Switching Between Profiles.............................. 8
Phone Lock ........................................................................................... 8
USB Mode............................................................................................. 9
PIN and PUK ......................................................................................10
Locking the Keypad ........................................................................10
Entertainment....................................................................................11
3 Call Functions....................................................................... 12
Making a Call.....................................................................................12
Answering a Call...............................................................................12
4 Text Input ............................................................................. 13
Changing the Text Input Mode..................................................13
ii
Traditional Input Mode..................................................................14
Predictive Input Mode...................................................................14
Number Input Mode ......................................................................15
Switching Between Input Methods..........................................15
Entering a Symbol ...........................................................................15
5 Messaging ............................................................................ 16
Writing and Sending a Text Message .....................................16
Writing and Sending a Multimedia Message......................17
6 Phonebook ........................................................................... 18
Creating a Contact ..........................................................................18
Searching for a Contact ................................................................18
Setting the Preferred Storage Location..................................19
Copying Contacts ............................................................................19
7 Multimedia ........................................................................... 20
Camera .................................................................................................20
Video Recorder.................................................................................21
Video Player.......................................................................................21
Sound Recorder................................................................................22
Audio Player.......................................................................................22
FM Radio .............................................................................................23
8 Ebook Reader ....................................................................... 24
9 Java Applications................................................................. 25
10 WAP .................................................................................... 27
Network Settings .............................................................................27
Selecting a SIM Card ......................................................................29
iii
Connecting to a Network.............................................................29
11 Bluetooth............................................................................ 30
Using a Bluetooth Headset..........................................................30
Transferring Data .............................................................................30
12 STK ...................................................................................... 31
13 Chat Functions ................................................................... 31
14 Weather .............................................................................. 32
15 Warnings and Precautions ............................................... 32
1
1 Getting to Know Your Phone
Your Phone
The following figure shows the appearance of your phone and
is provided only for your reference.
1 Earpiece 11 Input switch key
2 Screen 12 Enter key
3 Left soft key 13 Delete key
4 Call/Answer key 14 Message key
5 Menu key 15 End/Power key
6 Keypad 16 Right soft key
7 Fn key 17 OK/Confirm key
8 A/a key 18 Navigation keys
9 Space key 19 Charger jack/Universal serial
bus (USB) port
2
10 Sym key 20 Headset jack
Keys and Functions
Press … To …
Make a call in standby mode from either
Subscriber Identification Module (SIM) card
(SIM1 or SIM2).
Answer an incoming call.
View call logs of SIM1 and SIM2 cards in
standby mode.
Power on or power off the phone (by
pressing and holding the key for about 3s).
End a call or reject an incoming call.
Return to standby mode.
(Left soft key)
Access the main menu in standby mode.
Select a highlighted item.
(Right soft key)
Switch between Widget and Shortcuts
modes in standby mode.
Return to the previous menu.
Confirm a selection.
Select the desired quick icon option in
standby mode (the key can be used in four
ways, Up ( ), Down ( ), Left ( ),
and Right ( ) direction keys).
3
Press … To …
–
–
Enter numbers, letters, and symbols.
Call the voicemail in standby mode (by
pressing and holding the 1 key for about 3s).
Select a submenu by pressing the
corresponding number key.
Access Audio player in standby mode (by
pressing and holding the key for about 3s).
Enter a space in text editing mode.
Lock the keypad in standby mode (by
pressing and holding the key for about 3s).
Switch between input methods in text
editing mode.
Switch between upper case and lower case
in text editing mode.
Activate or deactivate the Meeting profile in
standby mode (by pressing and holding the
key for about 3s).
Access the FM radio in standby mode (by
pressing and holding the key for about 3s).
Display the Select symbol list in text editing
mode.
4
Screen Icons
Icon Indicates …
/ Signal strength
/ New text messages
/ New multimedia messages
/ Call forwarding activated
/ Missed call(s)
Alarms enabled
Keypad locked
Battery power level
The General/Indoor profile is enabled.
Meeting profile activated
Headset connected to the phone
Wi-Fi connected
5
2 Getting Started

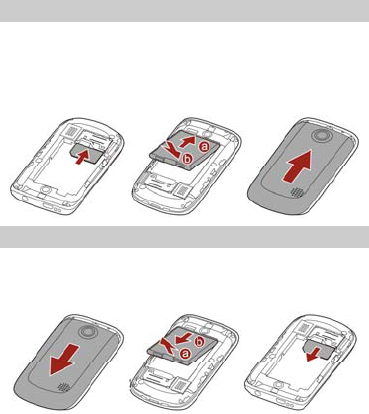

Installing the SIM Card and the Battery
You can install two SIM cards in the phone at the same time.
When installing a SIM card, ensure that the golden contact area
on the SIM card is facing downward and that the beveled edge
of the SIM card is properly aligned with that of the SIM card
slot.
Removing the Battery and the SIM Card
Before removing the battery and the SIM cards, ensure that
your phone is powered off.
6
Installing a microSD Card
Before installing or removing a microSD card, power off
the phone. Once the phone is powered on, it will indicate
whether the microSD card has been installed properly.
You can install a microSD card to expand the memory capacity
of your phone. When installing a microSD card, ensure that the
golden contact area on the microSD card is facing downward.
Charging the Battery
1. Connect the smaller end of the USB cable to the charger jack
of the phone and the larger end to the charger.
2. Connect the charger to a power socket.
7
3. Wait until the battery is fully charged.
Whilst the battery is charging, the charging icon is animated.
When the battery is fully charged, the charging icon
animation stops.
4. Disconnect the charger from the power socket and then
from the phone.
Accessing a Function Menu
1. In standby mode, press (Menu).
Press to scroll to the desired submenu, and then press
to access the submenu.
1. Press (OK), or to display the selected
menu.
2. Press or to select a submenu.
3. Press (OK) or to display the submenu.
4. Press (Back) to return to the previous menu or
exit the function menu.
To return to standby mode directly, press .
Accessing Shortcut Icons
1. In standby mode, press or to highlight a
shortcut icon.
2. Press to access the quick menu.
8
Automatically Switching Between
Profiles
Your phone can be set to activate different profiles at specified
times. The phone can automatically switch between profiles a
maximum of three times per day according to the settings.
1. In standby mode, select Menu > User Profile >
ProfileSwitchTiming.
2. Scroll to a clock.
3. Press (Edit) to set the status and time, and
assign a profile.
4. Press (Done) to save the settings.
Phone Lock
The phone lock protects your phone from unauthorized use. By
default, the phone lock function is disabled. Once the phone
lock function is enabled, the phone lock code will be required
each time you power on the phone.
To enable the phone lock function, do the following:
1. In standby mode, select Menu > Settings > Security
settings > Phone lock.
2. Enter the phone lock code, and then press
(OK).
You can change the default phone lock code (1234) to any
string of four to eight digits.
To change the phone lock code, do the following:
1. In standby mode, select Menu > Settings > Security
settings > Change password > Phone password.
9
2. Enter the old password.
3. Enter the new password twice.
Remember your phone lock code. If you forget the code,
contact the service center.
USB Mode
When the phone is connected to a PC using the USB cable,
options including Mass storage are displayed on the phone
screen.
When you select Mass storage, you can manage the files
stored on the phone and the microSD card from the PC’s File
Manager application.
The microSD card and the phone memory appear as removable
disks on the PC. You can do the following:
1. Double-click a disk to open it.
2. Copy, paste, or delete the files on the disk.
3. Disconnect the phone from the PC.
Ensure that you connect and disconnect the USB cable
properly.
Do not format the phone memory on a PC; doing so
may cause permanent damage to the phone memory.
The USB cable can be used to transfer data and charge
your phone. The PC must be running a Windows
based operating system (for example: Windows XP,
Windows 2000, Windows 7). Mac OS systems are not
supported.
10
PIN and PUK
The personal identification number (PIN) protects your SIM
card from unauthorized use. The PIN Unblocking Key (PUK) is
used to unblock a blocked PIN. Both the PIN and the PUK are
provided with the SIM card. For details, contact your service
provider.
The functions related to SIM1 and SIM2 PINs are configured
separately.
To enable the SIM1 lock function, do the following:
1. In standby mode, select Menu > Settings > Security
settings > SIM1 security settings > SIM1 lock.
2. Enter the PIN, and then press (OK).
The procedure for setting the SIM2 lock is similar to that of
setting SIM1 lock.
If you repeatedly enter an incorrect PIN, on a specified number
of consecutive attempts, the phone asks you to enter the PUK.
If you repeatedly enter an incorrect PUK, on a specified number
of consecutive attempts, the SIM card becomes permanently
invalid. In that case, contact your service provider for a new SIM
card.
Locking the Keypad
In standby mode, press and hold for about 3s to lock the
keypad. To unlock the keypad, press (Unlock), and
then .
If the Auto keypad lock function is enabled, the phone locks
the keypad automatically after it is idle for a preset period. To
11
enable the Auto keypad lock function, select Menu > Settings
> Security settings > Auto keypad lock, select a preset
duration, and then press (OK) to confirm the
selection.
When the keypad is locked, you can press to
answer an incoming call or make an emergency call.
Entertainment
Camera: to take photos.
Image viewer: to view the photos stored on the phone or
the microSD card.
Audio player: to play audio files stored on the phone or the
microSD card.
Video player: to play videos stored on the phone or the
microSD card.
Sound recorder: to record audio.
Video recorder: to record video.
FM radio: to listen to radio programs.
Ebook reader: to read the ebooks stored on the phone or
the microSD card.
Fun & Games: to provide games and fun.
FaceBook and Twitter: to use social network services.
12
3 Call Functions
Making a Call
1. In standby mode, enter a phone number.
To make an international call, press to enter the plus
sign (+), and then enter the country or region code, area
code, and phone number in sequence.
To dial an extension number, enter the phone number, press
to enter P or press then to enter W, and then
enter the extension number.
2. Press to dial the number from either SIM card (SIM1
or SIM2).
3. Press to end the call.
You can also make calls from call logs, contacts, and
messages.
During a call, press or to adjust the
volume, and you can also press or to adjust
the volume.
Answering a Call
When there is an incoming call:
Press to answer the call.
13
Press (Answer) to answer the call.
Press to reject the call.
Press (Mute) to mute the phone. Then press
(Reject) to reject the call, or press
(Answer) to answer the call.
If the Any key answer function is enabled, you can press any
key except and to answer an incoming
call.
You can set the Any key answer function in General,
Outdoor, Headset or Bluetooth profiles. For example,
select Menu > User Profile > General > Customize >
Answer mode > Any key to enable the Any key answer
function for the General profile.
4 Text Input
Changing the Text Input Mode
An icon indicating the current text input mode is displayed in
the upper left corner of the screen. You can press to switch
between the following modes.
Icon Text Input Mode
abc Multi-tap input mode
eZi abc Predictive input mode
14
Icon Text Input Mode
123 Number input mode
Press (Clear) or once to delete the
character to the left of the cursor. Press and hold
(Clear) for about 3s to clear all the
characters at once, or press and hold to delete
the characters one by one.
In any text input mode, press to enter a
space.
In any text input mode, press to start a new
paragraph.
Traditional Input Mode
In traditional input mode, enter a letter by pressing the key
labeled with the desired letter.
Predictive Input Mode
In predictive input mode, do the following to enter a word:
1. Press the keys, labelled with the letters required to spell the
desired word, once.
As you enter letters, the phone attempts to predict the
desired word and displays candidate words.
2. Press to scroll to the desired word.
15
Press or to scroll in the left or right direction
and press or to turn a page.
3. Press to enter the desired word.
Number Input Mode
In number input mode, press the number key labeled with the
desired digit.
Switching Between Input Methods
To quickly switch between input methods:
Press to switch between the traditional input mode,
predictive input mode and number input mode.
Press to switch between upper case and lower case.
Entering a Symbol
In any text input mode, do the following to enter a symbol with
the QWERTY keypad:
Using to Enter a Symbol
To enter only one symbol, press once and then the key
labeled with the desired symbol.
To enter multiple symbols, press twice and then the
keys labeled with the desired symbols.
Using to Enter a Symbol
1. Press to display the symbol list.
16
2. Press to scroll to the desired symbol. Press or
to scroll left or right and press or to
scroll up or down.
3. Press to enter the symbol.
5 Messaging
Writing and Sending a Text Message
1. Select Menu > Message > Write message, or press
in standby mode.
2. Write the message.
3. Press (Options), and then select Send to or
press .
4. Select Enter recipient to manually enter the recipients’
phone numbers, or select Add from Phonebook to add the
desired contacts from the phonebook.
5. Press to send the message; or press
(Options) for the following options:
Send: to send the message to the recipient.
Save: to save the message to Outbox and exit the message
editing screen.
17
Writing and Sending a Multimedia
Message
1. Select Menu > Message > Write message, or press
in standby mode.
2. Write the message.
3. Press (Options) for the following options:
Switch to MMS: to change from a text message to a
multimedia message.
If you select Add picture, Add sound, Add video, or Add
subject, the phone automatically changes a text message to
a multimedia message.
Add picture: to add a picture to the message.
Add sound: to add an audio file to the message.
Add video: to add a video to the message.
Add subject: to add a subject to the message.
You can also add slides to the message, preview the message,
and set the playing interval between two slides.
4. After editing the message, press , or press
(Options) and then select Send to.
5. Select Enter recipient to manually enter the recipients'
phone numbers, or select Add from Phonebook to add the
desired contacts from the phonebook.
6. Press to send the message; or press
(Options) for the following options:
Send: to send the message.
18
Change to To: to send the message to recipients.
Change to Cc: to copy the message to recipients.
Change to Bcc: to blind copy the message to recipients.
Save to Drafts: to save the message to Drafts.
Contact your service provider for the availability of the
Multimedia Messaging Service (MMS) and subscription
method.
Your phone supports a maximum multimedia message
size of 300 KB.
Open multimedia messages with caution. Objects in
multimedia messages may contain malicious software
(such as viruses) that can damage your phone.
6 Phonebook
Creating a Contact
1. Select Menu > Phone Book > Add new contact.
2. Select To SIM1, To SIM2, or To ph one to set the storage
location to which the contact will be saved.
3. Enter the contact information.
4. Press (OK) or to save the contact.
Searching for a Contact
1. Select Menu > Phone Book.
19
2. Enter several letters of the name until the desired contact
appears, or press or to scroll to the desired
contact.
Setting the Preferred Storage Location
To set the preferred storage location where new contacts are
stored:
1. Select Menu > Phone Book.
2. Press (Options), and then select Phonebook
settings > Preferred storage.
3. Select SIM1, SIM2, Phone, or All.
4. Press (OK) to confirm the selection.
Copying Contacts
You can copy contacts to the phone, SIM1, or SIM2 memories.
Copying One Contact
1. Select Menu > Phone Book.
2. Press or to scroll to the desired contact.
3. Press (Options), and then select Copy.
4. Select the storage location To phone , To S IM 1, To SIM2, or
To f il e to copy the contact to the desired location.
5. Press (OK), and then press (Yes)
to confirm the operation.
Copying All Contacts
1. Select Menu > Phone Book.
20
2. Press (Options), and then select Phonebook
settings > Copy contacts.
3. Press or to scroll to the desired option, such as
SIM1 to phone or Phone to SIM1.
4. Press (OK), and then press (Yes)
to copy the contacts to the desired location.
7 Multimedia
Camera
The phone is equipped with a built-in 3.0-megapixel
complementary metal-oxide-semiconductor (CMOS) camera.
1. Select Menu > Media Center > Camera to launch the
camera.
2. On the viewfinder screen:
Press to view photos or configure relevant
settings.
Press or to adjust brightness.
Press to zoom in or to zoom out.
Press the 1, 2, 4, 6, 7, or 8 key to configure the
corresponding settings quickly.
Press to switch to simple mode.
3. Focus the camera on the scene, and then press to take
a photo.
21
Press (Save) to save the photo and return to the
viewfinder to take another photo, or press
(Delete) to delete the photo.
Video Recorder
To record a video:
1. Select Menu > Media Center > Video recorder.
2. Press to start recording.
During video recording:
Press to access the video recorder settings.
Press to pause or continue.
Press or to adjust brightness.
Press to zoom in or to zoom out.
Press to stop recording and save the video as
prompted.
Video Player
The video player can play downloaded or recorded videos that
are saved in File Manager > Phone > Video or File Manager
> Memory card > Video.
To play a video:
1. Select Menu > Media Center > Video player.
2. Press and to select a video.
3. Press (Options), and then select Play to access
the video playback screen.
22
4. During video playback:
Press and to adjust the volume.
Press or to rewind or fast-forward the video.
Press to pause or continue.
5. Press (Stop) to stop playing the video.
The video player supports the files in .mp4 and .3gp
formats. Playback of files in other formats may fail.
Sound Recorder
The phone’s sound recorder can function as a digital recorder.
To record an audio file:
1. Select Menu > Media Center > Sound recorder.
2. Press (Options), and then select New record.
During the recording, press (Pause/Cont.) or
to pause or continue.
3. Press (Stop) to stop recording and save the
recorded audio file as prompted.
Audio Player
The audio player plays audios that are stored in My music in
the phone memory or on the microSD card. It is recommended
that you listen to audios using the headset to enjoy enhanced
quality sound.
23
1. In standby mode, select Menu > Media Center > Audio
player, or press and hold for about 3s to access
the menu.
2. Press to start playing an audio.
During audio playback,:
Press and to adjust the volume.
Press or , or press the button on the headset
cable to switch between audios.
Press (List) to view the audio list, and then
press (Options) to configure player settings.
3. Press to pause or continue.
The audio player supports files in .mp3, .AMR and .aac
formats. Playback of files in other formats may fail.
FM Radio
The headset cable also functions as the FM radio antenna. To
ensure reception of radio programs, do not disconnect the
headset from the phone or unnecessarily bend or twist the
headset cable.
1. Connect the headset to the phone.
2. In standby mode, select Menu > Media Center > FM radio,
or press and hold for about 3s.
When listening to a radio program, you can do the
following:
24
Press to turn on or off the radio.
Press and to adjust the volume.
Press or to adjust the frequency in steps of 0.1
MHz.
Press the number key to switch to the corresponding
channel based saved in the Channel list.
Press the button on the headset cable to switch between
channels.
Press (Options), and then select Record to
record a radio program.
Press (Options) to view or edit the channel list,
manually enter a frequency, automatically search for and
save channels, and configure relevant settings.
8 Ebook Reader
Your phone supports ebooks in .txt format.
1. Select Menu > Organizer > Ebook reader to access the
bookshelf.
The phone automatically adds the ebooks stored in Ebook
on the phone or on the microSD card to the bookshelf.
2. Select an ebook.
3. Press (Options) for the following options:
Open ebook: to start reading the ebook.
25
Global settings: to set the Font size, Scroll by, Encoding,
Alignment, and other relevant settings.
4. Press (Back) to stop reading the ebook.
When reading an ebook, you can press and
to turn pages.
It is recommended that you store ebooks in Ebook on
the phone or on the microSD card. When you open an
ebook stored in other folders other than Ebook, the
phone automatically moves the ebook to Ebook, so
that you can find it easily the next time you read.
9 Java Applications
Java allows you to install Java applications provided by
third-party operators to enrich your phone use experience.
Not all Java applications are compatible with your
phone. If you have trouble in installing or running a
Java application, press to return to the standby
screen, and then remove the application from your
phone.
Ensure that the General Packet Radio Service (GPRS) is
available when you install Java applications that
require network connections.
26
Installing a Java Application
To install a Java application on your phone:
1. Save the Java installation files in .jar or .jad format to the
phone or the memory card.
2. Select a Java installation file, press (Options),
and then select Install to start the installation.
3. Press (Yes) to confirm the certification
information.
4. Select a location to install the Java application: Phone or
Memory card.
When the installation is successful, the message Installed is
displayed.
Running a Java Application
1. Select Menu > Fun & Games > Java.
2. Select an installed application, and then press
(Options).
3. Select Launch to run the application.
Deleting or Removing a Java Application
To delete or remove a Java application from your phone:
1. Select Menu > Fun & Games > Java.
2. Select an installed application, and then press
(Options).
3. Select Delete to delete the application.
4. Press (Yes) to confirm the certification
information.
27
When the deletion is successful, the message Deleted is
displayed.
10 WAP
You can access Wireless Application Protocol (WAP) sites and
use WAP-based services on your phone. To access WAP sites on
your phone, you must subscribe to the corresponding service
from your service provider and set the relevant parameters on
your phone.
For details about the services and charges, contact your service
provider.
Network Settings
Before accessing WAP sites, you must set your data account
and WAP parameters on your phone.
Setting a Data Account
1. Select Menu > Settings > Connectivity > Data account.
2. Press (Options), and then select Add.
3. Set the parameters based on the information obtained from
your service provider.
4. Press (Done) to save the settings.
If the data account provided by your service provider
already exists, you do not need to create a data account.
28
Connecting to a Wi-Fi Network
1. Select Menu > Settings > Connectivity > Wi-Fi.
2. You can do the following:
Enable Wi-Fi: to enable the Wi-Fi function on your phone.
Wi-Fi status: to view your phone’s MAC address and other
relevant information if Wi-Fi is enabled.
Search for networks: to search for available wireless LAN
networks.
Access point settings: to view or edit the list of the wireless
LAN networks to which you have connected. You can also
manually enter relevant parameters to connect the phone to
a new wireless LAN network.
Setting the WAP Profile
1. Select Menu > WAP > Settings > Profiles.
2. Select SIM1 or SIM2.
3. Select Add new.
4. Set the Internet parameters based on the information
provided by your service provider.
5. Press (Done) to save the settings.
6. Select your service provider, press (Options),
and then select Activate profile.
29
If the profile supported by your service provider
already exists, select the profile, press
(Options), and then select Activate profile.
Select Menu > Settings > Connectivity > Wi-Fi >
Access point settings to ensure the phone has
connected to an available wireless LAN network and
then activate the Wi-Fi profile.
Selecting a SIM Card
You can select a SIM card with which to connect to the network.
Only one SIM card can be used each time you access the
network.
To select a SIM card:
1. Select Menu > WAP > Settings > Select SIM.
2. Select Always ask, SIM1, or SIM2.
3. Press (OK) to save the setting.
Connecting to a Network
1. Select Menu > WAP > Input address.
2. Enter a Uniform Resource Locator (URL) address.
3. Press (Options), and then select Done to
access the WAP site.
30
11 Bluetooth
Using Bluetooth, you can exchange data between your phone
and other Bluetooth devices, and use a Bluetooth headset.
Before using the Bluetooth function, configure the
Bluetooth settings.
Using a Bluetooth Headset
No Bluetooth headset is included in the product package. If you
want to use a Bluetooth headset, you must purchase it
separately.
1. Select Menu > Settings > Connectivity > Bluetooth >
Power. Press (On) to turn on Bluetooth.
2. Select Inquiry audio device to search for available
Bluetooth devices.
3. Select the desired Bluetooth headset, and then press
(Pair).
4. Enter the password for pairing the Bluetooth headset with
the phone.
After the phone is connected to the headset, the headset icon is
displayed on the standby screen, indicating that you can use
the headset.
Transferring Data
1. Select Menu > Settings > Connectivity > Bluetooth >
Power. Press (On) to turn on Bluetooth.
31
2. Select My device > Inquiry new device to search for
available Bluetooth devices.
3. Pair the phone with the desired device.
When a Bluetooth device is connected to the phone for the
first time, you must enter a pairing password for verification.
4. After pairing, exchange data between your phone and the
Bluetooth device.
12 STK
The SIM Tool Kit (STK) function is available only if it is provided
by your SIM card. STK is a value-added service provided by
your operator, which allows you to send text messages, view
news, and use other applications. For further details, contact
your network operator.
13 Chat Functions
The built-in chat applications, Facebook and Twitter, on your
phone allow you to send instant messages and files on the
move.
To launch Facebook:
1. Select Menu > Fun & Games > FaceBook > Start.
2. Enter your email account and password.
The method for launching Twitter is similar to that for launching
Facebook.
32
Check your GPRS settings before using the chat
applications.
Before saving chat history, ensure that a microSD card
has been inserted in the phone.
14 Weather
Your phone supports AccuWeather.com, an application that
provides you the most localized and accurate weather
information for your chosen city.
To launch the weather application:
1. Select Menu > Weather, or press (Widget) in
standby mode, and then press .
2. Press (Options) to select Update, Select City,
Delete City, Settings and More Info.
Check whether you have installed the SIM card or
connected to a Wi-Fi network before using the
AccuWeather.com application.
15 Warnings and Precautions
This section contains important information pertaining to the
operating instructions of your device. It also contains
33
information about how to use the device safely. Read this
information carefully before using your device.
Electronic Device
Power off your device if using the device is prohibited. Do not
use the device when using the device causes danger or
interference with electronic devices.
Medical Device
Follow rules and regulations set forth by hospitals and
health care facilities. Do not use your device when using the
device is prohibited.
Pacemaker manufacturers recommend that a minimum
distance of 15 cm be maintained between a device and a
pacemaker to prevent potential interference with the
pacemaker. If you are using a pacemaker, use the device on
the opposite side of the pacemaker and do not carry the
device in your front pocket.
Potentially Explosive Atmosphere
Power off your device in any area with a potentially explosive
atmosphere, and comply with all signs and instructions. Areas
that may have potentially explosive atmospheres include the
areas where you would normally be advised to turn off your
vehicle engine. Triggering of sparks in such areas could cause
an explosion or a fire, resulting in bodily injuries or even deaths.
Do not power on your device at refueling points such as service
stations. Comply with restrictions on the use of radio
equipment in fuel depots, storage, and distribution areas, and
chemical plants. In addition, adhere to restrictions in areas
where blasting operations are in progress. Before using the
34
device, watch out for areas that have potentially explosive
atmospheres that are often, but not always, clearly marked.
Such locations include areas below the deck on boats, chemical
transfer or storage facilities, and areas where the air contains
chemicals or particles such as grain, dust, or metal powders.
Ask the manufacturers of vehicles using liquefied petroleum
gas (such as propane or butane) whether this device can be
safely used in their vicinity.
Traffic Security
Observe local laws and regulations while using the device. In
addition, if using the device while driving a vehicle, comply with
the following guidelines:
Concentrate on driving. Your first responsibility is to drive
safely.
Do not talk on the device while driving. Use hands-free
accessories.
When you have to make or answer a call, park the vehicle at
the road side before using your device.
RF signals may affect electronic systems of motor vehicles.
For more information, consult the vehicle manufacturer.
In a motor vehicle, do not place the device over the air bag
or in the air bag deployment area. Otherwise, the device
may hurt you owing to the strong force when the air bag
inflates.
Do not use your device while flying in an aircraft. Power off
your device before boarding an aircraft. Using wireless
devices in an aircraft may cause danger to the operation of
35
the aircraft and disrupt the wireless telephone network. It
may also be considered illegal.
Operating Environment
Do not use or charge the device in dusty, damp, and dirty
places or places with magnetic fields. Otherwise, it may
result in a malfunction of the circuit.
The device complies with the RF specifications when the
device is used near your ear or at a distance of 1.5cm from
your body. Ensure that the device accessories such as a
device case and a device holster are not composed of metal
components. Keep your device 1.5 cm away from your body to
meet the requirement earlier mentioned.
On a stormy day with thunder, do not use your device when
it is being charged, to prevent any danger caused by
lightning.
When you are on a call, do not touch the antenna. Touching
the antenna affects the call quality and results in increase in
power consumption. As a result, the talk time and the
standby time are reduced.
While using the device, observe the local laws and
regulations, and respect others' privacy and legal rights.
Keep the ambient temperature between 0°C and 40°C while
the device is being charged. Keep the ambient temperature
between 0°C to 40°C for using the device powered by a
battery.
36
Prevention of Hearing Damage
Using a headset at high volume can damage your hearing. To
reduce the risk of damage to hearing, lower the headset
volume to a safe and comfortable level.
Safety of Children
Comply with all precautions with regard to children's safety.
Letting the child play with your device or its accessories, which
may include parts that can be detached from the device, may
be dangerous, as it may present a choking hazard. Ensure that
small children are kept away from the device and accessories.
Accessories
Use the accessories delivered only by the manufacturer. Using
accessories of other manufacturers or vendors with this device
model may invalidate any approval or warranty applicable to
the device, result in the non-operation of the device, and cause
danger.
Battery and Charger
Unplug the charger from the electrical plug and the device
when not in use.
The battery can be charged and discharged hundreds of
times before it eventually wears out. When the standby time
and the talk time are shorter than the normal time, replace
the battery.
Use the AC power supply defined in the specifications of the
charger. An improper power voltage may cause a fire or a
malfunction of the charger.
37
Do not connect two poles of the battery with conductors,
such as metal materials, keys, or jewelries. Otherwise, the
battery may be short-circuited and may cause injuries and
burns on your body.
Do not disassemble the battery or solder the battery poles.
Otherwise, it may lead to electrolyte leakage, overheating,
fire, or explosion.
If battery electrolyte leaks out, ensure that the electrolyte
does not touch your skin and eyes. When the electrolyte
touches your skin or splashes into your eyes, wash your eyes
with clean water immediately and consult a doctor.
If there is a case of battery deformation, color change, or
abnormal heating while you charge or store the battery,
remove the battery immediately and stop using it. Otherwise,
it may lead to battery leakage, overheating, explosion, or
fire.
If the power cable is damaged (for example, the cord is
exposed or broken), or the plug loosens, stop using the
cable at once. Otherwise, it may lead to an electric shock, a
short circuit of the charger, or a fire.
Do not dispose of batteries in fire as they may explode.
Batteries may also explode if damaged.
Danger of explosion if battery is incorrectly replaced. Recycle
or dispose of used batteries according to the local
regulations or reference instruction supplied with your
device.
38
Cleaning and Maintenance
The device, battery, and charger are not water-resistant.
Keep them dry. Protect the device, battery, and charger from
water or vapor. Do not touch the device or the charger with a
wet hand. Otherwise, it may lead to a short circuit, a
malfunction of the device, and an electric shock to the user.
Do not place your device, battery, and charger in places
where they can be damaged because of collision. Otherwise,
it may lead to battery leakage, device malfunction,
overheating, fire, or explosion.
Do not place magnetic storage media such as magnetic
cards and floppy disks near the device. Radiation from the
device may erase the information stored on them.
Do not leave your device, battery, and charger in a place
with an extreme high or low temperature. Otherwise, they
may not function properly and may lead to a fire or an
explosion. When the temperature is lower than 0°C,
performance of the battery is affected.
Do not place sharp metal objects such as pins near the
earpiece. The earpiece may attract these objects and hurt
you when you are using the device.
Before you clean or maintain the device, power off the
device and disconnect it from the charger.
Do not use any chemical detergent, powder, or other
chemical agents (such as alcohol and benzene) to clean the
device and the charger. Otherwise, parts of the device may
be damaged or a fire can be caused. You can clean the
device and the charger with a piece of damp and soft
antistatic cloth.
39
Do not dismantle the device or accessories. Otherwise, the
warranty on the device and accessories is invalid and the
manufacturer is not liable to pay for the damage.
Emergency Call
You can use your device for emergency calls in the service area.
The connection, however, cannot be guaranteed in all
conditions. You should not rely solely on the device for
essential communications.
Certification Information (SAR)
This device meets guidelines for exposure to radio waves.
Your device is a low-power radio transmitter and receiver. As
recommended by international guidelines, the device is
designed not to exceed the limits for exposure to radio waves.
These guidelines were developed by the independent scientific
organization International Commission on Non-Ionizing
Radiation Protection (ICNIRP) and include safety measures
designed to ensure safety for all users, regardless of age and
health.
The Specific Absorption Rate (SAR) is the unit of measurement
for the amount of radio frequency energy absorbed by the
body when using a device. The SAR value is determined at the
highest certified power level in laboratory conditions, but the
actual SAR level of the device when being operated can be well
below the value. This is because the device is designed to use
the minimum power required to reach the network.
The SAR limit adopted by USA and Canada is 1.6
watts/kilogram (W/kg) averaged over one gram of tissue. The
highest SAR value reported to the FCC and IC for this device
40
type when tested for use at the ear is 0.912 W/kg, and when
properly worn on the body is 0.851 W/kg.
The SAR limit also adopted by Europe is 2.0 W/kg averaged
over 10 grams of tissue. The highest SAR value for this device
type when tested at the ear is Z.ZZZ W/kg, and when properly
worn on the body is S.SSS W/kg.
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the condition that this device does not cause harmful
interference.
This mobile device meets guidelines for exposure to radio
waves. Your mobile device is a radio transmitter and receiver. It
is designed not to exceed the limits for exposure to radio waves
recommended by international guidelines.
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
41
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following
measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for
help
Warning: Changes or modifications made to this device not
expressly approved by Huawei Technologies Co., Ltd. may void
the FCC authorization to operate this device.
EU Regulatory Conformance
Hereby, Huawei Technologies Co., Ltd. declares that this device
is in compliance with the essential requirements and other
relevant provisions of Directive 1999/5/EC.
For the declaration of conformity, visit the Web site
www.huaweidevice.com/certification.
42
Notice: Observe the national local regulations in the location
where the device is to be used. This device may be restricted for
use in some or all member states of the European Union (EU).
Version: 01 NO.: 6010547
