Users Manual Part II
User Manual
Aolynk VDR824 ADSL2+ VoIP Broadband Router/
Aolynk VDR824g ADSL2+ VoIP Wireless Broadband Router 5 Advanced Configuration
54
g can
us
achment Setting] page. You can bind the Ethernet port
arameters for PVC.
I.
ports)
d out by different access servers improve
ecurity and stability of the system and ease the load of BASs remarkably.
n also configure an Ethernet port as a management port to manage devices. You
onfiguration management page of your VDR824/824g through a host
that is connected to the management port. By default, the four LAN ports of the
D
5 Advanced Configuration
After you complete the proceeding configuration correctly, the VDR824/824
access all Internet services. This chapter introduces how to configure the advanced
functions of the VDR824/824g to enhance the performances, thereby satisfying vario
demands on network configuration.
5.1 Binding LAN Ports to PVCs
Click [LAN/PVC] to enter the [Att
to a PVC and set the corresponding QoS p
PVC Binding Settings
With the PVC binding function, you can bind any of the four Ethernet ports (LAN
to any of the four upstream PVCs. Each PVC bridges data from the bound Ethernet port
to the broadband access server (BAS) to accommodate different Internet services
through different Ethernet ports. Services such as the Internet accessing,
video-on-demand (VOD), and IPTV carrie
s
You ca
can access the c
V R824/824g are all the management ports.
User Manual
Aolynk VDR824 ADSL2+ VoIP Broadband Router/
Aolynk VDR824g ADSL2+ VoIP Wireless Broadband Router 5 Advanced Configuration
55
Figure 5-1 PVC Binding Settings
As Figure 5-1 shows, there are five options for each Ethernet port (LAN1 to LAN4) in
the drop-down list: Attached to PVC1/2/3/4 and Attached to Router (Default).
Upon the configuration of these LAN ports, you need to click <Apply> to save your
configuration and have it take effect. Then in the [PVC Setting] section set VPIs/VCIs
for the corresponding PVCs. Values of VPI/VCI are provided by your ISP. Click <Apply>
in this section to save your configuration.
Caution:
z You can manage your VDR824/824g only through the PC connected to
management port or the USB port.
z If all the four Ethernet ports are configured to be bound to PVCs, you can still ac
the
ort. Refer to section 8
“Appendix - USB Configuration” for more information about the USB port.
T
s
cess
the configuration management page through the USB p
z he VPI/VCI values of different PVCs cannot be identical with each other or the
ame as those on the other configuration pages.
The umption:
z Bind a LAN port to PVC 0/35 to access the IPTV Website that your ISP set up. The
Website uses DHCP to assign IP addresses dynamically.
following example illustrates the configuration upon the ass
User Manual
Aolynk VDR824 ADSL2+ VoIP Broadband Router/
Aolynk VDR824g ADSL2+ VoIP Wireless Broadband Router 5 Advanced Configuration
56
rts
ISP
ct the
fault
as that
ince
for them.
z Bind other two LAN ports to PVC 0/100, and the PCs connecting to these po
access the Internet through PPPoE dial-up connections.
z Route the last LAN port to access the Internet and apply NAT-enabled PPPoE
service on this port. Bind it to PVC 8/35. The user name and password your
assigns are username and myPassword respectively.
Follow these steps to achieve the settings on your VDR824/824g.
1) On the [Ethernet Port Attachment Setting] page (see Figure 5-2), sele
Attached to PVC1 option from the LAN1 drop-down list to bind LAN1 to PVC1
and bind LAN2 and LAN3 to PVC2 in the same way. Leave the LAN4 de
setting Attached to Router untouched. Click the <Apply> to save your
configuration.
2) In the [PVC Setting] section, set 0/35 as the VPI/VCI value of PVC1, 0/100
of PVC2.Click <Apply> in the [PVC Setting] section to save your settings. S
you do not use PVC3 and PVC4 here, there is no need to specify VPI/VCI values
ment Setting page Figure 5-2 Actual configuration on the Attach
3) Click <Quick Setup> in the navigation bar and select the PPPoE Login option on
the [WAN Connections] page. Set the values of VPI and VCI to 8 and 35
respectively, type userName, myPassword, and myPassword in the PPPoE
Username, PPPoE Password, and PPPoE Password (confirm) text boxes
respectively and then click <Apply> to save your settings.
User Manual
Aolynk VDR824 ADSL2+ VoIP Broadband Router/
Aolynk VDR824g ADSL2+ VoIP Wireless Broadband Router 5 Advanced Configuration
57
re 5-4 depicts these
Click <Status> in the
-48. You can find
d of the original one
nnected to the LAN4
Figure 5-3 Set the PPPoE authentication information
4) It takes about two minutes for your settings to take effect. Figu
settings. Actual configuration on the WAN connections page
navigation bar to bring up the [Status] page as shown in Figure 4
that the WAN IP Address item is a public IP address instea
0.0.0.0. Then you can access the Internet through a PC co
port.
l settings on the Status page
ding of the LAN ports to the PVCs. Connect a PC which is configured
IP address automatically to the LAN1 port. You can then access the
Figure 5-4 Actua
5 the bin
to obtain an
IPTV Website of your ISP. Similarly, connect PCs to the LAN2 and LAN3 ports and
access the Internet by PPPoE connection. After you enter the user name and
password, the PC can obtain an IP address quickly and set up a connection with
the Website.
) Verify
User Manual
Aolynk VDR824 ADSL2+ VoIP Broadband Router/
Aolynk VDR824g ADSL2+ VoIP Wireless Broadband Router 5 Advanced Configuration
58
II. QoS configuration
For the upstream
a ous tra
A
se ng t
This ensures high ance QoS.
C S Settin
[QoS Config] pag
packets over an ADSL line, your VDR824/824g supports multiple
nsfer mode (ATM) services, such as CBR, VBR-rt, VBR, UBR, and
vides different measures, caching space, scheduling priorities, and
o allocate appropriate bandwidth to ATM services of different types.
-perform
synchron
BR. DR814Q pro
rvice shapi
lick <Qo g…> in the [PVC Setting] section as shown in Figure 5-1 to enter the
e of a corresponding PVC as below.
Figure 5-5 QoS Config page
You can set different ATM service types for specified PVCs from the ATM Traffic Class
-down list and configure QoS parameters for the selected service type. For more
mation, refer to Table 5-1.
drop
infor
ls
Tab e 5-1 Description of commonly used ATM service type
Service type Description
UBR
(unspecified
bit rate)
Suitable for services that are not real-time-critical and with large
burst traffic. UBR demands best-effect services on the network
side. When applying for services, you are not required to set QoS
parameters except for PCR, which limits the upper rate. The
network side does not guarantee Qo
will be discarded first in a network co
S for UBR services. UBR cells
ngestion. Error correction is
carried out by upper-layer protocols. Typical applications are FTP
and E-mail.
User Manual
Aolynk VDR824 ADSL2+ VoIP Broadband Router/
Aolynk VDR824g ADSL2+ VoIP Wireless Broadband Router 5 Advanced Configuration
59
Service type Description
CBR highest priority. This type of service ca
Su
(constant bit
rate) application. The source can transmit cells at a negotiated PCR or a
rate lower than it. T
itable for services that require static bandwidth and demand the
n provide stable traffic with
the minimum burst. Only PCR parameter is needed for CBR service
ypical applications are circuit and emulated
voice.
VB
(re ces allow limited
n be different at
arameters required for VBR-rt service
application include PCR, SCR, and MBS or BT. Typical VBR-rt
applications are voice and interactive video services and IPTV.
R-rt
al-time
Sensitive to delay and jitter of data flow. Similar to CBR except that
they are delay- and jitter-sensitive. VBR-rt servi
burst. The transmission rate on source side ca
variable bit
different time. The p
rate)
VBR
(non-real-time
variable bit
rate)
Suitable for bursting non-real-time services. Compared to VBR-rt, a
distinct feature of VBR services is that demands of real-time are not
so crucial, and the priority for service data processed on the
network side is also lower than that of VBR-tithe parameters
required by VBR services include PCR, SCR, and MBS (or BT), the
same as that of VBR-rt.
Keep 0 unchanged for those options unrelated to the configuration. As shown in Figure
5-5, if VBR-rt is selected from the ATM Traffic Class drop-down list, you need to set
values for Peak Cell Rate, Max Burst Size, and Sustainable Cell Rate and leave 0 in the
Burst Tolerance and Minimum Cell Rate text boxes.
An example is taken to explain how to configure ATM QoS parameters. You must
configure to meet the following requirements for the ATM QoS parameters of your
VDR824/824g to take effect:
z The digital subscriber line access multiplexer (DSLAM) has a relax control or even
port and PVC upstream rates, entirely depending on the
ADSL line. The actual upstream rate of ADSL can be 896 Kbps at most if DSLAM
eam rate of each PVC is strictly specified by the central office (CO),
whereas the upstream rates of the PVCs are all configured to 896 Kbps.PVC1 and
e configured on each ADSL line, among which you use PVC1 to access the
Internet and PVC2 to provide video chatting service.
at the CO, audio and video services carried out over them may still be interfered. For
example, an uploading service, which consumes a bandwidth lager than 500 Kbps,
bursts on PVC1 when a video conference, which requires a minimum bandwidth of 384
Kbps for both upstream and downstream rates, is carried out over PVC2. This results in
no control over the LAN
supports ADSL only.
z Multiple PVCs are configured on a single ADSL line.
Suppose that:
The downstr
PVC2 ar
Analysis:
Although an upstream rate of 896 Kbps is configured to PVC1 and PVC2 respectively
User Manual
Aolynk VDR824 ADSL2+ VoIP Broadband Router/
Aolynk VDR824g ADSL2+ VoIP Wireless Broadband Router 5 Advanced Configuration
60
ilable bandwidth for PVC2 less than 384 Kbps, thus causing the audio and video
service interrupted.
1) Click <QoS Setting…> in the [PVC Setting] section as shown in Figure 5-1 to enter
6000,
the ava
To avoid this, configure the QoS parameters as follows:
the [QoS Config] page of PVC2.
2) Select the VBR-rt option from the ATM Traffic Class drop-down list.
3) Set Peak Cell Rate to 2000 (approximately 800 Kbps), Max Burst Size to
and Sustainable Cell Rate to 1000 (approximately 400 Kbps).
4) Click <Apply> to save your settings.

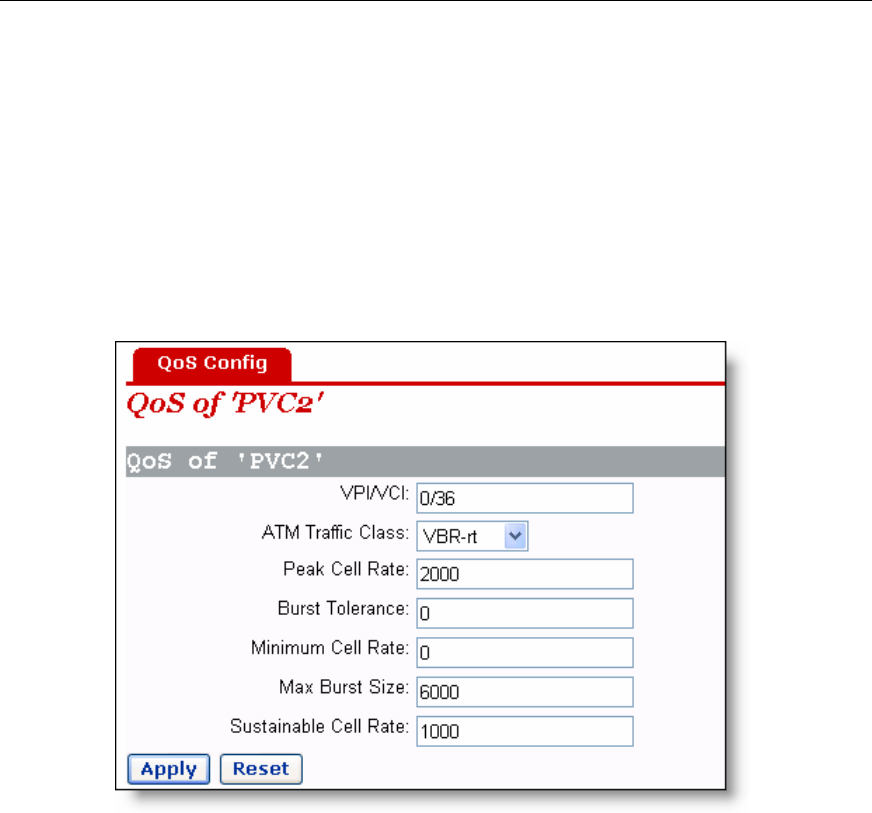

Figure 5-6 QoS configuration
For PVC1, keep the default UBR settings unchanged. Thus, PVC1 can occupy all the
pstream bandwidth when there is no traffic on PVC2, and PVC2 can always be
guaranteed with an average bandwidth of 400 Kbps for audio and video services over it.
ensures normal upload over PVC1 and non-interrupted real-time communication
over
5.2 Secur
li
are olicy, Trigger and IDS. Click any tab to enter your desired
uration page.
u
This
PVC2.
ity
C ck [Security] in the navigation bar to enter the corresponding page where four tabs
available: Interface, P
config
User Manual
Aolynk VDR824 ADSL2+ VoIP Broadband Router/
Aolynk VDR824g ADSL2+ VoIP Wireless Broadband Router 5 Advanced Configuration
61
5.2.1 Int
security function and configure security interfaces.
erface
Every firewall policy is intended for access between security interfaces. This page
allows you to enable the
I. c
enable/di
Like ch operation can also be used to enable/disable the firewall and intrusion
Figure 5-7 Add a security interface
Se urity state
To sable the security function, select the corresponding Enabled/Disabled
option, and then click <Change State>.
wise, su
detection.
Caution:
z You can enable the firewall, intrusion detection and NAT only when the security
function is enabled.
z If the security function is disabled, the firewall, intrusion detection and NAT are also
necessarily disabled.
User Manual
Aolynk VDR824 ADSL2+ VoIP Broadband Router/
Aolynk VDR824g ADSL2+ VoIP Wireless Broadband Router 5 Advanced Configuration
62
y level
After the firewall is enabled, the [Security Level] drop-down list appears in the [Security
II. Securit
Level] section as below.

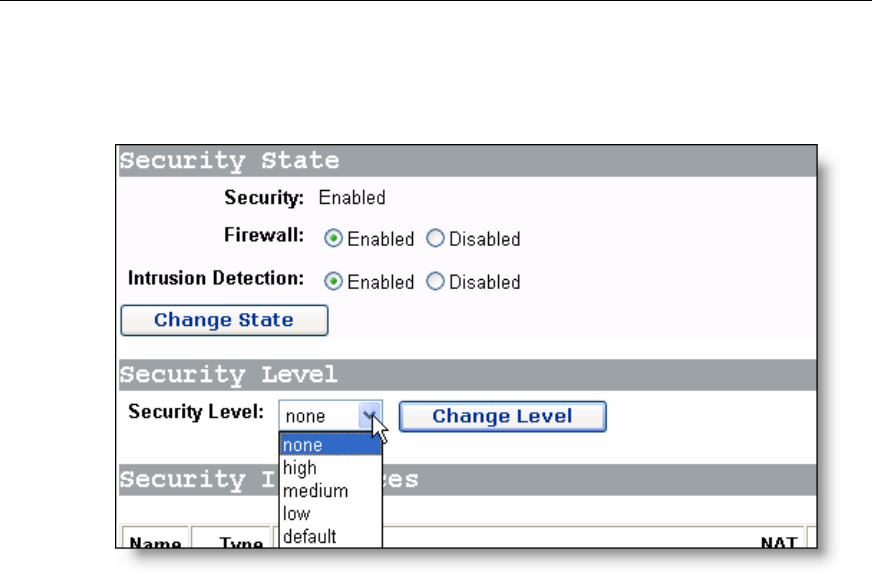

Figure 5-8 Security Level drop-down list
This drop-down list includes the following options:
z none: (default setting) Indicates that the external and internal users have n
access right.
z high: Indicates that the internal users have some access rights and the extern
users have no access right.
z medium: Indicates that the external and internal users have more access right
z low: Indicates that the external and internal users have the maximum access
rights.
z default: Indicates that the internal users can access all the Internet services
o
al
s.
external users are prevented to access the internal network
curity level, select an option from the drop-down list, and
then click <Change Level>.
, the
To set the corresponding se
User Manual
Aolynk VDR824 ADSL2+ VoIP Broadband Router/
Aolynk VDR824g ADSL2+ VoIP Wireless Broadband Router 5 Advanced Configuration
63
Caution:
z By default, the none security level is not configured with port filtering policies. In th
case, internal users cannot access all the Internet services, and the internal netwo
cannot be accessed from the outside, either. To enable the access right to a service
you need to configure the corresponding port policy. For details, refer to se
5.2.2 “Policy”.
z The default port filtering policies are configured to the security levels except
After a security level is set, the corresponding policy appears on the port filteri
is
rk
,
ction
none.
ng
u can also configure a policy manually as needed. For details, refer to page. Yo
section 5.2.2 “Policy”.
I. Security interface II
rity
rity
d you
You can establish the corresponding firewall policy between a group of secu
interfaces. The security interface table lists the information about existing secu
interfaces. By default, the VDR824/824g defines all interfaces as security ones an
cannot create a new security interface any more. If you have created a virtual interface
(refer to section 4.3.1 “LAN”), <Add Interface…> appear on the page as below.
Figure 5-9 Security interface
In this case, you can add a security interface by clicking <Add Interface…> to enter the
page as below.
User Manual
Aolynk VDR824 ADSL2+ VoIP Broadband Router/
Aolynk VDR824g ADSL2+ VoIP Wireless Broadband Router 5 Advanced Configuration
64
Figure 5-10 Security – add an interface
Select an interface type, external, internal or DMZ from the [Interface Type]
drop-down list, and then click <Apply>.The configured interface has been added to the
n the [Security Interfaces] section as below. security interface table o
Figure 5-11 Security interface table
To delete a security interface, click the corresponding <Delete Interface…> button,
then click <Delete> on the [Delete Interface] page.
and
User Manual
Aolynk VDR824 ADSL2+ VoIP Broadband Router/
Aolynk VDR824g ADSL2+ VoIP Wireless Broadband Router 5 Advanced Configuration
65

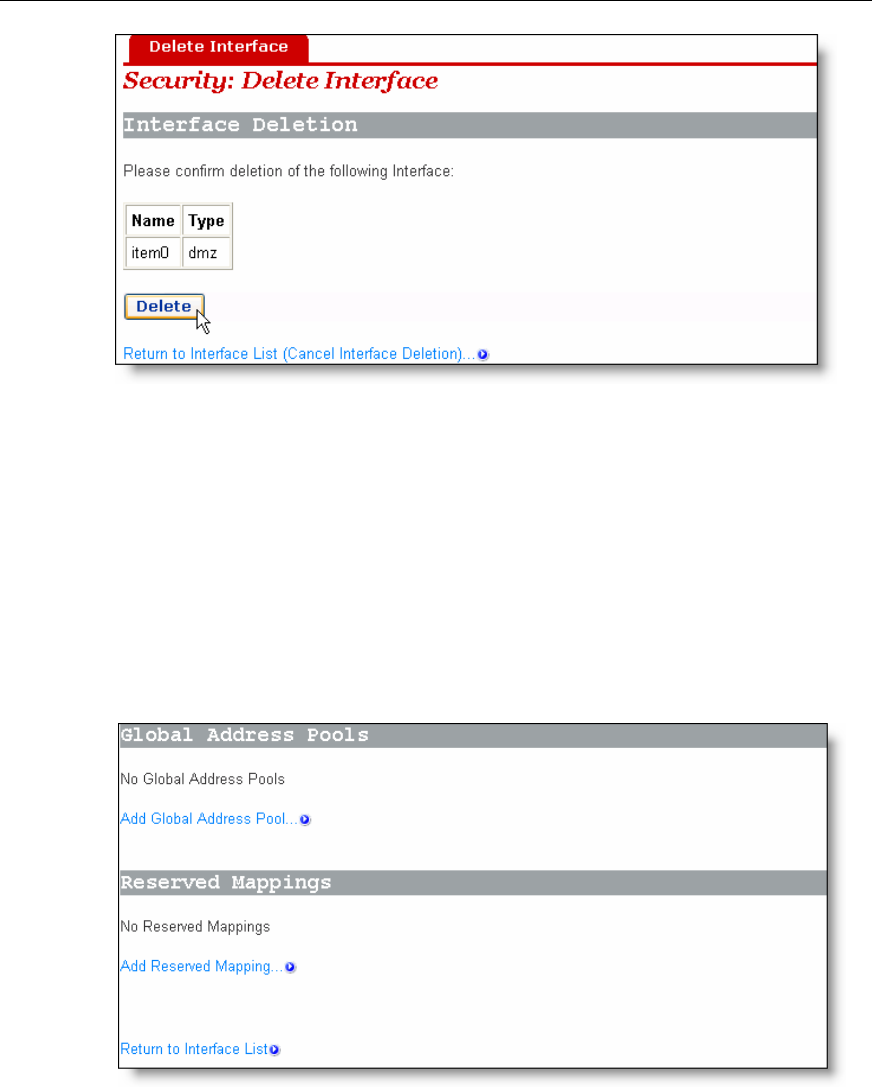

Figure 5-12 Delete a security interface
IV
The N chnology can translate an intern ress into a valid public IP
address, and thus
Y t page as shown in Figure 5-11 to enable/disable
NAT between the
a
c ge
. NAT configuration
AT te al private add
PCs in the LAN can share a public IP address for network access.
hree buttons on theou can click the
three types of interfaces. After the NAT is enabled, you can perform
nfiguration. Click <Advanced NAT Configuration…> to enter the
as below.
dvanced NAT co
onfiguration pa
Figure 5-13 Advanced NAT configuration
1) Global address pool
This page allows you to add a public IP address obtained from your ISP to the global
address pool. After NAT is enabled, internal addresses are randomly translated to an
unused address in this pool.
User Manual
Aolynk VDR824 ADSL2+ VoIP Broadband Router/
Aolynk VDR824g ADSL2+ VoIP Wireless Broadband Router 5 Advanced Configuration
66
To add a public IP address or an address pool, click <Add Global Address Pool…> to
enter the configuration page as below.
Table 5-2 Description on
Figure 5-14 Add a global IP address pool
the items of the global IP address pool
Item Description
Interface Type Select the int
rerface type corresponding to a public IP address from
op-down list.
the d
Use Subne
Configuration
Select the m
e U
segme ess Range option indicates to specify a
range
t
Th ethod to specify the address from the drop-down list.
se Subnet Mask option indicates to specify a network
nt. The Use IP Addr
of the IP address.
IP Address optio
Type
n
Addre
in the IP address of a segment if the Use Subnet Mask
is selected. Type in the start IP address if the Use IP
ss Range option is selected.
Subnet
Mask/IP
Address2
Type i t Mask
option i
Addre
n the subnet mask of the segment if the Use Subne
s selected. Type in the end IP address if the Use IP
ss Range option is selected.
Click <Add Global Addre
will be added to the addr
) Virtual server
cessed from the
rvice requests
through port number and forward them to the virtual server.
To configure a virtual server, click <Add Reserved Mapping…> in the [Reserved
Mappings] section (see Figure 5-13) to enter the page as below.
ss Pool> after the configuration is complete. This IP address
ess pool.
2
After NAT is enabled, the internal network devices cannot be ac
Internet. To provide public services such as Web server, Email and FTP for the outside,
a virtual server needs to be configured to make the network computer with private static
IP address provide these services. Although the internal service address cannot be
accessed by external users directly, the VDR824/824g can identify se
User Manual
Aolynk VDR824 ADSL2+ VoIP Broadband Router/
Aolynk VDR824g ADSL2+ VoIP Wireless Broadband Router 5 Advanced Configuration
67
igure 5-15 Virtual server configuration page
scription on the items of the virtual server
F
Table 5-3 De
Item Description
Global that the
can typ
The default address, 0.0.0.0, can be reserved which means
address obtained from the WAN port is used. Or you
e in the address from the global address pool.
IP
Address
Internal Type in the IP address of internal PC providing application
services.
Transport Type Select the protocol type for the application service from the
drop-down list.
External Port Range
Most application services forward inbound and outbound
packets through the same port. In this case, you can just
configure Start and End as this port number. But some
application services forward inbound and outbound packets
respectively through different ports. In this case, you need to
type in the port range used by the inbound packets.
Internal Port Range
packets through the same port. In this case, you can just
configure Start and End as this port number. But som
application services forward inbound and outbound packet
respectively through different ports. In this case, you need to
type in the port range used by the outbound packets.
Most application services forward inbound and outbound
e
s
Click <Add Reserved Mapping> after the configuration is complete.
Example: To configure the PC with the address 192.168.1.100 as a virtual se
provide an FTP service for the outside (with the port number 21), refer to the
configuration in Figure 5-16. Thus, all FTP requests from the Internet users will be
forwarded to the PC (server) with the fixed IP address 192.168.1.100.
rver to
User Manual
Aolynk VDR824 ADSL2+ VoIP Broadband Router/
Aolynk VDR824g ADSL2+ VoIP Wireless Broadband Router 5 Advanced Configuration
68
Figure 5-16 Example of the virtual server configuration
Note:
NAT can work between:
z External interface and internal interface
z External interface and DMZ
z DMZ and internal interface.
Security policy is a rule set to limit inbound and outbound data between differen
5.2.2 Policy
t types
s. The VDR824/824g provides a powerful security module to support the
etween external and internal interfaces, between external
interface and DMZ, and between DMZ and internal interface respectively, thereby
of interface
firewall policies configured b
satisfying various demands on network security. The firewall must be enabled before
the creation of a policy.
Figure 5-17 Security policy configuration
User Manual
Aolynk VDR824 ADSL2+ VoIP Broadband Router/
Aolynk VDR824g ADSL2+ VoIP Wireless Broadband Router 5 Advanced Configuration
69
)
the
I. Port filter
You can configure the port filtering policy to limit the data transmission of a protocol
type.
To configure a group of interfaces (suppose external interface and internal interface
with the port filtering policy, click the corresponding <Port Filters…> button to enter
page as below.

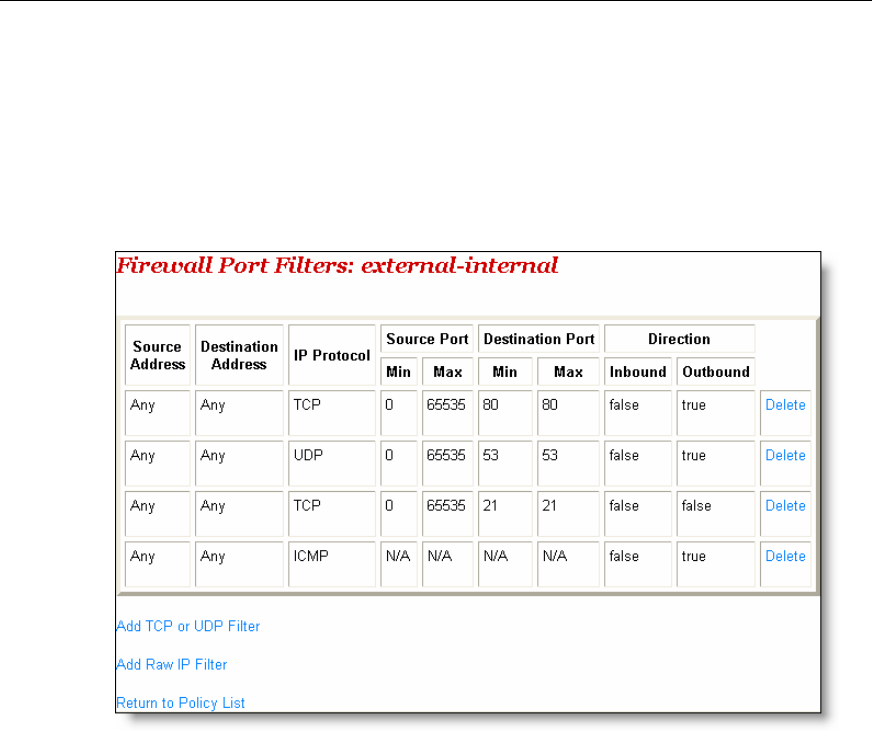

er Figure 5-18 Firewall port filt
T ists the currently
display the corresponding port filtering policies. Other types of packet requests not
configured with cies
T te a pol c
confirm on the popup page.
T y for the port
enter the page
his page l configured policies. Select different firewall security level to
the poli
icy, click the
will be blocked by the firewall.
orresponding <Delete> button, and then click <Delete> too dele
o add a polic number of the protocol, click <Add TCP or UDP Filter> to
as below.
User Manual
Aolynk VDR824 ADSL2+ VoIP Broadband Router/
Aolynk VDR824g ADSL2+ VoIP Wireless Broadband Router 5 Advanced Configuration
70
Figure 5-19 TCP/UDP port filtering policy
Table 5-4 Description on the items of TCP/UDP port filter
Item Description
IP Type in the source IP address. The default address
Address 0.0.0.0 indicates any node on the network.
Source
address Mask Type in the subnet mask of the source. The default mask
0.0.0.0 indicates any node on the network.
IP
Address
Type in the destination IP address. The default a
0.0.0.0 indicates any node on the network and is usual
reserved.
ddress
ly
Destination
address
Mask Type in the subnet mask of the destination. The defa
mask 0.0.0.0 indicates any node on the network an
usually reserved.
ult
d is
Protocol Select a protocol type (TCP or UDP) from the drop-d
list and apply the filtering policy to the packet
type.
own
s of this
Source
port Range
Start-End
Type in the port range of the source. The default ra
from 0 to 65535 indicates any node and is us nge
ally u
reserved.
Destination
port Range
Start-End parameter needs to be set. For exam
services, type in the correspo
Type in the port range of the destination. Generally, this
ple, to control Web
nding port number 80. To
control FTP services, type in the port number 21.
Inbound The direction of inbound data. Select Allow to permit
external hosts to access internal hosts. Select Block to
forbid external hosts to access internal hosts.
Direction
Outbound Block to
forbid internal hosts to access external hosts.
The direction of outbound data. Select Allow to permit
internal hosts to access external hosts. Select
User Manual
Aolynk VDR824 ADSL2+ VoIP Broadband Router/
Aolynk VDR824g ADSL2+ VoIP Wireless Broadband Router 5 Advanced Configuration
71
Click <Apply> after the configuration is complete. This policy will be added to the list of
port filtering policies.
Example: If yo in
p 0), but do not want the external users to access the internal HTTP server,
y rform the configu
u want the ternal users to access the external HTTP server (with the
ort number 8
ou can pe ration as below.
Figure 5-20 Example of the
To add a policy for a protoco er the page
s below.
port filtering configuration
l, click <Add Raw IP Filter> in Figure 5-18 to ent
a
Figure 5-21 Filtering policy based on the protocol type
Table 5-5 Description on the items of the filtering policy
Item Description
IP Type in the source IP address. The default addre
the network. ss
Address 0.0.0.0 indicates any node on
Source
address k Type in the subnet mask of the source. The default mask
0.0.0.0 indicates any node on the network.
Mas
User Manual
Aolynk VDR824 ADSL2+ VoIP Broadband Router/
Aolynk VDR824g ADSL2+ VoIP Wireless Broadband Router 5 Advanced Configuration
72
Item Description
IP
Addre
Type in the destination IP address. The default address
ss 0.0.0.0 indicates any node on the network and is usually
reserved.
Destination
address
Mask Type in the subnet mask of the destination. The defa
mask 0.0.0.0 indicates any node on the network an
usually reserved.
ult
d is
IP Protocol Number or
name
Type in a protocol name or number and apply this
filtering policy to the packets of this type. The prot
name can be TCP, UDP or ICMP. For other protoc
you need to type in their protocol numbers. For examp
type in 2 for IGMP, and 46 for RSVP.
ocol
ols,
le,
Inbound The direction of inbound data. Select Allow to permit
external hosts to access internal hosts. Select Block
forbid external hosts to access internal hosts. to
Direction
Outbound The directio
inte n of outbound data. Select Allow to permit
rnal hosts to access external hosts. Select Block to
forbid internal hosts to access external hosts.
Click <Apply> after the configuration is complete. This policy will be added to the list of
port filtering policies.
Example: By default, the external hosts are not allowed to ping the WAN port even if the
security level is set to low. To allow the internal hosts and external hosts to ping each
other, you can perform the configuration as below.
Figure 5-22 Example of the filtering policy for a protocol (2)
II. ators
By specifying the IP figuring the corresponding policy, you can restrict
e access right of a host or hosts on a network segment.
Host valid
address and con
th
User Manual
Aolynk VDR824 ADSL2+ VoIP Broadband Router/
Aolynk VDR824g ADSL2+ VoIP Wireless Broadband Router 5 Advanced Configuration
73
To configure host validators to a group of interfaces, click the corresponding <Host
Validators…> button in the [Current Security Policies] section (see Figure 5-17) to enter
the page as below.
Figure 5-23 Host validators page
To add a host validator policy, click <Add Host Validator…> to enter the page as below.
Figure 5-24 Configure a host validator
Table 5-6 Description on the items of the host validator
Item Description
Host IP Address Type in the IP address of the host or network segment to be
restricted.
Host Subnet
Mask Type in the subnet mask of the host or network segment to be
restricted.
Direction
Select the direction of data transmission. Select inbound to
block the inbound data only. Select outbound to block the
outbound data only. Select both to block both inbound data and
outbound data.
User Manual
Aolynk VDR824 ADSL2+ VoIP Broadband Router/
Aolynk VDR824g ADSL2+ VoIP Wireless Broadband Router 5 Advanced Configuration
74
Example: To block a host with the IP address 192.168.1.10 in the LAN to access an
, and permit the external users to access this host, you can perform
the configuration as below, and then click <Apply>.
external network

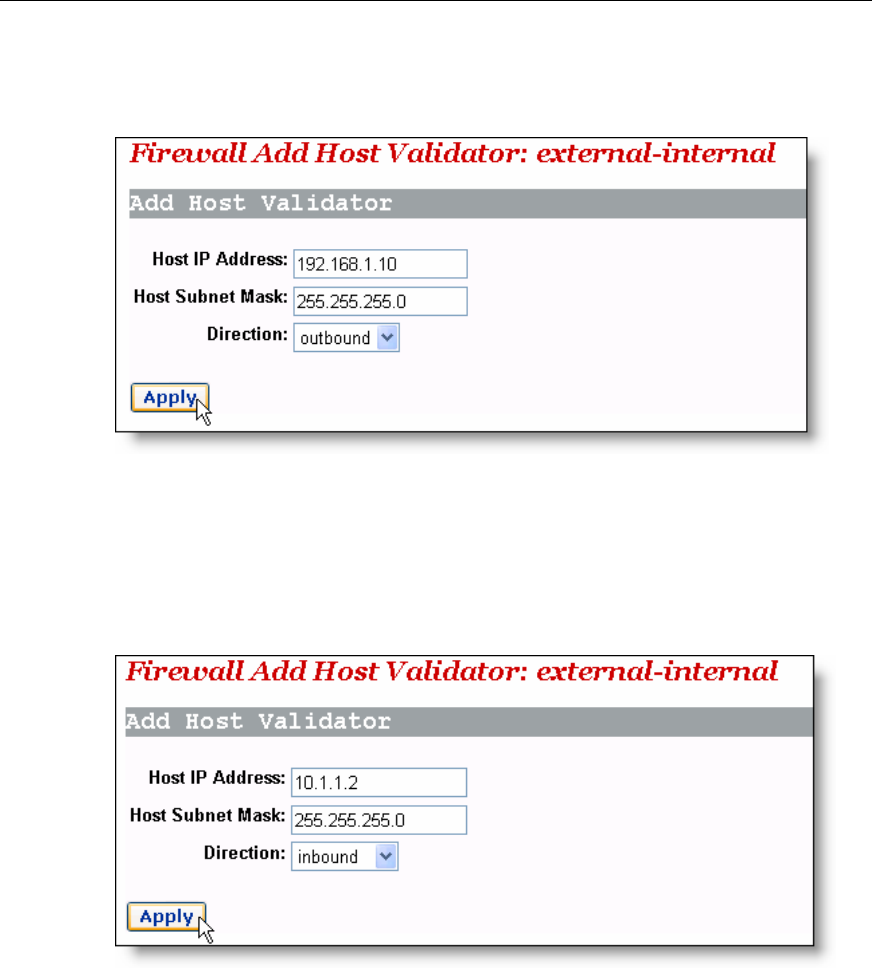

Figure 5-25 Example of the host validator configuration (1)
Example: If you find a suspicious host (with the IP address 10.1.1.2) in an external
al network, you can set the host validator policy as below to block its attack on the intern
host.
he host validator configuration (2)
st, and
the address 10.1.1.2 to the internal host while
Figure 5-26 Example of t
As shown in Figure 5-26, inbound is selected from the [Direction] drop-down li
thus the device only block the data from
the internal host can still send data to the address 10.1.1.2.
User Manual
Aolynk VDR824 ADSL2+ VoIP Broadband Router/
Aolynk VDR824g ADSL2+ VoIP Wireless Broadband Router 5 Advanced Configuration
75
Caution:
z The host validator can be used to limit the data stream between the WAN and LA
ports.
z The security policy takes effect only when the firewall is enabled.
N
5.2.3 Trigger
al with application protocols that set up separate
sessions. Some application protocols, such as NetMeeting, open the primary sessions
rmal operations. The trigger
tells the security mechanism to handle these se ns and instruct it how to
handle ger handles the situatio , allowing the secondary
s n a
the firewall.
A security trigger is used to de
and secondary connections at the same time during the no
condary sessio
n dynamicallythem. The trig
essions only whe ppropriate. These newly triggered sessions are not restricted by
trigger Figure 5-27 Security
T llows you
z
z
z Delete an existing security trigger.
T secu below.
his page a to:
View the informa
Create a new se
tion in the current security trigger list.
curity trigger and add it to the current security trigger list.
o create a new rity trigger, click <New Trigger> to enter the page as
User Manual
Aolynk VDR824 ADSL2+ VoIP Broadband Router/
Aolynk VDR824g ADSL2+ VoIP Wireless Broadband Router 5 Advanced Configuration
76
of the security trigger
Figure 5-28 Add a security trigger
Table 5-7 Description on the items
Item Description
Transport Type From the drop-down list, select a transport type (TCP or UDP)
to which the newly added trigger is specified.
Port Number Start Type in the start of the trigger port range that the primary
session uses.
Port Number End Type in the end of the trigger port range that the primary
session uses.
Secondary Port Type in the
Number Start start of the trigger port range that the secondary
session uses.
Secondary Port
Number End Type in the end of the trigger port range that the secondary
session uses.
Allow Multiple
Hosts
Select Allow if you want a secondary session to be initiated by
different remote hosts. Select Block if you want a secondary
session to be initiated only by one remote host.
Max Activity
Interval Type in the maximum activity interval (in milliseconds) for
secondary port sessions after the primary session starts.
Enable Session
Chaining Select Allow or Block to determine whether the multi-level
TCP session chaining is accepted or not.
Enable UDP
Select Allow or Block to determine whether the multi-level
UDP session chaining is accepted or not.
Session Chaining enable the session chaining. Before this, you must
Binary Address Select Allow or Block to determine whether
Replacement to use the binary
address replacement on the current trigger or not.
Address
Translation Type Specify the address replacement type on a trigger. Before this,
you must set the binary address replacement to Allow.
Click <Apply> after the configuration is complete. The [Security Trigger Configuration]
page is displayed, containing details of the trigger that you have just configured.
User Manual
Aolynk VDR824 ADSL2+ VoIP Broadband Router/
Aolynk VDR824g ADSL2+ VoIP Wireless Broadband Router 5 Advanced Configuration
77
To delete an existing security trigger, click the corresponding <Delete> button in Figure
5-27 and then click <Delete>.

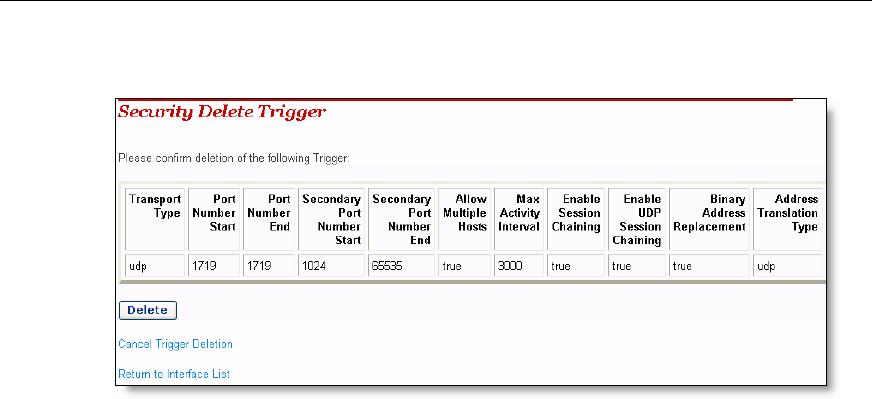

Figure 5-29 Delete a security trigger
In fact, the VDR824/824g has provided an Application Level Gateway (ALG) for
eting. NetMeeting applications can be also normal even if the port trigger is not
ured. The following example is taken to show how to configure a port trigger if the
to the LAN interface of the VDR824/824g, and you want
have an audio/video chat with Internet users, and to apply
m sharing.
connection is
established, NetMeeting needs to re-enable the TCP 1503 port to use whiteboard and
program sharing. NetMeeting also needs to enable any port of TCP and UDP protocols
within the range of 1024 to 65535 to transmit audio and video signals. After the firewall
is enabled, you can configure the port filtering policies and virtual servers of TCP and
UDP protocols to all ports within the range. In this way, Internet users can actively call a
LAN user during the use of NetMeeting. However, possible omission in configuring the
filtering policy and virtual server may cause the failure of the audio/video chat
establishment. Moreover, the virtual server configuration exposes almost all the LAN
host ports to the Internet, resulting in the insecurity of the host.
To solve these problems, you can perform the configuration as below to make the TCP
1720 port trigger TCP/UDP port within the range of 1024 to 65535.
NetMe
config
VDR824/824g does not provide the ALG for NetMeeting.
Suppose your PC is connected
to use NetMeeting to
whiteboard and progra
Analysis:
A NetMeeting call is established on the TCP 1720 port. After the
User Manual
Aolynk VDR824 ADSL2+ VoIP Broadband Router/
Aolynk VDR824g ADSL2+ VoIP Wireless Broadband Router 5 Advanced Configuration
78
a LAN
ackets
ke the
re the
5) and
5.2.4 IDS
e the

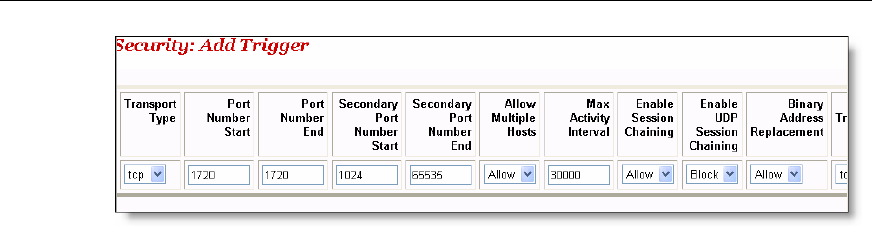

Figure 5-30 Example of the trigger configuration
In this way, all applications provided by NetMeeting can be used normally after
user calls the Internet user and you can just add the access policy suitable for p
on the TCP 1720 port on the corresponding page (see Figure 5-19).To ma
Internet users call LAN users and use NetMeeting normally, you can just configu
virtual server on the TCP 1720 port on the corresponding page (see Figure 5-1
combine it with the port trigger mentioned previously.
IDS protects the current network from the following attacks:
z Denial of Service (DoS).
z Port scanning.
z Web spoofing.
IDS also implements the blacklist function. It stops external hosts that try to invad
network from accessing the VDR824/824g within a specific time limit.
User Manual
Aolynk VDR824 ADSL2+ VoIP Broadband Router/
Aolynk VDR824g ADSL2+ VoIP Wireless Broadband Router 5 Advanced Configuration
79
iguration
of the IDS confi
Figure 5-31 IDS conf
Table 5-8 Description guration items
Item Description
Use Blacklist
Select true or false to enable or disable the blacklist function.
When the external host attacks (Ascend Kill, Echo Scan,
WinNuke, Xmas Tree Scan, IMAP SYN/FIN Scan, SMURF,
TCP SYN Flood, Net Bus Scan and Back Orifice Scan) are
found, these hosts are put into the blacklist and their packets
are filtered out within the set time limit.
Use Victim
Protection
Select true or false to enable or disable the Smurf protection
which protects the VDR824/824g against attacks caused by
pings with a broadcast address. The attacker may broadcast
pings with the victim’s MAC address as the source MAC
address. Without this protection, hosts in LAN will send
response packets to the victim when receiving these packets,
and even cause the collapse of the victim. With this protection,
etect and drop ICMP packets sent by
the attacker and continue to do so within a specific time limit.
the VDR824/824g will d
User Manual
Aolynk VDR824 ADSL2+ VoIP Broadband Router/
Aolynk VDR824g ADSL2+ VoIP Wireless Broadband Router 5 Advanced Configuration
80
Item Description
Victim Protection
Block Duration o do so within a
e is 10 minutes.
Block duration of Web Spoofing (Smurf) attacks on the host. If
the device detects these attacks, it will filter all the ICMP
packets that attack the host and continue t
specific time limit. The default valu
DOS Attack Block
Duration t legitimate users from accessing
Block duration of DoS attacks on the host. If the VDR824/824g
detects these attacks, it will filter all the packets that attack the
host and continue to do so within a specific time limit. The
default value is 30 minutes.
DoS attacks will preven
normal Internet services. The DoS attacks that the device can
detect include Smurf Attack, SYN/FIN/RST Flood, ICMP Flood,
Ping Flood, Ascend Kill, WinNuke Attack and Echo Chargen.
Scan Attack Block
Duration ntinue to do so within a specific time
24 hours.
Block duration of port scanning attacks on the host. If the
VDR824/824g detects these attacks, it will filter all the packets
that attack the host and co
limit. The default value is
Scan Detection
Threshold tect include
an, IMAP scan, TCP SYN ACK scan,
TCP FIN RST scan, NetBus scan, Back Orifice scan and
SubSeven.Most of port scanning attacks are the Trojan Horse
Threshold of port scanning packets. When the VDR824/824g
detects port scanning packets (such as SYN/ACK, FIN or RST)
sent by a host per second and the number of packets reaches
the threshold, the device regards them as port scanning
attacks.
eThe port scanning attacks that the device can d
Echo scan, Xmas Tree sc
attack.
Scan Detection
that port scanning contin
will block all the packets th
Period
Statistics duration of port scanning. When the device detects
ues to reach the set time, the device
at attack the host and continue to do
so within the time limit set in the [Scan Attack Block Duration]
text box.
The default value is 60 seconds.
Port Flood
host per second to a
will time the Flood a
Detection
Threshold
When the device detects that TCP SYNC packets sent by a
fixed port exceed this threshold, the device
ttack. If the timing reaches the limit set in
the [Flood Detection Period] text box, the VDR824/824g
concludes that the host is making a port flood attack, and starts
blocking the packets sent by the host.
default value is 10.
The
Host Flood
Detection
Threshold
host per second exceed this threshold, the device will time the
Flood attack. If the timing reaches the limit set in the [Flood
Detection Period] text box, the VDR824/824g concludes that
the host is making a port flood attack, and starts blocking the
packets sent by the host.
The default value is 20.
When the device detects that TCP SYNC packets sent by a
User Manual
Aolynk VDR824 ADSL2+ VoIP Broadband Router/
Aolynk VDR824g ADSL2+ VoIP Wireless Broadband Router 5 Advanced Configuration
81
Item Description
Flood Detection attack by a host reaches the set d
Period
When the VDR824/824g detects that the duration of Flood
etection period, the device
starts blocking the packets sent by the host.
The default value is 10 seconds.
Maximum TCP
Open
Handshaking
Count
When the open handshaking count that the VDR824/824g
receives per second from a host exceeds the set value, the
device concludes that the SYN/ACK attack is detected.
The default value is 100.
Maximum Ping
Count
The attacker may send a number of ping packets to a network.
These packets consume too much bandwidth and make normal
network services unavailable. When the device detects that the
count of ping packets sent by a host per second exceeds the
set value, the device concludes that the ping flood attack is
detected.
The default value is 15.
Maximum ICMP
Count
The attacker may send a number of ICMP (non-Echo Request)
packets to a network. These packets consume too much
bandwidth and make normal network services unavailable.
When the device detects that the count of ICMP packets sent
by a host per second exceeds the set value, the device
concludes that the ICMP Flood attack is detected.
ult value is 100.
The defa
figuration, type in the relevant values of IDS options, and To modify the current IDS con
then click <Apply>.
To clear the blacklist, click <Clear Blacklist>.
Caution:
By default, the security mode is enabled.
5.3 DMZ Configuration
The Demilitarized Zones (DMZ) feature of VDR824/824g allows you to configure a
nfigured on the same segment with this DMZ can
perform bi-directional communication with other Internet users or servers. At the same
al interface. This not only
provides a security shelter for the hosts in the DMZ, but also satisfies the needs of
DMZ in a LAN. The hosts that are co
time, you can enable NAT and configure a firewall policy between DMZ interface and
internal interface, and between DMZ interface and extern
User Manual
Aolynk VDR824 ADSL2+ VoIP Broadband Router/
Aolynk VDR824g ADSL2+ VoIP Wireless Broadband Router 5 Advanced Configuration
82
mall and medium-sized enterprises to provide services server installation in LANs by s
such as FTP and Web for bi-directional communication with users.

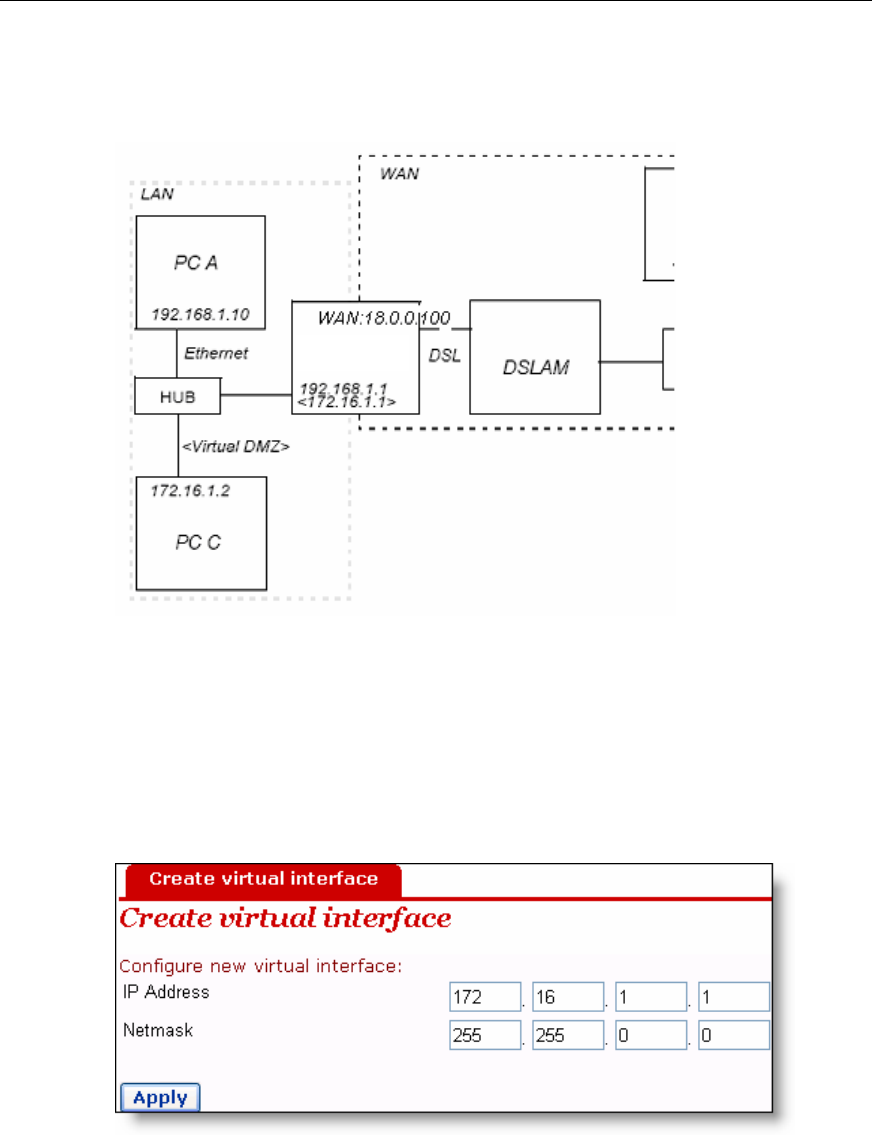

The following figure depicts the steps to configure DMZ:
WDR854g
VDR824/824g
WDR854g
VDR824/824g
Figure 5-32 DMZ configuration
I. Create a virtual interface
To create a virtual interface, refer to section 4.3.1 “LAN”.
Type in the following parameters on the [Create virtual interface] page as below, and
then click <Apply>.
pears on the [LAN connections] page (see Figure 4-16), showing that a
Figure 5-33 Create a virtual interface
The result ap
virtual interface named item0 has been added into the list.
User Manual
Aolynk VDR824 ADSL2+ VoIP Broadband Router/
Aolynk VDR824g ADSL2+ VoIP Wireless Broadband Router 5 Advanced Configuration
83
II. Add an security interface
Refer to section 5.2.1 III. “Security interface” to add a security interface.
Perform the configuration on the [Add Interface] page as below, and then click <Apply>.
Figure 5-34 Add a security interface
Here, item0 is the virtual interface added previously.
III. Configure the port filtering policy for external-dmz and external-internal
interfaces respectively
To config
respectively, refer to section I. “
ure port filtering policy for external-dmz and external-internal interf es
Port filter".
ilters: external-dmz] page to configure a policy, ensuring that
users can access the Internet services (such as HTTP, FTP, and Telnet) specified by
D nwhile, enter the [Firewall Port Filters:
eing policy, ensuring to disable users
st services under the internal interface.
IV
the same segment as that of the
example, configure the IP address to
.0.0, and enable the corresponding Internet service,
t to the LAN port of the VDR824/824g.
V.
Virtual
,
ftp and telnet.
Thus, the entire DMZ is configured completely and securely.
ac
Enter the [Firewall Port F
the MZ zone through the external interface. Mea
ext rnal-internal] page to configure the port filter
under the external interface to access the ho
. Configure a DMZ host in the same segment with a DMZ zone
Make sure that the IP address of the DMZ host is in
above configured virtual interface. For
172.16.1.100, the mask to 255.255
and then connect this DMZ hos
Configure the corresponding virtual server
To configure the corresponding virtual server, refer to section 5.2.1 IV. 2) ”
server”.
Configure the DMZ host as a virtual server to provide the Internet services, such as http
User Manual
Aolynk VDR824 ADSL2+ VoIP Broadband Router/
Aolynk VDR824g ADSL2+ VoIP Wireless Broadband Router 5 Advanced Configuration
84
Cs on
routes to
ge, and
age, and
n click
5.4 Route Configuration
The static route configuration makes the VDR824/824g to communicate with P
different network segments. This option allows you to create static IP
destination addresses by an IP interface name or a gateway address.
To access the VDR824/824g configuration page, follow either of these steps:
z Click [WAN Setup] in the navigation bar to enter the [WAN Connections] pa
then click <Route setup…>.
z Click [LAN Setup] in the navigation bar to enter the [LAN Connections] p
then click <Route setup…>.
z Click [Status] in the navigation bar to enter the [Status] page, and the
<Route setup…>.
utes:

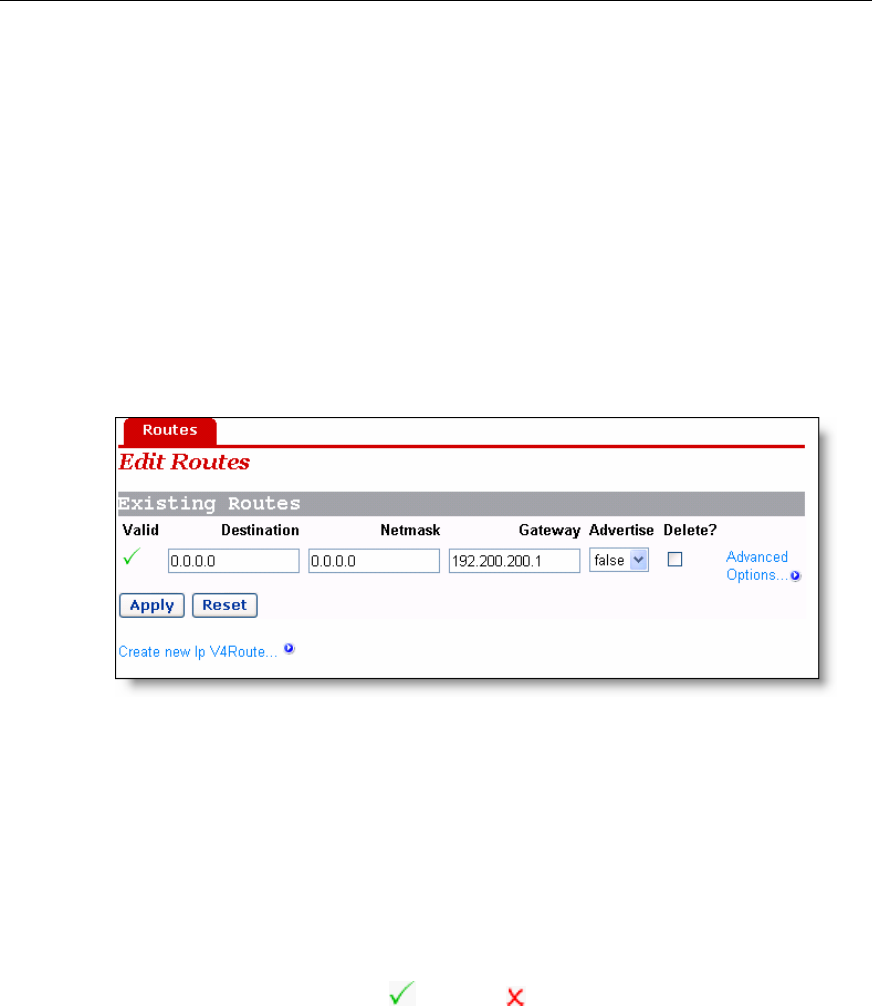

Figure 5-35 Route configuration
This page allows you to:
z View the information about existing routes
z Modify the route information in the route list
z Add a new route
z Delete an existing route
This page also allows you to view the following information about existing ro
z Whether the route is valid or invalid
z Destination IP address (Destination)
z Gateway address (Gateway)
z Network mask (Netmask)
z Whether the route is advertised via RIP (true or false)
To change the destination address, gateway address, netmask and advertise status of
route, change the settings in the relevant text boxes, and then click <Apply>.
To modify the cost or interface settings for the route, click <Advanced Options…> to
enter the [Advanced Settings] page. Change the related value, and then click <OK>.
a
User Manual
Aolynk VDR824 ADSL2+ VoIP Broadband Router/
Aolynk VDR824g ADSL2+ VoIP Wireless Broadband Router 5 Advanced Configuration
85

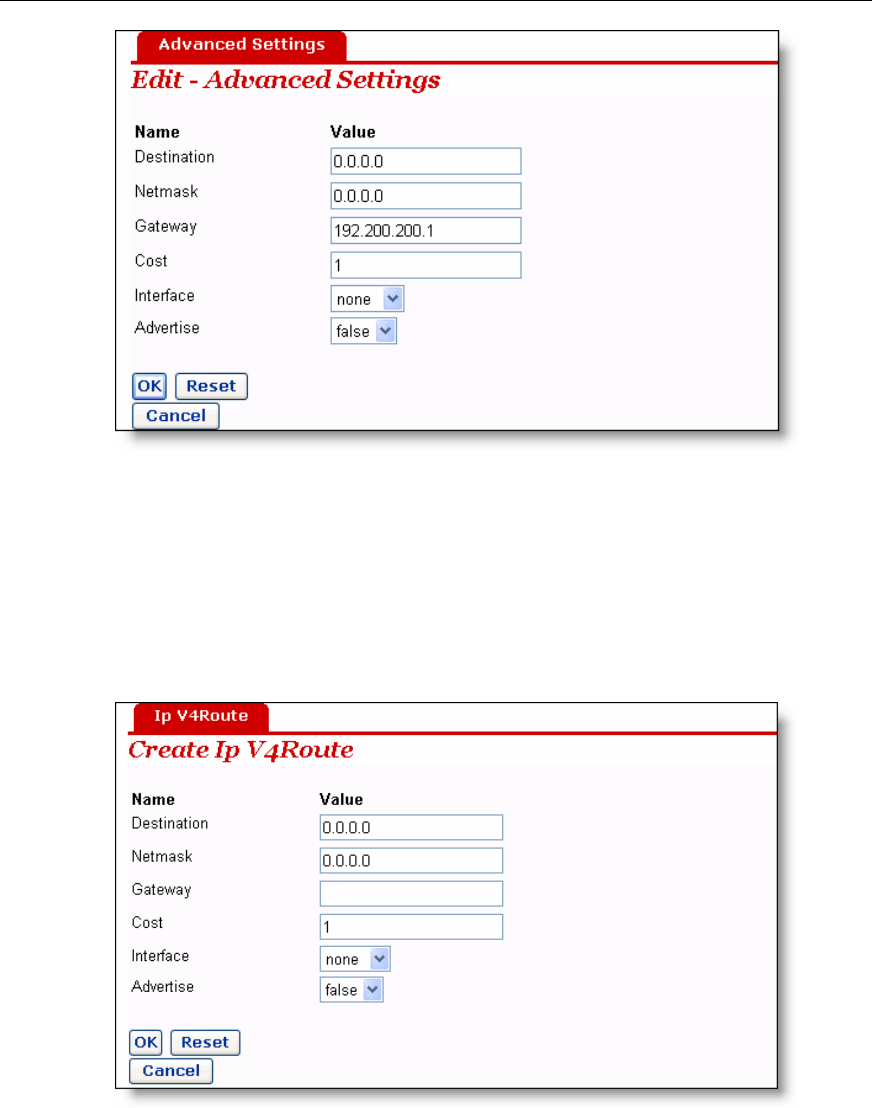

Figure 5-36 Advanced Settings page
To delete an existing route, select the corresponding [Delete?] check box in Figure 5-35
and click <Apply>.

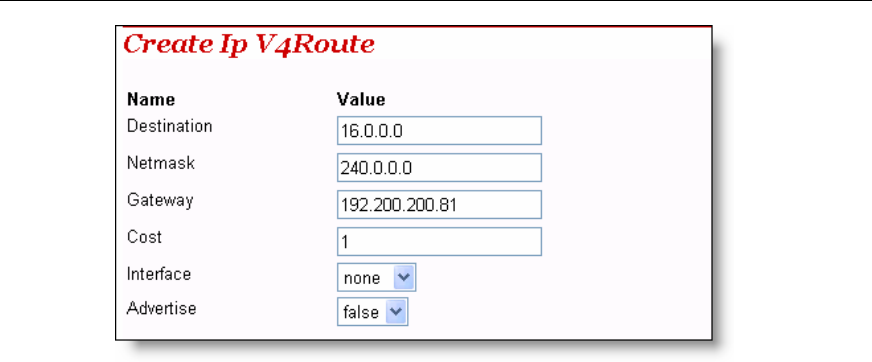

To add a new route, click <Create new Ip V4Route…> in Figure 5-35 to enter the [IP
V4Route] page. Type in the related values of route options, and then click <OK>. Click
<Cancel> to cancel the settings and return to the route configuration page.
Figure 5-37 Create a route
User Manual
Aolynk VDR824 ADSL2+ VoIP Broadband Router/
Aolynk VDR824g ADSL2+ VoIP Wireless Broadband Router 5 Advanced Configuration
86
Caution:
For DHCP or Static IP services, you must type in the next hop addre
filed (you cannot leave it blank), while you can set the [Interface] drop
default (None) or other value.
For other services (IPoA, PPPoA, and PPPoE), you can
interface or the gateway. If both of them are specified, only the interfa
effect.
ss in the [Gateway]
-down list to the
specify a value of either the
ce value takes
Example: Figure 5-38 illustrates a physical connection that requires static routes.
WAN:192.200.200.81/24
VDR824
BAS
DSLAM
Switch
WAN:192.200.200.10/24
192.200.200. 1/24
Router
LAN2:16.0.0.0/4
LAN1:192.168.1.0/24
WAN:192.200.200.81/24
VDR824
BAS
DSLAM
Switch
WAN:192.200.200.10/24
192.200.200. 1/24
Router
LAN2:16.0.0.0/4
LAN1:192.168.1.0/24
Figure 5-38 Network diagram for the static route configuration
In Figure 5-38, suppose that a DHCP service is configured for the VDR824/824g, the
gateway address is 192.200.200.1, and there is a default route to broadband access
server (BAS).A router is connected to another network segment, LAN2 (16.0.0.0/4), on
the WAN side, and the IP address of the WAN port is 192.200.200.81.To make hosts in
LAN1 access hosts in LAN2 normally, you need to create a route as below so that the
VDR824/824g can choose routes for packets correctly.
User Manual
Aolynk VDR824 ADSL2+ VoIP Broadband Router/
Aolynk VDR824g ADSL2+ VoIP Wireless Broadband Router 5 Advanced Configuration
87
Figure 5-39 Example of the static route configuration

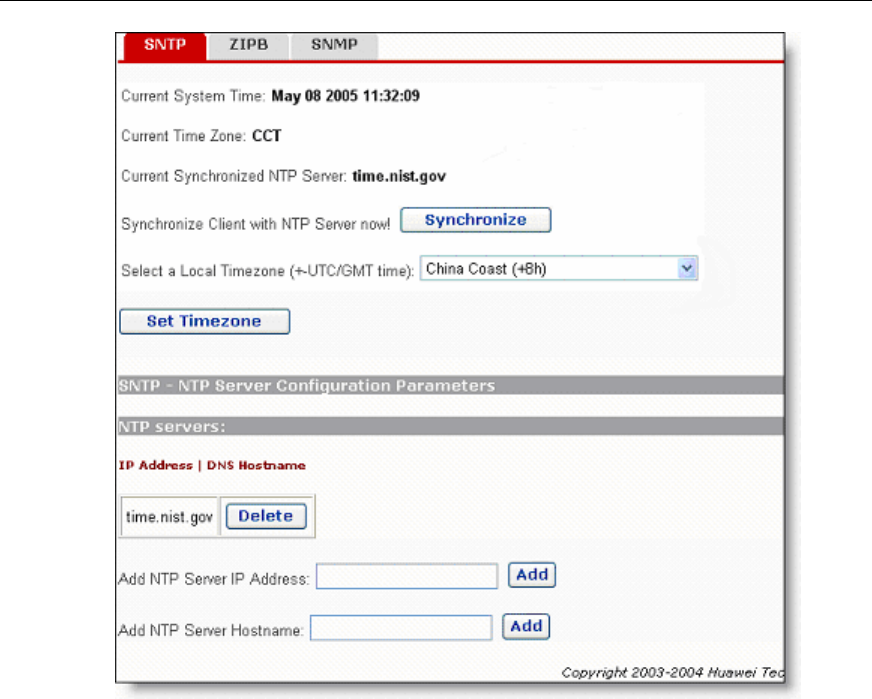

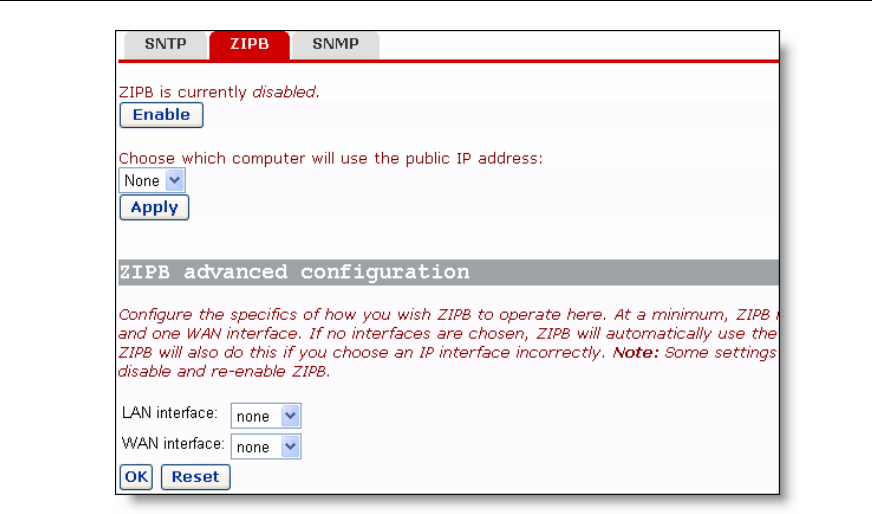

Two tabs, SNTP and ZIPB, are available on the [Service] page. Click any t
the corresponding configuration page.
Configure the VDR824/824g as an SNTP client and thus you can obtain a
time/date information from the corresponding SNTP server. If your router is not
5.5 Service
ab to enter
5.5.1 SNTP
ccurate
set the time/date on the VDR824/824g instead. connected to the SNTP server, you can
User Manual
Aolynk VDR824 ADSL2+ VoIP Broadband Router/
Aolynk VDR824g ADSL2+ VoIP Wireless Broadband Router 5 Advanced Configuration
88
you to:
ck of the VDR824/824g
To s cal time of the router with the SNTP server, click <Synchronize>.
then cli >.
main name of the SNTP server in
e [NTP servers:] field, and then click <Add>.
To delete an existing NTP server, click the corresponding <Delete> button.
5.5.2 ZIPB
ZZIPB (zero installation PPP bridge) can ensure that a SOHO user can obtain a public
IP address through the router, and to resolve the problem that all SOHO routers with
NAT enabled cause part of the application unable to function normally.
Figure 5-40 SNTP configuration
This page allows
z View the current system time configuration
z Set the time zone
z Configure the NTP server on the Internet to make the clo
synchronize its internal clock.
ynchronize the lo
To set the time zone, select a desired option from the corresponding drop-down list and
ck <Set Timezone
To add an NTP server, type in the IP Address or the do
th
User Manual
Aolynk VDR824 ADSL2+ VoIP Broadband Router/
Aolynk VDR824g ADSL2+ VoIP Wireless Broadband Router 5 Advanced Configuration
89
e allows you to:
it. If enabled, click <Disable>
om the drop-down
AN interface]
Figure 5-41 ZIPB configuration
This pag
z Enable/disable the ZIPB mode
z Specify the ZIPB host
z Perform advanced ZIPB configuration.
If the ZIPB is currently disabled, click <Enable> to enable
to disable it.
Select the PC that will use the public IP address in the current LAN fr
list, and then click <Apply>.
To perform advanced ZIPB configuration, follow these steps:
z Select the LAN interface on which ZIPB will run from the [LAN interface]
drop-down list.
z Select the WAN interface on which ZIPB will run from the [W
drop-down list.
Click <OK> after the ZIPB configuration is complete.
User Manual
Aolynk VDR824 ADSL2+ VoIP Broadband Router/
Aolynk VDR824g ADSL2+ VoIP Wireless Broadband Router 5 Advanced Configuration
90
Caution:
z
Change the configuration, and then click <OK>. The new configuration will take
effect after
Make ensure that ZIPB is disabled before you change the ZIPB configuration.
you enable ZIPB. Any change on the configuration takes no effect when
h
z Cure it
w
a
d
Y
t e ZIPB is enabled.
onfiguration changes on ZIPB will not be saved, and so you need to reconfig
henever the router restarts. That is, make the previous ZIPB host obtain the IP
ddress again through DHCP, and then specify a new ZIPB host from the
rop-down list
z ou can enable ZIPB only for two WAN services: PPPoE and PPPoA.
5.5.3 SNMP
The VDR824/824g supports simple network management protocol (SNMP) proxy
function, exchanging SNMP information with the network management sites through
SNMP.
Figure 5-42 SNMP Client Setting page
User Manual
Aolynk VDR824 ADSL2+ VoIP Broadband Router/
Aolynk VDR824g ADSL2+ VoIP Wireless Broadband Router 5 Advanced Configuration
91
You can create an SNMP community in Figure 5-42 and this community will be
displayed in the community list. The VDR824/824g authenticates the SNMP packets
according to the defined information in the list.
To add a community, refer to the follo
click <Add>.
z community: Type in the community name, uniquely identifying an SNMP
community. The packets mismatching the community name are discarded.
WriteEnable: Specify the access right for the community. If Read-Only is selected,
fault setting 0.0.0.0, which indicates the
ackets is not restricted.
ng <Delete>.
wing information to perform the settings, and then
z
this community can only view the VDR824/824g information; if Read-Write is
selected, this community can view or modify the VDR824/824g information.
z ServIP: Specify the IP address of the management site sending SNMP packets. It
is recommended that you keep the de
source IP address sending the SNMP p
To delete the current community, click the correspondi
User Manual
Aolynk VDR824 ADSL2+ VoIP Broadband Router/
Aolynk VDR824g ADSL2+ VoIP Wireless Broadband Router 6 Troubleshooting
92
6 Troubleshooting
This chapter gives solutions to problems you may encounter when installing or using
e VDR824/824g, and provides instructions for using several IP utilities to diagnose
do not resolve the problems.
6.1 VDR
Sym power LED does not illuminate.
z
Sym
conn
nected to the ADSL port
and the telephone port.
mpt
Solu hether:
z
z
steps described in section 2.3 “Device
z
Sym
th
problems. Contact Customer Support if these suggestions
824/824g Troubleshooting
ptom 1: The
Solution: Check whether:
z The power switch is turned on.
z used.
The power adapter is securely connected to the VDR824/824g and the power
socket.
The power adapter that comes with the VDR824/824g is
ptom 2: The ADSL2+ Link LED does not illuminate after the telephone cable is
ected.
Solution: Check whether the telephone cable is securely con
Sy om 3: The LAN LED does not illuminate after the Ethernet cable is connected.
tion: Check w
z The power connection is good.
The Ethernet cable is securely connected to the port.
The correct cable is used. To check this, connect two ends of the cable to the LAN
ports of the VDR824/824g, observe whether the corresponding LED illuminates. If
not, change the cable and follow the
Connection” to set up the connection.
The PC has an Ethernet NIC installed correctly.
ptom 4: You forget your password.
User Manual
Aolynk VDR824 ADSL2+ VoIP Broadband Router/
Aolynk VDR824g ADSL2+ VoIP Wireless Broadband Router 6 Troubleshooting
93
and
defa
pass
Solution: If you have not changed the password, use the default user name (admin)
password (admin).Press the Reset button for at least five seconds to restore the
ult settings on the VDR824/824g.Then you can use the default user name and
word.
Caution:
Rese
defa
tting the VDR824/824g removes all the customized settings and restores the
ult ones.
ptom 5: Fail to access the Web configuration page.
tion: Follow the procedures to check whether:
The version of the Internet Explorer is Microsoft Internet Explorer 5.5 or Netscape
6.0 or later.
PC and the VDR824/824g are in the same network se
Sym
Solu
1)
2) gment.
ectivity:
4) If the physical connections are normal, but you still cannot access the Web
the Internet with your PC.
d you can ping the IP address of the
IP address of the DNS is specified as that of the VDR824/824g’s LAN port or the
ess of the
3) Use the ping command in an MS-DOS window to check the network conn
z Ping 127.0.0.1 to see if the TCP/IP protocol is installed.
z Ping 192.168.1.1 (the default IP address of the gateway) to check for the
connection between the PC and VDR824/824g in the LAN.
configuration pages of the VDR824/824g, make sure the proxy server and the
dialup connection are disabled.
Symptom 6: Fail to access
Solution: Follow the procedure:
5) Check whether the ADSL2+ Link LED is solid ON. If not, check the ADSL line
connection.
6) Check whether the IP address is obtained an
VDR824/824g’s LAN port if you configure the PC to obtain the IP addresses of the
host and the DNS server automatically (recommended). Refer to section 6.2.1
“Ping” for instructions on how to use the ping utility. If you cannot ping the port,
check if the Ethernet cable is correct.
7) When the current PC is specified with a private IP address, make sure that: The
PC resides in the same segment as that of the VDR824/824g’s LAN port. The IP
address of the gateway is specified as that of the DVDR824/824g’s LAN port. The
DNS Server the ISP allocates. The host is able to ping the IP addr
VDR824/824g’s LAN port.
User Manual
Aolynk VDR824 ADSL2+ VoIP Broadband Router/
Aolynk VDR824g ADSL2+ VoIP Wireless Broadband Router 6 Troubleshooting
94
section 4.7 “Status”) first, and check to see if the WAN port of the VDR824/824g
Internet IP address and if the default route exists.
mptom 7: You cannot access the Web pages through the PC in the LAN.
Solution: Follow the procedure to check:
n ping the Internet IP address, but cannot open the Web
rarily. In this case,
se either of the following to solve the problem: Manually change your
824/824g and manually modify the configuration for
DNS Relay (refer to section 4.2.2 “DNS Relay"), and then check by the nslookup
Solution: This problem is due to the MTU value from the client to the VDR824/824g. It
AN”) to change the MTU value to a smaller one, such as 1440, and then select
g are very strict, it is recommended
someone familiar with the WAN services and router configuration enable the firewall
8) When the host can communicate with the VDR824/824g normally, but cannot
connect to the Internet, log into the [Status] page of the VDR824/824g (refer to
has obtained the
Sy
9) The DNS server IP address specified on the PC is correct. If you specify the PC to
obtain the DNS server address dynamically, verify with your ISP that the address
configured on the VDR824/824g is correct, and then you can use the ping utility to
test the connectivity with your ISP’s DNS server.
10) Generally, if a host ca
pages, the DNS server of the ISP is experiencing a failure tempo
you can choo
PC’s DNS IP address to the address of a normally functioning DNS server. Log
into the Web page of the VDR
command as instructed in section 6.2.2 “Nslookup”.
Symptom 8: Fail to save the changes made on the Web configuration pages.
Solution: Make sure that you click <Apply> to confirm every change you have made.
After completing all the settings, enter the [Save Configuration] page to save them, thus
making them take effect when the VDR824/824g is powered on next time.
Symptom 9: You can access most of the websites, but sometimes connection to some
websites times out. When you set the VDR824/824g to operate in the bridge mode and
your PC to establish a dialup connection, you can access the websites normally. How
does this problem come?
is set too large. To solve the problem, enter the specific editing page (refer to section
4.2.1 “W
true from the [TCP MSS Clamp] drop-down list.
In addition, if you fail to send an E-mail in the LAN, but succeed when you change an
SMTP server, or you fail to transfer files by the point-to-point communication software,
but succeed in transferring photos with other friends, this may be caused by the
settings of the MTU for the LAN interface if you are sure the server functions well. Enter
the [LAN Connections] tab page (refer to section 4.3.1 “LAN”) to change the MTU value
to a smaller one, such as 1440, and then select true from the [TCP MSS Clamp]
drop-down list.
Symptom 10: Some services are unavailable once the firewall is enabled.
Solution: As the firewall rules of the VDR824/824
User Manual
Aolynk VDR824 ADSL2+ VoIP Broadband Router/
Aolynk VDR824g ADSL2+ VoIP Wireless Broadband Router 6 Troubleshooting
95
e firewall.
6.2 Diag
6.2.1 Ping
puters on
the network. A ping command sends messages to the specified computer. If the
r receives the messages, it replies with the response message. Before using
the command, you must know the IP address of the destination host with which your PC
and prompt window displays the
and configure the firewall rules. Before the creation of firewall rules, you must be clear
about the Internet service deployment. It is recommended that you disable th
nosis Tools
Use the Ping command to check whether your PC can recognize other com
compute
is trying to communicate.
At the DOS prompt, enter the following command:
ping 192.168.1.1
If the destination host receives the packet, the comm
contents as shown in Figure 6-1.
Figure 6-1 Use the ping command – the ping succeeds
If the destination PC is not reachable, the Request timed out message is displayed as
follows:
igure 6-2 Use the ping command – the ping fails F
User Manual
Aolynk VDR824 ADSL2+ VoIP Broadband Router/
Aolynk VDR824g ADSL2+ VoIP Wireless Broadband Router 6 Troubleshooting
96
To check the connectivity with the VDR824/824g, use the Ping command with the
default IP address of the LAN port (192.168.1.1) or the address you assign.
To check the connectivity with the Internet, enter an Internet domain name, such as
www.yah
use the n
For other operating systems running the IP protocol, you can enter the same ping
command at a command prompt or through a system administration utility.
mand to
ok up in the DNS server (usually located though your ISP).If that name is not in your
s DNS table, the request is then sent to a higher-level server until the name is found.
r then returns the associated IP address.
On Win ter, you can execute the nslookup command from the [Start]
lick <OK> and a command prompt window appears. The [Command Prompt –
okup] wi t prompt (>).At the prompt, type the domain
.
The hown below.
oo.com (216.115.108.243).If you want to look up the IP address of a website,
slookup command as instructed in section 6.2.2 “Nslookup” for details.
6.2.2 Nslookup
The nslookup command is used to query the IP address associated with a domain
name. You can specify the common domain name and use the nslookup com
lo
ISP’
The serve
dows-based compu
menu. Choose [Start/Run] and in the open text box type the following:
nslookup
C
nslo ndow is displayed with a bracke
name of the desired Website, for example www.microsoft.com
window displays the associated IP address as s
Figure 6-3 Use the nslookup command
Some websites with heavy traffic use multiple servers to carry the same information. So
it is common to have several IP addresses associated with one Internet domain name.
To exit from the nslookup utility, enter exit.
User Manual
Aolynk VDR824 ADSL2+ VoIP Broadband Router/
Aolynk VDR824g ADSL2+ VoIP Wireless Broadband Router 7 Appendix - TCP/IP Protocol
97
Protocol
7.1 Inst
g must have the TCP/IP
alled, follow these steps.
7 Appendix - TCP/IP
alling TCP/IP
The PC through which you configure your VDR824/824
installed. If you are not sure whether TCP/IP is inst
Caution:
By default, TCP/IP is installed on Windows 2000/XP. The following steps are described
for the Windows 98/ME/NT.
n the [Network] dialog box and
the item that contains both
using exists. If not, click
dialog box (see Figure 7-1).
1) Choose [Start/Settings/Control Panel].
2) Double-click the Network Connection icon to ope
select the [Configuration] tab (see Figure 7-1).
3) Check the list on the [Configuration] tab page to see if
the TCP/IP and the name of the NIC you are currently
<Add> to open the [Select Network Component Type]
User Manual
Aolynk VDR824 ADSL2+ VoIP Broadband Router/
Aolynk VDR824g ADSL2+ VoIP Wireless Broadband Router 7 Appendix - TCP/IP Protocol
98
Figure 7-1 Network dialog box
4) Double-click Protocol from the list of [Select Netwo
box (or click Protocol and then click <Add…
Protocol] dialog box (see Figure 7-2).
rk Component Type] dialog
>) to open the [Select Network
the [Select Network Protocol]
ocols list (or click TCP/IP, and
then click <OK>) to return to the [Network] dialog box. Then you can see the
e installed network components.
Figure 7-2 Select Network Component Type dialog box
5) Select Microsoft from the Manufacturers list in
dialog box, double-click TCP/IP in the Network Prot
TCP/IP item in the section listing th
User Manual
Aolynk VDR824 ADSL2+ VoIP Broadband Router/
Aolynk VDR824g ADSL2+ VoIP Wireless Broadband Router 7 Appendix - TCP/IP Protocol
99
og box to open the [TCP/IP Properties]
ss] tab and select the Obtain an IP
nd restart your PC to complete the
Figure 7-3 Select Network Protocol dialog box
6) Click <Properties> in the [Network] dial
dialog box (see Figure 7-4).Select the [IP addre
address automatically option. Click <OK> a
TCP/IP installation.
Figure 7-4 TCP/IP Properties dialog box
User Manual
Aolynk VDR824 ADSL2+ VoIP Broadband Router/
Aolynk VDR824g ADSL2+ VoIP Wireless Broadband Router 7 Appendix - TCP/IP Protocol
100
7.2.1 Specif
d in section Figure 7-3 to
u are running Windows 2000/XP,
rol Panel] dialog box.
the [Network Connection]
ction icon to open the [Local
5).
7.2 Configuring TCP/IP
ying to Obtain an IP Address Automatically
If you are running Windows 98/ME/NT, refer to those describe
specify to obtain an IP address automatically. If yo
perform the following operation.
1) Choose [Start/Settings/Control Panel] to open the [Cont
Double-click the Network Connection icon to open
dialog box and then double-click the Local Conne
Area Connection Status] dialog box (see Figure 7-
Figure 7-5 Local Area Connection Status dialog box
2) Click <Properties> to open the [Local Area Connection
Figure 7-6). Select the [General] tab and select
[This connection uses the following items:] section, a
open the [Internet Protocol (TCP/IP) Properties] dial
7-7.
Properties] dialog box (see
Internet Protocol (TCP/IP) in the
nd then click <Properties> to
og box as shown in Figure
User Manual
Aolynk VDR824 ADSL2+ VoIP Broadband Router/
Aolynk VDR824g ADSL2+ VoIP Wireless Broadband Router 7 Appendix - TCP/IP Protocol
101
re 7-6 Local
Figu Area Connection Properties
3) On the [General] tab page of the [Internet Protocol (TCP/IP) Properties] dialog box
select the Obtain an IP address automatically option and click <OK>.
Figure 7-7 Internet Protocol (TCP/IP) Properties dialog box
User Manual
Aolynk VDR824 ADSL2+ VoIP Broadband Router/
Aolynk VDR824g ADSL2+ VoIP Wireless Broadband Router 7 Appendix - TCP/IP Protocol
102
7.2.2 Specifying a Fixed IP Address
Since the VDR824/824g enables the DHCP by default, the PCs in the LAN can obtain
related information dynamically, thus there is no need to assign static IP addresses for
P
o
By default, the IP address of the Ethernet port of VDR824/824g is 192.168.1.1. Choose
any from 192.168.1.2 to 192.168.1.254 to make your PC in the same segment with
rocedure suitable for your operating system to specify IP
In the [Internet Protocol (TCP/IP) Properties] dialog box (see
e the following IP address
the corresponding fields and
ult IP address of your VDR824/824g
, select the [General] tab. Type in the default IP address of your
ault gateway] text box and click <OK>.
server.
Properties] dialog box (see Figure 7-4), select
nd type in the default IP address of your
DNS server IP address in the corresponding
Internet Protocol (TCP/IP) Properties] dialog box (see
Figure 7-7) click <Advanced…> to open the [Advanced TCP/IP Configuration]
dialog box. Select the [DNS] tab and click <Add…>. Type in the default IP address
of the VDR824/824g (192.168.1.1) in the [DNS server] field and click <Add>.
4) Making the settings take effect.
z Windows 98/ME/NT: Click <OK> and restart your PC for the above settings to take
effect.
z Windows 2000/XP: Click <OK> to make the above settings to take effect.
Cs in the LAN. But in some cases you still need to configure network settings for some
r even all the PCs on a network.
192.168.1.1/24. Follow the p
addresses.
1) Specify the IP address of your PC.
z Windows 98/ME/NT: In the [TCP/IP Properties] dialog box (see Figure 7-4), select
the [IP Address] tab and select the Specify an IP address option.
z Windows 2000/XP:
Figure 7-7) select the [General] tab, and then the Us
option. Type in the IP address and subnet mask in
click <OK>.
2) Specify the IP address of the gateway.
z Windows 98/ME/NT: In the [TCP/IP Properties] dialog box (see Figure 7-4) select
the [Gateway] tab. Type in the defa
(192.168.1.1) in the [New gateway] text box and click <Add>.
z Windows 2000/XP: In the [Internet Protocol (TCP/IP) Properties] dialog box (see
Figure 7-7)
VDR824/824g (192.168.1.1) in the [Def
3) Specify the IP address of the DNS
z Windows 98/ME/NT: In the [TCP/IP
the [DNS configuration] tab a
VDR824/824g (192.168.1.1) as the
field.
z Windows 2000/XP: In the [
User Manual
Aolynk VDR824 ADSL2+ VoIP Broadband Router/
Aolynk VDR824g ADSL2+ VoIP Wireless Broadband Router 8 Appendix - USB Configuration
103
8.1 Inst
. The following
nce when running any
I.
24g contains the USB driver.
II. Plug one end of the USB cable into the USB port of the VDR824/824g, and
ector on one end and a square Type B
ype B to the
8 Appendix - USB Configuration
alling USB Driver
Make sure the USB function of your PC operates properly.
The Microsoft Windows 98/98 SE/ME/2000/XP supports USB driver
installation procedure is based on Windows XP. Use it for refere
other operating system.
Insert the driver CD into the CD-ROM of your PC.
The CD that comes with the VDR824/8
the other into the USB port of your PC.
The USB cable has a rectangular Type A conn
connector on the other end. Connect the Type A to your PC and the T
VDR824/824g.
To ADSL-
Ethernet router
To PC
Figure 8-1 USB cable connector
User Manual
Aolynk VDR824 ADSL2+ VoIP Broadband Router/
Aolynk VDR824g ADSL2+ VoIP Wireless Broadband Router 8 Appendix - USB Configuration
104
II
xt> to proceed.
I. The [Found New Hardware Wizard] dialog box appears (see Figure 8-2).
Select the Install the software automatically (Recommended) option and
click <Ne
Figure 8-2 Find new hardware
IV. The PC searches the CD for the driver
found, the PC begins to install the driver.
configuration file.When this file is
Figure 8-3 Install software
User Manual
Aolynk VDR824 ADSL2+ VoIP Broadband Router/
Aolynk VDR824g ADSL2+ VoIP Wireless Broadband Router 8 Appendix - USB Configuration
105
not c
logo
The dialog box (see Figure 8-4) appears during installation, warning that the device is
ompatible with Windows XP. Just click <Continue Anyway> to proceed. Microsoft
test
Figure 8-4 Microsoft logo test
V. The dialog box (see Figure 8-5) indicates the installation is complete. Click
<Finish> to exit the installation.
Figure 8-5 Complete the installation
8.2 Configuring IP Properties
After the USB driver installation is complete, you must configure the PC to place it in the
same subnet as the VDR824/824g USB port. Two options are available to configure the
IP properties:
User Manual
Aolynk VDR824 ADSL2+ VoIP Broadband Router/
Aolynk VDR824g ADSL2+ VoIP Wireless Broadband Router 8 Appendix - USB Configuration
106
z Your VDR824/824g can be a DHCP server to assign IP addresses to PCs in the
LAN, so you can specify your PC to obtain IP address automatically. Refer to
section 7.2.1 “Specifying to Obtain an IP Address Automatically” for detailed
The USB port on the VDR824/824g is preconfigured with these propertie
IP address: 192.168.1.1
Subnet mask: 255.255.255.0
ur PC should be configured as the following:
IP address: 192.168.1.n (n is an integer ranging from 2 to 254)
sk: 255.255.255.0
information.
z If you want to specify a fixed IP address to the PC, follow the instructions in section
7.2.2 “Specifying a Fixed IP Address” and use the following information..
s:
Therefore, yo
Subnet ma
User Manual
Aolynk VDR824 ADSL2+ VoIP Broadband Router/
Aolynk VDR824g ADSL2+ VoIP Wireless Broadband Router 9 Appendix - IP Address and Subnet Mask
107
9 Appendix - IP Address and
Subnet Mask
9.1 IP Address
Note:
z This section refers to the IP address of IPv4 (version 4 of the Internet Protocol) only
and the IP address of IPv6 is not covered.
z This section describes the basic knowledge of binary numbers, bits, and bytes.
An IP address, like the telephone number on the Internet, is used to identify the
individual node (a PC or network device) on the Internet. Every IP address contains
four sets of numbers, each from 0 to 255 and separated by dots, for example
20.56.0.211.These numbers are called, from left to right, field 1, field 2, field 3, and field
9.1.1 Stru
ontains two components. For instance, the
identify a group with thousands of
Simi ddress contains two components:
z
Iden rnet or the intranet.
z
4.
The representation of four sets of digits separated by dots for IP address is called
dotted decimal notation.
cture of the IP Address
Like a telephone number, the IP address c
first three digits of a seven-digit telephone number
telephone lines, while the last four digits identify a specific line in this group.
larly, an IP a
Network ID
tify a specific network segment on the Inte
Host ID
Identify a specific PC or device on the segment.
User Manual
Aolynk VDR824 ADSL2+ VoIP Broadband Router/
Aolynk VDR824g ADSL2+ VoIP Wireless Broadband Router 9 Appendix - IP Address and Subnet Mask
108
leng ork ID depends on the class of the network (refer to section 9.1.2
“Classes of IP Addresses”). Table 9-1 describes the structure of the IP address.
ure of the IP address
The starting part of every IP address is the network ID and the rest is the host Dither
th of the netw
Table 9-1 Struct
Class Field 1 Field 2 Field 3 Field 4
Class A Network ID Host ID
Class B Network ID Host ID
Class C Network ID Host ID
he following are some valid IP address examples:
9.1.2 Classes of IP Addresses
ial use and is
ese classes have different uses and
llows
B network. This kind of
etworks and 254 hosts in each class C network. The LANs connecting to the
ually of this class networks.
Following are the key points about the IP address:
z The easiest way to determine the class of an IP address is to look at its number in
the field 1:
Class A: The number is from 1 to 126.
Class B: The number is from 128 to 191.
Class C: The number is from 192 to 223.
(The numbers for special use are not given here.)
T
Class A: 10.30.6.125 (network ID = 10, host ID= 30.6.125)
Class B: 129.88.16.49 (network ID = 129.88, host ID = 16.49)
Class C: 192.60.201.11 (network ID = 192.60.201, host ID = 11)
Three common IP addresses are of Cass A, B, and C. (Class D is for spec
beyond the scope of this discussion.) Th
characteristics.
The class A network is the largest on the Internet. This allows at least 16 million hosts
per network. Such 126 class A networks can hold at least two billion PCs. These
enormous networks are quite suitable for the LAN or Internet fundamental
organizations such as Internet service provider (ISP).
The class B network is relatively smaller than the class A network, but it still a
16,384 class B networks and 65,000 hosts in each class
network is suitable for the large organizations such as enterprises and governments.
The class C network is the smallest one. It allows over two million (2,097,152 exactly)
class C n
Internet are us
User Manual
Aolynk VDR824 ADSL2+ VoIP Broadband Router/
Aolynk VDR824g ADSL2+ VoIP Wireless Broadband Router 9 Appendix - IP Address and Subnet Mask
109
the fields of a host ID can be 0s or 255s as these numbers are reserved for
9.2 Sub
z Not all
special use.
net Mask
Note:
A network mask looks like a regular IP address and a subnet mask can tell the division
of the network ID and the host ID: A bit set to 1 means this bit is part of the network ID
nd a bit set to 0 means this bit is part of the host ID.
a
Subnet masks are used to define subnets (subnets are smaller segments of a large
one). A subnet number is a number of bits borrowed from the host portion of IP address.
For example, to divide a Class C address 192.168.1.1 into two subnets, you need to set
the subnet mask as follows:
255.255.255.128
It is much more straightforward to define the address in binary notation.
11111111. 11111111. 11111111.10000000
For any Class C address, all the bits in the filed 1 through field 3 are part of the network
ID, but note how the mask specifies that the first bit in field 4 is also included. Since this
extra bit has only two values (0 and 1), this means there are two subnets. Each subnet
uses the remaining 7 bits in field 4 for its host IDs, which range from 1 to 126 hosts
(instead of the usual 0 to 255 for a Class C address).
Similarly, to divide a class C network into four subnets, set the mask as follows:
255.255.255.192 or 11111111. 11111111. 11111111.11000000
The two extra bits in field4 can have four values (00, 01, 10, and 11), so there are four
subnets. Each subnet uses the remaining six bits in field 4 for its host IDs, ranging from
1 to 62.
User Manual
Aolynk VDR824 ADSL2+ VoIP Broadband Router/
Aolynk VDR824g ADSL2+ VoIP Wireless Broadband Router 9 Appendix - IP Address and Subnet Mask
110
Note:
Sometimes a subnet mask does not specify any additional network ID bits, and thus no
subnets exist. Such a mask is called a default subnet mask. These masks are:
z Class A: 255.0.0.0
z Class B: 255.255.0
z Class C: 255.255.255.0
They are so called because they are used for a
subnets.
.0
n initially configured network without
User Manual
Aolynk VDR824 ADSL2+ VoIP Broadband Router/
Aolynk VDR824g ADSL2+ VoIP Wireless Broadband Router 10 Appendix - Technical Specifications
111
10 Appendix - Technical
Specifications
Technical specifications Table 10-1
Item Description
Ports and buttons One USB port
One console port
One Reset button to restore the factory default settings
One power switch
Four 10/100Base-TX Ethernet ports
Two phone ports
One ADSL port
Power consumption < 12W
Power supply (external) 12 VDC, 1 A
Physical dimensions (H
x W x D) <37 x 250 x 150 mm (1.5 x 9.8 x 6.0 in.)
Weight Approximately 510g (11 oz )
Operating temperature 0°C to 40°C (32°F to 104°F)
Storage temperature –10°C to +70°C (14°F to 158°F)
Operating humidity
(noncondensing) 20% to 85%
Storage humidity
(noncondensing) 10% to 90%
Certification FCC Class B
CE
User Manual
Aolynk VDR824 ADSL2+ VoIP Broadband Router/
Aolynk VDR824g ADSL2+ VoIP Wireless Broadband Router 11 Appendix - Glossary
112
11 Appendix - Glossary
1 e-TX
isted pair cable with the maximum transmission distance of 100 meters
1
gory 3/4/5 twisted pair cable with the maximum transmission distance of 150
A
ta from the Internet than they
upload.
ATM
private ATM network. The individual ATM segments in the
ATM switch cross connect to each other, forming the end-to-end connection.
Binary
epresent all the numbers. In
this system, the decimal digit 1 is represented by 1, 2 by 10, 3 by 11, 4 by 100, and so
ugh it is convenient to express numbers in decimal, the IP addresses actually
Bridging
The data is sent from your network to your ISP and in return your ISP sends the data to
the devices on the network by the physical addresses. Compared with routing, bridging
00Bas
Category 5 tw
(328 ft) and maximum transmission rate of 100 Mbps.
0Base-T
Cate
meters (492 ft) and the maximum transmission rate of 10 Mbps.
DSL
Asymmetric digital subscriber line. The most popular flavor of DSL for home users. The
term asymmetrical refers to its unequal data rates for download and upload (the
download rate is higher than the upload rate).The asymmetrical rate benefits home
users because they typically download much more da
Asynchronous transfer mode. A technology that uses fixed length packets, called cells,
for the packet-switched network. The cell, consisting of a cell header and the text, are
switched over a public or
The binary number system just uses two digits, 0 and 1, to r
on. Altho
use binary numbers. For instance, the IP address 209.191.4.240 is converted into
11010001.10111111.00000100.11110000 in binary.
User Manual
Aolynk VDR824 ADSL2+ VoIP Broadband Router/
Aolynk VDR824g ADSL2+ VoIP Wireless Broadband Router 11 Appendix - Glossary
113
t more intelligent to transfer data by using network addresses. VDR824/824g
B
D
rotocol. DHCP automates IP address assignment and
agement. When a PC connects to the LAN, DHCP assigns it an IP address from a
shared address pool, and after a specified period, DHCP returns the address to the
D
mic host configuration protocol server. A DHCP server is a computer responsible
for assigning IP addresses to the computers in a LAN.
D
ain name system. The DNS translates domain names into IP addresses. DNS
information is distributed hierarchically throughout the Internet among the computers
IP
ss. If the DNS server cannot find the IP address, it communicates with
higher-level DNS servers to determine the IP address.
D
ain name is a user-friendly name in place of its associated IP address. A domain
name must be unique and is controlled by the Internet Corporation for Assigned Names
DSL
Digital subscriber line. A technology that allows both digital data and analog voice
E
makes i
can perform both routing and bridging. When both functions are enabled, the
VDR824/824g routes IP data and bridges all the other types of data.
roadcast
A technology used to send data to all the computers on a network.
HCP
Dynamic host configuration p
man
pool.
HCP server
Dyna
NS
Dom
called DNS servers. For example, www.yahoo.com is the domain name associated
with the IP address 216.115.108.243.When you start to access a website, a DNS
server looks up the requested domain name and searches for its corresponding
addre
omain name
A dom
and Numbers (ICANN).A domain name is a key element of a URL which identifies a
specific file at a website.
signals to travel over the existing copper telephone lines.
thernet
The most commonly installed computer network technology, usually using the twisted
pair cables. The Ethernet data rates are 10 Mbps and 100 Mbps.
User Manual
Aolynk VDR824 ADSL2+ VoIP Broadband Router/
Aolynk VDR824g ADSL2+ VoIP Wireless Broadband Router 11 Appendix - Glossary
114
all
nauthorized users may attempt to attack your network in order
u or others on your LAN from the services.
Using the firewall, you can block certain types of IP traffic commonly used by hackers to
all protection can be provided by packet filtering and network
ss translation services.
F
Web server,
downloading files from a Web server.
H
l. It is the main protocol used to transfer data between
sites so that it can be displayed by Web browser.
H
et bridge or a router to a
ters in a LAN and allowing communication between those devices.
IC
IEEE
Institute of Electrical and Electronics Engineers. It is a technical professional society
ss
a network ID that identifies the particular
ork the host belongs to, and a host ID uniquely identifying the host itself on that
network. A network mask is used to define the network ID and the host ID. Because IP
Firew
A firewall can protect your computer or LAN from malicious attacks and other
unexpected accesses. U
to prevent yo
protect your network. You can also restrict the types of IP traffic sent from your network
to the outside. Some firew
addre
TP
File transfer protocol. A program used to transfer files between computers connected to
the Internet. Common uses include uploading new or updated files to a
and
TTP
Hypertext transfer protoco
web
ub
A hub receives the data from devices and forwards them. It usually performs the
switching function by connecting a device such as an Ethern
group of compu
MP
Internet control message protocol. An Internet protocol used to report errors and other
network-related information. The ping command makes use of ICMP.
that fosters the development of standards that often become national and international
standards.
IP addre
Internet protocol address. The address of a host (computer) on the Internet, consisting
of four decimal numbers, each from 0 to 255, separated by dots, such as
209.191.4.240.An IP address consists of
netw
addresses are difficult to remember, they usually have an associated domain name that
can be specified instead.
User Manual
Aolynk VDR824 ADSL2+ VoIP Broadband Router/
Aolynk VDR824g ADSL2+ VoIP Wireless Broadband Router 11 Appendix - Glossary
115
MAC
access control address. It is the permanent hardware address of a device,
ss. When a computer accesses the Internet, its private IP
s translated into a public address of the WAN port.
Net
lied to an IP address to select the network ID.
and ignore the bit set to 0.For example, if the network mask
55.255.0 is applied to the IP address 100.10.50.1, the network ID is 100.10.50,
NIC
rk interface card. An adapter provides the physical interface for your network
Packet
t consists of units transmitted on a network are called packets. Each packet
Ping
ram used to check whether the host associated with an IP address can connect
ISP
Internet service provider. A company that provides Internet access and charges the
customers for services.
LAN
Local area network. A network limited to a small geographic area, such as a home,
office, or small building.
Media
assigned by its manufacturer. MAC addresses are expressed as six pairs of two
hexadecimal digits, separated by hyphens, such as 00-0F-1F-80-65-25.
MTU
Maximum transmission unit. It is the largest frame size that is transmitted over the
physical network.
NAT
Network address translation. This enables computers in a LAN to access the Internet
by sharing the same IP addre
address i
work mask
A network mask is a sequence of bits app
Select the bit set to 1
255.2
and the host ID is 1.
Netwo
cabling. The Ethernet NIC usually has an RJ-45 connector.
Data tha
consists of a header, which contains the information about the source and destination
addresses of the packet, and a data field.
A prog
to the network. It can also be used to reveal the IP address for a given domain name.
User Manual
Aolynk VDR824 ADSL2+ VoIP Broadband Router/
Aolynk VDR824g ADSL2+ VoIP Wireless Broadband Router 11 Appendix - Glossary
116
P
interfaces. The other
interface for each VC.
P
to-point protocol over Ethernet. One of the two types of PPP interfaces. The other
type is PPPoA. You can specify multiple PPPoE interfaces for each VC.
P
nnected ends must obey
transmit data.
R
RJ-11
The standard connector used to connect telephones, fax machines, and Modems to a
lding four wires.
Routing
Forwarding data between the local network and the Internet through the most efficient
ent network conditions. A
ice that performs routing is called a router.
S
andard, is
ely used in the TCP/IP network. SNMP provides a way to manage the network
ort
A physical access point on a device such as a computer or router, through which data
flows into and out of the device.
PPP
Point-to-point protocol. It is a communication protocol for data transmission between
devices over the standard telephone line. The WAN port on the VDR824/824g uses two
types of the PPP, that is, PPPoA and PPPoE.
PPPoA
Point-to-point protocol over ATM. One of the two types of PPP
type is PPPoE. You can specify only one PPPoA
PPoE
Point-
rotocol
A set of rules to govern the data transmission. The two co
these rules to
emote
A geographically separated location. For example, an employee on travel who logs into
the company’s intranet is a remote user.
telephone port. It is a 6-pin connector usually ho
RJ-45
The 8-pin connector used for transmitting data over the telephone lines.
Straight-through cables are usually the connector of this type.
path, based on the data’s destination IP address and curr
dev
NMP
Simple network management protocol (SNMP), a network management st
wid
User Manual
Aolynk VDR824 ADSL2+ VoIP Broadband Router/
Aolynk VDR824g ADSL2+ VoIP Wireless Broadband Router 11 Appendix - Glossary
117
rough the
buted structure administration and proxy.
Subnet
ak a large
by adding additional bits to the host portion of IP address. A host in
ysically connected to its host in the network, however, each of them is in
TCP/IP
col.
suite of the basic protocols, not just the TCP/IP protocol, for the network
communication.
T
teractive, character-based program used to access a remote computer. The HTTP
and FTP only allow you to download files from a remote computer, while Telnet allows
T
the noise. In an Ethernet
AN, category 3 cable is used for the 10Base-T network while the category 5 cable, the
higher level, is used for the 100Base-T network.
Upstream
The upstream flows from users to the Internet.
USB
Universal serial bus. A serial interface that attaches the devices such as printers and
scanners to the computer. The VDR824/824g provides a USB port to connect a
computer.
VC
Virtual circuit. A connection from the DSL router to the ISP.
VCI
Virtual channel identifier. Together with the virtual path identifier (VPI), the VCI uniquely
identifies a virtual circuit (VC).The ISP provides the VCI value for each VC.
VPI
nodes from the host located in the center of the network, such as the server, work
station, router, bridge, and hub. It usually performs the management th
distri
A subnet is a separate part of a network. The subnet mask is used to bre
network into pieces
a subnet is ph
an individual division of network.
Transmission control protocol/internet proto
It defines a
elnet
An in
you to log into and use a computer from a remote location.
wisted pair
A common copper cable used for the telephony application. It contains one or more
cable pairs twisted together to minimize the interference and
L
User Manual
Aolynk VDR824 ADSL2+ VoIP Broadband Router/
Aolynk VDR824g ADSL2+ VoIP Wireless Broadband Router 11 Appendix - Glossary
118
Virtual channel identifier. Together with the virtual path identifier (VPI), the VCI uniquely
identifies a virtual circuit (VC).The ISP provides the VPI value for each VC.
WAN
Wide area network. A network covering a large area such as a country or a continent is
called a WAN. With respect to the ADSL router, WAN refers to the Internet.
Web browser
A software program that uses hypertext transfer protocol (HTTP) to download
information from (and upload to) websites, and displays the information consisting of
text, graphic images, audio, and video. The popular Web browsers are Netscape
Navigator and Microsoft Internet Explorer.
Web page
A website file typically containing text, graphic images and hyperlinks to the other
pages. When you access a website, the first displayed page is called the home page.
ZIPB
Zero installation PPP bridge. This technology ensures that a home user obtains a
public IP address through the Modem, and access the Internet without configuring NAT
on the Modem or installing the PPP client on the Scathe ZIPB mode becomes active
when it is enabled, IPCP negotiation is complete over the WAN PPP link, and a
DHCPDISCOVER is received on the Modem LAN interface.
