Quick Start Guide
xxxxxx_01
华为信息资产
仅供CTC公司使用
严禁扩散
![](/img.php?id=3860798&img=bg2.png)
Your Device at a Glance
Before you start, let's take a look at your new device.
lTo power on your device, press and hold the power button until the
screen turns on.
lTo power off your device, press and hold the power button, and then
touch .
lTo restart your device, press and hold the power button, and then
touch .
lPress and hold the power button for 10 or more seconds to forcibly
restart your device.
11
10
12
13
14
1
2
3
5
4
6
7
8
1
9
1
华为信息资产
仅供CTC公司使用
严禁扩散
![](/img.php?id=3860798&img=bg3.png)
Speaker Headset jack
Dual-lens camera Secondary microphone
Volume button Power button
Smart Sele Butterighting USB-C port
Primary microphone Fingerprint scanner
Ambient light sensor Card tray
Front camera Status indicator
2
华为信息资产
仅供CTC公司使用
严禁扩散
![](/img.php?id=3860798&img=bg4.png)
Getting Started
lDo not insert or remove the SIM card when your device is
powered on.
lEnsure that the card is correctly aligned and that the card tray is
level when you insert it into your device.
lBe careful not to scratch your device or hurt yourself when using
the eject pin.
lStore the eject pin out of the reach of children to prevent
accidental swallowing or injury.
lDo not use cut or modied SIM or microSD cards with your
device as these may not be recognized and could damage the
card tray (slot).
lIf your SIM card does not match your device, please contact your
carrier.
Follow the instructions in the following gures to set up your device.
Please use the eject pin included.
d-02K:
12
3
华为信息资产
仅供CTC公司使用
严禁扩散
![](/img.php?id=3860798&img=bg5.png)
For More Information
If you encounter any problems while using your device, you can obtain
help from the following resources:
lGo to Tips for function details and usage tips.
lVisit http://consumer.huawei.com/en to view device information,
frequently asked questions and other information.
lVisit http://consumer.huawei.com/en/support for the most up-to-date
contact information for your country or region.
Go to Settings and touch System > About tablet > Legal to view legal
information for your product.
Go to Settings and touch System > About tablet > Legal > Safety
information to view safety information for your product.
Go to Settings and touch System > About tablet > Authentication
info to view regulatory information for your product.
Go to Settings and touch System > Certication logos to view more
information on certication logos for your product.
All pictures and illustrations in this guide, including but not limited
to the device color, size, and display content, are for your reference
only. The actual device may vary. Nothing in this guide constitutes a
warranty of any kind, express or implied.
4
华为信息资产
仅供CTC公司使用
严禁扩散
![](/img.php?id=3860798&img=bg6.png)
Safety Information
Please read all of the safety information carefully before using your device
to ensure its safe and proper operation and to learn how to dispose of
your device properly.
Operation and safety
l To prevent possible hearing damage, do not listen at high
volume levels for long periods.
lUsing an unapproved or incompatible power adapter, charger, or
battery may damage your device, shorten its lifespan, or cause a re,
explosion, or other hazards.
lIdeal operating temperatures are 0 °C to 35 °C. Ideal storage
temperatures are -20 °C to +45 °C.
lPacemaker manufacturers recommend that a minimum distance of 15
cm be maintained between a device and a pacemaker to prevent
potential interference with the pacemaker. If using a pacemaker, hold
the device on the side opposite the pacemaker and do not carry the
device in your front pocket.
lKeep the device and the battery away from excessive heat and direct
sunlight. Do not place them on or in heating devices, such as
microwave ovens, stoves, or radiators.
lObserve local laws and regulations while using the device. To reduce
the risk of accidents, do not use your wireless device while driving.
lWhile ying in an aircraft or immediately before boarding, only use
your device according to instructions provided. Use of a wireless
device in an aircraft may disrupt wireless networks, present a hazard to
aircraft operation, or be illegal.
lTo prevent damage to your device's parts or internal circuits, do not
use it in dusty, smoky, damp, or dirty environments or near magnetic
elds.
lWhen charging the device, make sure the power adapter is plugged
into a socket near the devices and is easily accessible.
5
华为信息资产
仅供CTC公司使用
严禁扩散
![](/img.php?id=3860798&img=bg7.png)
lUnplug the charger from electrical outlets and the device when not in
use.
lDo not use, store or transport the device where ammables or
explosives are stored (in a gas station, oil depot, or chemical plant, for
example). Using your device in these environments increases the risk of
explosion or re.
lDispose of this device, the battery, and accessories according to local
regulations. They should not be disposed of in normal household
waste. Improper battery use may lead to re, explosion, or other
hazards.
Disposal and recycling information
The crossed-out wheeled-bin symbol on your product, battery, literature
or packaging reminds you that all electronic products and batteries must
be taken to separate waste collection points at the end of their working
lives; they must not be disposed of in the normal waste stream with
household garbage. It is the responsibility of the user to dispose of the
equipment using a designated collection point or service for separate
recycling of waste electrical and electronic equipment (WEEE) and
batteries according to local laws.
Proper collection and recycling of your equipment helps ensure electrical
and electronic equipment (EEE) waste is recycled in a manner that
conserves valuable materials and protects human health and the
environment, improper handling, accidental breakage, damage, and/or
improper recycling at the end of its life may be harmful for health and
environment. For more information about where and how to drop off
your EEE waste, please contact your local authorities, retailer or
household waste disposal service or visit the website http://
consumer.huawei.com/en/.
Reduction of hazardous substances
This device and its electrical accessories are compliant with local
applicable rules on the restriction of the use of certain hazardous
6
华为信息资产
仅供CTC公司使用
严禁扩散
![](/img.php?id=3860798&img=bg8.png)
substances in electrical and electronic equipment, such as EU REACH,
RoHS and Batteries (where included) regulations. For declarations of
conformity about REACH and RoHS, please visit our web site http://
consumer.huawei.com/certication.
EU regulatory conformance
Body worn operation
The device complies with RF specications when used at a distance of
0.50 cm from your body. Ensure that the device accessories, such as a
device case and device holster, are not composed of metal components.
Keep the device away from your body to meet the distance requirement.
The highest SAR value reported for this device type when tested in
portable exposure conditions is
d-02K 0.93 W/kg
Statement
Hereby, Huawei Technologies Co., Ltd. declares that this device d-02K is
in compliance with the essential requirements and other relevant
provisions of Directive 2014/53/EU.
The most recent and valid version of the DoC (Declaration of Conformity)
can be viewed at http://consumer.huawei.com/certication.
This device may be operated in all member states of the EU.
Observe national and local regulations where the device is used.
This device may be restricted for use, depending on the local network.
Restrictions in the 2.4 GHz band:
Norway: This subsection does not apply for the geographical area within
a radius of 20 km from the centre of Ny-Ålesund.
Restrictions in the 5 GHz band:
According to Article 10 (10) of Directive 2014/53/EU, the packaging
shows that this radio equipment will be subject to some restrictions when
placed on the market in Belgium (BE), Bulgaria (BG), the Czech Republic
(CZ), Denmark (DK), Germany (DE), Estonia (EE), Ireland (IE), Greece (EL),
Spain (ES), France (FR), Croatia (HR), Italy (IT), Cyprus (CY), Latvia (LV),
Lithuania (LT), Luxembourg (LU), Hungary (HU), Malta (MT), Netherlands
(NL), Austria (AT), Poland (PL), Portugal (PT), Romania (RO), Slovenia (SI),
Slovakia (SK), Finland (FI), Sweden (SE), the United Kingdom (UK), Turkey
(TR), Norway (NO), Switzerland (CH), Iceland (IS), and Liechtenstein (LI).
7
华为信息资产
仅供CTC公司使用
严禁扩散
![](/img.php?id=3860798&img=bg9.png)
The WLAN function for this device is restricted to indoor use only when
operating in the 5150 to 5350 MHz frequency range.
Frequency Bands and Power
(a) Frequency bands in which the radio equipment operates: Some bands
may not be available in all countries or all areas. Please contact the local
carrier for more details.
(b) Maximum radio-frequency power transmitted in the frequency bands
in which the radio equipment operates: The maximum power for all
bands is less than the highest limit value specied in the related
Harmonized Standard.
The frequency bands and transmitting power (radiated and/or conducted)
nominal limits applicable to this radio equipment are as follows:
d-02K WCDMA2100:25.7dBm, LTE Band B1/B3:25.7dBm, WIFI:
2.4G:20dBm, Bluetooth: 20dBm, Wi-Fi 5G:
5150-5350MHz: 23dBm, 5470-5725MHz: 30dBm
Accessories and Software Information
Some accessories are optional in certain countries or regions. Optional
accessories can be purchased from a licensed vendor as required. The
following accessories are recommended:
Adapters: HW-059200E01 (X represents the different plug types used,
which can be either C, U, J, E, B, A, I, R, Z or K, depending on your
region)
Batteries: HB2899C0ECW
Earphones:
The product software version is d-02K: 18032602. Software updates will
be released by the manufacturer to x bugs or enhance functions after
the product has been released. All software versions released by the
manufacturer have been veried and are still compliant with the related
rules.
All RF parameters (for example, frequency range and output power) are
not accessible to the user, and cannot be changed by the user.
For the most recent information about accessories and software, please
see the DoC (Declaration of Conformity) at http://consumer.huawei.com/
certication.
8
华为信息资产
仅供CTC公司使用
严禁扩散
![](/img.php?id=3860798&img=bga.png)
.
9
华为信息资产
仅供CTC公司使用
严禁扩散

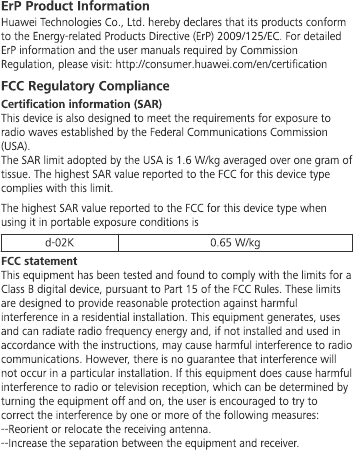

--Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Caution: Any changes or modications to this device not expressly
approved by Huawei Technologies Co., Ltd. for compliance could void the
user's authority to operate the equipment.
10
华为信息资产
仅供CTC公司使用
严禁扩散
![](/img.php?id=3860798&img=bgc.png)
Legal Notice
Trademarks and Permissions
, , and are trademarks or registered
trademarks of Huawei Technologies Co., Ltd.
Android™ is a trademark of Google Inc.
LTE is a trademark of ETSI.
The Bluetooth® word mark and logos are registered trademarks owned
by Bluetooth SIG, Inc. and any use of such marks by Huawei Technologies
Co., Ltd. is under license.
Wi-Fi®, the Wi-Fi CERTIFIED logo, and the Wi-Fi logo are trademarks of
Wi-Fi Alliance.
ENERGY STAR® MARK
For information related to ENERGY STAR®, please visit the website
www.energystar.gov.
Privacy Policy
To better understand how we protect your personal information, please
see the privacy policy at http://consumer.huawei.com/privacy-policy.
Copyright © Huawei Technologies Co., Ltd. 2018. All
rights reserved.
THIS DOCUMENT IS FOR INFORMATION PURPOSE ONLY, AND DOES NOT
CONSTITUTE ANY KIND OF WARRANTIES.
11
华为信息资产
仅供CTC公司使用
严禁扩散
![](/img.php?id=3860798&img=bgd.png)
Model: d-02K
华为信息资产
仅供CTC公司使用
严禁扩散
