Product manual

EchoLife ONT GPON Terminal

HG8245H

Product Description

Issue 01

Date 2013-05-20

HUAWEI TECHNOLOGIES CO., LTD.

Issue 01 (2013-05-20) Huawei

Proprietary and Confidential

No part of this document may be reproduced or transmitted in any form or by any means without prior

written consent of Huawei Technologies Co., Ltd.

Trademarks and Permissions

and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.

All other trademarks and trade names mentioned in this document are the property of their respective

holders.

Notice

The purchased products, services and features are stipulated by the contract made between Huawei and

the customer. All or part of the products, services and features described in this document may not be

within the purchase scope or the usage scope. Unless otherwise specified in the contract, all statements,

information, and recommendations in this document are provided "AS IS" without warranties, guarantees or

representations of any kind, either express or implied.

The information in this document is subject to change without notice. Every effort has been made in the

preparation of this document to ensure accuracy of the contents, but all statements, information, and

recommendations in this document do not constitute a warranty of any kind, express or implied.

Huawei Technologies Co., Ltd.

Address: Huawei Industrial Base

Bantian, Longgang

Shenzhen 518129

People's Republic of China

Website: http://www.huawei.com

Email: support@huawei.com

EchoLife ONT GPON Terminal

Product Description Contents

Issue 01 (2013-05-20) Huawei

Proprietary and Confidential

About This Document

Overview

GPON terminal EchoLife ONT is an indoor optical network terminal (ONT) designed for

home users. This document provides the appearance, key features, and technical

specifications of the ONT, which helps you know the ONT quickly.

Symbol Conventions

The following symbols may be found in this document. They are defined as follows:

Symbol Description

DANGER indicates a hazard with a high level or

medium level of risk which, if not avoided, could result

in death or serious injury.

WARNING indicates a hazard with a low level of risk

which, if not avoided, could result in minor or moderate

injury.

CAUTION indicates a potentially hazardous situation

that, if not avoided, could result equipment damage, data

loss, performance degradation, or unexpected results.

Indicates a tip that may help you solve a problem or save

your time.

Provides additional information to emphasize or

supplement important points of the main text.

EchoLife ONT GPON Terminal

Product Description Contents

Issue 01 (2013-05-20) Huawei

Proprietary and Confidential

iii

Contents

About This Document .................................................................................................................... ii

1 About This Document .................................................................................................................. 4

2 Introduction.................................................................................................................................... 5

2.1 Product Positioning .......................................................................................................................................... 5

2.2 Network Applications ....................................................................................................................................... 5

2.3 Product Overview ............................................................................................................................................. 6

3 Product Functions and Features ............................................................................................... 13

4 Product Highlights ...................................................................................................................... 15

4.1 Comprehensive Triple Play Service ............................................................................................................... 15

4.2 Secure and Reliable Wi-Fi Access .................................................................................................................. 16

4.3 Convenient Home Network Attached Storage and File Sharing Services ...................................................... 17

4.4 Secure and Powerful Gateway Functions ....................................................................................................... 18

4.5 Convenient Automatic Provisioning, Maintenance, and Management of the Remote Service ...................... 18

5 Port Specifications ...................................................................................................................... 19

5.1 GPON Port Specifications .............................................................................................................................. 19

5.2 GE Port Specifications ................................................................................................................................... 20

5.3 POTS port ...................................................................................................................................................... 20

5.4 USB Port ........................................................................................................................................................ 21

5.5 Wireless Network Access ............................................................................................................................... 21

6 Acronyms and Abbreviations ................................................................................................... 22

EchoLife ONT GPON Terminal

Product Description 1 About This Document

Issue 01 (2013-05-20) Huawei

Proprietary and Confidential

About This Document

Overview

GPON terminal EchoLife ONT is an indoor optical network terminal (ONT) designed for

home users. This document provides the appearance, key features, and technical

specifications of the ONT, which helps you know the ONT quickly.

Symbol Conventions

The following symbols may be found in this document. They are defined as follows:

Symbol Description

DANGER indicates a hazard with a high level or

medium level of risk which, if not avoided, could result

in death or serious injury.

WARNING indicates a hazard with a low level of risk

which, if not avoided, could result in minor or moderate

injury.

CAUTION indicates a potentially hazardous situation

that, if not avoided, could result equipment damage, data

loss, performance degradation, or unexpected results.

Indicates a tip that may help you solve a problem or save

your time.

Provides additional information to emphasize or

supplement important points of the main text.

EchoLife ONT GPON Terminal

Product Description 2 Introduction

Issue 01 (2013-05-20) Huawei

Proprietary and Confidential

Introduction

2.1 Product Positioning

2.2 Network Applications

2.3 Product Overview

2.1 Product Positioning

EchoLife GPON terminal HG8245H is an indoor optical network terminal (ONT) designed

for home users. Its upper shell adopts the natural heat dissipation material, and its optical port

adopts the dust-proof design with a rubber plug. The ONT is eye-pleasing and

energy-efficient. It can be deployed on a workbench or mounted on a wall, meeting users'

deployment requirements in different scenarios.

The ONT provides the more convenient and efficient remote management function. It

supports the TR-069 and ONT Management and Control Interface (OMCI) protocols and

manages all home terminals in a unified manner, implementing remote fault diagnosis, service

provisioning, and performance statistics.

By using the Gigabit-capable Passive Optical Network (GPON) technology, the ONT

provides a high-speed data channel through a single optical fiber with an upstream rate of

1.244 Gbit/s and a downstream rate of 2.488 Gbit/s. In this way, you can enjoy the high-speed

data service, quality voice service, and superior video service. Apart from that, you can also

enjoy the secure and reliable wireless access service and the convenient home network

attached storage and file sharing services.

2.2 Network Applications

As a network terminal, the ONT is deployed at the GPON access layer and connects the home

users users to the Internet through the optical upstream port.

Figure 2-1 shows the position of the ONT on a network.

EchoLife ONT GPON Terminal

Product Description 2 Introduction

Issue 01 (2013-05-20) Huawei

Proprietary and Confidential

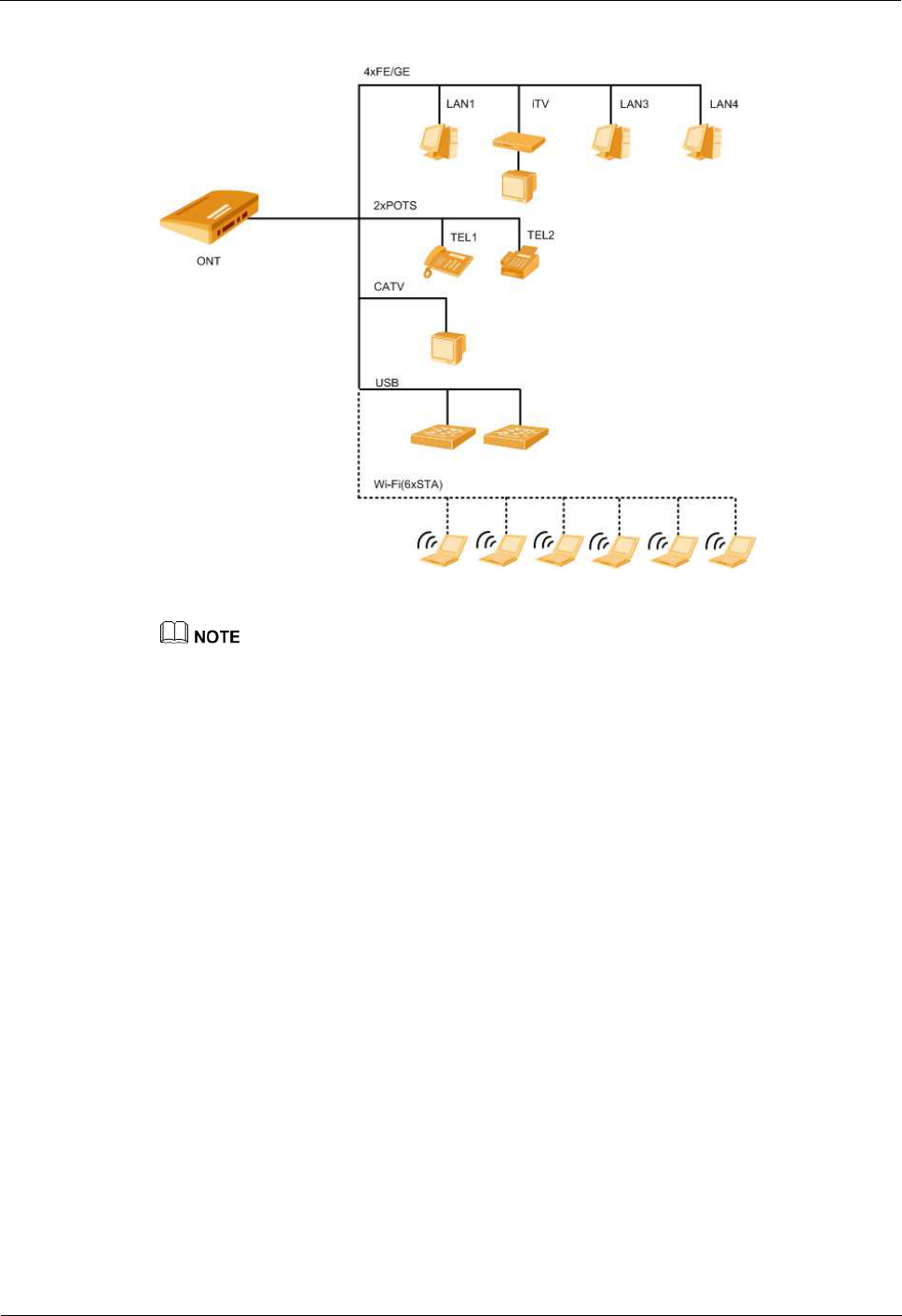

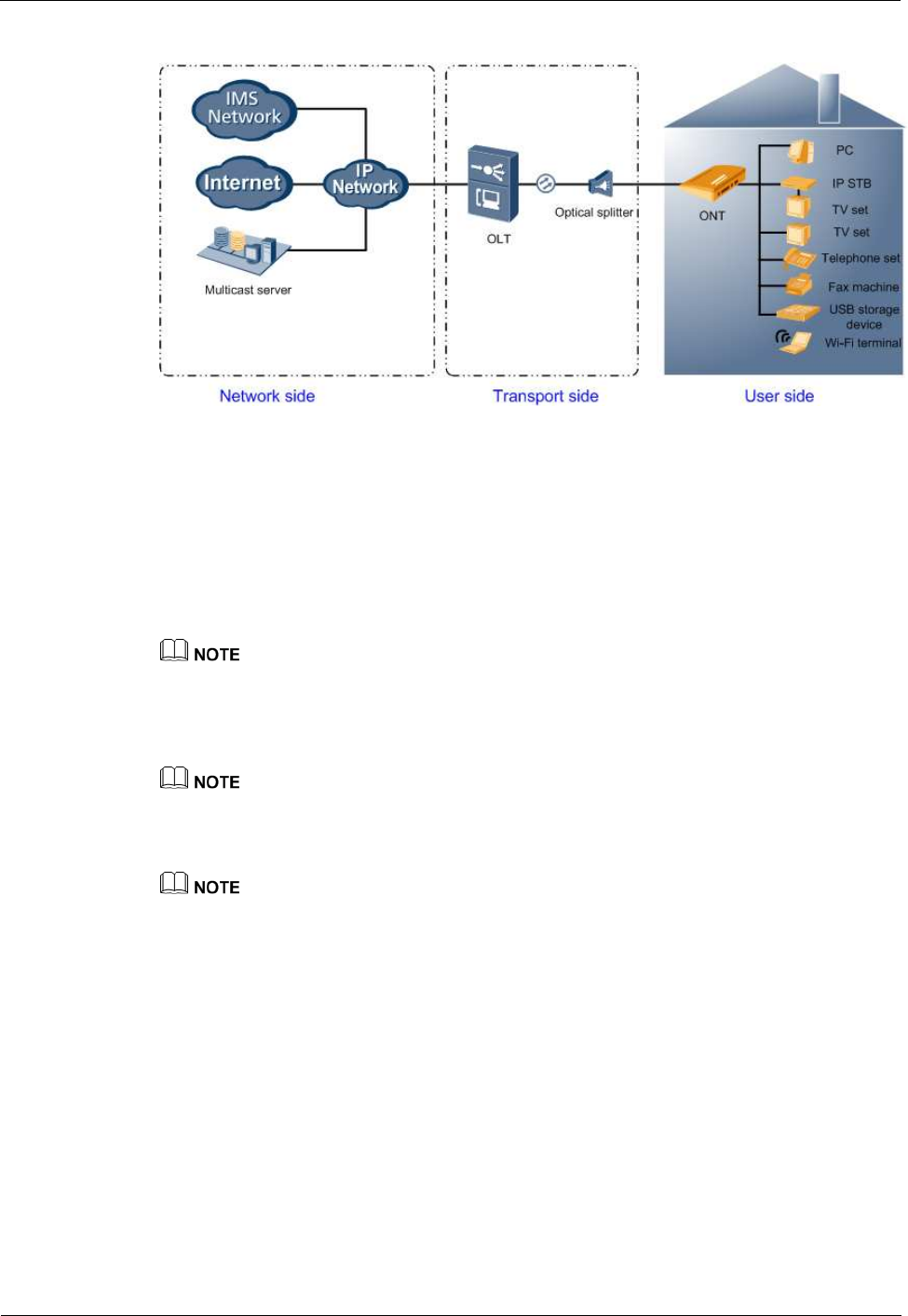

Figure 2-1 Network topology of the ONT

 In the upstream direction, the ONT is connected to the optical splitter and the

networkside OLT through the passive optical network (PON) port, namely the OPTICAL

port, to provide the integrated access service.

 In the downstream direction, the ONT is connected to various terminals through the

abundant LAN-side ports, implementing the triple play service.

− Ethernet ports, which can be connected to terminals such as the PC, STB, and video

phone to provide the high-speed data and video services.

Each Ethernet port allows only 1 user access.

− TEL ports, which can be connected to the telephone set or fax machine to provide the

superior and cost-effective voice over IP (VoIP), fax over IP (FoIP), and modem over

IP (MoIP) services.

Each TEL port allows only 1 user access.

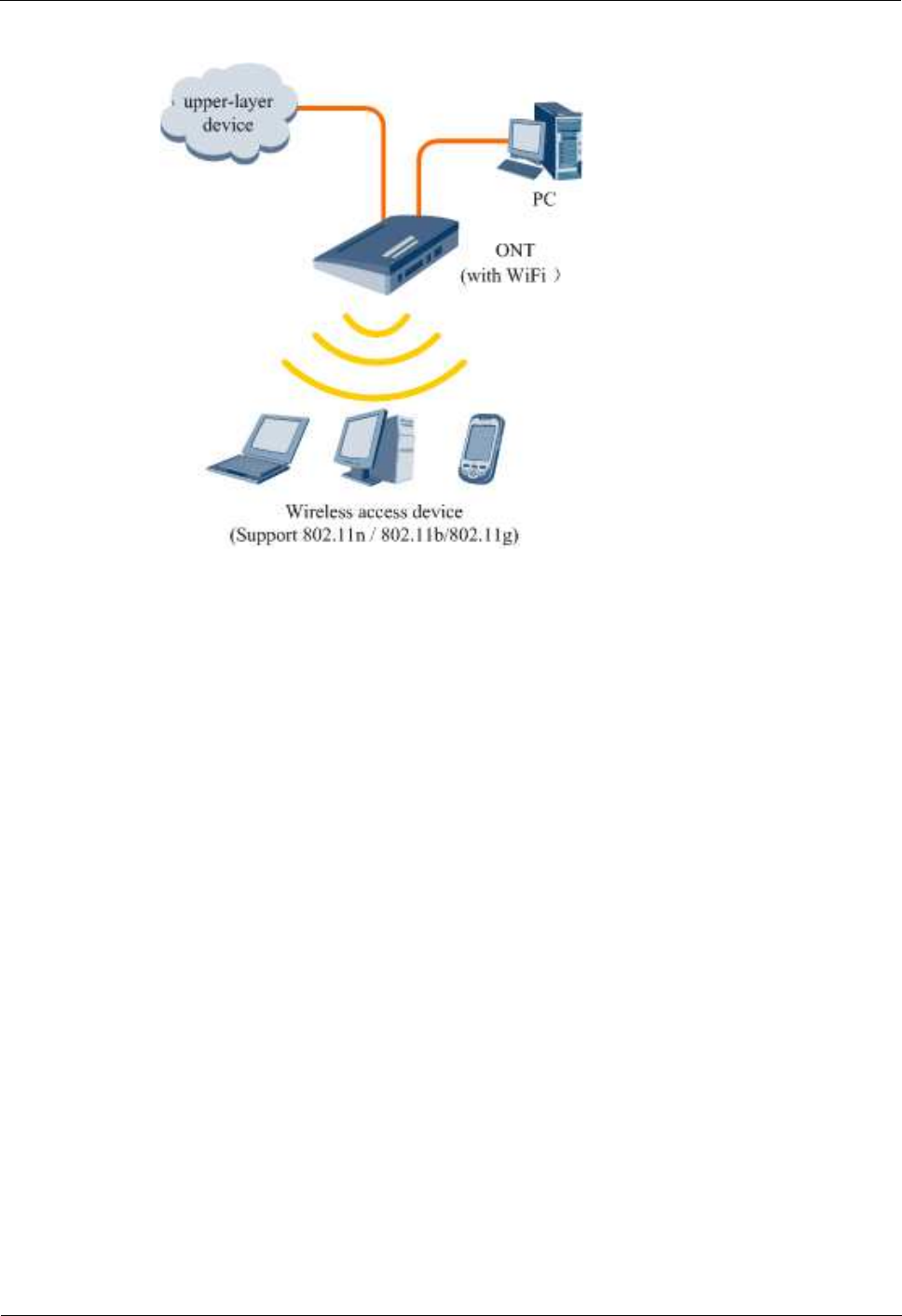

− Wi-Fi, which can be connected to a Wi-Fi terminal through wireless connection to

provide a secure and reliable high-speed wireless network.

Each ONT allows up 6 wireless connections.

− USB port, which can be connected to a USB storage device to provide convenient

home network attached storage and file sharing services.

2.3 Product Overview

Introduced the appearance, interfaces, LEDs and device parameters of the HG8245H.

EchoLife ONT GPON Terminal

Product Description 2 Introduction

Issue 01 (2013-05-20) Huawei

Proprietary and Confidential

Appearance

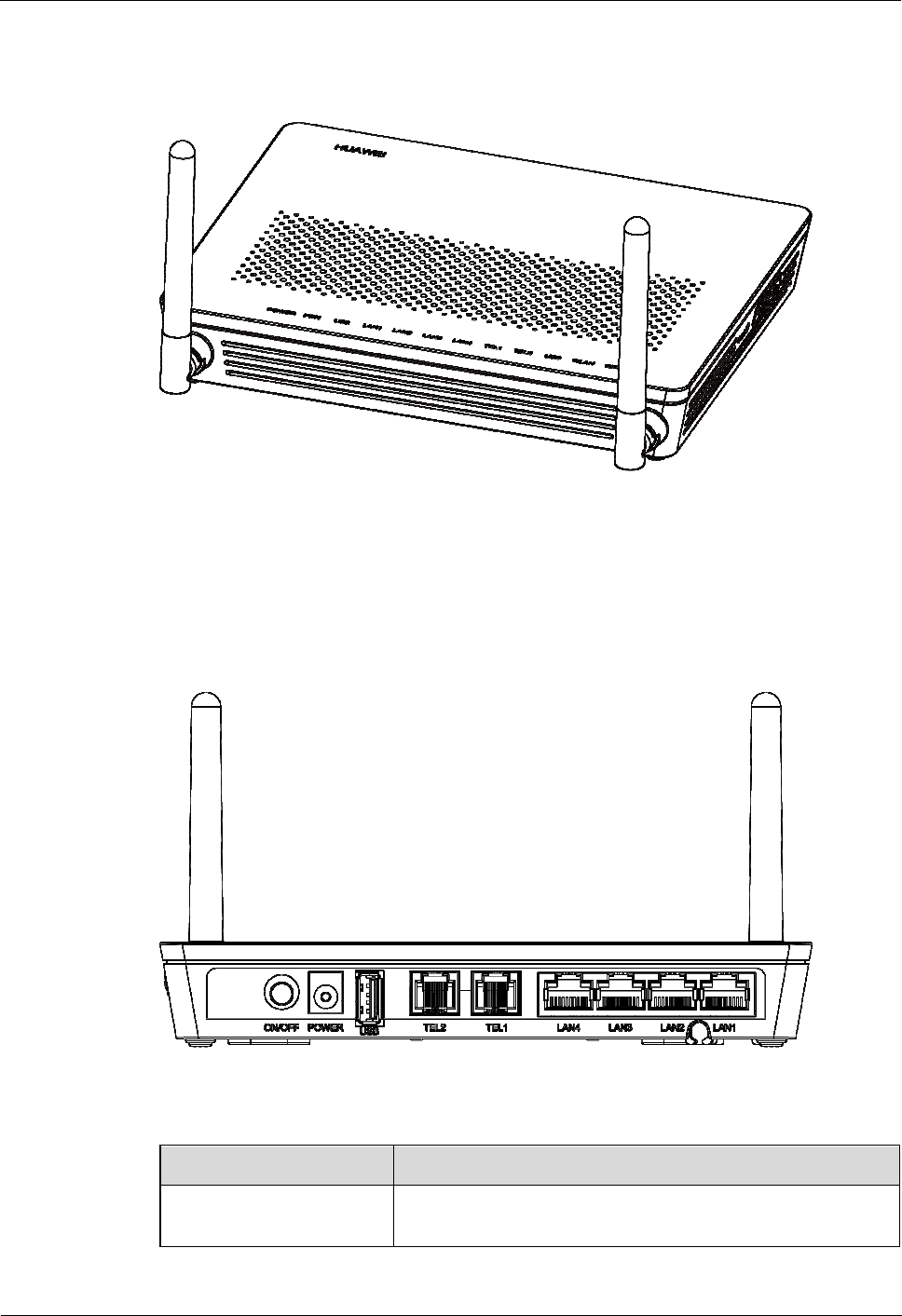

Figure 2-2 Appearance of the HG8245H

Port/Button

Figure 2-13 and Figure 2-14 show the ports on the rear panel and side panel of the HG8245H

respectively.

Figure 2-3 Ports and buttons on the rear panel of the HG8245H

Table 2-1 Description of ports and buttons on the rear panel of the HG8245H

Port/Button Function

ON/OFF Indicates the power button. It is used to power on or power

off the device.

EchoLife ONT GPON Terminal

Product Description 2 Introduction

Issue 01 (2013-05-20) Huawei

Proprietary and Confidential

Port/Button Function

POWER Indicates the power port, used to connect to the power

adapter or backup battery unit.

USB Indicate USB host ports, used to connect to USB storage

devices.

TEL1–TEL2 Indicate VoIP telephone ports (RJ-11), used for connecting to

the ports on telephone sets.

LAN1–LAN4 Indicate auto-sensing 10/100/1000M Base-T Ethernet ports

(RJ-45), used to connect to PCs or IP set-top boxes (STBs).

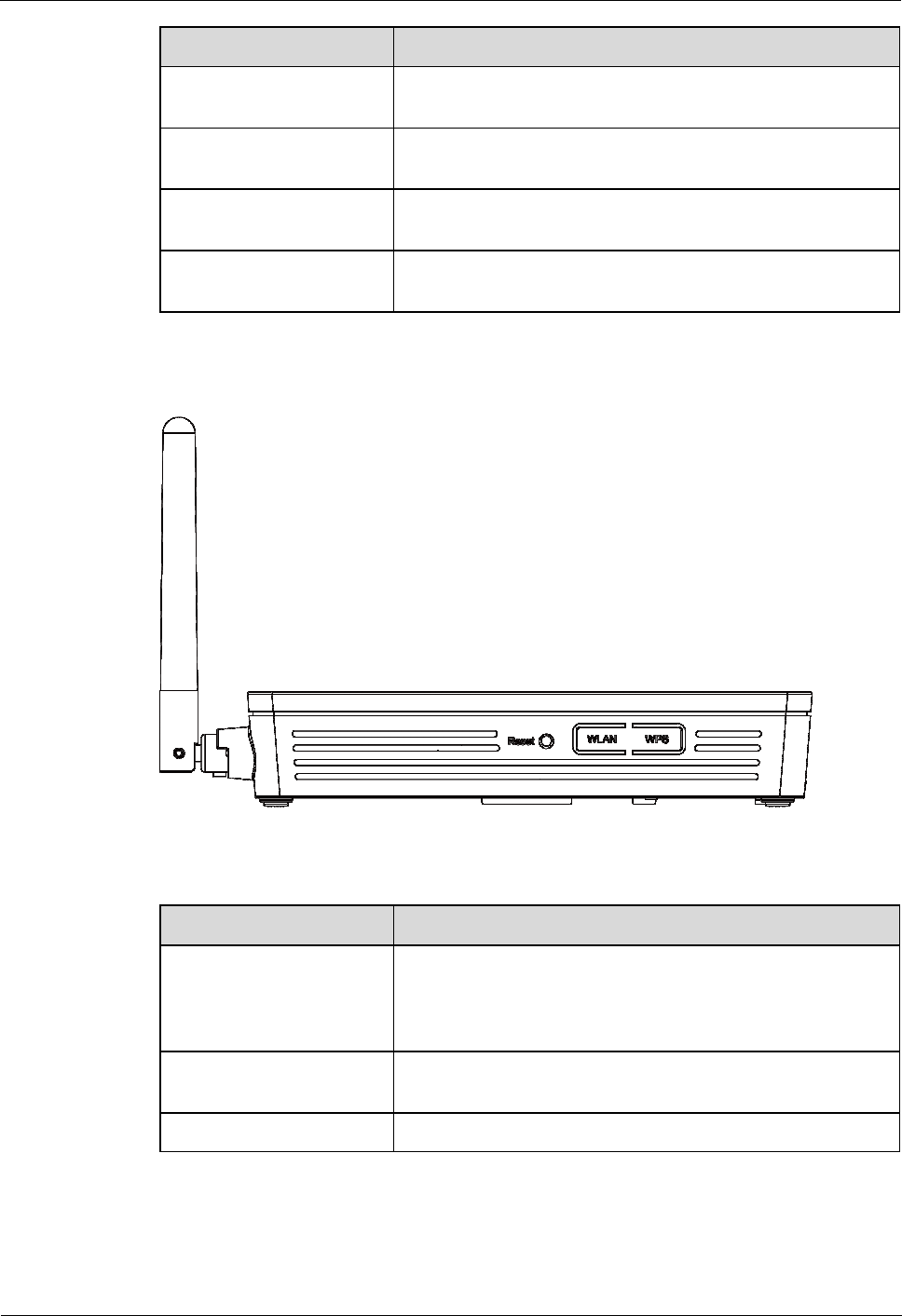

Figure 2-4 Ports and buttons on the side cover of the HG8245H

Table 2-2 Description of ports and buttons on the side cover of the HG8245H

Port/Button Function

Reset

Indicates the reset button. Press the button for a short time to

reset the device; press the button for a long time (longer than

10s) to restore the device to the default settings and reset the

device.

WLAN Indicates the WLAN button, used to enable or disable the

WLAN function.

WPS Indicates the WLAN data encryption switch.

Figure 2-15 shows optical ports on the HG8245H.

EchoLife ONT GPON Terminal

Product Description 2 Introduction

Issue 01 (2013-05-20) Huawei

Proprietary and Confidential

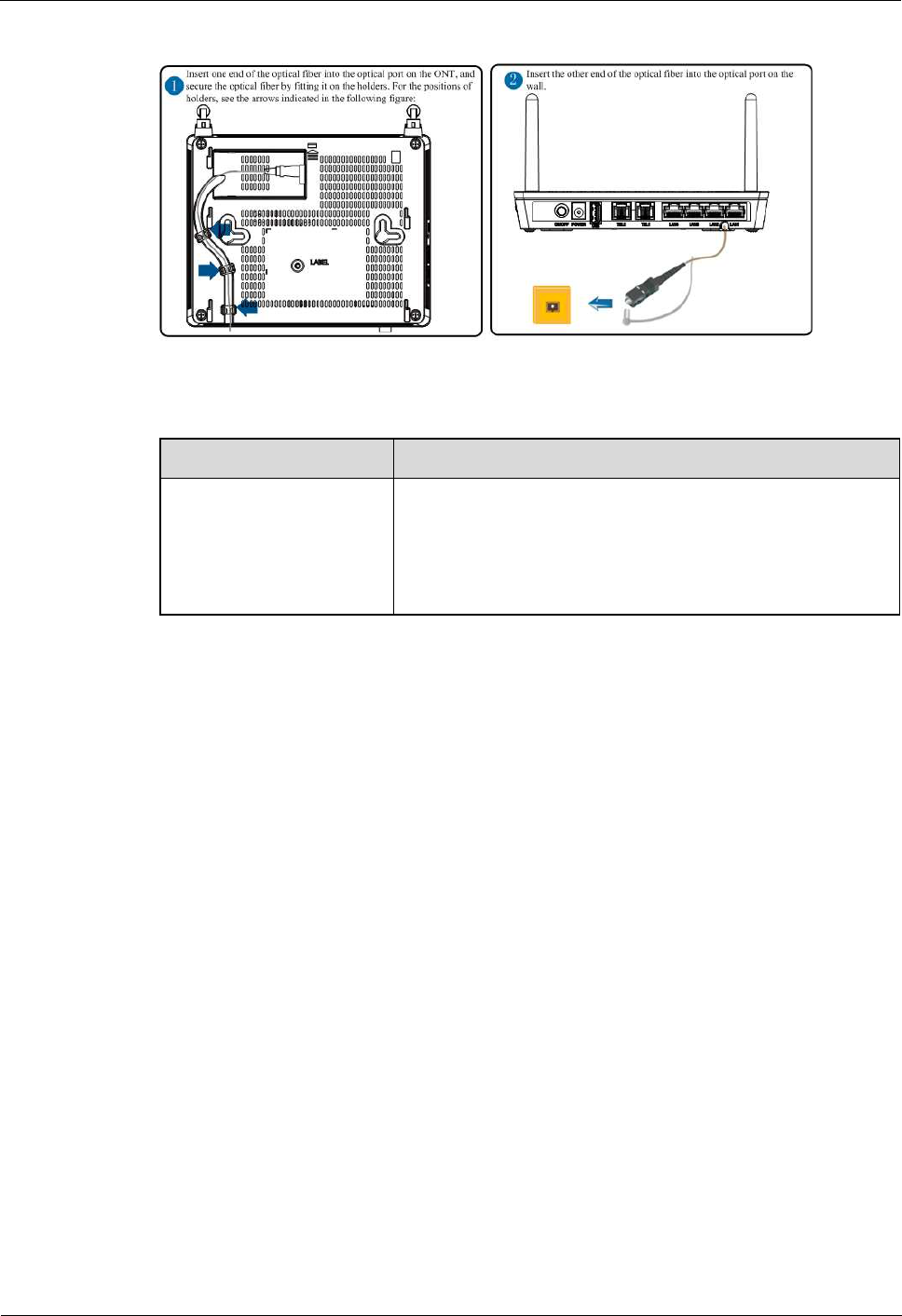

Figure 2-5 Optical ports on the HG8245H

Table 2-3 Description of optical ports on the HG8245H

Port/Button Function

OPTICAL

Indicates an optical port. The optical port is equipped with a

rubber plug and is connected to an optical fiber for upstream

transmission.

The type of the optical connector connected to the OPTICAL

port is SC/APC.

EchoLife ONT GPON Terminal

Product Description 2 Introduction

Issue 01 (2013-05-20) Huawei

Proprietary and Confidential

LEDs

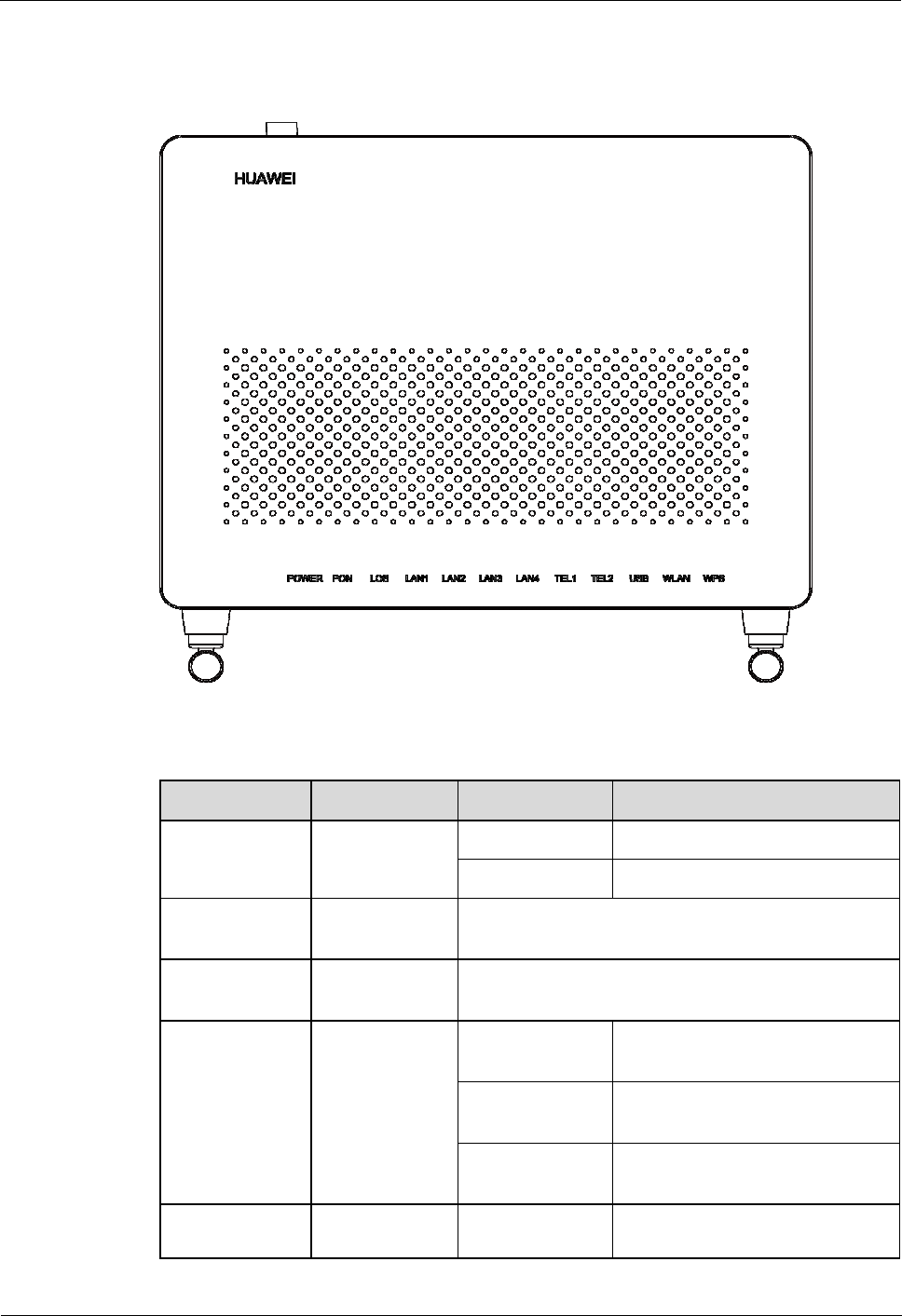

Figure 2-6 LEDs on the HG8245H

Table 2-4 Indications of the LEDs on the HG8245H

LED Description Status Description

POWER Power supply

LED

Always on The device is powered on.

Off The power supply is cut off.

PON Authentication

LED See Table 2-17.

LOS Connection

LED See Table 2-17.

LAN1–LAN4 Ethernet port

LED

Always on The Ethernet connection is in the

normal state.

Blinking Data is being transmitted on the

Ethernet port.

Off The Ethernet connection is not set

up.

TEL1–TEL2 Voice

telephone port Always on The HG8245H is registered with

the softswitch but no service

EchoLife ONT GPON Terminal

Product Description 2 Introduction

Issue 01 (2013-05-20) Huawei

Proprietary and Confidential

LED Description Status Description

LED flows are transmitted.

Blinking Service flows are transmitted.

Off The HG8245H is not powered on

or fails to be registered to the

softswitch.

USB USB port LED

Always on The USB port is connected and is

working in the host mode, but no

data is transmitted.

Blinks quickly

(twice per

second)

Data is being transmitted on the

USB port.

Off The system is not powered on or

the USB port is not connected.

WLAN WLAN LED

Always on The WLAN function is enabled.

Blinking Data is being transmitted on the

WLAN port.

Off The WLAN function is disabled.

WPS WPS LED

Always on The WPS function is enabled.

Blinking A Wi-Fi terminal is accessing the

system.

Off The WPS function is disabled.

Table 2-5 Indications of the PON and LOS LEDs

No.

LED Status

Description

PON LOS

1 Off Off The ONT is disabled by the OLT.

2 Blinks quickly

(twice per

second)

Off The ONT is attempting to set up

a connection to the OLT.

3 Always on Off The connection between the ONT

and the OLT is set up.

4 Off Blinks slowly

(once two

seconds)

The Rx optical power of the ONT

is lower than the optical receiver

sensitivity.The ONT is not

connected to optical fibers or

does not send optical signals.

5 Blinks quickly

(twice per Blinks quickly

(twice per The OLT detects that the device

EchoLife ONT GPON Terminal

Product Description 2 Introduction

Issue 01 (2013-05-20) Huawei

Proprietary and Confidential

No.

LED Status

Description

PON LOS

second) second) is a rogue ONT.

6 Blinks quickly

(twice per

second)

Blinks slowly

(once two

seconds)

The Rx optical power of the ONT

does not within the range (–27

dBm to –8 dBm) of the Rx

sensitivity.

Device parameters

The device parameters include the ONT's size, weight, operating environment, and power

parameters and equipment power consumption.

Table 2-6 HG8245H device parameters

Parameter Specifications

Dimensions (length x width x height) 176 mm x 138.5 mm x 28 mm

Weight About 500 g

Working environment Operating temperature: 0 to +40℃ ℃

Environment humidity: 5% RH to 95% RH

(non-condensing)

Pressure environment: 86 kPa to 106 kPa

Altitude: 2000 m

Power specifications Power adapter input: 100–240 V AC, 50–60

System power supply: 11–14 V DC, 2 A

Power consumption



Static power: 5 W



Maximum power consumption: 15.5 W

EchoLife ONT GPON Terminal

Product Description 3 Product Functions and Features

Issue 01 (2013-05-20) Huawei

Proprietary and Confidential

Product Functions and Features

This chapter describes the key characteristics of the HG8245H.

Type Features

GPON features



Class B+ optical power budget



Authentication modes of SN, password,

and SN+password

Gateway features



NAT



Internet, IPTV and VoIP services

automatically bound to the ONT port



Virtual Server, Port Trigger



Port trigger and DMZ

Broadband features



Any port any service



Smart pipe



Intelligent hotspot

Voice features



Session Initiation Protocol (SIP), H.248



Voice media streams and signaling

streams separation

Multicast features



IGMP V2&V3 Snooping



Dynamically controllable multicast



IGMP Proxy

Security features



MAC address filtering, IP address

filtering, URL address filtering



Anti-DoS

Device maintenance



Local service configuration, query, and

software upgrade on the Web page



Automatic remote service provisioning,

device management, and software

upgrade through OMCI



Query of the information about the ONT

optical transceiver

EchoLife ONT GPON Terminal

Product Description 3 Product Functions and Features

Issue 01 (2013-05-20) Huawei

Proprietary and Confidential

Type Features



Loop line test and circuit test



Dual system protection of the software

(normal system and mini system)



Intelligent monitoring

Reliable features



Dual system protection of the software

(normal system and mini system)

Ethernet features



VLAN filtering, VLAN transparent

transmission



VLAN N:1 aggregation and VLAN 1:1

switch

Power-saving features



Dynamic power adjustment

For details about the features, see the Feature Description.

EchoLife ONT GPON Terminal

Product Description 4 Product Highlights

Issue 01 (2013-05-20) Huawei

Proprietary and Confidential

Product Highlights

4.1 Comprehensive Triple Play Service

On the LAN side, the ONT provides abundant hardware ports to implement multiple access

services, including the home network attached storage, Internet access, voice, and video

services, providing users with the comprehensive triple play service.

4.2 Secure and Reliable Wi-Fi Access

The ONT helps users build a secure and reliable wireless network based on the 802.11 b/g/n

Wi-Fi access.

4.3 Convenient Home Network Attached Storage and File Sharing Services

The ONT provides one USB port, which can be used to connect to a USB storage device to

provide convenient home network attached storage and file sharing services.

4.4 Secure and Powerful Gateway Functions

The ONT can function as a home gateway, which features the secure and powerful gateway

functions.

4.5 Convenient Automatic Provisioning, Maintenance, and Management of the Remote

Service

The ONT applies the TR-069 and OMCI management, manages terminal services without

additional IP networks, which facilitates automatic provisioning, maintenance, and

management of the remote service.

4.1 Comprehensive Triple Play Service

On the LAN side, the ONT provides abundant hardware ports to implement multiple access

services, including the home network attached storage, Internet access, voice, and video

services, providing users with the comprehensive triple play service.

EchoLife ONT GPON Terminal

Product Description 4 Product Highlights

Issue 01 (2013-05-20) Huawei

Proprietary and Confidential

Figure 4-1 Comprehensive Triple Play Service

 Each Ethernet port allows only 1 user access.

 Each TEL port allows only 1 user access.

 Each ONT allows up 6 wireless connections.

4.2 Secure and Reliable Wi-Fi Access

The ONT helps users build a secure and reliable wireless network based on the 802.11 b/g/n

Wi-Fi access.

EchoLife ONT GPON Terminal

Product Description 4 Product Highlights

Issue 01 (2013-05-20) Huawei

Proprietary and Confidential

Figure 4-2 Wi-Fi Access

The Wi-Fi access of the ONT has the following features:

 Supports four SSIDs. The user can select different wireless networks by setting different

SSIDs.

 Compatible with IEEE 802.11b/802.11g/802.11n, passing the authentication of Wireless

Fidelity (Wi-Fi) Alliance and featuring good compatibility with other WLAN devices.

 Supports multiple authentication and encryption modes, providing users with the secure

and reliable wireless access.

4.3 Convenient Home Network Attached Storage and File

Sharing Services

The ONT provides one USB port, which can be used to connect to a USB storage device to

provide convenient home network attached storage and file sharing services.

The USB storage function of the ONT has the following features:

 The USB port supports Universal Plug and Play (UPnP) and hot plugging.

 The USB function can be configured on the local Web page, which facilitates home

network attached file sharing.

 The USB port implements the FTP client for home storage, that is, downloading files

from the FTP server in a public network to the USB storage device.

EchoLife ONT GPON Terminal

Product Description 4 Product Highlights

Issue 01 (2013-05-20) Huawei

Proprietary and Confidential

4.4 Secure and Powerful Gateway Functions

The ONT can function as a home gateway, which features the secure and powerful gateway

functions.

The gateway features of the ONT are as follows:

 Forwarding rate up to 900 Mbit/s, meeting service requirements for a high quality.

 Functioning as a DHCP server or a DHCP client, meeting various requirements in

different scenarios.

 Configuration of anti-DoS attack, MAC address filtering, IP address filtering, URL

address filtering, firewall, and ONT ACL, making the ONT more secure and reliable

when it functions as a gateway.

4.5 Convenient Automatic Provisioning, Maintenance, and

Management of the Remote Service

The ONT applies the TR-069 and OMCI management, manages terminal services without

additional IP networks, which facilitates automatic provisioning, maintenance, and

management of the remote service.

The remote service management of the ONT has the following features:

 Supports configuring the global profile and issuing the XML configuration file on the

NMS. To provision ONT services in batches and adjust the network, only a few changes

are required.

 Supports user-defined upgrade policies configured through the NMS. The device is

automatically upgraded after being powered on and no manual operation is required.

 Supports remote performance management of the ONT through the NMS. By collecting

the performance data, the network performance exception can be monitored in real time.

 Supports remote fault locating of the ONT through the NMS. Through alarm reporting

and remote loopback diagnosis, the fault can be located remotely, which decreases the

maintenance cost.

EchoLife ONT GPON Terminal

Product Description 5 Port Specifications

Issue 01 (2013-05-20) Huawei Proprietary and Confidentia

Port Specifications

Introduced the interface indicators parameter of the ONT.

5.1 GPON Port Specifications

Introduced the GPON interfaces indicators of the ONT.

5.2 GE Port Specifications

This topic describes the specifications and standards compliance of Gigabit Ethernet (GE)

ports.

5.3 POTS port

This section describes the specifications and standards for the plain old telephone service

(POTS) port supported by the ONT.

5.4 USB Port

This topic introduces the specifications of the USB port on the ONT.

5.5 Wireless Network Access

This topic introduces the wireless network access indicators of the ONT.

5.1 GPON Port Specifications

Introduced the GPON interfaces indicators of the ONT.

Table 5-1 GPON port specifications

Parameter Specifications

Transmission rate Rx: 2.488 Gbit/s

Tx: 1.244 Gbit/s

Connector SC/APC

Maximum reach 20 km

Standard compliance ITU-T G.984.2 CLASS B+

Center wavelength Tx: 1310 nm

EchoLife ONT GPON Terminal

Product Description 5 Port Specifications

Issue 01 (2013-05-20) Huawei Proprietary and Confidentia

Parameter Specifications

Rx: 1490 nm

Tx optical power 0.5 dBm to 5.0 dBm

Extinction ratio > 10 dB

Minimum receiver sensitivity -27 dBm

Maximum overload optical power -8 dBm

5.2 GE Port Specifications

This topic describes the specifications and standards compliance of Gigabit Ethernet (GE)

ports.

Table 5-2 Specifications of a GE port

Parameter Specifications

Connector type RJ45

Port rate 10 Mbit/s, 100 Mbit/s, or 1000 Mbit/s

Maximum transmission distance 100 m

Working mode Auto-adaptive 10 Mbit/s, 100 Mbit/s or

1000 Mbit/s

Cable specifications Category 5 UTP

Compliant standard IEEE 802.3i

IEEE 802.3u

IEEE 802.3ab

5.3 POTS port

This section describes the specifications and standards for the plain old telephone service

(POTS) port supported by the ONT.

Table 5-3 POTS Port Specifications

Parameter Specifications

Connector type RJ11

Transmission rate 64 kbit/s

Cable type Twisted pair

EchoLife ONT GPON Terminal

Product Description 5 Port Specifications

Issue 01 (2013-05-20) Huawei Proprietary and Confidentia

Parameter Specifications

Line coding Pulse code modulation (PCM)

Frame protocol Time division multiplexing (TDM)

Standard compliance ITU-T Q.551

ITU-T Q.552

5.4 USB Port

This topic introduces the specifications of the USB port on the ONT.

Table 5-4 Specifications of the USB port

Parameter Specification

Transmission rate 480 Mbit/s

Support type USB 2.0 HOST and USB 1.1

5.5 Wireless Network Access

This topic introduces the wireless network access indicators of the ONT.

Table 5-5 Wireless network access indicators

Parameter Indicator

Standards compliance 802.11b/g/n

Specification



4 SSIDs



13 working channels



Automatic rate adjustment



Transmit power adjustment

Authentication Open system and shared key

Encryption



64-bit and 128-bit WEP encryption



WPA-PSK, WPA2-PSK, WPA, WPA2,

AES, and TKIP

EchoLife ONT GPON Terminal

Product Description 6 Acronyms and Abbreviations

Issue 01 (2013-05-20) Huawei

Proprietary and Confidential

Acronyms and Abbreviations

AES Advanced Encryption Standard

ALG Application Level Gateway

BRAS Broadband Remote Access Server

CATV Community Antenna Television

DBA Dynamic Bandwidth Assignment

DHCP Dynamic Host Configuration Protocol

DMZ Demilitarized Zone

DNS Domain Name Server

DTMF Dual Tone Multi-Frequency

DoS Denial of Service

FEC Forward Error Correction

FoIP FAX over IP

FTTH Fiber To The Home

GPON Gigabit-capable Passive Optical Network

IGMP Internet Group Management Protocol

MoIP Modem over IP

EchoLife ONT GPON Terminal

Product Description 6 Acronyms and Abbreviations

Issue 01 (2013-05-20) Huawei

Proprietary and Confidential

NAPT Network Address and Port Translation

NAT Network Address Translation

NMS Network Management System

OAM Operations, Administration, and Maintenance

OLT Optical Line Terminal

OMCI Optical Network Termination Management and Control Interface

ONT Optical Network Terminal

PLOAM Physical Layer OAM

PON Passive Optical Network

PSTN Public Switched Telephone Network

RTCP Real-time Transport Control Protocol

RTP Real-time Transport Protocol

SIP Session Initiation Protocol

SSID Service Set Identifier

STB Set Top Box

TKIP Temporal Key Integrity Protocol

UPnP Universal Plug and Play

VLAN Virtual Local Area Network

VoIP Voice over IP

WLAN Wireless Local Area Network

WEP Wired Equivalent Privacy

WPA Wi-Fi Protected Access

WPS Wi-Fi Protected Setup

Huawei Technologies HG8245H GPON ONT User Manual HG8245H Product Description

Huawei Technologies Co.,Ltd GPON ONT HG8245H Product Description

Contents

Product manual

Navigation menu

Namespaces

Views

Navigation
