Huawei Technologies IPP7960 IP Phone User Manual
Huawei Technologies Co.,Ltd IP Phone
User Manual
12 V; 1A
PC port, connected to the Ethernet port of a PC
Follow the steps below to log in to the home screen of your phone:
2 Enter your account and password, and press the Log In softkey for login. .
1.Power on your phone. The login screen is displayed.
Logging In to Your Phone
NOTE
From the login screen, choose You can select a language on this screen. More > Lang., the Language screen is displayed.
Power port, connected to the power adapter
2
3
LAN port (Internet port), connected to a local
4
Headset port, connected to an external
5
Handset port, connected to the handset cord
6
area network (LAN) or public network
headset
Expansion port, connected to the expa nsion
1
module
Lower part on the side surface of the IP phone:
CAUTION
During a login, ensure that the CloudLink Phone 7960 is properly connected to the network (that is, the icon is not displayed at the
corner of the login screen). upper right If you still fail to log in, contact your system administrator.
The Huawei +12 VDC power adapter and PoE Class 3（36-57Vdc）must be supply by LPS. A Huawei warranty does not cover
any damage caused by the use of other.
+12 V DC power adapter and PoE. Class3 at the same time for the same phone is not recommended.
power adapters. Alternatively, you can use the PoE Class3 supply, but using the Huawei
eSpace 7910
安装
Open the product package and check the items against the following checklist.
10-line business IP phone, with a 5-inch true-color screen;
1 USB port; expansion module support
2 GE ports, support for power over Ethernet (PoE)
Bluetooth headset ready
eSpace 7910

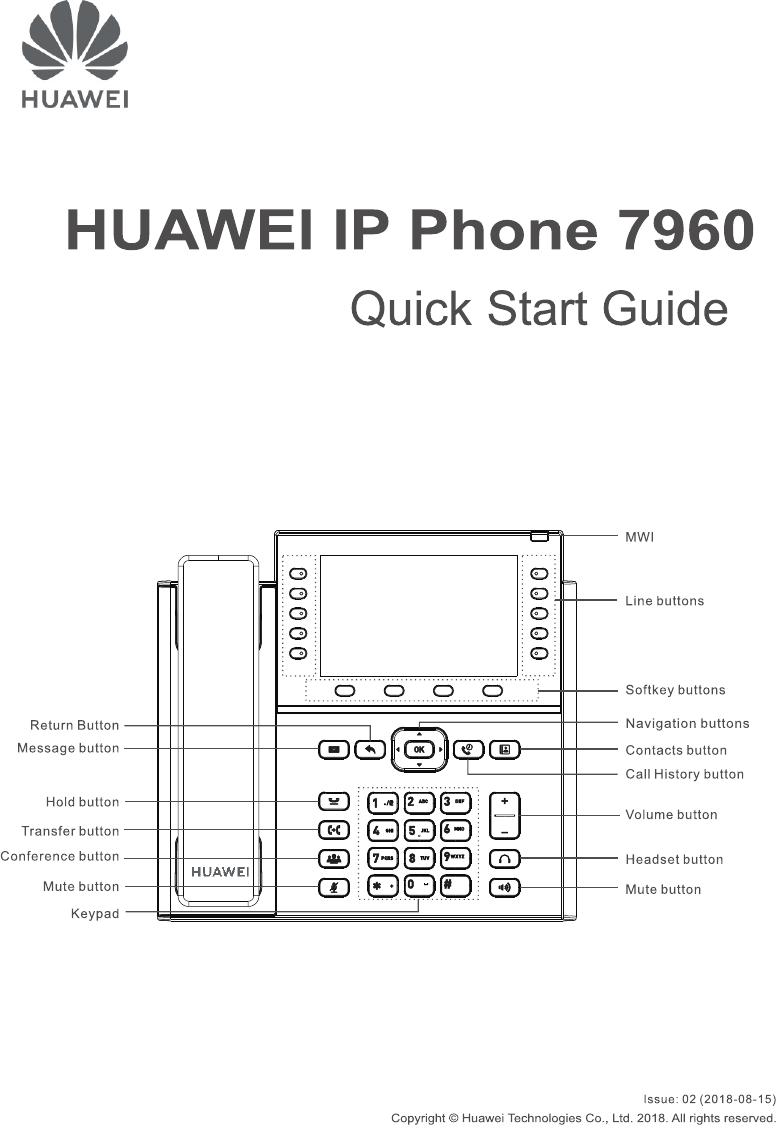

HUAWEI IP Phone 7960
Packing List
Contact your supplier if there are any discrepancies.
Phone body x 1
Handset x 1
Handset cord x 1
Straight-through network cable x 1
Quick Start Guide x 1
Connecting Cables
NOTE
The power adapter and the headset must be purchased separately.
Additional Guides Available
For Additional support for the HUAWEI IP Phone 7960, visit http://support.huawei.com/enterprise. On the home
page,search CloudLink Phone 7960 to obtain the latest documentation including the user guide and administrator guide.
The PC port can be connected only to a PC. If you connect the PC port to another IP phone or directly to the network,
the IP phone may encounter function or network exceptions.
123456
12V;1A
IP phone’s back view
Power adapter (Optional) PC Network (Optional)
Handset
(Optional) Expansion module
12V;1A
Headset (RJ-9)
USB port and 3.5mm headset port
1506-18KT000
FCC User’s Manual:
Federal Communication Commission Interference Statement
This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This device generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful
interference to radio or television reception, which can be determined by turning the device off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the device and receiver.
Connect the device into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate this device.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or
transmitter.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This device complies with FCC radiation exposure limits set forth for an uncontrolled environment. This device
should be installed and operated with minimum distance 20cm between the radiator & your body.
IC User’s Manual:
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic
Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference, including interference that may cause undesired operation of the
device.
L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation,
Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation
est autorisée aux deux conditions suivantes :
1. L’appareil ne doit pas produire de brouillage;
2. L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en
compromettre le fonctionnement.
IMPORTANT NOTE:
IC Radiation Exposure Statement:
This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This
dispositif should be installed and operated with minimum distance 20cm between the radiator & your body.
Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet
dispositif doit être installé et utilisé avec un minimum de 20cm de distance entre la source de rayonnement et votre corps
Co-located
The transmitter module may not be co-located with any other transmitter or antenna.
Le module émetteur peut ne pas être coïmplanté avec un autre émetteur ou antenne.
Digital apparatus (ICES003)
CAN ICES-3 (B)/NMB-3(B)
This device complies with Industry Canada CS-03.
Cet appareil est également conforme à dispose de la certification CS- 03 d'Industrie Canada
CE User’s Manual:
CE RF Exposure Compliance
In order to comply with human exposure to radiofrequency standards this Product
should be installed and operated with 20cm minimum distance between the radiator and your body.
Radio operating frequency :2400~2483.5MHz : Max EIRP 13 dBm(20mW)
