User manual
Quick Start Guide
902170_02
华为信息资产
仅供TUV-SUD公司使用
严禁扩散
1
Your device at a glance
Before you start, let's take a look at your new device.
•
To power on your device, press and hold the power button until the
screen turns on.
•
To power off your device, press and hold the power button, and then
touch .
• To force your device to restart, press and hold the power button
until your device vibrates.
9ZGZ[YOTJOIGZUX
,XUTZIGSKXG
9VKGQKX .KGJYKZPGIQ
8KGXIGSKXG
6U]KXQK_
<UR[SKQK_
)GXJZXG_
3OIXUVNUTK 3OIXU;9(VUXZ
华为信息资产
仅供TUV-SUD公司使用
严禁扩散
2
Getting Started

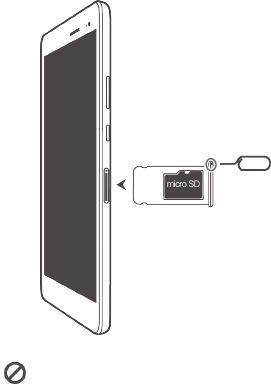

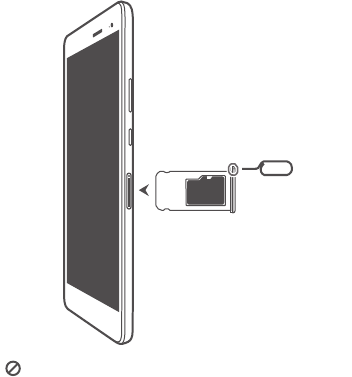

Follow the instructions in the following figures to set up your device.
Be careful not to scratch your device or hurt yourself when using the
eject pin. Store the eject pin out of the reach of children to prevent
accidental swallowing or injury.
NJDSP4%
华为信息资产
仅供TUV-SUD公司使用
严禁扩散
3
For more information
Log on to the official Huawei website. You can:
•
Visit http://consumer.huawei.com/en/ to download user guides, view
frequently asked questions and other information.
•
Visit http://consumer.huawei.com/en/support/hotline for the most up-
to-date contact information for your country or region.
Go to
Settings
and touch
About tablet
>
Legal information
to view
legal information for your product.
Go to
Settings
and touch
About tablet
>
Legal information
>
Safety
information
to view safety information for your product.
Go to
Settings
and touch
About tablet
>
Authentication info
to view
regulatory information for your product.
Go to
Settings
and touch
About tablet
>
Certification logos
to view
more information on certification logos for your product.
All pictures and illustrations in this guide, including but not limited to
the product color, size, and display content, are for your reference
only. The actual product may vary. Nothing in this guide constitutes a
warranty of any kind, express or implied.
华为信息资产
仅供TUV-SUD公司使用
严禁扩散
4
Safety Information
Please read all of the safety information carefully before using your device
to ensure its safe and proper operation and to learn how to dispose of your
device properly.
Operation and safety
•
To prevent possible hearing damage, do not listen at high
volume levels for long periods.
•
Using an unapproved or incompatible power adapter, charger, or
battery may damage your device, shorten its lifespan, or cause a fire,
explosion, or other hazards.
•
Ideal operating temperatures are 0 °C to 35 °C
. Ideal storage
temperatures are
-40 °C to +70 °C.
•
Pacemaker manufacturers recommend that a minimum distance of 15
cm be maintained between a device and a pacemaker to prevent
potential interference with the pacemaker. If using a pacemaker, hold
the device on the side opposite the pacemaker and do not carry the
device in your front pocket.
•
Keep the device and the battery away from excessive heat and direct
sunlight. Do not place them on or in heating devices, such as
microwave ovens, stoves, or radiators.
•
Observe local laws and regulations while using the device. To reduce
the risk of accidents, do not use your wireless device while driving.
•
While flying in an aircraft or immediately before boarding, only use
your device according to instructions provided. Use of a wireless
device in an aircraft may disrupt wireless networks, present a hazard
to aircraft operation, or be illegal.
华为信息资产
仅供TUV-SUD公司使用
严禁扩散
5
•
To prevent damage to your device's parts or internal circuits, do not
use it in dusty, smoky, damp, or dirty environments or near magnetic
fields.
•
When charging the device, make sure the power adapter is plugged
into a socket near the devices and is easily accessible.
•
Unplug the charger from electrical outlets and the device when not in
use.
•
Do not use, store or transport the device where flammables or
explosives are stored (in a gas station, oil depot, or chemical plant, for
example). Using your device in these environments increases the risk
of explosion or fire.
•
Dispose of this device, the battery, and accessories according to local
regulations. They should not be disposed of in normal household
waste. Improper battery use may lead to fire, explosion, or other
hazards.
Disposal and recycling information
The crossed-out wheeled-bin symbol on your product, battery, literature or
packaging reminds you that all electronic products and batteries must be
taken to separate waste collection points at the end of their working lives;
they must not be disposed of in the normal waste stream with household
garbage. It is the responsibility of the user to dispose of the equipment
using a designated collection point or service for separate recycling of
waste electrical and electronic equipment (WEEE) and batteries according
to local laws.
华为信息资产
仅供TUV-SUD公司使用
严禁扩散
6
Proper collection and recycling of your equipment helps ensure electrical
and electronic equipment (EEE) waste is recycled in a manner that
conserves valuable materials and protects human health and the
environment, improper handling, accidental breakage, damage, and/or
improper recycling at the end of its life may be harmful for health and
environment. For more information about where and how to drop off your
EEE waste, please contact your local authorities, retailer or household
waste disposal service or visit the website
http://consumer.huawei.com/en/.
Reduction of hazardous substances
This device and its electrical accessories are compliant with local applicable
rules on the restriction of the use of certain hazardous substances in
electrical and electronic equipment, such as EU REACH, RoHS and Batteries
(where included) regulations. For declarations of conformity about REACH
and RoHS, please visit our web site http://consumer.huawei.com/
certification.
EU regulatory conformance
Body worn operation
The device complies with RF specifications when used near your ear or at a
distance of 0.50 cm from your body. Ensure that the device accessories,
such as a device case and device holster, are not composed of metal
components. Keep the device away from your body to meet the distance
requirement.
The highest SAR value reported for this device type when tested at the ear
is 1.80 W/kg, and when properly worn on the body is 1.13 W/kg.
Statement
Hereby, Huawei Technologies Co., Ltd. declares that this device KOB-W09
is in compliance with the essential requirements and other relevant
provisions of Directive 2014/53/EU.
The most recent and valid version of the DoC (Declaration of Conformity)
can be viewed at http://consumer.huawei.com/certification.
This device may be operated in all member states of the EU.
Observe national and local regulations where the device is used.
This device may be restricted for use, depending on the local network.
华为信息资产
仅供TUV-SUD公司使用
严禁扩散
7
Restrictions in the 2.4 GHz band:
Norway
: This subsection does not apply for the geographical area within
a radius of 20 km from the centre of Ny-Ålesund.
Restrictions in the 5 GHz band:
According to Article 10 (10) of Directive 2014/53/EU, the packaging shows
that this radio equipment will be subject to some restrictions when placed
on the market in Belgium (BE), Bulgaria (BG), the Czech Republic (CZ),
Denmark (DK), Germany (DE), Estonia (EE), Ireland (IE), Greece (EL), Spain
(ES), France (FR), Croatia (HR), Italy (IT), Cyprus (CY), Latvia (LV), Lithuania
(LT), Luxembourg (LU), Hungary (HU), Malta (MT), Netherlands (NL), Austria
(AT), Poland (PL), Portugal (PT), Romania (RO), Slovenia (SI), Slovakia (SK),
Finland (FI), Sweden (SE), the United Kingdom (UK), Turkey (TR), Norway
(NO), Switzerland (CH), Iceland (IS), and Liechtenstein (LI).
The WLAN function for this device is restricted to indoor use only when
operating in the 5150 to 5350 MHz frequency range.
Frequency Bands and Power
(a) Frequency bands in which the radio equipment operates: Some bands
may not be available in all countries or all areas. Please contact the local
carrier for more details.
(b) Maximum radio-frequency power transmitted in the frequency bands in
which the radio equipment operates: The maximum power for all bands is
less than the highest limit value specified in the related Harmonized
Standard.
The frequency bands and transmitting power (radiated and/or conducted)
nominal limits applicable to this radio equipment are as follows: Wi-Fi
2.4G: 20dBm, Bluetooth: 20dBm, Wi-Fi 5G: 5150-5350MHz: 23dBm,
5470-5725MHz: 30dBm.
Accessories and Software Information
Some accessories are optional in certain countries or regions. Optional
accessories can be purchased from a licensed vendor as required. The
following accessories are recommended:
Adapters: HW-050100X01 (X represents the different plug types used,
which can be either C, U, J, E, B, A, I, R, Z or K, depending on your region)
Batteries: HB3080G1EBW,HB3080G1EBC
华为信息资产
仅供TUV-SUD公司使用
严禁扩散
8
Earphones: MEMD1532B528000, HA1-3, 1293#+3283# 3.5MM-150
The product software version is KOB-W09:KOB-
W09C100B252CUSTC100D001. Software updates will be released by the
manufacturer to fix bugs or enhance functions after the product has been
released. All software versions released by the manufacturer have been
verified and are still compliant with the related rules.
All RF parameters (for example, frequency range and output power) are not
accessible to the user, and cannot be changed by the user.
For the most recent information about accessories and software, please
see the DoC (Declaration of Conformity) at http://consumer.huawei.com/
certification.
FCC Regulatory Compliance
Certification information (SAR)
This device is also designed to meet the requirements for exposure to radio
waves established by the Federal Communications Commission (USA).
The SAR limit adopted by the USA is 1.6 W/kg averaged over one gram of
tissue. The highest SAR value reported to the FCC for this device type
complies with this limit.
The highest SAR value reported to the FCC for this device type when using
at the ear is 0.72 W/kg, and when properly worn on the body is 1.19 W/kg.
FCC statement
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
华为信息资产
仅供TUV-SUD公司使用
严禁扩散
9
--Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Caution:
Any changes or modifications to this device not expressly
approved by Huawei Technologies Co., Ltd. for compliance could void the
user's authority to operate the equipment.
华为信息资产
仅供TUV-SUD公司使用
严禁扩散
10
Legal Notice
Trademarks and Permissions
, , and are trademarks or registered trademarks
of Huawei Technologies Co., Ltd.
Android™ is a trademark of Google Inc.
The
Bluetooth
®
word mark and logos are registered trademarks owned by
Bluetooth SIG, Inc.
and any use of such marks by Huawei Technologies Co.,
Ltd. is under license.
Wi-Fi
®
, the Wi-Fi CERTIFIED logo, and the Wi-Fi logo are trademarks of Wi-
Fi Alliance.
ENERGY STAR
®
MARK
For information related to ENERGY STAR
®
, please visit the website
www.energystar.gov.
Privacy Policy
To better understand how we protect your personal information, please
see the privacy policy at http://consumer.huawei.com/privacy-policy.
Copyright © Huawei Technologies Co., Ltd. 2018.
All rights reserved.
THIS DOCUMENT IS FOR INFORMATION PURPOSE ONLY, AND DOES NOT
CONSTITUTE ANY KIND OF WARRANTIES.
华为信息资产
仅供TUV-SUD公司使用
严禁扩散
Model: KOB-W09
华为信息资产
仅供TUV-SUD公司使用
严禁扩散
