Thank you for purchasing HUAWEI ME209u-526 LTE LGA
Module (hereinafter referred to as the ME209u-526)
Note:
This manual briefly describes the preparation, the process for PCB Design, Assembly and safety
precautions.
You are recommended to read the manual before using the ME209u-526.
Getting to Know the ME209u-526

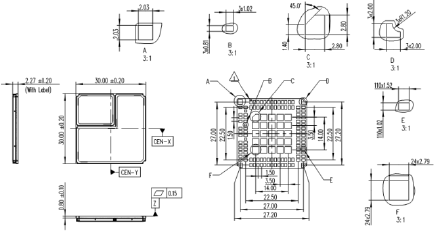

The package of the LGA module is 145 pin LGA with a dimension of 30 mm × 30 mm × 2.4
mm. It is applied to the user interface board, and can be used as a wireless terminal in a
network environment.
2
PCB Design
PCB Pad Design

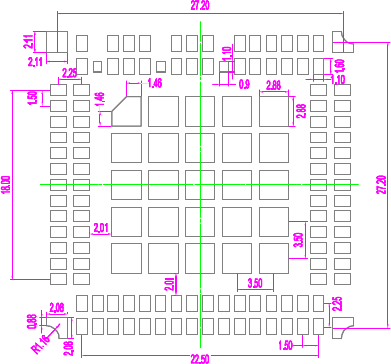

To achieve assembly yields and solder joints of high reliability, it is recommended that the PCB
pad size be designed as follows: the sizes of the solder pads on customers' PCBs are the same
as those of the module's solder pads for the high production efficiency and high reliability of
solder joints. For details, see the following figure:
3
Requirements on PCB Layout
To reduce deformation, a thickness of at least 1.0 mm is recommended.
Other devices must be located more than 3 mm (5 mm recommended) away from the LGA
module. The minimum distance between the LGA module and the PCB edge is 0.5 mm.
When the PCB layout is double sided, it is recommended that the LGA module be placed on
the second side for assembly; so as to avoid module dropped from PCB or component (located
in module) re-melding defects caused by uneven weight.
Design of Solder Mask
The PCB pad design can be solder mask defined (SMD), or non-solder mask defined
(NSMD).NSMD is recommended. In addition, the solder mask of the NSMD pad design is larger
than the pad so the reliability of the solder joint can be improved.
The solder mask must be 100 µm to150 µm larger than the pad, that is, the single side of the
solder mask must be 50 µm to 75 µm larger than the pad. The specific size depends on the
processing capability of the PCB manufacturer.
Assembly
Stencil Design

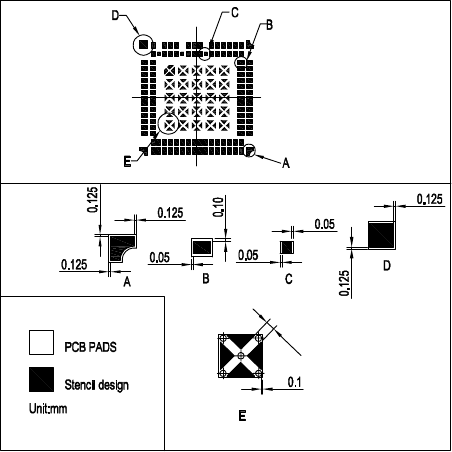

It is recommended that the stencil for the LGA module be 0.15 mm in thickness. For the stencil
design, see the following figure：
4
0.6
5
Reflow Profile

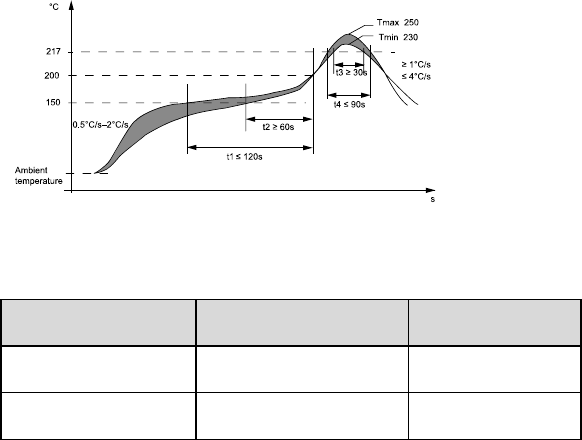

For the soldering temperature of the LGA module, see the following figure.
Reflow profile
Reflow parameters
Temperature Zone
Time
Key Parameter
Preheat zone (40°C–150°C) 60s–120s Heating rate:
0.5°C/s–2°C/s
Soak zone
(150°C–200°C)
(t1–t2): 60s–120s Heating rate: < 1.0°C/s
6
Reflow zone (> 217°C) (t3–t4): 30s–90s Peak reflow temperature:
230°C–250°C
Cooling zone Cooling rate: 1°C/s ≤ Slope ≤ 4°C/s
