Huawei Technologies ME906S-158 LTE Module User Manual English

Huawei Technologies Co.,Ltd LTE Module English

UserManual.pdf

Copyright © Huawei Technologies Co., Ltd. 2015. All rights reserved.
No part of this manual may be reproduced or transmitted in any form or by any means without prior
written consent of Huawei Technologies Co., Ltd. and its affiliates ("Huawei").
The product described in this manual may include copyrighted software of Huawei and possible
licensors. Customers shall not in any manner reproduce, distribute, modify, decompile, disassemble,
decrypt, extract, reverse engineer, lease, assign, or sublicense the said software, unless such
restrictions are prohibited by applicable laws or such actions are approved by respective copyright
holders.
Trademarks and Permissions
, , and are trademarks or registered trademarks of Huawei Technologies Co., Ltd.
LTE is a trade mark of ETSI.
Other trademarks, product, service and company names mentioned may be the property of their
respective owners.
Notice
Some features of the product and its accessories described herein rely on the software installed,
capacities and settings of local network, and therefore may not be activated or may be limited by
local network operators or network service providers.
Thus, the descriptions herein may not exactly match the product or its accessories which you
purchase.
Huawei reserves the right to change or modify any information or specifications contained in this
manual without prior notice and without any liability.
DISCLAIMER
ALL CONTENTS OF THIS MANUAL ARE PROVIDED “AS IS”. EXCEPT AS REQUIRED BY APPLICABLE
LAWS, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT
LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS
MANUAL.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL HUAWEI BE
LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, OR LOSS OF
PROFITS, BUSINESS, REVENUE, DATA, GOODWILL SAVINGS OR ANTICIPATED SAVINGS REGARDLESS
OF WHETHER SUCH LOSSES ARE FORSEEABLE OR NOT.
THE MAXIMUM LIABILITY (THIS LIMITATION SHALL NOT APPLY TO LIABILITY FOR PERSONAL INJURY
TO THE EXTENT APPLICABLE LAW PROHIBITS SUCH A LIMITATION) OF HUAWEI ARISING FROM THE
USE OF THE PRODUCT DESCRIBED IN THIS MANUAL SHALL BE LIMITED TO THE AMOUNT PAID BY
CUSTOMERS FOR THE PURCHASE OF THIS PRODUCT.
Import and Export Regulations
Customers shall comply with all applicable export or import laws and regulations and be responsible
to obtain all necessary governmental permits and licenses in order to export, re-export or import the
product mentioned in this manual including the software and technical data therein.
Privacy Policy
To better understand how we protect your personal information, please see the privacy policy
at http://consumer.huawei.com/privacy-policy.
i
Contents
Getting to Know the ME906s ........................................................................................................... 1
Assembly ........................................................................................................................................... 3
Installation Guide .............................................................................................................................. 4
1
Thank you for purchasing HUAWEI ME906s LTE M.2 Module
(hereinafter referred to as the ME906s)
Note:
This manual briefly describes the preparation, the process for PCB Design, Assembly and safety
precautions.
It is recommended to read the manual before using the ME906s.
Getting to Know the ME906s

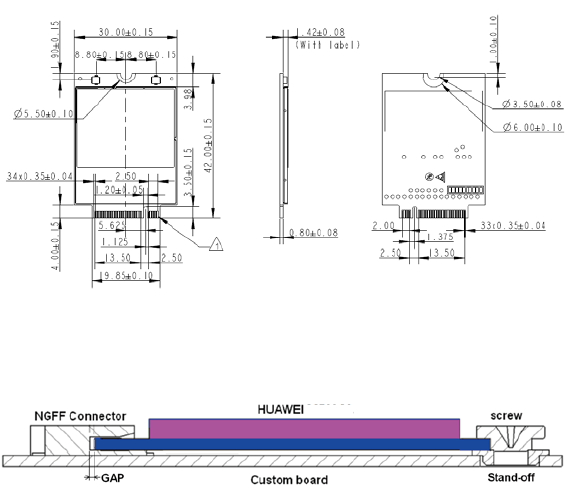

The ME906s module is 75 pin Gold Finger with a dimension of 42 mm × 30 mm × 2.3mm. It is
applied to the user interface board, and can be used as a wireless terminal in a network
environment.
2
Antenna interface
It is used to connect and fix an antenna.
Fixing hole
A screw, metal fastener, and nut are used to fix a ME906s module on a development board through
this fixing hole.
Gold Finger
It is connected to the M.2 connector on the development board.
Note:
In certain cases, your development board may be disassembled only by the professionals.
Before you install the ME906s onto the development board, consult the development board
manufacturer or read the user manual of the development board.
3
Assembly
Through the M.2 connector
ME906s
4
Installation Guide
Installing and Using an ME906s Module
1. Connect an antenna connector to the antenna interface of an ME906s.
Note:
Insert the antenna connectors vertically into the antenna interfaces of the ME906s.
Do not pinch the antenna cable or damage the connectors. Otherwise, the wireless
performance of the ME906s be reduced or the ME906s cannot work normally.
Ensure that the antenna is placed normally.
2. Fasten the golden finger in the ME906s module to a M.2 connector of a development board to
fix the ME906s module on the development board.
3. Place a metal fastener between the ME906s module and the development board. Put a screw
through the fixing hole of the ME906s, metal fastener, and fixing hole of the development
board in sequence. Then fasten a nut on the screw.
4. Insert a UIM card into the UIM card socket in the development board.
Removing an ME906s Module from a Development Board
1. Remove the UIM card from the UIM card socket.
2. Power off
3. Remove the screw on the ME906s module.
4. Remove the ME906s module from the development board.
5. Remove the antenna from the ME906s module.
