Huawei Technologies ME906V ME906V is an LTE Module which supports GSM/GPRS/EDGE850/1900, UMTS850/1900/1700, CDMA BC0, CDMA BC1, LTE Bands 2, 4, 5, 13, 17. User Manual English

Huawei Technologies Co.,Ltd ME906V is an LTE Module which supports GSM/GPRS/EDGE850/1900, UMTS850/1900/1700, CDMA BC0, CDMA BC1, LTE Bands 2, 4, 5, 13, 17. English

Contents

ME906V Module QSG-English

Copyright © Huawei Technologies Co., Ltd. 2012.
All rights reserved.
No part of this document may be reproduced or transmitted in any form or by any means
without prior written consent of Huawei Technologies Co., Ltd.
The product described in this manual may include copyrighted software of Huawei
Technologies Co., Ltd and possible licensors. Customers shall not in any manner reproduce,
distribute, modify, decompile, disassemble, decrypt, extract, reverse engineer, lease, assign,
or sublicense the said software, unless such restrictions are prohibited by applicable laws or
such actions are approved by respective copyright holders under licenses.
Trademarks and Permissions
, , and are trademarks or registered trademarks of Huawei
Technologies Co., Ltd.
Other trademarks, product, service and company names mentioned are the property of their
respective owners.
Notice
Some features of the product and its accessories described herein rely on the software
installed, capacities and settings of local network, and may not be activated or may be
limited by local network operators or network service providers, thus the descriptions herein
may not exactly match the product or its accessories you purchase.
Huawei Technologies Co., Ltd reserves the right to change or modify any information or
specifications contained in this manual without prior notice or obligation.
NO WARRANTY
THE CONTENTS OF THIS MANUAL ARE PROVIDED “AS IS”. EXCEPT AS REQUIRED BY
APPLICABLE LAWS, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED,
INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY,
RELIABILITY OR CONTENTS OF THIS MANUAL.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO CASE SHALL HUAWEI
TECHNOLOGIES CO., LTD BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR
CONSEQUENTIAL DAMAGES, OR LOST PROFITS, BUSINESS, REVENUE, DATA, GOODWILL OR
ANTICIPATED SAVINGS.
Import and Export Regulations
Customers shall comply with all applicable export or import laws and regulations and will
obtain all necessary governmental permits and licenses in order to export, re-export or
import the product mentioned in this manual including the software and technical data
therein.
i
Contents
Getting to Know the ME906V ......................................................................................................................... 1
Assembly................................................................................................................................................................ 4
Installation Guide ................................................................................................................................................ 4
1
Thank you for purchasing HUAWEI ME906V LTE M.2 Module
(hereinafter referred to as the ME906V)
Note:
This manual briefly describes the preparation, the process for PCB Design, Assembly
and safety precautions.
It is recommended to read the manual before using the ME906V.
Getting to Know the ME906V

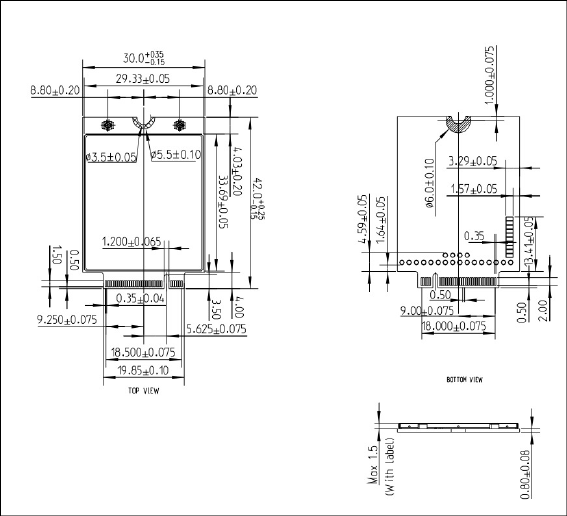

The ME906V module is 75 pin Gold Finger with a dimension of 42 mm × 30 mm ×
2.3mm. It is applied to the user interface board, and can be used as a wireless terminal
in a network environment.
2
Antenna interface
It is used to connect and fix an antenna.
Fixing hole
A screw, metal fastener, and nut are used to fix an ME906V module on a development board
through this fixing hole.
Gold Finger
It is connected to the M.2 connector on the development board.
Note:
In certain cases, your development board may be disassembled only by the
professionals.
Before you install the ME906V onto the development board, consult the development
board manufacturer or read the user manual of the development board.
3
4
Assembly
Through the M.2 connector
Installation Guide
Installing and Using an ME906V Module
1. Connect an antenna connector to the antenna interface of an ME906V.
Note:
Insert the antenna connectors vertically into the antenna interfaces of the ME906V.
Do not pinch the antenna cable or damage the connectors. Otherwise, the wireless
performance of the ME906V be reduced or the ME906V cannot work normally.
Ensure that the antenna is placed normally.
2. Fasten the the gold finger in the ME906V module to a M.2 connector of a development
board to fix the ME906V module on the development board.
3. Place a metal fastener between the ME906V module and the development board. Put a
screw through the fixing hole of the ME906V, metal fastener, and fixing hole of the
development board in sequence. Then fasten a nut on the screw.
4. Insert a UIM card into the UIM card socket in the development board.
5
Removing an ME906V Module from a Development Board
1. Remove the UIM card from the UIM card socket.
2. Power off
3. Remove the screw on the ME906V module.
4. Remove the ME906V module from the development board.
5. Remove the antenna from the ME906V module.
