Huawei Technologies ME919BS-567BN LTE Module User Manual English

Huawei Technologies Co.,Ltd LTE Module English

Contents

InstallationInstructions

Copyright © Huawei Technologies Co., Ltd. 2016.
All rights reserved.
No part of this manual may be reproduced or transmitted in any form or by any means without
prior written consent of Huawei Technologies Co., Ltd. And its affiliates (“Huawei”).
The product described in this manual may include copyrighted software of Huawei and possible
licensors. Customers shall not in any manner reproduce, distribute, modify, decompile,
disassemble, decrypt, extract, reverse engineer, lease, assign, or sublicense the said software,
unless such restrictions are prohibited by applicable laws or such actions are approved by
respective copyright holders.
Trademarks and Permissions
, , and are trademarks or registered trademarks of Huawei Technologies
Co., Ltd.
Other trademarks, product, service and company names mentioned are the property of their
respective owners.
Notice
Some features of the product and its accessories described herein rely on the software installed,
capacities and sett ings of local network, and therefore may not be act ivated or may be limited by
local network operators or network service providers.
Thus, the descriptions herein may not exactly match the product or its accessories which you
purchase. Huawei reserves the right to change or modify any information or specifications
contained in this manual without prior notice and without any liability.
DISCLAIMER
ALL CONTENTS OF THIS MANUAL ARE PROVIDED “AS IS”. EXCEPT AS REQUIRED BY
APPLICABLE LAWS, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED,
INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY,
RELIABILITY OR CONTENTS OF THIS MANUAL.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL HUAWEI BE
LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, OR LOSS
OF PROFITS, BUSINESS, REVENUE, DATA, GOODWILL SAVINGS OR ANTICIPATED SAVINGS
REGARDLESS OF WHETHER SUCH LOSSES ARE FORSEEABLE OR NOT.
THE MAXIMUM LIABILITY (THIS LIMITATION SHALL NOT APPLY TO LIABILITY FOR PERSONAL
INJURY TO THE EXTENT APPLICABLE LAW PROHIBITS SUCH A LIMITATION) OF HUAWEI
ARISING FROM THE USE OF THE PRODUCT DESCRIBED IN THIS MANUAL SHALL BE LIMITED TO
THE AMOUNT PAID BY CUSTOMERS FOR THE PURCHASE OF THIS PRODUCT.
Import and Export Regulations
Customers shall comply with all applicable export or import laws and regulat ions and will obtain
all necessary governmental permits and licenses in order to export, re-export or import the
product mentioned in this manual including the software and technical data therein.
Privacy Policy
To better understand how we protect your personal informat ion, please see the privacy policy at
http://consumer.huawei.com/privacy-policy.
i
Contents
Getting to Know the ME919Bs-567bN ........................................................................................... 1
HUAWEI ME919B LTE LGA Module Development Kit Guide ........................................................... 3
1
Thank you for purchasing HUAWEI ME919Bs-567bN LTE
Module (hereinafter referred to as the ME919Bs-567bN)
Note:
This manual briefly describes the preparat ion, Assembly and safety precautions.
You are recommended to read the manual before using the ME919Bs-567bN

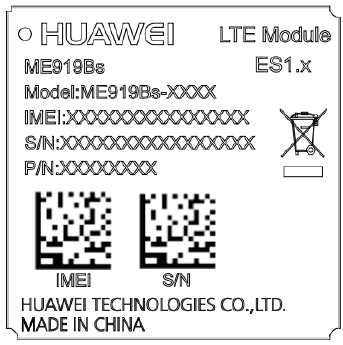

Getting to Know the ME919Bs-567bN

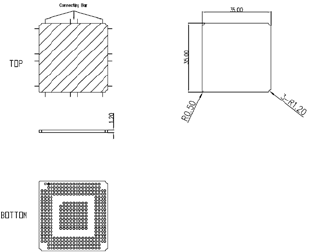

The module is standard LGA interface with a dimension of 35 mm × 35 mm × 1.2 mm. It is applied
to the user interface board, and can be used as a wireless terminal in a network environment.
2
Note:
In certain cases, your development kit may be disassembled only by the professionals.
Before you install the ME919Bs-567bN onto the development kit, read HUAWEI ME919B LTE
LGA Module Development Kit Guide.
3
HUAWEI ME919B LTE LGA Module Development
Kit Guide
1. Overview
1.1 Introduction to DVK
The DVK provides a complete solution based on the module. For designers who adopt the module
in their designs, the DVK facilitates their module-based programming and troubleshoot ing at the
project development stage. The module is welded onto the development board in a manner that is
similar to the surface mounting of chips. The signals output from the module are transferred to the
development board for secondary development.
NOTE:
In the following sect ions, “module” refers to the ME919Bs-567bN LTE LGA module.
1.2 Setting up DVK
This chapter describes how to set up the DVK to ensure that the module can work normally. As
power of the module can be provided from a 12V power adapter or 5V in USB interface, set up
J305’s jumpers in accordance with your power choice. Therefore, there are two powers you can
use in the DVK.
4

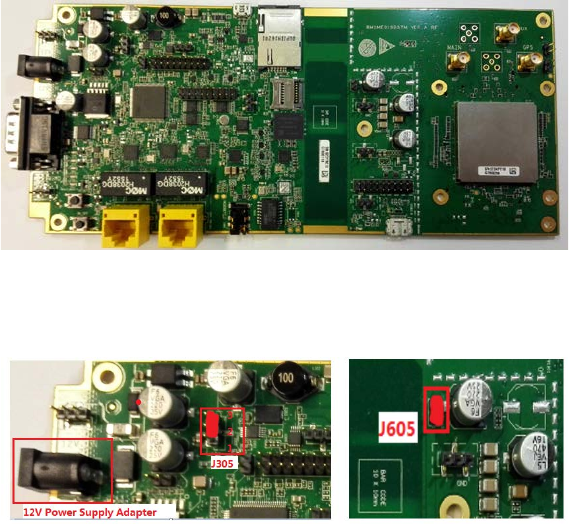

Figure 1 Layout of the DVK(TOP VIEW)
Method 1:
When the power is supplied by a 12V adapter rather than a 5V in USB interface, connect J305’s pin
3 and pin 2, and J605’s pin2 and pin1. The jump wire configurat ion is showed in Figure 2.
Figure 2 12V Power Supply on the DVK
5

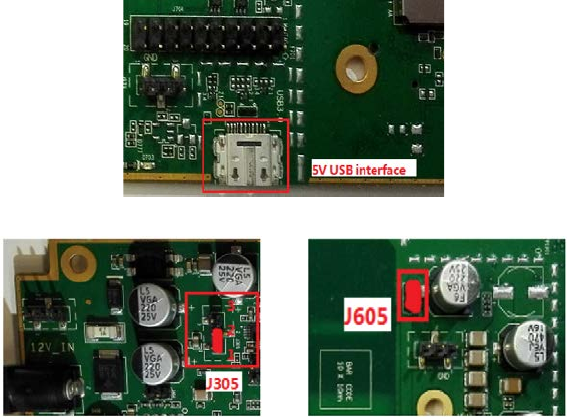

Method 2:
When the power is supplied by a 5V in USB interface rather than a 12V adapter, connect J305’s pin
2 and pin 1, and J605’s pin2 and pin1. The jump wire configuration is shown in Figure 4.
Figure 3 USB Interface
Figure 4 Jump Wire Configuration
6
1.3 Power-up and Turning on the module

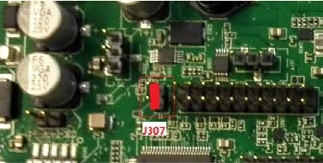

When the MCU on the DVK is power-on, connect J307’s pin2 and pin1 to power the module up.
The jump wire configuration is shown in Figure 5.
Figure 5 J307’s Pins

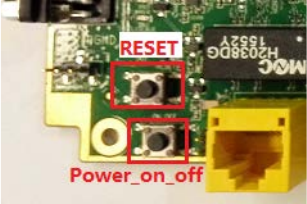

After powering the module up, press and hold the Power_on_off (silk-screen is ON_OFF) button
for more than 0.5s to turn on the module, as is shown in Figure 6.
7
Figure 6 Keys to Turning-on and Reset
