Huawei Technologies ME936 LTE Module User Manual Inari10 Quick Start Guide V1 3
Huawei Technologies Co.,Ltd LTE Module Inari10 Quick Start Guide V1 3
Contents
User manual
Inari 10
Quick Start Guide
Version 1.3
1
Inari features, buttons & interfaces

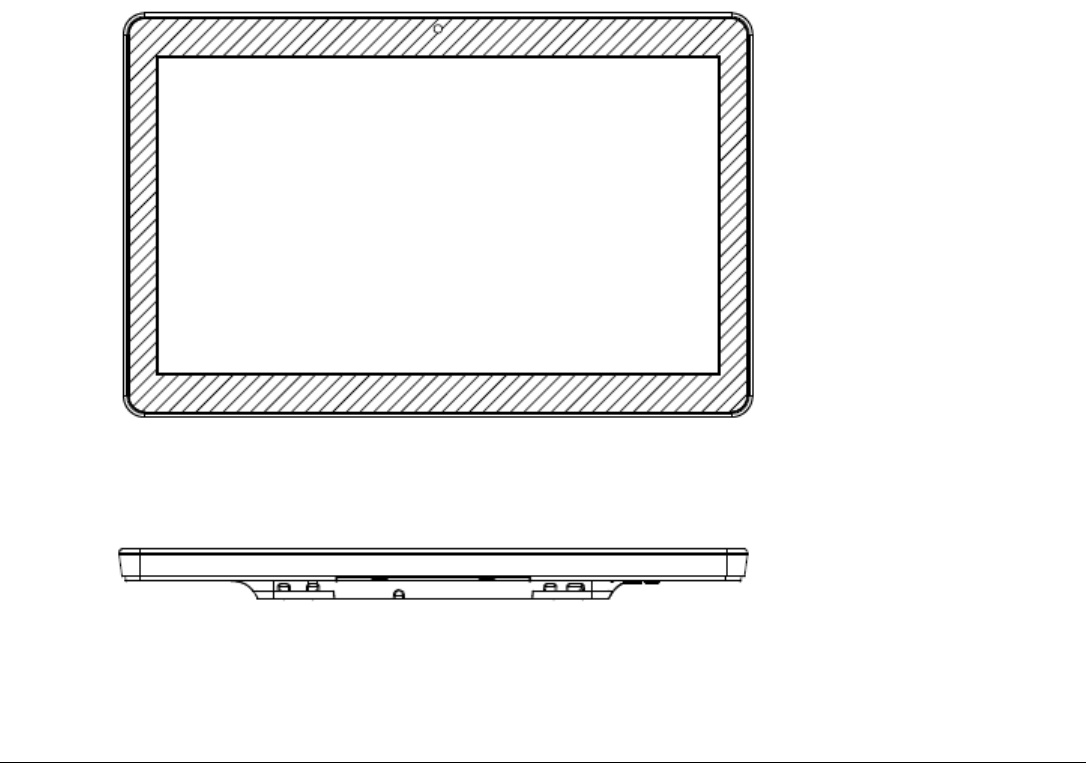

Front
1
Ambient Light Sensor
Recognizes the ambient light and adjusts the display brightness if
enabled in the operating system
2
Front microphone outlet
3
Front camera
2MP camera for video conferencing
4
Camera I
ndicator LED
Lights up if camera is activated and during device boot and
shutdown
5
Charging
indicator LED
OFF not connected to charger
ORANGE charging
GREEN connected and fully charged
RED charge fault
6
Windows Button
Touch it to return to the start menu
1
2
3
4
6
5
2
Top side
7
On / Off Button
Push it once to start the tablet; push it again to enable the sleep
mode. Push and hold it to shut down the device.
8
Volume key
Push the left side to reduce the volume, use the right side to
increase the volume
Right and Bottom side
9
Docking connector
10
MicroSDXC card slot
11
MicroUSB interface
For charging only!
12
USB 2.0 port
13
Audio jack
combined microphone & speaker connector
14
Stereo speakers
(on the sides)
7
8
9
10
11
12
1
3
1
4
3
Rear view
15
NFC antenna position
Can be used to read NFC & RFID tags
16
Rear microphone outlet
17
Camera flash LED
18
Rear camera
8MP camera for high resolution images & video
19
Mechanical fixing points behind covers
20
Battery lid
1
5
16
17
18
19
20
4
Replacing Battery / Adding SIM card
To replace the battery, take of the battery lid by pulling on the lid carefully.
Pull on the battery holder hook (1) to the bottom of the device. Pull the
battery up (2), and pull on the second battery holder hook (3).
Enter the SIM card into the slot in the bottom right corner. Please make sure
you have the SIM card in the correct direction (chip facing down).
When putting the battery back in place, please make sure both hooks have
clicked and are safely secured.
5
Using the Tablet for the first time
1. Connect power supply for the first time and make sure battery is fully
charged before disconnecting.
2. Press the power button
3. Follow the instructions in the operating system to complete the setup
6
Troubleshooting
In case devices freeze s and you need to do a hard reset, p ress and hold t he power button fo r approx. 14 se conds. Device
will be turned off no w.
Important Product and Safety information
• Do not drop, bend or twist your tablet. This c an break tablet displa y glass, inter nal circuit boar ds or mechanics. If
the glass breaks, do not touch the g lass parts of the de vice or attempt to re move the broken glass from the device.
Stop using the device u ntil the glass is re placed by qual ified service perso nnel.
• Do not try to disasse mbly your tablet. T his may damage t he device.
• Operate your device i n a place where temperature is be tween -10°C an d +50°C.
• Store your device in a place where te mperature is between -20°C a nd +60°C.
• Protect your device fro m water an d moisture intake. Kee p connector doors closed when not in use to prevent
water and moisture i ntake.
• Listen to a headset at a moderate leve l, and do not p lace the device loudspeaker outlets nea r your ear whe n the
loudspeakers are in use.
• Use only soft, clean a nd dry lint-free c loth to clean yo ur device.
• Keep the unit and acce ssories away fro m small chi ldren.
• Switch off your device before boardin g to an aircraft.
• Switch off your device in any area with a potentially e xplosive atmosphere.
• Your device meets g uidelines for ex posure to radio waves (SAR, Specific Absor ption Rate).
• Use only charger de livered with your tablet.
• Do not disconnect cha rger by pulling t he cord.
• Do not use damage d power cords or plugs.
• Do not use Nano-to-M icro SIM card a dapters.
• Save energy. You ca n save energy by doing following.
o Close unused applica tions and data c onnections.
o Decrease scree n brightness and sound volume.
o Deactivate unnecessar y sounds like to uch panel sound.
o Disconnect your char ger from mains outlet when charger is not neede d.
o Do no keep unneces sary accesso ries connected in your de vice.
• Recycle. Return your used electronic units to dedicate d collection poi nts. Please note that your tablet has a battery,
so it is not allowed to be disposed to normal ho usehold waste a nd battery requires s eparate recycl ing.
• Battery safety
o Batteries have life c ycles. If the time that the bat tery powers equipme nt becomes m uch shorter tha n
usual, the battery life might be at t he end.
o Stop using the ta blet if abnormal hea t, order, discolorat ion, deformation , or abnormal co ndition is
detected during use , charge, or stora ge.
o Keep the device a way from heat (bat tery temperature not to exceed 60°C) .
o Do not throw batter y into fire, it may be exploded.
o Do not soak the ba ttery with liquid like water, tea, cof fee etc.
o Do not hit, bend, deform or drop the ba ttery.
o Do not pierce batter y with a sharp o bject such as a needle, etc.
o The battery should not have liquid from e lectrolyte flo wing, but in cas e the electrolyt e come into
contact with eyes, do n’t rub your eyes. Wa sh your eyes well with clean wa ter and go t o see a doctor
immediately. In case the electrolyte c ome into contact with your skin, wash it well with clea n water.
o Do not externally s hort-circuit the bat tery. If exter nally short-circ uited, the battery may be heated,
ignited or broke n.
Warning Statements
To prevent possible h earing damage , do not listen at high volume leve ls for long peri ods.
7
WLAN 802.11 a/n bands are allowed for indoor use o nly.
8
EU Declaration of Conformity
Hereby, Aava Mobile declares that this device is i n compliance with the essential re quirements and ot her relevant
provisions of Direc tive 1999/5/EC.
FCC Compliance Statement
15.21
You are cautioned that changes or mo difications not e xpressly ap proved by the pa rt responsible for co mpliance c ould
void the user’s authori ty to operate t he equipmen t.
15.105(b)
This equipment has been tested and fou nd to comp ly with the li mits for a Class B digital device, pursua nt to part 15 of the
FCC rules. These limi ts are designed to provide reasona ble protection aga inst harmful interfere nce in a reside ntial
installation. This equ ipment generates , uses and ca n radiate radio freq uency energy a nd, if not instal led and used in
accordance with the instructions, may ca use harmfu l interference to radio comm unications. However, there is no
guarantee that inte rference will not o ccur in a particu lar installation. If this equipment does ca use harmfu l interference to
radio or television rece ption, which can be determined by turning the eq uipment off and on, t he user is encou raged to try
to correct the interfe rence by one or more of the followi ng measures:
• Reorient or reloca te the receiving an tenna.
• Increase the separatio n between the e quipment a nd receiver.
• Connect the equipme nt into an ou tlet on a circuit differe nt from that to which the rece iver is connected.
• Consult the dealer or a n experience d radio/TV technicia n for help.

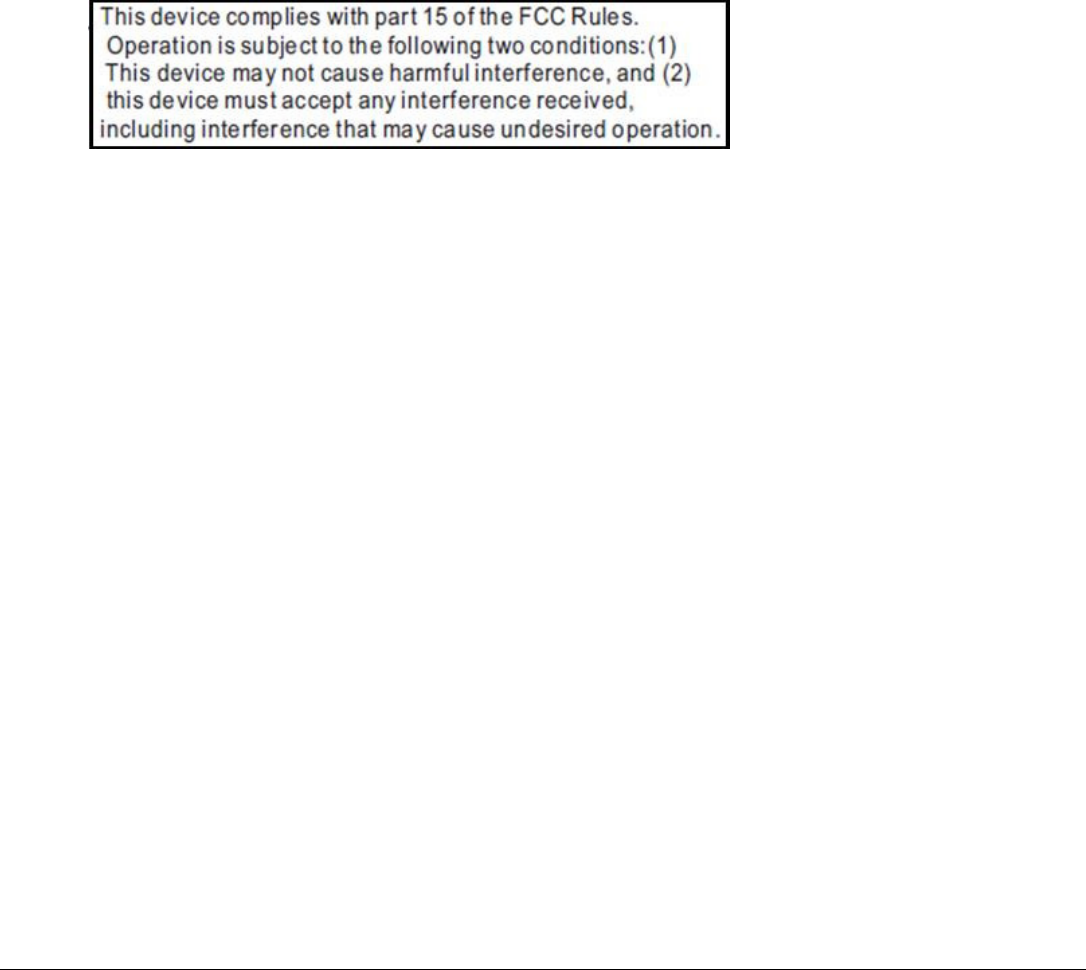

This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions:
1. this device may not cause harmful in terference and
2. this device must acc ept any interference received , including interfere nce that may ca use undesired operat ion
of the device.
Canadian Compliance Statement
This Class B digital ap paratus complies with Canadian IC ES-003.
Cet appareil numérique de classe B est conforme à la norme NMB-003.
This device complies with Industry Canada licence-exempt RSS standard(s). Operati on is subject to the fol lowing two
conditions: (1) this de vice may not ca use interfere nce, and (2) this dev ice must accep t any interference, including
interference that may cause undesired o peration of t he device.
Cet appareil est conforme avec Industrie Canada RSS standard exempts de licence(s). Son fonctionnement est soumis aux
deux conditions suivantes: (1) cet appareil ne peut pas provoquer d'interférences et (2) cet appareil doit accepter toute
interférence, y compris les interférences pouvant entraîner un mauvais fonctionnement de la appareil.
For Local Area Net operation (RSS-210 A9.4 sections (6-7)):
(1) the device for ope ration in the ban d 5150-5250 M Hz is only for indoor use to reduc e the potential for har mful
interference to co-c hannel mobile sa tellite systems;
(2) high-power ra dars are allocated as primary users ( i.e. priority users) of the bands 5250-5350 MHz a nd 5650-5850 M Hz
and that these radars could cause interfer ence an d/or damage to L E-LAN devices
(1) les dispositifs fonctionnant dans la bande 5 150-5 250 MHz sont réservés uniquement pour une utilisation à l'intérieur
afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux;
(2) De plus, les utilisateurs devraient aussi être avisés que les utilisateurs de radars de haute puissance sont désignés
utilisateurs principaux (c.-à-d., qu'ils ont la priorité) pour les bandes 5 250-5 350 MHz et 5 650-5 850 MHz et que ces
radars pourraient causer du brouillage et/ou des dommages aux dispositifs LAN-EL.
