User Manual
Quick Start Guide
MateHUAWEI
1
Getting to know your phone
Welcome to the brand new world of your HUAWEI Ascend
Mate smartphone! Before we begin, let's take a quick look at
Mate and its external features.
Micro USB port
Microphone
Power button
Volume button
HD screen
microSD card
tray
Status
indicator
Earpiece Proximity
sensor
Front camera
Headset jack
Micro-SIM
card tray
Noise reduction
microphone
2

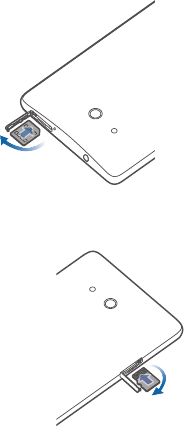

Installing the micro-SIM and microSD
cards
Only micro-SIM cards are compatible with your Mate. To
purchase or replace a micro-SIM card, contact your service
provider. Refer to the following gure to install a micro-SIM
card.
Your Mate supports Class 10 microSD cards. Refer to the
following gure to install a microSD card.
After you complete these steps, you are ready to use Mate.
Press and hold the power button for a few seconds until Mate
vibrates to power it on.
3
Using the buttons
From any screen, you can:
• Touch to return to the previous screen or close the
current application if there are no previous screens.
• Touch to return to the home screen.
• Touch to display recently used applications.
• Under , you can enable or disable the hide navigation bar
function. When the function is enabled, touch to hide the
navigation bar and ick up from the bottom of the screen to
display it.
• Press the power button once to turn the screen on or off.
Press and hold the power button for 10 seconds or more to
restart your phone.
• Press the power and volume down buttons at the same time
to take a screenshot.
Recent
Return
Hide
Home
Volume button
Power button
4
Turning on glove mode
Touch to access Settings.
Turn on gloves mode, you can then perform touchscreen
operations wearing gloves.
Touch to turn on
gloves mode
5
Performing one-handed operations
Touch to access Settings.
Touch One-handed operations and select all options. You can
then move the keypad and other enabled items to one side of the
screen for easier one-handed use
.
Select the
options
6
Displaying suspend windows
Touch to access Settings. Turn on Suspend button.
A suspend button is then displayed on all screens. Touch the
button to display the icons for preset applications. After you open
these applications, they will be displayed as suspend windows
so that you can switch between them while staying on the same
screen
.
Turn on the
suspend
button
Touch to
hide the
applications
7

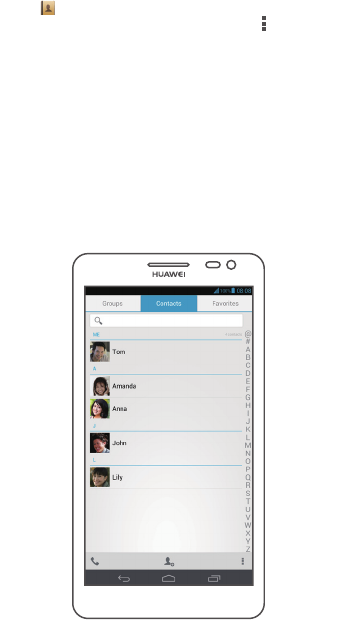

Managing contacts
Touch to access People.
If you are using your Mate for the rst time, tap > Manage
contacts to import contacts from a storage device to the phone.
Touch the Groups tab to group your contacts for easier
management.
8

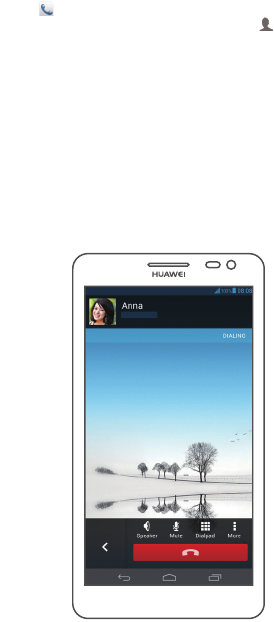

Making a call
Touch to access Phone.
Dial the phone number you wish to call or touch to
choose someone from your contacts.
You can also dial a phone number directly from a message,
email, or web page by simply touching the number.
9
Taking a photo
Touch to access Camera.
Your Mate features a BSI HD camera that lets you take photos
in several modes, such as panoramic, beauty, and group.
To capture your most attractive smiles, your Mate provides face
detection.
The camera automatically focuses on certain objects. To focus
on a particular object, touch it on the viewnder. Then, touch
to take a photo.
Open the settings menu View your photos
10
Recording a video
Touch to access Camera, and switch to video mode.
Recording in 1080p full HD means stunning image quality and
smooth video shots. Touch to begin recording.
Open the settings menu View your videos
Switch between photo and video modes
11
Viewing photos
Touch to access Gallery.
Browse photos you have taken and relive those perfect moments.
To play your photos in a slideshow, choose an album and
touch .
To edit a photo, touch > Edit. You can then crop it, adjust
its color, apply lters to it, and more.
Edit photos
12

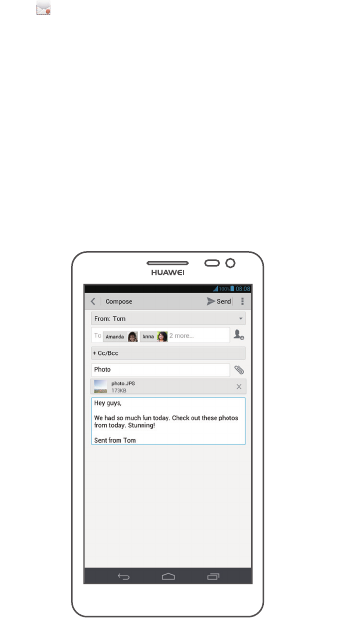

Sending an email
Touch to access Email.
Once you have set up your email accounts, you will be able to
stay connected while on the go.
13

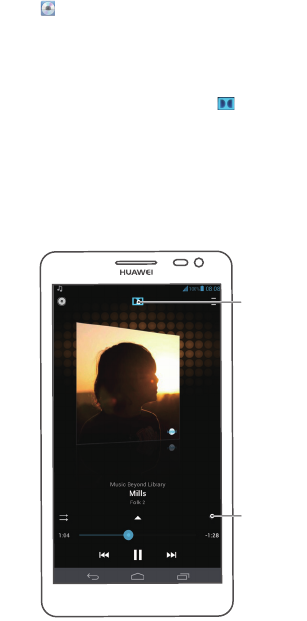

Listening to music
Touch to access Music.
Your Mate features Dolby Digital Plus, which produces superior
surround sound through the stereo earphones provided.
It makes high-pitched sounds clearer and low-pitched sounds
more natural. In addition, the speaker is optimized to provide
you with a supreme audio experience.
To turn on Dolby surround sound, touch .
Play your songs by name, artist, or album, and mark your
favorite songs to add them to the Favorites list.
Turn Dolby
surround sound
on or off
Mark the current
song as a favorite
and add it to your
Favorites playlist
14
More information
Require additional assistance?
Touch on your Mate to open Help Center.
Want to read the full user guide?
Visit www.huaweidevice.com/worldwide to download the
HUAWEI Ascend Mate user guide.
Your phone supports fast charging, which requires the provided
power adapter and USB cable. Using other power adapters or
USB cables may cause repeated restarts, extended charging
time, excessive heat, device damage, or in extreme cases, an
explosion.
Note: Do not use the power adapter, headset, USB cable, and
other accessories in dusty, damp, or dirty environments. Avoid
magnetic elds. If you accidentally expose your phone to water,
use a soft cloth to wipe the water off. Make sure your phone is
dry before you begin using it.
15
Legal Notice
Copyright © Huawei Technologies Co., Ltd. 2013.
All rights reserved.
No part of this manual may be reproduced or transmitted in
any form or by any means without prior written consent of
Huawei Technologies Co., Ltd. and its affiliates ("Huawei").
The product described in this manual may include
copyrighted software of Huawei and possible licensors.
Customers shall not in any manner reproduce, distribute,
modify, decompile, disassemble, decrypt, extract, reverse
engineer, lease, assign, or sublicense the said software,
unless such restrictions are prohibited by applicable laws or
such actions are approved by respective copyright holders.
Trademarks and Permissions
, , and are trademarks or registered
trademarks of Huawei Technologies Co., Ltd.
Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are registered trademarks
of Dolby Laboratories.
Android™ is a trademark of Google Inc.
The Bluetooth® word mark and logos are registered
trademarks owned by Bluetooth SIG, Inc. and any use of
such marks by Huawei Technologies Co., Ltd. is under
license.
Other trademarks, product, service and company names
mentioned may be the property of their respective owners.
Notice
Some features of the product and its accessories described
herein rely on the software installed, capacities and settings
of local network, and therefore may not be activated or may
16
be limited by local network operators or network service
providers.
Thus, the descriptions herein may not exactly match the
product or its accessories which you purchase.
Huawei reserves the right to change or modify any
information or specifications contained in this manual
without prior notice and without any liability.
Third-Party Software Statement
Huawei does not own the intellectual property of the third-
party software and applications that are delivered with this
product. Therefore, Huawei will not provide any warranty of
any kind for third party software and applications. Neither
will Huawei provide support to customers who use third-
party software and applications, nor be responsible or liable
for the functions or performance of third-party software and
applications.
Third-party software and applications services may be
interrupted or terminated at any time, and Huawei does not
guarantee the availability of any content or service. Third-
party service providers provide content and services
through network or transmission tools outside of the control
of Huawei. To the greatest extent permitted by applicable
law, it is explicitly stated that Huawei shall not compensate
or be liable for services provided by third-party service
providers, or the interruption or termination of third-party
contents or services.
Huawei shall not be responsible for the legality, quality, or
any other aspects of any software installed on this product,
or for any uploaded or downloaded third-party works in any
form, including but not limited to texts, images, videos, or
software etc. Customers shall bear the risk for any and all
effects, including incompatibility between the software and
this product, which result from installing software or
uploading or downloading the third-party works.
17
This product is based on the open-source Android™
platform. Huawei has made necessary changes to the
platform. Therefore, this product may not support all the
functions that are supported by the standard Android
platform or may be incompatible with third-party software.
Huawei does not provide any warranty or representation in
connect with any such compatibility and expressly excludes
all liability in connection with such matters.
DISCLAIMER
ALL CONTENTS OF THIS MANUAL ARE PROVIDED “AS
IS”. EXCEPT AS REQUIRED BY APPLICABLE LAWS, NO
WARRANTIES OF ANY KIND, EITHER EXPRESS OR
IMPLIED, INCLUDING BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN
RELATION TO THE ACCURACY, RELIABILITY OR
CONTENTS OF THIS MANUAL.
TO THE MAXIMUM EXTENT PERMITTED BY
APPLICABLE LAW, IN NO EVENT SHALL HUAWEI BE
LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR
CONSEQUENTIAL DAMAGES, OR LOSS OF PROFITS,
BUSINESS, REVENUE, DATA, GOODWILL SAVINGS OR
ANTICIPATED SAVINGS REGARDLESS OF WHETHER
SUCH LOSSES ARE FORSEEABLE OR NOT.
THE MAXIMUM LIABILITY (THIS LIMITATION SHALL
NOT APPLY TO LIABILITY FOR PERSONAL INJURY TO
THE EXTENT APPLICABLE LAW PROHIBITS SUCH A
LIMITATION) OF HUAWEI ARISING FROM THE USE OF
THE PRODUCT DESCRIBED IN THIS MANUAL SHALL
BE LIMITED TO THE AMOUNT PAID BY CUSTOMERS
FOR THE PURCHASE OF THIS PRODUCT.
Import and Export Regulations
Customers shall comply with all applicable export or import
laws and regulations and be responsible to obtain all
18
necessary governmental permits and licenses in order to
export, re-export or import the product mentioned in this
manual including the software and technical data therein.
Privacy Policy
Please refer to our privacy policy on our websites for the
information about how we protect your personal
information.
Personal Information and Data Security
The use of some functions or third-party applications on
your device could result in your personal information and
data being lost or becoming accessible to others. Several
measures are recommended to help you protect personal
and confidential information.
• Place your device in a safe area to prevent it from
unauthorized use.
• Set your device screen to lock and create a password or
unlock pattern to open it.
• Periodically back up personal information kept on your
SIM/UIM card, memory card, or stored in your device
memory. If you change to a different device, be sure to
move or delete any personal information on your old
device.
• If you are worried about viruses when you receive
messages or emails from a stranger, you can delete them
without opening them.
• If you use your device to browse the Internet, avoid
websites that might pose a security risk to avoid theft of
your personal information.
• If you use services such as Wi-Fi tether or Bluetooth, set
passwords for these services to prevent unauthorized
access. When these services are not in use, turn them off.
• Install or upgrade device security software and regularly
scan for viruses.
• Be sure to obtain third-party applications from a legitimate
source. Downloaded third-party applications should be
scanned for viruses.
19
• Install security software or patches released by Huawei or
third-party application providers.
• Some applications require and transmit location
information. As a result, a third-party may be able to share
your location information.
• Your device may provide detection and diagnostic
information to third-party application providers. Third party
vendors use this information to improve their products and
services.
• If you have concerns about the security of your personal
information and data, please contact
mobile@huawei.com.
Safety information
This section contains important information about the operation of
your device. It also contains information about how to use the
device safely. Read this information carefully before using your
device.
Electronic device
Do not use your device if using the device is prohibited. Do
not use the device if doing so causes danger or
interference with other electronic devices.
Interference with medical equipment
• Follow rules and regulations set forth by hospitals and
health care facilities. Do not use your device where
prohibited.
• Some wireless devices may affect the performance of
hearing aids or pacemakers. Consult your service
provider for more information.
• Pacemaker manufacturers recommend that a minimum
distance of 15 cm be maintained between a device and a
pacemaker to prevent potential interference with the
pacemaker. If using a pacemaker, hold the device on the
side opposite the pacemaker and do not carry the device
in your front pocket.
20
Protecting your hearing when using a headset
• To prevent possible hearing damage, do not listen
at high volume levels for long periods.
• Using a headset at high volumes may damage your
hearing. To reduce this risk, lower the headset volume to a
safe and comfortable level.
• Exposure to high volumes while driving may cause
distraction and increase your risk of an accident.
Areas with flammables and explosives
• Do not use the device where flammables or explosives are
stored (in a gas station, oil depot, or chemical plant, for
example). Using your device in these environments
increases the risk of explosion or fire. In addition, follow
the instructions indicated in text or symbols.
• Do not store or transport the device in containers with
flammable liquids, gases, or explosives.
Traffic security
• Observe local laws and regulations while using the device.
To reduce the risk of accidents, do not use your wireless
device while driving.
• Concentrate on driving. Your first responsibility is to drive
safely.
• Do not hold the device while driving. Use hands-free
accessories.
• When you must make or answer a call, pull of the road
safely and park the vehicle first.
• RF signals may affect the electronic systems of motor
vehicles. For more information, consult the vehicle
manufacturer.
• Do not place the device over the air bag or in the air bag
deployment area in a motor vehicle. Doing so may hurt
you because of the strong force when the air bag inflates.
• Do not use your device while flying in an aircraft or
immediately before boarding. Using wireless devices in an
21
aircraft may disrupt wireless networks, present a hazard to
aircraft operation, or be illegal.
Operating environment
• Avoid dusty, damp, or dirty environments. Avoid magnetic
fields. Using the device in these environments may result
in circuit malfunctions.
• Do not use your device during thunderstorms to protect
your device against any danger caused by lightning.
• Ideal operating temperatures are
–10 °C to 35 °C. Ideal storage
temperatures are –10 °C to 55
°C. Extreme heat or cold may
damage your device or accessories.
• Do not expose your device to direct sunlight (such as on a
car dashboard) for prolonged periods.
• To protect your device or accessories from fire or electrical
shock hazards, avoid rain and moisture.
• Keep the device away from sources of heat and fire, such
as a heater, microwave oven, stove, water heater,
radiator, or candle.
• Do not place sharp metal objects, such as pins, near the
earpiece or speaker. The earpiece may attract these
objects and result in injury.
• Stop using your device or applications for a while if the
device is overheated. If skin is exposed to an overheated
device for an extended period, low temperature burn
symptoms, such as red spots and darker pigmentation,
may occur.
• Do not use your device's camera flash directly in the eyes
of people or pets. Otherwise temporary loss of vision or
damage to the eyes may occur.
• Do not touch the device's antenna. Otherwise,
communication quality may be reduced.
• Do not allow children or pets to bite or suck the device or
accessories. Doing so may result in damage or explosion.
• Observe local laws and regulations, and respect the
privacy and legal rights of others.
22
Child's safety
• Comply with all precautions with regard to child's safety.
Letting children play with the device or its accessories may
be dangerous. The device includes detachable parts that
may present a choking hazard. Keep away from children.
• The device and its accessories are not intended for use by
children. Children should only use the device with adult
supervision.
Accessories
• Using an unapproved or incompatible power adapter,
charger or battery may cause fire, explosion or other
hazards.
• Choose only accessories approved for use with this model
by the device manufacturer. The use of any other types of
accessories may void the warranty, may violate local
regulations and laws, and may be dangerous. Please
contact your retailer for information about the availability of
approved accessories in your area.
Charger safety
• For pluggable devices, the socket-outlet shall be installed
near the devices and shall be easily accessible.
• Unplug the charger from electrical outlets and the device
when not in use.
• Do not drop or cause an impact to the charger.
• If the power cable is damaged (for example, the cord is
exposed or broken), or the plug loosens, stop using it at
once. Continued use may lead to electric shocks, short
circuits, or fire.
• Do not touch the power cord with wet hands or pull the
power cord to disconnect the charger.
• Do not touch the device or the charger with wet hands.
Doing so may lead to short circuits, malfunctions, or
electric shocks.
• If your charger has been exposed to water, other liquids,
or excessive moisture, take it to an authorized service
center for inspection.
23
• Ensure that the charger meets the requirements of Clause
2.5 in IEC60950-1/EN60950-1 and has been tested and
approved according to national or local standards.
• Connect the device only to products with the USB-IF logo
or with USB-IF compliance program completion.
Battery safety
• Do not connect battery poles with conductors, such as
keys, jewelry, or other metal materials. Doing so may
short-circuit the battery and cause injuries or burns.
• Keep the battery away from excessive heat and direct
sunlight. Do not place it on or in heating devices, such as
microwave ovens, stoves, or radiators. Batteries may
explode if overheated.
• Do not attempt to modify or remanufacture the battery,
insert foreign objects into it, or immerse or expose it to
water or other liquids. Doing so may lead to fire, explosion,
or other hazards.
• If the battery leaks, ensure that the electrolyte does not
make direct contact with your skins or eyes. If the
electrolyte touches your skins or splashes into your eyes,
immediately flush with clean water and consult a doctor.
• In case of battery deformation, color change, or
overheating while charging or storing, immediately stop
using the device and remove the battery. Continued use
may lead to battery leakage, fire, or explosion.
• Do not put batteries in fire as they may explode. Damaged
batteries may also explode.
• Dispose of used batteries in accordance with local
regulations. Improper battery use may lead to fire,
explosion, or other hazards.
• Do not allow children or pets to bite or suck the battery.
Doing so may result in damage or explosion.
• Do not smash or pierce the battery, or expose it to high
external pressure. Doing so may lead to a short circuit or
overheating.
• Do not drop the device or battery. If the device or battery is
dropped, especially on a hard surface, and may be
damaged.
24
• If the device standby time shortens significantly, replace
the battery.
• The device has a built-in, non-removable battery. Do not
attempt to remove the battery, otherwise the device may
be damaged. To replace the battery, take the device to an
authorized service center.
Cleaning and maintenance
• Keep the device and accessories dry. Do not attempt to
dry it with an external heat source, such as a microwave
oven or hair dryer.
• Do not expose your device or accessories to extreme heat
or cold. These environments may interfere with proper
function and may lead to fire or explosion.
• Avoid collision, which may lead to device malfunctions,
overheating, fire, or explosion.
• Before you clean or maintain the device, stop using it, stop
all applications, and disconnect all cables connected to it.
• Do not use any chemical detergent, powder, or other
chemical agents (such as alcohol and benzene) to clean
the device or accessories. These substances may cause
damage to parts or present a fire hazard. Use a clean,
soft, and dry cloth to clean the device and accessories.
• Do not place magnetic stripe cards, such as credit cards
and phone cards, near the device for extended periods of
time. Otherwise the magnetic stripe cards may be
damaged.
• Do not dismantle or remanufacture the device and its
accessories. This voids the warranty and releases the
manufacturer from liability for damage. In case of damage,
contact an authorized service center for assistance or
repair.
• If the device screen is broken in a collision, immediately
stop using the device. Do not touch or attempt to remove
the broken parts. Promptly contact an authorized service
center.
25
Emergency calls
The availability of emergency calls is subject to your cellular
network quality, service provider policy, and local laws and
regulations. Never rely solely on your device for critical
communications like medical emergencies.
Environmental protection
• The device and its accessories (if included), such as the
power adapter, headset, and battery should not be
disposed of with household garbage.
• Disposal of the device and its accessories is subject to
local regulations. Support proper collection and recycling.
Disposal and recycling information
This symbol (with or without a solid bar) on the
device, batteries (if included), and/or the
packaging, indicates that the device and its
electrical accessories (for example, a headset,
adapter, or cable) and batteries should not be
disposed of as household garbage. These items
should not be disposed of as unsorted municipal waste and
should be taken to a certified collection point for recycling or
proper disposal.
For more detailed information about device or battery
recycling, contact your local city office, household waste
disposal service, or retail store.
Disposal of the device and batteries (if included) is subject
to WEEE Directive Recast (Directive 2012/19/EU) and
Battery Directive (Directive 2006/66/EC). The purpose of
separating WEEE and batteries from other waste is to
minimize the potential environmental impacts and human
health risk of any hazardous substances that may be
present.
26
Reduction of hazardous substances
This device is compliant with the REACH Regulation
[Regulation (EC) No 1907/2006] and RoHS Directive
Recast (Directive 2011/65/EU). Batteries (if included) are
compliant with the Battery Directive (Directive 2006/66/EC).
For up-to-date information about REACH and RoHS
compliance, please visit the web site
www.huaweidevice.com/certification.
EU regulatory conformance
Body worn operation
The device complies with RF specifications when used
near your ear or at a distance of 1.5 cm from your body.
Ensure that the device accessories, such as a device case
and device holster, are not composed of metal components.
Keep the device away from your body to meet the distance
requirement.
Certification information (SAR)
This device meets guidelines for exposure to radio waves.
Your device is a low-power radio transmitter and receiver.
As recommended by international guidelines, the device is
designed not to exceed the limits for exposure to radio
waves. These guidelines were developed by the
International Commission on Non-Ionizing Radiation
Protection (ICNIRP), an independent scientific
organization, and include safety measures designed to
ensure the safety of all users, regardless of age and health.
The Specific Absorption Rate (SAR) is the unit of
measurement for the amount of radio frequency energy
absorbed by the body when using a device. The SAR value
is determined at the highest certified power level in
laboratory conditions, but the actual SAR level during
operation can be well below the value. This is because the
27
device is designed to use the minimum power required to
reach the network.
The SAR limit adopted by Europe is 2.0 W/kg averaged
over 10 grams of tissue, and the highest SAR value for this
device complies with this limit.
The highest SAR value reported for this device type when
tested at the ear is 0.247 W/kg, and when properly worn on
the body is 0.256 W/kg.
Statement
Hereby, Huawei Technologies Co., Ltd. declares that this
device is in compliance with the essential requirements and
other relevant provisions of Directive 1999/5/EC.
For the declaration of conformity, visit the web site
www.huaweidevice.com/certification.
The following marking is included in the product:
This device may be operated in all member states of the
EU.
Observe national and local regulations where the device is
used.
This device may be restricted for use, depending on the
local network.
Restrictions in the 2.4 GHz band:
Norway: This subsection does not apply for the
geographical area within a radius of 20 km from the centre
of Ny-Ålesund.
Restrictions in the 5 GHz band:
WLAN function of this device is restricted only to indoor use
when operating in the 5150 to 5350 MHz frequency range.
0168
28
FCC Regulatory Compliance
Body worn operation
The device complies with RF specifications when used
near your ear or at a distance of 1.0 cm from your body.
Ensure that the device accessories, such as a device case
and device holster, are not composed of metal components.
Keep the device away from your body to meet the distance
requirement.
Certification information (SAR)
This device is also designed to meet the requirements for
exposure to radio waves established by the Federal
Communications Commission (USA).
The SAR limit adopted by the USA is 1.6 W/kg averaged
over one gram of tissue. The highest SAR value reported to
the FCC for this device type complies with this limit.
The highest SAR value reported to the FCC for this device
type when using at the ear is 0.46 W/kg, and when properly
worn on the body is 1.49 W/kg, and when using the Wi-Fi
hotspot function is 1.49 W/Kg.
FCC statement
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause
harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more
of the following measures:
--Reorient or relocate the receiving antenna.
29
--Increase the separation between the equipment and
receiver.
--Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician
for help.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.
Caution: Any changes or modifications to this device not
expressly approved by Huawei Technologies Co., Ltd. for
compliance could void the user's authority to operate the
equipment.
Restrictions in the 5 GHz band:
Within the 5.15 to 5.25 GHz band, UNII devices will be
restricted to indoor operations to reduce any potential for
harmful interference to co-channel Mobile Satellite System
(MSS) operations.
All pictures and illustrations in this guide, including but not
limited to the phone color, size, and display content, are for
reference only. The actual product may vary. Nothing in this
guide constitutes a warranty of any kind, express or implied.
For more information, please visit www.huaweidevice.com/
worldwide.
Model: HUAWEI MT1-U06
31010MD F_01
